前言
上一篇我们具体分析了系统处于多窗口模式下，Android应用和多窗口模式相关方法的调用顺序，对于应用如何适配多窗口模式有了一个初步的认识，本篇文章我们将会结合Android12系统源码，具体来梳理一下系统是如何触发多窗口分屏模式，以及实现多窗口分屏模式功能的原理。
一、Launcher3触发分屏
1、Android12的分屏模式触发入口，默认是在最近任务列表中的，而最近任务列表是包含在Launcher3里面的，当我们在最近任务列表中点击分屏按钮后，会先触发Launcher进入分屏的一系列悬浮动画以及初始的图标分屏。
以上步骤都属于Launcher的业务逻辑。
2、接下来我们结合系统源码来简单看下Launcher3模块是如何触发分屏功能的。
packages/apps/Launcher3/quickstep/src/com/android/launcher3/uioverrides/QuickstepLauncher.java
public class QuickstepLauncher extends BaseQuickstepLauncher {
@Override
public void onStateSetEnd(LauncherState state) {
super.onStateSetEnd(state);
switch (state.ordinal) {
...代码省略...
case QUICK_SWITCH_STATE_ORDINAL: {
RecentsView rv = getOverviewPanel();
TaskView tasktolaunch = rv.getTaskViewAt(0);
if (tasktolaunch != null) {
//调用TaskView的launchTask方法
tasktolaunch.launchTask(success -> {
if (!success) {
getStateManager().goToState(OVERVIEW);
} else {
getStateManager().moveToRestState();
}
});
} else {
getStateManager().goToState(NORMAL);
}
break;
}
}
}
}
package/apps/Launcher3/quickstep/src/com/android/quickstep/views/GroupedTaskView.java
public class GroupedTaskView extends TaskView {
@Nullable
@Override
public RunnableList launchTaskAnimated() {
if (mTask == null || mSecondaryTask == null) {
return null;
}
RunnableList endCallback = new RunnableList();
RecentsView recentsView = getRecentsView();
// Callbacks run from remote animation when recents animation not currently running
//调用RecentsView的getSplitPlaceholder方法，获取SplitSelectStateController对象实例，调用launchTasks方法
recentsView.getSplitPlaceholder().launchTasks(this /*groupedTaskView*/,
success -> endCallback.executeAllAndDestroy(),
false /* freezeTaskList */);
// Callbacks get run from recentsView for case when recents animation already running
recentsView.addSideTaskLaunchCallback(endCallback);
return endCallback;
}
@Override
public void launchTask(@NonNull Consumer<Boolean> callback, boolean freezeTaskList) {
//调用RecentsView的getSplitPlaceholder方法，获取SplitSelectStateController对象实例，调用launchTasks方法
getRecentsView().getSplitPlaceholder().launchTasks(mTask, mSecondaryTask,
STAGE_POSITION_TOP_OR_LEFT, callback, freezeTaskList,
getSplitRatio());
}
}
package/apps/Launcher3/quickstep/src/com/android/quickstep/views/RecentsView.java
public abstract class RecentsView<ACTIVITY_TYPE extends StatefulActivity<STATE_TYPE>,
STATE_TYPE extends BaseState<STATE_TYPE>> extends PagedView implements Insettable,
TaskThumbnailCache.HighResLoadingState.HighResLoadingStateChangedCallback,
TaskVisualsChangeListener, SplitScreenBounds.OnChangeListener {
public SplitSelectStateController getSplitPlaceholder() {
return mSplitSelectStateController;
}
}
package/apps/Launcher3/quickstep/src/com/android/quickstep/util/SplitSelectStateController.java
public class SplitSelectStateController {
public void launchTasks(Task task1, Task task2, @StagePosition int stagePosition,
Consumer<Boolean> callback, boolean freezeTaskList, float splitRatio) {
// Assume initial task is for top/left part of screen
final int[] taskIds = stagePosition == STAGE_POSITION_TOP_OR_LEFT
? new int[]{task1.key.id, task2.key.id}
: new int[]{task2.key.id, task1.key.id};
if (TaskAnimationManager.ENABLE_SHELL_TRANSITIONS) {
RemoteSplitLaunchTransitionRunner animationRunner =
new RemoteSplitLaunchTransitionRunner(task1, task2);
mSystemUiProxy.startTasks(taskIds[0], null /* mainOptions */, taskIds[1],
null /* sideOptions */, STAGE_POSITION_BOTTOM_OR_RIGHT, splitRatio,
new RemoteTransitionCompat(animationRunner, MAIN_EXECUTOR,
ActivityThread.currentActivityThread().getApplicationThread()));
} else {
RemoteSplitLaunchAnimationRunner animationRunner =
new RemoteSplitLaunchAnimationRunner(task1, task2, callback);
//转场动画
final RemoteAnimationAdapter adapter = new RemoteAnimationAdapter(
RemoteAnimationAdapterCompat.wrapRemoteAnimationRunner(animationRunner),
300, 150,
ActivityThread.currentActivityThread().getApplicationThread());
ActivityOptions mainOpts = ActivityOptions.makeBasic();
if (freezeTaskList) {
mainOpts.setFreezeRecentTasksReordering();
}
//调用SystemUiProxy的startTasksWithLegacyTransition方法
mSystemUiProxy.startTasksWithLegacyTransition(taskIds[0], mainOpts.toBundle(),
taskIds[1], null /* sideOptions */, STAGE_POSITION_BOTTOM_OR_RIGHT,
splitRatio, adapter);
}
}
}
packages/apps/Launcher3/quickstep/src/com/android/quickstep/SystemUiProxy.java
public class SystemUiProxy implements ISystemUiProxy,
SysUINavigationMode.NavigationModeChangeListener {
public static final MainThreadInitializedObject<SystemUiProxy> INSTANCE =new MainThreadInitializedObject<>(SystemUiProxy::new);
private ISplitScreen mSplitScreen;
public void setProxy(ISystemUiProxy proxy, IPip pip, ISplitScreen splitScreen,
IOneHanded oneHanded, IShellTransitions shellTransitions,
IStartingWindow startingWindow, IRecentTasks recentTasks,
ISmartspaceTransitionController smartSpaceTransitionController) {
...代码省略...
mSplitScreen = splitScreen;
...代码省略...
｝
/**
* 分屏模式同时打开多个任务
*/
public void startTasksWithLegacyTransition(int mainTaskId, Bundle mainOptions, int sideTaskId,
Bundle sideOptions, @SplitConfigurationOptions.StagePosition int sidePosition,
float splitRatio, RemoteAnimationAdapter adapter) {
if (mSystemUiProxy != null) {
try {
//调用ISplitScreen的startTasksWithLegacyTransition方法触发分屏
mSplitScreen.startTasksWithLegacyTransition(mainTaskId, mainOptions, sideTaskId,
sideOptions, sidePosition, splitRatio, adapter);
} catch (RemoteException e) {
Log.w(TAG, "Failed call startTasksWithLegacyTransition");
}
}
}
}
通过梳理以上代码，可以发现Launche3最终是通过调用SystemUiProxy的startTasksWithLegacyTransition方法触发分屏的，而该方法内部又进一步调用了类型为ISplitScreen的mSplitScreen对象的startTasksWithLegacyTransition方法。
3、SystemUiProxy的内部属性对象mSplitScreen最初是在TouchInteractionService的内部类TISBinder的onInitialize方法中被赋值的。
packages/apps/Launcher3/quickstep/src/com/android/quickstep/TouchInteractionService.java
public class TouchInteractionService extends Service
implements ProtoTraceable<LauncherTraceProto.Builder> {
private final TISBinder mTISBinder = new TISBinder();
public class TISBinder extends IOverviewProxy.Stub {
@BinderThread
public void onInitialize(Bundle bundle) {
ISystemUiProxy proxy = ISystemUiProxy.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_SYSUI_PROXY));
IPip pip = IPip.Stub.asInterface(bundle.getBinder(KEY_EXTRA_SHELL_PIP));
//触发分屏就是调用的这个对象的方法
ISplitScreen splitscreen = ISplitScreen.Stub.asInterface(bundle.getBinder(
KEY_EXTRA_SHELL_SPLIT_SCREEN));
IOneHanded onehanded = IOneHanded.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_SHELL_ONE_HANDED));
IShellTransitions shellTransitions = IShellTransitions.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_SHELL_SHELL_TRANSITIONS));
IStartingWindow startingWindow = IStartingWindow.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_SHELL_STARTING_WINDOW));
ISmartspaceTransitionController smartspaceTransitionController =
ISmartspaceTransitionController.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_SMARTSPACE_TRANSITION_CONTROLLER));
IRecentTasks recentTasks = IRecentTasks.Stub.asInterface(
bundle.getBinder(KEY_EXTRA_RECENT_TASKS));
MAIN_EXECUTOR.execute(() -> {
//调用SystemUiProxy的setProxy方法
SystemUiProxy.INSTANCE.get(TouchInteractionService.this).setProxy(proxy, pip,
splitscreen, onehanded, shellTransitions, startingWindow, recentTasks,
smartspaceTransitionController);
TouchInteractionService.this.initInputMonitor();
preloadOverview(true /* fromInit */);
});
sIsInitialized = true;
}
}
@Override
public IBinder onBind(Intent intent) {
Log.d(TAG, "Touch service connected: user=" + getUserId());
return mTISBinder;
}
}
packages/apps/Launcher3/quickstep/AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
package="com.android.launcher3">
<application android:backupAgent="com.android.launcher3.LauncherBackupAgent">
<service android:name="com.android.quickstep.TouchInteractionService"
android:permission="android.permission.STATUS_BAR_SERVICE"
android:directBootAware="true"
android:exported="true">
<intent-filter>
<action android:name="android.intent.action.QUICKSTEP_SERVICE"/>
</intent-filter>
</service>
</application>
</manifest>
TouchInteractionService是Launcher的一个服务，内部类TISBinder就是其他模块绑定TouchInteractionService服务时候所返回的IBinder类型的实例对象。
二、SystemUI触发分屏
1、默认情况下，SystemUI模块对Launcher3模块的TouchInteractionService服务进行了绑定。
frameworks/base/packages/SystemUI/src/com/android/systemui/recents/OverviewProxyService.java
public class OverviewProxyService extends CurrentUserTracker implements
CallbackController<OverviewProxyListener>, NavigationModeController.ModeChangedListener,
Dumpable {
private final Optional<SplitScreen> mSplitScreenOptional;//触发分屏模式的关键对象
//唤起Launcher3模块TouchInteractionService的Action
private static final String ACTION_QUICKSTEP = "android.intent.action.QUICKSTEP_SERVICE";
//唤起Launcher3模块TouchInteractionService的Intent
private final Intent mQuickStepIntent;
//远程IPC通信是实现类
private IOverviewProxy mOverviewProxy;
private boolean mBound;
public OverviewProxyService(Context context, CommandQueue commandQueue,
Lazy<NavigationBarController> navBarControllerLazy,
Lazy<Optional<StatusBar>> statusBarOptionalLazy,
NavigationModeController navModeController,
NotificationShadeWindowController statusBarWinController, SysUiState sysUiState,
Optional<Pip> pipOptional,
Optional<LegacySplitScreen> legacySplitScreenOptional,
Optional<SplitScreen> splitScreenOptional,
Optional<OneHanded> oneHandedOptional,
Optional<RecentTasks> recentTasks,
Optional<StartingSurface> startingSurface,
BroadcastDispatcher broadcastDispatcher,
ShellTransitions shellTransitions,
ScreenLifecycle screenLifecycle,
SmartspaceTransitionController smartspaceTransitionController,
UiEventLogger uiEventLogger,
DumpManager dumpManager) {
super(broadcastDispatcher);
...代码省略...
//获取最近应用列表组件名称，其实就是Launcher3的包名
mRecentsComponentName = ComponentName.unflattenFromString(context.getString(
com.android.internal.R.string.config_recentsComponentName));
//创建最近应用列表Activity的意图对象
mQuickStepIntent = new Intent(ACTION_QUICKSTEP).setPackage(mRecentsComponentName.getPackageName());
...代码省略...
startConnectionToCurrentUser();
...代码省略...
}
//成功绑定服务所返回的ServiceConnection对象
private final ServiceConnection mOverviewServiceConnection = new ServiceConnection() {
@Override
public void onServiceConnected(ComponentName name, IBinder service) {
...代码省略...
mCurrentBoundedUserId = getCurrentUserId();
//为mOverviewProxy赋值
mOverviewProxy = IOverviewProxy.Stub.asInterface(service);
Bundle params = new Bundle();
params.putBinder(KEY_EXTRA_SYSUI_PROXY, mSysUiProxy.asBinder());
params.putFloat(KEY_EXTRA_WINDOW_CORNER_RADIUS, mWindowCornerRadius);
params.putBoolean(KEY_EXTRA_SUPPORTS_WINDOW_CORNERS, mSupportsRoundedCornersOnWindows);
mPipOptional.ifPresent((pip) -> params.putBinder(
KEY_EXTRA_SHELL_PIP,
pip.createExternalInterface().asBinder()));
//关键对象，Optional对象的的ifPresent方法会判断该对象内部的SplitScreen实例对象是否为空，
//不为空则执行回调方法，也就是把splitscreen对象实例存放到params里面。
mSplitScreenOptional.ifPresent((splitscreen) -> params.putBinder(
KEY_EXTRA_SHELL_SPLIT_SCREEN,
splitscreen.createExternalInterface().asBinder()));
mOneHandedOptional.ifPresent((onehanded) -> params.putBinder(
KEY_EXTRA_SHELL_ONE_HANDED,
onehanded.createExternalInterface().asBinder()));
params.putBinder(KEY_EXTRA_SHELL_SHELL_TRANSITIONS,
mShellTransitions.createExternalInterface().asBinder());
mStartingSurface.ifPresent((startingwindow) -> params.putBinder(
KEY_EXTRA_SHELL_STARTING_WINDOW,
startingwindow.createExternalInterface().asBinder()));
params.putBinder(
KEY_EXTRA_SMARTSPACE_TRANSITION_CONTROLLER,
mSmartspaceTransitionController.createExternalInterface().asBinder());
mRecentTasks.ifPresent(recentTasks -> params.putBinder(
KEY_EXTRA_RECENT_TASKS,
recentTasks.createExternalInterface().asBinder()));
try {
//调用mOverviewProxy的onInitialize，为相关参数进行服务
mOverviewProxy.onInitialize(params);
} catch (RemoteException e) {
mCurrentBoundedUserId = -1;
Log.e(TAG_OPS, "ServiceConnection Failed to call onInitialize()", e);
}
dispatchNavButtonBounds();
// Force-update the systemui state flags
updateSystemUiStateFlags();
notifySystemUiStateFlags(mSysUiState.getFlags());
notifyConnectionChanged();
}
};
public void startConnectionToCurrentUser() {
if (mHandler.getLooper() != Looper.myLooper()) {
mHandler.post(mConnectionRunnable);
} else {
internalConnectToCurrentUser();
}
}
private void internalConnectToCurrentUser() {
...代码省略...
Intent launcherServiceIntent = new Intent(ACTION_QUICKSTEP)
.setPackage(mRecentsComponentName.getPackageName());
try {
//绑定服务
mBound = mContext.bindServiceAsUser(launcherServiceIntent,
mOverviewServiceConnection,
Context.BIND_AUTO_CREATE | Context.BIND_FOREGROUND_SERVICE_WHILE_AWAKE,
UserHandle.of(getCurrentUserId()));
} catch (SecurityException e) {
Log.e(TAG_OPS, "Unable to bind because of security error", e);
}
...代码省略...
}
public IOverviewProxy getProxy() {
return mOverviewProxy;
}
}
SystemUI模块的OverviewProxyService类的构造方法会对Launche3模块的TouchInteractionService服务进行绑定，并把调用该服务返回的Binder对象的onInitialize，将Launcher3模块需要的相关参数传了过去，这样Launch3模块才能拿到ISplitScreen的实例对象，通过调用该实例对象的startTasksWithLegacyTransition方法，最终触发分屏模式。那么问题有来了，OverviewProxyService里面的ISplitScreen对象实例是如何被赋值的？
2、重新再来看下OverviewProxyService的构造方法，这次我们重点关注一下mSplitScreenOptional这个对象。
public class OverviewProxyService extends CurrentUserTracker implements
CallbackController<OverviewProxyListener>, NavigationModeController.ModeChangedListener,
Dumpable {
private final Optional<SplitScreen> mSplitScreenOptional;//触发分屏模式的关键对象
@Inject//Dagger2框架注解
public OverviewProxyService(Context context, CommandQueue commandQueue,
Lazy<NavigationBarController> navBarControllerLazy,
Lazy<Optional<StatusBar>> statusBarOptionalLazy,
NavigationModeController navModeController,
NotificationShadeWindowController statusBarWinController, SysUiState sysUiState,
Optional<Pip> pipOptional,
Optional<LegacySplitScreen> legacySplitScreenOptional,
Optional<SplitScreen> splitScreenOptional,
Optional<OneHanded> oneHandedOptional,
Optional<RecentTasks> recentTasks,
Optional<StartingSurface> startingSurface,
BroadcastDispatcher broadcastDispatcher,
ShellTransitions shellTransitions,
ScreenLifecycle screenLifecycle,
SmartspaceTransitionController smartspaceTransitionController,
UiEventLogger uiEventLogger,
DumpManager dumpManager) {
super(broadcastDispatcher);
...代码省略...
mSplitScreenOptional = splitScreenOptional;//为mSplitScreenOptional赋值
...代码省略...
}
private final ServiceConnection mOverviewServiceConnection = new ServiceConnection() {
@Override
public void onServiceConnected(ComponentName name, IBinder service) {
...代码省略...
mSplitScreenOptional.ifPresent((splitscreen) -> params.putBinder(
KEY_EXTRA_SHELL_SPLIT_SCREEN,
//这里调用splitscreen的createExternalInterface方法
splitscreen.createExternalInterface().asBinder()));
...代码省略...
}
}
}
OverviewProxyService的构造方法有一个关键注解 @Inject，这个注解是Dagger2的框架注解，该框架会根据我们的配置，当我们需要在某个对象的构造方法中传入特定参数对象的时候，只要添加@Inject注解，该框架会自动帮我们创建参数对象并传入。关于这个框架的原理，我在Android 12系统源码_SystemUI（一）SystemUI的启动流程这篇博客具体分析过，这里不做过多解释。
3、由于后续会多次提到Optional这种类型的数据类型，这里我们需要先简单看下这个类的相关代码。
public final class Optional<T> {
private static final Optional<?> EMPTY = new Optional<>();
//内部包含的真正对象
private final T value;
private Optional(T value) {
this.value = Objects.requireNonNull(value);
}
//如果内部对象不为空，则执行consumer方法
public void ifPresent(Consumer<? super T> consumer) {
if (value != null)
consumer.accept(value);
}
//如果内部对象为空，则返回空对象，执行mapper方法，并将该方法返回的对象封装成Optional<T>类型返回。
public<U> Optional<U> map(Function<? super T, ? extends U> mapper) {
Objects.requireNonNull(mapper);
if (!isPresent())
return empty();
else {
return Optional.ofNullable(mapper.apply(value));
}
}
}
4、关于Optional这个对象的dagger2框架的配置信息，SystemUI配置在WMComponent这个接口里面的。
frameworks/base/packages/SystemUI/src/com/android/systemui/dagger/WMComponent.java
import com.android.wm.shell.dagger.WMShellModule;
@WMSingleton//单例
@Subcomponent(modules = {WMShellModule.class})//需要进一步结合WMShellModule做分析
public interface WMComponent {
/**
* Initializes all the WMShell components before starting any of the SystemUI components.
* 在初始化SystemUI组件之前，优先初始化WMShell模块的所有组件
*/
default void init() {
//调用ShellInit的init，这个方法需要额外关注一下，后续我们会再次提到
getShellInit().init();
}
//获取ShellInit对象实例
@WMSingleton
ShellInit getShellInit();
//获取Optional<SplitScreen>对象实例
@WMSingleton
Optional<SplitScreen> getSplitScreen();
}
- 有了以上配置信息，SystemUI模块的任何类的构造方法只要加上 @Inject注解，我们就可以在该对象的构造方法中拿到WMComponent 中返回的对象实例了。
- 结合getShellInit方法和init方法我们可以知道，SystemUI模块在初始化该模块的SystemUI组件之前，会先初始化WMShell模块的组件，这就意味着SystemUI模块的组件都能拿到WMShell模块的组件，并调用对应的组件所提供的功能。
- 而Optional到底是如何被创建出来的，这就需要我们进一步查看WMComponent的类注解@Subcomponent指向的WMShellModule这个类的相关代码了。
三、WMShell模块触发分屏
1、SystemUI模块最终是通过WindowManager模块下的Shell模块触发分屏功能的，来看下前面SystemUI模块中dagger2注解框架引用到的WMShellModule这个类。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/dagger/WMShellModule.java
import com.android.wm.shell.splitscreen.SplitScreenController;
@Module(includes = WMShellBaseModule.class)//需要进一步结合WMShellBaseModule做分析
public class WMShellModule {
@WMSingleton
@Provides
@DynamicOverride
static SplitScreenController provideSplitScreenController(
ShellTaskOrganizer shellTaskOrganizer,
SyncTransactionQueue syncQueue, Context context,
RootTaskDisplayAreaOrganizer rootTaskDisplayAreaOrganizer,
@ShellMainThread ShellExecutor mainExecutor,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController, Transitions transitions,
TransactionPool transactionPool, IconProvider iconProvider,
Optional<RecentTasksController> recentTasks,
Provider<Optional<StageTaskUnfoldController>> stageTaskUnfoldControllerProvider) {
//创建SplitScreenController对象实例
return new SplitScreenController(shellTaskOrganizer, syncQueue, context,
rootTaskDisplayAreaOrganizer, mainExecutor, displayImeController,
displayInsetsController, transitions, transactionPool, iconProvider,
recentTasks, stageTaskUnfoldControllerProvider);
}
//这个方法我们需要关注一下，后面会提到
@WMSingleton
@Provides
static ShellInit provideShellInit(ShellInitImpl impl) {
//调用ShellInitImpl的asShellInit方法返回ShellInit对象实例
return impl.asShellInit();
}
@WMSingleton
@Provides
static ShellInitImpl provideShellInitImpl(DisplayController displayController,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController,
DragAndDropController dragAndDropController,
ShellTaskOrganizer shellTaskOrganizer,
Optional<BubbleController> bubblesOptional,
Optional<SplitScreenController> splitScreenOptional,
Optional<AppPairsController> appPairsOptional,
Optional<PipTouchHandler> pipTouchHandlerOptional,
FullscreenTaskListener fullscreenTaskListener,
Optional<FullscreenUnfoldController> appUnfoldTransitionController,
Optional<FreeformTaskListener> freeformTaskListener,
Optional<RecentTasksController> recentTasksOptional,
Transitions transitions,
StartingWindowController startingWindow,
@ShellMainThread ShellExecutor mainExecutor) {
//创建ShellInitImpl的对象实例
return new ShellInitImpl(displayController,
displayImeController,
displayInsetsController,
dragAndDropController,
shellTaskOrganizer,
bubblesOptional,
splitScreenOptional,
appPairsOptional,
pipTouchHandlerOptional,
fullscreenTaskListener,
appUnfoldTransitionController,
freeformTaskListener,
recentTasksOptional,
transitions,
startingWindow,
mainExecutor);
}
}
由于WMShellModule的类注解有依赖@Module(includes = WMShellBaseModule.class)，要想完全搞明白Optional对象实例是如何被创建的，我们需要进一步结合WMShellBaseModule做分析。
2、WMShellBaseModule的关键代码如下所示。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/dagger/WMShellBaseModule.java
@Module(includes = WMShellConcurrencyModule.class)
public abstract class WMShellBaseModule {
@WMSingleton
@Provides
static Optional<SplitScreen> provideSplitScreen(
Optional<SplitScreenController> splitScreenController) {
//结合前面Optional<T>这个类的代码可以知道，调用splitScreenController对象的asSplitScreen方法，并将该方法返回的SplitScreen对 象实例封装成Optional<SplitScreen>类型的对象再返回。
return splitScreenController.map((controller) -> controller.asSplitScreen());
}
@WMSingleton
@Provides
static Optional<SplitScreenController> providesSplitScreenController(
@DynamicOverride Optional<SplitScreenController> splitscreenController,
Context context) {
//AMS是否支持多窗口模式，支持才返回SplitScreenController对象实例，否则返回空
if (ActivityTaskManager.supportsSplitScreenMultiWindow(context)) {
return splitscreenController;
}
return Optional.empty();
}
}
- WMShellBaseModule的provideSplitScreen方法先是获取SplitScreenController对象实例，该对象是通过WMShellModule的provideSplitScreenController方法创建，但是会经过providesSplitScreenController做一层封装，只有当系统开启了支持多窗口模式的开关，也就是AMS支持多窗口模式的时候，才能拿到该对象实例，否则拿到的都是空
- provideSplitScreen方法在得到该对象实例后，通过调用该对象的asSplitScreen方法，得到了SplitScreen对象实例，但是最终返回的是封装成Optional类型的对象实例返回的。
到这里我们终于可以确定是SplitScreenController的asSplitScreen方法创建了SplitScreen对象实例。
3、接下来我们继续来梳理一下ISplitScreen和SplitScreenController类相关的代码。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/ISplitScreen.aidl
interface ISplitScreen {
oneway void registerSplitScreenListener(in ISplitScreenListener listener) = 1;
oneway void unregisterSplitScreenListener(in ISplitScreenListener listener) = 2;
oneway void setSideStageVisibility(boolean visible) = 3;
oneway void removeFromSideStage(int taskId) = 4;
oneway void exitSplitScreen(int toTopTaskId) = 5;
oneway void exitSplitScreenOnHide(boolean exitSplitScreenOnHide) = 6;
oneway void startTask(int taskId, int position, in Bundle options) = 7;
oneway void startShortcut(String packageName, String shortcutId, int position,
in Bundle options, in UserHandle user) = 8;
oneway void startIntent(in PendingIntent intent, in Intent fillInIntent, int position,
in Bundle options) = 9;
oneway void startTasks(int mainTaskId, in Bundle mainOptions, int sideTaskId,
in Bundle sideOptions, int sidePosition, float splitRatio,
in RemoteTransition remoteTransition) = 10;
oneway void startTasksWithLegacyTransition(int mainTaskId, in Bundle mainOptions,
int sideTaskId, in Bundle sideOptions, int sidePosition,
float splitRatio, in RemoteAnimationAdapter adapter) = 11;
}
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/SplitScreenController.java
public class SplitScreenController implements DragAndDropPolicy.Starter, RemoteCallable<SplitScreenController> {
private final SplitScreenImpl mImpl = new SplitScreenImpl();
private StageCoordinator mStageCoordinator;
public SplitScreenController(ShellTaskOrganizer shellTaskOrganizer,
SyncTransactionQueue syncQueue, Context context,
RootTaskDisplayAreaOrganizer rootTDAOrganizer,
ShellExecutor mainExecutor, DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController,
Transitions transitions, TransactionPool transactionPool, IconProvider iconProvider,
Optional<RecentTasksController> recentTasks,
Provider<Optional<StageTaskUnfoldController>> unfoldControllerProvider) {
...代码省略...
}
public SplitScreen asSplitScreen() {
return mImpl;
}
//这个方法最初是被ShellInitImpl调用的
public void onOrganizerRegistered() {
if (mStageCoordinator == null) {
//创建触发分屏功能的重要对象StageCoordinator的实例。
mStageCoordinator = new StageCoordinator(mContext, DEFAULT_DISPLAY, mSyncQueue,
mRootTDAOrganizer, mTaskOrganizer, mDisplayImeController,
mDisplayInsetsController, mTransitions, mTransactionPool, mLogger,
mIconProvider, mRecentTasksOptional, mUnfoldControllerProvider);
}
}
//SplitScreen是一个接口，具体实现是内部类SplitScreenImpl
@ExternalThread
private class SplitScreenImpl implements SplitScreen {
private ISplitScreenImpl mISplitScreen;
private final ArrayMap<SplitScreenListener, Executor> mExecutors = new ArrayMap<>();
private final SplitScreen.SplitScreenListener mListener = new SplitScreenListener() {
@Override
public void onStagePositionChanged(int stage, int position) {
...代码省略...
}
@Override
public void onTaskStageChanged(int taskId, int stage, boolean visible) {
...代码省略...
}
@Override
public void onSplitVisibilityChanged(boolean visible) {
...代码省略...
}
};
@Override
public ISplitScreen createExternalInterface() {
if (mISplitScreen != null) {
mISplitScreen.invalidate();
}
mISplitScreen = new ISplitScreenImpl(SplitScreenController.this);
//返回实现了ISplitScreen接口的对象实例
return mISplitScreen;
}
}
//ISplitScreen是一个aidl，内部类ISplitScreenImpl实现了ISplitScreen的接口方法。
@BinderThread
private static class ISplitScreenImpl extends ISplitScreen.Stub {
private SplitScreenController mController;
private final SingleInstanceRemoteListener<SplitScreenController,
ISplitScreenListener> mListener;
private final SplitScreen.SplitScreenListener mSplitScreenListener =
new SplitScreen.SplitScreenListener() {
@Override
public void onStagePositionChanged(int stage, int position) {
mListener.call(l -> l.onStagePositionChanged(stage, position));
}
@Override
public void onTaskStageChanged(int taskId, int stage, boolean visible) {
mListener.call(l -> l.onTaskStageChanged(taskId, stage, visible));
}
};
public ISplitScreenImpl(SplitScreenController controller) {
mController = controller;
mListener = new SingleInstanceRemoteListener<>(controller,
c -> c.registerSplitScreenListener(mSplitScreenListener),
c -> c.unregisterSplitScreenListener(mSplitScreenListener));
}
void invalidate() {
mController = null;
}
@Override
public void startTasksWithLegacyTransition(int mainTaskId, @Nullable Bundle mainOptions,
int sideTaskId, @Nullable Bundle sideOptions, @SplitPosition int sidePosition,
float splitRatio, RemoteAnimationAdapter adapter) {
//这里显示进行权限确认，然后会调用StageCoordinator的startTasksWithLegacyTransition方法。
executeRemoteCallWithTaskPermission(mController, "startTasks",
(controller) -> controller.mStageCoordinator.startTasksWithLegacyTransition(
mainTaskId, mainOptions, sideTaskId, sideOptions, sidePosition,
splitRatio, adapter));
}
}
}
- SplitScreenController的asSplitScreen方法返回了该类的一个内部对象SplitScreenImpl，SplitScreenImpl实现了SplitScreen这个接口的相关方法。
- 前面第二节第1步OverviewProxyService类中我们有提到，SystemUI在成功绑定Launcher3模块的TouchInteractionService服务的时候，调用了SplitScreen 的createExternalInterface方法，结合这里我们可以知道此方法返回ISplitScreenImpl对象实例，此对象实现了ISplitScreen.aidl文件中声明的接口方法，Launcher3最终得以跨进程调用ISplitScreenImpl的startTasksWithLegacyTransition方法，最终触发分屏模式。
- ISplitScreenImpl的startTasksWithLegacyTransition方法内部先是做了个权限判断，最终是调用了SplitScreenController的类型为StageCoordinator的内部对象mStageCoordinator的startTasksWithLegacyTransition方法。
- SplitScreenController的内部属性对象mStageCoordinator是在onOrganizerRegistered方法中被赋值的，该方法最初是被ShellInitImpl对象触发的。
4、来看下ShellInitImpl的相关代码。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/ShellInitImpl.java
public class ShellInitImpl {
private static final String TAG = ShellInitImpl.class.getSimpleName();
private final Optional<SplitScreenController> mSplitScreenOptional;
private final InitImpl mImpl = new InitImpl();
public ShellInitImpl(
DisplayController displayController,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController,
DragAndDropController dragAndDropController,
ShellTaskOrganizer shellTaskOrganizer,
Optional<BubbleController> bubblesOptional,
Optional<SplitScreenController> splitScreenOptional,
Optional<AppPairsController> appPairsOptional,
Optional<PipTouchHandler> pipTouchHandlerOptional,
FullscreenTaskListener fullscreenTaskListener,
Optional<FullscreenUnfoldController> fullscreenUnfoldTransitionController,
Optional<FreeformTaskListener> freeformTaskListenerOptional,
Optional<RecentTasksController> recentTasks,
Transitions transitions,
StartingWindowController startingWindow,
ShellExecutor mainExecutor) {
...代码省略...
mSplitScreenOptional = splitScreenOptional;
...代码省略...
}
public ShellInit asShellInit() {
return mImpl;
}
private void init() {
...代码省略...
mSplitScreenOptional.ifPresent(SplitScreenController::onOrganizerRegistered);
...代码省略...
}
@ExternalThread
private class InitImpl implements ShellInit {
@Override
public void init() {
try {
//进一步调用ShellInitImpl的Init方法。
mMainExecutor.executeBlocking(() -> ShellInitImpl.this.init());
} catch (InterruptedException e) {
throw new RuntimeException("Failed to initialize the Shell in 2s", e);
}
}
}
}
四、SystemUI模块初始化分屏组件
1、前面第三节第1步WMShellModule类中，我们有提到过和ShellInitImpl对象创建有关的代码。
import com.android.wm.shell.splitscreen.SplitScreenController;
@Module(includes = WMShellBaseModule.class)
public class WMShellModule {
@WMSingleton
@Provides
static ShellInit provideShellInit(ShellInitImpl impl) {
//调用ShellInitImpl的asShellInit方法返回ShellInit对象实例
return impl.asShellInit();
}
@WMSingleton
@Provides
static ShellInitImpl provideShellInitImpl(DisplayController displayController,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController,
DragAndDropController dragAndDropController,
ShellTaskOrganizer shellTaskOrganizer,
Optional<BubbleController> bubblesOptional,
Optional<SplitScreenController> splitScreenOptional,
Optional<AppPairsController> appPairsOptional,
Optional<PipTouchHandler> pipTouchHandlerOptional,
FullscreenTaskListener fullscreenTaskListener,
Optional<FullscreenUnfoldController> appUnfoldTransitionController,
Optional<FreeformTaskListener> freeformTaskListener,
Optional<RecentTasksController> recentTasksOptional,
Transitions transitions,
StartingWindowController startingWindow,
@ShellMainThread ShellExecutor mainExecutor) {
//创建ShellInitImpl的对象实例
return new ShellInitImpl(displayController,
displayImeController,
displayInsetsController,
dragAndDropController,
shellTaskOrganizer,
bubblesOptional,
splitScreenOptional,
appPairsOptional,
pipTouchHandlerOptional,
fullscreenTaskListener,
appUnfoldTransitionController,
freeformTaskListener,
recentTasksOptional,
transitions,
startingWindow,
mainExecutor);
}
}
2、前面第二节第4步WMComponent类中，我们有提到SystemUI模块在初始化SystemUI模块的组件之前，会先初始化WMShell模块的所有组件，这自然也包括分屏组件。
@WMSingleton//单例
@Subcomponent(modules = {WMShellModule.class})
public interface WMComponent {
/**
* Initializes all the WMShell components before starting any of the SystemUI components.
* 在初始化SystemUI组件之前，优先初始化WMShell模块的所有组件
*/
default void init() {
//调用ShellInit的init
getShellInit().init();
}
//获取ShellInit对象实例
@WMSingleton
ShellInit getShellInit();
}
WMComponent的init方法先是通过getShellInit方法获取到ShellInit对象实例，InitImpl实现了ShellInit这个接口，
并实现了init方法，该方法会进一步调用ShellInitImpl的init方法，最终会触发SplitScreenController的onOrganizerRegistered方法。
3、SplitScreenController的onOrganizerRegistered方法会创建控制分屏功能的分屏组件StageCoordinator的对象实例。
public class SplitScreenController implements DragAndDropPolicy.Starter, RemoteCallable<SplitScreenController> {
private StageCoordinator mStageCoordinator;
//这个方法最初是被ShellInitImpl调用的
public void onOrganizerRegistered() {
if (mStageCoordinator == null) {
//创建触发分屏功能的重要对象StageCoordinator的实例。
mStageCoordinator = new StageCoordinator(mContext, DEFAULT_DISPLAY, mSyncQueue,
mRootTDAOrganizer, mTaskOrganizer, mDisplayImeController,
mDisplayInsetsController, mTransitions, mTransactionPool, mLogger,
mIconProvider, mRecentTasksOptional, mUnfoldControllerProvider);
}
}
}
4、StageCoordinator的构造方法如下所示。
class StageCoordinator implements SplitLayout.SplitLayoutHandler,
RootTaskDisplayAreaOrganizer.RootTaskDisplayAreaListener, Transitions.TransitionHandler {
StageCoordinator(Context context, int displayId, SyncTransactionQueue syncQueue,
RootTaskDisplayAreaOrganizer rootTDAOrganizer, ShellTaskOrganizer taskOrganizer,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController, Transitions transitions,
TransactionPool transactionPool, SplitscreenEventLogger logger,
Provider<Optional<StageTaskUnfoldController>> unfoldControllerProvider) {
mContext = context;
mDisplayId = displayId;
mSyncQueue = syncQueue;
mRootTDAOrganizer = rootTDAOrganizer;
mTaskOrganizer = taskOrganizer;
mLogger = logger;
mMainUnfoldController = unfoldControllerProvider.get().orElse(null);
mSideUnfoldController = unfoldControllerProvider.get().orElse(null);
//分屏对象
mMainStage = new MainStage(
mTaskOrganizer,
mDisplayId,
mMainStageListener,
mSyncQueue,
mSurfaceSession,
mMainUnfoldController);
//分屏对象
mSideStage = new SideStage(
mContext,
mTaskOrganizer,
mDisplayId,
mSideStageListener,
mSyncQueue,
mSurfaceSession,
mSideUnfoldController);
mDisplayImeController = displayImeController;
mDisplayInsetsController = displayInsetsController;
mDisplayInsetsController.addInsetsChangedListener(mDisplayId, mSideStage);
mRootTDAOrganizer.registerListener(displayId, this);
final DeviceStateManager deviceStateManager =
mContext.getSystemService(DeviceStateManager.class);
deviceStateManager.registerCallback(taskOrganizer.getExecutor(),
new DeviceStateManager.FoldStateListener(mContext, this::onFoldedStateChanged));
mSplitTransitions = new SplitScreenTransitions(transactionPool, transitions,
mOnTransitionAnimationComplete);
transitions.addHandler(this);
}
}

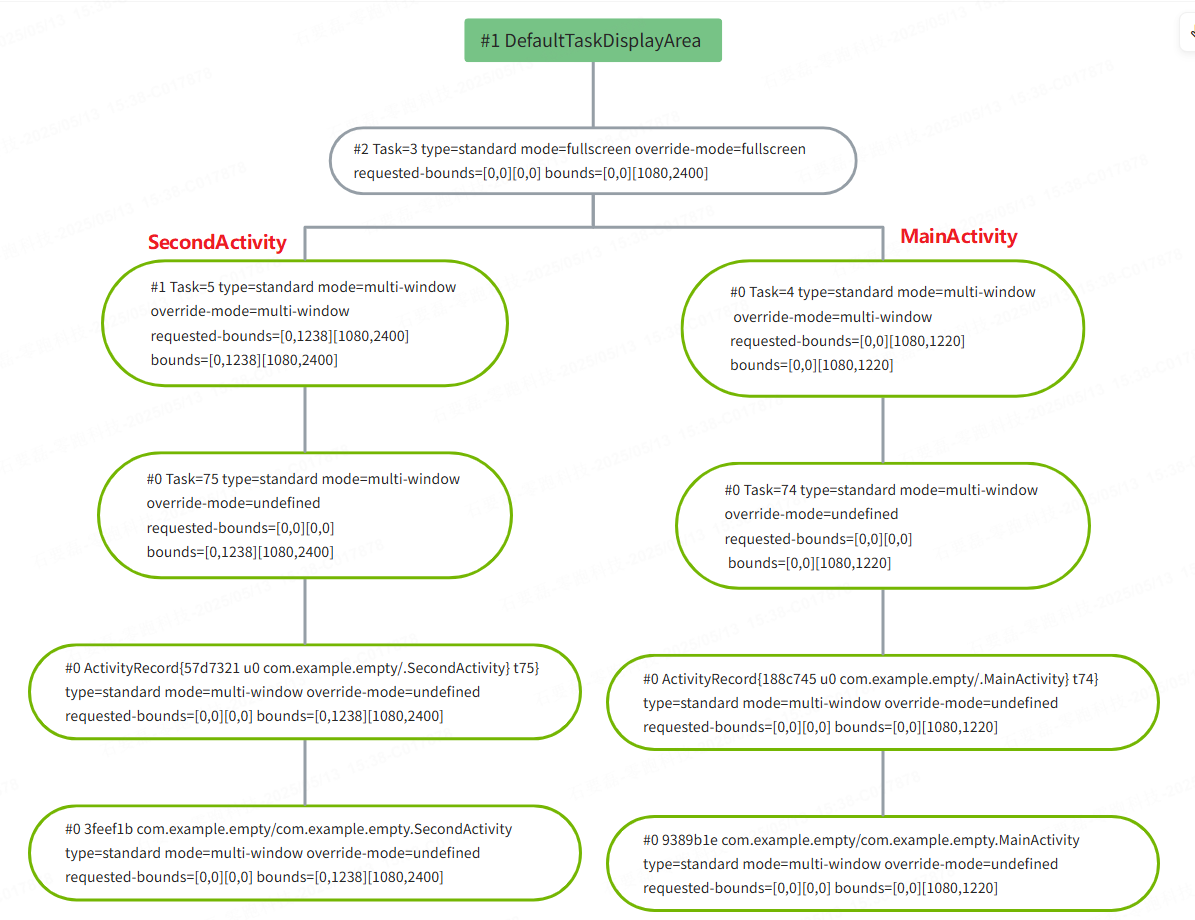

由此可知，SystemUI在进程初始化阶段就已经准备好分屏所需要的 MainStage和SideStage 对象，这两个对象很重要，分别负责分屏的一边，对象内部会创建一个 RootTask 节点了（这里利用了WindowOrganizer框架的能力），这个RootTask就是分屏的关键，通过把应用的Task节点挂载到RootTask下，然后修改RootTask节点的Bounds来改变应用显示的大小。
五、WMShell模块触发分屏
1、前面第三步第4节我们有做过分析，Launcher3经过层层调用，最终是调用StageCoordinator的startTasksWithLegacyTransition方法触发分屏功能的，继续来看下StageCoordinator的startTasksWithLegacyTransition方法。
class StageCoordinator implements SplitLayout.SplitLayoutHandler,
RootTaskDisplayAreaOrganizer.RootTaskDisplayAreaListener, Transitions.TransitionHandler {
private final ShellTaskOrganizer mTaskOrganizer;
StageCoordinator(Context context, int displayId, SyncTransactionQueue syncQueue,
RootTaskDisplayAreaOrganizer rootTDAOrganizer, ShellTaskOrganizer taskOrganizer,
DisplayImeController displayImeController,
DisplayInsetsController displayInsetsController, Transitions transitions,
TransactionPool transactionPool, SplitscreenEventLogger logger,
IconProvider iconProvider,
Optional<RecentTasksController> recentTasks,
Provider<Optional<StageTaskUnfoldController>> unfoldControllerProvider) {
mContext = context;
mDisplayId = displayId;
mSyncQueue = syncQueue;
mRootTDAOrganizer = rootTDAOrganizer;
mTaskOrganizer = taskOrganizer;//为mTaskOrganizer赋值
...代码省略...
}
//Launcher3其实是调用了这个方法触发分屏模式的
void startTasksWithLegacyTransition(int mainTaskId, @Nullable Bundle mainOptions,
int sideTaskId, @Nullable Bundle sideOptions, @SplitPosition int sidePosition,
float splitRatio, RemoteAnimationAdapter adapter) {
// Init divider first to make divider leash for remote animation target.

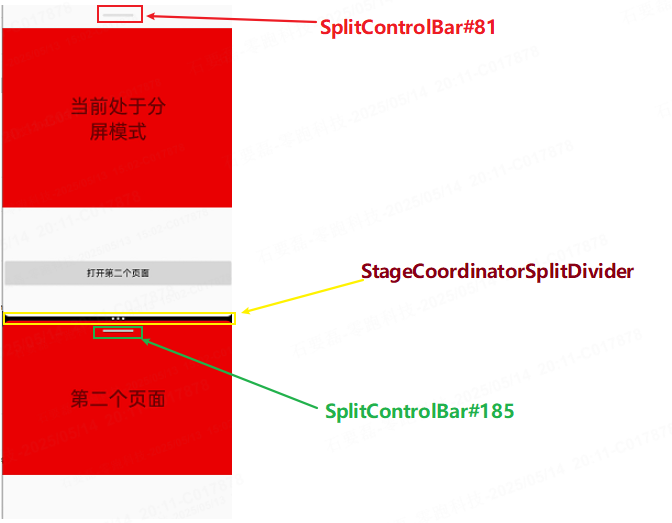

setDividerVisibility(true /* visible */);//设置分屏中间的分割线View可见
// Set false to avoid record new bounds with old task still on top;
mShouldUpdateRecents = false;
final WindowContainerTransaction wct = new WindowContainerTransaction();
final WindowContainerTransaction evictWct = new WindowContainerTransaction();
prepareEvictChildTasks(SPLIT_POSITION_TOP_OR_LEFT, evictWct);
prepareEvictChildTasks(SPLIT_POSITION_BOTTOM_OR_RIGHT, evictWct);
// Need to add another wrapper here in shell so that we can inject the divider bar
// and also manage the process elevation via setRunningRemote
IRemoteAnimationRunner wrapper = new IRemoteAnimationRunner.Stub() {
@Override
public void onAnimationStart(@WindowManager.TransitionOldType int transit,
RemoteAnimationTarget[] apps,
RemoteAnimationTarget[] wallpapers,
RemoteAnimationTarget[] nonApps,
final IRemoteAnimationFinishedCallback finishedCallback) {
mIsDividerRemoteAnimating = true;
RemoteAnimationTarget[] augmentedNonApps =
new RemoteAnimationTarget[nonApps.length + 1];
for (int i = 0; i < nonApps.length; ++i) {
augmentedNonApps[i] = nonApps[i];
}
augmentedNonApps[augmentedNonApps.length - 1] = getDividerBarLegacyTarget();
IRemoteAnimationFinishedCallback wrapCallback =
new IRemoteAnimationFinishedCallback.Stub() {
@Override
public void onAnimationFinished() throws RemoteException {
mIsDividerRemoteAnimating = false;
mShouldUpdateRecents = true;
mSyncQueue.queue(evictWct);
mSyncQueue.runInSync(t -> applyDividerVisibility(t));
finishedCallback.onAnimationFinished();
}
};
try {
try {
ActivityTaskManager.getService().setRunningRemoteTransitionDelegate(
adapter.getCallingApplication());
} catch (SecurityException e) {
Slog.e(TAG, "Unable to boost animation thread. This should only happen"
+ " during unit tests");
}
adapter.getRunner().onAnimationStart(transit, apps, wallpapers,
augmentedNonApps, wrapCallback);
} catch (RemoteException e) {
Slog.e(TAG, "Error starting remote animation", e);
}
}
@Override
public void onAnimationCancelled() {
mIsDividerRemoteAnimating = false;
mShouldUpdateRecents = true;
mSyncQueue.queue(evictWct);
mSyncQueue.runInSync(t -> applyDividerVisibility(t));
try {
adapter.getRunner().onAnimationCancelled();
} catch (RemoteException e) {
Slog.e(TAG, "Error starting remote animation", e);
}
}
};
RemoteAnimationAdapter wrappedAdapter = new RemoteAnimationAdapter(
wrapper, adapter.getDuration(), adapter.getStatusBarTransitionDelay());
if (mainOptions == null) {
mainOptions = ActivityOptions.makeRemoteAnimation(wrappedAdapter).toBundle();
} else {
ActivityOptions mainActivityOptions = ActivityOptions.fromBundle(mainOptions);
mainActivityOptions.update(ActivityOptions.makeRemoteAnimation(wrappedAdapter));
mainOptions = mainActivityOptions.toBundle();
}
sideOptions = sideOptions != null ? sideOptions : new Bundle();
setSideStagePosition(sidePosition, wct);
mSplitLayout.setDivideRatio(splitRatio);
if (mMainStage.isActive()) {
mMainStage.moveToTop(getMainStageBounds(), wct);
} else {
// Build a request WCT that will launch both apps such that task 0 is on the main stage
// while task 1 is on the side stage.
// 设置mMainStage对应的RootTask的Bounds，并将其移动到最前面
mMainStage.activate(getMainStageBounds(), wct, false /* reparent */);
}
// 设置mSideStage对应的RootTask的Bounds，并将其移动到最前面
mSideStage.moveToTop(getSideStageBounds(), wct);
// Make sure the launch options will put tasks in the corresponding split roots
// 配置launch task的option，让分屏应用的task启动到RootTask节点之下
addActivityOptions(mainOptions, mMainStage);
addActivityOptions(sideOptions, mSideStage);
// Add task launch requests
// 启动分屏应用，启动方式和从任务管理器启动是一样的，startActivityFromRecents
wct.startTask(mainTaskId, mainOptions);
wct.startTask(sideTaskId, sideOptions);
// Using legacy transitions, so we can't use blast sync since it conflicts.
// 所有修改封装到WindowContainerTransaction中然后通过WindowOrganizer框架完成上面的变化
mTaskOrganizer.applyTransaction(wct);
}
}
- 显示分屏中间的View
- 设置mMainStage对应的RootTask的Bounds并移动到最前面
- 设置mSideStage对应的RootTask的Bounds并移动到最前面
- 启动分屏应用，让分屏应用的task启动到RootTask节点之下，启动方式和从任务管理器启动是一样的，Framework侧对应的就是startActivityFromRecents方法
2、继续来看下ShellTaskOrganizer的applyTransaction方法。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/ShellTaskOrganizer.java
public class ShellTaskOrganizer extends TaskOrganizer implements
CompatUIController.CompatUICallback {
}
frameworks/base/core/java/android/window/TaskOrganizer.java
public class TaskOrganizer extends WindowOrganizer {
}
frameworks/base/core/java/android/window/TaskOrganizer.java
public class WindowOrganizer {
//applyTransaction是ShellTaskOrganizer的父类方法
public void applyTransaction(@NonNull WindowContainerTransaction t) {
try {
if (!t.isEmpty()) {
//调用IWindowOrganizerController的applyTransaction方法
getWindowOrganizerController().applyTransaction(t);
}
} catch (RemoteException e) {
throw e.rethrowFromSystemServer();
}
}
static IWindowOrganizerController getWindowOrganizerController() {
return IWindowOrganizerControllerSingleton.get();
}
private static final Singleton<IWindowOrganizerController> IWindowOrganizerControllerSingleton =
new Singleton<IWindowOrganizerController>() {
@Override
protected IWindowOrganizerController create() {
try {
return ActivityTaskManager.getService().getWindowOrganizerController();
} catch (RemoteException e) {
return null;
}
}
};
}
applyTransaction方法最终是其父类WindowOrganizer的方法，该方法先是获取到WindowOrganizerController的实例对象，然后调用该对象的applySyncTransaction方法。
3、IWindowOrganizerController是一个aidl，该接口的具体实现类是WindowOrganizerController。
frameworks/base/core/java/android/window/IWindowOrganizerController.aidl
interface IWindowOrganizerController {
int applySyncTransaction(in WindowContainerTransaction t,
in IWindowContainerTransactionCallback callback);
}
frameworks/base/services/core/java/com/android/server/wm/WindowOrganizerController.java
class WindowOrganizerController extends IWindowOrganizerController.Stub
implements BLASTSyncEngine.TransactionReadyListener {
@Override
public int applySyncTransaction(WindowContainerTransaction t,
IWindowContainerTransactionCallback callback) {
if (t == null) {
throw new IllegalArgumentException("Null transaction passed to applySyncTransaction");
}
enforceTaskPermission("applySyncTransaction()");
final CallerInfo caller = new CallerInfo();
final long ident = Binder.clearCallingIdentity();
try {
synchronized (mGlobalLock) {
int syncId = -1;
if (callback != null) {
syncId = startSyncWithOrganizer(callback);
}
applyTransaction(t, syncId, null /*transition*/, caller);
if (syncId >= 0) {
setSyncReady(syncId);
}
return syncId;
}
} finally {
Binder.restoreCallingIdentity(ident);
}
}
}
这里还是运用了WindowOrganizer框架的能力，把所有修改点封装到 WindowContainerTransaction中，然后通过mTaskOrganizer.applyTransaction(wct); 转交给Framework，Framework解析WindowContainerTransaction，然后执行对应的变化
我们可以看看WindowContainerTransaction的内容
Android12上两个应用都得是从任务管理器中起 startActivityFromRecents
在Android13上支持通过wct.sendPendingIntent(pendingIntent, fillInIntent, sideOptions)新起一个应用。
六、通过命令行触发分屏
1、除了调用WMShell模块组件提供的方法触发分屏意外，我们还可以通过命令行来触发分屏。
// taskId 可以通过adb shell am stack list 来查看应用对应的taskId
// SideStagePosition 0 代表左边， 1 代表右边
adb shell dumpsys activity service SystemUIService WMShell moveToSideStage <taskId> <SideStagePosition>
命令行会把taskId对应的task挂载到SideStage对应的RootTask下，然后SideStage监听到task变化，然后就会激活MainStage，然后申请分屏操作。
2、这部分代码如下。
frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java
class StageCoordinator implements SplitLayout.SplitLayoutHandler,
RootTaskDisplayAreaOrganizer.RootTaskDisplayAreaListener, Transitions.TransitionHandler {
private void onStageHasChildrenChanged(StageListenerImpl stageListener) {
final boolean hasChildren = stageListener.mHasChildren;
final boolean isSideStage = stageListener == mSideStageListener;
if (!hasChildren) {
if (isSideStage && mMainStageListener.mVisible) {
// Exit to main stage if side stage no longer has children.
exitSplitScreen(mMainStage, EXIT_REASON_APP_FINISHED);
} else if (!isSideStage && mSideStageListener.mVisible) {
// Exit to side stage if main stage no longer has children.
exitSplitScreen(mSideStage, EXIT_REASON_APP_FINISHED);
}
} else if (isSideStage) {
//SideStage对应的RootTask监听到task变化，然后就会触发分屏操作
final WindowContainerTransaction wct = new WindowContainerTransaction();
//Make sure the main stage is active.
//这里的reparent是关键，为true后会把后台的Task作为分屏的一部分，如果没有后台task，不能触发分屏
mMainStage.activate(getMainStageBounds(), wct, true /* reparent */);
mSideStage.moveToTop(getSideStageBounds(), wct);
mSyncQueue.queue(wct);
mSyncQueue.runInSync(t -> updateSurfaceBounds(mSplitLayout, t));
}
if (mMainStageListener.mHasChildren && mSideStageListener.mHasChildren) {
mShouldUpdateRecents = true;
updateRecentTasksSplitPair();
if (!mLogger.hasStartedSession()) {
mLogger.logEnter(mSplitLayout.getDividerPositionAsFraction(),
getMainStagePosition(), mMainStage.getTopChildTaskUid(),
getSideStagePosition(), mSideStage.getTopChildTaskUid(),
mSplitLayout.isLandscape());
}
}
}
}
这里需要注意 mMainStage.activate(getMainStageBounds(), wct, true /* reparent */ ); 这里的reparent是关键，为true后会把后台的Task作为分屏的一部分，如果没有后台task，不能触发分屏，而且命令行分屏由于缺少了Launcher3的参与，缺少分屏之前的动画，效果上就是直接硬切的。
参考文档：https://juejin.cn/post/7346977510514884619
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
