MapReduce实战：统计手机号耗费的总上行流量和下行流量

1.需求：

• 统计每一个手机号耗费的总上行流量、下行流量、总流量

2.数据准备：

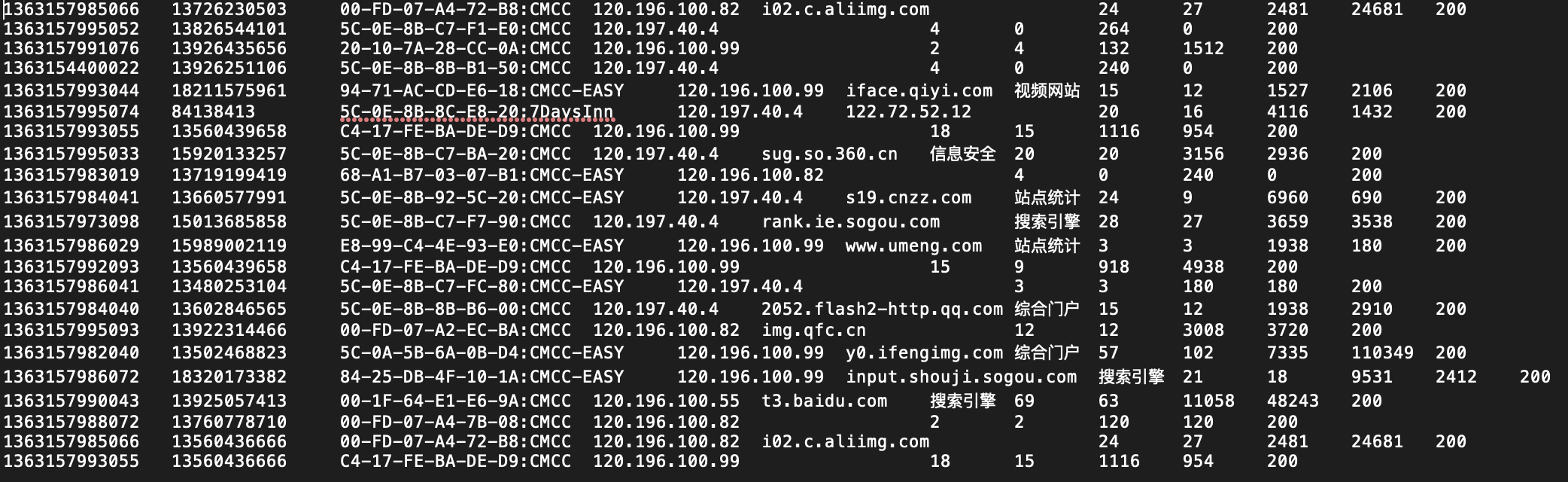

(1)输入数据格式：

时间戳、电话号码、基站的物理地址、访问网址的ip、网站域名、数据包、接包数、上行/传流量、下行/载流量、响应码

(2)最终输出的数据格式：

手机号码		上行流量        下行流量		总流量

3.分析：

基本思路：

(1)Map阶段：

• (a)读取一行数据，切分字段
• (b)抽取手机号、上行流量、下行流量
• ©以手机号为key，bean对象为value输出，即context.write(手机号,bean);

(2)Reduce阶段：

• (a)累加上行流量和下行流量得到总流量。
• (b)实现自定义的bean来封装流量信息，并将bean作为map输出的key来传输
• ©MR程序在处理数据的过程中会对数据排序(map输出的kv对传输到reduce之前，会排序)，排序的依据是map输出的key

所以，我们如果要实现自己需要的排序规则，则可以考虑将排序因素放到key中，让key实现接口：WritableComparable。
然后重写key的compareTo方法。

4.程序代码：

(1)编写流量统计的bean对象FlowBean

FlowBean.java

package phoneData;

import lombok.Getter;
import lombok.Setter;
import org.apache.hadoop.io.Writable;

import java.io.DataInput;
import java.io.DataOutput;
import java.io.IOException;

// 1 实现writable接口
@Setter
@Getter
public class FlowBean implements Writable {
    //上传流量
    private long upFlow;
    //下载流量
    private long downFlow;
    //流量总和
    private long sumFlow;

    //必须要有，反序列化要调用空参构造器
    public FlowBean() {
    }

    public FlowBean(long upFlow, long downFlow) {
        this.upFlow = upFlow;
        this.downFlow = downFlow;
        this.sumFlow = upFlow + downFlow;
    }

    public void set(long upFlow, long downFlow){
        this.upFlow = upFlow;
        this.downFlow = downFlow;
        this.sumFlow = upFlow + downFlow;
    }


    /**
     * 序列化
     *
     * @param out
     * @throws IOException
     */
    @Override
    public void write(DataOutput out) throws IOException {
        out.writeLong(upFlow);
        out.writeLong(downFlow);
        out.writeLong(sumFlow);
    }

    /**
     * 反序列化
     * 注：字段属性顺序必须一致
     *
     * @param in
     * @throws IOException
     */
    @Override
    public void readFields(DataInput in) throws IOException {
        this.upFlow = in.readLong();
        this.downFlow = in.readLong();
        this.sumFlow = in.readLong();
    }
    @Override
    public String toString() {
        return upFlow + "\t" + downFlow + "\t" + sumFlow;
    }
}

(2)编写Mapper

FlowCountMapper.java

package phoneData;

import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;

/**
 * LongWritable, Text ===> Map输入    <偏移量，手机号>
 * Text, FlowBean  ======> Map的输出：<手机号、流量上传下载总和>
 */
public class FlowCountMapper extends Mapper<LongWritable, Text, Text, FlowBean> {
    Text k = new Text();
    FlowBean v = new FlowBean();

    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
        //获取每一行数据
        String line = value.toString();

        //切割字段
        //1363157995052 	13826544101	5C-0E-8B-C7-F1-E0:CMCC	120.197.40.4			4	0	264	0	200
        String[] fields = line.split("\t");
        //手机号
        String phoneNum = fields[1];

        //上传和下载 upFlow downFlow
        long upFlow = Long.parseLong(fields[fields.length - 3]);
        long downFlow = Long.parseLong(fields[fields.length - 2]);

        k.set(phoneNum);

        context.write(k,new FlowBean(upFlow,downFlow));
    }
}

(3)编写Reducer

FlowCountReducer.java

package phoneData;

import java.io.IOException;

import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

public class FlowCountReducer extends Reducer<Text, FlowBean, Text, FlowBean> {

    @Override
    protected void reduce(Text key, Iterable<FlowBean> values, Context context) throws IOException, InterruptedException {
        //上传和下载的总和初始化
        long sum_upFlow = 0;
        long sum_downFlow = 0;

        // 1 遍历所用bean，将其中的上行流量，下行流量分别累加
        for (FlowBean flowBean : values) {
            //所有的上传的流量加在一起
            sum_upFlow += flowBean.getUpFlow();
            //所有的下载的流量加在一起
            sum_downFlow += flowBean.getDownFlow();
        }
        // 2 封装对象
        FlowBean resultBean = new FlowBean(sum_upFlow, sum_downFlow);
        // 3 写出
        context.write(key, resultBean);
    }
}

(4)编写驱动

FlowsumDriver.java

package phoneData;

import java.io.IOException;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

public class FlowsumDriver {

    public static void main(String[] args) throws IllegalArgumentException, IOException, ClassNotFoundException, InterruptedException {

        //args = new String[]{"/Users/macbook/TestInfo/phone_data.txt", "/Users/macbook/TestInfo/MovlePhone1"};

        // 1 获取配置信息，或者job对象实例
        Configuration configuration = new Configuration();
        Job job = Job.getInstance(configuration);

        // 6 指定本程序的jar包所在的本地路径
        job.setJarByClass(FlowsumDriver.class);

        // 2 指定本业务job要使用的mapper/Reducer业务类
        job.setMapperClass(FlowCountMapper.class);
        job.setReducerClass(FlowCountReducer.class);

        // 3 指定mapper输出数据的kv类型
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(FlowBean.class);

        // 4 指定最终输出的数据的kv类型
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(FlowBean.class);

//        job.setPartitionerClass(ProvincePartitioner.class);
//        job.setNumReduceTasks(6);

        // 5 指定job的输入原始文件所在目录
        FileInputFormat.setInputPaths(job, new Path(args[0]));
        FileOutputFormat.setOutputPath(job, new Path(args[1]));

        // 7 将job中配置的相关参数，以及job所用的java类所在的jar包， 提交给yarn去运行
        job.waitForCompletion(true);
    }
}

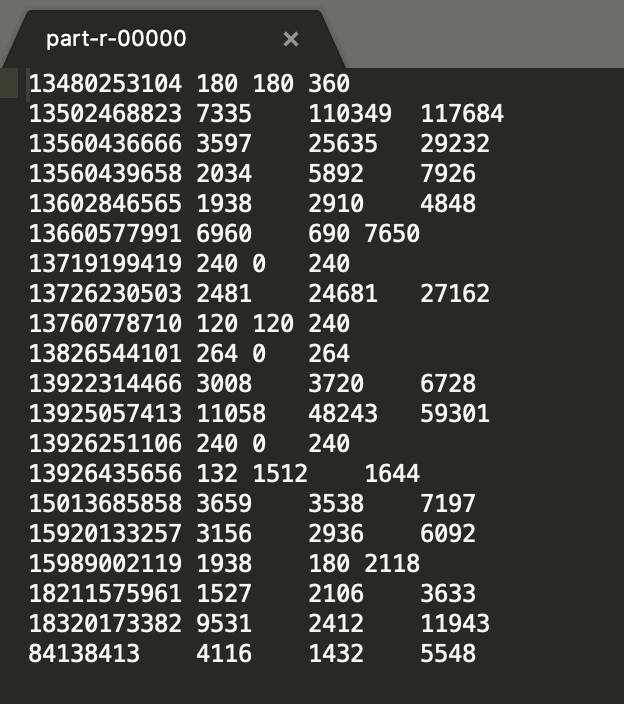

5.运行结果：

(1)打包上传到hadoop集群：

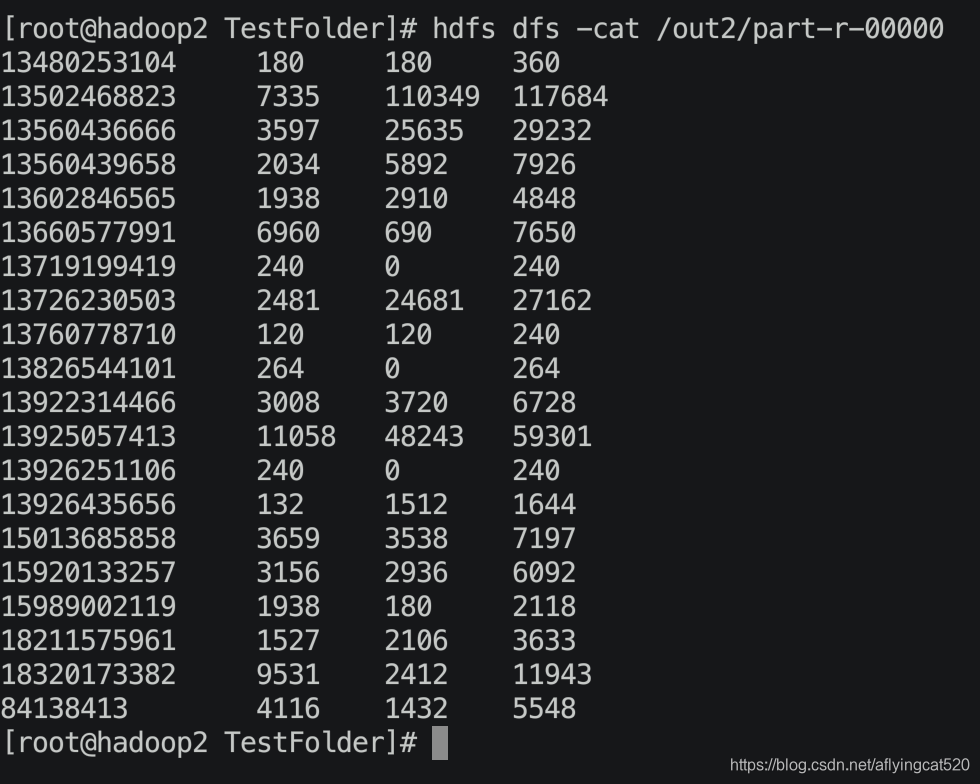

(2)运行：

hadoop jar Hadoop-1.0-SNAPSHOT.jar phoneData.FlowSumDriver /phone_data.txt /out2
