Unity Fog 原理 源码分析 案例

Unity Fog 原理 源码分析 案例

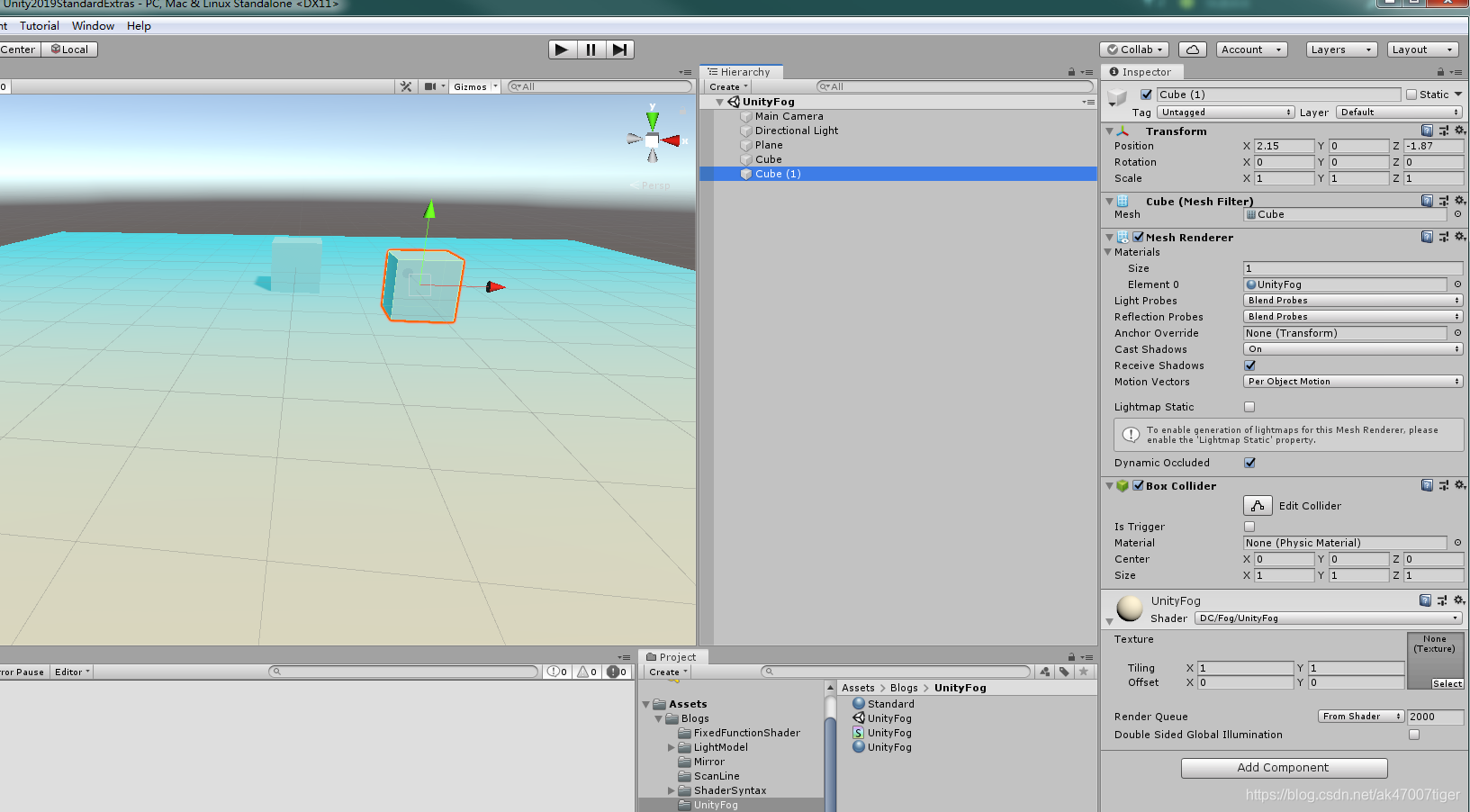

效果图

简述

• 背景知识
  • clip空间坐标的范围
    • d3d (near,0), unity remapping to (0,far) 越靠近相机z值越小
    • opengl (near,-far) unity remapping to (0,far) 越靠近相机z越小
    • 所以最终都被映射成(0,far)
• 原理
  • 通过clip空间的pos.z的值计算雾效的强弱，z越大雾越大，z越小雾越小
  • 雾效因子越小雾越强，雾效因子越大雾越弱
  • clipPos.z和雾效因子成反比，z越大雾效因子越小，雾越大
• unity_FogParams：(density / sqrt(ln(2)), density / ln(2), –1/(end-start), end/(end-start))
• 线性雾效举例
  • float unityFogFactor = (coord) * unity_FogParams.z + unity_FogParams.w
  • 代码中的coord即使clipPos.z，当clipPos.z接近1时雾效因子最大，因为unity_FogParams.z是负值
• 自然对数公式的雾效举例
  • float unityFogFactor = unity_FogParams.y * (coord); unityFogFactor = exp2(-unityFogFactor)
  • z越大，雾效因子越小，雾越大
• 具体逻辑参见下方源码

使用

struct v2f
{
    float2 uv : TEXCOORD0;
    UNITY_FOG_COORDS(1) //声明雾效因子数据
    float4 vertex : SV_POSITION;
    float3 worldNormal : NORMAL;
};

v2f vert (appdata v)
{
    v2f o;
    o.vertex = UnityObjectToClipPos(v.vertex);
    o.uv = TRANSFORM_TEX(v.uv, _MainTex);
    o.worldNormal = mul(unity_ObjectToWorld, v.normal);
    UNITY_TRANSFER_FOG(o,o.vertex);//转换坐标
    return o;
}

UNITY_APPLY_FOG(i.fogCoord, lambertCol);//应用雾效

Unity设置雾效参数的菜单

• Window/Rendering/Lighting Settings/Fog标签下

Unity 雾效Shader关键源码

• 声明雾效因子

#define UNITY_FOG_COORDS_PACKED(idx, vectype) vectype fogCoord : TEXCOORD##idx;

#if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
    #define UNITY_FOG_COORDS(idx) UNITY_FOG_COORDS_PACKED(idx, float1)

• 计算雾效因子

#if defined(FOG_LINEAR)
    // factor = (end-z)/(end-start) = z * (-1/(end-start)) + (end/(end-start))
    #define UNITY_CALC_FOG_FACTOR_RAW(coord) float unityFogFactor = (coord) * unity_FogParams.z + unity_FogParams.w
#elif defined(FOG_EXP)
    // factor = exp(-density*z)
    #define UNITY_CALC_FOG_FACTOR_RAW(coord) float unityFogFactor = unity_FogParams.y * (coord); unityFogFactor = exp2(-unityFogFactor)
#elif defined(FOG_EXP2)
    // factor = exp(-(density*z)^2)
    #define UNITY_CALC_FOG_FACTOR_RAW(coord) float unityFogFactor = unity_FogParams.x * (coord); unityFogFactor = exp2(-unityFogFactor*unityFogFactor)
#else
    #define UNITY_CALC_FOG_FACTOR_RAW(coord) float unityFogFactor = 0.0
#endif

#define UNITY_CALC_FOG_FACTOR(coord) UNITY_CALC_FOG_FACTOR_RAW(UNITY_Z_0_FAR_FROM_CLIPSPACE(coord))

#define UNITY_FOG_COORDS_PACKED(idx, vectype) vectype fogCoord : TEXCOORD##idx;

#if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
    #define UNITY_FOG_COORDS(idx) UNITY_FOG_COORDS_PACKED(idx, float1)

    #if (SHADER_TARGET < 30) || defined(SHADER_API_MOBILE)
        // mobile or SM2.0: calculate fog factor per-vertex
        #define UNITY_TRANSFER_FOG(o,outpos) UNITY_CALC_FOG_FACTOR((outpos).z); o.fogCoord.x = unityFogFactor
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_TSPACE(o,outpos) UNITY_CALC_FOG_FACTOR((outpos).z); o.tSpace1.y = tangentSign; o.tSpace2.y = unityFogFactor
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_WORLD_POS(o,outpos) UNITY_CALC_FOG_FACTOR((outpos).z); o.worldPos.w = unityFogFactor
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_EYE_VEC(o,outpos) UNITY_CALC_FOG_FACTOR((outpos).z); o.eyeVec.w = unityFogFactor
    #else
        // SM3.0 and PC/console: calculate fog distance per-vertex, and fog factor per-pixel
        #define UNITY_TRANSFER_FOG(o,outpos) o.fogCoord.x = (outpos).z
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_TSPACE(o,outpos) o.tSpace2.y = (outpos).z
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_WORLD_POS(o,outpos) o.worldPos.w = (outpos).z
        #define UNITY_TRANSFER_FOG_COMBINED_WITH_EYE_VEC(o,outpos) o.eyeVec.w = (outpos).z
    #endif
#else
    #define UNITY_FOG_COORDS(idx)
    #define UNITY_TRANSFER_FOG(o,outpos)
    #define UNITY_TRANSFER_FOG_COMBINED_WITH_TSPACE(o,outpos)
    #define UNITY_TRANSFER_FOG_COMBINED_WITH_WORLD_POS(o,outpos)
    #define UNITY_TRANSFER_FOG_COMBINED_WITH_EYE_VEC(o,outpos)
#endif

• clip空间坐标remapping

#if defined(UNITY_REVERSED_Z)
    #if UNITY_REVERSED_Z == 1
        //D3d with reversed Z => z clip range is [near, 0] -> remapping to [0, far]
        //max is required to protect ourselves from near plane not being correct/meaningfull in case of oblique matrices.
        #define UNITY_Z_0_FAR_FROM_CLIPSPACE(coord) max(((1.0-(coord)/_ProjectionParams.y)*_ProjectionParams.z),0)
    #else
        //GL with reversed z => z clip range is [near, -far] -> should remap in theory but dont do it in practice to save some perf (range is close enough)
        #define UNITY_Z_0_FAR_FROM_CLIPSPACE(coord) max(-(coord), 0)
    #endif
#elif UNITY_UV_STARTS_AT_TOP
    //D3d without reversed z => z clip range is [0, far] -> nothing to do
    #define UNITY_Z_0_FAR_FROM_CLIPSPACE(coord) (coord)
#else
    //Opengl => z clip range is [-near, far] -> should remap in theory but dont do it in practice to save some perf (range is close enough)
    #define UNITY_Z_0_FAR_FROM_CLIPSPACE(coord) (coord)
#endif

• 应用雾效

#define UNITY_FOG_LERP_COLOR(col,fogCol,fogFac) col.rgb = lerp((fogCol).rgb, (col).rgb, saturate(fogFac))

#if defined(FOG_LINEAR) || defined(FOG_EXP) || defined(FOG_EXP2)
    #if (SHADER_TARGET < 30) || defined(SHADER_API_MOBILE)
        // mobile or SM2.0: fog factor was already calculated per-vertex, so just lerp the color
        #define UNITY_APPLY_FOG_COLOR(coord,col,fogCol) UNITY_FOG_LERP_COLOR(col,fogCol,(coord).x)
    #else
        // SM3.0 and PC/console: calculate fog factor and lerp fog color
        #define UNITY_APPLY_FOG_COLOR(coord,col,fogCol) UNITY_CALC_FOG_FACTOR((coord).x); UNITY_FOG_LERP_COLOR(col,fogCol,unityFogFactor)
    #endif
    #define UNITY_EXTRACT_FOG(name) float _unity_fogCoord = name.fogCoord
    #define UNITY_EXTRACT_FOG_FROM_TSPACE(name) float _unity_fogCoord = name.tSpace2.y
    #define UNITY_EXTRACT_FOG_FROM_WORLD_POS(name) float _unity_fogCoord = name.worldPos.w
    #define UNITY_EXTRACT_FOG_FROM_EYE_VEC(name) float _unity_fogCoord = name.eyeVec.w
#else
    #define UNITY_APPLY_FOG_COLOR(coord,col,fogCol)
    #define UNITY_EXTRACT_FOG(name)
    #define UNITY_EXTRACT_FOG_FROM_TSPACE(name)
    #define UNITY_EXTRACT_FOG_FROM_WORLD_POS(name)
    #define UNITY_EXTRACT_FOG_FROM_EYE_VEC(name)
#endif

#ifdef UNITY_PASS_FORWARDADD
    #define UNITY_APPLY_FOG(coord,col) UNITY_APPLY_FOG_COLOR(coord,col,fixed4(0,0,0,0))
#else
    #define UNITY_APPLY_FOG(coord,col) UNITY_APPLY_FOG_COLOR(coord,col,unity_FogColor)
#endif

使用Lambert光照模型的支持雾效的shader

Shader "DC/Fog/UnityFog"
{
    Properties
    {
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            // make fog work
            #pragma multi_compile_fog

            #include "UnityCG.cginc"
            #include "Lighting.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float3 normal : NORMAL;
            };

            struct v2f
            {
                UNITY_FOG_COORDS(1)
                float4 vertex : SV_POSITION;
                float3 worldNormal : NORMAL;
            };

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.worldNormal = mul(unity_ObjectToWorld, v.normal);
                UNITY_TRANSFER_FOG(o,o.vertex);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 lambertCol = saturate(dot(i.worldNormal, normalize(_WorldSpaceLightPos0.xyz))) * _LightColor0;
                // apply fog
                UNITY_APPLY_FOG(i.fogCoord, lambertCol);

                return lambertCol;
            }
            ENDCG
        }
    }
}
