封隔器 OVA 示例

我遇到了一些其他人很幸运的好例子：

封隔器配置文件

在所有这些示例之间，我创建了自己的配置并确保它们没问题：

<> tree
.
├── ansible
│   ├── main.yml
│   └── requirements.yml
├── centos7.json
├── http
│   └── ks.cfg
├── iso
│   └── CentOS-7-x86_64-Minimal-1708.iso
└── scripts
    └── post-install.sh

首先让我们确保打包器配置没问题：

<> packer validate centos7.json
Template validated successfully.

我也在kickstart文件上做了同样的事情（最初它给了我一个警告）：

<> ksvalidator http/ks.cfg
The following problem occurred on line 5 of the kickstart file:

Unknown command: unsupported_hardware

但随后指定正确的版本摆脱了警告：

<> ksvalidator -v RHEL7 http/ks.cfg && echo $?
0

我也必须获得最新版本的Python模块来获得Kickstart中的验证工作（并修复一个文件指向正确的模块：orderedset VS有序集，修复程序中所描述的python-pykickstart）。这是使用pip安装的模块的版本：

<> pip2 show pykickstart
---
Metadata-Version: 1.1
Name: pykickstart
Version: 3.7
Summary: Python module for manipulating kickstart files
Home-page: http://fedoraproject.org/wiki/pykickstart
Author: Chris Lumens
Author-email: clumens@redhat.com
License: UNKNOWN
Location: /usr/local/lib/python2.7/dist-packages
Requires:
Classifiers:
  Programming Language :: Python :: 3

VMware Player 的 Packer 错误

期间我遇到了几个错误packer build，以下是我记得的错误：

缺少 Vmware-VIX

最初遇到一个错误，其中vmrum不存在（此处讨论）。为了修复这个错误，我安装了vmware-vix：

<> chmod +x VMware-VIX-1.17.0-6661328.x86_64.bundle
<> sudo ./VMware-VIX-1.17.0-6661328.x86_64.bundle
Extracting VMware Installer...done.
You must accept the VMware VIX API End User License Agreement to
continue.  Press Enter to proceed.

然后我看到了 vmrun 可执行文件：

<> rehash
<> which vmrun
/usr/bin/vmrun

仅供参考的是我正在运行的vmplayer版本（这是在 ubuntu 16.04 上）：

<> vmware-installer -l
Product Name         Product Version
==================== ====================
vmware-player        14.1.1.7528167
vmware-vix           1.17.0.6661328

缺少 qemu-img

然后我看到了以下内容：

<> packer build centos7.json
vmware-iso output will be in this color.

Build 'vmware-iso' errored: Failed creating VMware driver: Unable to initialize any driver for this platform. The errors
from each driver are shown below. Please fix at least one driver
to continue:
* exec: "vmware": executable file not found in $PATH
* exec: "vmware": executable file not found in $PATH
* Neither 'vmware-vdiskmanager', nor 'qemu-img' found in path.
One of these is required to configure disks for VMware Player.
* Neither 'vmware-vdiskmanager', nor 'qemu-img' found in path.
One of these is required to configure disks for VMware Player.

看起来我缺少qemu-img和（或）vmware-diskmanager（看起来我可以从本社区论坛中讨论 的VMware Virtual Disk Development Kit 中获得vmware-diskmanager）。现在我安装了qemu-img，因为它更快：

<> sudo apt install qemu-utils

缺少 /etc/vmware/netmap.conf

然后我遇到了缺少vmplayer配置文件的问题：

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Could not find netmap conf file: /etc/vmware/netmap.conf
==> vmware-iso: Deleting output directory...
Build 'vmware-iso' errored: Could not find netmap conf file: /etc/vmware/netmap.conf

==> Some builds didn't complete successfully and had errors:
--> vmware-iso: Could not find netmap conf file: /etc/vmware/netmap.conf

==> Builds finished but no artifacts were created.

因此，我使用How to Manually Configure VMWARE Networking on Linux Command Line站点的副本创建了一个示例文件，它最终看起来像这样：

<> cat /etc/vmware/netmap.conf
network0.name = "Bridged"
network0.device = "vmnet0"
network1.name = "HostOnly"
network1.device = "vmnet1"
network2.name = "VMNet2"
network2.device = "vmnet2"
network8.name = "NAT"
network8.device = "vmnet8"

缺少 ldconfig

然后我遇到了这条消息：

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8197
==> vmware-iso: Starting virtual machine...
    vmware-iso: The VM will be run headless, without a GUI. If you want to
    vmware-iso: view the screen of the VM, connect via VNC with the password "SXxWhTkw" to
    vmware-iso: vnc://127.0.0.1:5904
==> vmware-iso: Error starting VM: VMware error: /usr/lib/vmware/bin/vmware-vmx: error while loading shared libraries: libXcursor.so.1: cannot open shared object file: No such file or directory
==> vmware-iso: Waiting 4.655373739s to give VMware time to clean up...
==> vmware-iso: Deleting output directory...
Build 'vmware-iso' errored: Error starting VM: VMware error: /usr/lib/vmware/bin/vmware-vmx: error while loading shared libraries: libXcursor.so.1: cannot open shared object file: No such file or directory

我找到了文件

<> sudo updatedb
<> locate libXcursor.so.1
/usr/lib/vmware/lib/libXcursor.so.1
/usr/lib/vmware/lib/libXcursor.so.1/libXcursor.so.1
/usr/lib/vmware-installer/2.1.0/lib/lib/libXcursor.so.1
/usr/lib/vmware-installer/2.1.0/lib/lib/libXcursor.so.1/libXcursor.so.1

并创建了以下文件来加载库：

<> cat /etc/ld.so.conf.d/vmware.conf
/usr/lib/vmware/lib/libXcursor.so.1
<> sudo ldconfig -v | grep vmware -A 1
/usr/lib/vmware/lib/libXcursor.so.1:
	libXcursor.so.1 -> libXcursor.so.1

然后虚拟机启动。

dhcpd.conf 文件位置不正确

然后我又遇到了一个问题：

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8383
==> vmware-iso: Starting virtual machine...
    vmware-iso: The VM will be run headless, without a GUI. If you want to
    vmware-iso: view the screen of the VM, connect via VNC with the password "9B6EsmKN" to
    vmware-iso: vnc://127.0.0.1:5963
==> vmware-iso: Waiting 10s for boot...
==> vmware-iso: Connecting to VM via VNC (127.0.0.1:5963)
==> vmware-iso: Error detecting host IP: Could not find vmnetdhcp conf file: /etc/vmware/vmnet8/dhcp/dhcp.conf
==> vmware-iso: Stopping virtual machine...
==> vmware-iso: Deleting output directory...
Build 'vmware-iso' errored: Error detecting host IP: Could not find vmnetdhcp conf file: /etc/vmware/vmnet8/dhcp/dhcp.conf

看起来现在文件位于这里/etc/vmware/vmnet8/dhcpd/dhcpd.conf (vs /etc/vmware/vmnet8/dhcp/dhcp.conf ) ，所以我刚刚创建了一个指向目录和文件的符号链接：

<> ls -l /etc/vmware/vmnet8/dhcp
lrwxrwxrwx 1 root root 5 Feb 11 12:39 /etc/vmware/vmnet8/dhcp -> dhcpd
<> ls -l /etc/vmware/vmnet8/dhcp/dhcp.conf
lrwxrwxrwx 1 root root 10 Feb 11 12:39 /etc/vmware/vmnet8/dhcp/dhcp.conf -> dhcpd.conf

然后它开始安装，我看到虚拟机正在运行：

<> vmrun -T player list
Total running VMs: 1
/usr/local/packer/output-ova-vmware-iso/packer-centos-7-x86_64.vmx
<> ps -ef | grep vmx
elatov    3592  1372  0 20:22 pts/3    00:00:00 grep --color=auto vmx
elatov   30788     1 99 20:18 ?        00:04:33 /usr/lib/vmware/bin/vmware-vmx -s vmx.noUIBuildNumberCheck=TRUE -# product=4;name=VMware Player;version=14.0.0;buildnumber=6661328;licensename=VMware Player;licenseversion=14.0; -@ duplex=3;msgs=ui /usr/local/packer/output-ova-vmware-iso/packer-centos-7-x86_64.vmx

检查 PXE 引导安装进度

在Kickstart安装进行时，packer显示此消息，

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8863
==> vmware-iso: Starting virtual machine...
    vmware-iso: The VM will be run headless, without a GUI. If you want to
    vmware-iso: view the screen of the VM, connect via VNC with the password "O08ybVbP" to
    vmware-iso: vnc://127.0.0.1:5924
==> vmware-iso: Waiting 10s for boot...
==> vmware-iso: Connecting to VM via VNC (127.0.0.1:5924)
==> vmware-iso: Typing the boot command over VNC...
==> vmware-iso: Waiting for SSH to become available...

所以我决定连接到VNC服务。首先，我从我的 Mac 创建了一个 SSH 隧道：

<> ssh -L 1111:localhost:5924 ub

然后在我的 Mac 上，我运行了这个：

<> vncviewer localhost:1111

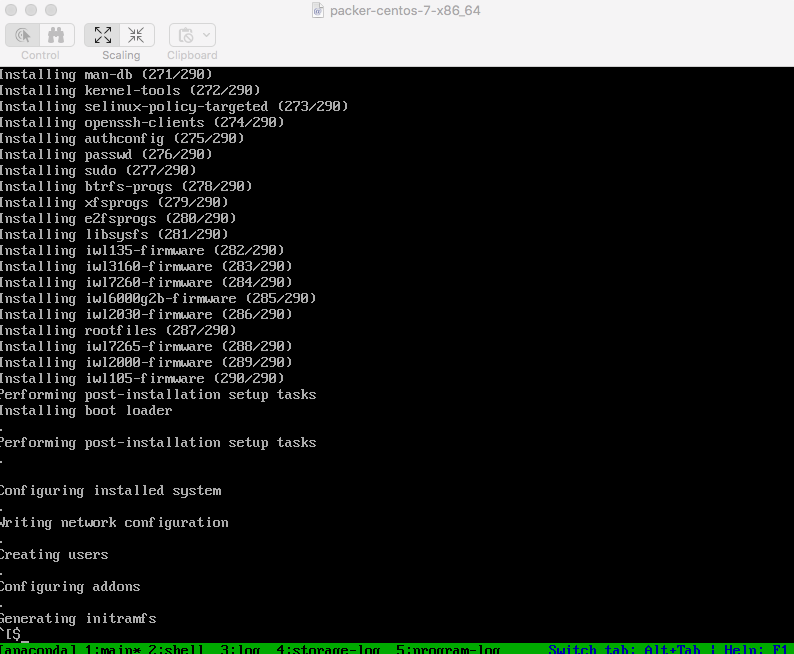

然后在输入密码后（来自打包程序的输出），我看到安装正在进行：


很高兴确认安装正在进行。

Ansible 配置器和 Packer 的问题

我遇到了ansible供应商的另一个问题：

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8844
==> vmware-iso: Starting virtual machine...
    vmware-iso: The VM will be run headless, without a GUI. If you want to
    vmware-iso: view the screen of the VM, connect via VNC with the password "lWgi2eUn" to
    vmware-iso: vnc://127.0.0.1:5970
==> vmware-iso: Waiting 10s for boot...
==> vmware-iso: Connecting to VM via VNC (127.0.0.1:5970)
==> vmware-iso: Typing the boot command over VNC...
==> vmware-iso: Waiting for SSH to become available...
==> vmware-iso: Connected to SSH!
==> vmware-iso: Provisioning with shell script: scripts/post-install.sh
..
..
==> vmware-iso: Provisioning with Ansible...
    vmware-iso: Creating Ansible staging directory...
    vmware-iso: Creating directory: /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb
    vmware-iso: Uploading main Playbook file...
    vmware-iso: Uploading galaxy file...
{
    vmware-iso: Uploading inventory file...
    vmware-iso: Executing Ansible Galaxy: cd /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb && ansible-galaxy install -r /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb/requirements.yml -p /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb/roles
    vmware-iso: - downloading role 'chrony', owned by influxdata
    vmware-iso: - downloading role from https://github.com/influxdata/ansible-chrony/archive/master.tar.gz
    vmware-iso: - extracting influxdata.chrony to /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb/roles/influxdata.chrony
    vmware-iso: - influxdata.chrony (master) was installed successfully
    vmware-iso: Executing Ansible: cd /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb && ANSIBLE_FORCE_COLOR=1 PYTHONUNBUFFERED=1 ansible-playbook /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb/main.yml --extra-vars \"packer_build_name=vmware-iso packer_builder_type=vmware-iso packer_http_addr=172.16.197.1:8844\"  -c local -i /tmp/packer-provisioner-ansible-local/5a80a166-018b-345f-29cb-6764bc9ad5bb/packer-provisioner-ansible-local746234266
    vmware-iso: ERROR! the playbook: packer_builder_type=vmware-iso could not be found
==> vmware-iso: Stopping virtual machine...
==> vmware-iso: Deleting output directory...
Build 'vmware-iso' errored: Error executing Ansible: Non-zero exit status: 1

该问题特定于我的打包程序版本，并在此处进行了讨论（这是一个相当新的问题，因此我将等待下一个版本，看看是否可以修复它）。

完成封隔器构建

在我测试时，我禁用了ansible并只使用了shell配置器，并且构建成功了：

<> packer build centos7.json
vmware-iso output will be in this color.

==> vmware-iso: Downloading or copying ISO
    vmware-iso: Downloading or copying: file:///usr/local/packer/iso/CentOS-7-x86_64-Minimal-1708.iso
==> vmware-iso: Creating virtual machine disk
==> vmware-iso: Building and writing VMX file
==> vmware-iso: Starting HTTP server on port 8776
==> vmware-iso: Starting virtual machine...
    vmware-iso: The VM will be run headless, without a GUI. If you want to
    vmware-iso: view the screen of the VM, connect via VNC with the password "jxIgJ53t" to
    vmware-iso: vnc://127.0.0.1:5976
==> vmware-iso: Waiting 10s for boot...
==> vmware-iso: Connecting to VM via VNC (127.0.0.1:5976)
==> vmware-iso: Typing the boot command over VNC...
==> vmware-iso: Waiting for SSH to become available...
==> vmware-iso: Connected to SSH!
==> vmware-iso: Provisioning with shell script: scripts/post-install.sh
    vmware-iso: Loaded plugins: fastestmirror
    vmware-iso: base                                                     | 3.6 kB     00:00
    vmware-iso: extras                                                   | 3.4 kB     00:00
    vmware-iso: updates                                                  | 3.4 kB     00:00
    vmware-iso: (1/4): base/7/x86_64/group_gz                              | 156 kB   00:00
    vmware-iso: (2/4): extras/7/x86_64/primary_db                          | 166 kB   00:00
    vmware-iso: (3/4): updates/7/x86_64/primary_db                         | 6.0 MB   00:00
    vmware-iso: (4/4): base/7/x86_64/primary_db                            | 5.7 MB   00:01
    vmware-iso: Determining fastest mirrors
    vmware-iso:  * base: mirror.den1.denvercolo.net
    vmware-iso:  * extras: mirrors.umflint.edu
    vmware-iso:  * updates: mirrors.oit.uci.edu
    vmware-iso: Resolving Dependencies
    vmware-iso: --> Running transaction check
    vmware-iso: ---> Package ansible.noarch 0:2.4.2.0-2.el7 will be installed
    vmware-iso: --> Processing Dependency: sshpass for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python2-jmespath for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-six for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-setuptools for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-passlib for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-paramiko for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-jinja2 for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-httplib2 for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-cryptography for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Processing Dependency: PyYAML for package: ansible-2.4.2.0-2.el7.noarch
    vmware-iso: --> Running transaction check
    vmware-iso: ---> Package PyYAML.x86_64 0:3.10-11.el7 will be installed
    vmware-iso: --> Processing Dependency: libyaml-0.so.2()(64bit) for package: PyYAML-3.10-11.el7.x86_64
    vmware-iso: ---> Package python-httplib2.noarch 0:0.9.2-1.el7 will be installed
    vmware-iso: ---> Package python-jinja2.noarch 0:2.7.2-2.el7 will be installed
    vmware-iso: --> Processing Dependency: python-babel >= 0.8 for package: python-jinja2-2.7.2-2.el7.noarch
    vmware-iso: --> Processing Dependency: python-markupsafe for package: python-jinja2-2.7.2-2.el7.noarch
    vmware-iso: ---> Package python-paramiko.noarch 0:2.1.1-2.el7 will be installed
    vmware-iso: ---> Package python-passlib.noarch 0:1.6.5-2.el7 will be installed
    vmware-iso: ---> Package python-setuptools.noarch 0:0.9.8-7.el7 will be installed
    vmware-iso: --> Processing Dependency: python-backports-ssl_match_hostname for package: python-setuptools-0.9.8-7.el7.noarch
    vmware-iso: ---> Package python-six.noarch 0:1.9.0-2.el7 will be installed
    vmware-iso: ---> Package python2-cryptography.x86_64 0:1.7.2-1.el7_4.1 will be installed
    vmware-iso: --> Processing Dependency: python-pyasn1 >= 0.1.8 for package: python2-cryptography-1.7.2-1.el7_4.1.x86_64
    vmware-iso: --> Processing Dependency: python-idna >= 2.0 for package: python2-cryptography-1.7.2-1.el7_4.1.x86_64
    vmware-iso: --> Processing Dependency: python-cffi >= 1.4.1 for package: python2-cryptography-1.7.2-1.el7_4.1.x86_64
    vmware-iso: --> Processing Dependency: python-ipaddress for package: python2-cryptography-1.7.2-1.el7_4.1.x86_64
    vmware-iso: --> Processing Dependency: python-enum34 for package: python2-cryptography-1.7.2-1.el7_4.1.x86_64
    vmware-iso: ---> Package python2-jmespath.noarch 0:0.9.0-3.el7 will be installed
    vmware-iso: ---> Package sshpass.x86_64 0:1.06-2.el7 will be installed
    vmware-iso: --> Running transaction check
    vmware-iso: ---> Package libyaml.x86_64 0:0.1.4-11.el7_0 will be installed
    vmware-iso: ---> Package python-babel.noarch 0:0.9.6-8.el7 will be installed
    vmware-iso: ---> Package python-backports-ssl_match_hostname.noarch 0:3.4.0.2-4.el7 will be installed
    vmware-iso: --> Processing Dependency: python-backports for package: python-backports-ssl_match_hostname-3.4.0.2-4.el7.noarch
    vmware-iso: ---> Package python-cffi.x86_64 0:1.6.0-5.el7 will be installed
    vmware-iso: --> Processing Dependency: python-pycparser for package: python-cffi-1.6.0-5.el7.x86_64
    vmware-iso: ---> Package python-enum34.noarch 0:1.0.4-1.el7 will be installed
    vmware-iso: ---> Package python-idna.noarch 0:2.4-1.el7 will be installed
    vmware-iso: ---> Package python-ipaddress.noarch 0:1.0.16-2.el7 will be installed
    vmware-iso: ---> Package python-markupsafe.x86_64 0:0.11-10.el7 will be installed
    vmware-iso: ---> Package python2-pyasn1.noarch 0:0.1.9-7.el7 will be installed
    vmware-iso: --> Running transaction check
    vmware-iso: ---> Package python-backports.x86_64 0:1.0-8.el7 will be installed
    vmware-iso: ---> Package python-pycparser.noarch 0:2.14-1.el7 will be installed
    vmware-iso: --> Processing Dependency: python-ply for package: python-pycparser-2.14-1.el7.noarch
    vmware-iso: --> Running transaction check
    vmware-iso: ---> Package python-ply.noarch 0:3.4-11.el7 will be installed
    vmware-iso: --> Finished Dependency Resolution
    vmware-iso:
    vmware-iso: Dependencies Resolved
    vmware-iso:
    vmware-iso: ================================================================================
    vmware-iso:  Package                              Arch    Version            Repository
    vmware-iso:                                                                            Size
    vmware-iso: ================================================================================
    vmware-iso: Installing:
    vmware-iso:  ansible                              noarch  2.4.2.0-2.el7      extras   7.6 M
    vmware-iso: Installing for dependencies:
    vmware-iso:  PyYAML                               x86_64  3.10-11.el7        base     153 k
    vmware-iso:  libyaml                              x86_64  0.1.4-11.el7_0     base      55 k
    vmware-iso:  python-babel                         noarch  0.9.6-8.el7        base     1.4 M
    vmware-iso:  python-backports                     x86_64  1.0-8.el7          base     5.8 k
    vmware-iso:  python-backports-ssl_match_hostname  noarch  3.4.0.2-4.el7      base      12 k
    vmware-iso:  python-cffi                          x86_64  1.6.0-5.el7        base     218 k
    vmware-iso:  python-enum34                        noarch  1.0.4-1.el7        base      52 k
    vmware-iso:  python-httplib2                      noarch  0.9.2-1.el7        extras   115 k
    vmware-iso:  python-idna                          noarch  2.4-1.el7          base      94 k
    vmware-iso:  python-ipaddress                     noarch  1.0.16-2.el7       base      34 k
    vmware-iso:  python-jinja2                        noarch  2.7.2-2.el7        base     515 k
    vmware-iso:  python-markupsafe                    x86_64  0.11-10.el7        base      25 k
    vmware-iso:  python-paramiko                      noarch  2.1.1-2.el7        extras   267 k
    vmware-iso:  python-passlib                       noarch  1.6.5-2.el7        extras   488 k
    vmware-iso:  python-ply                           noarch  3.4-11.el7         base     123 k
    vmware-iso:  python-pycparser                     noarch  2.14-1.el7         base     104 k
    vmware-iso:  python-setuptools                    noarch  0.9.8-7.el7        base     397 k
    vmware-iso:  python-six                           noarch  1.9.0-2.el7        base      29 k
    vmware-iso:  python2-cryptography                 x86_64  1.7.2-1.el7_4.1    updates  502 k
    vmware-iso:  python2-jmespath                     noarch  0.9.0-3.el7        extras    39 k
    vmware-iso:  python2-pyasn1                       noarch  0.1.9-7.el7        base     100 k
    vmware-iso:  sshpass                              x86_64  1.06-2.el7         extras    21 k
    vmware-iso:
    vmware-iso: Transaction Summary
    vmware-iso: ================================================================================
    vmware-iso: Install  1 Package (+22 Dependent packages)
    vmware-iso:
    vmware-iso: Total download size: 12 M
    vmware-iso: Installed size: 60 M
    vmware-iso: Downloading packages:
    vmware-iso: (1/23): libyaml-0.1.4-11.el7_0.x86_64.rpm                  |  55 kB   00:00
    vmware-iso: (2/23): PyYAML-3.10-11.el7.x86_64.rpm                      | 153 kB   00:00
    vmware-iso: (3/23): python-backports-1.0-8.el7.x86_64.rpm              | 5.8 kB   00:00
    vmware-iso: (4/23): python-backports-ssl_match_hostname-3.4.0.2-4.el7. |  12 kB   00:00
    vmware-iso: (5/23): python-cffi-1.6.0-5.el7.x86_64.rpm                 | 218 kB   00:00
    vmware-iso: (6/23): ansible-2.4.2.0-2.el7.noarch.rpm                   | 7.6 MB   00:01
    vmware-iso: (7/23): python-idna-2.4-1.el7.noarch.rpm                   |  94 kB   00:00
    vmware-iso: (8/23): python-babel-0.9.6-8.el7.noarch.rpm                | 1.4 MB   00:01
    vmware-iso: (9/23): python-enum34-1.0.4-1.el7.noarch.rpm               |  52 kB   00:00
    vmware-iso: (10/23): python-jinja2-2.7.2-2.el7.noarch.rpm              | 515 kB   00:00
    vmware-iso: (11/23): python-markupsafe-0.11-10.el7.x86_64.rpm          |  25 kB   00:00
    vmware-iso: (12/23): python-httplib2-0.9.2-1.el7.noarch.rpm            | 115 kB   00:00
    vmware-iso: (13/23): python-ipaddress-1.0.16-2.el7.noarch.rpm          |  34 kB   00:00
    vmware-iso: (14/23): python-setuptools-0.9.8-7.el7.noarch.rpm          | 397 kB   00:00
    vmware-iso: (15/23): python-six-1.9.0-2.el7.noarch.rpm                 |  29 kB   00:00
    vmware-iso: (16/23): python-paramiko-2.1.1-2.el7.noarch.rpm            | 267 kB   00:00
    vmware-iso: (17/23): python-ply-3.4-11.el7.noarch.rpm                  | 123 kB   00:00
    vmware-iso: (18/23): python-passlib-1.6.5-2.el7.noarch.rpm             | 488 kB   00:00
    vmware-iso: (19/23): python2-jmespath-0.9.0-3.el7.noarch.rpm           |  39 kB   00:00
    vmware-iso: (20/23): python-pycparser-2.14-1.el7.noarch.rpm            | 104 kB   00:00
    vmware-iso: (21/23): python2-cryptography-1.7.2-1.el7_4.1.x86_64.rpm   | 502 kB   00:00
    vmware-iso: (22/23): sshpass-1.06-2.el7.x86_64.rpm                     |  21 kB   00:00
    vmware-iso: (23/23): python2-pyasn1-0.1.9-7.el7.noarch.rpm             | 100 kB   00:00
    vmware-iso: --------------------------------------------------------------------------------
    vmware-iso: Total                                              6.0 MB/s |  12 MB  00:02
    vmware-iso: Running transaction check
    vmware-iso: Running transaction test
    vmware-iso: Transaction test succeeded
    vmware-iso: Running transaction
    vmware-iso:   Installing : python-six-1.9.0-2.el7.noarch                               1/23
    vmware-iso:   Installing : python2-pyasn1-0.1.9-7.el7.noarch                           2/23
    vmware-iso:   Installing : python-httplib2-0.9.2-1.el7.noarch                          3/23
    vmware-iso:   Installing : python-enum34-1.0.4-1.el7.noarch                            4/23
    vmware-iso:   Installing : python-ipaddress-1.0.16-2.el7.noarch                        5/23
    vmware-iso:   Installing : libyaml-0.1.4-11.el7_0.x86_64                               6/23
    vmware-iso:   Installing : PyYAML-3.10-11.el7.x86_64                                   7/23
    vmware-iso:   Installing : python-backports-1.0-8.el7.x86_64                           8/23
    vmware-iso:   Installing : python-backports-ssl_match_hostname-3.4.0.2-4.el7.noarch    9/23
    vmware-iso:   Installing : python-setuptools-0.9.8-7.el7.noarch                       10/23
    vmware-iso:   Installing : python-babel-0.9.6-8.el7.noarch                            11/23
    vmware-iso:   Installing : python-passlib-1.6.5-2.el7.noarch                          12/23
    vmware-iso:   Installing : python-ply-3.4-11.el7.noarch                               13/23
    vmware-iso:   Installing : python-pycparser-2.14-1.el7.noarch                         14/23
    vmware-iso:   Installing : python-cffi-1.6.0-5.el7.x86_64                             15/23
    vmware-iso:   Installing : python-markupsafe-0.11-10.el7.x86_64                       16/23
    vmware-iso:   Installing : python-jinja2-2.7.2-2.el7.noarch                           17/23
    vmware-iso:   Installing : python-idna-2.4-1.el7.noarch                               18/23
    vmware-iso:   Installing : python2-cryptography-1.7.2-1.el7_4.1.x86_64                19/23
    vmware-iso:   Installing : python-paramiko-2.1.1-2.el7.noarch                         20/23
    vmware-iso:   Installing : python2-jmespath-0.9.0-3.el7.noarch                        21/23
    vmware-iso:   Installing : sshpass-1.06-2.el7.x86_64                                  22/23
    vmware-iso:   Installing : ansible-2.4.2.0-2.el7.noarch                               23/23
    vmware-iso:   Verifying  : python-jinja2-2.7.2-2.el7.noarch                            1/23
    vmware-iso:   Verifying  : python-backports-ssl_match_hostname-3.4.0.2-4.el7.noarch    2/23
    vmware-iso:   Verifying  : sshpass-1.06-2.el7.x86_64                                   3/23
    vmware-iso:   Verifying  : python-setuptools-0.9.8-7.el7.noarch                        4/23
    vmware-iso:   Verifying  : python2-cryptography-1.7.2-1.el7_4.1.x86_64                 5/23
    vmware-iso:   Verifying  : python2-jmespath-0.9.0-3.el7.noarch                         6/23
    vmware-iso:   Verifying  : python-six-1.9.0-2.el7.noarch                               7/23
    vmware-iso:   Verifying  : python-idna-2.4-1.el7.noarch                                8/23
    vmware-iso:   Verifying  : python-markupsafe-0.11-10.el7.x86_64                        9/23
    vmware-iso:   Verifying  : python-ply-3.4-11.el7.noarch                               10/23
    vmware-iso:   Verifying  : python-passlib-1.6.5-2.el7.noarch                          11/23
    vmware-iso:   Verifying  : python-babel-0.9.6-8.el7.noarch                            12/23
    vmware-iso:   Verifying  : python-backports-1.0-8.el7.x86_64                          13/23
    vmware-iso:   Verifying  : python-cffi-1.6.0-5.el7.x86_64                             14/23
    vmware-iso:   Verifying  : python-paramiko-2.1.1-2.el7.noarch                         15/23
    vmware-iso:   Verifying  : python-pycparser-2.14-1.el7.noarch                         16/23
    vmware-iso:   Verifying  : libyaml-0.1.4-11.el7_0.x86_64                              17/23
    vmware-iso:   Verifying  : ansible-2.4.2.0-2.el7.noarch                               18/23
    vmware-iso:   Verifying  : python-ipaddress-1.0.16-2.el7.noarch                       19/23
    vmware-iso:   Verifying  : python-enum34-1.0.4-1.el7.noarch                           20/23
    vmware-iso:   Verifying  : python-httplib2-0.9.2-1.el7.noarch                         21/23
    vmware-iso:   Verifying  : python2-pyasn1-0.1.9-7.el7.noarch                          22/23
    vmware-iso:   Verifying  : PyYAML-3.10-11.el7.x86_64                                  23/23
    vmware-iso:
    vmware-iso: Installed:
    vmware-iso:   ansible.noarch 0:2.4.2.0-2.el7
    vmware-iso:
    vmware-iso: Dependency Installed:
    vmware-iso:   PyYAML.x86_64 0:3.10-11.el7
    vmware-iso:   libyaml.x86_64 0:0.1.4-11.el7_0
    vmware-iso:   python-babel.noarch 0:0.9.6-8.el7
    vmware-iso:   python-backports.x86_64 0:1.0-8.el7
    vmware-iso:   python-backports-ssl_match_hostname.noarch 0:3.4.0.2-4.el7
    vmware-iso:   python-cffi.x86_64 0:1.6.0-5.el7
    vmware-iso:   python-enum34.noarch 0:1.0.4-1.el7
    vmware-iso:   python-httplib2.noarch 0:0.9.2-1.el7
    vmware-iso:   python-idna.noarch 0:2.4-1.el7
    vmware-iso:   python-ipaddress.noarch 0:1.0.16-2.el7
    vmware-iso:   python-jinja2.noarch 0:2.7.2-2.el7
    vmware-iso:   python-markupsafe.x86_64 0:0.11-10.el7
    vmware-iso:   python-paramiko.noarch 0:2.1.1-2.el7
    vmware-iso:   python-passlib.noarch 0:1.6.5-2.el7
    vmware-iso:   python-ply.noarch 0:3.4-11.el7
    vmware-iso:   python-pycparser.noarch 0:2.14-1.el7
    vmware-iso:   python-setuptools.noarch 0:0.9.8-7.el7
    vmware-iso:   python-six.noarch 0:1.9.0-2.el7
    vmware-iso:   python2-cryptography.x86_64 0:1.7.2-1.el7_4.1
    vmware-iso:   python2-jmespath.noarch 0:0.9.0-3.el7
    vmware-iso:   python2-pyasn1.noarch 0:0.1.9-7.el7
    vmware-iso:   sshpass.x86_64 0:1.06-2.el7
    vmware-iso:
    vmware-iso: Complete!
==> vmware-iso: Gracefully halting virtual machine...
    vmware-iso: Waiting for VMware to clean up after itself...
==> vmware-iso: Deleting unnecessary VMware files...
    vmware-iso: Deleting: output-ova-vmware-iso/vmware.log
==> vmware-iso: Compacting the disk image
==> vmware-iso: Cleaning VMX prior to finishing up...
    vmware-iso: Unmounting floppy from VMX...
    vmware-iso: Detaching ISO from CD-ROM device...
    vmware-iso: Disabling VNC server...
==> vmware-iso: Skipping export of virtual machine (export is allowed only for ESXi and the format needs to be specified)...
==> vmware-iso: Running post-processor: shell-local
==> vmware-iso (shell-local): Post processing with local shell script: /tmp/packer-shell112690227
    vmware-iso (shell-local): Opening VMX source: output-ova-vmware-iso/packer-centos-7-x86_64.vmx
    vmware-iso (shell-local): Opening OVA target: output-ova-vmware-iso/test.ova
    vmware-iso (shell-local): Writing OVA package: output-ova-vmware-iso/test.ova
    vmware-iso (shell-local): Transfer Completed
    vmware-iso (shell-local): Completed successfully
Build 'vmware-iso' finished.

==> Builds finished. The artifacts of successful builds are:
--> vmware-iso: VM files in directory: output-ova-vmware-iso
--> vmware-iso:

我创建了我的 OVA：

<> tree output-ova-vmware-iso
output-ova-vmware-iso
├── disk.vmdk
├── packer-centos-7-x86_64.nvram
├── packer-centos-7-x86_64.vmsd
├── packer-centos-7-x86_64.vmx
├── packer-centos-7-x86_64.vmxf
└── test.ova

很酷。我还能够查询 OVA 以查看其属性：

<> ovftool output-ova-vmware-iso/test.ova
OVF version:   1.0
VirtualApp:    false
Name:          packer-centos-7-x86_64

Download Size:  782.63 MB

Deployment Sizes:
  Flat disks:   16.00 GB
  Sparse disks: 1.55 GB

Networks:
  Name:        nat
  Description: The nat network

Virtual Machines:
  Name:               packer-centos-7-x86_64
  Operating System:   centos7_64guest
  Virtual Hardware:
    Families:         vmx-13
    Number of CPUs:   2
    Cores per socket: 1
    Memory:           512.00 MB

    Disks:
      Index:          0
      Instance ID:    7
      Capacity:       16.00 GB
      Disk Types:     SCSI-lsilogic

    NICs:
      Adapter Type:   E1000
      Connection:     nat

看起来不错。

在 ESXi 主机上部署 OVA

作为快速测试，我在 ESXi 主机上部署了 OVA：

<> ovftool -dm=thin -ds=datastore1 "--net:nat=VM_VLAN3" output-ova-vmware-iso/test.ova "vi://root@hp.kar.int"
Opening OVA source: output-ova-vmware-iso/test.ova
The manifest validates
Enter login information for target vi://hp.kar.int/
Username: root
Password: ********
Opening VI target: vi://root@hp.kar.int:443/
Deploying to VI: vi://root@hp.kar.int:443/
Transfer Completed
Completed successfully

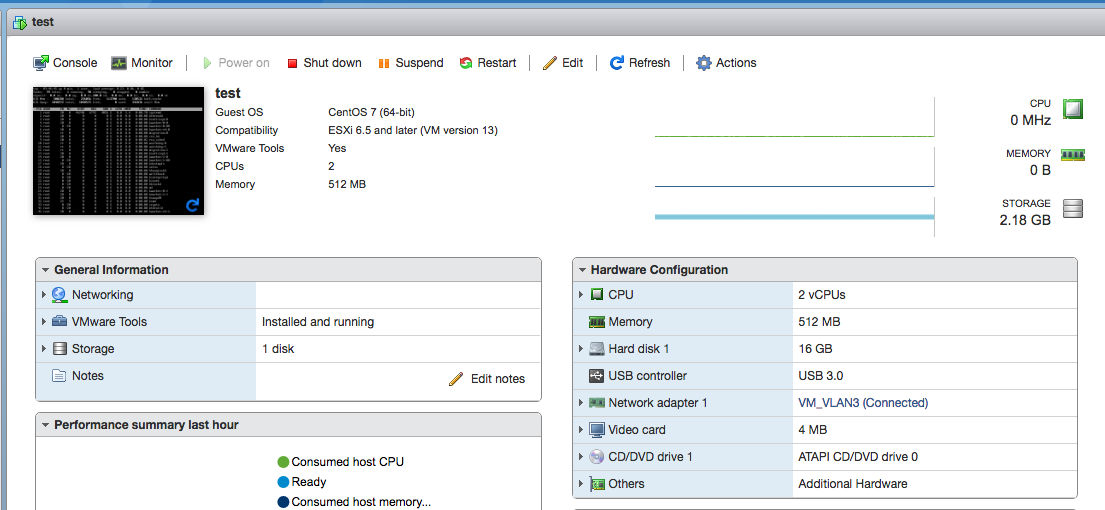

我能够打开 VM 并使用 root 用户登录。以下是虚拟机在 Web 客户端中的样子：


封隔器选项

我最终在我的打包程序配置中设置了一些选项（VMware Builder（来自 ISO）中涵盖了所有选项）：

  • 我禁用了tools_upload_flavor选项，因为我稍后在配置过程中安装了open-vm-tools包。
  • 我将版本设置为13以匹配我的 ESXi 版本（即6.5），默认情况下它是9（即 ESXi 5.1）。

  • 我使用ovftool手动创建了 OVA，而不是将其上传到 ESXi 机器，仅用于测试（并且能够将其用于以后使用，因为我没有 vCenter 并且无法存储模板）：

     "post-processors": [
  {
    "type": "shell-local",
    "inline": ["ovftool output-ova-vmware-iso/packer-centos-7-x86_64.vmx output-ova-vmware-iso/test.ova"]
  }
  ]
  • 我设置了guest_os_type是centos7-64，以确保它显示为CentOS的7，而不是CentOS 5的（OS类型的完整列表，请点击这里

这只是对我有用的一些选择。

包装工与詹金斯

不乏Jenkinsfile示例：

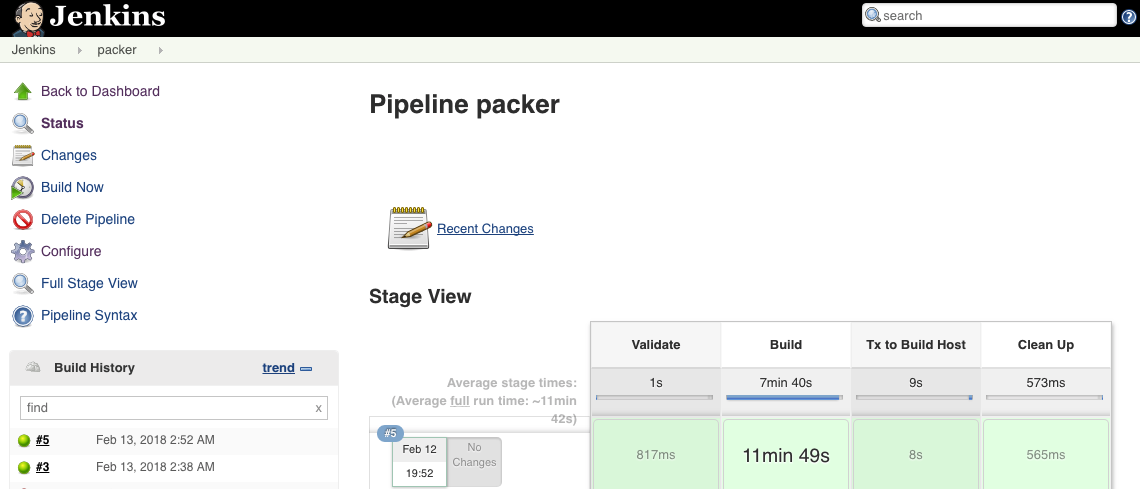

创建您选择的 Jenkins 作业并运行成功的作业（构建和存储 OVA 映像）后，您可能会在 Jenkins 作业结果中看到类似这样的内容（不要忘记使用阶段块）：


allway2
关注
ERROR: Command errored
知识改变命运，ヾ(◍°∇°◍)ﾉﾞ【求关注】
05-27 543
最近更换本地Python2.7到3.8时报错
create-ova:从原始磁盘文件和模板 OVF 创建 OVA
06-20
创造卵子 从原始磁盘文件和模板 OVF 创建 OVA 用法： 使用磁盘卷/存储库所在的数据位置配置脚本 传入要包含的磁盘 ID 以及 VM 的名称 等待 .ova 编译 ./createova.sh <VM> <DISK>
制作OVF模板
weixin_34226182的博客
10-30 1351
OVF模板是模板的一种压缩格式，用来虚拟平台之间交换虚拟设备，它极大地方便了虚拟机跨平台的操作，无论是VMware vSphere 、Xenserver还是Hyper-v，都可以通过OVF模板来相互转移平台。OVF模板是之前使用虚拟机预先安装的客户机操作系统及其他软件，它可以携带存储的虚拟机、虚拟设备、vApp，附带许可协议等。VMware通过VMware Virtual A...
packer-oraclelinux-ovf：从现有的ova开始使用virtualbox-ovf进行打包的仓库
02-06
打包器-oraclelinux-ovf 使用virtualbox-ovf的打包程序的POC，允许我们从现有的盒子开始。 阅读有关packer 要求： 并将其放在sw/oracle-xe-11.2.0-1.0.x86_64.rpm 如何使用： 使 提供了一个makefile来帮助完成不同的任务。 make将根据模板构建所有框。 make clean将删除file.box make cleanall将删除file.box和从下载OVA packer_cache make removebox将从无业游民中删除箱子 手动地 packer build oraclelinux7.json c
2018-12-11 ova模板的制作
weixin_40931005的博客
12-11 3493
1.下载 VMware vSphere Command Line Interface 6.5 https://my.vmware.com/zh/web/vmware/details?productId=614&amp;downloadGroup=VS-CLI-65 2. 安裝套件 # yum install epel-release # yum update # yum install ope...
packer-esxi:VMware ESXi映像的示例Packer模板和Vagrant框
05-13
VMware ESXi映像的示例Packer模板和Vagrant框 该存储库包含一个用于构建ESXi 5.5计算机映像的模板和一个框示例。 要求 带有VMware Fusion的MacOSX或带有VMware WorkstationLinux 适用于Fusion或Workstation的 VMware-VMvisor-Installer-5.5.0-1331820.x86_64.iso 封隔器图像生成器 您将在此目录中需要VMware-VMvisor-Installer-5.5.0-1331820.x86_64.iso的副本，或在template.json iso_urls中添加有效的URL。 要生成映像，请运行以下命令： $ packer build template.json 在安装ESXi时，可以使用访问控制台。 也可以使用template.json的RemoteDisplay
vmware ubuntu22.ova
最新发布
02-24
通过 VMware Workstation Pro 或 Player 等软件安装该操作系统至新创建的 VM 中，并对其进行必要的调整（比如更改网络接口命名规则），最后导出为 OVA 格式的存档文件以便后续重复利用或共享给他人使用[^4]...
kivydev.ova
02-18
一旦获得了 `.ova` 格式的压缩包之后，就可以利用 VirtualBox 或者 VMware Workstation/Player 来导入这个文件创建新的虚拟机实例。如果选择了后者，则可能还需要借助 Packer 自动化生成适用于不同平台格式（比如 ...
vmware如何拷贝ubuntu虚拟机
12-27
- 打开VMware Workstation或Player，找到你要克隆的Ubuntu虚拟机。 - 右键点击虚拟机，选择“复制虚拟机”或“克隆当前虚拟机”选项。 - 在弹出的窗口中可以选择创建完整克隆（保留所有数据），还是链接克隆（仅...
下载VMwareiso
01-14
此外，利用诸如Packer这样的自动化工具配合 VMware Player 可以帮助快速生成标准格式(OVA)的虚拟设备模板，但这并不涉及直接下载所谓的“VMware ISO”，而是基于已有的组件来打包成可分发的形式[^3]。 ```bash # ...
安装metasploitable3的经验总结
weixin_33691700的博客
06-27 3379
一个月没有写学习记录了，但是这一个月一直没闲着，抽空写写自己装metasploitable3的经验教训（提示：只要你的环境配置没错，步骤没错，多试几次就会成功了，我总共测试了15次，，短的耗时30分钟，长的3个小时以上。失败激起了我的好胜心，终于在今天凌晨5点大家还在睡觉的时候突然成功了，瞬间不困了，嘿嘿） 最近两天在win10系统下装metasploitable3，两天尝试了各种方法，总结如下...
VMware-VIX-1.17.0-6661328.x86_64.bundle
08-24
官网下载的VMware-VIX资源，1.17版本，由于1.15版本太老，debian 9 支持的VMware-Player升级到了14版本，
安装 虚拟机 出现这个 failed to install the hcmon driver
wyqwilliam的博客
11-04 8311
第二次安装 虚拟机 出现这个 failed to install the hcmon driver  之前装过没卸载干净。在C盘的驱动文件夹也就是“C:\Windows\System32\drivers”下 把hcmon.sys驱动文件删除，随后重启了一下电脑，就行了...
弄了一天，终于解决VMware创建虚拟机的多处问题，Could not prepare the install disc at
m0_57102730的博客
02-07 3209
新建虚拟机Could not prepare the install disc atMake sure that you are using a valid Linux install disc. If this error persists, you may need to reinstall VMware Workstation等解决方法
Python报错ERROR: Command errored out with exit status 1:
热门推荐
给我一点温度
08-22 40万+
因为Pycharm最近老是弹出RELP COMMUNICATIONS，非常影响代码运行的效率。 REPL（Read-Eval-Print Loop），翻译过来就是“读取-求值-输出”循环，是一个简单的交互式的编程环境。 听起来似乎挺有用，所以想直接在Pycharm中pip这个REPL。结果报错： ERROR: Command errored out with exit status 1: ...
node项目报错had too many unstable restarts (16). Stopped. “errored”
weixin_43705542的博客
10-14 5567
首先排查原因： 1.多服务情况下，单个errored 这种情况一般是代码部署问题 查nodelogs 得出缺依赖 Cannot find module 'shortstop-resolve' 装好后重启正常 注意： 这里重启只用pm2 reload 并不管用，需要找到pm2 执行脚本，例如service.js 查pm2进程号杀掉，然后重启 ps -ef | grep pm2 kill -9 进程号 pm2 start service.js用 情况2：也是坑我最深的 直接切root账户启动pm2服务
VMware Vix API 操作虚拟机
十年磨一剑，霜刃未曾试!
06-24 1万+
mark一下,为了学习VIX API,花了两天时间才搞定,要么是
玩转云镜像制作之packer篇
weixin_33847182的博客
03-25 889
1.DevOps之基础设施即代码(Infrastracture as Code) 什么是DevOps呢？按照维基百科的定义，DevOps（Development和Operations的组合词）是一种重视“软件开发人员（Dev）”和“IT运维技术人员（Ops）”之间沟通合作的文化、运动或惯例。透过自动化“软件交付”和“架构变更”的流程，来使...
OVF? OVA? VMDK? – File Formats and Tools for Virtualization
weixin_33714884的博客
01-08 274
I recently worked on a project to create a “virtual appliance” for one of our customers. They have an server application that they would like to distribute to their customers along with some new devic...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
