苍穹外卖小记

b9994

已于 2025-05-03 17:46:51 修改

阅读量368

点赞数 11

文章标签： java spring boot intellij-idea

于 2024-09-14 17:27:52 首次发布

本文链接：https://blog.csdn.net/b9994/article/details/142261551

版权

Apifox导入接口文档

新建项目 -- 项目设置 -- 选择YApi -- 上传对应json文件

Swagger的使用

引入步骤

b1：

            <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>knife4j-spring-boot-starter</artifactId>
                <version>3.0.2</version>
            </dependency>

b2：

//通过knife4j生成接口文档
    @Bean
    public Docket docket1() {
        //log.info("接口文档");
        ApiInfo apiInfo = new ApiInfoBuilder()
                .title("苍穹外卖项目接口文档")
                .version("2.0")
                .description("苍穹外卖项目接口文档")
                .build();
        Docket docket = new Docket(DocumentationType.SWAGGER_2)
                .groupName("管理端接口")
                .apiInfo(apiInfo)
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.sky.controller.admin"))
                .paths(PathSelectors.any())
                .build();
        return docket;
    }

b3：

//设置静态资源映射
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/doc.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

访问localhost:8080/doc.html

若页面无内容进入浏览器设置情理缓存重新刷新即可。

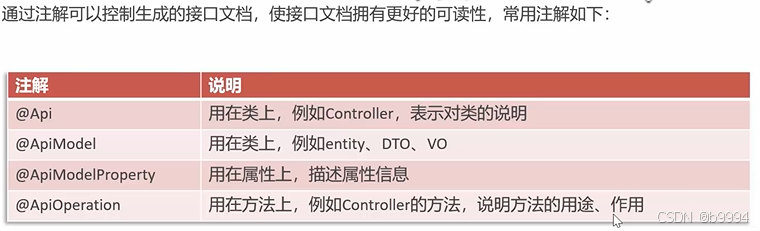

常用注解

新增员工

需求分析与设计

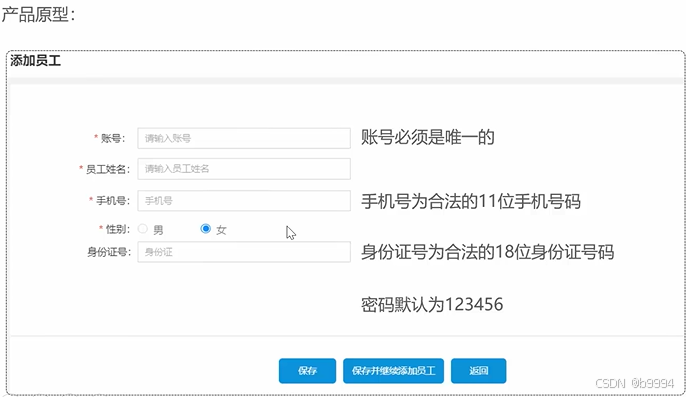

针对产品原型做需求分析：

接口设计

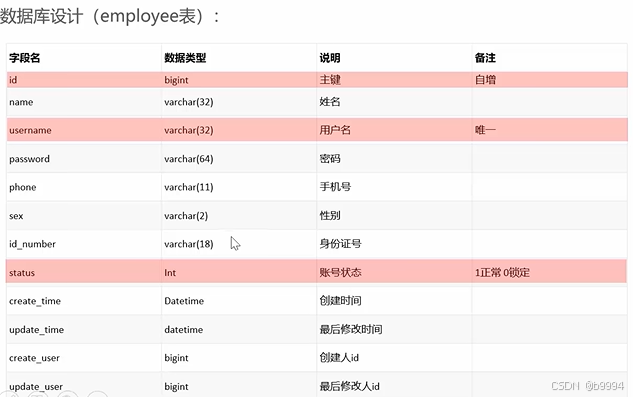

数据库设计

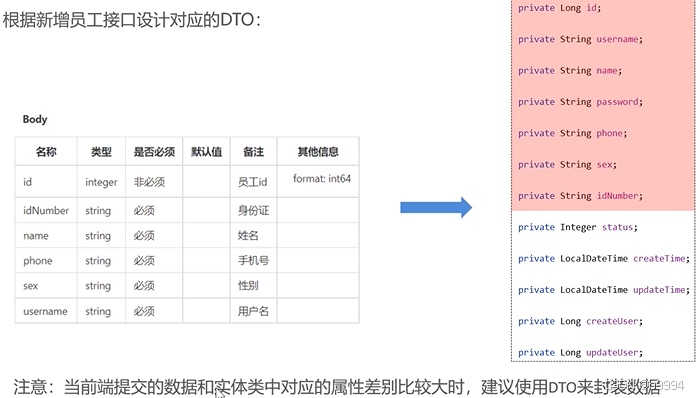

编写DTO

在Controller中设置路径，传入参数到Service的接口，在实现类中实现业务代码，最后调Mapper层编写数据库语句。

公共字段填充

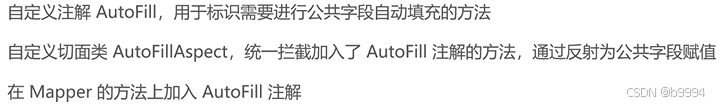

步骤如下：

b1：

package com.sky.enumeration;
//数据库操作类型
public enum OperationType {
//更新操作
    UPDATE,
//插入操作
    INSERT
}

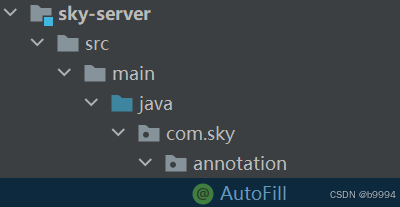

创建注解

//自定义注解，用于标识某个方法需要进行功能字段自动填充处理
@Target(ElementType.METHOD)//定义注解加在何处，此处设置为方法上
@Retention(RetentionPolicy.RUNTIME)//生命周期
public @interface AutoFill {
    //数据库操作类型，UPDATE,INSERT
    OperationType value();
}

b2：

创建切面类

//自定义切面，实现公共字段自动填充处理逻辑
@Aspect
@Component
@Slf4j
public class AutoFillAspect {
    //切入点-对哪些类的哪些方法进行拦截
    @Pointcut("execution(* com.sky.mapper.*.*(..)) && @annotation(com.sky.annotation.AutoFill)")
    public void autoFillPointCut(){}
    //前置通知，在通知中进行公共字段赋值
    @Before("autoFillPointCut()")
    public void autoFill(JoinPoint joinPoint){
        log.info("开始进行公共字段的自动填充...");
        //获取到当前被拦截的方法上的数据库操作类型
        MethodSignature signature = (MethodSignature)joinPoint.getSignature();//方法签名对象
        AutoFill autoFill = signature.getMethod().getAnnotation(AutoFill.class);//获得方法上的注解对象
        OperationType operationType = autoFill.value();//数据库操作类型
        //获取到当前被拦截的方法的参数--实体对象
        Object[] args = joinPoint.getArgs();
        if (args == null || args.length == 0){
            return;
        }
        Object entity = args[0];
        //准备赋值的数据
        LocalDateTime now = LocalDateTime.now();
        Long currentId = BaseContext.getCurrentId();
        //根据不同的操作类型，为对应的数据进行反射来赋值
        if (operationType == OperationType.INSERT){
            //为四个公共字段赋值
            try {
                Method setCreateTime = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_CREATE_TIME, LocalDateTime.class);
                Method setCreateUser = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_CREATE_USER, Long.class);
                Method setUpdateTime = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_UPDATE_TIME, LocalDateTime.class);
                Method setUpdateUser = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_UPDATE_USER, Long.class);
                //通过反射为对象属性赋值
                setCreateTime.invoke(entity,now);
                setCreateUser.invoke(entity,currentId);
                setUpdateTime.invoke(entity,now);
                setUpdateUser.invoke(entity,currentId);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }else if (operationType == OperationType.UPDATE){
            //为两个公共字段赋值
            try {
                Method setUpdateTime = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_UPDATE_TIME, LocalDateTime.class);
                Method setUpdateUser = entity.getClass().getDeclaredMethod(AutoFillConstant.SET_UPDATE_USER, Long.class);
                //通过反射为对象属性赋值
                setUpdateTime.invoke(entity,now);
                setUpdateUser.invoke(entity,currentId);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
}

b3：

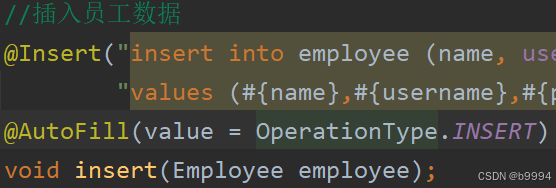

在Mapper中加入需要的数据库类型

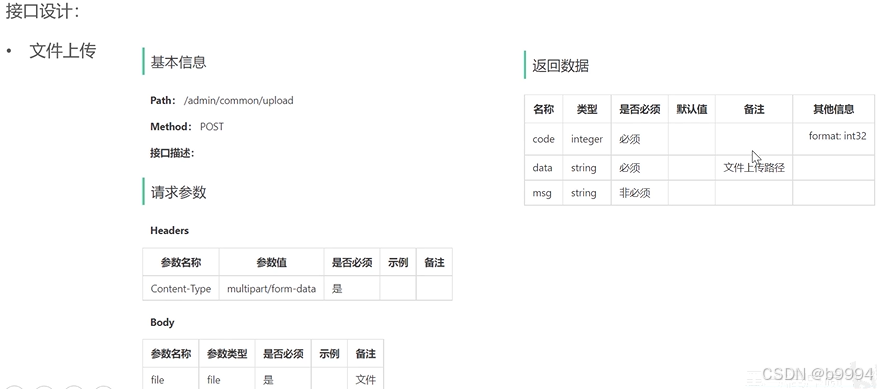

文件上传

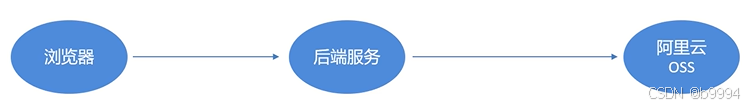

程序执行流程：

前端通过浏览器文件上传，例如用户选择了一张图片发送一个请求，就会把图片提交到后端服务，后端服务拿到图片将其上传至阿里云对象存储服务。

（若无OSS存储对象建议先创建，超详细的步骤可参考：阿里云OSS 存储对象的注册与使用_alioss-CSDN博客中第二步）

b1前置配置：

引入依赖

  <dependency>
       <groupId>com.aliyun.oss</groupId>
       <artifactId>aliyun-sdk-oss</artifactId>
       <version>3.10.2</version>
    </dependency>

配置属性类（下面四个配置项可以通过配置属性类加载封装为AliOssProperties对象）

package com.sky.properties;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;
//读取配置文件的配置项，封装为一个java对象
@Component
@ConfigurationProperties(prefix = "sky.alioss")
@Data
public class AliOssProperties {
    private String endpoint;
    private String accessKeyId;
    private String accessKeySecret;
    private String bucketName;
}

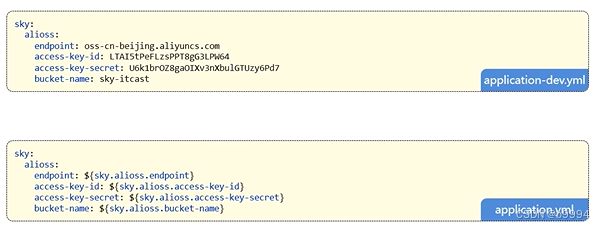

设置属性（在配置文件配置文件上传必须用到的四个配置项）

工具类（CV即可）

package com.sky.utils;

import com.aliyun.oss.ClientException;
import com.aliyun.oss.OSS;
import com.aliyun.oss.OSSClientBuilder;
import com.aliyun.oss.OSSException;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import java.io.ByteArrayInputStream;

@Data
@AllArgsConstructor
@Slf4j
public class AliOssUtil {

    private String endpoint;
    private String accessKeyId;
    private String accessKeySecret;
    private String bucketName;

    //文件上传
    public String upload(byte[] bytes, String objectName) {

        // 创建OSSClient实例。
        OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret);

        try {
            // 创建PutObject请求。
            ossClient.putObject(bucketName, objectName, new ByteArrayInputStream(bytes));
        } catch (OSSException oe) {
            System.out.println("Caught an OSSException, which means your request made it to OSS, "
                    + "but was rejected with an error response for some reason.");
            System.out.println("Error Message:" + oe.getErrorMessage());
            System.out.println("Error Code:" + oe.getErrorCode());
            System.out.println("Request ID:" + oe.getRequestId());
            System.out.println("Host ID:" + oe.getHostId());
        } catch (ClientException ce) {
            System.out.println("Caught an ClientException, which means the client encountered "
                    + "a serious internal problem while trying to communicate with OSS, "
                    + "such as not being able to access the network.");
            System.out.println("Error Message:" + ce.getMessage());
        } finally {
            if (ossClient != null) {
                ossClient.shutdown();
            }
        }

        //文件访问路径规则 https://BucketName.Endpoint/ObjectName
        StringBuilder stringBuilder = new StringBuilder("https://");
        stringBuilder
                .append(bucketName)
                .append(".")
                .append(endpoint)
                .append("/")
                .append(objectName);

        log.info("文件上传到:{}", stringBuilder.toString());

        return stringBuilder.toString();
    }
}

配置类（编写配置类OssConfiguration 将对象创建出来，这个配置类在项目启动时就可以加载出来）

package com.sky.config;

//配置类，用于创建AliOssUtil对象

import com.sky.properties.AliOssProperties;
import com.sky.utils.AliOssUtil;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@Slf4j
public class OssConfiguration {

    @Bean
    @ConditionalOnMissingBean
    public AliOssUtil aliOssUtil(AliOssProperties aliOssProperties){
        log.info("开始创建阿里云文件上传工具类对象：{}",aliOssProperties);
        return new AliOssUtil(aliOssProperties.getEndpoint(),aliOssProperties.getAccessKeyId(),
                aliOssProperties.getAccessKeySecret(),aliOssProperties.getBucketName());
    }

}

b2编写通用接口：

@RestController
@Slf4j
@RequestMapping("/admin/common")
//通用接口
@Api(tags = "通用接口")
public class CommonController {
    @Autowired
    private AliOssUtil aliOssUtil;
    @ApiOperation("文件上传")
    @PostMapping("/upload")
    public Result<String> upload(MultipartFile file){
        log.info("文件上传：{}",file);
        //防止文件名冲突
        try {
            //原始文件名
            String originalFilename = file.getOriginalFilename();
            //截取原始文件名的后缀
            String extension = originalFilename.substring(originalFilename.lastIndexOf("."));
            //构造新文件名称
            String objectName = UUID.randomUUID().toString() + extension;
            //文件请求路径
            String filePath = aliOssUtil.upload(file.getBytes(), objectName);
            return Result.success(filePath);
        } catch (IOException e) {
            log.info("文件上传失败",e);
        }
        return Result.error(MessageConstant.UPLOAD_FAILED);
    }
}

最后通过前后端联调测试，注意上传图片不要过大。

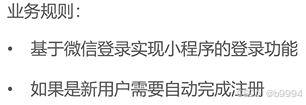

微信登录

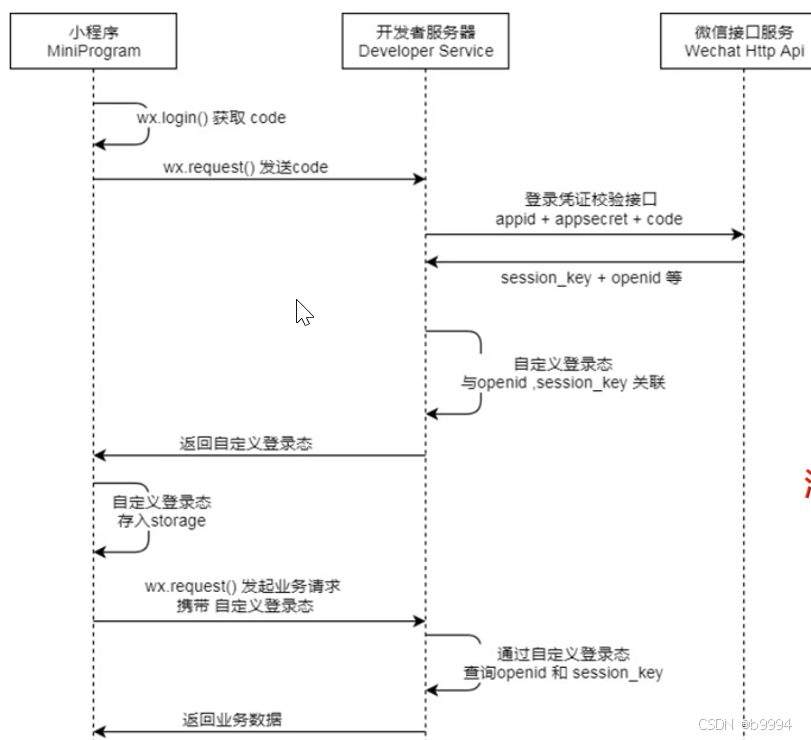

登录时序图

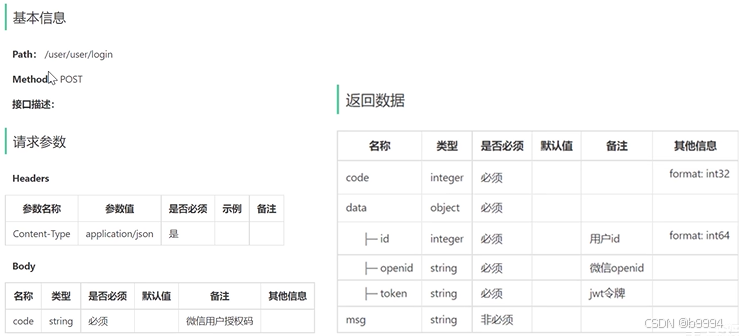

接口设计

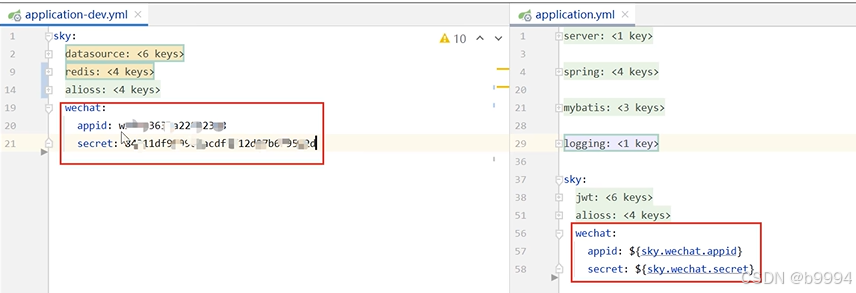

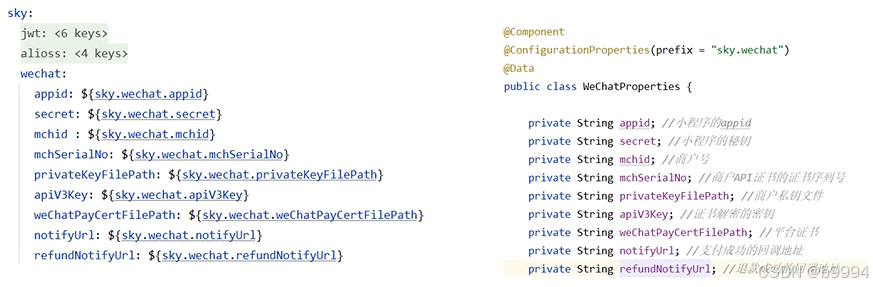

配置微信登录所需要配置项

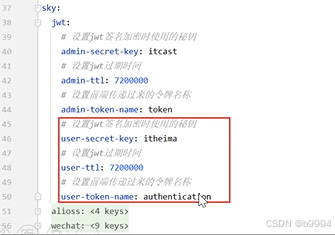

配置为微信用户生成jwt令牌时使用的配置项

JWT配置属性类

package com.sky.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "sky.jwt")
@Data
public class JwtProperties {
    /**
     * 管理端员工生成jwt令牌相关配置
     */
    private String adminSecretKey;
    private long adminTtl;
    private String adminTokenName;
    /**
     * 用户端微信用户生成jwt令牌相关配置
     */
    private String userSecretKey;
    private long userTtl;
    private String userTokenName;
}

配置微信小程序配置属性类

package com.sky.properties;

import lombok.Data;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "sky.wechat")
@Data
public class WeChatProperties {

    private String appid; //小程序的appid
    private String secret; //小程序的秘钥
    private String mchid; //商户号
    private String mchSerialNo; //商户API证书的证书序列号
    private String privateKeyFilePath; //商户私钥文件
    private String apiV3Key; //证书解密的密钥
    private String weChatPayCertFilePath; //平台证书
    private String notifyUrl; //支付成功的回调地址
    private String refundNotifyUrl; //退款成功的回调地址

}

请求参数封装为DTO

package com.sky.dto;

import lombok.Data;

import java.io.Serializable;

//C端用户登录
@Data
public class UserLoginDTO implements Serializable {

    private String code;

}

返回数据封装为VO

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class UserLoginVO implements Serializable {

    private Long id;
    private String openid;
    private String token;

}

在Controller层调用业务层微信登录功能，并生成JWT令牌

package com.sky.controller.user;
import com.sky.constant.JwtClaimsConstant;
import com.sky.dto.UserLoginDTO;
import com.sky.entity.User;
import com.sky.properties.JwtProperties;
import com.sky.result.Result;
import com.sky.service.UserService;
import com.sky.utils.JwtUtil;
import com.sky.vo.UserLoginVO;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import java.util.HashMap;
import java.util.Map;

@RestController
@RequestMapping("/user/user")
@Slf4j
@Api(tags = "c端用户接口")
public class UserController {

    @Autowired
    UserService userService;
    @Autowired
    JwtProperties jwtProperties;

    @ApiOperation("微信登录")
    @PostMapping("/login")
    public Result<UserLoginVO> login(@RequestBody UserLoginDTO userLoginDTO){
        log.info("微信用户登录:{}",userLoginDTO.getCode());
        //微信登录
        User user = userService.wxlogin(userLoginDTO);
        //为微信用户生成令牌
        Map<String, Object> claims = new HashMap<>();
        claims.put(JwtClaimsConstant.USER_ID,user.getId());
        String token = JwtUtil.createJWT(jwtProperties.getUserSecretKey(),jwtProperties.getUserTtl(),claims);
        UserLoginVO userLoginVO = UserLoginVO.builder().id(user.getId()).openid(user.getOpenid()).token(token).build();
        return Result.success(userLoginVO);
    }
}

在Service实现类中完成业务微信登录

package com.sky.service.impl;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.sky.constant.MessageConstant;
import com.sky.dto.UserLoginDTO;
import com.sky.entity.User;
import com.sky.exception.LoginFailedException;
import com.sky.mapper.UserMapper;
import com.sky.properties.WeChatProperties;
import com.sky.service.UserService;
import com.sky.utils.HttpClientUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.time.LocalDateTime;
import java.util.HashMap;
import java.util.Map;

@Service

public class UserServiceImpl implements UserService {

    @Autowired
    UserMapper userMapper;

    //微信服务接口地址
    public static final String  WX_LOGIN = "https://api.weixin.qq.com/sns/jscode2session";

    @Autowired
    private WeChatProperties weChatProperties;

    //微信登录
    public User wxlogin(UserLoginDTO userLoginDTO) {
        String openid = getOpenid(userLoginDTO.getCode());

        //判断openid是否为空，如果为空表示登录失败，抛出业务异常
        if (openid == null){
            throw new LoginFailedException(MessageConstant.LOGIN_FAILED);
        }
        //判断当前用户时候为新用户
        User user = userMapper.getByOpenid(openid);
        //如果是新用户，自动完成注册
        if (user == null){
            user = User.builder().openid(openid).createTime(LocalDateTime.now()).build();
            userMapper.insert(user);
        }
        //返回用户对象
        return user;
    }

    //调用微信接口服务，获取微信用户的openid
    private String getOpenid(String code){
        //调用微信接口服务，获取当前微信用户的openid
        Map<String, String> map = new HashMap<>();
        map.put("appid",weChatProperties.getAppid());
        map.put("secret",weChatProperties.getSecret());
        map.put("js_code",code);
        map.put("grant_type","authorization_code");
        String json = HttpClientUtil.doGet(WX_LOGIN, map);

        JSONObject jsonObject = JSON.parseObject(json);
        String openid = jsonObject.getString("openid");
        return openid;
    }
}

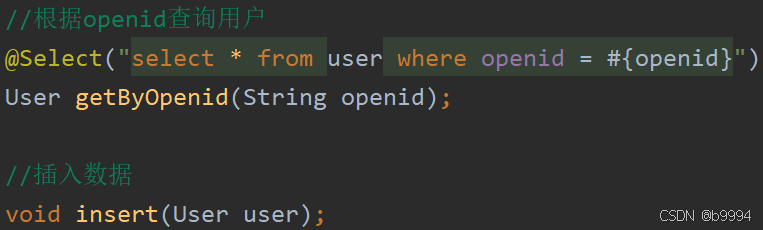

在Mapper层中获取用户，并在无用户时注册

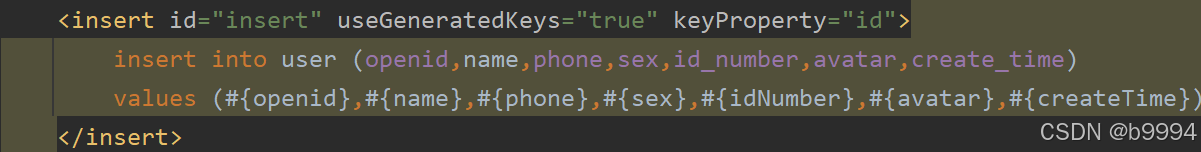

在UserMapper.xml中编写插入数据语句

微信支付

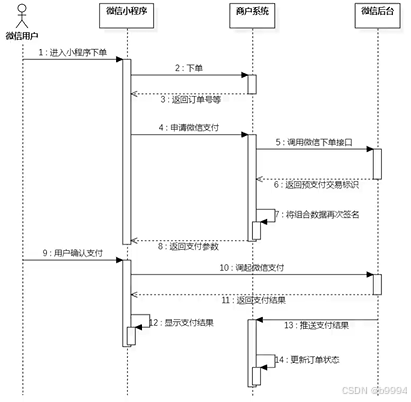

微信支付时序图

用户进入程序下单，微信小程序请求商户系统（外卖后端服务），请求进入OrderController中订单支付方法，该请求传入的参数有订单号和付款方式。然后调用service中的方法，首先获取当前用户id，然后根据id查询数据库得到用户信息，调用微信后台微信下单接口以生成预支付交易单（在实现类在调用WeChatPayUtil工具类pay方法），接口返回预支付交易标识。后端服务在实现类中收到转换为JSON格式的交易标识返回给Controller层，最后Controller返回参数给微信小程序。

用户完成支付调用PayNotifyController类完成支付成功回调，修改订单状态并响应给微信小程序。

微信支付相关配置项

微信支付工具类

package com.sky.utils;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.sky.properties.WeChatProperties;
import com.wechat.pay.contrib.apache.httpclient.WechatPayHttpClientBuilder;
import com.wechat.pay.contrib.apache.httpclient.util.PemUtil;
import org.apache.commons.lang.RandomStringUtils;
import org.apache.http.HttpHeaders;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.ContentType;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.util.EntityUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.math.BigDecimal;
import java.security.PrivateKey;
import java.security.Signature;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Base64;
import java.util.List;

/**
 * 微信支付工具类
 */
@Component
public class WeChatPayUtil {

    //微信支付下单接口地址
    public static final String JSAPI = "https://api.mch.weixin.qq.com/v3/pay/transactions/jsapi";

    //申请退款接口地址
    public static final String REFUNDS = "https://api.mch.weixin.qq.com/v3/refund/domestic/refunds";

    @Autowired
    private WeChatProperties weChatProperties;

    /**
     * 获取调用微信接口的客户端工具对象
     *
     * @return
     */
    private CloseableHttpClient getClient() {
        PrivateKey merchantPrivateKey = null;
        try {
            //merchantPrivateKey商户API私钥，如何加载商户API私钥请看常见问题
            merchantPrivateKey = PemUtil.loadPrivateKey(new FileInputStream(new File(weChatProperties.getPrivateKeyFilePath())));
            //加载平台证书文件
            X509Certificate x509Certificate = PemUtil.loadCertificate(new FileInputStream(new File(weChatProperties.getWeChatPayCertFilePath())));
            //wechatPayCertificates微信支付平台证书列表。你也可以使用后面章节提到的“定时更新平台证书功能”，而不需要关心平台证书的来龙去脉
            List<X509Certificate> wechatPayCertificates = Arrays.asList(x509Certificate);

            WechatPayHttpClientBuilder builder = WechatPayHttpClientBuilder.create()
                    .withMerchant(weChatProperties.getMchid(), weChatProperties.getMchSerialNo(), merchantPrivateKey)
                    .withWechatPay(wechatPayCertificates);

            // 通过WechatPayHttpClientBuilder构造的HttpClient，会自动的处理签名和验签
            CloseableHttpClient httpClient = builder.build();
            return httpClient;
        } catch (FileNotFoundException e) {
            e.printStackTrace();
            return null;
        }
    }

    /**
     * 发送post方式请求
     *
     * @param url
     * @param body
     * @return
     */
    private String post(String url, String body) throws Exception {
        CloseableHttpClient httpClient = getClient();

        HttpPost httpPost = new HttpPost(url);
        httpPost.addHeader(HttpHeaders.ACCEPT, ContentType.APPLICATION_JSON.toString());
        httpPost.addHeader(HttpHeaders.CONTENT_TYPE, ContentType.APPLICATION_JSON.toString());
        httpPost.addHeader("Wechatpay-Serial", weChatProperties.getMchSerialNo());
        httpPost.setEntity(new StringEntity(body, "UTF-8"));

        CloseableHttpResponse response = httpClient.execute(httpPost);
        try {
            String bodyAsString = EntityUtils.toString(response.getEntity());
            return bodyAsString;
        } finally {
            httpClient.close();
            response.close();
        }
    }

    /**
     * 发送get方式请求
     *
     * @param url
     * @return
     */
    private String get(String url) throws Exception {
        CloseableHttpClient httpClient = getClient();

        HttpGet httpGet = new HttpGet(url);
        httpGet.addHeader(HttpHeaders.ACCEPT, ContentType.APPLICATION_JSON.toString());
        httpGet.addHeader(HttpHeaders.CONTENT_TYPE, ContentType.APPLICATION_JSON.toString());
        httpGet.addHeader("Wechatpay-Serial", weChatProperties.getMchSerialNo());

        CloseableHttpResponse response = httpClient.execute(httpGet);
        try {
            String bodyAsString = EntityUtils.toString(response.getEntity());
            return bodyAsString;
        } finally {
            httpClient.close();
            response.close();
        }
    }

    /**
     * jsapi下单
     *
     * @param orderNum    商户订单号
     * @param total       总金额
     * @param description 商品描述
     * @param openid      微信用户的openid
     * @return
     */
    private String jsapi(String orderNum, BigDecimal total, String description, String openid) throws Exception {
        JSONObject jsonObject = new JSONObject();
        jsonObject.put("appid", weChatProperties.getAppid());
        jsonObject.put("mchid", weChatProperties.getMchid());
        jsonObject.put("description", description);
        jsonObject.put("out_trade_no", orderNum);
        jsonObject.put("notify_url", weChatProperties.getNotifyUrl());

        JSONObject amount = new JSONObject();
        amount.put("total", total.multiply(new BigDecimal(100)).setScale(2, BigDecimal.ROUND_HALF_UP).intValue());
        amount.put("currency", "CNY");

        jsonObject.put("amount", amount);

        JSONObject payer = new JSONObject();
        payer.put("openid", openid);

        jsonObject.put("payer", payer);

        String body = jsonObject.toJSONString();
        return post(JSAPI, body);
    }

    /**
     * 小程序支付
     *
     * @param orderNum    商户订单号
     * @param total       金额，单位 元
     * @param description 商品描述
     * @param openid      微信用户的openid
     * @return
     */
    public JSONObject pay(String orderNum, BigDecimal total, String description, String openid) throws Exception {
        //统一下单，生成预支付交易单
        String bodyAsString = jsapi(orderNum, total, description, openid);
        //解析返回结果
        JSONObject jsonObject = JSON.parseObject(bodyAsString);
        System.out.println(jsonObject);

        String prepayId = jsonObject.getString("prepay_id");
        if (prepayId != null) {
            String timeStamp = String.valueOf(System.currentTimeMillis() / 1000);
            String nonceStr = RandomStringUtils.randomNumeric(32);
            ArrayList<Object> list = new ArrayList<>();
            list.add(weChatProperties.getAppid());
            list.add(timeStamp);
            list.add(nonceStr);
            list.add("prepay_id=" + prepayId);
            //二次签名，调起支付需要重新签名
            StringBuilder stringBuilder = new StringBuilder();
            for (Object o : list) {
                stringBuilder.append(o).append("\n");
            }
            String signMessage = stringBuilder.toString();
            byte[] message = signMessage.getBytes();

            Signature signature = Signature.getInstance("SHA256withRSA");
            signature.initSign(PemUtil.loadPrivateKey(new FileInputStream(new File(weChatProperties.getPrivateKeyFilePath()))));
            signature.update(message);
            String packageSign = Base64.getEncoder().encodeToString(signature.sign());

            //构造数据给微信小程序，用于调起微信支付
            JSONObject jo = new JSONObject();
            jo.put("timeStamp", timeStamp);
            jo.put("nonceStr", nonceStr);
            jo.put("package", "prepay_id=" + prepayId);
            jo.put("signType", "RSA");
            jo.put("paySign", packageSign);

            return jo;
        }
        return jsonObject;
    }

    /**
     * 申请退款
     *
     * @param outTradeNo    商户订单号
     * @param outRefundNo   商户退款单号
     * @param refund        退款金额
     * @param total         原订单金额
     * @return
     */
    public String refund(String outTradeNo, String outRefundNo, BigDecimal refund, BigDecimal total) throws Exception {
        JSONObject jsonObject = new JSONObject();
        jsonObject.put("out_trade_no", outTradeNo);
        jsonObject.put("out_refund_no", outRefundNo);

        JSONObject amount = new JSONObject();
        amount.put("refund", refund.multiply(new BigDecimal(100)).setScale(2, BigDecimal.ROUND_HALF_UP).intValue());
        amount.put("total", total.multiply(new BigDecimal(100)).setScale(2, BigDecimal.ROUND_HALF_UP).intValue());
        amount.put("currency", "CNY");

        jsonObject.put("amount", amount);
        jsonObject.put("notify_url", weChatProperties.getRefundNotifyUrl());

        String body = jsonObject.toJSONString();

        //调用申请退款接口
        return post(REFUNDS, body);
    }
}

Contoller层订单支付

@PutMapping("/payment")
    @ApiOperation("订单支付")
    public Result<OrderPaymentVO> payment(@RequestBody OrdersPaymentDTO ordersPaymentDTO) throws Exception {
        log.info("订单支付：{}", ordersPaymentDTO);
        OrderPaymentVO orderPaymentVO = orederService.payment(ordersPaymentDTO);
        log.info("生成预支付交易单：{}", orderPaymentVO);
        return Result.success(orderPaymentVO);
    }

在Service实现类中编写订单支付业务（无商户此处注释调用微信支付接口）

public OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception {
        // 当前登录用户id
        Long userId = BaseContext.getCurrentId();
        User user = userMapper.getById(userId);

 /*       //调用微信支付接口，生成预支付交易单
        JSONObject jsonObject = weChatPayUtil.pay(
                ordersPaymentDTO.getOrderNumber(), //商户订单号
                new BigDecimal(0.01), //支付金额，单位 元
                "苍穹外卖订单", //商品描述
                user.getOpenid() //微信用户的openid
        );

        if (jsonObject.getString("code") != null && jsonObject.getString("code").equals("ORDERPAID")) {
            throw new OrderBusinessException("该订单已支付");
        }*/

        JSONObject jsonObject = new JSONObject();
        jsonObject.put("code","ORDERPAID");
        OrderPaymentVO vo = jsonObject.toJavaObject(OrderPaymentVO.class);
        vo.setPackageStr(jsonObject.getString("package"));
        Integer OrderPaidStatus = Orders.PAID;//支付状态，已支付
        Integer OrderStatus = Orders.TO_BE_CONFIRMED;  //订单状态，待接单
        LocalDateTime check_out_time = LocalDateTime.now();//更新支付时间
        orderMapper.updateStatus(OrderStatus, OrderPaidStatus, check_out_time, this.orders.getId());

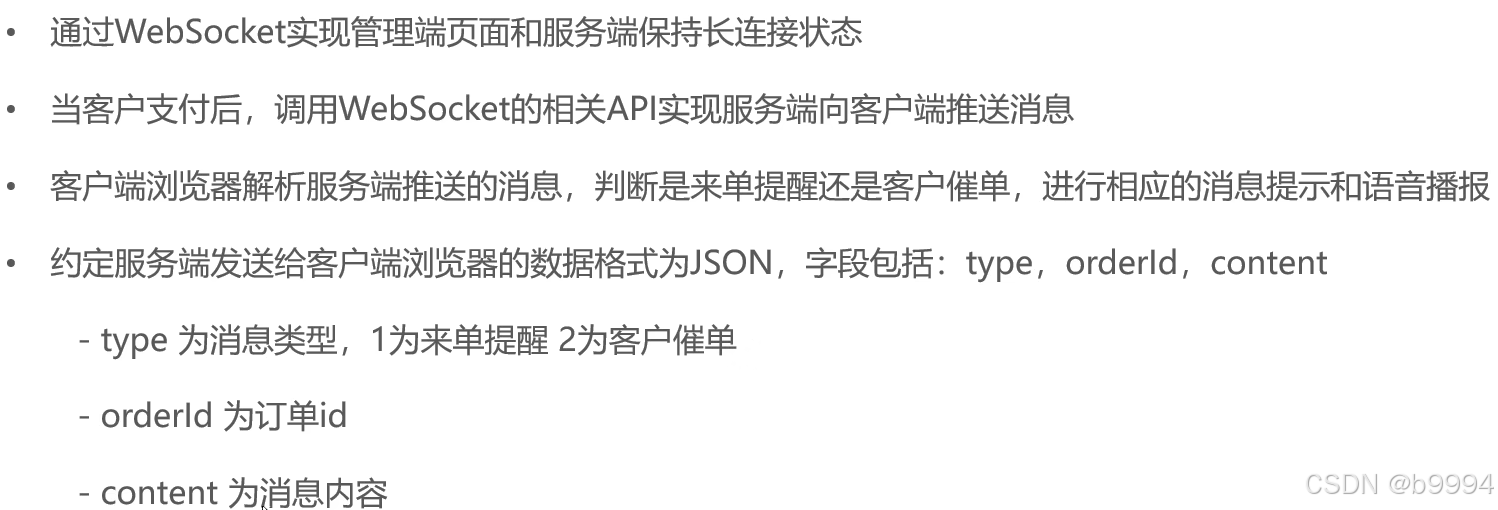

        //通过websocket向客户端浏览器推送消息 type orderId content
        Map map = new HashMap();
        map.put("type",1);//1来单提醒、2客户催单
        map.put("orderId",this.orders.getId());
        map.put("content","订单号：" + this.orders.getNumber());

        String json = JSON.toJSONString(map);
        webSocketServer.sendToAllClient(json);

        return vo;
    }

在Mapper层中编写sql语句

/**
     * 根据订单号查询订单
     * @param orderNumber
     */
    @Select("select * from orders where number = #{orderNumber}")
    Orders getByNumber(String orderNumber);

当支付成功后微信后台回调PayNotifyController来更新后台信息

package com.sky.controller.notify;

import com.alibaba.druid.support.json.JSONUtils;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.sky.properties.WeChatProperties;
import com.sky.service.OrederService;
import com.wechat.pay.contrib.apache.httpclient.util.AesUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.http.entity.ContentType;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.BufferedReader;
import java.nio.charset.StandardCharsets;
import java.util.HashMap;

/**
 * 支付回调相关接口
 */
@RestController
@RequestMapping("/notify")
@Slf4j
public class PayNotifyController {
    @Autowired
    private OrederService orderService;
    @Autowired
    private WeChatProperties weChatProperties;

    /**
     * 支付成功回调
     *
     * @param request
     */
    @RequestMapping("/paySuccess")
    public void paySuccessNotify(HttpServletRequest request, HttpServletResponse response) throws Exception {
        //读取数据
        String body = readData(request);
        log.info("支付成功回调：{}", body);

        //数据解密
        String plainText = decryptData(body);
        log.info("解密后的文本：{}", plainText);

        JSONObject jsonObject = JSON.parseObject(plainText);
        String outTradeNo = jsonObject.getString("out_trade_no");//商户平台订单号
        String transactionId = jsonObject.getString("transaction_id");//微信支付交易号

        log.info("商户平台订单号：{}", outTradeNo);
        log.info("微信支付交易号：{}", transactionId);

        //业务处理，修改订单状态、来单提醒
        orderService.paySuccess(outTradeNo);

        //给微信响应
        responseToWeixin(response);
    }

    /**
     * 读取数据
     *
     * @param request
     * @return
     * @throws Exception
     */
    private String readData(HttpServletRequest request) throws Exception {
        BufferedReader reader = request.getReader();
        StringBuilder result = new StringBuilder();
        String line = null;
        while ((line = reader.readLine()) != null) {
            if (result.length() > 0) {
                result.append("\n");
            }
            result.append(line);
        }
        return result.toString();
    }

    /**
     * 数据解密
     *
     * @param body
     * @return
     * @throws Exception
     */
    private String decryptData(String body) throws Exception {
        JSONObject resultObject = JSON.parseObject(body);
        JSONObject resource = resultObject.getJSONObject("resource");
        String ciphertext = resource.getString("ciphertext");
        String nonce = resource.getString("nonce");
        String associatedData = resource.getString("associated_data");

        AesUtil aesUtil = new AesUtil(weChatProperties.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        //密文解密
        String plainText = aesUtil.decryptToString(associatedData.getBytes(StandardCharsets.UTF_8),
                nonce.getBytes(StandardCharsets.UTF_8),
                ciphertext);

        return plainText;
    }

    /**
     * 给微信响应
     * @param response
     */
    private void responseToWeixin(HttpServletResponse response) throws Exception{
        response.setStatus(200);
        HashMap<Object, Object> map = new HashMap<>();
        map.put("code", "SUCCESS");
        map.put("message", "SUCCESS");
        response.setHeader("Content-type", ContentType.APPLICATION_JSON.toString());
        response.getOutputStream().write(JSONUtils.toJSONString(map).getBytes(StandardCharsets.UTF_8));
        response.flushBuffer();
    }
}

在支付成功回调方法内调用service业务层paySuccess方法更新订单

/**
     * 支付成功，修改订单状态
     *
     * @param outTradeNo
     */
    public void paySuccess(String outTradeNo) {

        // 根据订单号查询订单
        Orders ordersDB = orderMapper.getByNumber(outTradeNo);

        // 根据订单id更新订单的状态、支付方式、支付状态、结账时间
        Orders orders = Orders.builder()
                .id(ordersDB.getId())
                .status(Orders.TO_BE_CONFIRMED)
                .payStatus(Orders.PAID)
                .checkoutTime(LocalDateTime.now())
                .build();

        orderMapper.update(orders);
    }

Spring Task

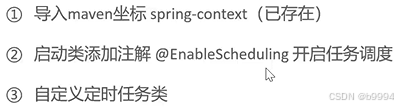

使用步骤：

定义定时任务类 OrderTask

package com.sky.task;

import com.sky.entity.Orders;
import com.sky.mapper.OrderMapper;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

import java.time.LocalDateTime;
import java.util.List;

@Component//放入Spring容器进行管理
@Slf4j

public class OrderTask {

    @Autowired
    private OrderMapper orderMapper;

    //处理超时订单
    @Scheduled(cron = "0 * * * * ? ")//每分钟触发一次
    public void processTimeoutOrder(){
        log.info("定时处理超时订单:{}", LocalDateTime.now());
        LocalDateTime time = LocalDateTime.now().plusMinutes(-15);
        //查看超时订单-待付款，下单时间超过15min
        List<Orders> ordersList = orderMapper.getByStatusAndOrderTimeT(Orders.PENDING_PAYMENT, time);

        if (ordersList != null && ordersList.size() > 0){
            for (Orders orders : ordersList) {
                orders.setStatus(Orders.CANCELLED);
                orders.setCancelReason("订单超时，自动取消");
                orders.setCancelTime(LocalDateTime.now());
                orderMapper.update(orders);
            }
        }
    }

    //处理一直处于派送中的订单
    @Scheduled(cron = "0 0 1 * * ?")//每天凌晨一点触发
    public void processDeliveryOrder(){
        log.info("定时处理派送中订单：{}",LocalDateTime.now());

        LocalDateTime time = LocalDateTime.now().plusMinutes(-60);

        List<Orders> ordersList = orderMapper.getByStatusAndOrderTimeT(Orders.DELIVERY_IN_PROGRESS, time);
        if (ordersList != null && ordersList.size() > 0) {
            for (Orders orders : ordersList) {
                orders.setStatus(Orders.COMPLETED);
                orderMapper.update(orders);
            }
        }
    }
}

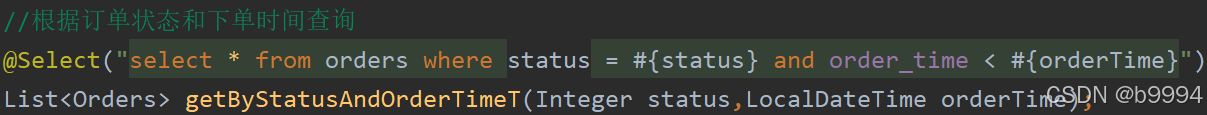

在Mapper编写sql语句

来单提醒

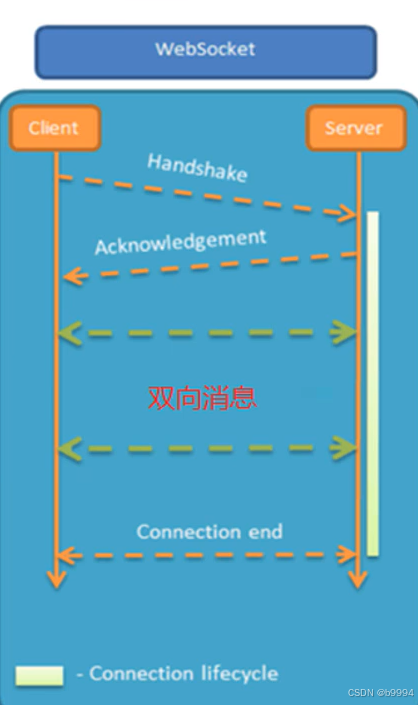

WebSocket

引入依赖

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-websocket</artifactId>
        </dependency>

需求设计

b1：

WebSocket服务

package com.sky.websocket;

import org.springframework.stereotype.Component;
import javax.websocket.OnClose;
import javax.websocket.OnMessage;
import javax.websocket.OnOpen;
import javax.websocket.Session;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;

/**
 * WebSocket服务
 */
@Component
@ServerEndpoint("/ws/{sid}")
public class WebSocketServer {

    //存放会话对象
    private static Map<String, Session> sessionMap = new HashMap();

    /**
     * 连接建立成功调用的方法
     */
    @OnOpen
    public void onOpen(Session session, @PathParam("sid") String sid) {
        System.out.println("客户端：" + sid + "建立连接");
        sessionMap.put(sid, session);
    }

    /**
     * 收到客户端消息后调用的方法
     *
     * @param message 客户端发送过来的消息
     */
    @OnMessage
    public void onMessage(String message, @PathParam("sid") String sid) {
        System.out.println("收到来自客户端：" + sid + "的信息:" + message);
    }

    /**
     * 连接关闭调用的方法
     *
     * @param sid
     */
    @OnClose
    public void onClose(@PathParam("sid") String sid) {
        System.out.println("连接断开:" + sid);
        sessionMap.remove(sid);
    }

    /**
     * 群发
     *
     * @param message
     */
    public void sendToAllClient(String message) {
        Collection<Session> sessions = sessionMap.values();
        for (Session session : sessions) {
            try {
                //服务器向客户端发送消息
                session.getBasicRemote().sendText(message);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }

}

WebSocket配置类

package com.sky.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

/**
 * WebSocket配置类，用于注册WebSocket的Bean
 */
@Configuration
public class WebSocketConfiguration {

    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

}

b2：

在订单业务paySuccess方法中使用websocket添加推送消息业务

//通过websocket向客户端浏览器推送消息 type orderId content
        Map map = new HashMap();
        map.put("type",1);//1来单提醒、2客户催单
        map.put("orderId",ordersDB.getId());
        map.put("content","订单号：" + outTradeNo);

        String json = JSON.toJSONString(map);
        webSocketServer.sendToAllClient(json);

登录校验

JWT令牌

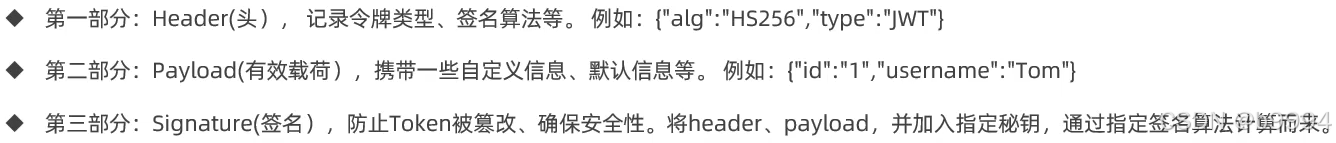

组成

引入依赖

            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt</artifactId>
                <version>0.9.1</version>
            </dependency>

JWT相关配置属性

package com.sky.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Component
@ConfigurationProperties(prefix = "sky.jwt")
@Data
public class JwtProperties {
    /**
     * 管理端员工生成jwt令牌相关配置
     */
    private String adminSecretKey;
    private long adminTtl;
    private String adminTokenName;
    /**
     * 用户端微信用户生成jwt令牌相关配置
     */
    private String userSecretKey;
    private long userTtl;
    private String userTokenName;
}

配置属性

sky:
  jwt:
    # 设置jwt签名加密时使用的秘钥
    admin-secret-key: itcast
    # 设置jwt过期时间
    admin-ttl: 7200000
    # 设置前端传递过来的令牌名称
    admin-token-name: token
    user-secret-key: itheima
    user-ttl: 7200000
    user-token-name: authentication

JWT工具类

package com.sky.utils;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtBuilder;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import java.nio.charset.StandardCharsets;
import java.util.Date;
import java.util.Map;

public class JwtUtil {
    /**
     * 生成jwt
     * 使用Hs256算法, 私匙使用固定秘钥
     *
     * @param secretKey jwt秘钥
     * @param ttlMillis jwt过期时间(毫秒)
     * @param claims    设置的信息
     * @return
     */
    public static String createJWT(String secretKey, long ttlMillis, Map<String, Object> claims) {
        // 指定签名的时候使用的签名算法，也就是header那部分
        SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;

        // 生成JWT的时间
        long expMillis = System.currentTimeMillis() + ttlMillis;
        Date exp = new Date(expMillis);

        // 设置jwt的body
        JwtBuilder builder = Jwts.builder()
                // 如果有私有声明，一定要先设置这个自己创建的私有的声明，这个是给builder的claim赋值，一旦写在标准的声明赋值之后，就是覆盖了那些标准的声明的
                .setClaims(claims)
                // 设置签名使用的签名算法和签名使用的秘钥
                .signWith(signatureAlgorithm, secretKey.getBytes(StandardCharsets.UTF_8))
                // 设置过期时间
                .setExpiration(exp);

        return builder.compact();
    }

    /**
     * Token解密
     *
     * @param secretKey jwt秘钥 此秘钥一定要保留好在服务端, 不能暴露出去, 否则sign就可以被伪造, 如果对接多个客户端建议改造成多个
     * @param token     加密后的token
     * @return
     */
    public static Claims parseJWT(String secretKey, String token) {
        // 得到DefaultJwtParser
        Claims claims = Jwts.parser()
                // 设置签名的秘钥
                .setSigningKey(secretKey.getBytes(StandardCharsets.UTF_8))
                // 设置需要解析的jwt
                .parseClaimsJws(token).getBody();
        return claims;
    }

}

在登录方法中调用创建JWT，生成token

@PostMapping("/login")
    @ApiOperation(value = "员工登录")
    public Result<EmployeeLoginVO> login(@RequestBody EmployeeLoginDTO employeeLoginDTO) {
        log.info("员工登录：{}", employeeLoginDTO);

        Employee employee = employeeService.login(employeeLoginDTO);

        //登录成功后，生成jwt令牌
        Map<String, Object> claims = new HashMap<>();
        claims.put(JwtClaimsConstant.EMP_ID, employee.getId());
        String token = JwtUtil.createJWT(
                jwtProperties.getAdminSecretKey(),
                jwtProperties.getAdminTtl(),
                claims);

        EmployeeLoginVO employeeLoginVO = EmployeeLoginVO.builder()
                .id(employee.getId())
                .userName(employee.getUsername())
                .name(employee.getName())
                .token(token)
                .build();

        return Result.success(employeeLoginVO);
    }

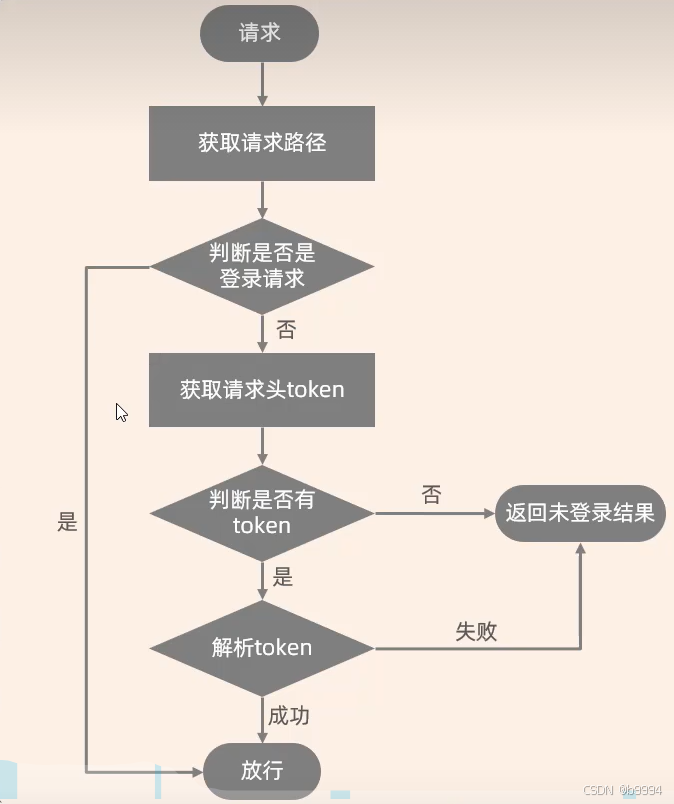

Interceptor拦截器

b1：

package com.sky.interceptor;

import com.sky.constant.JwtClaimsConstant;
import com.sky.context.BaseContext;
import com.sky.properties.JwtProperties;
import com.sky.utils.JwtUtil;
import io.jsonwebtoken.Claims;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.servlet.HandlerInterceptor;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * jwt令牌校验的拦截器
 */
@Component
@Slf4j
public class JwtTokenAdminInterceptor implements HandlerInterceptor {

    @Autowired
    private JwtProperties jwtProperties;

    /**
     * 校验jwt
     *
     * @param request
     * @param response
     * @param handler
     * @return
     * @throws Exception
     */
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //System.out.println("当前线程的id:" + Thread.currentThread().getId());
        //判断当前拦截到的是Controller的方法还是其他资源
        if (!(handler instanceof HandlerMethod)) {
            //当前拦截到的不是动态方法，直接放行
            return true;
        }

        //1、从请求头中获取令牌
        String token = request.getHeader(jwtProperties.getAdminTokenName());

        //2、校验令牌
        try {
            log.info("jwt校验:{}", token);
            Claims claims = JwtUtil.parseJWT(jwtProperties.getAdminSecretKey(), token);
            Long empId = Long.valueOf(claims.get(JwtClaimsConstant.EMP_ID).toString());
            log.info("当前员工id：", empId);
            BaseContext.setCurrentId(empId);
            //3、通过，放行
            return true;
        } catch (Exception ex) {
            //4、不通过，响应401状态码
            response.setStatus(401);
            return false;
        }
    }
}

b2：

package com.sky.config;

import com.sky.interceptor.JwtTokenAdminInterceptor;
import com.sky.interceptor.JwtTokenUserInterceptor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;



/**
 * 配置类，注册web层相关组件
 */
@Configuration
@Slf4j
public class WebMvcConfiguration extends WebMvcConfigurationSupport {

    @Autowired
    private JwtTokenAdminInterceptor jwtTokenAdminInterceptor;

    @Autowired
    private JwtTokenUserInterceptor jwtTokenUserInterceptor;
    /**
     * 注册自定义拦截器
     *
     * @param registry
     */
    protected void addInterceptors(InterceptorRegistry registry) {
        log.info("开始注册自定义拦截器...");
        registry.addInterceptor(jwtTokenAdminInterceptor)
                .addPathPatterns("/admin/**")
                .excludePathPatterns("/admin/employee/login");
        registry.addInterceptor(jwtTokenUserInterceptor)
                .addPathPatterns("/user/**")
                .excludePathPatterns("/user/user/login")
                .excludePathPatterns("/user/shop/status");
    }
}

首先配置好jwt的相关前置条件，引入依赖、创建配置属性类、在配置文件中写入相关数据，然后引入JWT工具类，其中包含JWT生成与校验的方法，方便后续使用直接调用。例如在管理者或者用户Controller层的登录方法中调用生成token返回给前端。

然后编写jwt令牌校验的拦截器，在此调用JWT工具类中的JWT校验方法，解析令牌中的token，成功放行，错误返回401。再在自定义的拦截器中加入jwt令牌校验拦截器，并进一步判断哪些路径不需要拦截。
