1.背景
之前做过一个蓝牙共享充电宝项目 ，这里是详细对接流程记录开发蓝牙充电宝小程序的历程_小程序 蓝牙充电源码-CSDN博客。

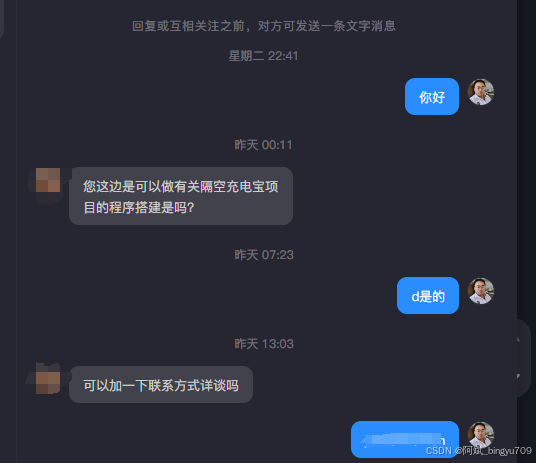

昨天某音 有人突然联系，需要做一个网吧的项目，桌子上放个充电宝，客人扫码计时充电。
一聊，发现是个学生，考察了一段时间了，说是想去加盟，被我成功劝退！感兴趣的可以去搜一下,这是我总结的几个坑:
- 被隔空充电宝加盟割韭菜的不计其数.....
- 很多厂家技术不成熟、根本无法满足极端条件...
- 用户缺乏项目运营经验，很多都是小白，被镰刀一一忽悠就迷失自我...
2.言归正传

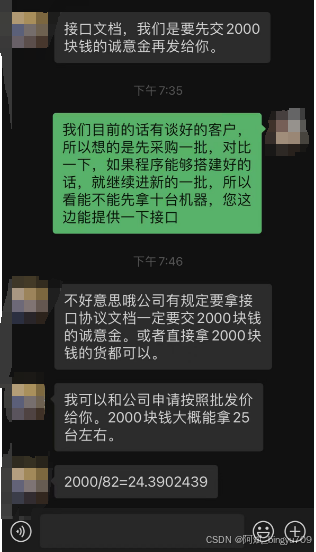

和对方沟通后，对方找了几个厂家，基本没有靠谱的，基本都是在收割，卖垃圾充电宝，走一单算一单：
关键是，他们的接口我之前对接过，贴一部分：
BLE 通信数据
主服务 UUID 0000F040-0000-1000-8000-000000000000
写属性 UUID 0000F041-0000-1000-8000-008000000000
读属性（非通知）UUID 0000F042-0000-1000-8000-0080000000000
一、发送充电指令，小程序通过 UUID 0000F041-0000-1000-8000-0080000000000 写属性，发送数据给电路板
命令字节 0XD5
小时字节 充电时间的小时 0x00~0x30 0~48 小时 最大支持 48 小时
分钟字节 充电时间的分钟 0x00~0x3c 0~60 分钟
状态字节 0X45
其它字节为 0x00
例子发送充电 1 小时：
FE D5 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 45
二、读取充电状态，小程序通过 UUID 0000F042-0000-1000-8000-0080500000000000000 读属性，获取电路板充电状态
状态字节 0X46 充电中 0X00 没有充电
其它字节为小程序发送过来的数据
例子成功充电状态：
FE D5 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 46
失败充电状态：
FE D5 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
三、电池电量读取备注：为了信息安全，数据做了处理。
经过和这个小伙伴一交流，其实项目是好项目，但是需要略作修改，主要有如下几点：
- 解决隔空充电宝使用上的不规范：市场根本无法很顺畅的去满足客户需求；
- 硬件采购、需要可以对接自己的平台，否则 利润无法保证；
3.解决方案
只有经历过，才知道哪里有坑，然后早上我就决定用另一个方案来解决这个问题：

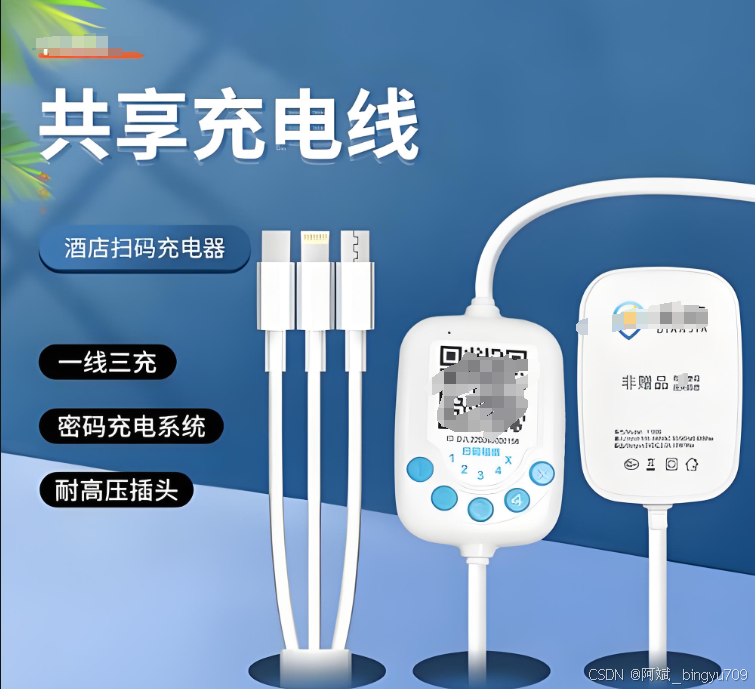

- 换成有线扫码充电线，代替隔空（隔空充电就是个噱头）；
- 适配器接通电源，外接扫码、支付选择套餐，进行充电；
- 赠送5分钟；
经过以上整改之后，优势很明显：
- 价格便宜，有线充电线成本只要10块钱左右；
- 稳定可靠，通过扫码直连充电，不会闪断；
- 运营方便，无需频频售后，频繁售后；
4.平台对接
4.1.准备工作

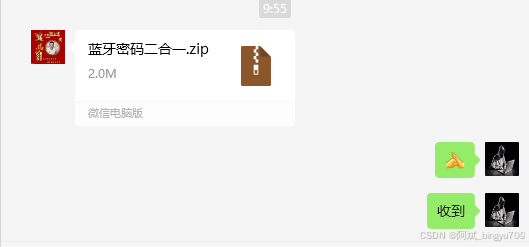

我们只需要从某宝购买可二开的硬件即可，然后自己对接平台，看：我已经拿到了api接口文档：

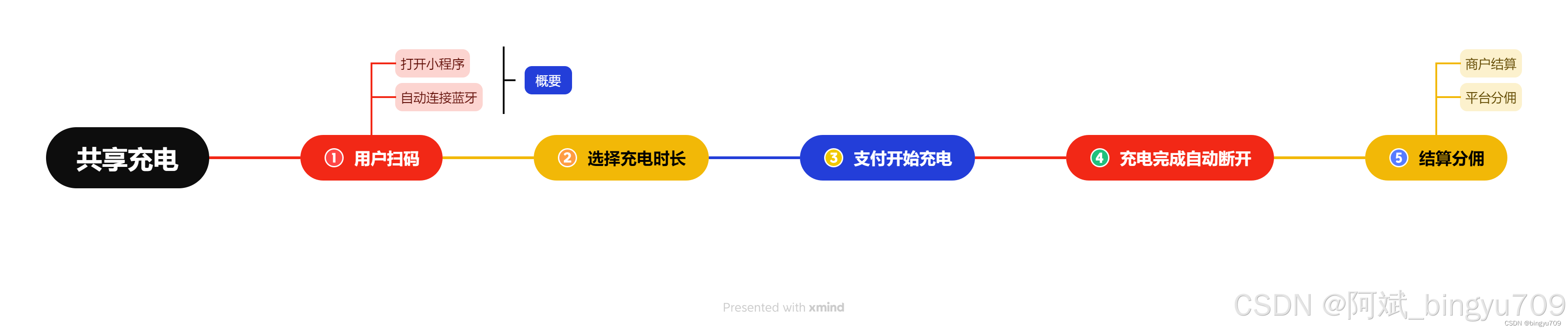

4.2.系统流程
接下来就是对接系统了，照样沿用我之前的平台，只需更换接口即可，界面如此：

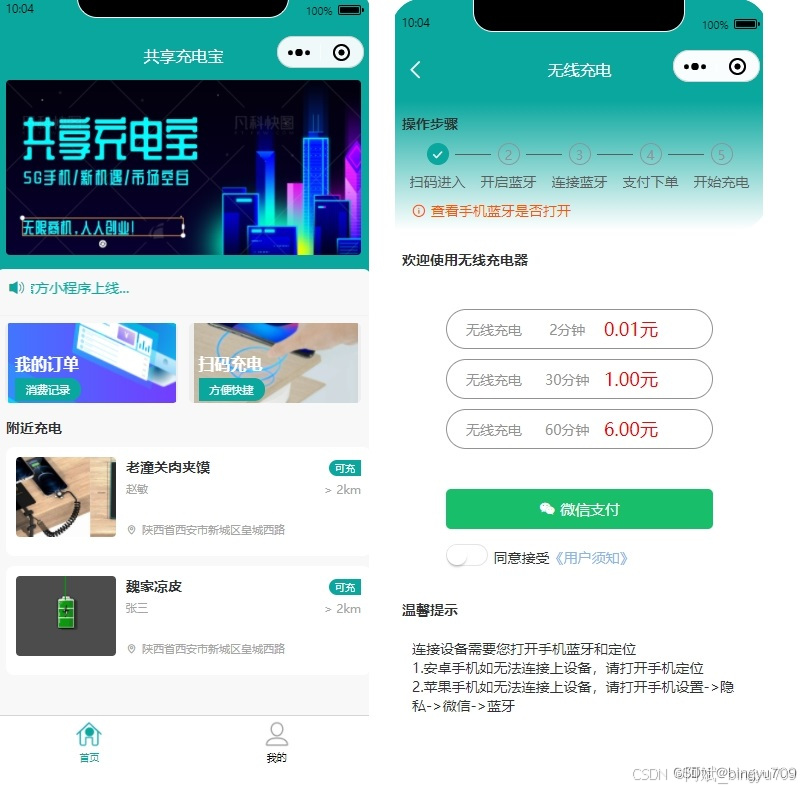

4.3.界面UI
4.4.核心代码
蓝牙对接，关键在调试，就需要对微信开发工具很熟悉了，这个是我弄的一个简单的代码，没有优化的，可以修改一下自己用，
我用的是uniapp，所以这里是片段，不要喷、不要喷、不要喷，我是建议自己看懂逻辑，然后根据自己的业务逻辑去写一份，照搬的，我建议换行吧，哈哈：
<template>
<view class="warp">
<!--充电流程-->
<u-navbar :border-bottom="false" :custom-back="gotoindex" :is-back="true" back-icon-color="#ffffff" title-color="#ffffff" title="无线充电" :background="background">
</u-navbar>
<view class="u-p-20" style="background: linear-gradient(180deg, #0AA79E 5%, #ffffff);;border-radius: 0px 0px 30px 0px;">
<view class="u-m-b-20 u-m-t-20" style="font-weight: bold;">
操作步骤
</view>
<u-steps active-color="#0AA79E" :list="numList" :current="currentstepindex" mode="number"></u-steps>
<view class=" u-m-t-20 u-m-l-20" style="color: #ff5500;" v-if="errormsg !== ''" >
<u-icon name="info-circle" color="#ff5500"></u-icon><text class="u-m-l-10">{{errormsg}}</text>
</view>
</view>
<!--显示我的充电动态-->
<view class="u-p-20" v-if="myorder.endtime > 0 ">
<view class="u-flex u-m-b-20 " style="justify-content: center; font-size: 18px;">
倒计时：<u-count-down :timestamp="myorder.endtime" @end="chargerend" font-size="36"></u-count-down>
</view>
<u-image width="100%" height="300rpx" src="https://btc.jxh101.cn/uploads/20230924/3853e8d0d114e505e84485a9c2c2cc90.gif"></u-image>
</view>
<!--开始选择支付选项-->
<view v-else class="u-p-20">
<view class="u-m-b-20 u-m-t-20" style="font-weight: bold;">
欢迎使用无线充电器：
</view>
<view v-if="currentstepindex == 2 " class="u-flex" style="justify-content: center;">
<view class="u-m-t-40" style="width: 75%">
<view v-for="(item, index) in projectslists" :key="index" @click="setprojectId(index)" >
<view v-if="item.status == 0" class="u-flex u-p-20 u-m-t-20 "
style="border: 1px solid #929292;;justify-content: space-around;background-color: #ffffff; border-radius: 30px;height: 40px;">
<view class="u-flex" style="justify-content: center;color:#929292;width: 30%;">无线充电</view>
<view class="u-flex" style="justify-content: center;color:#929292;width: 30%;">{{item.name}}</view>
<view class="u-flex u-font-18" style="justify-content: flex-start;color:#ff0000;width: 40%;">
<text>{{item.price}}元</text>
</view>
</view>
<view v-if="item.status == 1" class="u-flex u-p-20 u-m-t-20 "
style="border: 1px solid #929292;;justify-content: space-around;background-color: #0AA79E;color:#ffffff; border-radius: 30px;height: 40px;">
<view class="u-flex" style="justify-content: center;width: 30%;">无线充电</view>
<view class="u-flex" style="justify-content: center;width: 30%;">{{item.name}}</view>
<view class="u-flex u-font-18" style="justify-content: flex-start;width: 40%;">
<text>{{item.price}}元</text>
</view>
</view>
</view>
<view class="u-m-t-80">
<u-button type="success" @click="submitsorder()">
<u-icon name="weixin-fill" color="#ffffff" size="32"></u-icon>
<text class="u-m-l-10">
微信支付
</text>
</u-button>
</view>
<view class="u-flex u-m-t-30 " style="justify-content: flex-start;">
<view>
<u-switch active-color="#19be6b" v-model="agreenreadme" size="40" ></u-switch>
</view>
<view class="u-m-l-10 u-flex" style="justify-content: flex-start;">
<text>
同意接受
</text>
<text @click="readmeshow=true" class="u-m-r-10" style="color:#87b6e7" >
《用户须知》
</text>
</view>
</view>
</view>
</view>
<view v-else>
<view v-if="currentstepindex == 0" class="u-font-16 u-p-20" style="font-weight: bold;">
<view>
请打开蓝牙后，再扫码链接充电宝
</view>
</view>
<view v-else-if="currentstepindex == 1" class="u-font-16 u-p-20" style="font-weight: bold;">
<view>{{errormsg}}</view>
<u-button type="success" @click="scanCode()">
<u-icon name="weixin-fill" color="#ffffff" size="32"></u-icon>
<text class="u-m-l-10">
打开蓝牙后,扫码使用
</text>
</u-button>
</view>
</view>
</view>
<view class="u-p-20">
<view class="u-m-b-20 u-m-t-20" style="font-weight: bold;">
温馨提示
</view>
<view class="u-m-b-20 u-m-t-20">
<view class="u-p-20 content" v-html="chargconfig.note.replace(/(\r\n|\n|\r)/gm, '<br />')"></view>
</view>
</view>
<u-modal confirm-color="#0AA79E" v-model="successhow" confirm-text="好的" :title="modaltitle" @confirm="clossuccess" :content="successcontent"></u-modal>
<u-toast ref="uToast" />
</view>
</template>下面是 js
<script>
export default {
data() {
return {
charge_time:0,
timer: null, //定时器名称
chargconfig:{
note:''
},
timestamp:'20',
modaltitle:'',
successhow:false,
successcontent:'提交成功',
projectId:0,
agreenreadme:false,
numList: [
{
name: '扫码进入'
},
{
name: '开启蓝牙'
}, {
name: '连接蓝牙'
}, {
name: '支付下单'
}, {
name: '开始充电'
},
],
errormsg:'',
currentstepindex:0,
background: {
backgroundColor: '#0AA79E'
},
myorder:{
endtime:0
},
projectslists:[],
bluetooth_name:'',
userInfo:[],
islogin:false,
bluetoothlist:[],
deviceId:'',
serviceId:'0000F040-0000-1000-8000-001111111111111',//主服务
characteristics:[],
characteristicId:'0000F041-0000-1000-8000-001111111111111',//写属性
readcharacteristicId:'0000F042-0000-1000-8000-001111111111111'//读属性
}
},
onLoad(options) {
/*if(!options.bluetooth){
this.$refs.uToast.show({
title: '参数错误',
type:'success',
duration:'1000'
})
return false;
}*/
//options.bluetooth = 'AKPXGA0271';
//options.bluetooth = '0000180D-0000-1000-8000-001111111111111';
this.bluetooth_name = options.bluetooth;
console.log('options:',options);
if(uni.getStorageSync('userInfo')){
this.userInfo = uni.getStorageSync('userInfo');
this.islogin = true;
}
},
onShow() {
this.errormsg = '';
clearInterval(this.timer);
this.init();
console.log('bluetooth_name:',this.bluetooth_name);
uni.openBluetoothAdapter({
success:(res)=> { //已打开
uni.getBluetoothAdapterState({//蓝牙的匹配状态
success:(res1)=>{
console.log(res1,'本机设备的蓝牙已打开')
// 开始搜索蓝牙设备
this.startBluetoothDeviceDiscovery();
if(this.currentstepindex ==0){
this.currentstepindex = 1;
}
this.errormsg = '';
},
fail(error) {
uni.showToast({icon:'none',title: '查看手机蓝牙是否打开'});
this.errormsg = '查看手机蓝牙是否打开';
}
});
},
fail:err=>{ //未打开
uni.showToast({icon:'none',title: '查看手机蓝牙是否打开'});
this.errormsg = '查看手机蓝牙是否打开';
}
})
//this.asyncorderQuery('20231002171318937723');
},
onUnload() {
clearInterval(this.timer);
uni.closeBluetoothAdapter({
success(res) {
console.log(res)
}
})
},
methods: {
scanCode(){
uni.closeBluetoothAdapter({
success(res) {
console.log('closeBluetoothAdapter:',res)
},
})
var that = this;
uni.scanCode({
onlyFromCamera: true,
success: function (res) {
console.log('条码类型：' + res.scanType);
console.log('条码内容：' + res.result);
console.log(res);
uni.closeBluetoothAdapter({
success(r) {
console.log('closeBluetoothAdapter:',r)
},
complete(r){
console.log('@closeBluetoothAdapter:',r)
}
})
if(res.scanType !== 'WX_CODE'){
that.$refs.uToast.show({
title: '请使用微信扫一扫',
type: 'error'
})
}
//return false;
if(res.path){
var path = res.path;
uni.navigateTo({
url:'/'+path
})
}else{
that.$refs.uToast.show({
title: '请微信扫桌上二维码',
type: 'error'
})
}
},
fail:function (res) {
that.$refs.uToast.show({
title: '请微信扫桌上二维码',
type: 'error'
})
}
});
},
async chargerend(){
console.log('end。。。');
let data = await this.$api.endcharger({id:this.myorder.id});
if(data){
this.myorder = [];
this.init();
this.currentstepindex = 2;
}
},
clossuccess(){
console.log(2222);
this.successhow = false;
},
async submitsorder(){
var that = this;
if(!this.islogin){
this.login();
return false;
}
let data = {};
//获取图片列表
if(!this.agreenreadme){
uni.showToast({icon:'none',title: '请阅读并同意用户协议'});
return false;
}
if(this.projectId == 0){
this.$refs.uToast.show({
title: '请选择充值时间',
type:'error',
duration:'1000'
})
return false;
}
data.projectId = this.projectId;
data.bluetooth_name = this.bluetooth_name;
console.log(data)
//提交
//return false;
let payData = await this.$api.submitsorder(data);
console.log('payData:',payData);
if(payData){
uni.requestPayment({
provider: 'wxpay',
timeStamp: payData.timeStamp,
nonceStr: payData.nonceStr,
package: payData.package,
signType: payData.signType,
paySign: payData.paySign,
success: function (res) {
console.log(res);
//uni.navigateBack();
that.modaltitle = '支付成功';
that.successcontent ='请将手机放置到充电板，或直接使用数据线充电！';
that.successhow = true;
//that.getBLEDeviceServices();
// clearInterval(that.timer);
//that.writeBLECharacteristicValue();
},
fail: function (err) {
uni.showToast({
title:'支付失败，请重新进行支付！',
icon:'none'
})
clearInterval(that.timer); // 清除定时器
that.timer = null;
},
complete:function(res){
console.log('pay_success:',res);
}
});
that.timer = setInterval(() => {
that.asyncorderQuery(payData.orderid); // 每3秒查询订单
}, 3000)
}else{
}
},
async asyncorderQuery(orderid){
let orderinfo = await this.$api.getorderbyOrderno({orderno:orderid});
console.log('orderinfo：',orderinfo);
if(orderinfo){
if(orderinfo.status == '1'){
this.charge_time = orderinfo.charge_time;
this.currentstepindex = 3;
//支付成功
this.getBLEDeviceServices();
clearInterval(this.timer);
}else{
console.log("orderinfo.status:",orderinfo.status);
}
}else{
}
},
setprojectId(index){
this.projectId = this.projectslists[index].id;
for(var i = 0;i < this.projectslists.length;i++){
this.projectslists[i].status = 0;
}
this.projectslists[index].status = 1;
},
gotoindex(){
uni.switchTab({
url:"/pages/index/index"
})
},
async init(){
let data = await this.$api.projects({bluetooth_name:this.bluetooth_name});
if(data){
this.projectslists = data.projectslists;
this.myorder = data.my_orders;
if(data.my_orders && data.my_orders.endtime > 0){
this.currentstepindex = 4;
}
this.chargconfig = data.chargconfig;
}else{
}
console.log(data)
},
// 开始搜索蓝牙设备
startBluetoothDeviceDiscovery(){
console.log('bluetooth:',this.bluetooth_name);
uni.startBluetoothDevicesDiscovery({
//services:this.bluetooth,//['0000180D-0000-1000-8000-001111111111111'],
success: (res) => {
console.log('startBluetoothDevicesDiscovery success', res)
// 发现外围设备
this.onBluetoothDeviceFound()
},fail:err=>{
console.log(err,'错误信息')
}
})
console.log('sha');
},
// 发现外围设备
onBluetoothDeviceFound() {
var that = this ;
uni.onBluetoothDeviceFound((res) => {
console.log('onBluetoothDeviceFound:',JSON.stringify(res.devices));
console.log('res.devices[0].name ：this.bluetooth_name',res.devices[0].name +'：'+ this.bluetooth_name);
//if(res.devices[0].name == this.bluetooth_name){
if(this.bluetoothlist.indexOf(res.devices[0].deviceId)==-1 && res.devices[0].name == this.bluetooth_name){
this.bluetoothlist.push({
name:res.devices[0].name,
deviceId:res.devices[0].deviceId,
status:0
})
that.deviceId = res.devices[0].deviceId;
that.createBLEConnection(res.devices[0].deviceId);
}else{
console.log('neq');
}
///that.deviceId = res.devices[0].deviceId;
//that.createBLEConnection(res.devices[0].deviceId);
console.log('Bluetooth Lists：',this.bluetoothlist);
//}else{
// console.log('名字不想等');
//}
})
},
//选择设备连接吧deviceId传进来
createBLEConnection(deviceId){
//data里面建立一个deviceId，存储起来
//this.deviceId = deviceId;
var that = this;
console.log(this.bluetoothlist);
console.log('deviceId',deviceId);
//连接蓝牙
uni.createBLEConnection({
// 这里的 deviceId 需要已经通过 createBLEConnection 与对应设备建立链接
deviceId:deviceId,
success(res) {
//that.bluetoothlist[index].status = 1;
console.log(res)
console.log("蓝牙连接成功");
if(that.myorder && parseInt(that.myorder.endtime) > 0){
that.currentstepindex = 4;
}else{
that.currentstepindex = 2;
}
that.errMsg="";
},fail(res) {
that.errMsg="蓝牙连接失败,请扫码重试"
console.log("蓝牙连接失败",res);
that.currentstepindex = 1;
that.errMsg="蓝牙连接失败,请扫码重试"
}
})
this.stopBluetoothDevicesDiscovery();
//this.writeBLECharacteristicValue();
},
//获取蓝牙的所有服务
getBLEDeviceServices(){
setTimeout(()=>{
uni.getBLEDeviceServices({
// 这里的 deviceId 需要已经通过 createBLEConnection 与对应设备建立链接
deviceId:this.deviceId,
success:(res)=>{
console.log('device services:', res)
//E95D93AF-251D-470A-A062-FA1922DFA9A8
//6E400001-B5A3-F393-E0A9-E50E24DCCA9E
res.services.forEach((item)=>{
if(item.uuid !=-1 && item.uuid=='0000F040-0000-1000-8000-00805F9B34FB'){
this.serviceId = item.uuid;
console.log(this.serviceId)
//获取特征
this.getBLEDeviceCharacteristics()
}
})
}
})
},1000)
},
//获取蓝牙特征
getBLEDeviceCharacteristics(){
console.log("进入特征");
setTimeout(()=>{
uni.getBLEDeviceCharacteristics({
// 这里的 deviceId 需要已经通过 createBLEConnection 与对应设备建立链接
deviceId:this.deviceId,
// 这里的 serviceId 需要在 getBLEDeviceServices 接口中获取
serviceId:this.serviceId,
success:(res)=>{
console.log(res,'特征getBLEDeviceCharacteristics')
this.characteristics = res.characteristics
console.log(this.characteristics)
res.characteristics.forEach((item)=>{
if(item.uuid != -1 && item.uuid == '0000F041-0000-1000-8000-001111111111111'){
this.characteristicId = item.uuid;
this.writeBLECharacteristicValue();
//console.log('characteristicId:', item.uuid)
//利用传参的形势传给下面的notify，这里的uuid如果都需要用到，就不用做判断了，建议使用setTimeout进行间隔性的调用此方法
//this.notifyBLECharacteristicValueChange(item.uuid)
}
})
},
fail:(res)=>{
console.log(res)
}
})
},1000)
},
//写入蓝牙，写成功之后就可以充电了。
writeBLECharacteristicValue() {
var that = this;
//例如：充电一个小时，buff 的值如下：FED5010000000000000000000000000000000045 ;'FED5000200000000000000000000000000000045'
var charge_time = this.charge_time;
var buff = this.string2buffer(charge_time); //9.0
console.log('这里了1：',this.deviceId);
console.log('这里了2：',this.serviceId);
console.log('这里了3：',this.characteristicId);
console.log('buff：',buff);
uni.writeBLECharacteristicValue({
deviceId: this.deviceId,//设备ID
serviceId: this.serviceId,//主服务
characteristicId: this.characteristicId,//写属性
value:buff,
success(res) {
console.log('writeBLECharacteristicValue success', res.errMsg);
that.init();
that.bluetoothlist[0].status = 1;
that.currentstepindex = 4;
},
fail(res) {
console.log(JSON.stringify(res))
console.log(JSON.stringify(buff))
}
})
},
//字符串转 Buffer
string2buffer(str) {
let val = ""
if (!str) return;
let length = str.length;
let index = 0;
let array = []
while (index < length) {
array.push(str.substring(index, index + 2));
index = index + 2;
}
val = array.join(",");
// 将16进制转化为ArrayBuffer
return new Uint8Array(val.match(/[\da-f]{2}/gi).map(function(h) {
return parseInt(h, 16)
})).buffer
},
// 停止搜寻蓝牙设备
stopBluetoothDevicesDiscovery(){
uni.stopBluetoothDevicesDiscovery({
success: e => {
this.loading = false
console.log('停止搜索蓝牙设备:' + e.errMsg);
},
fail: e => {
console.log('停止搜索蓝牙设备失败，错误码：' + e.errCode);
}
});
},
login(){
let that = this;
// #ifndef MP-TOUTIAO
uni.getUserProfile({
desc:'用于完善会员资料',
success:async (res) => {
console.log(res)
if (res.errMsg = 'getUserInfo:ok') {
let user_info = res.userInfo;
console.log(user_info);
//用户注册 或 登录
let result = await that.$api.wxGetUserInfo(user_info,'wechat');
console.log(result)
if(result){
uni.setStorageSync('token',result.userInfo.token);
uni.setStorageSync('userInfo',result.userInfo);
uni.setStorageSync('isLogin',1);
that.islogin = true;
that.userInfo = result.userInfo;
that.submitsorder();
//that.init();
//console.log(result.userInfo);
}
}else{
uni.openSetting({
success(res) {
console.log(res)
}
})
}
},
fail:(res)=>{
console.log('您选择了取消');
console.log(res);
}
})
// #endif
},
}
}
</script>
5.运营模式
本项目之所以写出来，是因为每个环节都没有瓶颈，如果有想法的可以去做，主要点有：
- 直接收益：用户直接充电收益，和商户谈好分层比例即可；
- 流量主收益：可以通过周边广告进行二次收益，这部分才是大头；
- 异业合作：流量上去后，可以扩展其他功能，比如学校周边的可以增加，周边的悠闲娱乐；
- 合作商户：酒吧、网吧、公交大巴、餐饮公共区域等.....
就到此吧，感兴趣的可以沟通，交流.....................
扫一扫
1038
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
