WIFI中EAP-TTLS 认证分析

                                                           WIFI中EAP-TTLS 认证分析

一 协议层模型

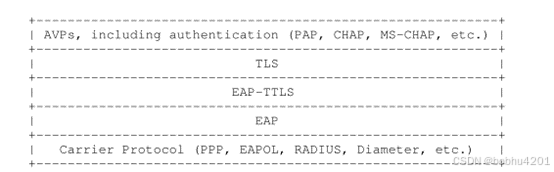

EAP-TTLS packets are encapsulated within EAP, and EAP in turn requires a carrier protocol to transport it.  EAP-TTLS packets themselves encapsulate TLS, which is then used to encapsulate   attribute-value pairs (AVPs) which may carry user authentication or other information. Thus, EAP-TTLS messaging can be described using a layered model, where each layer is encapsulated by the layer beneath it.  The following diagram clarifies the relationship between protocols:

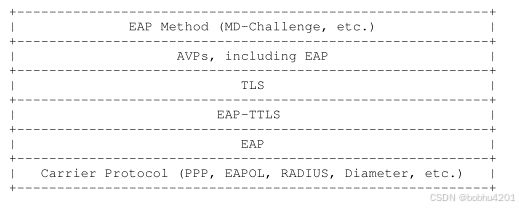

  When the user authentication protocol is itself EAP, the layering is as follows:

Methods for encapsulating EAP within carrier protocols ar
