一种模拟运动伪影的方法代码

原github：GitHub - guusvanderham/artificial-motion-artifacts-for-ct

我转到了python 方法，方便使用

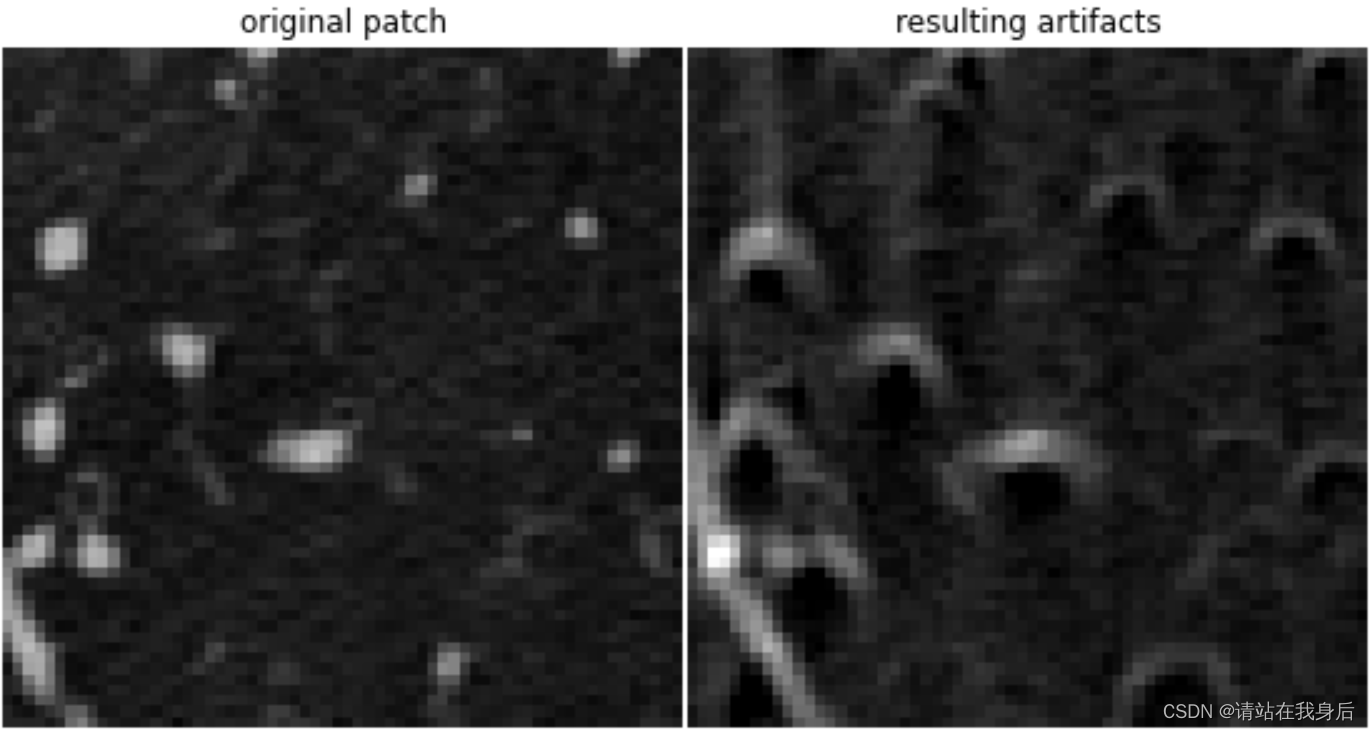

贴张模拟图

1、 读取、归一化，裁剪成patch

# load scan (as z,y,x)
path="data"
dcm_f = pydicom.read_file(path)
dcm = dcm_f.pixel_array
# normalize between 0 and 1
scan=normalize(dcm)
# show dimensions and example slice
# print(scan.shape)
# plt.imshow(scan[0, :, :], cmap='gray')
# plt.show()
# create a patch by specifying the topleft corner and patch size
x,y,z = (100,250,0)
patch_size = 128
patch = scan[z,y:y+patch_size,x:x+patch_size]

2、需要一个mask，如果没有就全一

# binary mask specifying which pixels are lung tissue, lung masks can be generated from scans using e.g. https://github.com/JoHof/lungmask
# not using mask might result in lungborder artifacts or the simulation of a deforming ribcage (which is unrealistic)
# if no mask is available use:
patch_mask=np.ones((patch_size, patch_size))

3、定义伪影的方向

# specify the motion direction in pixels
dir_x, dir_y=(9, 0)

4、添加伪影

# specify the motion direction in pixels
dir_x, dir_y=(9, 0)

def create_artifact_elasticdeform(img, mask, dir_x, dir_y, patch_size):
    size_x, size_y=img.shape
    width, height=patch_size

    # padding
    padsize=np.max((np.absolute(dir_x), np.absolute(dir_y)))

    # coordinates of top-left corner of patch in background
    x=int(size_x / 2 - width / 2)
    y=int(size_y / 2 - height / 2)

    background=np.zeros((size_x + 2 * padsize, size_y + 2 * padsize))

    # copy of the original patch
    temp=copy.copy(img)

    # nr of angles in which the projector will take pictures
    nr_angles=360

    # the (radian) angles in which the projector will create a projection
    angles=np.linspace(0, np.pi, nr_angles)

    # get a random displacement vector grid
    displacement=get_random_displacement(dir_x, dir_y)

    # N, number of grid points for elastic deformation
    order=5

    # deform the lung mask to deal with lungborder artifacts later and create the movement mask
    mask, movement_vectors_mask=deform_grid_py(mask, displacement, order=order)

    # take the movement vectors for each pixel in the input image and compute the vector lengths(motion severity)
    move_mask=np.linalg.norm(movement_vectors_mask, axis=0)

    # make the mask binary again
    mask=mask > 0.9
    mask=mask * 1

    # determine after which projection angles grid points need to move and the image in the scanner needs to be swapped
    angles_idxs=np.array([])
    angles_dict={}
    for a in np.unique(displacement):
        if np.abs(a) > 0:
            angles_idxs=np.linspace(0, nr_angles, np.abs(a) + 2).astype(np.int32)
            for angle in angles_idxs:
                if not angle in angles_dict:
                    angles_dict[angle]=[a]
                else:
                    angles_dict[angle].append(a)

    # the indices of the angles in which the image needs to be moved
    angles_x=np.linspace(0, nr_angles, np.absolute(dir_x) + 2).astype(np.int32)
    angles_y=np.linspace(0, nr_angles, np.absolute(dir_y) + 2).astype(np.int32)

    # remove 0 and pi as angles to move the image
    angles_x=np.delete(angles_x, 0)
    angles_x=np.delete(angles_x, len(angles_x) - 1)
    angles_y=np.delete(angles_y, 0)
    angles_y=np.delete(angles_y, len(angles_y) - 1)

    # create one unique list after which indices of projection angles the image should be moved
    angles_idx=np.concatenate((angles_x, angles_y))
    angles_idx=np.unique(angles_idx)

    # specify the number of detectors the scanner has
    nr_detectors=np.max(img.shape) + 128

    # initialize data for astra scanner
    vol_geom=astra.creators.create_vol_geom(temp.shape[0], temp.shape[1])
    sinogram=np.zeros((nr_angles, nr_detectors))

    # Step 1: simulate acquisition of CT scan

    # start simulation
    for i, angle in enumerate(angles):
        # create a new projector for each projection
        projector_id=make_projector(angle, vol_geom, nr_detectors)

        # if the current angle is in the dict, the image in the scanner needs to be moved slightly and replaced
        if i in angles_dict:
            # determine which grid points need to move by 1 pixel
            idx=np.zeros(displacement.shape)
            for j in angles_dict[i]:
                idx+=displacement == j
            idx=idx > 0
            idx=idx * 1
            idx[0, :, :]=idx[0, :, :] * np.sign(dir_y)
            idx[1, :, :]=idx[1, :, :] * np.sign(dir_x)
            # deform and update the image in the scanner
            temp, _=deform_grid_py(temp, idx * 1.0, order=order)

        # create artificial sinogram of one angle (add one column for the current projection)
        (sino_id, sino)=astra.creators.create_sino(temp, projector_id, returnData=True, gpuIndex=None)

        # store sinograms of all angles
        sinogram[i, :]=sino

        # remove the projector
        astra.projector.delete(projector_id)

    # clean up as the simulation of the scan is done
    astra.projector.clear()

    # Step 2: reconstruction of the patch given projection data

    # create new projector for reconstruction
    proj_geom=astra.create_proj_geom('parallel', 1, nr_detectors, np.linspace(0, np.pi, nr_angles))
    projector_id=astra.creators.create_projector('line', proj_geom, vol_geom)

    # load sinogram data as sinogram object
    sinogram_id=astra.data2d.create('-sino', proj_geom, sinogram)

    # create empty reconstruction volume
    reconstruction_id=astra.data2d.create('-vol', vol_geom, data=0)

    # initialize reconstruction algorithm
    alg_cfg=astra.astra_dict('FBP')
    alg_cfg['ProjectorId']=projector_id
    alg_cfg['ProjectionDataId']=sinogram_id
    alg_cfg['ReconstructionDataId']=reconstruction_id
    algorithm_id=astra.algorithm.create(alg_cfg)

    # create reconstruction from sinogram
    astra.algorithm.run(algorithm_id)
    reconstruction=astra.data2d.get(reconstruction_id)

    # for extracting center patch of reconstruction
    patch_x=int(reconstruction.shape[0] / 2 - width / 2)
    patch_y=int(reconstruction.shape[1] / 2 - height / 2)

    # for extracting center patch of original image for comparison
    template_x=int(img.shape[0] / 2 - width / 2)
    template_y=int(img.shape[1] / 2 - height / 2)

    # extract center patch with given dimensions
    patch=reconstruction[patch_x:patch_x + width, patch_y:patch_y + height]
    # do the same for the lung mask
    mask=mask[y:y + height, x:x + width]
    # and the original patch for comparison
    temp=temp[y:y + height, x:x + width]
    # and the movement mask
    move_mask=move_mask[y:y + height, x:x + width]

    # set everyting outside of lung mask to 0 (also removes lungborder artifacts)
    idxs=mask < 1
    patch[idxs]=0

    # apply a small amount of Gaussian filtering to deal with pixelation
    patch=gaussian_filter(patch, sigma=0.5)
    # for comparison also for the original
    temp=gaussian_filter(temp, sigma=0.5)

    # clip back the patch to a range of 0, 1
    patch=np.clip(patch, 0, 1)

    return patch, temp, move_mask

def show(img, title=""):
    plt.figure(figsize=(5, 5))
    plt.title(title)
    plt.imshow(img, cmap='gray')
    plt.clim(0, 1)
    plt.axis('off')
    plt.show()


# create astra projector
def make_projector(angle, vol_geom, nr_detectors):
    proj_geom=astra.create_proj_geom('parallel', 1, nr_detectors, [angle])
    projector_id=astra.creators.create_projector('line', proj_geom, vol_geom)
    return projector_id


# create a random displacement vector grid (fig 5a, 5b and 5c in thesis)
def get_random_displacement(dir_x, dir_y):
    # create 2D Gaussian matrix
    M=9
    x, y=np.meshgrid(np.linspace(-1, 1, M), np.linspace(-1, 1, M))
    d=np.sqrt(x * x + y * y)

    # random sigma, high value creates uniform motion, low value creates motion focused around single grid point
    sigma=np.random.uniform(0.1, 1.2)
    mu=0
    g=np.exp(-((d - mu) ** 2 / (2.0 * sigma ** 2)))

    # N x N displacement vector grid
    N=5
    displacement=np.zeros((2, N, N))

    # take random submatrix to simulate random motion source location
    center_x=int(np.random.uniform(0, N - 1))
    center_y=int(np.random.uniform(0, N - 1))

    # displacement vectors x-values
    displacement[1, :, :]=g[center_x:center_x + N, center_y:center_y + N] * dir_x + 1
    # displacement vectors y-values
    displacement[0, :, :]=g[center_x:center_x + N, center_y:center_y + N] * dir_y + 1

    # clip back the motion vectors to the severity of the original motion direction
    max_movement=np.max((dir_x, dir_y))
    displacement=np.clip(displacement.astype(np.int32), -max_movement, max_movement)

    return displacement


# adapted version of https://github.com/gvtulder/elasticdeform that also returns motion mask
def deform_grid_py(X, displacement, order=3, mode='constant', cval=0.0, crop=None, prefilter=True, axis=None):
    if axis is None:
        axis=tuple(range(X.ndim))
    elif isinstance(axis, int):
        axis=(axis,)

    # compute number of control points in each dimension
    points=[displacement[0].shape[d] for d in range(len(axis))]

    # creates the grid of coordinates of the points of the image (an ndim array per dimension)
    coordinates=np.meshgrid(*[np.arange(X.shape[d]) for d in axis], indexing='ij')
    # creates the grid of coordinates of the points of the image in the "deformation grid" frame of reference
    xi=np.meshgrid(*[np.linspace(0, p - 1, X.shape[d]) for d, p in zip(axis, points)], indexing='ij')

    if crop is not None:
        coordinates=[c[crop] for c in coordinates]
        xi=[x[crop] for x in xi]
        # crop is given only for the axes in axis, convert to all dimensions for the output
        crop=tuple(crop[axis.index(i)] if i in axis else slice(None) for i in range(X.ndim))
    else:
        crop=(slice(None),) * X.ndim
    move_mask=[]
    # add the displacement to the coordinates
    for i in range(len(axis)):
        yd=scipy.ndimage.map_coordinates(displacement[i], xi, order=3)
        move_mask.append(yd)
        # adding the displacement
        coordinates[i]=np.add(coordinates[i], yd)

    out=np.zeros(X[crop].shape, dtype=X.dtype)
    # iterate over the non-deformed axes
    iter_axes=[range(X.shape[d]) if d not in axis else [slice(None)]
               for d in range(X.ndim)]
    for a in itertools.product(*iter_axes):
        scipy.ndimage.map_coordinates(X[a], coordinates, output=out[a],
                                      order=order, cval=cval, mode=mode, prefilter=prefilter)
    return out, np.array(move_mask)

5、展示

print(patch.shape)
print(result.shape)
show(result, 'resulting artifacts')
show(original, 'original patch')
