1.api项目
pom文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.knife</groupId>
<artifactId>ApiTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<name>ApiTest</name>
<url>http://maven.apache.org</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>dubbo</artifactId>
<version>2.6.6</version>
</dependency>
<dependency>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
<version>3.4.10</version>
</dependency>
<dependency>
<groupId>com.101tec</groupId>
<artifactId>zkclient</artifactId>
<version>0.5</version>
</dependency>
<dependency>
<groupId>io.netty</groupId>
<artifactId>netty-all</artifactId>
<version>4.1.32.Final</version>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-framework</artifactId>
<version>2.8.0</version>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-recipes</artifactId>
<version>2.8.0</version>
</dependency>
</dependencies>
<modules>
<module>DubboProviderTest</module>
<module>DubboCustomerTest</module>
</modules>
</project>
api接口
package com.knife.ApiTest;
public interface HelloWorld {
public String sayHello();
}
2.生产者项目
pom文件
<?xml version="1.0"?>
<project
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.knife</groupId>
<artifactId>ApiTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<groupId>com.knife</groupId>
<artifactId>DubboCustomerTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>DubboCustomerTest</name>
<url>http://maven.apache.org</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>com.knife</groupId>
<artifactId>ApiTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
</dependencies>
</project>
配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<dubbo:application name="customer" />
<dubbo:registry address="zookeeper://localhost:2181" check="false"/>
<dubbo:reference id="HelloWorld-customer" interface="com.knife.ApiTest.HelloWorld"/>
</beans>
实现类
package org.DubboProviderTest;
import com.knife.ApiTest.HelloWorld;
public class HelloWorldImpl implements HelloWorld {
public String sayHello() {
// TODO Auto-generated method stub
System.err.println("be called ...");
return "hello dubbo ...";
}
}
启动类
package org.DubboProviderTest;
import java.io.IOException;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class App
{
public static void main( String[] args ) throws IOException
{
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("provider2.xml");
context.start();
System.in.read();
}
}
3.消费者项目
pom文件
<?xml version="1.0"?>
<project
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.knife</groupId>
<artifactId>ApiTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<groupId>com.knife</groupId>
<artifactId>DubboCustomerTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>DubboCustomerTest</name>
<url>http://maven.apache.org</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>com.knife</groupId>
<artifactId>ApiTest</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
</dependencies>
</project>
配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<dubbo:application name="customer" />
<dubbo:registry address="zookeeper://localhost:2181" check="false"/>
<dubbo:reference id="HelloWorld-customer" interface="com.knife.ApiTest.HelloWorld"/>
</beans>
调用接口类
package org.DubboCustomerTest;
import java.io.IOException;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.knife.ApiTest.HelloWorld;
public class App {
public static void main(String[] args) throws IOException {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("customer2.xml");
context.start();
HelloWorld helloWorld = (HelloWorld) context.getBean("HelloWorld-customer");
String str = helloWorld.sayHello();
System.err.println(str);
}
}
4.log4j配置
# Set root category priority to INFO and its only appender to CONSOLE.
#log4j.rootCategory=INFO, CONSOLE debug info warn error fatal
log4j.rootCategory=debug, CONSOLE, LOGFILE, info
# Set the enterprise logger category to FATAL and its only appender to CONSOLE.
log4j.logger.org.apache.axis.enterprise=FATAL, CONSOLE
# CONSOLE is set to be a ConsoleAppender using a PatternLayout.
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n

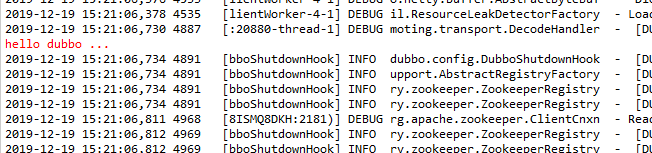

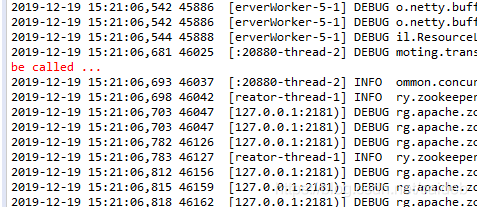

5.测试
依次启动zookeeper 生产者 消费者
6.配置文件可以修改成不经过zookeeper 点对点形式
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<dubbo:application name="provider" />
<dubbo:monitor protocol="registry"/>
<dubbo:registry address="N/A"/>
<dubbo:protocol name="dubbo" port="20880"/>
<dubbo:service interface="com.knife.ApiTest.HelloWorld" ref="HelloWorld-provider"/>
<bean id="HelloWorld-provider" class="org.DubboProviderTest.HelloWorldImpl"/>
</beans>
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://code.alibabatech.com/schema/dubbo
http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<dubbo:application name="customer" />
<dubbo:reference id="HelloWorld-customer"
interface="com.knife.ApiTest.HelloWorld"
url="dubbo://localhost:20880/com.knife.ApiTest.HelloWorld" />
</beans>
