文章介绍了如何在VSCODE中创建自定义的用户片段，特别是针对C/C++文件的头部注释。通过配置全局片段，用户可以快捷地输入‘cpp’或‘ch’来自动填充标准的文件头信息，提高开发效率。

前提：
为了避免简单的重复劳动，借助VSCODE 快速生成文件头部，在项目搭建中体验非常舒适。

官方指导

{
	// Place your global snippets here. Each snippet is defined under a snippet name and has a scope, prefix, body and
	// description. Add comma separated ids of the languages where the snippet is applicable in the scope field. If scope
	// is left empty or omitted, the snippet gets applied to all languages. The prefix is what is
	// used to trigger the snippet and the body will be expanded and inserted. Possible variables are:
	// $1, $2 for tab stops, $0 for the final cursor position, and ${1:label}, ${2:another} for placeholders.
	// Placeholders with the same ids are connected.
	// Example:
	// "Print to console": {
	// 	"scope": "javascript,typescript",
	// 	"prefix": "log",
	// 	"body": [
	// 		"console.log('$1');",
	// 		"$2"
	// 	],
	// 	"description": "Log output to console"
	// }
}

生成 .c 用户片段

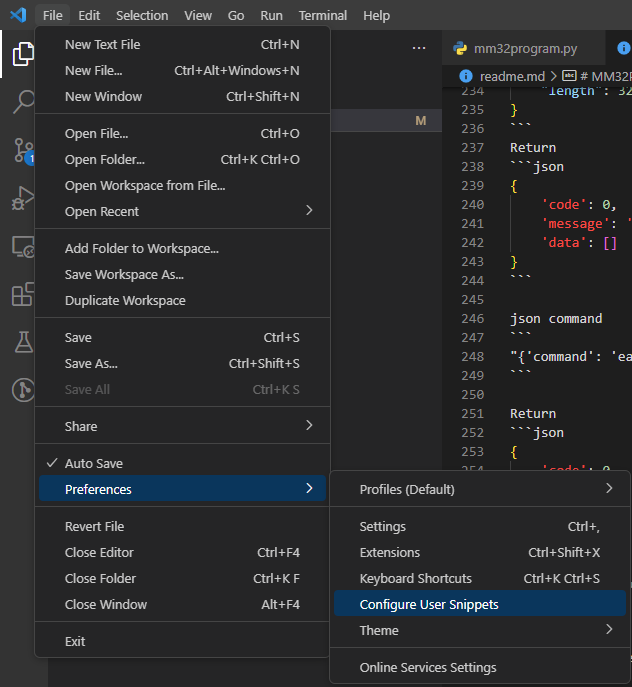

打开 VSCODE，文件 -> 首选项 -> 配置用户片段

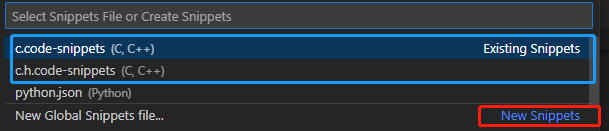

点击完成后弹出会话窗口，篮框为已配置的用户片段，点击：New Snippets新建全局片段
输入片段文件名，命名 “c.code”
拷贝如下内容，可以生成.c 文件用户片段：

{
	"CcHEADER":{
		"scope": "c, cpp",
		"prefix": "cpp",
		"description": "header C/C++",
		"body": [
			"/*------------------------------------------------------------------------------",
			" * @file    ${TM_FILENAME/(.*)/${1:/upcase}/}",
			" * @author  FIRMWARE TEAM ",
			" * @date    $CURRENT_YEAR/$CURRENT_MONTH/$CURRENT_DATE $CURRENT_HOUR:$CURRENT_MINUTE:$CURRENT_SECOND",
			" * @brief   THIS FILE PROVIDES ALL THE FIRMWARE FUNCTIONS.",
			" * -----------------------------------------------------------------------------",
			" * @attention ",
			" ",
			" * THE EXISTING FIRMWARE IS ONLY FOR REFERENCE, WHICH IS DESIGNED TO PROVIDE ",
			" * CUSTOMERS WITH CODING INFORMATION ABOUT THEIR PRODUCTS SO THEY CAN SAVE ",
			" * TIME. THEREFORE, MINDMOTION SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT OR ",
			" * CONSEQUENTIAL DAMAGES ABOUT ANY CLAIMS ARISING OUT OF THE CONTENT OF SUCH ",
			" * HARDWARE AND/OR THE USE OF THE CODING INFORMATION CONTAINED HEREIN IN ",
			" * CONNECTION WITH PRODUCTS MADE BY CUSTOMERS. ",
			" * ",
			" * <H2><CENTER>&COPY; COPYRIGHT MINDMOTION </CENTER></H2> ",
			"------------------------------------------------------------------------------*/",
			"",
			"/* Define to prevent recursive inclusion  ------------------------------------*/",
			"#define _${TM_FILENAME_BASE/(.*)/${1:/upcase}/}_C_",
			"",
			"/* Files includes  -----------------------------------------------------------*/",
			"#include \"$TM_FILENAME_BASE.h\"",
			"","",
			"/*----------------------------------------------------------------------------*/",
			"$0",
			""
		],
	}
}

如何调用：
新建文件，并指定后缀名为.c或者.cpp，文本输入 “cpp”，自动弹出 CcHENDER 片段提示，回车就可以生成下图效果。

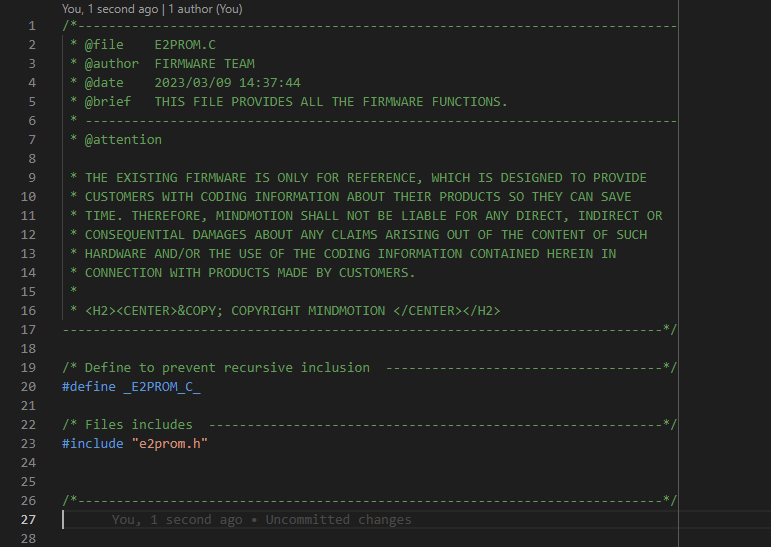

实际效果：
在这里插入图片描述

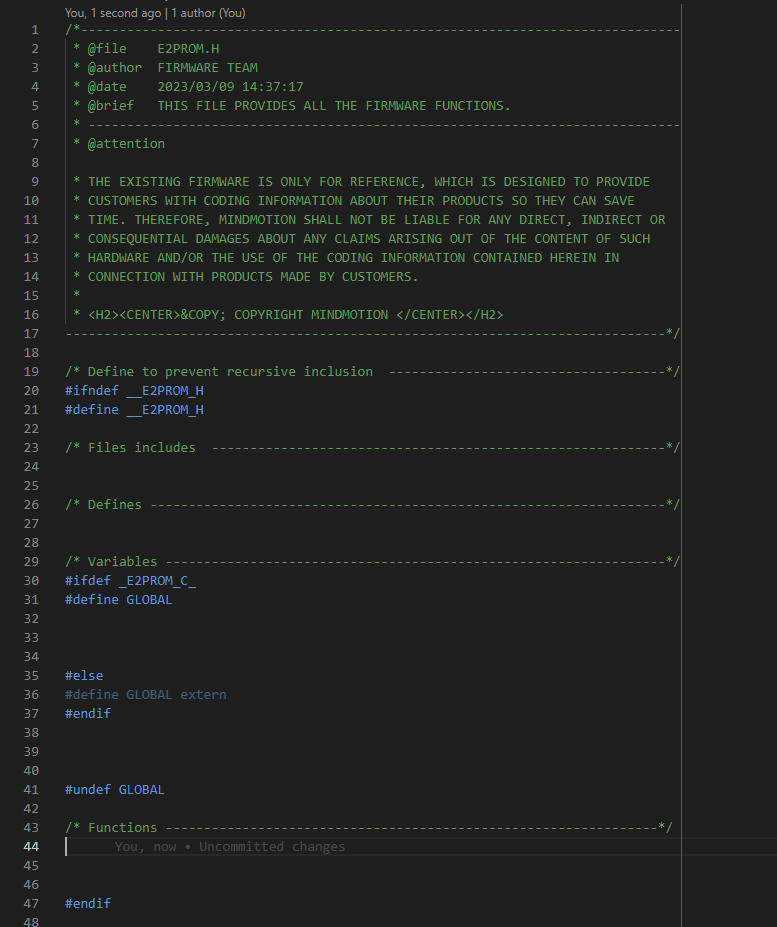

生成 .h 用户片段

同步骤1-5.

{
	"C HEADER":{
		"scope": "c, cpp",
		"prefix": "ch",
		"description": "header C/C++",
		"body": [
			"/*------------------------------------------------------------------------------",
			" * @file    ${TM_FILENAME/(.*)/${1:/upcase}/}",
			" * @author  FIRMWARE TEAM ",
			" * @date    $CURRENT_YEAR/$CURRENT_MONTH/$CURRENT_DATE $CURRENT_HOUR:$CURRENT_MINUTE:$CURRENT_SECOND",
			" * @brief   THIS FILE PROVIDES ALL THE FIRMWARE FUNCTIONS.",
			" * -----------------------------------------------------------------------------",
			" * @attention ",
			" ",
			" * THE EXISTING FIRMWARE IS ONLY FOR REFERENCE, WHICH IS DESIGNED TO PROVIDE ",
			" * CUSTOMERS WITH CODING INFORMATION ABOUT THEIR PRODUCTS SO THEY CAN SAVE ",
			" * TIME. THEREFORE, MINDMOTION SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT OR ",
			" * CONSEQUENTIAL DAMAGES ABOUT ANY CLAIMS ARISING OUT OF THE CONTENT OF SUCH ",
			" * HARDWARE AND/OR THE USE OF THE CODING INFORMATION CONTAINED HEREIN IN ",
			" * CONNECTION WITH PRODUCTS MADE BY CUSTOMERS. ",
			" * ",
			" * <H2><CENTER>&COPY; COPYRIGHT MINDMOTION </CENTER></H2> ",
			"------------------------------------------------------------------------------*/",
			"",
			"/* Define to prevent recursive inclusion  ------------------------------------*/",
			"#ifndef __${TM_FILENAME_BASE/(.*)/${1:/upcase}/}_H",
			"#define __${TM_FILENAME_BASE/(.*)/${1:/upcase}/}_H",
			"",
			"/* Files includes  -----------------------------------------------------------*/",
			"","",
			"/* Defines -------------------------------------------------------------------*/",
			"","",
			"/* Variables -----------------------------------------------------------------*/",
			"#ifdef _${TM_FILENAME_BASE/(.*)/${1:/upcase}/}_C_",
			"#define GLOBAL",
			"","","",
			"#else",
			"#define GLOBAL extern",
			"#endif",
			"","","",
			"#undef GLOBAL",
			"",
			"/* Functions ----------------------------------------------------------------*/",
			"$0",
			"","",
			"#endif",
			""
		],
	}
}
