[移动通讯]【Carrier Aggregation-8】【LTE-A Carrier Aggregation】

前言：

参考：《Understanding Carrier Aggregation》

1： UE bandwidth class

2： Channel bandwidths per operating band for CA

3： E-UTRAN aspects

一 UE bandwidth class

Following table shows Carrier Aggregation Bandwidth Class in terms of total number of RBs used by aggregated carrier.

For example, CA Bandwidth Class 'B' says N_RB,agg <= 100. It means that total aggregated RB should be less than 100. Following shows some example cases which is allowed and not allowed configuration.

Case 1 :

PCC = 10 Mhz (max 50 RB), SCC = 10 Mhz (max 50 RB).

It would give max aggregated RB is 50 RB +50 RB which is <= 100. So this is allowed.

Case 2 :

PCC = 10 Mhz (max 50 RB), SCC = 15 Mhz (max 75 RB).

It would give max aggregated RB is 50 RB +75 RB which is >= 100. So this is not allowed.

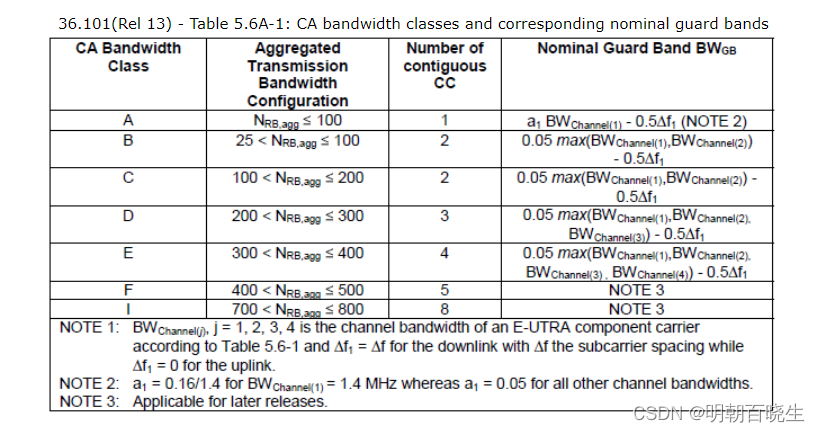

36.101(Rel 13) - Table 5.6A-1: CA bandwidth classes and corresponding nominal guard bands

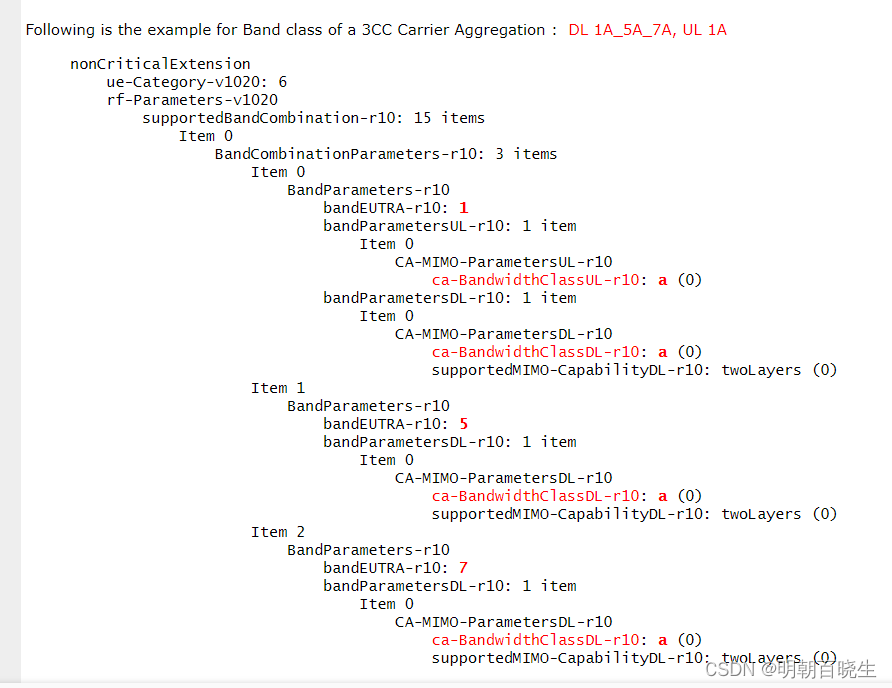

bandclass 通过OTA 消息里面的 UE Capability Information message

二 Channel bandwidths per operating band for CA

UE RACH 后，通过 UE UL capabilities OTA 进行能力上报，

上下行是独立配置的，对应class 主要有下面三种符号：

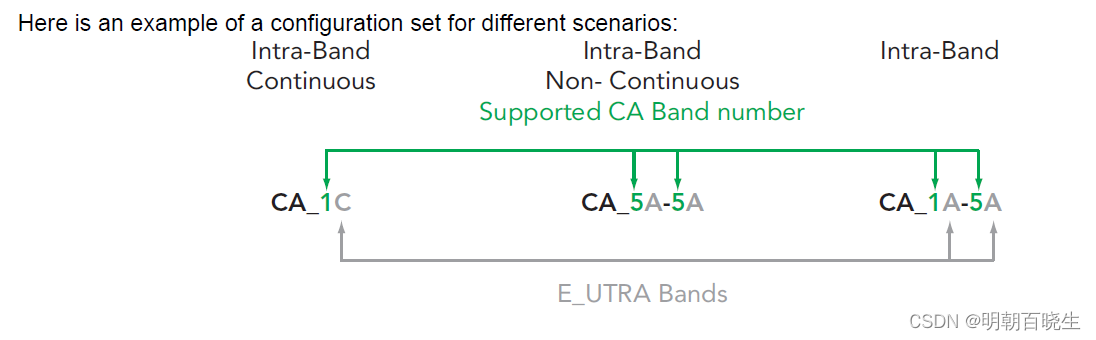

例如：

CA_5A-5A configuration：指示UE可以在band5 频带中接收或发送两个单独的载波

A给出UE带宽类别，指示UE能够在两个频带上的最大100个资源块（RB）（对应于20MHz带宽）。

CA_1C configuration:

1C配置声明: UE可以band1上进行连续两个子载波聚合，最高200个RB

Followings are some more examples without the detailed RRC message.

CA_46C-48E : This is 6CC CA because the class 'C' supports 2CC contiguous band and the class 'D' support 4CC configuous band.
CA_2A-46A-48E : This is 6CC CA because there are two class 'A' band which support 1 CC for each band and one class 'E' that support 4 CC contiguous band.
CA_2A-46C-48E : This is 7CC CA because there is one class 'A' which support 1CC, one class 'C' which support 2CC contiguous and one class 'E' that support 4CC contiguous bands.

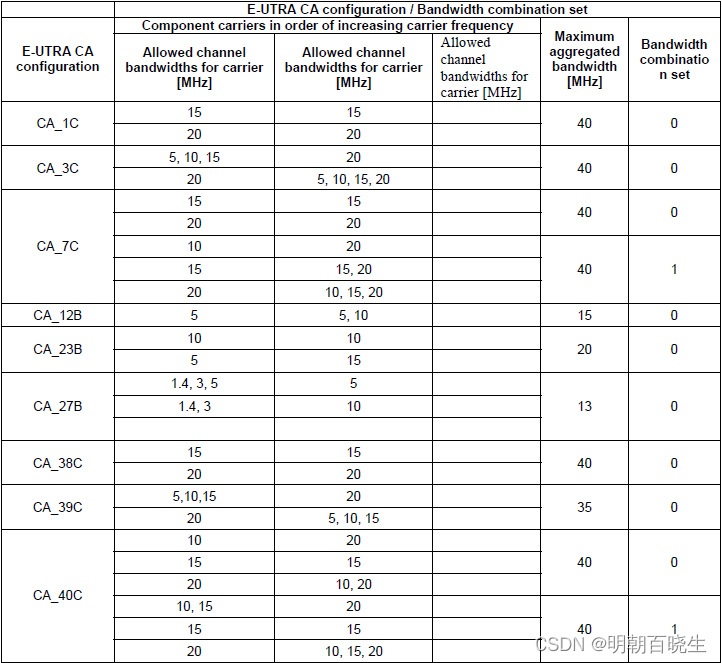

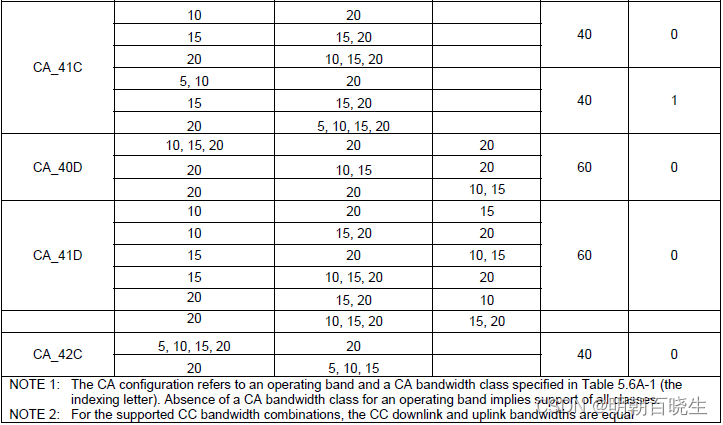

< 36.101 Table 5.6A.1-1: E-UTRA CA configurations and bandwidth combination sets defined for intra-band contiguous CA >

三 E-UTRAN Aspects

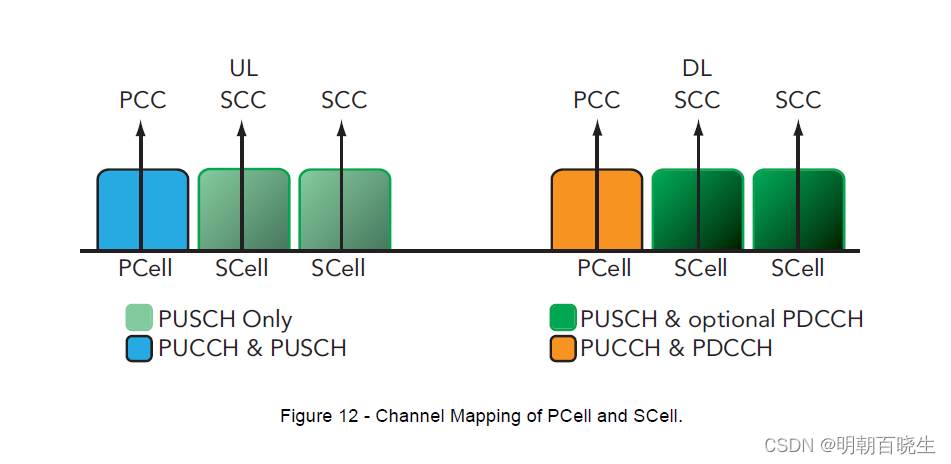

为了支持CA,Release-10引入了PCell（primary cell）和 SCell（secondary cell）。

PCell是UE与其通信的主小区，定义为RRC信令与其通信的小区，通过物理上行链路控制信道（PUCCH）的存在来交换消息。对于给定的UE恰好存在一个。一个PCell始终在RRC_CONNECTED模式下活动，而一个或多个SCell 可以是活动的。只有在连接建立后，才能在CONNECTED模式下将附加的SCell配置为提供额外的无线资源。

所有的PCell 和SCell统称为服务小区。

对应的子载波分别称为： primary component carrier (PCC) and secondary component carrier (SCC)，

PCell :

1 配置对应的PDCCH &PUCCH

2: 测量和移动管理功能

3： RACH

4: PCell 不能去激活

SCell 配置PDCCH 根据 UE capabilities, 无PUCCH

1: 为了降低功耗，MAC 层动态的 activation/deactivation SCell
