一、背景介绍

近期公司希望快速搭建一个IoT平台，用于即将给客户带来的演示demo，以及未来基础IoT平台的搭建。既然是为未来考虑，那肯定不能随便写一个，工作不能白做，那么找个靠得住的开源IoT平台是首选。经大佬推荐最终选择了thingsboard，支持协议多，文档齐全。

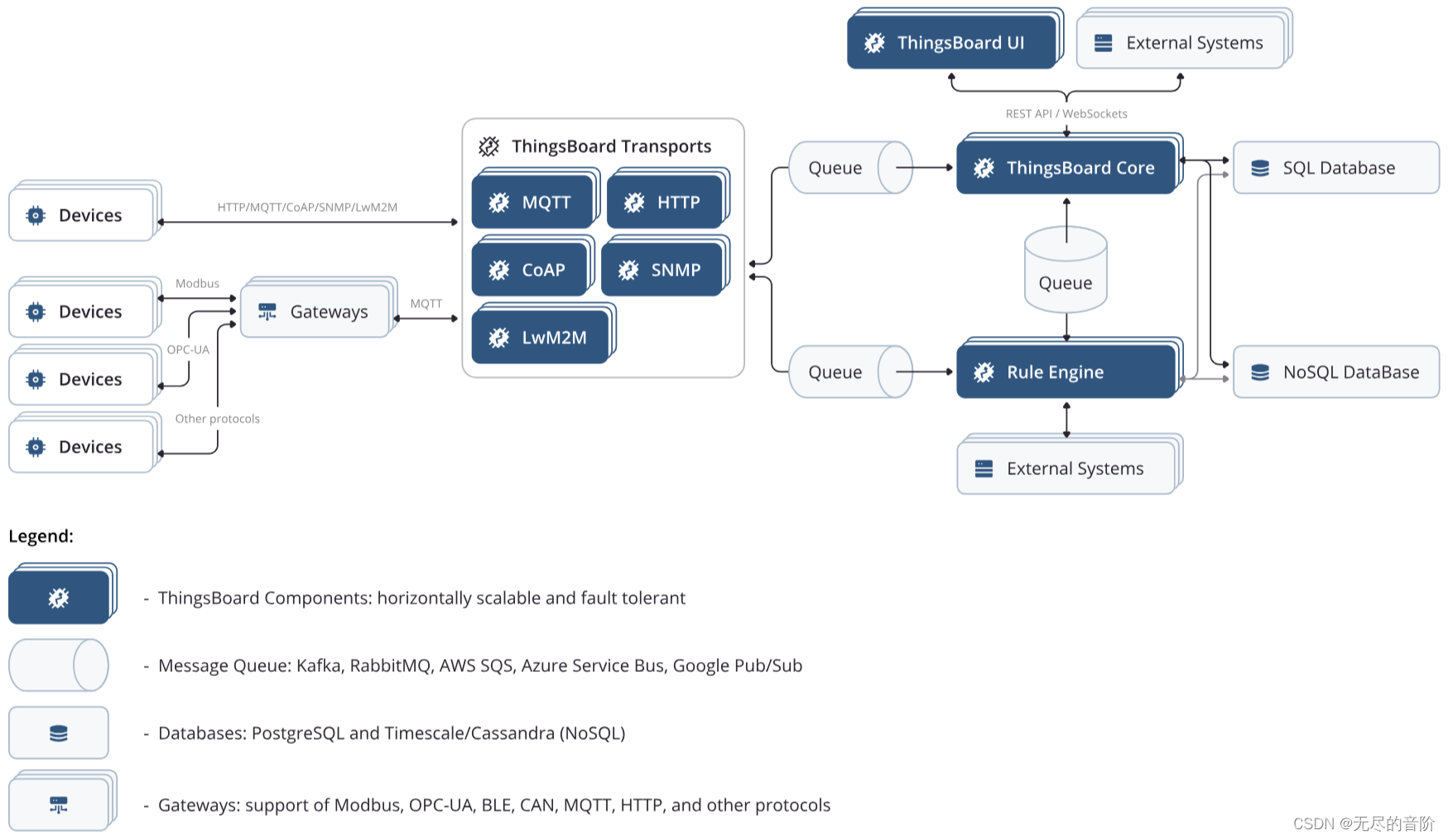

平台架构如下：
在这里插入图片描述
本身设计能够应对高并发场景，也是基于spring的微服务架构，可以放心使用。
官网地址：https://thingsboard.io/

二、获取源码

如果有VPN可以从github直接获取，地址：https://github.com/thingsboard/thingsboard
也可以从gitee的镜像仓获取，地址：https://gitee.com/mirrors/ThingsBoard

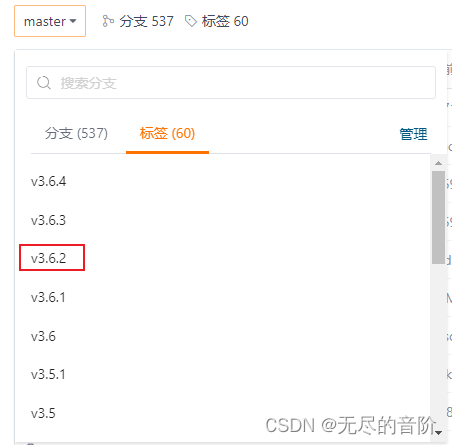

我使用的版本是v3.6.2，因为maven主仓的包版本最新只有v3.6.2，太新的版本会出现拉不到包的问题
在这里插入图片描述

cd d:/development/workSpace
git clone https://gitee.com/mirrors/ThingsBoard.git
git checkout -b dev3.6.2 tags/v3.6.2

三、编译源码

推荐使用maven命令行拉取包并完成编译，我试过eclipse、idea都会遇到莫名其妙的包获取不到或者版本不对的问题。经过多次尝试，最终使用maven命令行编译通过。

1.编译环境
jdk使用jdk11，从v3.2.2之后就切到11了
maven使用v3.9.6，请从管网下载安装https://maven.apache.org/download.cgi，不推荐使用eclipse或idea内置的maven

配置maven环境变量，将D:\apache-maven-3.9.6\bin加入到windows path环境变量即可。
验证maven安装情况

mvn -v
Maven home: D:\tools\apache-maven-3.9.6
Java version: 11.0.23, vendor: Eclipse Adoptium, runtime: D:\development\jvm\windows\jdk-11.0.23+9
Default locale: zh_CN, platform encoding: GBK
OS name: "windows 10", version: "10.0", arch: "amd64", family: "windows"

安装node、yarn
可以在ThingsBoard\msa\web-ui\pom.xml文件搜素yarn关键词找到编译依赖的node、yarn版本
v3.6.2对应的版本是node v16.20.2、yarn 1.22.17

2.修改maven配置文件，设置本地仓库路径，增加阿里镜像仓库
修改maven配置文件，\apache-maven-3.9.6\conf\settings.xml

<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd">
  <!-- 增加本地仓库保存路径 -->
  <localRepository>D:/development/m3/repository</localRepository>

  <mirrors>
    <!-- 增加阿里镜像仓库 -->
	<mirror>
		<id>nexus-aliyun</id>
		<mirrorOf>central</mirrorOf>
		<name>Nexus aliyun</name>
		<url>https://maven.aliyun.com/repository/public</url>
	</mirror>
  </mirrors>

</settings>

3.执行编译

cd d:\development\workSpace\ThingsBoard
mvn clean install -DskipTests -X

-DskipTests是跳过测试用例，这样能够缩短编译时间
-X是编译时输出详细日志便于排查问题

上述命令执行后，mvn会按照pom.xml的依赖关系从仓库获取jar包，可能遇到的问题如下：

(1) Web UI编译失败

[INFO] ThingsBoard Docker Images .......................... SUCCESS [  0.519 s]
[INFO] ThingsBoard Web UI Microservice .................... FAILURE [  9.116 s]
[INFO] ThingsBoard Version Control Executor ............... SKIPPED
[ERROR] Failed to execute goal org.apache.maven.plugins:maven-clean-plugin:3.2.0:clean (default-clean) on project web-ui: Failed to clean project: Failed to delete D:\development\idea-space\ThingsBoard\msa\web-ui\target\node\node.exe -> [Help 1]
org.apache.maven.lifecycle.LifecycleExecutionException: Failed to execute goal org.apache.maven.plugins:maven-clean-plugin:3.2.0:clean (default-clean) on project web-ui: Failed to clean project: Failed to delete D:\development\idea-space\ThingsBoard\msa\web-ui\target\node\node.exe
    at org.apache.maven.lifecycle.internal.MojoExecutor.doExecute2 (MojoExecutor.java:333)
    at org.apache.maven.lifecycle.internal.MojoExecutor.doExecute (MojoExecutor.java:316)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:212)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:174)
    at org.apache.maven.lifecycle.internal.MojoExecutor.access$000 (MojoExecutor.java:75)

杀掉node.exe进程后重试

(2) yarn run pkg报错，编译失败

[ERROR] Failed to execute goal com.github.eirslett:frontend-maven-plugin:1.12.0:yarn (yarn pkg) on project web-ui: Failed to run task: "yarn run pkg" failed. org.apache.commons.exec.ExecuteException: Process exited with an error: 1 (Exit value: 1) -> [Help 1]
org.apache.maven.lifecycle.LifecycleExecutionException: Failed to execute goal com.github.eirslett:frontend-maven-plugin:1.12.0:yarn (yarn pkg) on project web-ui: Failed to run task

web-ui前端工程依赖angluar，但是angluar依赖的js包没有拉下来导致报错
解决方法：
进入ThingsBoard\msa\web-ui，删除target、node_modules文件夹，配置node、yarn从阿里镜像站获取依赖包，重新编译

执行全量编译会消耗很长的时间，可以通过命令指定编译某一个模块

mvn clean install -rf :web-ui

编程成功，信息如下：

[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for Thingsboard 3.6.2:
[INFO]
[INFO] Thingsboard ........................................ SUCCESS [ 21.583 s]
[INFO] Thingsboard Server Commons ......................... SUCCESS [  0.436 s]
[INFO] Thingsboard Server Common Data ..................... SUCCESS [ 15.793 s]
[INFO] Thingsboard Server Common Utils .................... SUCCESS [  2.025 s]
[INFO] Netty MQTT Client .................................. SUCCESS [  3.655 s]
[INFO] Thingsboard Server Common Messages ................. SUCCESS [  6.493 s]
[INFO] Thingsboard Actor system ........................... SUCCESS [  1.412 s]
[INFO] Thingsboard Server Stats ........................... SUCCESS [  0.783 s]
[INFO] Thingsboard Server Common Protobuf and gRPC structures SUCCESS [ 17.350 s]
[INFO] Thingsboard Server Common Cluster API .............. SUCCESS [  1.097 s]
[INFO] Thingsboard Server Queue components ................ SUCCESS [  8.138 s]
[INFO] Thingsboard Server Common Cache .................... SUCCESS [  1.730 s]
[INFO] Thingsboard Server Commons ......................... SUCCESS [  0.154 s]
[INFO] Thingsboard Server Common Transport components ..... SUCCESS [  2.302 s]
[INFO] Thingsboard MQTT Transport Common .................. SUCCESS [  7.782 s]
[INFO] Thingsboard HTTP Transport Common .................. SUCCESS [  1.339 s]
[INFO] Thingsboard CoAP server ............................ SUCCESS [  1.346 s]
[INFO] Thingsboard CoAP Transport Common .................. SUCCESS [  6.041 s]
[INFO] Thingsboard LwM2M Transport Common ................. SUCCESS [  5.353 s]
[INFO] Thingsboard SNMP Transport Common .................. SUCCESS [  2.510 s]
[INFO] Thingsboard Server Common DAO API .................. SUCCESS [  2.105 s]
[INFO] Thingsboard Server Remote Edge wrapper ............. SUCCESS [  9.731 s]
[INFO] Thingsboard Server Version Control API ............. SUCCESS [  1.974 s]
[INFO] Thingsboard Script Invoke Commons .................. SUCCESS [  0.044 s]
[INFO] Thingsboard Server Script invoke API ............... SUCCESS [  2.134 s]
[INFO] Thingsboard Extensions ............................. SUCCESS [  0.159 s]
[INFO] Thingsboard Rule Engine API ........................ SUCCESS [  2.214 s]
[INFO] Thingsboard Server JS Client for remote JS execution SUCCESS [  1.123 s]
[INFO] Thingsboard Server DAO Layer ....................... SUCCESS [ 13.035 s]
[INFO] Thingsboard Rule Engine Components ................. SUCCESS [  9.141 s]
[INFO] Thingsboard Server Transport Modules ............... SUCCESS [  0.072 s]
[INFO] Thingsboard HTTP Transport Service ................. SUCCESS [ 31.316 s]
[INFO] Thingsboard MQTT Transport Service ................. SUCCESS [ 21.042 s]
[INFO] Thingsboard CoAP Transport Service ................. SUCCESS [ 19.931 s]
[INFO] Thingsboard LwM2m Transport Service ................ SUCCESS [ 21.451 s]
[INFO] Thingsboard SNMP Transport Service ................. SUCCESS [ 20.368 s]
[INFO] ThingsBoard Server UI .............................. SUCCESS [03:25 min]
[INFO] Thingsboard Server Tools ........................... SUCCESS [  1.073 s]
[INFO] Thingsboard Rest Client ............................ SUCCESS [  1.202 s]
[INFO] ThingsBoard Server Application ..................... SUCCESS [01:05 min]
[INFO] ThingsBoard Microservices .......................... SUCCESS [  4.254 s]
[INFO] ThingsBoard Docker Images .......................... SUCCESS [  1.119 s]
[INFO] ThingsBoard Web UI Microservice .................... SUCCESS [ 59.959 s]
[INFO] ThingsBoard Version Control Executor ............... SUCCESS [ 20.290 s]
[INFO] ThingsBoard Version Control Executor Microservice .. SUCCESS [  0.116 s]
[INFO] ThingsBoard Node Microservice ...................... SUCCESS [  0.178 s]
[INFO] ThingsBoard Transport Microservices ................ SUCCESS [  0.024 s]
[INFO] ThingsBoard MQTT Transport Microservice ............ SUCCESS [  0.221 s]
[INFO] ThingsBoard HTTP Transport Microservice ............ SUCCESS [  0.338 s]
[INFO] ThingsBoard COAP Transport Microservice ............ SUCCESS [  0.171 s]
[INFO] ThingsBoard LWM2M Transport Microservice ........... SUCCESS [  0.271 s]
[INFO] ThingsBoard SNMP Transport Microservice ............ SUCCESS [  0.157 s]
[INFO] ThingsBoard JavaScript Executor Microservice ....... SUCCESS [01:11 min]
[INFO] ThingsBoard Monitoring Service ..................... SUCCESS [  9.981 s]
[INFO] ThingsBoard Monitoring Microservice ................ SUCCESS [  0.087 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  11:46 min
[INFO] Finished at: 2024-05-21T11:14:20+08:00
[INFO] ------------------------------------------------------------------------

四、启动系统

1.系统启动依赖PostgreSQL数据库，启动前先安装好
2.创建thingsboard数据库
3.配置ThingsBoard\application\src\main\resources\thingsboard.yml里面的数据库用户名和密码

  datasource:
    # Database driver for Spring JPA - org.postgresql.Driver
    driverClassName: "${SPRING_DRIVER_CLASS_NAME:org.postgresql.Driver}"
    # Database connection URL
    url: "${SPRING_DATASOURCE_URL:jdbc:postgresql://localhost:5432/thingsboard}"
    # Database user name
    username: "${SPRING_DATASOURCE_USERNAME:postgres}"
    # Database user password
    password: "${SPRING_DATASOURCE_PASSWORD:yourpassword}"

4.将ThingsBoard\dao\src\main\resources\sql文件夹复制到ThingsBoard\application\src\main\data
在这里插入图片描述
5.启动ThingsBoard\application\src\main\java\org\thingsboard\server\ThingsboardInstallApplication.java
执行成功过后会自动创建数据库表

6.打开http://127.0.0.1:8080，输入账号密码进入系统

默认账号密码：
System Administrator(系统管理员): sysadmin@thingsboard.org / sysadmin
Tenant Administrator(租户管理员): tenant@thingsboard.org / tenant
Customer User(客户用户): customer@thingsboard.org / customer

系统界面如下：
在这里插入图片描述

五、总结

thingsboard编译其实并不难，容易出现问题的地方在于，大家习惯IDE的自动化功能，会出现许多莫名其妙的依赖包问题，要会设置依赖包的国内镜像站。编译报错不要慌，多看报错提示就会发现大部分问题都是依赖包、编译环境或者版本不匹配问题，细心一点相信大家都能自行排查解决。
