一、需求：

提供登录页面，登录成功后跳转到echarts展示页面，登录失败回到登录页面
使用拦截器过滤请求，必须登录后才能够访问echarts展示页面

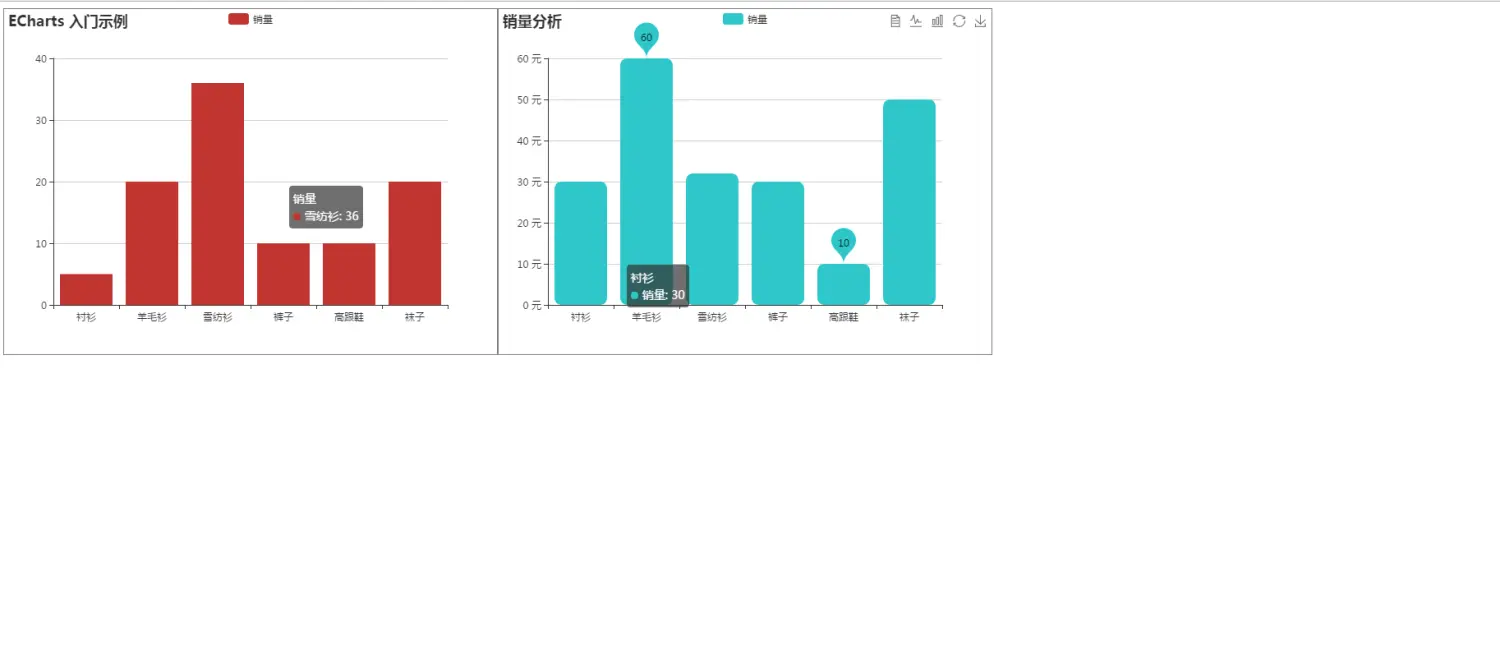

echarts页面读取后台传递过来的json数据，在前台正确显示
设置session过期时间为5分钟
登录帐号和密码为：admin/123456（项目代码路径在最后）

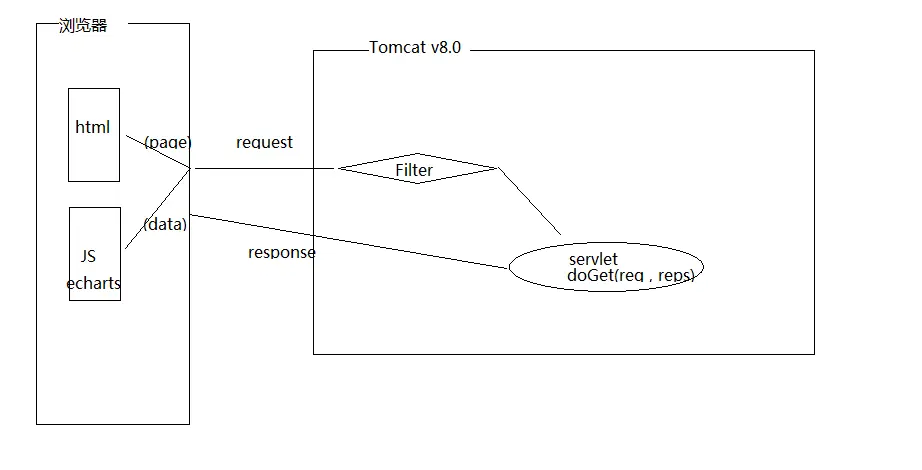

二、简易架构图

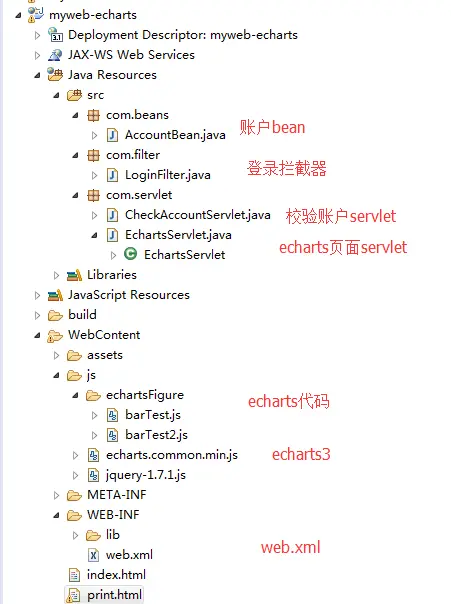

三、代码结构


四、代码

1. 后台代码

1.1 CheckAccountServlet.java

package com.servlet;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import com.beans.AccountBean;


public class CheckAccountServlet extends HttpServlet {
    /**
     *
     */
    private static final long serialVersionUID = 1L;

    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        doGet(req, resp);
    }

    @Override
    public void doGet(HttpServletRequest req, HttpServletResponse resp)
            throws ServletException, IOException {
        HttpSession session = req.getSession();
        AccountBean account = new AccountBean();
        String username = req.getParameter("username");
        String pwd = req.getParameter("password");
        account.setPassword(pwd);
        account.setUsername(username);
        if ((username != null) && (username.trim().equals("admin"))) {
            if ((pwd != null) && (pwd.trim().equals("123456"))) {
                System.out.println("success");
                session.setAttribute("account", account);
                String login_suc = "print.html";
                resp.sendRedirect(login_suc);
                return;
            }
        }
        String login_fail = "index.html";
        System.out.println("failed");
        resp.sendRedirect(login_fail);
        return ;
    }

}

1.2 EchartsServlet.java

package com.servlet;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.json.JSONException;
import org.json.JSONObject;

/**
 *
 * @author Administrator
 *
 */
//@WebServlet("/EchartsServlet")
public class EchartsServlet extends HttpServlet {

    /**
     *
     */
    private static final long serialVersionUID = 1L;

    @Override
    protected void doGet(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        doPost(request, response);
    }

    @SuppressWarnings("unused")
    @Override
    protected void doPost(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        //设置response响应头格式
        //解决中文乱码问题
        response.setContentType("application/json-rpc;charset=utf-8");
        // response.setHeader("Cache-Control", "no-cache");
        // response.setHeader("Expires", "0");
        // response.setHeader("Pragma", "No-cache");
        // response.setHeader("Access-Control-Allow-Origin", "*");
        // response.setHeader("Access-Control-Allow-Credentials","true");
        // response.setHeader("Access-Control-Allow-Headers",
        // "*, X-Requested-With, Content-Type");
        response.setHeader("Access-Control-Allow-Methods",
                "GET, OPTIONS, POST, DELETE, PUT");
        response.setHeader("Content-Type: text/html", "charset=UTF-8");

        String[] categories = { "衬衫", "羊毛衫", "雪纺衫", "裤子", "高跟鞋", "袜子" };
        Integer[] values = { 5, 20, 36, 10, 10, 20 };
        String[] categories2 = { "衬衫", "羊毛衫", "雪纺衫", "裤子", "高跟鞋", "袜子" };
        Integer[] values2 = { 30, 60, 32, 30, 10,50 };

        //使用json将数据进行封装
         JSONObject json = new JSONObject();
         try {
         json.put("categories", categories);
         json.put("values", values);
         json.put("categories2", categories2);
         json.put("values2", values2);
         } catch (JSONException e) {
         e.printStackTrace();
         }

        if (json != null) {
            PrintWriter writer = response.getWriter();
            writer.write(json.toString());
            writer.flush();
            writer.close();
        } else {
            response.getWriter().print(1);
        }

    }

}

1.3 AccountBean.java

package com.beans;

public class AccountBean {
    private String username;
    private String password;

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }
}

1.4 LoginFilter.java

package com.filter;

import java.io.IOException;

import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.beans.AccountBean;

/**
 * 登录页面拦截器
 * @author Administrator
 *
 */
public class LoginFilter implements Filter {

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response,
            FilterChain chain) throws IOException, ServletException {

        // 在过滤器中检查是否已经登录

        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse resp = (HttpServletResponse) response;

        AccountBean account = (AccountBean) req.getSession().getAttribute("account");

        //如果请求AccountBean为空即未登录或并且请求url不是以index.html结尾并且不是以CheckAccount
        //（注：servlet）结尾,将请求跳转到index.html页面
        //即未登录如果访问其他页面则自动跳转到登录页面，必须登录后才能进行访问
        if (account == null && !req.getRequestURI().endsWith("index.html")
                && !req.getRequestURI().endsWith("CheckAccount")) {
            resp.sendRedirect("index.html");

//          req.getRequestDispatcher("index.html").forward(request, response);
        } else {
            chain.doFilter(request, response);
        }

    }

    @Override
    public void destroy() {

    }

}

1.5 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
    version="3.1">

    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
    </welcome-file-list>

    <servlet>
        <description>This is the description of my J2EE component</description>
        <display-name>This is the display name of my J2EE component</display-name>
        <servlet-name>CheckAccountServlet</servlet-name>
        <servlet-class>com.servlet.CheckAccountServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>CheckAccountServlet</servlet-name>
        <url-pattern>/login</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>EchartsServlet</servlet-name>
        <servlet-class> com.servlet.EchartsServlet</servlet-class>
    </servlet>


    <servlet-mapping>
        <servlet-name>EchartsServlet</servlet-name>
        <url-pattern>/EchartsServlet</url-pattern>
    </servlet-mapping>

    <!-- 拦截器 -->
    <filter>
        <filter-name>loginFilter</filter-name>
        <filter-class>com.filter.LoginFilter</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>loginFilter</filter-name>
        <url-pattern>/print.html</url-pattern>
    </filter-mapping>

    <!-- session过期时间 (分钟) -->
    <session-config>
      <session-timeout>5</session-timeout>
</session-config>
</web-app>

1.6 第三方jar包

![Paste_Image.png](http://upload-images.jianshu.io/upload_images/5903023-8813b14da0698145.png?
imageMogr2/auto-orient/strip%7CimageView2/2/w/1240)

jar包都在最后的项目代码当中，在WEB-INF下的lib包下，引用类的情况大致如下：
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.json.JSONException;

import org.json.JSONObject;

2. 前台代码

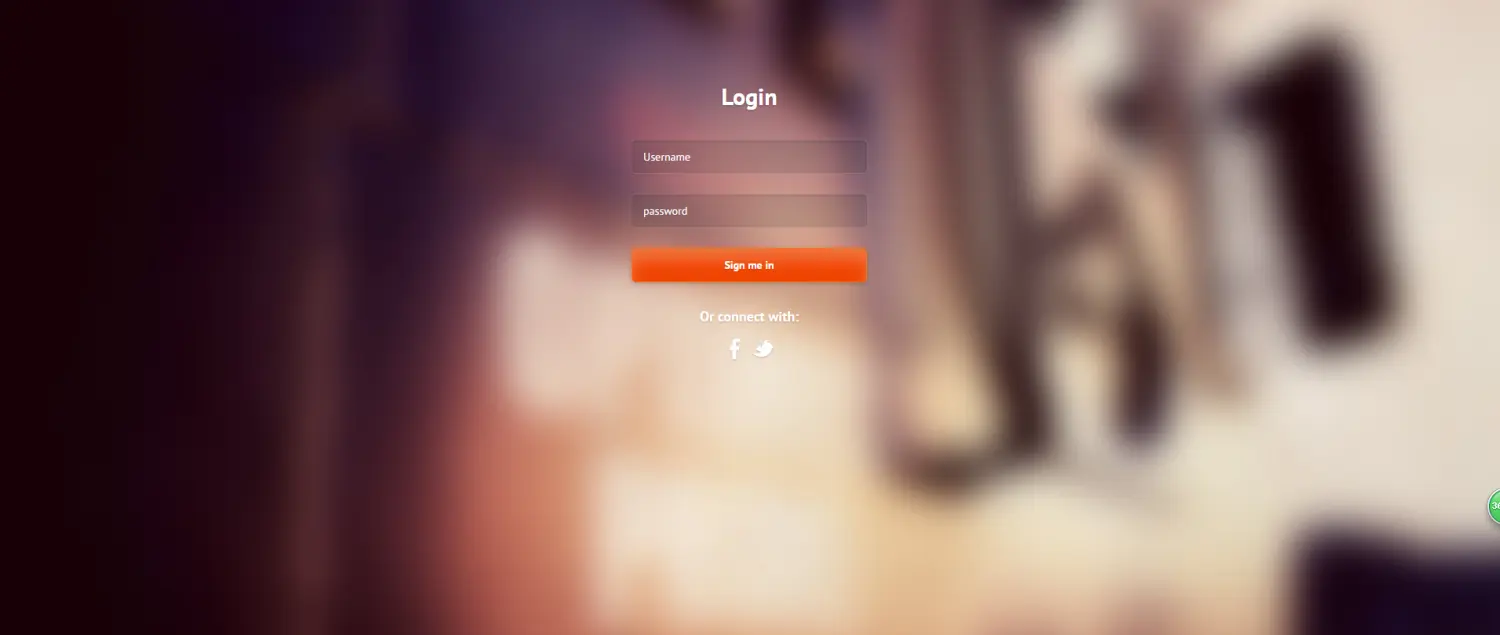

注：前台登录页面采用的是网上下载的模版，链接为http://www.cssmoban.com/cssthemes/4908.shtml

2.1 index.html

<!DOCTYPE html>
<html lang="en" class="no-js">

    <head>

        <meta charset="utf-8">
        <title>FJJF screen Login</title>
        <meta name="viewport" content="width=device-width, initial-scale=1.0">
        <meta name="description" content="">
        <meta name="author" content="">

        <!-- CSS -->
        <link rel='stylesheet' href='http://fonts.googleapis.com/css?family=PT+Sans:400,700'>
        <link rel="stylesheet" href="assets/css/reset.css">
        <link rel="stylesheet" href="assets/css/supersized.css">
        <link rel="stylesheet" href="assets/css/style.css">

        <!-- HTML5 shim, for IE6-8 support of HTML5 elements -->
        <!--[if lt IE 9]>
            <script src="http://html5shim.googlecode.com/svn/trunk/html5.js"></script>
        <![endif]-->

    </head>

    <body>

        <div class="page-container">
            <h1>Login</h1>
            <form action="login" method="post">
                <input type="text" name="username" class="username" placeholder="Username">
                <input type="password" name="password" class="password" placeholder="password">
                <button type="submit">Sign me in</button>
                <div class="error"><span>+</span></div>
            </form>
            <div class="connect">
                <p>Or connect with:</p>
                <p>
                    <a class="facebook" href="http://www.qq.com/"></a>
                    <a class="twitter" href="http://weibo.com/"></a>
                </p>
            </div>
        </div>


        <!-- Javascript -->
        <script src="assets/js/jquery-1.8.2.min.js"></script>
        <script src="assets/js/supersized.3.2.7.min.js"></script>
        <script src="assets/js/supersized-init.js"></script>
        <script src="assets/js/scripts.js"></script>

    </body>
</html>

2.2 print.html

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>ECharts</title>
    <!-- 引入 echarts.js -->
    <script src="./js/echarts.common.min.js"></script>
    <script type="text/javascript" src="./js/jquery-1.7.1.js"></script>
    <!--设置div不换行-->
    <style type="text/css">
        div{
            float:left;
        }
    </style>
</head>

<body style="background-image: url("./assets/img/backgrounds/2.jpg"); background-repeat:no-repeat;">
    <!-- 为ECharts准备一个具备大小（宽高）的Dom -->
    <div id="main" style="width: 600px;height:420px;color: #411F2D;border: 1px solid gray;"></div>
    <script type="text/javascript" src="./js/echartsFigure/barTest.js"> </script>

    <div id="chart"
        style="width: 600px; height: 420px; margin: 0 auto; border: 1px solid gray;"></div>
        <script type="text/javascript" src="./js/echartsFigure/barTest2.js"> </script>
</body>
</html>

2.3 barTest.js

// 基于准备好的dom，初始化echarts实例
        var myChart = echarts.init(document.getElementById('main'));

        var categories = [];
        var values = [];

        // 同步执行
        $.ajaxSettings.async = false;

        // 加载数据

        $.getJSON('EchartsServlet', function (json) {
            categories = json.categories;
            values = json.values;
        });

        // 指定图表的配置项和数据
        var option = {
            title: {
                text: 'ECharts 入门示例'
            },
            tooltip: {},
            legend: {
                data:['销量']
            },
            xAxis: {
                data: categories
            },
            yAxis: {},
            series: [{
                name: '销量',
                type: 'bar',
                data: values
            }]
        };

        // 使用刚指定的配置项和数据显示图表。
        myChart.setOption(option);

2.4 barTest2.js

// 基于准备好的dom，初始化echarts实例
var myChart = echarts.init(document.getElementById('chart'));

var categories = [];
var values = [];

// 同步执行
$.ajaxSettings.async = false;

// 加载数据

$.getJSON('EchartsServlet', function (json) {
    categories = json.categories2;
    values = json.values2;
});



// 指定图表的配置项和数据
var option = {
    title : {
        text: '销量分析',
    },
    tooltip : {
        trigger: 'axis'
    },
    legend: {
        data:['销量']
    },
    toolbox: {
        show : true,
        feature : {
            mark : {show: true},
            dataView : {show: true, readOnly: false},
            magicType : {show: true, type: ['line', 'bar']},
            restore : {show: true},
            saveAsImage : {show: true}
        }
    },
    calculable : true,
    xAxis : [
        {
            type : 'category',
            data : categories
        }
    ],
    yAxis : [
        {
            type : 'value',
             axisLabel : {
                formatter: '{value} 元'
            }
        }
    ],
    series : [
        {
            name:'销量',
            type:'bar',
            itemStyle:{

                normal:{

                    color:'#2EC7C9',
                     barBorderRadius: 10,

                }
            },
            data:values,
            markPoint : {
                data : [
                    {type : 'max', name: '最大值'},
                    {type : 'min', name: '最小值'}
                ],
                itemStyle:{
                normal:{

                    label:{
                        show:true,
                       textStyle:{
                        color:'#090909'
                       }
                    }
                }
        },
            }

        }

    ]
};


// 使用刚指定的配置项和数据显示图表。
myChart.setOption(option);

效果图


整个项目代码链接：http://pan.baidu.com/s/1hsbyF44 密码: fg3j

由于对web开发不太熟，刚开始只能用最基本的东西来展现了，后面考虑用spring+springMVC+MyBatis来完善后台，前台用echarts做图表展示，后台数据处理考虑用hadoop+spark+es或hbase做数据计算、存储和索引处理，楼主菜鸟一枚，各位看客老爷们见谅，勿喷！

clearlove_lbx

关注

0
点赞
踩
3

收藏

觉得还不错? 一键收藏
0
评论
html+js+servlet实现echarts图表展示

一、需求：提供登录页面，登录成功后跳转到echarts展示页面，登录失败回到登录页面使用拦截器过滤请求，必须登录后才能够访问echarts展示页面echarts页面读取后台传递过来的json数据，在前台正确显示设置session过期时间为5分钟登录帐号和密码为：admin/123456（项目代码路径在最后）二、简易架构图架构.p...
复制链接

扫一扫
