超级课程表课表的界面的实现

http://blog.csdn.net/mhxy199288/article/details/30255761

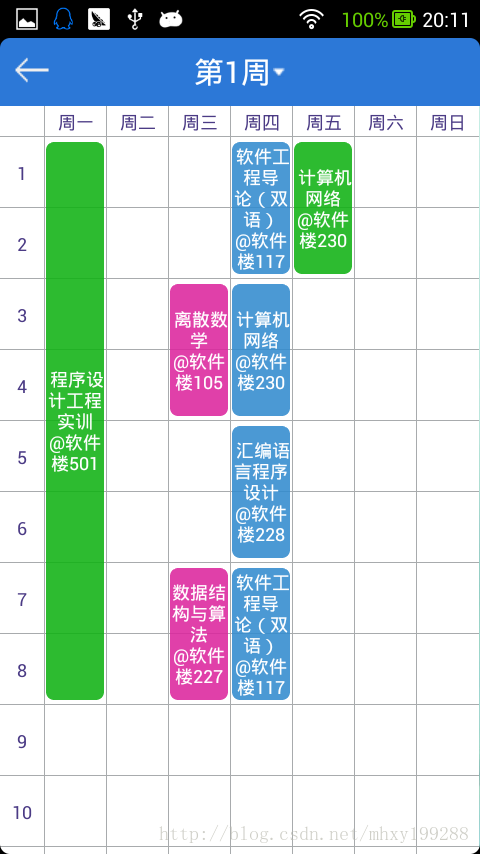

由于毕业设计有一个功能模块是课程表，就想模仿一下超级课程表的界面，可是开始做的时候却没有一点头绪，百度google均无果，在CSDN和知乎上提问了也没人回答（估计是太简单了 大神不愿回答），总之自己鼓捣了几天还是弄出来了，虽然实现的方法很挫。。。因为有好几个人都发私信问我怎么实现的，现在毕设做完了，所以我干脆就写到博客上吧，先上几张效果图：

当时看到超级课程表的界面时，第一个想法就是使用ListView来实现，好不容易把格子画出来了，课程信息不知道怎么放上去····，主要难点有：

1、第一排的8个格子是固定的，下面的课表信息部分是可以滑动的，单用ListView无法实现，即下图。

 2、课程信息怎么附着在格子上，并且可以随着课表一起滚动。

放弃了ListView实现的想法，就只有另寻它路了，在CSDN上有一位朋友的回答给了我灵感，即每一个格子都用一个TextView实现。然后课程信息可以使用相对布局，根据课程的时间（节数和天数）算出他的偏移位置，比如星期二的第三、四节课就可以和周二下面的第一个格子保持左对齐和上对齐，并且向下偏移2个格子的距离。这个N个格子和课程信息都放到一个RelativeLayout中，然后再在外面嵌套一个ScrollViewLayout，就可以滚动了，总的布局还是RelayoutLayout，不多说了，直接上代码！

[html]  view plain  copy

1. <?xml version="1.0" encoding="utf-8"?>
2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
3.     android:layout_width="fill_parent"
4.     android:layout_height="fill_parent"
5.     android:background="@drawable/c_bg" >
6.
7.             <!-- 最左边空白的格子 -->
8.            <TextView android:id="@+id/test_empty"
9.                 android:layout_width="wrap_content"
10.                 android:layout_height="wrap_content"
11.                 style="@style/courseTableText"
12.                 android:text="@string/empty"
13.                 android:background="@drawable/course_text_view_bg"
14.                 />
15.
16.              <!-- 星期一的格子 -->
17.             <TextView android:id="@+id/test_monday_course"
18.                 android:layout_width="wrap_content"
19.                 android:layout_height="wrap_content"
20.                 android:text="@string/mon"
21.                 style="@style/courseTableText"
22.                 android:layout_toRightOf="@id/test_empty"
23.                 android:background="@drawable/course_text_view_bg"
24.                 />
25.
26.
27.             <!-- 星期二的格子 -->
28.             <TextView android:id="@+id/test_tuesday_course"
29.                 android:layout_width="wrap_content"
30.                 android:layout_height="wrap_content"
31.                 android:text="@string/tue"
32.                 style="@style/courseTableText"
33.                 android:layout_toRightOf="@id/test_monday_course"
34.                 android:background="@drawable/course_text_view_bg"
35.                 />
36.
37.              <!-- 星期三的格子 -->
38.             <TextView android:id="@+id/test_wednesday_course"
39.                 android:layout_width="wrap_content"
40.                 android:layout_height="wrap_content"
41.                 android:text="@string/wen"
42.                 style="@style/courseTableText"
43.                 android:layout_toRightOf="@id/test_tuesday_course"
44.                 android:background="@drawable/course_text_view_bg"
45.                 />
46.
47.             <!-- 星期四的格子 -->
48.             <TextView android:id="@+id/test_thursday_course"
49.                 android:layout_width="wrap_content"
50.                 android:layout_height="wrap_content"
51.                 android:text="@string/thu"
52.                 style="@style/courseTableText"
53.                  android:layout_toRightOf="@id/test_wednesday_course"
54.                  android:background="@drawable/course_text_view_bg"
55.                 />
56.             <!-- 星期五的格子 -->
57.             <TextView android:id="@+id/test_friday_course"
58.                 android:layout_width="wrap_content"
59.                 android:layout_height="wrap_content"
60.                 android:text="@string/fri"
61.                 style="@style/courseTableText"
62.                 android:layout_toRightOf="@id/test_thursday_course"
63.                 android:background="@drawable/course_text_view_bg"
64.                 />
65.
66.             <!-- 星期六的格子 -->
67.             <TextView android:id="@+id/test_saturday_course"
68.                 android:layout_width="wrap_content"
69.                 android:layout_height="wrap_content"
70.                 android:text="@string/sta"
71.                 style="@style/courseTableText"
72.                  android:layout_toRightOf="@id/test_friday_course"
73.                  android:background="@drawable/course_text_view_bg"
74.                 />
75.
76.             <!-- 星期天的格子 -->
77.             <TextView android:id="@+id/test_sunday_course"
78.                 android:layout_width="wrap_content"
79.                 android:layout_height="wrap_content"
80.                 style="@style/courseTableText"
81.                 android:text="@string/sun"
82.                 android:layout_toRightOf="@id/test_saturday_course"
83.                 android:background="@drawable/course_table_last_colum"
84.                 />
85.
86.              <!-- 课程表body部分 -->
87.             <ScrollView
88.                 android:id="@+id/scroll_body"
89.                 android:layout_width="fill_parent"
90.                 android:layout_height="wrap_content"
91.                 android:layout_below="@id/test_empty"
92.                 android:scrollbars="none"
93.                 >
94.                 <!-- 课程信息 -->
95.                 <RelativeLayout
96.                      android:layout_width="fill_parent"
97.                      android:layout_height="wrap_content"
98.                      android:id="@+id/test_course_rl"
99.                      >
100.                 </RelativeLayout>
101.
102.             </ScrollView>
103. </RelativeLayout>

当然这样做的坏处有：

1、有多少个格子就要生成多少个TextView，实在是有点浪费资源。

2、用TextView表示一个格子，即有边框的TextView，整个课表是由N个TextView组成的，所以就没办法使用一张图当背景了。

当然现在我也想到了改进的方法，其实给课程信息做参照算出偏移位置的只需要一个格子就可以了，所以可以用一个透明的TextView放在星期一的第一个格子的位置作为参照，格子使用view画线实现，就可以使用背景了，也不用生成多个TextView了···这是我的想法，我还没用代码实现，有兴趣的朋友可以自己去试试。

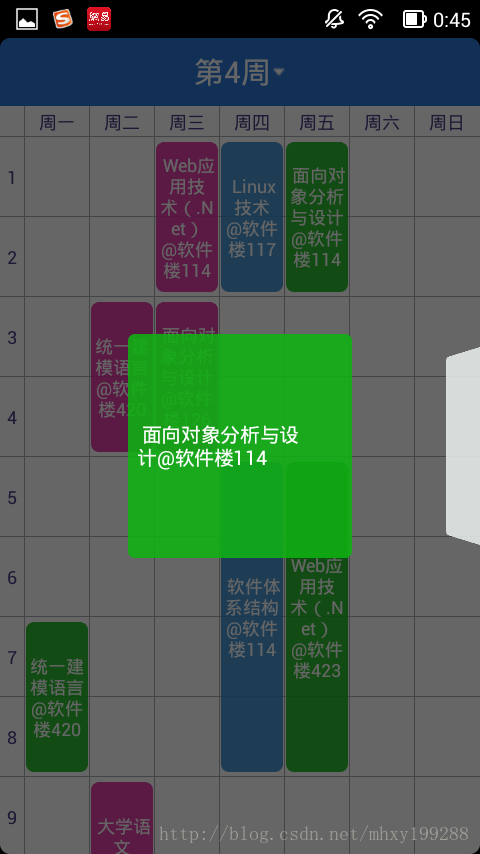

超级课程表还有一个要点就是它的课程展示3D视图，不过那个可以用Android自带的gallery实现，网上有现成的代码，拿过来改改就可以了，下面上主要代码

1、CourseTableActivity

[java]  view plain  copy

1. package nd.leiyi.crims.activity;
2.
3. import java.lang.ref.WeakReference;
4. import java.util.ArrayList;
5. import java.util.Collections;
6. import java.util.Comparator;
7. import java.util.HashMap;
8. import java.util.Iterator;
9. import java.util.List;
10. import java.util.Map;
11.
12. import nd.leiyi.crims.R;
13. import nd.leiyi.crims.adapter.CourseInfoAdapter;
14. import nd.leiyi.crims.appException.AppException;
15. import nd.leiyi.crims.constant.UserInfo;
16. import nd.leiyi.crims.db.CourseInfoDBManager;
17. import nd.leiyi.crims.gallery3D.CourseInfoGallery;
18. import nd.leiyi.crims.http.CourseInfoFetcher;
19. import nd.leiyi.crims.model.CourseInfo;
20. import nd.leiyi.crims.util.CourseSettingUtil;
21. import android.app.Activity;
22. import android.app.AlertDialog;
23. import android.app.Dialog;
24. import android.app.ProgressDialog;
25. import android.content.Context;
26. import android.content.Intent;
27. import android.content.SharedPreferences;
28. import android.content.SharedPreferences.Editor;
29. import android.graphics.Color;
30. import android.graphics.drawable.BitmapDrawable;
31. import android.graphics.drawable.Drawable;
32. import android.os.Bundle;
33. import android.os.Handler;
34. import android.os.Message;
35. import android.util.DisplayMetrics;
36. import android.util.Log;
37. import android.view.Gravity;
38. import android.view.LayoutInflater;
39. import android.view.View;
40. import android.view.View.OnClickListener;
41. import android.view.ViewGroup.LayoutParams;
42. import android.view.Window;
43. import android.view.WindowManager;
44. import android.widget.AdapterView;
45. import android.widget.AdapterView.OnItemClickListener;
46. import android.widget.ListView;
47. import android.widget.PopupWindow;
48. import android.widget.PopupWindow.OnDismissListener;
49. import android.widget.Button;
50. import android.widget.RelativeLayout;
51. import android.widget.SimpleAdapter;
52. import android.widget.TextView;
53. import android.widget.Toast;
54.
55. public class CourseTableActivity extends Activity {
56.
57.     /** 标题栏文字 */
58.     protected TextView textTitle;
59.     /** 第一个无内容的格子 */
60.     protected TextView empty;
61.     /** 星期一的格子 */
62.     protected TextView monColum;
63.     /** 星期二的格子 */
64.     protected TextView tueColum;
65.     /** 星期三的格子 */
66.     protected TextView wedColum;
67.     /** 星期四的格子 */
68.     protected TextView thrusColum;
69.     /** 星期五的格子 */
70.     protected TextView friColum;
71.     /** 星期六的格子 */
72.     protected TextView satColum;
73.     /** 星期日的格子 */
74.     protected TextView sunColum;
75.     /** 课程表body部分布局 */
76.     protected RelativeLayout course_table_layout;
77.     /** 选择周数弹出窗口 */
78.     protected PopupWindow weekListWindow;
79.     /** 显示周数的listview*/
80.     protected ListView weekListView;
81.     /** 选择周数弹出窗口的layout */
82.     protected View popupWindowLayout;
83.     /** 课程信息 **/
84.     protected Map<String, List<CourseInfo>> courseInfoMap;
85.     /** 保存显示课程信息的TextView **/
86.     protected List<TextView> courseTextViewList = new ArrayList<TextView>();
87.     /** 保存每个textview对应的课程信息 map,key为哪一天（如星期一则key为1） **/
88.     protected Map<Integer, List<CourseInfo>> textviewCourseInfoMap = new HashMap<Integer, List<CourseInfo>>();
89.     /** 课程格子平均宽度 **/
90.     protected int aveWidth;
91.     /** 屏幕宽度 **/
92.     protected int screenWidth;
93.     /** 格子高度 **/
94.     protected int gridHeight = 80;
95.     /** 最大课程节数 **/
96.     protected int maxCourseNum;
97.
98.     protected Button goBackButton;
99.
100.     protected ProgressDialog pDialog;
101.
102.     protected Handler mhandler = new Handler();
103.     @Override
104.     protected void onCreate(Bundle savedInstanceState) {
105.
106.         super.onCreate(savedInstanceState);
107.         //设置自定义标题栏布局
108.         requestWindowFeature(Window.FEATURE_CUSTOM_TITLE);
109.         setContentView(R.layout.course_table_layout);
110.         getWindow().setFeatureInt(Window.FEATURE_CUSTOM_TITLE,R.layout.title);
111.         //设置标题栏周数
112.         textTitle = (TextView) this.findViewById(R.id.textTile);
113.         textTitle.setTextSize(20);
114.         textTitle.setPadding(15, 2, 15, 2);
115.         //右边白色倒三角
116.         Drawable down = this.getResources().getDrawable(R.drawable.title_down);
117.         down.setBounds(0, 0, down.getMinimumWidth(), down.getMinimumHeight());
118.         textTitle.setCompoundDrawables(null, null, down, null);
119.         textTitle.setCompoundDrawablePadding(2);
120.         //获得列头的控件
121.         empty = (TextView) this.findViewById(R.id.test_empty);
122.         monColum = (TextView) this.findViewById(R.id.test_monday_course);
123.         tueColum = (TextView) this.findViewById(R.id.test_tuesday_course);
124.         wedColum = (TextView) this.findViewById(R.id.test_wednesday_course);
125.         thrusColum = (TextView) this.findViewById(R.id.test_thursday_course);
126.         friColum = (TextView) this.findViewById(R.id.test_friday_course);
127.         satColum  = (TextView) this.findViewById(R.id.test_saturday_course);
128.         sunColum = (TextView) this.findViewById(R.id.test_sunday_course);
129.         //返回按钮
130.         goBackButton = (Button) this.findViewById(R.id.button_go_back);
131.         goBackButton.setOnClickListener(new OnClickListener() {
132.             @Override
133.             public void onClick(View arg0) {
134.                 //改变返回按钮的背景，体现出被“按下出”的感觉
135.                 goBackButton.setBackgroundDrawable(CourseTableActivity.this
136.                         .getResources().getDrawable(R.drawable.arrow_left_down));
137.                 // 恢复背景
138.                 mhandler.postDelayed(new Runnable() {
139.                     @Override
140.                     public void run() {
141.                         goBackButton.setBackgroundDrawable(CourseTableActivity.this
142.                                 .getResources().getDrawable(R.drawable.arrow_left));
143.                     }
144.                 }, 200);
145.                 mhandler.postDelayed(new Runnable() {
146.                     @Override
147.                     public void run() {
148.                         finish();
149.                     }
150.                 }, 400);
151.
152.             }
153.         });
154.         // 列表布局文件
155.         course_table_layout = (RelativeLayout) this.findViewById(R.id.test_course_rl);
156.         DisplayMetrics dm = new DisplayMetrics();
157.         getWindowManager().getDefaultDisplay().getMetrics(dm);
158.         //屏幕宽度
159.         int width = dm.widthPixels;
160.
161.         //平均宽度
162.         int aveWidth = width / 8;
163.         //给列头设置宽度
164.         empty.setWidth(aveWidth * 3/4);
165.         monColum.setWidth(aveWidth * 33/32 + 1);
166.         tueColum.setWidth(aveWidth * 33/32 + 1);
167.         wedColum.setWidth(aveWidth * 33/32 + 1);
168.         thrusColum.setWidth(aveWidth * 33/32 + 1);
169.         friColum.setWidth(aveWidth * 33/32 + 1);
170.         satColum.setWidth(aveWidth * 33/32 + 1);
171.         sunColum.setWidth(aveWidth * 33/32 + 1);
172.         this.screenWidth = width;
173.         this.aveWidth = aveWidth;
174.         //初始化body部分
175.         init();
176.     }
177.     /**
178.      * 初始化课程表body部分
179.      * @param aveWidth
180.      */
181.      protected void init(){
182.
183.
184.         //获取课表配置信息
185.         final SharedPreferences courseSettings = getSharedPreferences("course_setting", Activity.MODE_PRIVATE);
186.         //检测是否设置过学期
187.         if(courseSettings.getString("currentTerm_" + UserInfo.currentUser.getStuNum(), null) == null)
188.         {
189.             Toast.makeText(CourseTableActivity.this, "您尚未设置当前学期！快去设置吧！", Toast.LENGTH_SHORT).show();
190.             return;
191.         }
192.         //计算出当前的周数
193.         final String currentWeekStr = CourseSettingUtil.figureCurrentWeek(courseSettings);
194.         if(currentWeekStr.equals(""))
195.         {
196.             textTitle.setText("全部");
197.         }
198.         else
199.         {
200.             textTitle.setText("第" + currentWeekStr + "周");
201.
202.         }
203.         //设置点击事件
204.         textTitle.setOnClickListener(new OnClickListener() {
205.             @Override
206.             public void onClick(View arg0) {
207.
208.                 //改变背景（体现出被"按下去"的感觉
209.                 textTitle.setBackgroundDrawable(
210.                         CourseTableActivity.this.getResources().getDrawable(R.drawable.title_text_bg));
211.                 //显示弹出窗口
212.                 showWeekListWindow(textTitle);
213.             }
214.         });
215.         //获取最大课程节数
216.         String maxCourseNumStr = courseSettings.getString("maxCourseNum_" + UserInfo.currentUser.getStuNum(), "");
217.         if(maxCourseNumStr.equals(""))
218.         {
219.             courseSettings.edit().putString("maxCourseNum_" + UserInfo.currentUser.getStuNum(), "12");
220.             maxCourseNum = 12;
221.         }
222.         else
223.         {
224.             maxCourseNum = Integer.parseInt(maxCourseNumStr);
225.         }
226.         DisplayMetrics dm = new DisplayMetrics();
227.         getWindowManager().getDefaultDisplay().getMetrics(dm);
228.         //屏幕高度
229.         int height = dm.heightPixels;
230.         gridHeight = height / maxCourseNum;
231.         //设置课表界面
232.         //动态生成12 * maxCourseNum个textview
233.         for(int i = 1; i <= maxCourseNum; i ++){
234.
235.             for(int j = 1; j <= 8; j ++){
236.
237.                 TextView tx = new TextView(CourseTableActivity.this);
238.                 tx.setId((i - 1) * 8  + j);
239.                 //除了最后一列，都使用course_text_view_bg背景（最后一列没有右边框）
240.                 if(j < 8)
241.                     tx.setBackgroundDrawable(CourseTableActivity.this.
242.                             getResources().getDrawable(R.drawable.course_text_view_bg));
243.                 else
244.                     tx.setBackgroundDrawable(CourseTableActivity.this.
245.                         getResources().getDrawable(R.drawable.course_table_last_colum));
246.                 //相对布局参数
247.                 RelativeLayout.LayoutParams rp = new RelativeLayout.LayoutParams(
248.                         aveWidth * 33 / 32 + 1,
249.                         gridHeight);
250.                 //文字对齐方式
251.                 tx.setGravity(Gravity.CENTER);
252.                 //字体样式
253.                 tx.setTextAppearance(this, R.style.courseTableText);
254.                 //如果是第一列，需要设置课的序号（1 到 12）
255.                 if(j == 1)
256.                 {
257.                     tx.setText(String.valueOf(i));
258.                     rp.width = aveWidth * 3/4;
259.                     //设置他们的相对位置
260.                     if(i == 1)
261.                         rp.addRule(RelativeLayout.BELOW, empty.getId());
262.                     else
263.                         rp.addRule(RelativeLayout.BELOW, (i - 1) * 8);
264.                 }
265.                 else
266.                 {
267.                     rp.addRule(RelativeLayout.RIGHT_OF, (i - 1) * 8  + j - 1);
268.                     rp.addRule(RelativeLayout.ALIGN_TOP, (i - 1) * 8  + j - 1);
269.                     tx.setText("");
270.                 }
271.
272.                 tx.setLayoutParams(rp);
273.                 course_table_layout.addView(tx);
274.             }
275.         }
276.
277.
278.
279.         pDialog = new ProgressDialog(this);
280.         pDialog.setProgressStyle(ProgressDialog.STYLE_SPINNER);
281.         pDialog.setMessage("正在加载信息。。。。");
282.         pDialog.setIndeterminate(true);
283.         pDialog.setCanceledOnTouchOutside(false);
284.         pDialog.setCancelable(false);
285.         pDialog.show();
286.
287.
288.         //获取当前学期
289.         final String currentTerm = courseSettings.getString("currentTerm_" + UserInfo.currentUser.getStuNum(), null);
290.         //查看这个学期的课程信息是否已经抓取过
291.         final boolean hasSetting = courseSettings.getBoolean("Is_" + currentTerm + "_saved_" + UserInfo.currentUser.getStuNum(), false);
292.         /**
293.          这里写你自己的获取课程信息的方法
294.         */
295.         new Thread() {
296.             @Override
297.             public void run() {
298.
299.                 CourseInfoDBManager dbManager = new CourseInfoDBManager(CourseTableActivity.this);
300.                 //打开数据库
301.                 dbManager.open();
302.
303.                 try {
304.                     //入果还没抓取过该学期的课程信息，先抓取
305.                     if(!hasSetting)
306.                     {
307.                         //抓取这个学期的课表信息
308.                         List<CourseInfo> list = CourseInfoFetcher.fetchCourseInfo("", currentTerm, UserInfo.currentUser.getStuNum());
309.                         //插入课程信息
310.                         for(CourseInfo courseInfo : list)
311.                         {
312.                             dbManager.insertCourse(courseInfo, currentTerm);
313.                         }
314.                         //设置该学期的课程已经抓取过的标志
315.                         Editor editor = courseSettings.edit();
316.                         editor.putBoolean("Is_" + currentTerm + "_saved_" + UserInfo.currentUser.getStuNum(), true);
317.                         editor.commit();
318.
319.                     }
320.
321.                     //从数据库中读取课程信息，存放在courseInfoMap中，key为星期几，value是这一天的课程信息
322.                     courseInfoMap  = dbManager.query(currentTerm);
323.                     // 发送更新界面信息
324.                     Message msg = new Message();
325.                     if(courseInfoMap.isEmpty())
326.                     {
327.                         msg.what = -2;
328.                         courseInfoInitMessageHandler.sendMessage(msg);
329.                         return;
330.                     }
331.                     int currentWeek = -1;
332.                     if(!currentWeekStr.equals(""))
333.                     {
334.                         currentWeek = Integer.parseInt(currentWeekStr);
335.                     }
336.                     dbManager.close();
337.                     InitMessageObj msgObj = new InitMessageObj(aveWidth, currentWeek, screenWidth, maxCourseNum);
338.                     msg.obj = msgObj;
339.                     courseInfoInitMessageHandler.sendMessage(msg);
340.
341.                 } catch (AppException e) {
342.                     Message msg = new Message();
343.                     msg.what = -1;
344.                     courseInfoInitMessageHandler.sendMessage(msg);
345.                     Log.e("courseInfo_fetch_exception", e.toString());
346.
347.                 } finally {
348.
349.                     dbManager.close();
350.                 }
351.             }
352.         }.start();
353.
354.     }
355.
356.     CourseInfoInitMessageHandler courseInfoInitMessageHandler = new CourseInfoInitMessageHandler(this);
357.
358.     static class InitMessageObj{
359.
360.         int aveWidth;
361.         int currentWeek;
362.         int screenWidth;
363.         int maxCourseNum;
364.         public InitMessageObj(int aveWidth, int currentWeek, int screenWidth, int maxCourseNum) {
365.             super();
366.             this.aveWidth = aveWidth;
367.             this.currentWeek = currentWeek;
368.             this.screenWidth = screenWidth;
369.             this.maxCourseNum = maxCourseNum;
370.         }
371.
372.     }
373.     //初始化课程表的messageHandler
374.     static class CourseInfoInitMessageHandler extends Handler{
375.
376.         WeakReference<CourseTableActivity> mActivity;
377.
378.         public CourseInfoInitMessageHandler(CourseTableActivity activity){
379.
380.             mActivity = new WeakReference<CourseTableActivity>(activity);
381.         }
382.
383.         @Override
384.         public void handleMessage(Message msg) {
385.
386.             mActivity.get().pDialog.dismiss();
387.             //网络错误
388.             if(msg.what == -1)
389.             {
390.                 Toast.makeText(mActivity.get(), "获取课程信息失败！请检查您的网络或者稍后再试", Toast.LENGTH_SHORT).show();
391.                 return;
392.             }
393.             //没有课程信息
394.             if(msg.what == -2)
395.             {
396.                 Toast.makeText(mActivity.get(), "教务管理系统中无该学期的课程信息···", Toast.LENGTH_SHORT).show();
397.                 return;
398.             }
399.             //五种颜色的背景
400.             int[] background = {R.drawable.course_info_blue, R.drawable.course_info_green,
401.                                 R.drawable.course_info_red, R.drawable.course_info_red,
402.                                 R.drawable.course_info_yellow};
403.             //获取课程信息的map
404.             Map<String, List<CourseInfo>> courseInfoMap = mActivity.get().courseInfoMap;
405.             //一些传过来的参数
406.             final InitMessageObj msgObj = (InitMessageObj) msg.obj;
407.             //当前周数
408.             int currentWeek = msgObj.currentWeek;
409.             //最大课程节数
410.             int maxCourseNum = msgObj.maxCourseNum;
411.             for(Map.Entry<String, List<CourseInfo>> entry: courseInfoMap.entrySet())
412.             {
413.
414.                 //查找出最顶层的课程信息（顶层课程信息即显示在最上层的课程，最顶层的课程信息满足两个条件 1、当前周数在该课程的周数范围内 2、该课程的节数跨度最大
415.                 CourseInfo upperCourse = null;
416.                 //list里保存的是一周内某 一天的课程
417.                 final List<CourseInfo> list = new ArrayList<CourseInfo>(entry.getValue());
418.                 //
419.                 //按开始的时间（哪一节）进行排序
420.                 Collections.sort(list, new Comparator<CourseInfo>(){
421.                     @Override
422.                     public int compare(CourseInfo arg0, CourseInfo arg1) {
423.
424.                         if(arg0.getBeginIndex() < arg1.getBeginIndex())
425.                             return -1;
426.                         else
427.                             return 1;
428.                     }
429.
430.                 });
431.                 int lastListSize;
432.                 do {
433.
434.                     lastListSize = list.size();
435.                     Iterator<CourseInfo> iter = list.iterator();
436.                     //先查找出第一个在周数范围内的课
437.                     while(iter.hasNext())
438.                     {
439.                         CourseInfo c = iter.next();//
440.                         if(((c.getBeginWeek() <= currentWeek && c.getEndWeek() >= currentWeek) || currentWeek == -1) && c.getEndIndex() <= maxCourseNum)
441.                         {
442.                             //判断是单周还是双周的课
443.                             if(c.getCourseType() == CourseInfo.ALL ||
444.                               (c.getCourseType() == CourseInfo.EVEN && currentWeek % 2 == 0) ||
445.                               (c.getCourseType() == CourseInfo.ODD && currentWeek % 2 != 0) )
446.                             {
447.                                 //从list中移除该项，并设置这节课为顶层课
448.                                 iter.remove();
449.                                 upperCourse = c;
450.                                 break;
451.                             }
452.                         }
453.                     }
454.                     if(upperCourse != null)
455.                     {
456.                         List<CourseInfo> courseInfoList = new ArrayList<CourseInfo>();
457.                         courseInfoList.add(upperCourse);
458.                         int index = 0;
459.                         iter = list.iterator();
460.                         //查找这一天有哪些课与刚刚查找出来的顶层课相交
461.                         while(iter.hasNext())
462.                         {
463.                             CourseInfo c = iter.next();
464.                             //先判断该课程与upperCourse是否相交，如果相交加入courseInfoList中
465.                             if((c.getBeginIndex() <= upperCourse.getBeginIndex()
466.                                 &&upperCourse.getBeginIndex() < c.getEndIndex())
467.                                 ||(upperCourse.getBeginIndex() <= c.getBeginIndex()
468.                                 && c.getBeginIndex() < upperCourse.getEndIndex()))
469.                             {
470.                                 courseInfoList.add(c);
471.                                 iter.remove();
472.                                 //在判断哪个跨度大，跨度大的为顶层课程信息
473.                                 if((c.getEndIndex() - c.getEndIndex()) > (upperCourse.getEndIndex() - upperCourse.getBeginIndex())
474.                                     && ((c.getBeginWeek() <= currentWeek && c.getEndWeek() >= currentWeek) || currentWeek == -1))
475.                                 {
476.                                     upperCourse = c;
477.                                     index ++;
478.                                 }
479.
480.                             }
481.
482.                         }
483.                         //记录顶层课程在courseInfoList中的索引位置
484.                         final int upperCourseIndex = index;
485.                         // 动态生成课程信息TextView
486.                         TextView courseInfo = new TextView(mActivity.get());
487.                         courseInfo.setId(1000 + upperCourse.getDay() * 100 + upperCourse.getBeginIndex() * 10 + upperCourse.getId());
488.                         int id = courseInfo.getId();
489.                         mActivity.get().textviewCourseInfoMap.put(id, courseInfoList);
490.                         courseInfo.setText(upperCourse.getCourseName() + "\n@" + upperCourse.getClassRoom());
491.                         //该textview的高度根据其节数的跨度来设置
492.                         RelativeLayout.LayoutParams rlp = new RelativeLayout.LayoutParams(
493.                                 msgObj.aveWidth * 31 / 32,
494.                                 (mActivity.get().gridHeight - 5) * 2 + (upperCourse.getEndIndex() - upperCourse.getBeginIndex() - 1) * mActivity.get().gridHeight);
495.                         //textview的位置由课程开始节数和上课的时间（day of week）确定
496.                         rlp.topMargin = 5 + (upperCourse.getBeginIndex() - 1) * mActivity.get().gridHeight;
497.                         rlp.leftMargin = 1;
498.                         // 前面生成格子时的ID就是根据Day来设置的
499.                         rlp.addRule(RelativeLayout.RIGHT_OF, upperCourse.getDay());
500.                         //字体居中中
501.                         courseInfo.setGravity(Gravity.CENTER);
502.                         //选择一个颜色背景
503.                         int colorIndex = ((upperCourse.getBeginIndex() - 1) * 8 + upperCourse.getDay()) % (background.length - 1);
504.                         courseInfo.setBackgroundResource(background[colorIndex]);
505.                         courseInfo.setTextSize(12);
506.                         courseInfo.setLayoutParams(rlp);
507.                         courseInfo.setTextColor(Color.WHITE);
508.                         //设置不透明度
509.                         courseInfo.getBackground().setAlpha(222);
510.                         // 设置监听事件
511.                         courseInfo.setOnClickListener(new OnClickListener() {
512.                             @Override
513.                             public void onClick(View arg0) {
514.                                 Log.i("text_view", String.valueOf(arg0.getId()));
515.                                 Map<Integer, List<CourseInfo>> map = mActivity.get().textviewCourseInfoMap;
516.                                 final List<CourseInfo> tempList = map.get(arg0.getId());
517.                                 if(tempList.size() > 1)
518.                                 {
519.                                     //如果有多个课程，则设置点击弹出gallery 3d 对话框
520.                                     LayoutInflater layoutInflater = (LayoutInflater) mActivity.get().getSystemService(Context.LAYOUT_INFLATER_SERVICE);
521.                                     View galleryView = layoutInflater.inflate(R.layout.course_info_gallery_layout, null);
522.                                     final Dialog coursePopupDialog = new AlertDialog.Builder(mActivity.get()).create();
523.                                     coursePopupDialog.setCanceledOnTouchOutside(true);
524.                                     coursePopupDialog.setCancelable(true);
525.                                     coursePopupDialog.show();
526.                                     WindowManager.LayoutParams params = coursePopupDialog.getWindow().getAttributes();
527.                                     params.width = LayoutParams.FILL_PARENT;
528.                                     coursePopupDialog.getWindow().setAttributes(params);
529.                                     CourseInfoAdapter adapter = new CourseInfoAdapter(mActivity.get(), tempList, msgObj.screenWidth, msgObj.currentWeek);
530.                                     CourseInfoGallery gallery = (CourseInfoGallery) galleryView.findViewById(R.id.course_info_gallery);
531.                                     gallery.setSpacing(10);
532.                                     gallery.setAdapter(adapter);
533.                                     gallery.setSelection(upperCourseIndex);
534.                                     gallery.setOnItemClickListener(new OnItemClickListener() {
535.                                         @Override
536.                                         public void onItemClick(
537.                                                 AdapterView<?> arg0, View arg1,
538.                                                 int arg2, long arg3) {
539.                                                 CourseInfo courseInfo = tempList.get(arg2);
540.                                                 Intent intent = new Intent();
541.                                                 Bundle mBundle = new Bundle();
542.                                                 mBundle.putSerializable("courseInfo", courseInfo);
543.                                                 intent.putExtras(mBundle);
544.                                                 intent.setClass(mActivity.get(), DetailCourseInfoActivity.class);
545.                                                 mActivity.get().startActivity(intent);
546.                                                 coursePopupDialog.dismiss();
547.                                         }
548.                                     });
549.                                     coursePopupDialog.setContentView(galleryView);
550.                                 }
551.                                 else
552.                                 {
553.                                     Intent intent = new Intent();
554.                                     Bundle mBundle = new Bundle();
555.                                     mBundle.putSerializable("courseInfo", tempList.get(0));
556.                                     intent.putExtras(mBundle);
557.                                     intent.setClass(mActivity.get(), DetailCourseInfoActivity.class);
558.                                     mActivity.get().startActivity(intent);
559.                                 }
560.                             }
561.
562.                         });
563.                         mActivity.get().course_table_layout.addView(courseInfo);
564.                         mActivity.get().courseTextViewList.add(courseInfo);
565.                         upperCourse = null;
566.                     }
567.                 } while(list.size() < lastListSize && list.size() != 0);
568.             }
569.             super.handleMessage(msg);
570.         }
571.
572.     }
573.     /**
574.      * 显示周数下拉列表悬浮窗
575.      * @param parent
576.      */
577.     private void showWeekListWindow(View parent){
578.
579.         if(weekListWindow == null)
580.         {
581.             LayoutInflater layoutInflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
582.             //获取layout
583.             popupWindowLayout = layoutInflater.inflate(R.layout.week_list_layout, null);
584.             weekListView = (ListView) popupWindowLayout.findViewById(R.id.week_list_view_body);
585.             //禁用滚动条（貌似没用··）
586.             weekListView.setVerticalScrollBarEnabled(false);
587.             List<Map<String, Object>> weekList = new ArrayList<Map<String, Object>>();
588.             //默认25周
589.             for(int i = 1; i <= 25; i ++)
590.             {
591.                 Map<String, Object> rowData = new HashMap<String, Object>();
592.                 rowData.put("week_index", "第" + i + "周");
593.                 weekList.add(rowData);
594.             }
595.
596.             //设置listview的adpter
597.             SimpleAdapter listAdapter = new SimpleAdapter(this,
598.                     weekList, R.layout.week_list_item_layout,
599.                     new String[]{"week_index"},
600.                     new int[]{R.id.week_list_item});
601.             weekListView.setAdapter(listAdapter);
602.             weekListView.setOnItemClickListener(new OnItemClickListener() {
603.                 @Override
604.                 public void onItemClick(AdapterView<?> adpater, View arg1,
605.                         int arg2, long arg3) {
606.                     int index = 0;
607.                     String indexStr = textTitle.getText().toString();
608.                     indexStr = indexStr.replaceAll("第", "").replaceAll("周", "");
609.                     if(!indexStr.equals("全部"))
610.                         index = Integer.parseInt(indexStr);
611.                     textTitle.setText("第" + (arg2 + 1) + "周");
612.                     weekListWindow.dismiss();
613.                     if((arg2 + 1) != index)
614.                     {
615.                         Log.i("courseTableActivity", "清空当前课程信息");
616.                         for(TextView tx : courseTextViewList)
617.                         {
618.                             course_table_layout.removeView(tx);
619.                         }
620.                         courseTextViewList.clear();
621.                         //重新设置课程信息
622.                         Message msg = new Message();
623.                         InitMessageObj msgObj = new InitMessageObj(aveWidth, arg2 + 1, screenWidth, maxCourseNum);
624.                         msg.obj = msgObj;
625.                         courseInfoInitMessageHandler.sendMessage(msg);
626.                     }
627.                 }
628.             });
629.             int width = textTitle.getWidth();
630.             //实例化一个popupwindow
631.             weekListWindow = new PopupWindow(popupWindowLayout, width + 100, width + 120);
632.
633.         }
634.
635.         weekListWindow.setFocusable(true);
636.         //设置点击外部可消失
637.         weekListWindow.setOutsideTouchable(true);
638.         weekListWindow.setBackgroundDrawable(new BitmapDrawable());
639.         //消失的时候恢复按钮的背景（消除"按下去"的样式）
640.         weekListWindow.setOnDismissListener(new OnDismissListener() {
641.             @Override
642.             public void onDismiss() {
643.                 textTitle.setBackgroundDrawable(null);
644.             }
645.         });
646.         weekListWindow.showAsDropDown(parent, -50, 0);
647.     }
648.
649. }

2、CourseInfo

[java]  view plain  copy

1. package nd.leiyi.crims.model;
2.
3. import java.io.Serializable;
4.
5.
6. public class CourseInfo implements Serializable{
7.
8.     /**
9.      *
10.      */
11.     private static final long serialVersionUID = 2074656067805712769L;
12.     /** id */
13.     private int id;
14.     /** 课程名称  */
15.     private String courseName;
16.     /** 上课教室 */
17.     private String classRoom;
18.     /** 老师  */
19.     private String teacher;
20.     /** 上课时间（哪一天）（周一--周日） */
21.     private int day;
22.     /** 上课时间（哪一节）开始（1--12） */
23.     private int beginIndex;
24.     /** 上课时间（哪一节）节数（1--12） */
25.     private int endIndex;
26.     /** 上课时间（哪一周） 开始 */
27.     private int beginWeek;
28.     /** 上课时间（哪一周） 结束 */
29.     private int endWeek;
30.     /** 课程类型（单周还是双周） **/
31.     private int courseType;
32.
33.     public static final int ALL = 1;
34.     public static final int ODD = 2;
35.     public static final int EVEN = 3;
36.
37.     public String getCourseName() {
38.         return courseName;
39.     }
40.     public void setCourseName(String courseName) {
41.         this.courseName = courseName;
42.     }
43.     public String getClassRoom() {
44.         return classRoom;
45.     }
46.     public void setClassRoom(String classRoom) {
47.         this.classRoom = classRoom;
48.     }
49.     public String getTeacher() {
50.         return teacher;
51.     }
52.     public void setTeacher(String teacher) {
53.         this.teacher = teacher;
54.     }
55.     public int getDay() {
56.         return day;
57.     }
58.     public void setDay(int day) {
59.         this.day = day;
60.     }
61.     public int getBeginIndex() {
62.         return beginIndex;
63.     }
64.     public void setBeginIndex(int beginIndex) {
65.         this.beginIndex = beginIndex;
66.     }
67.     public int getEndIndex() {
68.         return endIndex;
69.     }
70.     public void setEndIndex(int endIndex) {
71.         this.endIndex = endIndex;
72.     }
73.     public int getBeginWeek() {
74.         return beginWeek;
75.     }
76.     public void setBeginWeek(int beginWeek) {
77.         this.beginWeek = beginWeek;
78.     }
79.     public int getEndWeek() {
80.         return endWeek;
81.     }
82.     public void setEndWeek(int endWeek) {
83.         this.endWeek = endWeek;
84.     }
85.     public int getId() {
86.         return id;
87.     }
88.     public void setId(int id) {
89.         this.id = id;
90.     }
91.     public int getCourseType() {
92.         return courseType;
93.     }
94.     public void setCourseType(int courseType) {
95.         this.courseType = courseType;
96.     }
97.
98.
99. }

3、CourseInfoGallery

[java]  view plain  copy

1. package nd.leiyi.crims.gallery3D;
2.
3. import android.content.Context;
4. import android.graphics.Camera;
5. import android.graphics.Matrix;
6. import android.util.AttributeSet;
7. import android.view.MotionEvent;
8. import android.view.View;
9. import android.view.animation.Transformation;
10. import android.widget.Gallery;
11.
12. public class CourseInfoGallery extends Gallery {
13.
14.      private Camera mCamera = new Camera();
15.         private int mMaxRotationAngle = 60;
16.         private int mMaxZoom = -60;
17.         private int mCoveflowCenter;
18.
19.         public CourseInfoGallery(Context context) {
20.                 super(context);
21.                 this.setStaticTransformationsEnabled(true);
22.         }
23.
24.         public CourseInfoGallery(Context context, AttributeSet attrs) {
25.                 super(context, attrs);
26.                 this.setStaticTransformationsEnabled(true);
27.         }
28.
29.         public CourseInfoGallery(Context context, AttributeSet attrs, int defStyle) {
30.                 super(context, attrs, defStyle);
31.                 this.setStaticTransformationsEnabled(true);
32.         }
33.
34.         public int getMaxRotationAngle() {
35.                 return mMaxRotationAngle;
36.         }
37.
38.         public void setMaxRotationAngle(int maxRotationAngle) {
39.                 mMaxRotationAngle = maxRotationAngle;
40.         }
41.
42.         public int getMaxZoom() {
43.                 return mMaxZoom;
44.         }
45.
46.         public void setMaxZoom(int maxZoom) {
47.                 mMaxZoom = maxZoom;
48.         }
49.
50.         private int getCenterOfCoverflow() {
51.                 return (getWidth() - getPaddingLeft() - getPaddingRight()) / 2
52.                                 + getPaddingLeft();
53.         }
54.
55.         private static int getCenterOfView(View view) {
56.                 return view.getLeft() + view.getWidth() / 2;
57.         }
58.
59.         protected boolean getChildStaticTransformation(View child, Transformation t) {
60.
61.                 final int childCenter = getCenterOfView(child);
62.                 final int childWidth = child.getWidth();
63.                 int rotationAngle = 0;
64.
65.                 t.clear();
66.                 t.setTransformationType(Transformation.TYPE_MATRIX);
67.
68.                 if (childCenter == mCoveflowCenter) {
69.                         transformImageBitmap(child, t, 0);
70.                 } else {
71.                         rotationAngle = (int) (((float) (mCoveflowCenter - childCenter) / childWidth) * mMaxRotationAngle);
72.                         if (Math.abs(rotationAngle) > mMaxRotationAngle) {
73.                                 rotationAngle = (rotationAngle < 0) ? -mMaxRotationAngle
74.                                                 : mMaxRotationAngle;
75.                         }
76.                         transformImageBitmap(child, t, rotationAngle);
77.                 }
78.
79.                 return true;
80.         }
81.
82.         protected void onSizeChanged(int w, int h, int oldw, int oldh) {
83.                 mCoveflowCenter = getCenterOfCoverflow();
84.                 super.onSizeChanged(w, h, oldw, oldh);
85.         }
86.
87.         private void transformImageBitmap(View child, Transformation t,
88.                         int rotationAngle) {
89.                 mCamera.save();
90.                 final Matrix imageMatrix = t.getMatrix();
91.                 final int imageHeight = child.getLayoutParams().height;
92.                 final int imageWidth = child.getLayoutParams().width;
93.                 final int rotation = Math.abs(rotationAngle);
94.
95.                 mCamera.translate(0.0f, 0.0f, 100.0f);
96.
97.                 // As the angle of the view gets less, zoom in
98.                 if (rotation < mMaxRotationAngle) {
99.                         float zoomAmount = (float) (mMaxZoom + (rotation * 1.5));
100.                         mCamera.translate(0.0f, 0.0f, zoomAmount);
101.                 }
102.
103.                 mCamera.rotateY(rotationAngle);
104.                 mCamera.getMatrix(imageMatrix);
105.                 imageMatrix.preTranslate(-(imageWidth / 2), -(imageHeight / 2));
106.                 imageMatrix.postTranslate((imageWidth / 2), (imageHeight / 2));
107.                 mCamera.restore();
108.         }
109.
110.         @Override
111.         public boolean onInterceptTouchEvent(MotionEvent ev) {
112.
113.             if (ev.getAction() == MotionEvent.ACTION_MOVE) {
114.                 return true;
115.             } else {
116.                 return false;
117.             }
118.         }
119.
120.
121.
122. }

4、CourseInfoAdapter

[java]  view plain  copy

1. package nd.leiyi.crims.adapter;
2.
3. import java.util.List;
4.
5. import nd.leiyi.crims.R;
6. import nd.leiyi.crims.gallery3D.CourseInfoGallery;
7. import nd.leiyi.crims.model.CourseInfo;
8. import android.content.Context;
9. import android.graphics.Color;
10. import android.view.Gravity;
11. import android.view.View;
12. import android.view.ViewGroup;
13. import android.widget.BaseAdapter;
14. import android.widget.TextView;
15.
16. public class CourseInfoAdapter extends BaseAdapter {
17.
18.     private Context context;
19.     private TextView[] courseTextViewList;
20.     private int screenWidth;
21.     private int currentWeek;
22.     public CourseInfoAdapter(Context context, List<CourseInfo> courseList, int width, int currentWeek) {
23.         super();
24.         this.screenWidth = width;
25.         this.context = context;
26.         this.currentWeek = currentWeek;
27.         createGalleryWithCourseList(courseList);
28.     }
29.
30.     private void createGalleryWithCourseList(List<CourseInfo> courseList){
31.         //五种颜色的背景
32.         int[] background = {R.drawable.course_info_blue, R.drawable.course_info_green,
33.                             R.drawable.course_info_red, R.drawable.course_info_red,
34.                             R.drawable.course_info_yellow};
35.         this.courseTextViewList = new TextView[courseList.size()];
36.         for(int i = 0; i < courseList.size(); i ++)
37.         {
38.             final CourseInfo course = courseList.get(i);
39.             TextView textView = new TextView(context);
40.             textView.setText(course.getCourseName() + "@" + course.getClassRoom());
41.             textView.setLayoutParams(new CourseInfoGallery.LayoutParams((screenWidth / 6) *3, (screenWidth / 6) *3));
42.             textView.setTextColor(Color.WHITE);
43.             textView.setGravity(Gravity.CENTER_VERTICAL);
44.             textView.setPadding(10, 0, 0, 0);
45.             if(course.getBeginWeek() <= currentWeek && course.getEndWeek() >= currentWeek &&
46.               (course.getCourseType() == CourseInfo.ALL ||
47.               (course.getCourseType() == CourseInfo.EVEN && currentWeek % 2 == 0) ||
48.               (course.getCourseType() == CourseInfo.ODD && currentWeek % 2 != 0)))
49.             {
50.                 //选择一个颜色背景
51.                 int colorIndex = ((course.getBeginIndex() - 1) * 8 + course.getDay()) % (background.length - 1);
52.                 textView.setBackgroundResource(background[colorIndex]);
53.             }
54.             else
55.             {
56.                 textView.setBackgroundResource(R.drawable.course_info_light_grey);
57.             }
58.             textView.getBackground().setAlpha(222);
59. //          textView.setOnClickListener(new OnClickListener() {
60. //              @Override
61. //              public void onClick(View arg0) {
62. //                  // TODO Auto-generated method stub
63. //                  Intent intent = new Intent();
64. //                  Bundle mBundle = new Bundle();
65. //                  mBundle.putSerializable("courseInfo", course);
66. //                  intent.putExtras(mBundle);
67. //                  intent.setClass(context, DetailCourseInfoActivity.class);
68. //                  context.startActivity(intent);
69. //              }
70. //          });
71.             this.courseTextViewList[i] = textView;
72.         }
73.     }
74.     @Override
75.     public int getCount() {
76.
77.         return courseTextViewList.length;
78.     }
79.
80.     @Override
81.     public Object getItem(int index) {
82.
83.         return courseTextViewList[index];
84.     }
85.
86.     @Override
87.     public long getItemId(int arg0) {
88.
89.         return arg0;
90.     }
91.
92.     @Override
93.     public View getView(int position, View convertView, ViewGroup parent) {
94.
95.         return courseTextViewList[position];
96.     }
97.
98.     public float getScale(boolean focused, int offset) {
99.         return Math.max(0, 1.0f / (float) Math.pow(2, Math.abs(offset)));
100.     }
101.
102.
103.
104. }

5、gallery-3d布局

[html]  view plain  copy

1. <?xml version="1.0" encoding="utf-8"?>
2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3.     android:layout_width="fill_parent"
4.     android:layout_height="fill_parent"
5.     android:orientation="vertical" >
6.
7.     <nd.leiyi.crims.gallery3D.CourseInfoGallery
8.         android:id="@+id/course_info_gallery"
9.         android:layout_width="fill_parent"
10.         android:layout_height="wrap_content"
11.         android:layout_centerInParent="true"
12.         />
13.
14. </LinearLayout>

6、gallery-3d-item

[html]  view plain  copy

1. <?xml version="1.0" encoding="utf-8"?>
2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3.     android:layout_width="match_parent"
4.     android:layout_height="match_parent"
5.     android:orientation="vertical" >
6.
7.     <TextView
8.         android:id="@+id/course_info_gallery_item"
9.         android:layout_width="wrap_content"
10.         android:layout_height="wrap_content"
11.         android:textColor="#ffffff"
12.         android:gravity="center_vertical"/>
13.
14. </LinearLayout>

7、course_text_view_bg （课程格子背景）

[html]  view plain  copy

1. <?xml version="1.0" encoding="UTF-8"?>
2. <layer-list xmlns:android="http://schemas.android.com/apk/res/android" >
3.   <item>
4.         <shape>
5.             <solid android:color="#FFFFFF" />
6.             <stroke
7.                 android:width="1dp"
8.                 android:color="#a8abad" />
9.         </shape>
10.     </item>
11.      <item
12.         android:right="1dp"
13.         android:bottom="1dp">
14.         <shape>
15.             <solid android:color="#FFFFFF" />
16.             <stroke
17.                 android:width="1dp"
18.                 android:color="#ffffff" />
19.         </shape>
20.     </item>
21. </layer-list>

8、course_table_last_colum(最后一列的背景，无边框）

[html]  view plain  copy

1. <?xml version="1.0" encoding="UTF-8"?>
2. <layer-list xmlns:android="http://schemas.android.com/apk/res/android" >
3.   <item>
4.         <shape>
5.             <solid android:color="#FFFFFF" />
6.             <stroke
7.                 android:width="1dp"
8.                 android:color="#a8abad" />
9.         </shape>
10.     </item>
11.      <item
12.         android:bottom="1dp">
13.         <shape>
14.             <solid android:color="#FFFFFF" />
15.             <stroke
16.                 android:width="1dp"
17.                 android:color="#ffffff" />
18.         </shape>
19.     </item>
20. </layer-list>

还有一些布局文件就不贴了。代码太多了··，有兴趣的同学可以在github里下载我的工程···工程比较大，而且后台服务端程序我已经从云服务器上撤销了，所以跑不起来，我也不愿改代码了··

gitbub上的代码已删除

demo版：超级课程表demo
