一、概述
说到Android进程间通信,大家肯定能想到的是编写aidl文件,然后通过aapt生成的类方便的完成服务端,以及客户端代码的编写。如果你对这个过程不熟悉,可以查看Android aidl Binder框架浅析;
当然今天要说的通信方式肯定不是通过编写aidl文件的方式,那么有请今天的主角:Messenger
。ok,这是什么样的一个类呢?我们看下注释
This allows for the implementation of message-based communication across processes
允许实现基于消息的进程间通信的方式。

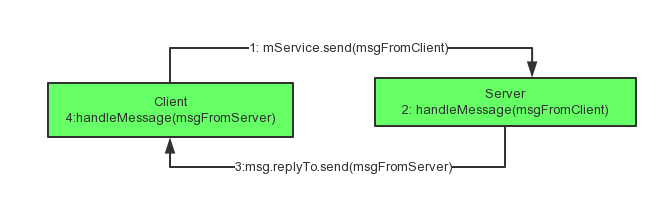

那么,什么叫基于消息的进程间通信方式呢?看个图理解下:
可以看到,我们可以在客户端发送一个Message给服务端,在服务端的handler中会接收到客户端的消息,然后进行对应的处理,处理完成后,再将结果等数据封装成Message,发送给客户端,客户端的handler中会接收到处理的结果。
这样的进程间通信是不是很爽呢?
- 基于Message,相信大家都很熟悉
- 支持回调的方式,也就是服务端处理完成长任务可以和客户端交互
- 不需要编写aidl文件
此外,还支持,记录客户端对象的Messenger,然后可以实现一对多的通信;甚至作为一个转接处,任意两个进程都能通过服务端进行通信,这个后面再说。
看到这,有没有一些的小激动,我们可以不写aidl文件,方便的实现进程间通信了,是不是又可以装一下了。哈,下面看个简单的例子。
二、通信实例
这个例子,通过两个apk演示,一个apk是Server端,一个是Client端;
(1) Server端
代码
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">package</span> com.imooc.messenger_server; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.app.Service; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.content.Intent; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Handler; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.IBinder; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Message; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Messenger; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.RemoteException; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">MessengerService</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">Service</span> {</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> MSG_SUM = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0x110</span>; <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//最好换成HandlerThread的形式</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> Messenger mMessenger = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Messenger(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Handler() { <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">handleMessage</span>(Message msgfromClient) { Message msgToClient = Message.obtain(msgfromClient);<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//返回给客户端的消息</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">switch</span> (msgfromClient.what) { <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//msg 客户端传来的消息</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">case</span> MSG_SUM: msgToClient.what = MSG_SUM; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">try</span> { <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//模拟耗时</span> Thread.sleep(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">2000</span>); msgToClient.arg2 = msgfromClient.arg1 + msgfromClient.arg2; msgfromClient.replyTo.send(msgToClient); } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">catch</span> (InterruptedException e) { e.printStackTrace(); } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">catch</span> (RemoteException e) { e.printStackTrace(); } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">break</span>; } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.handleMessage(msgfromClient); } }); <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> IBinder <span class="hljs-title" style="box-sizing: border-box;">onBind</span>(Intent intent) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mMessenger.getBinder(); } } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li></ul>
服务端就一个Service,可以看到代码相当的简单,只需要去声明一个Messenger
对象,然后onBind方法返回mMessenger.getBinder();
然后坐等客户端将消息发送到handleMessage想法,根据message.what去判断进行什么操作,然后做对应的操作,最终将结果通过 msgfromClient.replyTo.send(msgToClient);返回。
可以看到我们这里主要是取出客户端传来的两个数字,然后求和返回,这里我有意添加了sleep(2000)模拟耗时,注意在实际使用过程中,可以换成在独立开辟的线程中完成耗时操作,比如和HandlerThread结合使用。
注册文件
<code class="language-xml hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">service </span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:name</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">".MessengerService"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:enabled</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"true"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:exported</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"true"</span>></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">intent-filter</span>></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">action</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:name</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"com.zhy.aidl.calc"</span>></span><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">action</span>></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">category</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:name</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"android.intent.category.DEFAULT"</span> /></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">intent-filter</span>></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">service</span>></span></code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li></ul>
别忘了注册service,写完以后直接安装。
(二)客户端
Activity
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">package</span> com.imooc.messenger_client; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.content.ComponentName; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.content.Context; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.content.Intent; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.content.ServiceConnection; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Bundle; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Handler; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.IBinder; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Message; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Messenger; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.RemoteException; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.support.v7.app.AppCompatActivity; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.util.Log; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.view.View; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.widget.Button; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.widget.LinearLayout; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.widget.TextView; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">MainActivity</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">AppCompatActivity</span> {</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> String TAG = <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"MainActivity"</span>; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> MSG_SUM = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0x110</span>; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> Button mBtnAdd; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> LinearLayout mLyContainer; <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//显示连接状态</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> TextView mTvState; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> Messenger mService; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> isConn; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> Messenger mMessenger = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Messenger(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Handler() { <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">handleMessage</span>(Message msgFromServer) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">switch</span> (msgFromServer.what) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">case</span> MSG_SUM: TextView tv = (TextView) mLyContainer.findViewById(msgFromServer.arg1); tv.setText(tv.getText() + <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"=>"</span> + msgFromServer.arg2); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">break</span>; } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.handleMessage(msgFromServer); } }); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> ServiceConnection mConn = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> ServiceConnection() { <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onServiceConnected</span>(ComponentName name, IBinder service) { mService = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Messenger(service); isConn = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">true</span>; mTvState.setText(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"connected!"</span>); } <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onServiceDisconnected</span>(ComponentName name) { mService = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>; isConn = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>; mTvState.setText(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"disconnected!"</span>); } }; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> mA; <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onCreate</span>(Bundle savedInstanceState) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.onCreate(savedInstanceState); setContentView(R.layout.activity_main); <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//开始绑定服务</span> bindServiceInvoked(); mTvState = (TextView) findViewById(R.id.id_tv_callback); mBtnAdd = (Button) findViewById(R.id.id_btn_add); mLyContainer = (LinearLayout) findViewById(R.id.id_ll_container); mBtnAdd.setOnClickListener(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> View.OnClickListener() { <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onClick</span>(View v) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">try</span> { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> a = mA++; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> b = (<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span>) (Math.random() * <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">100</span>); <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//创建一个tv,添加到LinearLayout中</span> TextView tv = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> TextView(MainActivity.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>); tv.setText(a + <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">" + "</span> + b + <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">" = caculating ..."</span>); tv.setId(a); mLyContainer.addView(tv); Message msgFromClient = Message.obtain(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>, MSG_SUM, a, b); msgFromClient.replyTo = mMessenger; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (isConn) { <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//往服务端发送消息</span> mService.send(msgFromClient); } } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">catch</span> (RemoteException e) { e.printStackTrace(); } } }); } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">bindServiceInvoked</span>() { Intent intent = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Intent(); intent.setAction(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"com.zhy.aidl.calc"</span>); bindService(intent, mConn, Context.BIND_AUTO_CREATE); Log.e(TAG, <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"bindService invoked !"</span>); } <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onDestroy</span>() { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">super</span>.onDestroy(); unbindService(mConn); } } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li><li style="box-sizing: border-box; padding: 0px 5px;">85</li><li style="box-sizing: border-box; padding: 0px 5px;">86</li><li style="box-sizing: border-box; padding: 0px 5px;">87</li><li style="box-sizing: border-box; padding: 0px 5px;">88</li><li style="box-sizing: border-box; padding: 0px 5px;">89</li><li style="box-sizing: border-box; padding: 0px 5px;">90</li><li style="box-sizing: border-box; padding: 0px 5px;">91</li><li style="box-sizing: border-box; padding: 0px 5px;">92</li><li style="box-sizing: border-box; padding: 0px 5px;">93</li><li style="box-sizing: border-box; padding: 0px 5px;">94</li><li style="box-sizing: border-box; padding: 0px 5px;">95</li><li style="box-sizing: border-box; padding: 0px 5px;">96</li><li style="box-sizing: border-box; padding: 0px 5px;">97</li><li style="box-sizing: border-box; padding: 0px 5px;">98</li><li style="box-sizing: border-box; padding: 0px 5px;">99</li><li style="box-sizing: border-box; padding: 0px 5px;">100</li><li style="box-sizing: border-box; padding: 0px 5px;">101</li><li style="box-sizing: border-box; padding: 0px 5px;">102</li><li style="box-sizing: border-box; padding: 0px 5px;">103</li><li style="box-sizing: border-box; padding: 0px 5px;">104</li><li style="box-sizing: border-box; padding: 0px 5px;">105</li><li style="box-sizing: border-box; padding: 0px 5px;">106</li><li style="box-sizing: border-box; padding: 0px 5px;">107</li><li style="box-sizing: border-box; padding: 0px 5px;">108</li><li style="box-sizing: border-box; padding: 0px 5px;">109</li><li style="box-sizing: border-box; padding: 0px 5px;">110</li><li style="box-sizing: border-box; padding: 0px 5px;">111</li><li style="box-sizing: border-box; padding: 0px 5px;">112</li><li style="box-sizing: border-box; padding: 0px 5px;">113</li><li style="box-sizing: border-box; padding: 0px 5px;">114</li><li style="box-sizing: border-box; padding: 0px 5px;">115</li><li style="box-sizing: border-box; padding: 0px 5px;">116</li><li style="box-sizing: border-box; padding: 0px 5px;">117</li><li style="box-sizing: border-box; padding: 0px 5px;">118</li><li style="box-sizing: border-box; padding: 0px 5px;">119</li><li style="box-sizing: border-box; padding: 0px 5px;">120</li><li style="box-sizing: border-box; padding: 0px 5px;">121</li><li style="box-sizing: border-box; padding: 0px 5px;">122</li><li style="box-sizing: border-box; padding: 0px 5px;">123</li><li style="box-sizing: border-box; padding: 0px 5px;">124</li><li style="box-sizing: border-box; padding: 0px 5px;">125</li><li style="box-sizing: border-box; padding: 0px 5px;">126</li><li style="box-sizing: border-box; padding: 0px 5px;">127</li><li style="box-sizing: border-box; padding: 0px 5px;">128</li><li style="box-sizing: border-box; padding: 0px 5px;">129</li><li style="box-sizing: border-box; padding: 0px 5px;">130</li><li style="box-sizing: border-box; padding: 0px 5px;">131</li><li style="box-sizing: border-box; padding: 0px 5px;">132</li><li style="box-sizing: border-box; padding: 0px 5px;">133</li><li style="box-sizing: border-box; padding: 0px 5px;">134</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li><li style="box-sizing: border-box; padding: 0px 5px;">85</li><li style="box-sizing: border-box; padding: 0px 5px;">86</li><li style="box-sizing: border-box; padding: 0px 5px;">87</li><li style="box-sizing: border-box; padding: 0px 5px;">88</li><li style="box-sizing: border-box; padding: 0px 5px;">89</li><li style="box-sizing: border-box; padding: 0px 5px;">90</li><li style="box-sizing: border-box; padding: 0px 5px;">91</li><li style="box-sizing: border-box; padding: 0px 5px;">92</li><li style="box-sizing: border-box; padding: 0px 5px;">93</li><li style="box-sizing: border-box; padding: 0px 5px;">94</li><li style="box-sizing: border-box; padding: 0px 5px;">95</li><li style="box-sizing: border-box; padding: 0px 5px;">96</li><li style="box-sizing: border-box; padding: 0px 5px;">97</li><li style="box-sizing: border-box; padding: 0px 5px;">98</li><li style="box-sizing: border-box; padding: 0px 5px;">99</li><li style="box-sizing: border-box; padding: 0px 5px;">100</li><li style="box-sizing: border-box; padding: 0px 5px;">101</li><li style="box-sizing: border-box; padding: 0px 5px;">102</li><li style="box-sizing: border-box; padding: 0px 5px;">103</li><li style="box-sizing: border-box; padding: 0px 5px;">104</li><li style="box-sizing: border-box; padding: 0px 5px;">105</li><li style="box-sizing: border-box; padding: 0px 5px;">106</li><li style="box-sizing: border-box; padding: 0px 5px;">107</li><li style="box-sizing: border-box; padding: 0px 5px;">108</li><li style="box-sizing: border-box; padding: 0px 5px;">109</li><li style="box-sizing: border-box; padding: 0px 5px;">110</li><li style="box-sizing: border-box; padding: 0px 5px;">111</li><li style="box-sizing: border-box; padding: 0px 5px;">112</li><li style="box-sizing: border-box; padding: 0px 5px;">113</li><li style="box-sizing: border-box; padding: 0px 5px;">114</li><li style="box-sizing: border-box; padding: 0px 5px;">115</li><li style="box-sizing: border-box; padding: 0px 5px;">116</li><li style="box-sizing: border-box; padding: 0px 5px;">117</li><li style="box-sizing: border-box; padding: 0px 5px;">118</li><li style="box-sizing: border-box; padding: 0px 5px;">119</li><li style="box-sizing: border-box; padding: 0px 5px;">120</li><li style="box-sizing: border-box; padding: 0px 5px;">121</li><li style="box-sizing: border-box; padding: 0px 5px;">122</li><li style="box-sizing: border-box; padding: 0px 5px;">123</li><li style="box-sizing: border-box; padding: 0px 5px;">124</li><li style="box-sizing: border-box; padding: 0px 5px;">125</li><li style="box-sizing: border-box; padding: 0px 5px;">126</li><li style="box-sizing: border-box; padding: 0px 5px;">127</li><li style="box-sizing: border-box; padding: 0px 5px;">128</li><li style="box-sizing: border-box; padding: 0px 5px;">129</li><li style="box-sizing: border-box; padding: 0px 5px;">130</li><li style="box-sizing: border-box; padding: 0px 5px;">131</li><li style="box-sizing: border-box; padding: 0px 5px;">132</li><li style="box-sizing: border-box; padding: 0px 5px;">133</li><li style="box-sizing: border-box; padding: 0px 5px;">134</li></ul>
代码也不复杂,首先bindService,然后在onServiceConnected中拿到回调的service(IBinder)对象,通过service对象去构造一个mService =new Messenger(service);
然后就可以使用mService.send(msg)给服务端了。
我们消息的发送在Btn.onclick里面:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;">Message msgFromClient = Message.obtain(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>, MSG_SUM, a, b); msgFromClient.replyTo = mMessenger; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (isConn) { <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//往服务端发送消息</span> mService.send(msgFromClient); } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li></ul>
那么服务端会收到消息,处理完成会将结果返回,传到Client端的mMessenger中的Handler的handleMessage方法中。
布局文件
<code class="language-xml hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">LinearLayout</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/id_ll_container"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:android</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/apk/res/android"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">xmlns:tools</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"http://schemas.android.com/tools"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:orientation</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"vertical"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:paddingBottom</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@dimen/activity_vertical_margin"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:paddingLeft</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@dimen/activity_horizontal_margin"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:paddingRight</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@dimen/activity_horizontal_margin"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:paddingTop</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@dimen/activity_vertical_margin"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">tools:context</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">".MainActivity"</span>></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">TextView </span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/id_tv_callback"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"match_parent"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:text</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"Messenger Test!"</span>/></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"><<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">Button</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:id</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"@+id/id_btn_add"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_width</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:layout_height</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"wrap_content"</span> <span class="hljs-attribute" style="box-sizing: border-box; color: rgb(102, 0, 102);">android:text</span>=<span class="hljs-value" style="box-sizing: border-box; color: rgb(0, 136, 0);">"add"</span>/></span> <span class="hljs-tag" style="color: rgb(0, 102, 102); box-sizing: border-box;"></<span class="hljs-title" style="box-sizing: border-box; color: rgb(0, 0, 136);">LinearLayout</span>></span> </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li></ul>

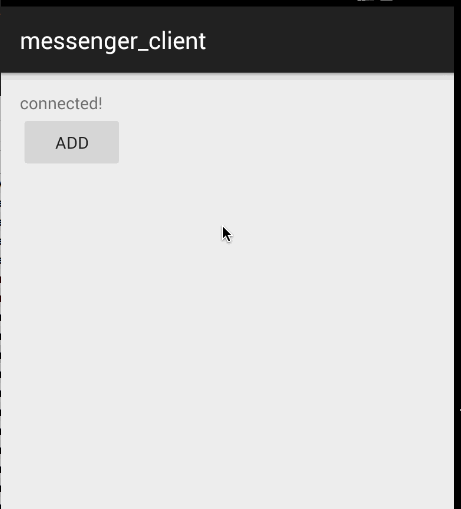

效果图
可以看到,我们每点击一次按钮,就往服务器发送个消息,服务器拿到消息执行完成后,将结果返回。
整个通信的代码看起来还是相当的清爽的,那么大家有没有对其内部的原理有一丝的好奇呢?下面我们就来看下其内部是如何实现的。
对了,源码分析前,这里插一句,大家通过代码可以看到服务端往客户端传递数据是通过msg.replyTo这个对象的。那么服务端完全可以做到,使用一个List甚至Map去存储所有绑定的客户端的msg.replyTo对象,然后想给谁发消息都可以。甚至可以把A进程发来的消息,通过B进程的msg.replyTo发到B进程那里去。相关代码呢,可以参考官方的文档:service,注意下拉找:Remote Messenger Service Sample。
三、源码分析
其实Messenger的内部实现的,实际上也是依赖于aidl文件实现的。
(一)首先我们看客户端向服务端通信
服务端
服务端的onBind是这么写的:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> IBinder <span class="hljs-title" style="box-sizing: border-box;">onBind</span>(Intent intent) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mMessenger.getBinder(); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul>
那么点进去:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> IBinder <span class="hljs-title" style="box-sizing: border-box;">getBinder</span>() { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mTarget.asBinder(); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul>
可以看到返回的是mTarget.asBinder();
mTarget是哪来的呢?
别忘了我们前面去构造mMessenger对象的代码:new Messenger(new Handler())
;
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-title" style="box-sizing: border-box;">Messenger</span>(Handler target) { mTarget = target.getIMessenger(); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul>
原来是Handler返回的,我们继续跟进去
<code class="language-xml hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> final IMessenger getIMessenger() { synchronized (mQueue) { if (mMessenger != null) { return mMessenger; } mMessenger = new MessengerImpl(); return mMessenger; } } private final class MessengerImpl extends IMessenger.Stub { public void send(Message msg) { msg.sendingUid = Binder.getCallingUid(); Handler.this.sendMessage(msg); } }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li></ul>
mTarget是一个MessengerImpl对象,那么asBinder实际上是返回this,也就是MessengerImpl对象;
这是个内部类,可以看到继承自IMessenger.Stub,然后实现了一个send方法,该方法就是将接收到的消息通过 Handler.this.sendMessage(msg);发送到handleMessage方法。
看到这,大家有没有想到什么,难道不觉得extends IMessenger.Stub这种写法异常的熟悉么?
我们传统写aidl文件,aapt给我们生成什么,生成IXXX.Stub类,然后我们服务端继承IXXX.Stub实现接口中的方法。
没错,其实这里内部其实也是依赖一个aidl生成的类,这个aidl位于:frameworks/base/core/Java/android/os/IMessenger.aidl
.
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">package</span> android.os; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">import</span> android.os.Message; <span class="hljs-javadoc" style="color: rgb(136, 0, 0); box-sizing: border-box;">/**<span class="hljs-javadoctag" style="color: rgb(102, 0, 102); box-sizing: border-box;"> @hide</span> */</span> oneway interface IMessenger { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> send(in Message msg); } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li></ul>
看到这,你应该明白了,Messenger并没有什么神奇之处,实际上,就是依赖该aidl文件生成的类,继承了IMessenger.Stub类,实现了send方法,send方法中参数会通过客户端传递过来,最终发送给handler进行处理。这里不理解,请详细看下Android aidl Binder框架浅析;
客户端
客户端首先通过onServiceConnected拿到sevice(Ibinder)对象,这里没什么特殊的,我们平时的写法也是这样的,只不过我们平时会这么写:
IMessenger.Stub.asInterface(service)拿到接口对象进行调用;
而,我们的代码中是
mService = new Messenger(service);
跟进去,你会发现:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-title" style="box-sizing: border-box;">Messenger</span>(IBinder target) { mTarget = IMessenger.Stub.asInterface(target); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li></ul>
soga,和我们平时的写法一模一样!
到这里就可以明白,客户端与服务端通信,实际上和我们平时的写法没有任何区别,通过编写aidl文件,服务端onBind利用Stub编写接口实现返回;客户端利用回调得到的IBinder对象,使用IMessenger.Stub.asInterface(target)拿到接口实例进行调用(内部实现,参考Android aidl Binder框架浅析)。
(2)服务端与客户端通信
那么,客户端与服务端通信的确没什么特殊的地方,我们完全也可以编写个类似的aidl文件实现;那么服务端是如何与客户端通信的呢?
还记得,客户端send方法发送的是一个Message,这个Message.replyTo指向的是一个mMessenger,我们在Activity中初始化的。
那么将消息发送到服务端,肯定是通过序列化与反序列化拿到Message对象,我们看下Message的反序列化的代码:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"># Message <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">readFromParcel</span>(Parcel source) { what = source.readInt(); arg1 = source.readInt(); arg2 = source.readInt(); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (source.readInt() != <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>) { obj = source.readParcelable(getClass().getClassLoader()); } when = source.readLong(); data = source.readBundle(); replyTo = Messenger.readMessengerOrNullFromParcel(source); sendingUid = source.readInt(); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li></ul>
主要看replyTo,调用的是Messenger.readMessengerOrNullFromParcel
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> Messenger <span class="hljs-title" style="box-sizing: border-box;">readMessengerOrNullFromParcel</span>(Parcel in) { IBinder b = in.readStrongBinder(); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> b != <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span> ? <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Messenger(b) : <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>; } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">static</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">writeMessengerOrNullToParcel</span>(Messenger messenger, Parcel out) { out.writeStrongBinder(messenger != <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span> ? messenger.mTarget.asBinder() : <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>); }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li></ul>
通过上面的writeMessengerOrNullToParcel可以看到,它将客户端的messenger.mTarget.asBinder()对象进行了恢复,客户端的message.mTarget.asBinder()是什么?
客户端也是通过Handler创建的Messenger,于是asBinder返回的是:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-title" style="box-sizing: border-box;">Messenger</span>(Handler target) { mTarget = target.getIMessenger(); } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> IMessenger getIMessenger() { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">synchronized</span> (mQueue) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (mMessenger != <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">null</span>) { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mMessenger; } mMessenger = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> MessengerImpl(); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mMessenger; } } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">MessengerImpl</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">extends</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">IMessenger</span>.<span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">Stub</span> {</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">send</span>(Message msg) { msg.sendingUid = Binder.getCallingUid(); Handler.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>.sendMessage(msg); } } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> IBinder <span class="hljs-title" style="box-sizing: border-box;">getBinder</span>() { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> mTarget.asBinder(); } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li></ul>
那么asBinder,实际上就是MessengerImpl extends IMessenger.Stub
中的asBinder了。
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> #IMessenger.Stub <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> android.os.IBinder <span class="hljs-title" style="box-sizing: border-box;">asBinder</span>() { <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>; }</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li></ul>
那么其实返回的就是MessengerImpl对象自己。到这里可以看到message.mTarget.asBinder()其实返回的是客户端的MessengerImpl对象。
最终,发送给客户端的代码是这么写的:
<code class="language-java hljs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"> msgfromClient.replyTo.send(msgToClient); <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">send</span>(Message message) <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">throws</span> RemoteException { mTarget.send(message); } </code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li></ul>
这个mTarget实际上就是对客户端的MessengerImpl对象的封装,那么send(message)(屏蔽了transact/onTransact的细节),这个message最终肯定传到客户端的handler的handleMessage方法中。
好了,到此我们的源码分析就结束了~~
总结下:
- 客户端与服务端通信,利用的aidl文件,没什么特殊的
- 服务端与客户端通信,主要是在传输的消息上做了处理,让Messager.replyTo指向的客户端的Messenger,而Messenger又持有客户端的一个Binder对象(MessengerImpl)。服务端正是利用这个Binder对象做的与客户端的通信。
可以考虑自己编写aidl文件,实现下服务端对客户端的回调。
