300行零依赖Java代码实现微信支付截图金额识别

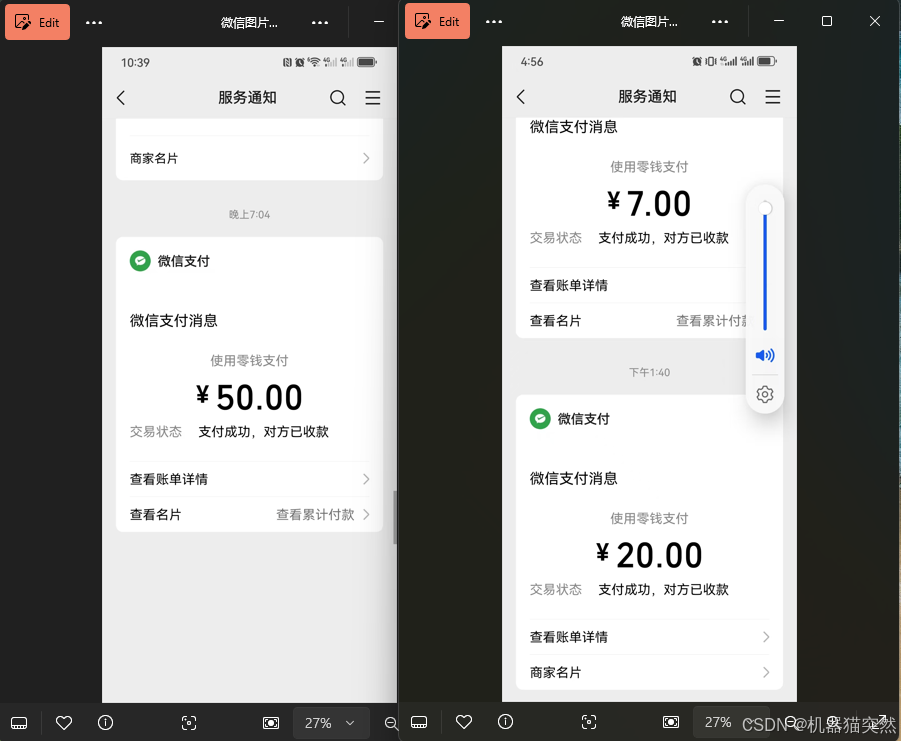

最近我的小孩出生了，请了个保姆，她每天会去买菜，买菜后截图微信付款记录发给我对账，微信付款记录如下图所示。因为是去菜市买菜，每天都有好多笔付款记录，去手算对账肯定是比较麻烦的，作为程序员，当然要用代码去解决问题。

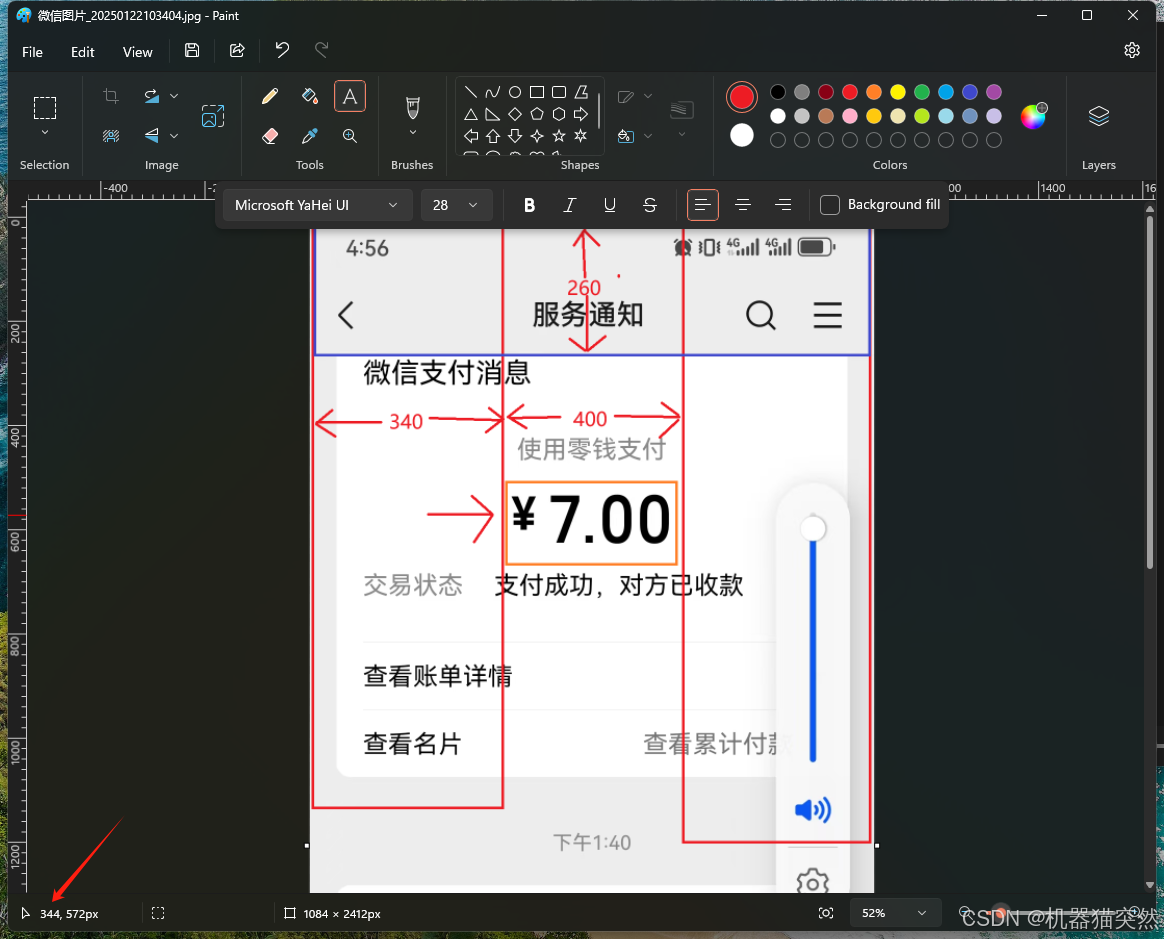

观察支付截图的内容可以看到手机信号栏和服务通知部分是固定的，我们不需要，两个红框也是我们不需要的，红框的宽度是固定的，用windows自带的画图打开微信支付截图，鼠标移动到箭头的位置，可以看到大概是340像素，用这种方法，可以得到橘框的宽度是400像素，蓝框高度是260像素。用jdk自带的BufferedImage类可以裁剪图片，因为付款金额字体是黑色的，在裁剪的同时，我们对图片进行二值化处理，可以进一步去掉一些不需要的信息，比如“下午1:40”。代码如下：

private static void cropAndBinarization() throws IOException
    {
        for (File imageFile : Configuration.BILL_SRC.listFiles()) {
            BufferedImage src = ImageIO.read(imageFile);
            // 裁剪
            int cropWidth = 400;
            int cropHeight = src.getHeight() - 260;
            int startX = 340;
            int startY = 260;
            BufferedImage cropImage = new BufferedImage(cropWidth, cropHeight, BufferedImage.TYPE_INT_RGB);
            Graphics2D tg = cropImage.createGraphics();
            tg.drawImage(src,
                    0, 0, cropWidth, cropHeight,
                    startX, startY, startX + cropWidth, startY + cropHeight,
                    null);
            tg.dispose();
            // 二值化处理
            for (int y = 0; y < cropHeight; y++) {
                for (int x = 0; x < cropWidth; x++) {
                    int rgb = cropImage.getRGB(x, y);
                    int value = 0xff000000 | rgb;
                    int r = (value >> 16) & 0xFF;
                    int g = (value >> 8) & 0xFF;
                    int b = (value >> 0) & 0xFF;
                    boolean isBlack = r <= 100 && g <= 100 && b <= 100;
                    cropImage.setRGB(x, y, isBlack ? BLACK : WHITE);
                }
            }
            // 写入到预处理后的文件夹
            File cropFile = new File(Configuration.CROP_FOLDER, imageFile.getName());
            ImageIO.write(cropImage, "png", cropFile);
        }
    }

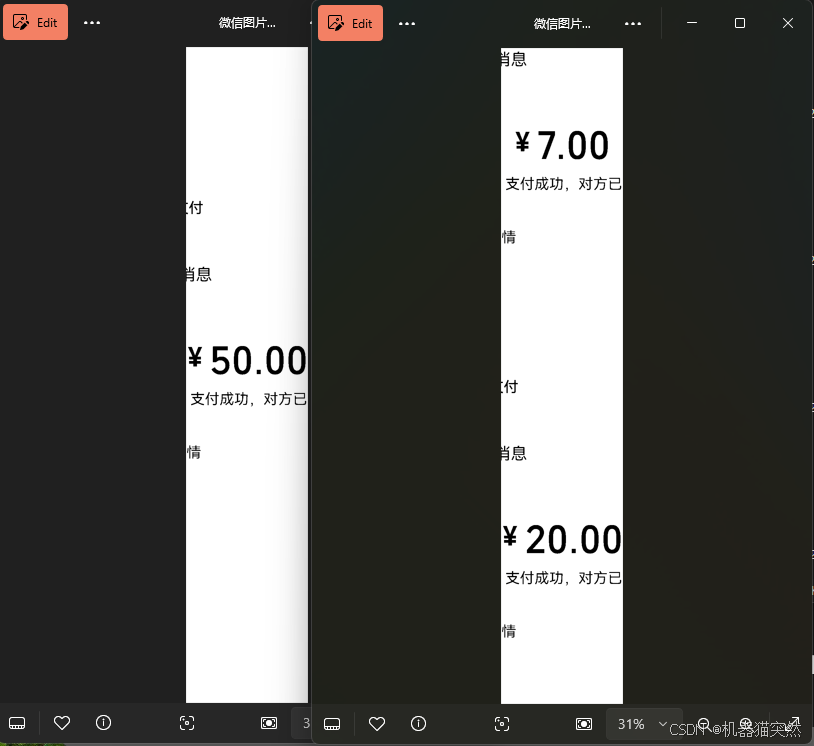

裁剪、二值化后的图片如下图所示。

接下来就是怎么截取金额了。首先，想对图片进行横向切割，得到一行一行的文字，如何确定切割点？可以通过投影法，投影法的介绍可以参考这篇文章 【OpenCV】利用投影法进行字符分割 ，如果文章失效了或者懒得去看，大致意思就是计算每行有多少个黑色像素，存到一个数组里，比如[0,0,0,0,1,2,3,4,4,3,2,0,0,0,0,1,2,2,2,0,0,0] ，黑色像素个数从0变到非0的index，就是分割点，举例的这个数组分割点就是(4,10), (15,18)。还有一个取巧的地方就是付款金额比其他字体大，付款金额高度大概是94像素，利用这一点，就可以截取到付款金额，同样用预处理中类似的方法，可以得到所有分割出来的金额。代码如下：

 	private static class Partition {
        int s;
        int e;
        int length;
    }

    private static List<Partition> partition(int[] blackCounts)
    {
        List<Partition> result = new ArrayList<>();
        for (int i = 0, len = blackCounts.length; i < len; i++) {
            if (blackCounts[i] != 0) {
                for (int j = i + 1; j < len; j++) {
                    if (blackCounts[j] == 0) {
                        Partition p = new Partition();
                        p.s = i;
                        p.e = j - 1;
                        p.length = p.e - p.s + 1;
                        result.add(p);
                        i = j;
                        break;
                    }
                }
            }
        }
        return result;
    }

    private static void cropMoneyValue() throws IOException
    {
        int counter = 0;
        for (File imageFile : Configuration.CROP_FOLDER.listFiles()) {
            BufferedImage image = ImageIO.read(imageFile);
            int h = image.getHeight();
            int w = image.getWidth();
            int[] blackCounts = new int[h];
            for (int y = 0; y < h; y++) {
                int blackCount = 0;
                for (int x = 0; x < w; x++) {
                    int rgb = image.getRGB(x, y);
                    if (rgb == BLACK) {
                        ++blackCount;
                    }
                }
                blackCounts[y] = blackCount;
            }
            List<Partition> ps = partition(blackCounts);
            for (Partition p : ps) {
                if (p.length > 90) {
                    BufferedImage itemImage = new BufferedImage(w, p.length, BufferedImage.TYPE_INT_RGB);
                    Graphics2D g = itemImage.createGraphics();
                    g.drawImage(image,
                            0, 0, w, p.length,
                            0, p.s, w, p.e,
                            null);
                    File file = new File(Configuration.MONEY_VALUE_FOLDER, counter++ + ".png");
                    ImageIO.write(itemImage, "png", file);
                }
            }
        }
    }

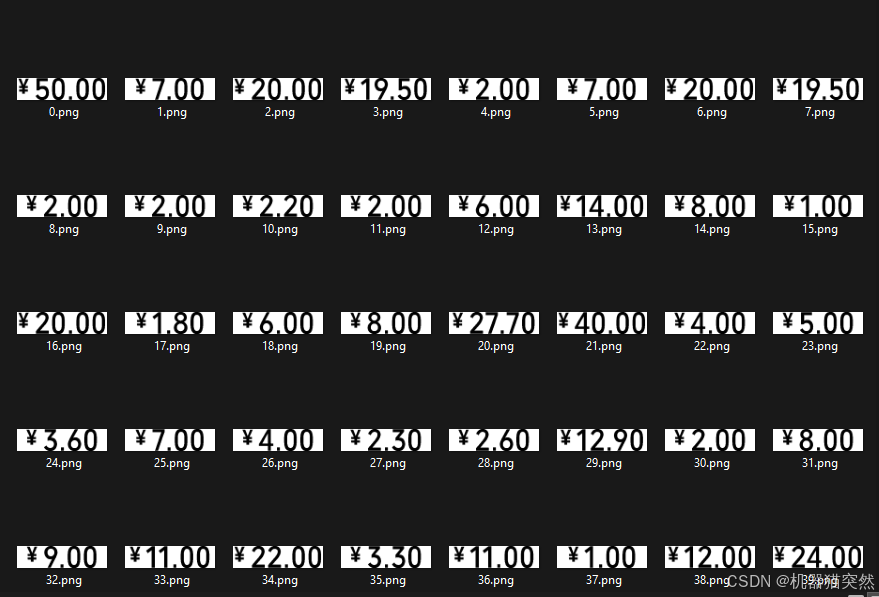

裁剪后的图片如下图所示：

最后就是计算出每张小图是多少钱。我们采用垂直分割的方法，把每笔付款金额拆分成一个个数字放到一个文件夹，因为第一个符号固定是￥，分割后的从第二个开始输出。代码如下：

	public static List<BufferedImage> toNumbers(File imageFile) throws IOException
    {
        List<BufferedImage> result = new ArrayList<>();

        BufferedImage image = ImageIO.read(imageFile);
        int h = image.getHeight();
        int w = image.getWidth();
        int[] blackCounts = new int[w];
        for (int x = 0; x < w; x++) {
            int blackCount = 0;
            for (int y = 0; y < h; y++) {
                int rgb = image.getRGB(x, y);
                if (rgb == BLACK) {
                    ++blackCount;
                }
            }
            blackCounts[x] = blackCount;
        }
        List<Partition> ps = partition(blackCounts);
        for (int i = 1; i < ps.size(); i++) {
            Partition p = ps.get(i);
            BufferedImage itemImage = new BufferedImage(p.length, h, BufferedImage.TYPE_INT_RGB);
            Graphics2D g = itemImage.createGraphics();
            g.drawImage(image,
                    0, 0, p.length, h,
                    p.s, 0, p.e, h,
                    null);
            result.add(itemImage);
        }
        return result;
    }

    private static void printNumbers() throws IOException
    {
        int counter = 0;
        for (File imageFile : Configuration.MONEY_VALUE_FOLDER.listFiles()) {
            List<BufferedImage> images = toNumbers(imageFile);
            for (BufferedImage image : images) {
                File file = new File(Configuration.NUMBERS_FOLDER, counter++ + ".png");
                ImageIO.write(image, "png", file);
            }
        }
    }

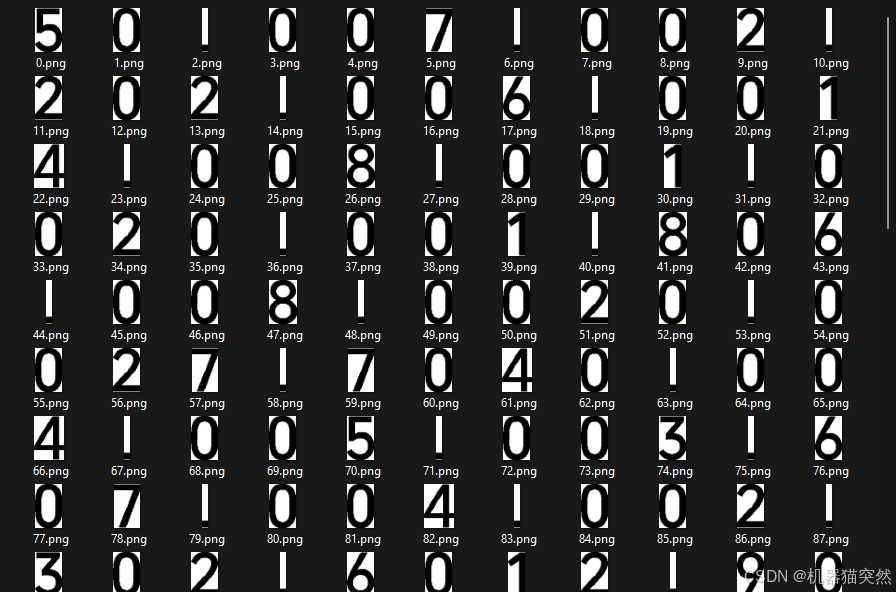

分割出来的数字如下图所示：

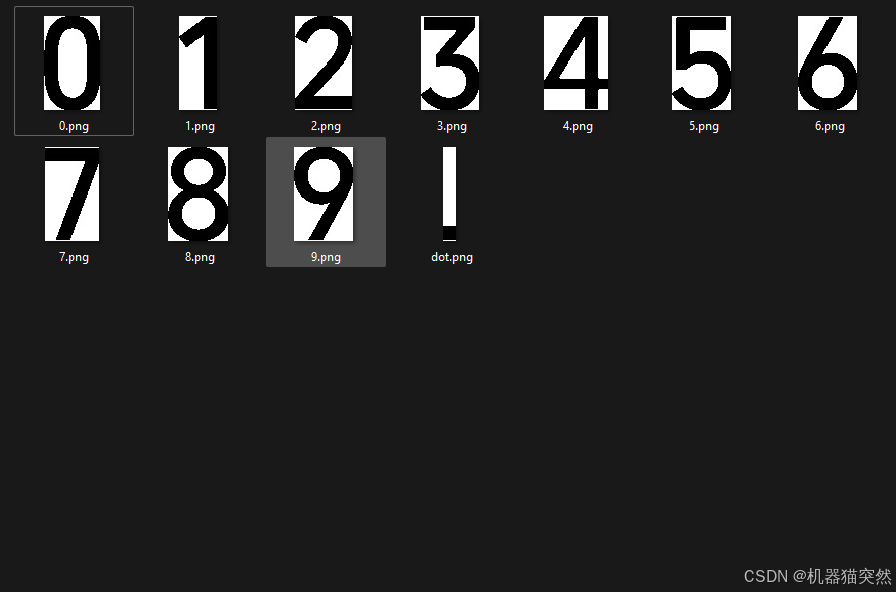

然后从这个文件夹里选0~9和.11张图片，文件名改成对应内容，例如0这张图片改成0.png，放到一个新的文件夹。

最后我们采用计算向量余弦相似度的方式来识别数字。

	public class Calculator {

    private static BufferedImage resizeImage(BufferedImage originalImage, int targetWidth, int targetHeight)
    {
        Image resultingImage = originalImage.getScaledInstance(targetWidth, targetHeight, Image.SCALE_SMOOTH);
        BufferedImage outputImage = new BufferedImage(targetWidth, targetHeight, BufferedImage.TYPE_INT_RGB);
        Graphics2D g2d = outputImage.createGraphics();
        g2d.drawImage(resultingImage, 0, 0, null);
        g2d.dispose();
        return outputImage;
    }

    public static double[] imageToVector(BufferedImage image)
    {
        image = resizeImage(image, 100, 100);
        int width = image.getWidth();
        int height = image.getHeight();
        double[] vector = new double[width * height];
        int index = 0;
        for (int y = 0; y < height; y++) {
            for (int x = 0; x < width; x++) {
                int rgb = image.getRGB(x, y);
                vector[index++] = rgb;
            }
        }
        return vector;
    }

    public static double[] imageToVector(File imageFile) throws IOException
    {
        BufferedImage image = ImageIO.read(imageFile);
        return imageToVector(image);
    }

    // 计算余弦相似度
    public static double cosineSimilarity(double[] vecA, double[] vecB)
    {
        double dotProduct = 0.0;
        for (int i = 0; i < vecA.length; i++) {
            dotProduct += vecA[i] * vecB[i];
        }

        double normA = 0.0;
        double normB = 0.0;
        for (double v : vecA) {
            normA += v * v;
        }
        for (double v : vecB) {
            normB += v * v;
        }
        normA = Math.sqrt(normA);
        normB = Math.sqrt(normB);

        if (normA == 0 || normB == 0) {
            return 0.0;
        }
        return dotProduct / (normA * normB);
    }

    public static double recognitionNumber(Map<String, double[]> vecMap, File imageFile) throws IOException
    {
        List<BufferedImage> numbers = PreProcessor.toNumbers(imageFile);
        StringBuilder result = new StringBuilder();
        for (BufferedImage number : numbers) {
            double[] vec = imageToVector(number);
            double maxS = -1;
            String value = null;
            for (Map.Entry<String, double[]> nameVec : vecMap.entrySet()) {
                double[] v = nameVec.getValue();
                double s = cosineSimilarity(v, vec);
                if (s > maxS) {
                    maxS = s;
                    value = nameVec.getKey();
                }
            }
            result.append(value);
        }
        return Double.parseDouble(result.toString());
    }

    public static void main(String[] args) throws IOException
    {
        // 加载样本数据
        Map<String, double[]> vec = new HashMap<>();
        for (File file : Configuration.SAMPLES_FOLDER.listFiles()) {
            double[] vector = imageToVector(file);
            String name = file.getName().substring(0, file.getName().lastIndexOf("."));
            if (name.equals("dot")) {
                name = ".";
            }
            vec.put(name, vector);
        }
        double all = 0d;
        for (File imageFile : Configuration.MONEY_VALUE_FOLDER.listFiles()) {
            double value = recognitionNumber(vec, imageFile);
            all += value;
            System.out.println(value);
        }
        System.out.println("all = " + all);
    }

}

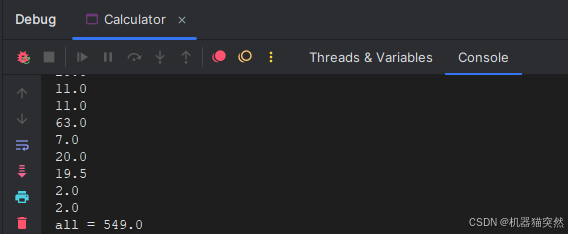

可以看到识别出每一笔付款金额和总和。最终证明这个保姆没有多报销，难道，她算少了？

所有代码已上传至gitee，项目地址：https://gitee.com/doraemon_unexpected/wechat-bill-recognition
