序言：

1. 序列化器在各个常见库中都是不可或缺的一部分，不管是通过json,probuff,还是zk 中用到的jute设计，通过阅读序列化器和反解析器，我们能从中得到怎样的工程写法和工程设计的思路，这些是值得总结的。

2. apache jute 包下的解析器和反解析器，用到的把解析分散化到个体的设计思路值得学习，具体表现有

不同的bean 的序列化和反序列化应该是要放其本身的类定义里面，通过接口往外暴露序列，反序列化方法，代码从集中式管理到分散式管理，提取出接口统一对外调用

正文：

1. 作为一个序列器和反序列化器，如果定义有dsl，通过专有的dsl生成一些固定代码，节省编写一些固定代码的时间，这种模板代码的自动生成思路在probuf 等序列化工具上面有所实现，在 jute 包下面，同样也是简单

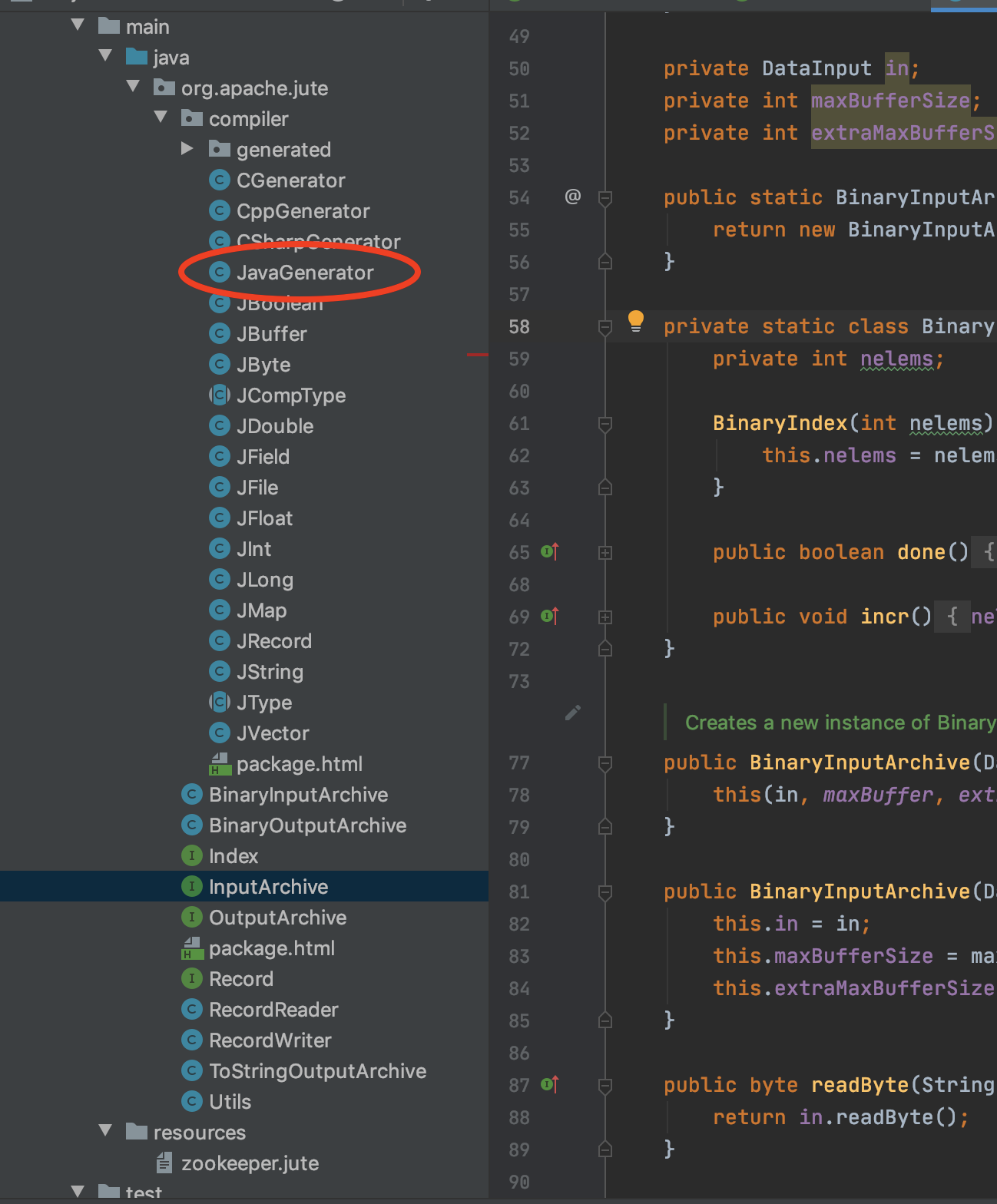

实现了这么一个简单的功能，通过查看包名

可以看到jute包自带有几种语言的代码生成器，通过读取 zookeeper.jute的dsl文件，可以生成包括java,c ,C# 等结构性代码。在这里不详讲dsl语法和生成代码的具体步骤。

2. 看到序列化器中，核心无非是两种，一个是输入，一个是输出，来看看，jute包是如何实现的。

/*
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.apache.jute;

import java.io.IOException;
import java.util.List;
import java.util.TreeMap;

/**
 * Interface that all the serializers have to implement.
 *
 */
public interface OutputArchive {

    void writeByte(byte b, String tag) throws IOException;

    void writeBool(boolean b, String tag) throws IOException;

    void writeInt(int i, String tag) throws IOException;

    void writeLong(long l, String tag) throws IOException;

    void writeFloat(float f, String tag) throws IOException;

    void writeDouble(double d, String tag) throws IOException;

    void writeString(String s, String tag) throws IOException;

    void writeBuffer(byte[] buf, String tag)
            throws IOException;

    void writeRecord(Record r, String tag) throws IOException;

    void startRecord(Record r, String tag) throws IOException;

    void endRecord(Record r, String tag) throws IOException;

    void startVector(List<?> v, String tag) throws IOException;

    void endVector(List<?> v, String tag) throws IOException;

    void startMap(TreeMap<?, ?> v, String tag) throws IOException;

    void endMap(TreeMap<?, ?> v, String tag) throws IOException;

}

OutputArchive，是序列化器的接口，是数据往外输出的接口，从接口来看，我们可以直接对外序列化一些基本类型，如bool,int ,long ,float 等等，而其中一些复合类型是通过这个Record接口来对外输出的

我们来看看这个Record接口的定义

/*
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.apache.jute;

import java.io.IOException;
import org.apache.yetus.audience.InterfaceAudience;

/**
 * Interface that is implemented by generated classes.
 */
@InterfaceAudience.Public
public interface Record {
    void serialize(OutputArchive archive, String tag) throws IOException;
    void deserialize(InputArchive archive, String tag) throws IOException;
}

可以看到Record接口中，定义了一个序列化接口serialize, 一个反序列化接口deserialize,两者需要分别传入OutputArchive,InputArchive这两个参数，这个设计是比较巧妙的，可以想象到的是，后面OutputArchive会把自身引用传进去，然后通过两者的互联调用来实现一些序列化功能，从而把集中式的代码逻辑分散，这个相互调用的设计是比较值得学习的地方。

看完接口，然后继而查看实现类，OutputArchive中一个比较常用的实现类是BinaryOutputArchive,通过byte数组来进行序列化的承载，通过OutputSteam直接进行对象到二进制数据的直接输出。

/*
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.apache.jute;

import java.io.DataOutput;
import java.io.DataOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.nio.ByteBuffer;
import java.util.List;
import java.util.TreeMap;

/**
 *
 */
public class BinaryOutputArchive implements OutputArchive {
    private ByteBuffer bb = ByteBuffer.allocate(1024);

    private DataOutput out;

    public static BinaryOutputArchive getArchive(OutputStream strm) {
        return new BinaryOutputArchive(new DataOutputStream(strm));
    }

    /**
     * Creates a new instance of BinaryOutputArchive.
     */
    public BinaryOutputArchive(DataOutput out) {
        this.out = out;
    }

    public void writeByte(byte b, String tag) throws IOException {
        out.writeByte(b);
    }

    public void writeBool(boolean b, String tag) throws IOException {
        out.writeBoolean(b);
    }

    public void writeInt(int i, String tag) throws IOException {
        out.writeInt(i);
    }

    public void writeLong(long l, String tag) throws IOException {
        out.writeLong(l);
    }

    public void writeFloat(float f, String tag) throws IOException {
        out.writeFloat(f);
    }

    public void writeDouble(double d, String tag) throws IOException {
        out.writeDouble(d);
    }

    /**
     * create our own char encoder to utf8. This is faster
     * then string.getbytes(UTF8).
     *
     * @param s the string to encode into utf8
     * @return utf8 byte sequence.
     */
    private ByteBuffer stringToByteBuffer(CharSequence s) {
        bb.clear();
        final int len = s.length();
        for (int i = 0; i < len; i++) {
            if (bb.remaining() < 3) {
                ByteBuffer n = ByteBuffer.allocate(bb.capacity() << 1);
                bb.flip();
                n.put(bb);
                bb = n;
            }
            char c = s.charAt(i);
            if (c < 0x80) {
                bb.put((byte) c);
            } else if (c < 0x800) {
                bb.put((byte) (0xc0 | (c >> 6)));
                bb.put((byte) (0x80 | (c & 0x3f)));
            } else {
                bb.put((byte) (0xe0 | (c >> 12)));
                bb.put((byte) (0x80 | ((c >> 6) & 0x3f)));
                bb.put((byte) (0x80 | (c & 0x3f)));
            }
        }
        bb.flip();
        return bb;
    }

    public void writeString(String s, String tag) throws IOException {
        if (s == null) {
            writeInt(-1, "len");
            return;
        }
        ByteBuffer bb = stringToByteBuffer(s);
        writeInt(bb.remaining(), "len");
        out.write(bb.array(), bb.position(), bb.limit());
    }

    public void writeBuffer(byte[] barr, String tag)
            throws IOException {
        if (barr == null) {
            out.writeInt(-1);
            return;
        }
        out.writeInt(barr.length);
        out.write(barr);
    }

    public void writeRecord(Record r, String tag) throws IOException {
        r.serialize(this, tag);
    }

    public void startRecord(Record r, String tag) throws IOException {
    }

    public void endRecord(Record r, String tag) throws IOException {
    }

    public void startVector(List<?> v, String tag) throws IOException {
        if (v == null) {
            writeInt(-1, tag);
            return;
        }
        writeInt(v.size(), tag);
    }

    public void endVector(List<?> v, String tag) throws IOException {
    }

    public void startMap(TreeMap<?, ?> v, String tag) throws IOException {
        writeInt(v.size(), tag);
    }

    public void endMap(TreeMap<?, ?> v, String tag) throws IOException {
    }

}

可以看到BinaryOutputArchive代码还是相当简短的，实际上复杂对象的序列化逻辑都分散到各个bean实体上面去了，通过各自继承Record接口来对外提供序列化方法。

首先看到其构造器，

   public static BinaryOutputArchive getArchive(OutputStream strm) {
        return new BinaryOutputArchive(new DataOutputStream(strm));
    }

把OutputStream用DataOutputStream做包装，来看看这个DataOutputStream的解释

package java.io;

/**
 * A data output stream lets an application write primitive Java data
 * types to an output stream in a portable way. An application can
 * then use a data input stream to read the data back in.
 *
 * @author  unascribed
 * @see     java.io.DataInputStream
 * @since   1.0
 */
public class DataOutputStream extends FilterOutputStream implements DataOutput {
    /**
     * The number of bytes written to the data output stream so far.
     * If this counter overflows, it will be wrapped to Integer.MAX_VALUE.
     */
    protected int written;

// 略
}

可以看到这个DataOutputStream是java自带对象序列化器，它有局限，就是它只能序列化一些基本对象，通过

DataInputStream 就能反解析回来DataOutputStream对外输出的数据。从这里可以看到，jute是依托于java本身带有的序列化器来实现复杂bean的序列化的，性能也是不低的，比起json这类需要通过构建dst树的
解析器而言，性能应该要高不少的。

BinaryOutputArchive 的一些基本类型的数据输出就不提了，是依托于DataOutputStream而言的，来看看复杂bean是如何对外输出的，其中核心方法是

  public void writeRecord(Record r, String tag) throws IOException {
        r.serialize(this, tag);
    }

    public void startRecord(Record r, String tag) throws IOException {
    }

    public void endRecord(Record r, String tag) throws IOException {
    }

可以看到这里的 writeRecord ，是委托给这个Record接口来实现的，Record接口中又把自身引用传入（自身引用是OutputArchive这个接口的定义),然后我们看看是谁在调用这个writeRecord方法，又是怎么调用的。

这里随便找个例子

// 略
    protected OutputArchive leaderOs;
    /** the protocol version of the leader */
 bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
        leaderOs = BinaryOutputArchive.getArchive(bufferedOutput);

// 略

    void writePacketNow(QuorumPacket pp, boolean flush) throws IOException {
        synchronized (leaderOs) {
            if (pp != null) {
                messageTracker.trackSent(pp.getType());
                leaderOs.writeRecord(pp, "packet");
            }
            if (flush) {
                bufferedOutput.flush();
            }
        }
    }

这里就很明显了，通过初始化这个BinaryOutputArchive后，直接调用其writeRecord方法，对外序列化对象到socker处，然后这个QuorumPacket是通过 zookeeper.jute dsl文件代码生成的模板对象，我们可以简单看下

其生成出来的定义:

// File generated by hadoop record compiler. Do not edit.
/**
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements.  See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership.  The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License.  You may obtain a copy of the License at
*
*     http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/

package org.apache.zookeeper.server.quorum;

import org.apache.jute.*;
import org.apache.jute.Record; // JDK14 needs explicit import due to clash with java.lang.Record
import org.apache.yetus.audience.InterfaceAudience;
@InterfaceAudience.Public
public class QuorumPacket implements Record {
  private int type;
  private long zxid;
  private byte[] data;
  private java.util.List<org.apache.zookeeper.data.Id> authinfo;
  public QuorumPacket() {
  }
  public QuorumPacket(
        int type,
        long zxid,
        byte[] data,
        java.util.List<org.apache.zookeeper.data.Id> authinfo) {
    this.type=type;
    this.zxid=zxid;
    this.data=data;
    this.authinfo=authinfo;
  }
  public int getType() {
    return type;
  }
  public void setType(int m_) {
    type=m_;
  }
  public long getZxid() {
    return zxid;
  }
  public void setZxid(long m_) {
    zxid=m_;
  }
  public byte[] getData() {
    return data;
  }
  public void setData(byte[] m_) {
    data=m_;
  }
  public java.util.List<org.apache.zookeeper.data.Id> getAuthinfo() {
    return authinfo;
  }
  public void setAuthinfo(java.util.List<org.apache.zookeeper.data.Id> m_) {
    authinfo=m_;
  }
  public void serialize(OutputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(this,tag);
    a_.writeInt(type,"type");
    a_.writeLong(zxid,"zxid");
    a_.writeBuffer(data,"data");
    {
      a_.startVector(authinfo,"authinfo");
      if (authinfo!= null) {          int len1 = authinfo.size();
          for(int vidx1 = 0; vidx1<len1; vidx1++) {
            org.apache.zookeeper.data.Id e1 = (org.apache.zookeeper.data.Id) authinfo.get(vidx1);
    a_.writeRecord(e1,"e1");
          }
      }
      a_.endVector(authinfo,"authinfo");
    }
    a_.endRecord(this,tag);
  }
  public void deserialize(InputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(tag);
    type=a_.readInt("type");
    zxid=a_.readLong("zxid");
    data=a_.readBuffer("data");
    {
      Index vidx1 = a_.startVector("authinfo");
      if (vidx1!= null) {          authinfo=new java.util.ArrayList<org.apache.zookeeper.data.Id>();
          for (; !vidx1.done(); vidx1.incr()) {
    org.apache.zookeeper.data.Id e1;
    e1= new org.apache.zookeeper.data.Id();
    a_.readRecord(e1,"e1");
            authinfo.add(e1);
          }
      }
    a_.endVector("authinfo");
    }
    a_.endRecord(tag);
}
  public String toString() {
    try {
      java.io.ByteArrayOutputStream s =
        new java.io.ByteArrayOutputStream();
      ToStringOutputArchive a_ =
        new ToStringOutputArchive(s);
      a_.startRecord(this,"");
    a_.writeInt(type,"type");
    a_.writeLong(zxid,"zxid");
    a_.writeBuffer(data,"data");
    {
      a_.startVector(authinfo,"authinfo");
      if (authinfo!= null) {          int len1 = authinfo.size();
          for(int vidx1 = 0; vidx1<len1; vidx1++) {
            org.apache.zookeeper.data.Id e1 = (org.apache.zookeeper.data.Id) authinfo.get(vidx1);
    a_.writeRecord(e1,"e1");
          }
      }
      a_.endVector(authinfo,"authinfo");
    }
      a_.endRecord(this,"");
      return new String(s.toByteArray(), "UTF-8");
    } catch (Throwable ex) {
      ex.printStackTrace();
    }
    return "ERROR";
  }
  public void write(java.io.DataOutput out) throws java.io.IOException {
    BinaryOutputArchive archive = new BinaryOutputArchive(out);
    serialize(archive, "");
  }
  public void readFields(java.io.DataInput in) throws java.io.IOException {
    BinaryInputArchive archive = new BinaryInputArchive(in);
    deserialize(archive, "");
  }
  public int compareTo (Object peer_) throws ClassCastException {
    throw new UnsupportedOperationException("comparing QuorumPacket is unimplemented");
  }
  public boolean equals(Object peer_) {
    if (!(peer_ instanceof QuorumPacket)) {
      return false;
    }
    if (peer_ == this) {
      return true;
    }
    QuorumPacket peer = (QuorumPacket) peer_;
    boolean ret = false;
    ret = (type==peer.type);
    if (!ret) return ret;
    ret = (zxid==peer.zxid);
    if (!ret) return ret;
    ret = java.util.Arrays.equals(data,peer.data);
    if (!ret) return ret;
    ret = authinfo.equals(peer.authinfo);
    if (!ret) return ret;
     return ret;
  }
  public int hashCode() {
    int result = 17;
    int ret;
    ret = (int)type;
    result = 37*result + ret;
    ret = (int) (zxid^(zxid>>>32));
    result = 37*result + ret;
    ret = java.util.Arrays.hashCode(data);
    result = 37*result + ret;
    ret = authinfo.hashCode();
    result = 37*result + ret;
    return result;
  }
  public static String signature() {
    return "LQuorumPacket(ilB[LId(ss)])";
  }
}

通过前面的分析，我们知道了，OutputArchive其实是委托到具体实体类实现的Record接口，调用其Serialize接口，可以看到这个具体bean的Serialize接口的具体实现,

public void serialize(OutputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(this,tag);
    a_.writeInt(type,"type");
    a_.writeLong(zxid,"zxid");
    a_.writeBuffer(data,"data");
    {
      a_.startVector(authinfo,"authinfo");
      if (authinfo!= null) {          int len1 = authinfo.size();
          for(int vidx1 = 0; vidx1<len1; vidx1++) {
            org.apache.zookeeper.data.Id e1 = (org.apache.zookeeper.data.Id) authinfo.get(vidx1);
    a_.writeRecord(e1,"e1");
          }
      }
      a_.endVector(authinfo,"authinfo");
    }
    a_.endRecord(this,tag);
  }

 public void deserialize(InputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(tag);
    type=a_.readInt("type");
    zxid=a_.readLong("zxid");
    data=a_.readBuffer("data");
    {
      Index vidx1 = a_.startVector("authinfo");
      if (vidx1!= null) {          authinfo=new java.util.ArrayList<org.apache.zookeeper.data.Id>();
          for (; !vidx1.done(); vidx1.incr()) {
    org.apache.zookeeper.data.Id e1;
    e1= new org.apache.zookeeper.data.Id();
    a_.readRecord(e1,"e1");
            authinfo.add(e1);
          }
      }
    a_.endVector("authinfo");
    }
    a_.endRecord(tag);
}

可以看到它的序列化步骤是，直接调用外部传进来的OutputArchive接口，也就是前面提到的BinaryOutputArchive实现，可以输出一些基本类型的数据，包括长度，byte[]等等，这里比较特别的是，由于这里有

数组存储的内容，需要输出一些数组的信息，调用了startVector 这个方法，这个在BinaryOutputArchive的实现也是比较简单的

 public void startVector(List<?> v, String tag) throws IOException {
        if (v == null) {
            writeInt(-1, tag);
            return;
        }
        writeInt(v.size(), tag);
    }

就是输出一些数组的长度信息，方便后面反序列化回来，然后看到这个authinfo list里面的内容是org.apache.zookeeper.data.Id,它同样是一个复合对象，可以看到它的结构如下，

@InterfaceAudience.Public
public class Id implements Record {
  private String scheme;
  private String id;
  public Id() {
  }
  public Id(
        String scheme,
        String id) {
    this.scheme=scheme;
    this.id=id;
  }
  public String getScheme() {
    return scheme;
  }
  public void setScheme(String m_) {
    scheme=m_;
  }
  public String getId() {
    return id;
  }
  public void setId(String m_) {
    id=m_;
  }
  public void serialize(OutputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(this,tag);
    a_.writeString(scheme,"scheme");
    a_.writeString(id,"id");
    a_.endRecord(this,tag);
  }
  public void deserialize(InputArchive a_, String tag) throws java.io.IOException {
    a_.startRecord(tag);
    scheme=a_.readString("scheme");
    id=a_.readString("id");
    a_.endRecord(tag);
}
// 不重要略
}

可以看到Id这个类同样是通过定义自动生成的模板bean代码，同样是复合对象继承了Record接口，然后我们需要序列化这个复合对象时候，我们同样调用了OutputArchive.

void writeRecord(Record r, String tag) throws IOException; 这个方式来委托给Id来进行其本身的序列化工作，通过这种相互调用相互委托的方式实现了序列化的流程。可以看到反序列化的流程其实也在其本身，

deserialize 这个方法，也是比较清晰的。

类似的，解序列化的流程的流程也是比较类似的，在这里不详讲了。其中list的反序列流程工作中依托了Index这个接口，通过

/**
 * Interface that acts as an iterator for deserializing maps.
 * The deserializer returns an instance that the record uses to
 * read vectors and maps. An example of usage is as follows:
 *
 * <code>
 * Index idx = startVector(...);
 * while (!idx.done()) {
 *   .... // read element of a vector
 *   idx.incr();
 * }
 * </code>
 *
 */
public interface Index {
    boolean done();
    void incr();
}

通过这个index来反序列list和map这两个可迭代的容器。

总结：

zookeeper 的序列化和反序列器本质上依托的是java 字节流映射到基本类型的工具DataOutputStream,然后 apache jute包通过巧妙的设计，将复杂对象也能单独序列化，从而完成了整个序列化器的工作。其中的引用相互调用的设计方式和理念是值得学习的。

设计思想，任务代码分散

完成具体工作的类分散开，委托给集中管理的管理者，管理者有一些简单方法可共用，但是复杂工作还是具体委托到分散的子类中，然后通过接口集中管理集中控制。

静心不浮躁

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
Zookeeper源码解析 -- 序列化和解序列化器

序言：1. 序列化器在各个常见库中都是不可或缺的一部分，不管是通过json,probuff,还是zk 中用到的jute设计，通过阅读序列化器和反解析器，我们能从中得到怎样的工程写法和工程设计的思路，这些是值得总结的。2. apache jute 包下的解析器和反解析器，用到的把解析分散化到个体的设计思路值得学习，具体表现有不同的bean 的序列化和反序列化应该是要放其本身的类定义里面，通过接口往外暴露序列，反序列化方法，代码从集中式管理到分散式管理，提取出接口统一对外调用...
复制链接

扫一扫
