debug nccl 02 —— 环境搭建及初步调试

1, 搭建nccl 调试环境

下载 nccl 源代码

 git clone --recursive https://github.com/NVIDIA/nccl.git

只debug host代码，故将设备代码的编译标志改成 -O3

(base) hipper@hipper-G21:~/let_debug_nccl/nccl$ git diff
diff --git a/makefiles/common.mk b/makefiles/common.mk
index a037cf3..ee2aa8e 100644
--- a/makefiles/common.mk
+++ b/makefiles/common.mk
@@ -82,7 +82,8 @@ ifeq ($(DEBUG), 0)
 NVCUFLAGS += -O3
 CXXFLAGS  += -O3 -g
 else
-NVCUFLAGS += -O0 -G -g
+#NVCUFLAGS += -O0 -G -g
+NVCUFLAGS += -O3
 CXXFLAGS  += -O0 -g -ggdb3
 endif

修改后变成如下：

nccl$ vim makefiles/common.mk

ifeq ($(DEBUG), 0)
NVCUFLAGS += -O3
CXXFLAGS  += -O3 -g
else
#NVCUFLAGS += -O0 -G -g
NVCUFLAGS += -O3
CXXFLAGS  += -O0 -g -ggdb3
endif

构建 nccl shared library：

机器上是几张sm_85 的卡，故：

$ cd nccl
$ make -j src.build  DEBUG=1       NVCC_GENCODE="-gencode=arch=compute_80,code=sm_80"

到此即可，不需要安装nccl，直接过来使用即可；

2, 创建调试APP

在nccl所在的目录中创建app文件夹：

$ mkdir app

$ cd app

$ vim sp_md_nccl.cpp

$ vim Makefile

sp_md_nccl.cpp:

#include <stdlib.h>
#include <stdio.h>
#include "cuda_runtime.h"
#include "nccl.h"
#include <time.h>
#include <sys/time.h>

#define CUDACHECK(cmd) do {                         \
  cudaError_t err = cmd;                            \
  if (err != cudaSuccess) {                         \
    printf("Failed: Cuda error %s:%d '%s'\n",       \
        __FILE__,__LINE__,cudaGetErrorString(err)); \
    exit(EXIT_FAILURE);                             \
  }                                                 \
} while(0)

#define NCCLCHECK(cmd) do {                         \
  ncclResult_t res = cmd;                           \
  if (res != ncclSuccess) {                         \
    printf("Failed, NCCL error %s:%d '%s'\n",       \
        __FILE__,__LINE__,ncclGetErrorString(res)); \
    exit(EXIT_FAILURE);                             \
  }                                                 \
} while(0)

void  get_seed(long long &seed)
{
  struct timeval tv;
  gettimeofday(&tv, NULL);
  seed = (long long)tv.tv_sec * 1000*1000 + tv.tv_usec;//only second and usecond;
  printf("useconds:%lld\n", seed);
}

void  init_vector(float* A, int n)
{
  long long seed = 0;

  get_seed(seed);
  srand(seed);
  for(int i=0; i<n; i++)
  {
    A[i] = (rand()%100)/100.0f;
  }
}

void print_vector(float* A, float size)
{
  for(int i=0; i<size; i++)
    printf("%.2f ", A[i]);

  printf("\n");
}

void vector_add_vector(float* sum, float* A, int n)
{
  for(int i=0; i<n; i++)
  {
    sum[i] += A[i];
  }
}

int main(int argc, char* argv[])
{
  ncclComm_t comms[4];

  printf("ncclComm_t is a pointer type, sizeof(ncclComm_t)=%lu\n", sizeof(ncclComm_t));
  //managing 4 devices
  //int nDev = 4;
  int nDev = 2;
  //int size = 32*1024*1024;
  int size = 16*16;
  int devs[4] = { 0, 1, 2, 3 };

  float** sendbuff_host = (float**)malloc(nDev * sizeof(float*));
  float** recvbuff_host = (float**)malloc(nDev * sizeof(float*));

  for(int dev=0; dev<nDev; dev++)
  {
    sendbuff_host[dev] = (float*)malloc(size*sizeof(float));
    recvbuff_host[dev] = (float*)malloc(size*sizeof(float));
    init_vector(sendbuff_host[dev], size);
    init_vector(recvbuff_host[dev], size);
  }

  //sigma(sendbuff_host[i]); i = 0, 1, ..., nDev-1
  float* result = (float*)malloc(size*sizeof(float));
  memset(result, 0, size*sizeof(float));

  for(int dev=0; dev<nDev; dev++)
  {
    vector_add_vector(result, sendbuff_host[dev], size);

    printf("sendbuff_host[%d]=\n", dev);
    print_vector(sendbuff_host[dev], size);
  }
  printf("result=\n");
  print_vector(result, size);

  //allocating and initializing device buffers
  float** sendbuff = (float**)malloc(nDev * sizeof(float*));
  float** recvbuff = (float**)malloc(nDev * sizeof(float*));
  cudaStream_t* s = (cudaStream_t*)malloc(sizeof(cudaStream_t)*nDev);

  for (int i = 0; i < nDev; ++i) {
    CUDACHECK(cudaSetDevice(i));
    CUDACHECK(cudaMalloc(sendbuff + i, size * sizeof(float)));
    CUDACHECK(cudaMalloc(recvbuff + i, size * sizeof(float)));
    CUDACHECK(cudaMemcpy(sendbuff[i], sendbuff_host[i], size*sizeof(float), cudaMemcpyHostToDevice));
    CUDACHECK(cudaMemcpy(recvbuff[i], recvbuff_host[i], size*sizeof(float), cudaMemcpyHostToDevice));
    CUDACHECK(cudaStreamCreate(s+i));
  }

  //initializing NCCL
  NCCLCHECK(ncclCommInitAll(comms, nDev, devs));

  //calling NCCL communication API. Group API is required when using
  //multiple devices per thread
  NCCLCHECK(ncclGroupStart());
  printf("blocked ncclAllReduce will be calleded\n");
  fflush(stdout);

  for (int i = 0; i < nDev; ++i)
    NCCLCHECK(ncclAllReduce((const void*)sendbuff[i], (void*)recvbuff[i], size, ncclFloat, ncclSum, comms[i], s[i]));

  printf("blocked ncclAllReduce is calleded nDev =%d\n", nDev);
  fflush(stdout);
  NCCLCHECK(ncclGroupEnd());

  //synchronizing on CUDA streams to wait for completion of NCCL operation
  for (int i = 0; i < nDev; ++i) {
    CUDACHECK(cudaSetDevice(i));
    CUDACHECK(cudaStreamSynchronize(s[i]));
  }

  for (int i = 0; i < nDev; ++i) {
    CUDACHECK(cudaSetDevice(i));
    CUDACHECK(cudaMemcpy(recvbuff_host[i], recvbuff[i], size*sizeof(float), cudaMemcpyDeviceToHost));
  }

  for (int i = 0; i < nDev; ++i) {
    CUDACHECK(cudaSetDevice(i));
    CUDACHECK(cudaStreamSynchronize(s[i]));
  }

  for(int i=0; i<nDev; i++) {
    printf("recvbuff_dev2host[%d]=\n", i);
    print_vector(recvbuff_host[i], size);
  }

  //free device buffers
  for (int i = 0; i < nDev; ++i) {
    CUDACHECK(cudaSetDevice(i));
    CUDACHECK(cudaFree(sendbuff[i]));
    CUDACHECK(cudaFree(recvbuff[i]));
  }

  //finalizing NCCL
  for(int i = 0; i < nDev; ++i)
      ncclCommDestroy(comms[i]);

  printf("Success \n");
  return 0;
}

Makefile:

INC := -I /usr/local/cuda/include -I ../nccl/build/include
LD_FLAGS := -L ../nccl/build/lib -lnccl -L /usr/local/cuda/lib64 -lcudart

EXE := singleProc_multiDev_nccl

all: $(EXE)

%: %.cpp
	g++ -g -ggdb3  $<  -o  $@  $(INC)  $(LD_FLAGS)

.PHONY: clean
clean:
	-rm -rf $(EXE)

export LD_LIBRARY_PATH=../nccl/build/lib

3, 开始调试

$ cuda-gdb sp_md_nccl
 (cuda-gdb) start
 (cuda-gdb) rbreak doLauches
 (cuda-gdb) c
 (cuda-gdb) p ncclGroupCommHead->tasks.collQueue.head->op

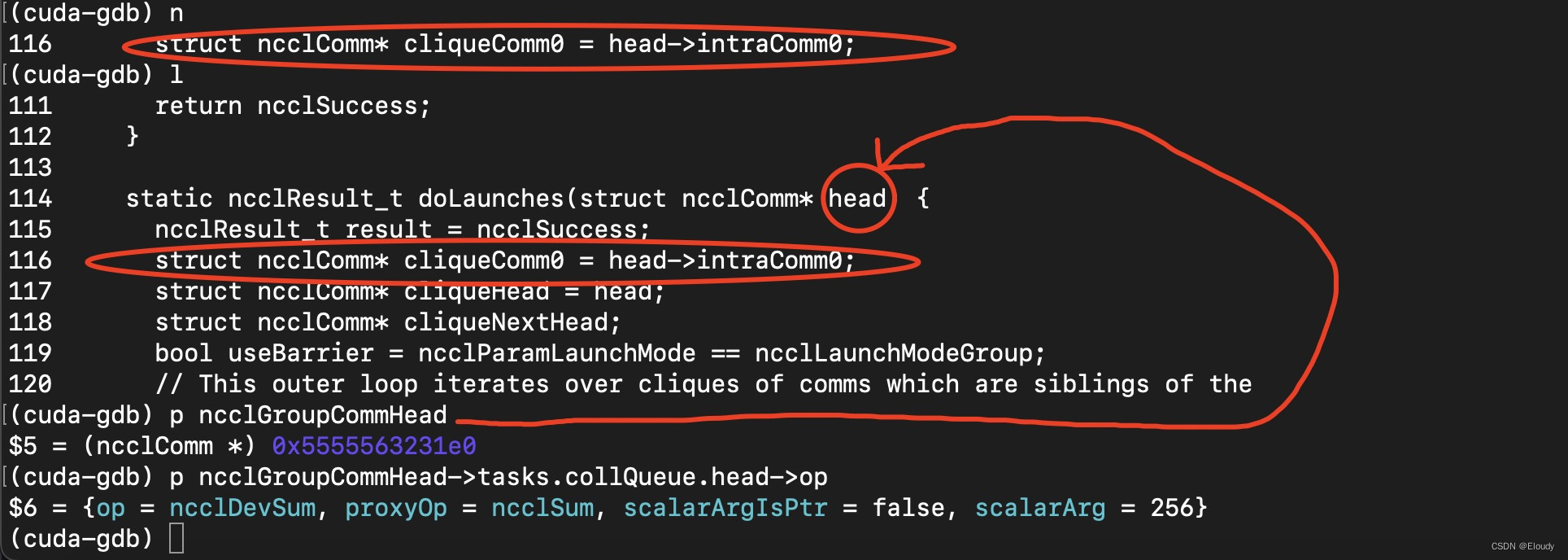

初步实现了可debug的效果：

现在想要搞清楚在程序调用 ncclAllReduce(..., ncclSum,  ... ) 后，是如何映射到 cudaLaunchKernel调用到了正确的 cuda kernel 函数的。

在doLaunches函数中，作如下debug动作：

查看 doLaunches(ncclComm*) 的函数参数，即，gropu.cc中的变量：ncclGroupCommHead的某个成员的成员的值：op

其结果如下：

(cuda-gdb) p ncclGroupCommHead
$5 = (ncclComm *) 0x5555563231e0
(cuda-gdb) p ncclGroupCommHead->tasks.collQueue.head->op
$6 = {op = ncclDevSum, proxyOp = ncclSum, scalarArgIsPtr = false, scalarArg = 256}
(cuda-gdb)

不过这依然只停留在了 ncclSum的这个枚举类型上，还没锁定对应的cudaKernel。

接下来继续努力 ...
