简介

说明

本文用示例介绍分布式事务框架Seata的AT模式的用法。

Seata是阿里的分布式事务框架，支持SpringCloud、Dubbo，本文使用SpringCoud进行展示。

官方demo

总网址：https://github.com/seata/seata-samples
本文参考网址：https://github.com/seata/seata-samples/tree/master/springcloud-eureka-feign-mybatis-seata综述

本文测试Seata AT模式。

业务场景

创建订单时，order微服务先预生成订单（订单状态为创建中），再调用storage的feign来减库存，再调用account的feign来减账户余额，最后将订单状态改为已完成。

所用技术栈

  1. spring-cloud-alibaba-seata:2.1.0.RELEASE
  2. seata-all:1.4.0
  3. springboot:2.3.7.RELEASE
  4. springcloud:Hoxton.SR9
  5. mysql
  6. mybatis-plus
  7. eureka
  8. gateway

配置方式

    seata-server：file.conf、registry.conf
    微服务：file.conf、registry.conf

已知问题：所有的feign都被seata代理，必须加@GlobalTransactional。否则报错：“xid must not be blank”

此问题在新版中已经解决。见：

seata-server安装/配置

下载seata服务

https://github.com/seata/seata/releases

配置

本处使用mysql、eureka，未使用配置中心。

修改的文件：seata-server-1.4.0\seata\conf\     file.cof、registry.conf

file.conf   //配置事务的存储方式。改动点已经加粗。

## transaction log store, only used in seata-server
store {
  ## store mode: file、db、redis
  # mode = "file"
  mode = "db" #将事务信息存到数据库中。配置为"db"时，只有“db”节点下的配置有效，不用管“file”

  ## file store property
  file {
    ## store location dir
    dir = "sessionStore"
    # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
    maxBranchSessionSize = 16384
    # globe session size , if exceeded throws exceptions
    maxGlobalSessionSize = 512
    # file buffer size , if exceeded allocate new buffer
    fileWriteBufferCacheSize = 16384
    # when recover batch read size
    sessionReloadReadSize = 100
    # async, sync
    flushDiskMode = async
  }

  ## database store property
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
    datasource = "druid"
    ## mysql/oracle/postgresql/h2/oceanbase etc.
    ## dbType = "mysql"
    ## driverClassName = "com.mysql.jdbc.Driver"
    ## url = "jdbc:mysql://127.0.0.1:3306/seata"
    ## user = "mysql"
    ## password = "mysql"
    driverClassName = "com.mysql.cj.jdbc.Driver" #使用mysql8.x驱动
    url: "jdbc:mysql://127.0.0.1:3306/demo?useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8" #指定服务器地址及数据库等
    user = "xxx"
    password = "xxx"
    minConn = 5
    maxConn = 100
    globalTable = "global_table"
    branchTable = "branch_table"
    lockTable = "lock_table"
    queryLimit = 100
    maxWait = 5000
  }

  ## redis store property
  redis {
    host = "127.0.0.1"
    port = "6379"
    password = ""
    database = "0"
    minConn = 1
    maxConn = 10
    maxTotal = 100
    queryLimit = 100
  }

}

registry.conf  //配置注册中心。改动点已经加粗。

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  #type = "file"
  type = "eureka"

  loadBalance = "RandomLoadBalance"
  loadBalanceVirtualNodes = 10

  nacos {
    application = "seata-server"
    serverAddr = "127.0.0.1:8848"
    group = "SEATA_GROUP"
    namespace = ""
    cluster = "default"
    username = ""
    password = ""
  }
  eureka {
    # serviceUrl = "http://localhost:8761/eureka"
    serviceUrl = "http://localhost:7001/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = 0
    password = ""
    cluster = "default"
    timeout = 0
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    sessionTimeout = 6000
    connectTimeout = 2000
    username = ""
    password = ""
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "127.0.0.1:8848"
    namespace = ""
    group = "SEATA_GROUP"
    username = ""
    password = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    appId = "seata-server"
    apolloMeta = "http://192.168.1.204:8801"
    namespace = "application"
    apolloAccesskeySecret = ""
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    sessionTimeout = 6000
    connectTimeout = 2000
    username = ""
    password = ""
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

建库建表

创建数据库

创建名为demo的数据库。

seata服务事务表

这几张表用于seata-server存储事务。在上边file.conf指定的数据库里创建如下表：

//有人说这些语句在seata-server-xxx/conf/db_store.sql里。但我没找到，可能新的seata-server已经没有了。

-- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

业务表

CREATE TABLE `t_order` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(11) DEFAULT NULL COMMENT '用户id',
  `product_id` bigint(11) DEFAULT NULL COMMENT '产品id',
  `count` int(11) DEFAULT NULL COMMENT '数量',
  `money` decimal(11,0) DEFAULT NULL COMMENT '金额',
  `create_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP(0),
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

ALTER TABLE `t_order` ADD COLUMN `status` int(1) DEFAULT NULL COMMENT '订单状态：0：创建中；1：已完结' AFTER `money` ;

踩坑：其他教程表名是"order"，我用mybatis-plus时，会报错。因为，它插入数据时语句是：INSERT INTO order ...，表名没有用``包裹，而order是mysql关键字，所以报错。

CREATE TABLE `t_account` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `user_id` bigint(11) DEFAULT NULL COMMENT '用户id',
  `total` decimal(10,0) DEFAULT NULL COMMENT '总额度',
  `used` decimal(10,0) DEFAULT NULL COMMENT '已用余额',
  `residue` decimal(10,0) DEFAULT '0' COMMENT '剩余可用额度',
  `create_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP(0),
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

# INSERT INTO `seat-account`.`account` (`id`, `user_id`, `total`, `used`, `residue`) VALUES ('1', '1', '1000', '0', '100');
INSERT INTO `demo`.`t_account` (`id`, `user_id`, `total`, `used`, `residue`) VALUES ('1', '1', '1000', '0', '1000');
CREATE TABLE `t_storage` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `product_id` bigint(11) DEFAULT NULL COMMENT '产品id',
  `total` int(11) DEFAULT NULL COMMENT '总库存',
  `used` int(11) DEFAULT NULL COMMENT '已用库存',
  `residue` int(11) DEFAULT NULL COMMENT '剩余库存',
  `create_time` datetime(0) NULL DEFAULT NULL,
  `update_time` datetime(0) NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP(0),
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;

# INSERT INTO `seat-storage`.`storage` (`id`, `product_id`, `total`, `used`, `residue`) VALUES ('1', '1', '100', '0', '100');
INSERT INTO `demo`.`t_storage` (`id`, `product_id`, `total`, `used`, `residue`) VALUES ('1', '1', '100', '0', '100');

业务事务表

每个被调用的服务以及服务的调用方都需要用到 "undo_log"表用于事务的回滚。

项目中一般把各个业务微服务单独用数据库，每个数据库下边都创建undo_log。但本处，我把各个业务微服务共用一个数据库，每一个业务微服务都创建一个undo_log。

CREATE TABLE `t_undo_log_order` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
CREATE TABLE `t_undo_log_storage` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
CREATE TABLE `t_undo_log_account` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

业务微服务配置Seata

共用配置

1.启动类的配置

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)

seata 需要使用代理的 DataSource, 因此不使用 DataSourceAutoConfiguration

2.配置Seata事务组

application.yml

spring:
  cloud:
      alibaba:
        seata:
          tx-service-group: my_tx_group

此项对应业务微服务file.conf的service节点的vgroupMapping.xxx = "default" 的xxx位置。对于本处来说，其必须配置为：vgroupMapping.my_tx_group= "default"

3.配置使用Seata对数据源进行代理

package com.example.base.config;

import com.alibaba.druid.pool.DruidDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

import javax.sql.DataSource;

@Slf4j
@Configuration
public class DataSourceProxyConfig {
    private DataSourceProxy dataSourceProxy;

    @Bean(name = "druidDataSource")
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource() {
        DruidDataSource druidDataSource = new DruidDataSource();
        log.info("获取dataSource");
        return druidDataSource;
    }

    @Primary
    @Bean("dataSource")
    public DataSourceProxy dataSource(@Qualifier(value = "druidDataSource") DataSource druidDataSource) {
        log.info("提供dataSource（代理过）");
        dataSourceProxy = new DataSourceProxy(druidDataSource);
        return dataSourceProxy;
    }

//    下边这些不能放开
//    @Value("spring.application.name")
//    private String applicationName;
//    @Bean
//    public GlobalTransactionScanner globalTransactionScanner() {
//        log.info("配置seata");
//        return new GlobalTransactionScanner(applicationName, "my_tx_group");
//    }
}

各自配置

需要配置file.conf和registry.conf。注意：这两个配置文件跟seata-server的配置不同。

order

file.conf配置如下：（重点已经加粗）

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  # the client batch send request enable
  enableClientBatchSendRequest = true
  #thread factory for netty
  threadFactory {
    bossThreadPrefix = "NettyBoss"
    workerThreadPrefix = "NettyServerNIOWorker"
    serverExecutorThread-prefix = "NettyServerBizHandler"
    shareBossWorker = false
    clientSelectorThreadPrefix = "NettyClientSelector"
    clientSelectorThreadSize = 1
    clientWorkerThreadPrefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    bossThreadSize = 1
    #auto default pin or 8
    workerThreadSize = "default"
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}
service {
  #transaction service group mapping

  # 微服务的application.yml的spring.cloud.alibaba.seata.tx-service-group也要设置为“my_tx_group”
  vgroupMapping.my_tx_group = "default"
  #only support when registry.type=file, please don't set multiple addresses
  default.grouplist = "127.0.0.1:8091"
  #degrade, current not support
  enableDegrade = false
  #disable seata
  disableGlobalTransaction = false
}

client {
  rm {
    asyncCommitBufferLimit = 10000
    lock {
      retryInterval = 10
      retryTimes = 30
      retryPolicyBranchRollbackOnConflict = true
    }
    reportRetryCount = 5
    tableMetaCheckEnable = false
    reportSuccessEnable = false
  }
  tm {
    commitRetryCount = 5
    rollbackRetryCount = 5
  }
  undo {
    dataValidation = true
    logSerialization = "jackson"

    # 这个表对应于上边“二、建库建表”=> “业务事务表 ”的表名
    logTable = "t_undo_log_order"
  }
  log {
    exceptionRate = 100
  }
}

 registry.conf 配置如下：（重点已经加粗）

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "eureka"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:7001/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
    password = ""
    cluster = "default"
    timeout = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

# 本处没用到配置中心，放着不用管它。

config {
  # file、nacos 、apollo、zk、consul、etcd3、springCloudConfig
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    group = "SEATA_GROUP"
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
    namespace = "application"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

storage

file.conf

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  # the client batch send request enable
  enableClientBatchSendRequest = true
  #thread factory for netty
  threadFactory {
    bossThreadPrefix = "NettyBoss"
    workerThreadPrefix = "NettyServerNIOWorker"
    serverExecutorThread-prefix = "NettyServerBizHandler"
    shareBossWorker = false
    clientSelectorThreadPrefix = "NettyClientSelector"
    clientSelectorThreadSize = 1
    clientWorkerThreadPrefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    bossThreadSize = 1
    #auto default pin or 8
    workerThreadSize = "default"
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}
service {
  #transaction service group mapping
  vgroupMapping.my_tx_group = "default"
  #only support when registry.type=file, please don't set multiple addresses
  default.grouplist = "127.0.0.1:8091"
  #degrade, current not support
  enableDegrade = false
  #disable seata
  disableGlobalTransaction = false
}

client {
  rm {
    asyncCommitBufferLimit = 10000
    lock {
      retryInterval = 10
      retryTimes = 30
      retryPolicyBranchRollbackOnConflict = true
    }
    reportRetryCount = 5
    tableMetaCheckEnable = false
    reportSuccessEnable = false
  }
  tm {
    commitRetryCount = 5
    rollbackRetryCount = 5
  }
  undo {
    dataValidation = true
    logSerialization = "jackson"
    logTable = "t_undo_log_storage"
  }
  log {
    exceptionRate = 100
  }
}

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "eureka"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:7001/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
    password = ""
    cluster = "default"
    timeout = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3、springCloudConfig
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    group = "SEATA_GROUP"
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
    namespace = "application"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

account

file.conf

transport {
  # tcp udt unix-domain-socket
  type = "TCP"
  #NIO NATIVE
  server = "NIO"
  #enable heartbeat
  heartbeat = true
  # the client batch send request enable
  enableClientBatchSendRequest = true
  #thread factory for netty
  threadFactory {
    bossThreadPrefix = "NettyBoss"
    workerThreadPrefix = "NettyServerNIOWorker"
    serverExecutorThread-prefix = "NettyServerBizHandler"
    shareBossWorker = false
    clientSelectorThreadPrefix = "NettyClientSelector"
    clientSelectorThreadSize = 1
    clientWorkerThreadPrefix = "NettyClientWorkerThread"
    # netty boss thread size,will not be used for UDT
    bossThreadSize = 1
    #auto default pin or 8
    workerThreadSize = "default"
  }
  shutdown {
    # when destroy server, wait seconds
    wait = 3
  }
  serialization = "seata"
  compressor = "none"
}
service {
  #transaction service group mapping
  vgroupMapping.my_tx_group = "default"
  #only support when registry.type=file, please don't set multiple addresses
  default.grouplist = "127.0.0.1:8091"
  #degrade, current not support
  enableDegrade = false
  #disable seata
  disableGlobalTransaction = false
}

client {
  rm {
    asyncCommitBufferLimit = 10000
    lock {
      retryInterval = 10
      retryTimes = 30
      retryPolicyBranchRollbackOnConflict = true
    }
    reportRetryCount = 5
    tableMetaCheckEnable = false
    reportSuccessEnable = false
  }
  tm {
    commitRetryCount = 5
    rollbackRetryCount = 5
  }
  undo {
    dataValidation = true
    logSerialization = "jackson"
    logTable = "t_undo_log_account"
  }
  log {
    exceptionRate = 100
  }
}

registry.conf

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "eureka"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:7001/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
    password = ""
    cluster = "default"
    timeout = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3、springCloudConfig
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
    group = "SEATA_GROUP"
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
    namespace = "application"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
    username = ""
    password = ""
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

业务主要代码

order

controller

package com.example.order.controller;

import com.example.order.entity.Order;
import com.example.order.service.OrderService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/order")
public class OrderController {
    @Autowired
    OrderService orderService;

    @PostMapping("create")
    public String create(Order order) {
        orderService.create(order);
        return "success";
    }
}

service

OrderService

package com.example.order.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.example.order.entity.Order;

public interface OrderService extends IService<Order> {
    void create(Order order);
}

OrderServiceImpl

package com.example.order.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.example.order.entity.Order;
import com.example.order.mapper.OrderMapper;
import com.example.order.service.OrderService;
import io.seata.spring.annotation.GlobalTransactional;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.example.base.feign.StorageFeignClient;
import com.example.base.feign.AccountFeignClient;
import org.springframework.transaction.annotation.Transactional;

@Slf4j
@Service
public class OrderServiceImpl extends ServiceImpl<OrderMapper, Order> implements OrderService {
    @Autowired
    StorageFeignClient storageFeignClient;

    @Autowired
    AccountFeignClient accountFeignClient;

    @Override
//    @Transactional
    @GlobalTransactional(name = "my_tx_group",rollbackFor = Exception.class)
    public void create(Order order) {
        log.info("--创建订单开始");
        order.setStatus(0);
        save(order);
        log.info("--创建订单结束");

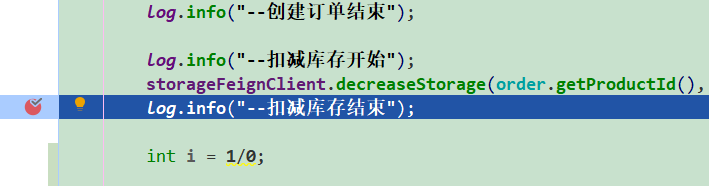

        log.info("--扣减库存开始");
        storageFeignClient.decreaseStorage(order.getProductId(), order.getCount());
        log.info("--扣减库存结束");

//        int i = 1/0;

        log.info("--扣减账户余额开始");
        accountFeignClient.decreaseMoney(order.getUserId(), order.getMoney());
        log.info("--扣减账户余额结束");

        this.getBaseMapper().updateStatus(order.getId(), 1);

//        int i = 1/0;
    }
}

mapper

package com.example.order.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.example.order.entity.Order;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Update;

public interface OrderMapper extends BaseMapper<Order> {
    @Update("UPDATE `t_order` SET status = #{status} WHERE id = #{id}")
    int updateStatus(@Param("id") Long id, @Param("status") Integer status);
}

entity

package com.example.order.entity;

import com.baomidou.mybatisplus.annotation.*;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.math.BigDecimal;
import java.time.LocalDateTime;

@Data
@EqualsAndHashCode(callSuper = false)
@TableName("t_order")
public class Order{
    @TableId(value = "id", type = IdType.AUTO)
    private Long id;

    // 用户id
    private Long userId;

    // 产品id
    private Long productId;

    // 数量
    private Integer count;

    // 金额
    private BigDecimal money;

    // 订单状态：0：创建中；1：已完结
    private Integer status;

    @TableField(fill = FieldFill.INSERT)
    private LocalDateTime createTime;

    // 插入与更新都写此字段。若使用FieldFill.UPDATE，则只更新时写此字段。
    @TableField(fill = FieldFill.INSERT_UPDATE)
    private LocalDateTime updateTime;
}

storage

controller

package com.example.storage.feign;

import com.example.storage.service.StorageService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class FeignController {
    @Autowired
    StorageService storageService;

    @PostMapping("/feign/storage/decreaseStorage")
    public void decreaseStorage(@RequestParam("productId")Long productId, @RequestParam("count")Integer count) {
        storageService.decreaseStorage(productId, count);
    }
}

service

StorageService

package com.example.storage.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.example.storage.entity.Storage;

public interface StorageService extends IService<Storage> {
    void decreaseStorage(Long productId, Integer count);
}

StorageServiceImpl

package com.example.storage.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.example.storage.entity.Storage;
import com.example.storage.mapper.StorageMapper;
import com.example.storage.service.StorageService;
import org.springframework.stereotype.Service;

@Service
public class StorageServiceImpl extends ServiceImpl<StorageMapper, Storage> implements StorageService {
    @Override
    public void decreaseStorage(Long productId, Integer count) {
//        int i = 1 / 0;
        this.getBaseMapper().decreaseStorage(productId, count);
    }
}

mapper

package com.example.storage.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.example.storage.entity.Storage;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Update;
import org.springframework.stereotype.Repository;

@Repository
public interface StorageMapper extends BaseMapper<Storage> {
    @Update("UPDATE `t_storage` SET used= used + #{count}, residue = residue - #{count} WHERE product_id = #{productId}")
    int decreaseStorage(@Param("productId")Long productId, @Param("count")Integer count);
}

entity

package com.example.storage.entity;

import com.baomidou.mybatisplus.annotation.*;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.time.LocalDateTime;

@Data
@EqualsAndHashCode(callSuper = false)
@TableName("t_storage")
public class Storage{
    @TableId(value = "id", type = IdType.AUTO)
    private Long id;

    // 产品id
    private Long productId;

    // 总库存
    private Integer total;

    // 已用库存
    private Integer used;

    // 剩余库存
    private Integer residue;

    @TableField(fill = FieldFill.INSERT)
    private LocalDateTime createTime;

    // 插入与更新都写此字段。若使用FieldFill.UPDATE，则只更新时写此字段。
    @TableField(fill = FieldFill.INSERT_UPDATE)
    private LocalDateTime updateTime;
}

account

controller

package com.example.account.feign;

import com.example.account.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.math.BigDecimal;

@RestController
public class FeignController {
    @Autowired
    AccountService accountService;

    @PostMapping("/feign/account/decreaseMoney")
    public void decreaseMoney(@RequestParam("userId")Long userId, @RequestParam("money")BigDecimal money) {
        accountService.decreaseMoney(userId, money);
    }
}

service

AccountService

package com.example.account.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.example.account.entity.Account;
import org.springframework.web.bind.annotation.RequestParam;

import java.math.BigDecimal;

public interface AccountService extends IService<Account> {
    void decreaseMoney(Long userId, BigDecimal money);
}

AccountServiceImpl

package com.example.account.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.example.account.entity.Account;
import com.example.account.mapper.AccountMapper;
import com.example.account.service.AccountService;
import org.springframework.stereotype.Service;

import java.math.BigDecimal;

@Service
public class AccountServiceImpl extends ServiceImpl<AccountMapper, Account> implements AccountService {
    @Override
    public void decreaseMoney(Long userId, BigDecimal money) {
        this.getBaseMapper().decreaseMoney(userId, money);
    }
}

mapper

package com.example.account.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.example.account.entity.Account;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Update;
import org.springframework.stereotype.Repository;
import org.springframework.web.bind.annotation.RequestParam;

import java.math.BigDecimal;

@Repository
public interface AccountMapper extends BaseMapper<Account> {
    @Update("UPDATE `t_account` SET residue = residue - #{money},used = used + #{money} where user_id = #{userId}")
    public int decreaseMoney(@Param("userId")Long userId, @Param("money") BigDecimal money);
}

entity

package com.example.account.entity;

import com.baomidou.mybatisplus.annotation.*;
import lombok.Data;
import lombok.EqualsAndHashCode;

import java.math.BigDecimal;
import java.time.LocalDateTime;

@Data
@EqualsAndHashCode(callSuper = false)
@TableName("t_account")
public class Account{
    // id
    @TableId(value = "id", type = IdType.AUTO)
    private Long id;

    // 用户id
    private Long userId;

    // 总额度
    private BigDecimal total;

    // 已用余额
    private BigDecimal used;

    // 剩余可用额度
    private BigDecimal residue;

    @TableField(fill = FieldFill.INSERT)
    private LocalDateTime createTime;

    // 插入与更新都写此字段。若使用FieldFill.UPDATE，则只更新时写此字段。
    @TableField(fill = FieldFill.INSERT_UPDATE)
    private LocalDateTime updateTime;
}

业务次要代码

base

通用应用注解

package com.example.base.config;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.core.annotation.AliasFor;

import java.lang.annotation.*;

@Inherited
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@MapperScan("com.example.**.mapper")
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients("com.example.base.feign")
public @interface BaseApplication {
    @AliasFor(annotation = SpringBootApplication.class)
    String[] scanBasePackages() default "com.example.**";

    @AliasFor(annotation = SpringBootApplication.class)
    Class<?>[] exclude() default DataSourceAutoConfiguration.class;
}

mybatis-plus 自动填充插件

package com.example.base.config;

import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import org.apache.ibatis.reflection.MetaObject;
import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.time.LocalDateTime;

@Configuration
//@MapperScan("com.example.**.mapper")
public class MyBatisPlusConfig {
    private static final Logger logger = LoggerFactory.getLogger(MyBatisPlusConfig.class);

    //自动填充插件
    @Bean
    public MetaObjectHandler metaObjectHandler() {
        return new MybatisPlusAutoFillConfig();
    }

    public class MybatisPlusAutoFillConfig implements MetaObjectHandler {
        // 新增时填充
        @Override
        public void insertFill(MetaObject metaObject) {
            logger.info("插入：自动填充createTime和updateTime："+ LocalDateTime.now());
            setFieldValByName("createTime", LocalDateTime.now(), metaObject);
            setFieldValByName("updateTime", LocalDateTime.now(), metaObject);
        }

        // 修改时填充
        @Override
        public void updateFill(MetaObject metaObject) {
            logger.info("更新：自动填充updateTime:" + LocalDateTime.now());
            setFieldValByName("updateTime", LocalDateTime.now(), metaObject);
        }
    }
}

feign定义

package com.example.base.feign;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;

import java.math.BigDecimal;

@FeignClient("account")
public interface AccountFeignClient {
    @PostMapping("/feign/account/decreaseMoney")
    void decreaseMoney(@RequestParam("userId")Long userId, @RequestParam("money") BigDecimal money);
}

package com.example.base.feign;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;

@FeignClient("storage")
public interface StorageFeignClient {
    @PostMapping("/feign/storage/decreaseStorage")
    void decreaseStorage(@RequestParam("productId") Long productId, @RequestParam("count") Integer count);
}

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <!-- <version>2.1.12.RELEASE</version>-->
        <version>2.3.7.RELEASE</version>
    </parent>
    <packaging>pom</packaging>
    <groupId>com.example</groupId>
    <artifactId>base</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>base</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <!-- <version>8.0.21</version> 版本Spring-Boot-Parent中已带 -->
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.1</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-seata</artifactId>
            <version>2.1.0.RELEASE</version>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-all</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
            <version>1.4.0</version>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <!--  <version>Greenwich.SR3</version>-->
                <version>Hoxton.SR9</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>build-helper-maven-plugin</artifactId>
                <version>1.8</version>
                <executions>
                    <execution>
                        <id>add-source</id>
                        <phase>generate-sources</phase>
                        <goals>
                            <goal>add-source</goal>
                        </goals>
                        <configuration>
                            <sources>
                                <source>src/main/java</source>
                                <source>../base</source>
                                <!--  <source>../base/src/main/java</source>-->
                            </sources>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
<!--        <resources>-->
<!--            <resource>-->
<!--                <directory>src/main/resources</directory>-->
<!--                <includes>-->
<!--                    <include>**/*</include>-->
<!--                </includes>-->
<!--                <filtering>false</filtering>-->
<!--            </resource>-->
<!--            <resource>-->
<!--                <directory>../base/src/main/resources</directory>-->
<!--                <includes>-->
<!--                    <include>**/*</include>-->
<!--                </includes>-->
<!--                <filtering>false</filtering>-->
<!--            </resource>-->
<!--        </resources>-->
    </build>

</project>

eureka/gateway

eureka

启动类

package com.example.eurekaserver;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class EurekaServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(EurekaServerApplication.class, args);
    }

}

application.yml

server:
  port: 7001

spring:
  application:
    name: eureka-server

eureka:
  instance:
    hostname: localhost1
  client:
    register-with-eureka: false
    fetch-registry: false
    serviceUrl:
      defaultZone: http://localhost:7001/eureka/

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
<!--        <version>2.0.6.RELEASE</version>-->
        <version>2.1.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>eureka-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>eureka-server</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
<!--                <version>Finchley.SR2</version>-->
                <version>Greenwich.SR6</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

gateway

启动类

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class GatewayApplication {

    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }

}

application.yml

server:
  port: 6001

spring:
  application:
    name: gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lower-case-service-id: true
      httpclient:
        ssl:
          use-insecure-trust-manager: true

eureka:
  client:
    service-url:
      defaultZone: http://localhost:7001/eureka/

# 配置Gateway日志等级，输出转发细节信息
logging:
  level:
    org.springframework.cloud.gateway: debug

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>gateway</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR6</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

order/storage/account

说明：order/storage/account的次要代码都是一样的。只是改了唯一性的东西：spring.applicaion.name、端口号、pom.xml的artifactId以及name。

启动类

package com.example.order;

import com.example.base.config.BaseApplication;
import org.springframework.boot.SpringApplication;

@BaseApplication
public class OrderApplication {

    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

}

application.yml

server:
  port: 9011

spring:
  application:
    name: order
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/demo?useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8
    username: root
    password: 222333
  cloud:
      alibaba:
        seata:
          tx-service-group: my_tx_group

eureka:
  client:
    service-Url:
      defaultZone: http://localhost:7001/eureka
#      defaultZone: http://localhost:7001/eureka,http://localhost:7002/eureka

feign:
  hystrix:
    enabled: true

mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.example</groupId>
        <artifactId>base</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath>../base/pom.xml</relativePath>
    </parent>
    <artifactId>order</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>order</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
    </dependencies>

</project>

测试

启动注册中心，启动seata服务（运行seata-server-1.4.0\seata\bin\seata-server.bat），启动gateway，启动各个业务微服务。

正常执行（使用分布式事务）

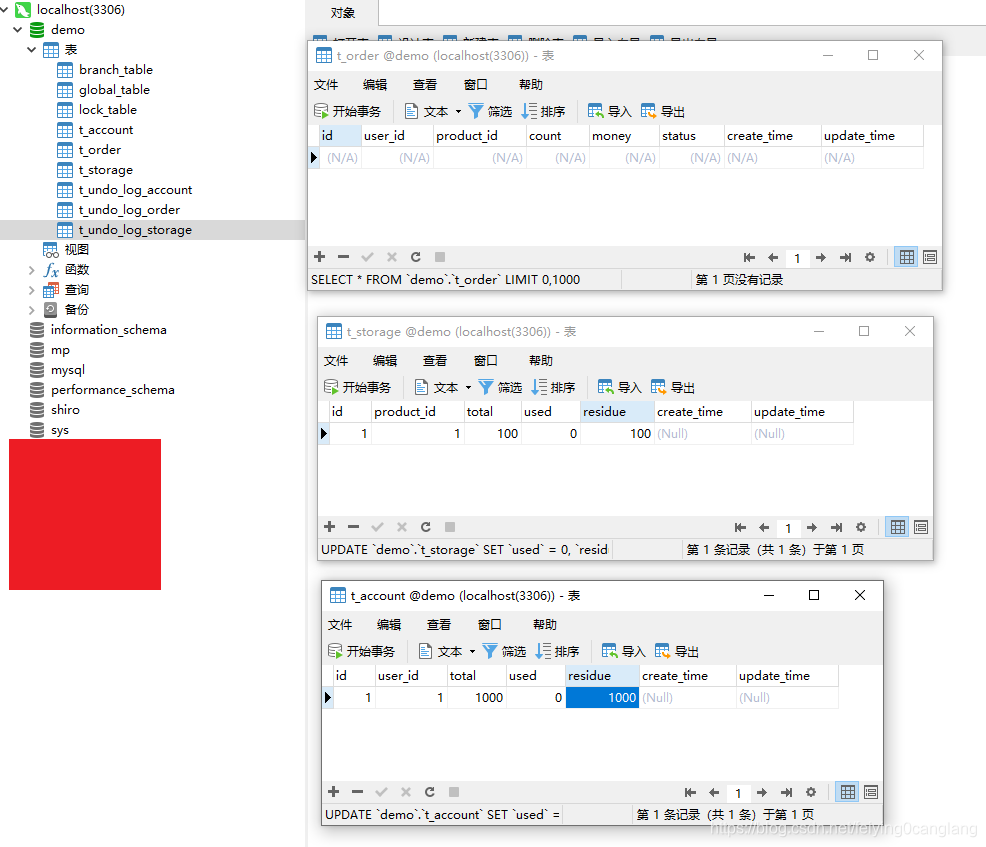

执行之前：

访问：http://localhost:6001/order/order/create?userId=1&productId=1&count=10&money=100

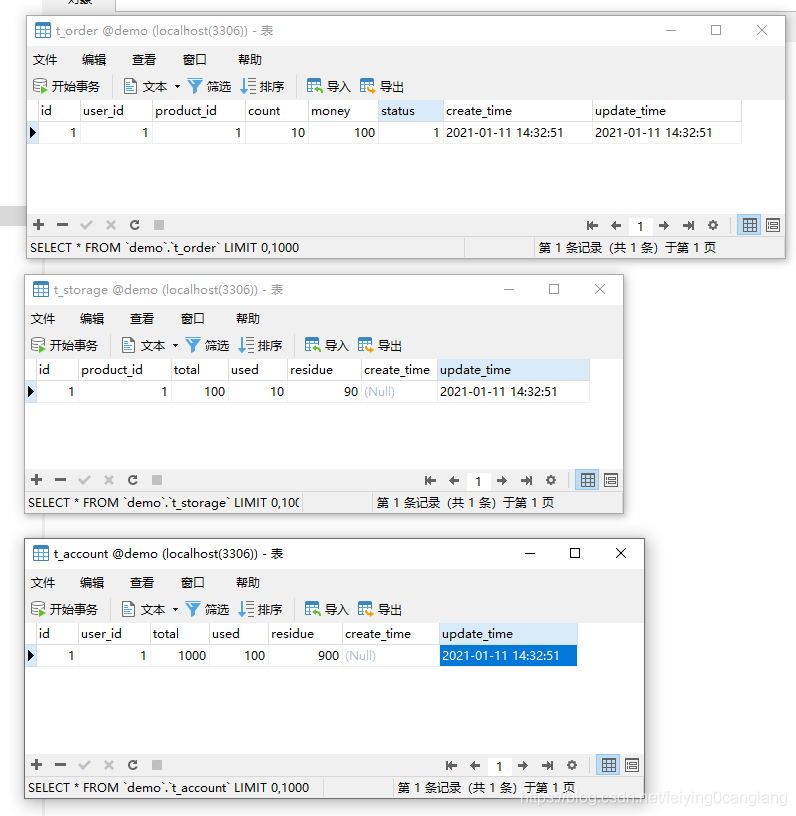

结果：（订单创建、库存扣减、余额扣减）

异常执行（使用分布式事务）

order微服务：在扣减库存成功后抛出异常。

代码

package com.example.order.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.example.order.entity.Order;
import com.example.order.mapper.OrderMapper;
import com.example.order.service.OrderService;
import io.seata.spring.annotation.GlobalTransactional;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.example.base.feign.StorageFeignClient;
import com.example.base.feign.AccountFeignClient;
import org.springframework.transaction.annotation.Transactional;

@Slf4j
@Service
public class OrderServiceImpl extends ServiceImpl<OrderMapper, Order> implements OrderService {
    @Autowired
    StorageFeignClient storageFeignClient;

    @Autowired
    AccountFeignClient accountFeignClient;

    @Override
//    @Transactional
    @GlobalTransactional(name = "my_tx_group",rollbackFor = Exception.class)
    public void create(Order order) {
        log.info("--创建订单开始");
        order.setStatus(0);
        save(order);
        log.info("--创建订单结束");

        log.info("--扣减库存开始");
        storageFeignClient.decreaseStorage(order.getProductId(), order.getCount());
        log.info("--扣减库存结束");

        int i = 1/0;

        log.info("--扣减账户余额开始");
        accountFeignClient.decreaseMoney(order.getUserId(), order.getMoney());
        log.info("--扣减账户余额结束");

        this.getBaseMapper().updateStatus(order.getId(), 1);

//        int i = 1/0;
    }
}

测试

访问之前：

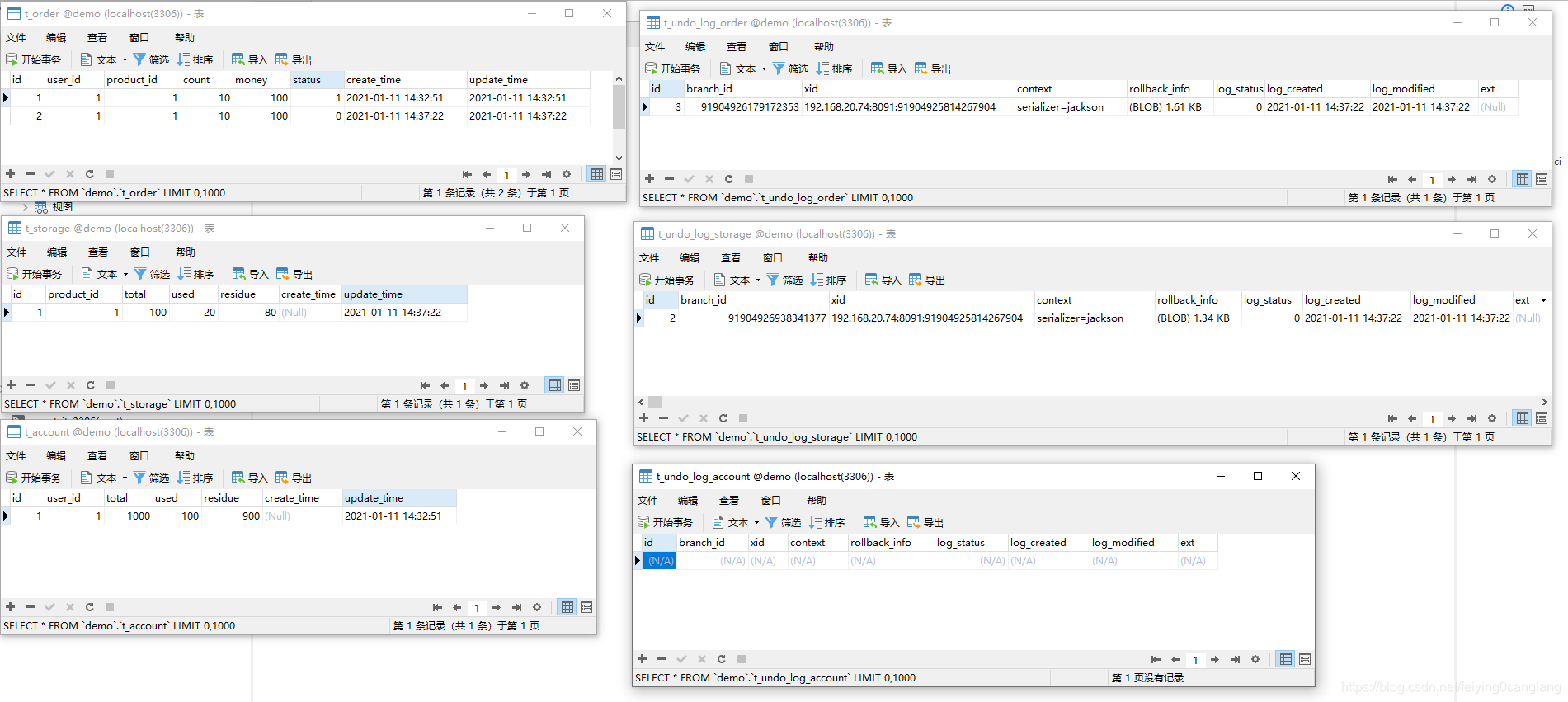

在访问之前，我们打个断点，到达断点后查看数据库的状态

访问：http://localhost:6001/order/order/create?userId=1&productId=1&count=10&money=100

结果（到达断点）：

执行结束

1.所有服务的数据库都回滚（插入的则删掉，修改的则改回去））
2.插入的项虽然已经删掉，但自增id不会回滚。

其他网址

Seata实现Sprincloud(Eureka+Feign)事务 - LifeOfCoding - 博客园
使用Seata彻底解决Spring Cloud中的分布式事务问题！

SpringBoot+Dubbo+MybatisPlus整合seata分布式事务

透过源码解决SeataAT模式整合Mybatis-Plus失去MP特性的问题
解决seata代理数据源后mybatisplus的增强组件全部失效的bug_FUNKYE的博客-CSDN博客



seata(二) 分布式事务框架seata1.3 AT及XA模式实例演示
刘本龙的专栏
07-06 3501
欢迎关注本人公众号 概述 Seata 是一款开源的分布式事务解决方案，致力于提供高性能和简单易用的分布式事务服务。Seata 将为用户提供了 AT、TCC、SAGA 和 XA 事务模式，为用户打造一站式的分布式解决方案。 本文先将官方实例跑起来，看看运行效果，值后在对其原理和源码进行分析。 下载源码 进入seata的GitHub主页，下载seata和seata-samples两个项目。下载下来后可以用idea打开。 下载完成后，idea导入seata-samples文件夹下的seata-xa和seata
xxljob从入门到精通-全网段最全解说
热门推荐
打造全国最全的AI Agent开发知识领域的博客
06-05 1万+
XXL-JOB特性一览 基本概念 xxljob解决的是以下几个痛点： 1） 跑批处理监控无法可视化，当前跑批的状态是：成功？失败？挂起？进度？为什么失败/原因？ 2）批处理任务不可重用，特别是无法对批处理任务做：定时？重复使用？频次？其中路由调度？ 3）批处理任务无法做到网格计算（特别像：websphere ibm grid computing）即批处理任务本身可以做成集群、fail over、sharding 由其是批处理任务可以做成“网格计算”这个功能，有了xxljob后你会发觉特别强大
快速了解阿里微服务热门开源分布式事务框架——Seata
11-12 828
一、Seata 概述 Seata 是 Simple Extensible Autonomous Transaction Architecture 的简写，由 feascar 改名而来。 Seata 是阿里开源的分布式事务框架，属于二阶段提交模式。 目前github上已经有 12267 颗星了，也很活跃，最新的提交时间很多都是几天前。 首先我们回顾一下在单体应用中，例如一个业务调用了3个模块，他们都使用同一个数据源，是靠本地事务来保证事务一
seata的AT模式入门使用
奔跑的菜鸡
10-16 894
seata入门使用
Seata 入门与实战
最新发布
m0_66360096的博客
02-21 1154
Seata 是一款开源的分布式事务解决方式，致力于提供高性能和简单易用的分布式事务服务。Seata 为用户提供了 AT、TCC、SAGA 和 XA 事务模式，为用户打造一站式的分布式事务解决方案。**概念：**性能相比其他事务要差一点，但能保证最严格的数据一致性。XA 模式需要设置串行化隔离级别，相当于对数据添加了读写锁。另外连接资源需要在整个事务期间保持，这样可能会导致资源锁定问题，从而影响并发事务吞吐。**优点：**实现简单、无业务侵入**缺点：**性能差、必须实现 XA 协议、容易产生死锁。
Seata使用教程
tttalk的博客
12-29 2720
Spring Cloud Alibaba Seata 分布式事务
【seata】AT模式应用
frank_0807的博客
03-06 255
一.基本环境 1.数据库表的准备 在需要的数据库添加此表 -- 注意此处0.7.0+ 增加字段 context CREATE TABLE `undo_log` ( `id` bigint(20) NOT NULL AUTO_INCREMENT, `branch_id` bigint(20) NOT NULL, `xid` varchar(100) NOT NULL, `context` varchar(128) NOT NULL, `rollback_info` longblob N
seata使用教程
liutianxiazhendehao的博客
10-25 5348
1.下载seata 下载中心 我们这里下载的是1.3.0的版本 2.修改registry.conf的配置 改为nacos 3 .修改config.txt，和nacos-config.sh并放到相应的位置 修改config.txt config.txt 和nacos-config.sh下载地址 https://github.com/seata/seata/tree/develop/script/config-centerhttps://github.com/s...
JSD-2204-Seata(续)-Sentinel-SpringGateway网关-Day05
TheNewSystrm的博客
08-24 472
JSD-2204-Seata(续)-Sentinel-SpringGateway网关-Day03
使用Spring Cloud搭建微服务项目
weixin_70452974的博客
08-27 3164
使用Spring Cloud搭建微服务项目的案例，使用到Nacos、Dubbo、Sentinel、Seata、gateway等知识。
熟练掌握SpringCloud流行技术栈，如Nacos、Seata、Zookeeper、Dubbo、OpenFeign、GateWay、Sentinel、SkyWalking和Discovery。熟悉
qq_40267044的博客
08-07 1248
落地实践，我们会在Gateway，Sentinel整合网关，所有的toc接口能都暴露出来，针对文件上传之类的占带宽的接口，会有整体的限制。针对动态数据请求的攻击，首先让测试，测出每个服务单压每个接口最大的承受能力是多少，比如针对某一服务，发起超高的攻击qps，看服务能处理的qps是多少，两个qps不一样，差值其实都是在tomcat的等待队列等待，那这个服务响应的qps，就是需要接口限制的qps了，因为已经开始等待了，并且数据库和cpu内存都是这一个接口在使用，与其累计的等待不如直接拒绝。
AT指令框架.rar
09-29
该资源及源代码详细说明了基于串口AT指令交互时，mcu的处理流程及逻辑框架。该模块不仅能用在有操作系统的工程中，还可用于裸机开发的工程中，具有很好的可扩展性。
Seata AT模式
穷水叮咚的博客
02-06 1827
前言 我们在之前所介绍的一些分布式事务的理论，是需要通过具体的框架工程化的，这样才能在我们日常工作中使用。 常见的开源分布式事务框架很多，比如： Seata、EasyTransaction等等。我们在这篇文章将会介绍阿里开源的分布式事务框架Seata。 Seata这个分布式事务框架支持有多种模式，如： AT、TCC、SAGA、XA。除了AT，后面三种分布式事务模式的大致流程，我们在之前的文章中有介绍过。 Seata的模块组成 1）TM：事务发起者。定义事务的边界，负责告知 TC，分布式事务的开始，
Seata-AT模式
凉茶铺的博客
09-04 2210
AT 模式是一种无侵入的分布式事务解决方案。在 AT 模式下，用户只需关注自己的“业务 SQL”，用户的 “业务 SQL” 作为一阶段，Seata 框架会自动生成事务的二阶段提交和回滚操作。
Seata的AT（Automatic Transaction）
summer_fish的专栏
06-01 718
在Seata的AT模式下，应用程序在执行分布式事务时，通过在关键的业务操作前后插入补偿逻辑，以保证事务的一致性。当发生事务回滚时，通过执行补偿逻辑来撤销之前的操作，从而达到回滚的效果。1. 应用程序通过Seata的API启动一个全局事务，并获取一个全局事务ID。2. 在事务执行期间，应用程序按照业务逻辑执行数据库操作，并在关键操作前后插入补偿逻辑。4. 当应用程序调用事务的提交接口时，Seata会协调各个分支事务的提交，并等待分支事务的响应。
Seata之AT模式
一个菜鸡的博客
11-10 2004
如果没有一个靠谱的协调者存在，比如abc三个库的数据被二阶段决议为提交，此时ab收到的指令，提交后，c库在收到指令后挂了，并没有提交xa事务，或者协调者没有做到二阶段重试，那么这个没有提交的xa事务将会一直 持有锁，造成死锁的局面。AT模式是基于一个全局的事务管理器来管理的。例如，在全局事务下，当我们存在A,B两个服务的时候，A和B的提交都会生成一个undo_log的记录，会记录下执行前和执行后的镜像，如果一段提交没有错误的话，则会进行二段提交，如果在全局事务中有异常抛出，则根据undo_log进行回滚。
seata分布式事务入门教程【AT】
github_34793283的博客
02-21 1181
seata分布式事务入门-小白级 ​ 本教程主要是通过seata1.4.0和nacos1.4.0演示seata分布式事务上手体验。如果你对seata和nacos还很陌生建议先点击下面传送门，先穿越10min再回来学习。在这里我将完成一个简单的案例，来让大家了解Seata实现Dubbo分布式事务管理的基本流程。 简介 本文主要介绍SpringBoot2.2.2 + Dubbo 2.7.5 + Mybatis 3.4.2 + Nacos 1.1.3 +Seata 1.0.0整合来实现Du
Golang分布式事务框架seata-golang：TCC与AT模式支持
seata-golang项目支持两种分布式事务模式：TCC（Try-Confirm-Cancel）和AT（Automatic Transaction）。 - TCC模式是一种编程模式，要求业务层提供三个操作：Try、Confirm和Cancel。Try操作尝试预留资源并锁定业务...
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

IT利刃出鞘

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
