此文原创：转载请注明出处，谢谢。

https://blog.csdn.net/fuluoce/article/details/128980668

系统版本

uname -r

docker 版本

docker --version

docker-compose版本

安装参考链接：

https://blog.csdn.net/chezong/article/details/128917107

拉取edgex foundry 配置文件 docker-compose.yml;

curl https://raw.githubusercontent.com/edgexfoundry/edgex-compose/ireland/docker-compose-no-secty.yml -o docker-compose.yml;

启动edgex foundry

docker-compose up -d

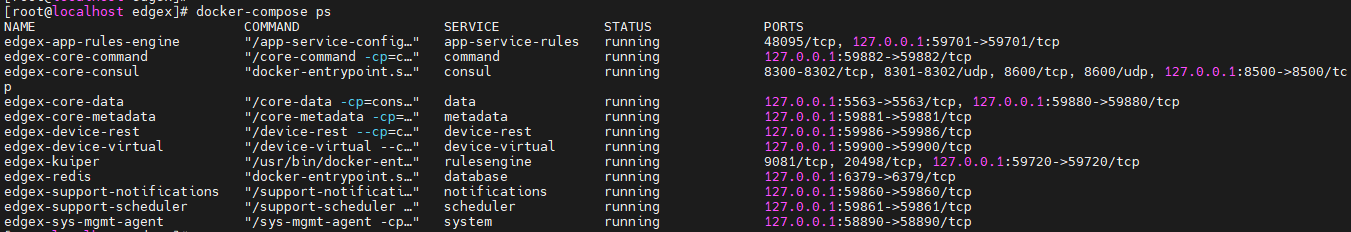

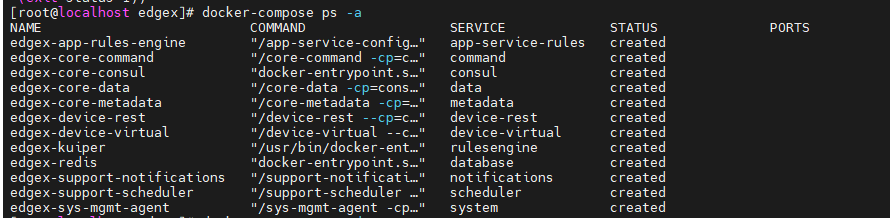

查看edgex foundry启动状态

docker-compose ps -a

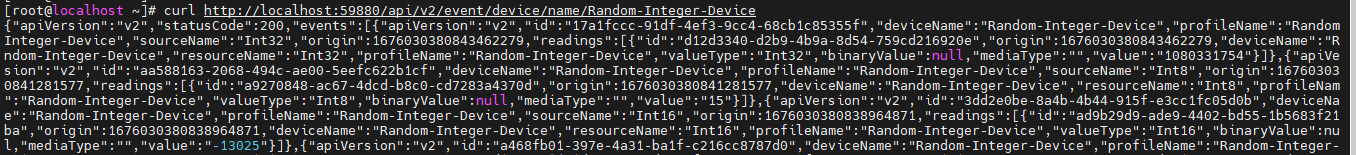

本地访问，

curl http://localhost:59880/api/v2/event/device/name/Random-Integer-Device

局域网本机浏览器无法连接，发现微服务的IP地址为127.0.0.1，通过修改

vim docker-compose.yml

文件中的IP地址，把所有的127.0.0.1修改为0.0.0.0，表示任意IP地址都可以访问，保存退出，在运行如下命令，从新拉取镜像

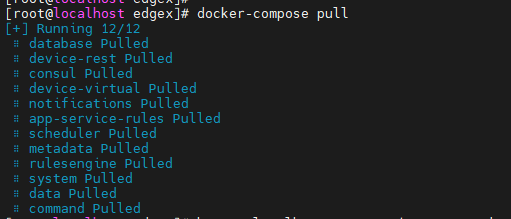

docker-compose pull

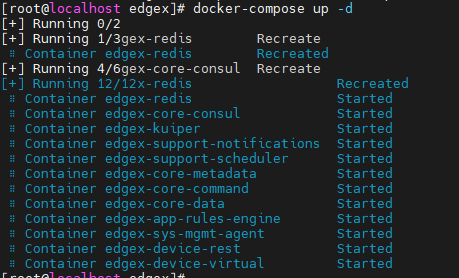

再运行所有镜像

docker-compose up -d

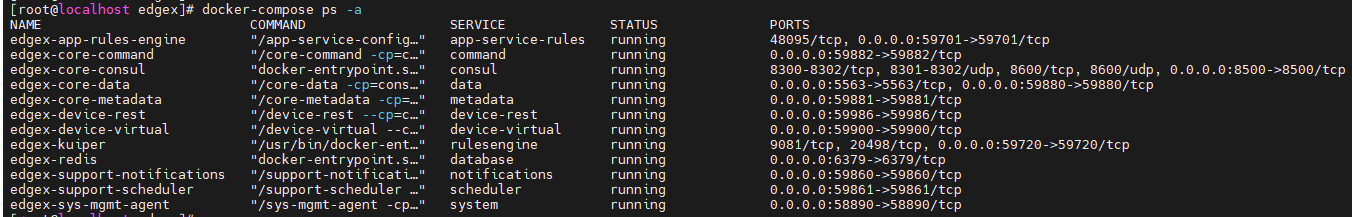

docker-compose ps -a

现在看到127.0.0.1改成了0.0.0.0；

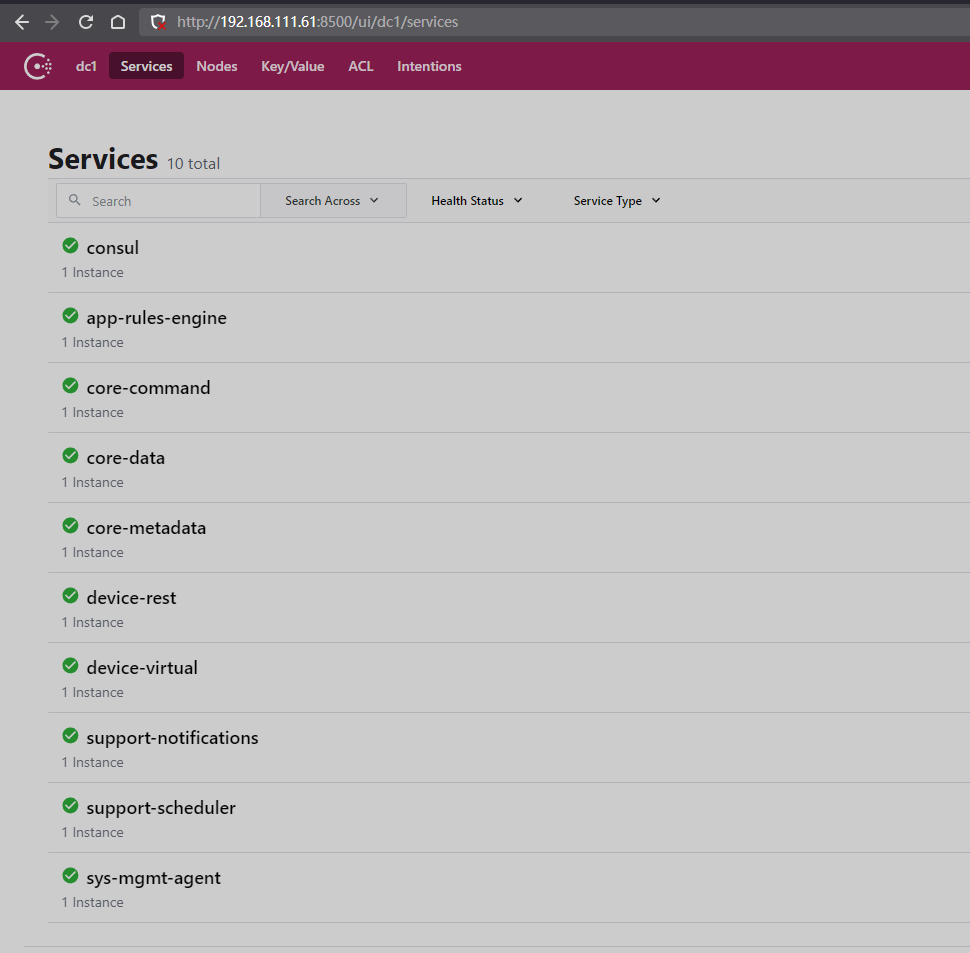

浏览器输入http://192.168.111.61:8500/

此刻部署成功。

碰到的问题1

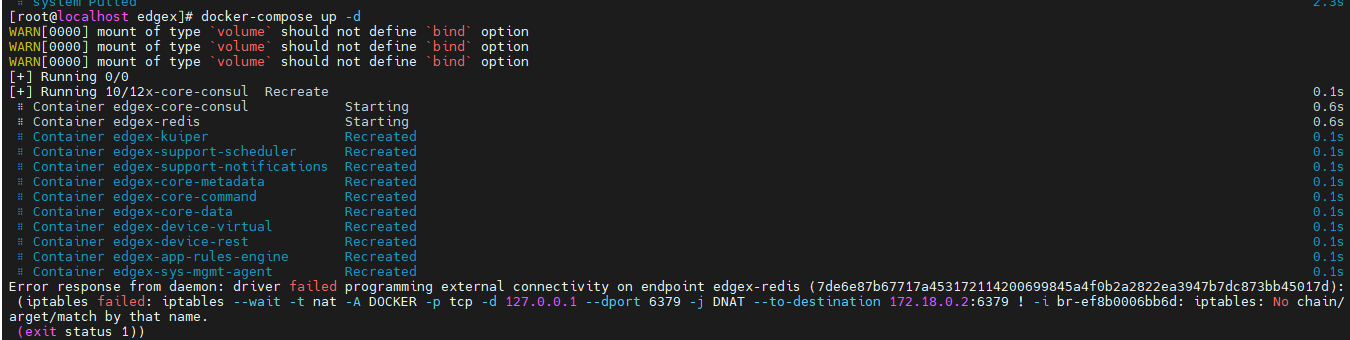

重新运行的时候，报错

查看状态也没启动

百度原因是中途进行了防火墙的关闭；需要重启docker.

systemctl restart docker

然后再来启动。就没问题了。

docker-compose 常用指令。

# 安装并启动EdgeX
sudo docker-compose up -d     # -d 后台运行容器

# 查看所有容器运行状况
sudo docker-compose ps

# 显示容器日志
docker-compose logs -f [compose-contatainer-name]

# 停止容器
sudo docker-compose stop

# 启动容器
sudo docker-compose start

# 停止和删除所有容器
sudo docker-compose down

碰到的问题2

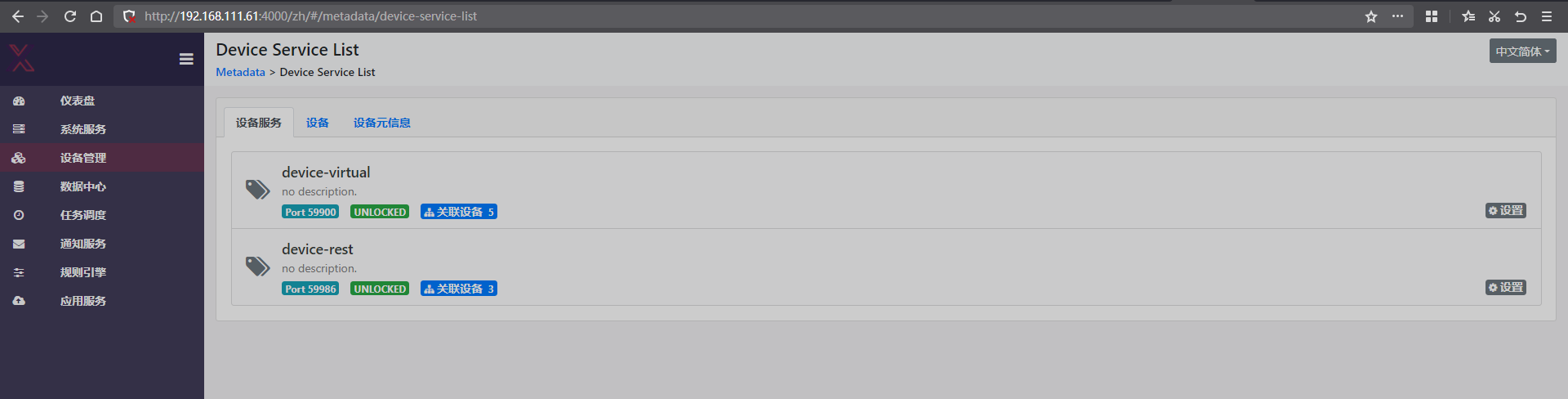

发现没有4000端口的ui界面，

发现是下载的版本不一样。上面的是2.0.0版本，需要升级到2.1.0版本

# * EdgeX Foundry, Jakarta (2.0.0) release

升级为

# * EdgeX Foundry, Ireland (2.1.0) release

更新文件：

#  * Copyright 2021 Intel Corporation.
#  *
#  * Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except
#  * in compliance with the License. You may obtain a copy of the License at
#  *
#  * http://www.apache.org/licenses/LICENSE-2.0
#  *
#  * Unless required by applicable law or agreed to in writing, software distributed under the License
#  * is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express
#  * or implied. See the License for the specific language governing permissions and limitations under
#  * the License.
#  *
#  * EdgeX Foundry, Jakarta (2.1.0) release
#  *******************************************************************************/
#
#
#
# ************************ This is a generated compose file ****************************
#
# DO NOT MAKE CHANGES that are intended to be permanent to EdgeX edgex-compose repo.
#
# Permanent changes can be made to the source compose files located in the compose-builder folder
# at the top level of the edgex-compose repo.
#
# From the compose-builder folder use `make build` to regenerate all standard compose files variations
#
networks:
  edgex-network:
    driver: bridge
services:
  app-service-rules:
    container_name: edgex-app-rules-engine
    depends_on:
    - consul
    - data
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_PROFILE: rules-engine
      EDGEX_SECURITY_SECRET_STORE: "false"
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-app-rules-engine
      TRIGGER_EDGEXMESSAGEBUS_PUBLISHHOST_HOST: edgex-redis
      TRIGGER_EDGEXMESSAGEBUS_SUBSCRIBEHOST_HOST: edgex-redis
    hostname: edgex-app-rules-engine
    image: edgexfoundry/app-service-configurable:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59701:59701/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  command:
    container_name: edgex-core-command
    depends_on:
    - consul
    - database
    - metadata
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-core-command
    hostname: edgex-core-command
    image: edgexfoundry/core-command:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59882:59882/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  consul:
    command: agent -ui -bootstrap -server -client 0.0.0.0
    container_name: edgex-core-consul
    hostname: edgex-core-consul
    image: consul:1.10.3
    networks:
      edgex-network: {}
    ports:
    - 8500:8500/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: root:root
    volumes:
    - consul-config:/consul/config:z
    - consul-data:/consul/data:z
  data:
    container_name: edgex-core-data
    depends_on:
    - consul
    - database
    - metadata
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      MESSAGEQUEUE_HOST: edgex-redis
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-core-data
    hostname: edgex-core-data
    image: edgexfoundry/core-data:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 5563:5563/tcp
    - 59880:59880/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  database:
    container_name: edgex-redis
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      REGISTRY_HOST: edgex-core-consul
    hostname: edgex-redis
    image: redis:6.2.6-alpine
    networks:
      edgex-network: {}
    ports:
    - 6379:6379/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: root:root
    volumes:
    - db-data:/data:z
  device-rest:
    container_name: edgex-device-rest
    depends_on:
    - consul
    - data
    - metadata
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      MESSAGEQUEUE_HOST: edgex-redis
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-device-rest
    hostname: edgex-device-rest
    image: edgexfoundry/device-rest:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59986:59986/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  device-virtual:
    container_name: edgex-device-virtual
    depends_on:
    - consul
    - data
    - metadata
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      MESSAGEQUEUE_HOST: edgex-redis
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-device-virtual
    hostname: edgex-device-virtual
    image: edgexfoundry/device-virtual:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59900:59900/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  metadata:
    container_name: edgex-core-metadata
    depends_on:
    - consul
    - database
    - notifications
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      NOTIFICATIONS_SENDER: edgex-core-metadata
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-core-metadata
    hostname: edgex-core-metadata
    image: edgexfoundry/core-metadata:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59881:59881/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  notifications:
    container_name: edgex-support-notifications
    depends_on:
    - consul
    - database
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-support-notifications
    hostname: edgex-support-notifications
    image: edgexfoundry/support-notifications:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59860:59860/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  rulesengine:
    container_name: edgex-kuiper
    depends_on:
    - database
    environment:
      CONNECTION__EDGEX__REDISMSGBUS__PORT: 6379
      CONNECTION__EDGEX__REDISMSGBUS__PROTOCOL: redis
      CONNECTION__EDGEX__REDISMSGBUS__SERVER: edgex-redis
      CONNECTION__EDGEX__REDISMSGBUS__TYPE: redis
      EDGEX__DEFAULT__PORT: 6379
      EDGEX__DEFAULT__PROTOCOL: redis
      EDGEX__DEFAULT__SERVER: edgex-redis
      EDGEX__DEFAULT__TOPIC: rules-events
      EDGEX__DEFAULT__TYPE: redis
      KUIPER__BASIC__CONSOLELOG: "true"
      KUIPER__BASIC__RESTPORT: 59720
    hostname: edgex-kuiper
    image: lfedge/ekuiper:1.4.4-alpine
    networks:
      edgex-network: {}
    ports:
    - 59720:59720/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: kuiper:kuiper
    volumes:
    - kuiper-data:/kuiper/data:z
  scheduler:
    container_name: edgex-support-scheduler
    depends_on:
    - consul
    - database
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      INTERVALACTIONS_SCRUBAGED_HOST: edgex-core-data
      INTERVALACTIONS_SCRUBPUSHED_HOST: edgex-core-data
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-support-scheduler
    hostname: edgex-support-scheduler
    image: edgexfoundry/support-scheduler:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 59861:59861/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
  system:
    container_name: edgex-sys-mgmt-agent
    depends_on:
    - command
    - consul
    - data
    - metadata
    - notifications
    - scheduler
    environment:
      CLIENTS_CORE_COMMAND_HOST: edgex-core-command
      CLIENTS_CORE_DATA_HOST: edgex-core-data
      CLIENTS_CORE_METADATA_HOST: edgex-core-metadata
      CLIENTS_SUPPORT_NOTIFICATIONS_HOST: edgex-support-notifications
      CLIENTS_SUPPORT_SCHEDULER_HOST: edgex-support-scheduler
      DATABASES_PRIMARY_HOST: edgex-redis
      EDGEX_SECURITY_SECRET_STORE: "false"
      EXECUTORPATH: /sys-mgmt-executor
      METRICSMECHANISM: executor
      REGISTRY_HOST: edgex-core-consul
      SERVICE_HOST: edgex-sys-mgmt-agent
    hostname: edgex-sys-mgmt-agent
    image: edgexfoundry/sys-mgmt-agent:2.1.1
    networks:
      edgex-network: {}
    ports:
    - 58890:58890/tcp
    read_only: true
    restart: always
    security_opt:
    - label:disable
    - no-new-privileges:true
    user: root:root
    volumes:
    - /var/run/docker.sock:/var/run/docker.sock:z
  ui:
    container_name: edgex-ui-go
    environment:
      EDGEX_SECURITY_SECRET_STORE: "false"
    hostname: edgex-ui-go
    image: edgexfoundry/edgex-ui:2.1.0
    networks:
      edgex-network: {}
    ports:
    - 4000:4000/tcp
    read_only: true
    restart: always
    security_opt:
    - no-new-privileges:true
    user: 2002:2001
version: '3.7'
volumes:
  consul-config: {}
  consul-data: {}
  db-data: {}
  kuiper-data: {}

4000端口的访问结果：
