OpenAPI接口标准化:现代API开发的基础

OpenAPI 是描述 HTTP API 的行业标准方式,它为API开发提供了统一的规范和语言。本文将深入解析OpenAPI规范的核心要素,帮助您更好地设计、开发和管理API(完整参考请查阅OpenAPI 规范 (中文版))。

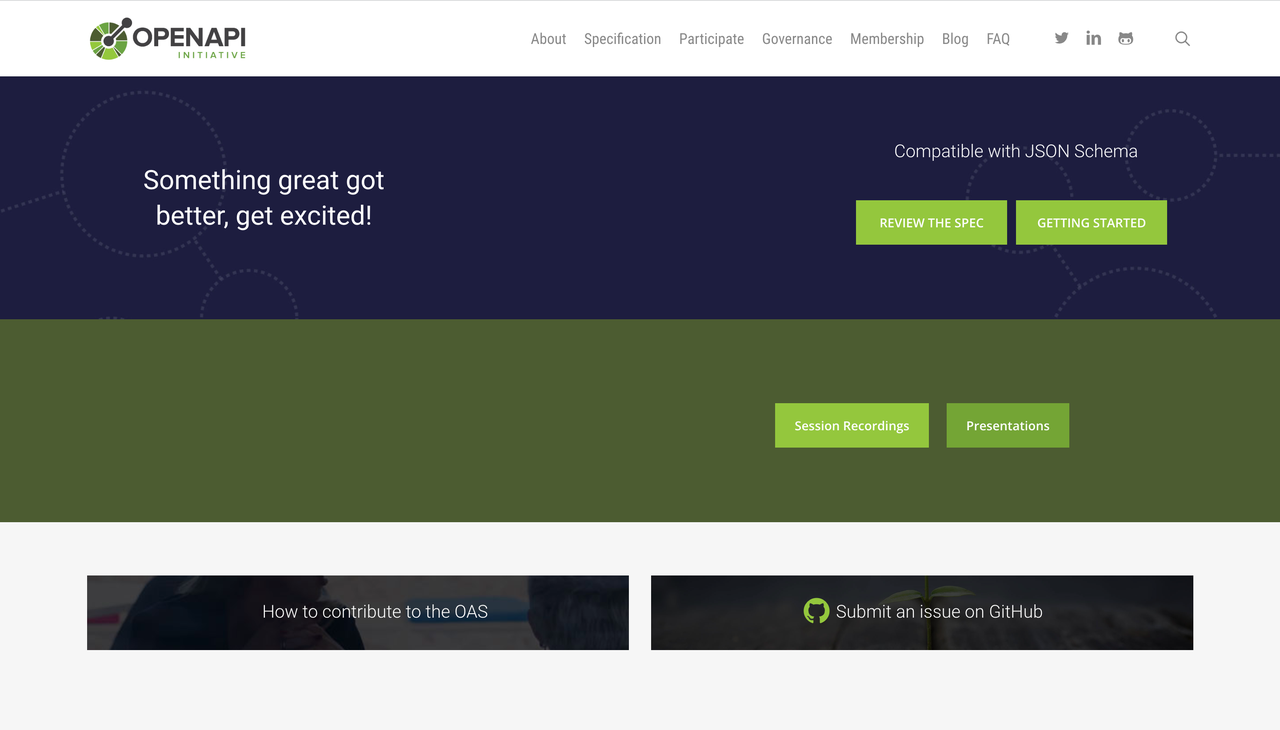

OpenAPI接口规范OpenAPI 官网

为什么选择OpenAPI?

在开始详细介绍规范前,我们先来了解为什么OpenAPI已成为API开发的首选标准:

  • 统一标准:提供了描述RESTful API的通用语言
  • 工具生态:拥有丰富的工具支持,包括代码生成、文档生成、测试工具等
  • 提高效率:减少API开发中的沟通成本和误解
  • 自动化:支持自动生成客户端SDK、服务器存根和文档

OpenAPI 版本号规范

OpenAPI 采用语义化版本号格式 major.minor.patch,例如 3.1.2:

  • major:主版本号,表示不兼容的API变更
  • minor:次版本号,表示向后兼容的功能性新增
  • patch:修订号,表示向后兼容的问题修正

当前最新稳定版本是OpenAPI 3.1.0,相比3.0版本有显著改进,包括更好的JSON Schema支持。

OpenAPI 格式规范

OpenAPI 文档支持两种主流格式,且字段区分大小写:

JSON格式

JSON格式更适合程序处理和自动化工具:

{
   "sports": [ "ball", "swimming" ]
}
JSON 示例
{
  "title": "Sample Pet Store App",
  "summary": "A pet store manager.",
  "description": "This is a sample server for a pet store.",
  "termsOfService": "https://example.com/terms/",
  "contact": {
    "name": "API Support",
    "url": "https://www.example.com/support",
    "email": "support@example.com"
  },
  "license": {
    "name": "Apache 2.0",
    "url": "https://www.apache.org/licenses/LICENSE-2.0.html"
  },
  "version": "1.0.1"
}

YAML格式

YAML格式更易于人类阅读和编写,减少了冗余符号:

title: Sample Pet Store App
summary: A pet store manager.
description: This is a sample server for a pet store.
termsOfService: https://example.com/terms/
contact:
  name: API Support
  url: https://www.example.com/support
  email: support@example.com
license:
  name: Apache 2.0
  url: https://www.apache.org/licenses/LICENSE-2.0.html
version: 1.0.1

OpenAPI 文档结构规范

OpenAPI 文档可以采用单文件或多文件组织方式:

单文件结构

适合小型API项目,所有定义都在一个文件中,便于快速浏览和编辑。

多文件结构

适合大型API项目,通过$ref关键字在Reference Objects和Schema Object中建立引用关系,实现模块化管理。

最佳实践

  • 主文件命名为openapi.jsonopenapi.yaml
  • 按资源或功能模块拆分文件
  • 使用相对路径引用组件

示例目录结构

api/
├── openapi.yaml          # 主文件
├── components/           # 组件目录
│   ├── schemas/          # 数据模型
│   │   ├── User.yaml
│   │   └── Product.yaml
│   ├── parameters/       # 公共参数
│   │   └── pagination.yaml
│   └── responses/        # 公共响应
│       └── errors.yaml
└── paths/                # API路径
    ├── users.yaml
    └── products.yaml

OpenAPI 数据类型规范

OpenAPI 的数据类型必须符合JSON Schema Specification Draft 2020-12规范:

JSON Schema规范地址:https://datatracker.ietf.org/doc/html/draft-bhutton-json-schema-00#section-4.2.1

TYPEFORMATCOMMENTS
integerint32signed 32 bits
integerint64signed 64 bits (a.k.a long)
numberfloat单精度浮点数
numberdouble双精度浮点数
stringdateRFC3339格式日期,如2023-01-01
stringdate-timeRFC3339格式日期时间,如2023-01-01T12:00:00Z
stringpassword提示UI隐藏输入内容
stringbytebase64编码的字符串
stringbinary二进制内容的媒体类型
booleantrue或false
array数组类型
object对象类型

OpenAPI 富文本格式规范

OpenAPI的description字段支持CommonMark markdown格式,可用于创建格式丰富的API文档:

  • 支持标题、列表、表格、代码块等格式
  • 可嵌入图片和链接
  • 可使用HTML标签增强展示效果

最佳实践

  • 为每个API端点提供详细描述
  • 使用代码示例说明请求和响应
  • 添加使用注意事项和限制条件

OpenAPI 核心对象详解

Info Object

描述API的元数据信息,是OpenAPI文档的必需部分:

{
  "title": "电商平台API",
  "summary": "提供电商平台的所有核心功能",
  "description": "本API提供商品管理、订单处理、用户认证等功能。",
  "termsOfService": "https://example.com/terms/",
  "contact": {
    "name": "API支持团队",
    "url": "https://www.example.com/support",
    "email": "api-support@example.com"
  },
  "license": {
    "name": "Apache 2.0",
    "url": "https://www.apache.org/licenses/LICENSE-2.0.html"
  },
  "version": "2.1.3"
}

Contact Object

提供API的联系信息,帮助开发者获取支持:

{
  "name": "API支持团队",
  "url": "https://www.example.com/support",
  "email": "api-support@example.com"
}

Server Object

定义API服务器信息,支持多环境配置:

单服务器配置

{
  "url": "https://development.gigantic-server.com/v1",
  "description": "开发环境服务器"
}

多服务器配置

{
  "servers": [
    {
      "url": "https://development.gigantic-server.com/v1",
      "description": "开发环境服务器"
    },
    {
      "url": "https://staging.gigantic-server.com/v1",
      "description": "测试环境服务器"
    },
    {
      "url": "https://api.gigantic-server.com/v1",
      "description": "生产环境服务器"
    }
  ]
}

服务器变量

{
  "servers": [
    {
      "url": "https://{username}.gigantic-server.com:{port}/{basePath}",
      "description": "开发服务器",
      "variables": {
        "username": {
          "default": "demo",
          "description": "用户子域名"
        },
        "port": {
          "enum": ["8443", "443"],
          "default": "8443"
        },
        "basePath": {
          "default": "v2"
        }
      }
    }
  ]
}

Components Object

定义可在整个API中复用的组件,提高代码复用率:

"components": {
  "schemas": {
    "GeneralError": {
      "type": "object",
      "properties": {
        "code": {
          "type": "integer",
          "format": "int32"
        },
        "message": {
          "type": "string"
        }
      }
    },
    "Category": {
      "type": "object",
      "properties": {
        "id": {
          "type": "integer",
          "format": "int64"
        },
        "name": {
          "type": "string"
        }
      }
    },
    "Tag": {
      "type": "object",
      "properties": {
        "id": {
          "type": "integer",
          "format": "int64"
        },
        "name": {
          "type": "string"
        }
      }
    }
  },
  "parameters": {
    "skipParam": {
      "name": "skip",
      "in": "query",
      "description": "跳过的记录数",
      "required": true,
      "schema": {
        "type": "integer",
        "format": "int32"
      }
    },
    "limitParam": {
      "name": "limit",
      "in": "query",
      "description": "返回的最大记录数",
      "required": true,
      "schema" : {
        "type": "integer",
        "format": "int32"
      }
    }
  },
  "responses": {
    "NotFound": {
      "description": "未找到请求的资源"
    },
    "IllegalInput": {
      "description": "请求参数不合法"
    },
    "GeneralError": {
      "description": "通用错误",
      "content": {
        "application/json": {
          "schema": {
            "$ref": "#/components/schemas/GeneralError"
          }
        }
      }
    }
  },
  "securitySchemes": {
    "api_key": {
      "type": "apiKey",
      "name": "api_key",
      "in": "header"
    },
    "petstore_auth": {
      "type": "oauth2",
      "flows": {
        "implicit": {
          "authorizationUrl": "https://example.org/api/oauth/dialog",
          "scopes": {
            "write:pets": "修改宠物信息",
            "read:pets": "读取宠物信息"
          }
        }
      }
    }
  }
}

Paths Object

定义API的所有路径和操作,是OpenAPI文档的核心部分:

{
  "/pets": {
    "get": {
      "description": "返回用户可访问的所有宠物",
      "operationId": "getPets",
      "parameters": [
        {
          "name": "status",
          "in": "query",
          "description": "宠物状态筛选",
          "schema": {
            "type": "string",
            "enum": ["available", "pending", "sold"]
          }
        },
        {
          "name": "limit",
          "in": "query",
          "description": "返回结果数量限制",
          "schema": {
            "type": "integer",
            "format": "int32"
          }
        }
      ],
      "responses": {
        "200": {
          "description": "宠物列表",
          "content": {
            "application/json": {
              "schema": {
                "type": "array",
                "items": {
                  "$ref": "#/components/schemas/pet"
                }
              }
            }
          }
        },
        "400": {
          "description": "无效的状态值",
          "content": {
            "application/json": {
              "schema": {
                "$ref": "#/components/schemas/Error"
              }
            }
          }
        }
      }
    },
    "post": {
      "description": "添加新宠物",
      "operationId": "addPet",
      "requestBody": {
        "description": "需要添加的宠物对象",
        "required": true,
        "content": {
          "application/json": {
            "schema": {
              "$ref": "#/components/schemas/NewPet"
            }
          }
        }
      },
      "responses": {
        "201": {
          "description": "宠物创建成功",
          "content": {
            "application/json": {
              "schema": {
                "$ref": "#/components/schemas/Pet"
              }
            }
          }
        }
      }
    }
  }
}

Path Item Object

描述单个路径上的所有操作:

{
  "get": {
    "description": "根据ID返回宠物信息",
    "summary": "查找宠物",
    "operationId": "getPetsById",
    "responses": {
      "200": {
        "description": "宠物信息",
        "content": {
          "*/*": {
            "schema": {
              "type": "array",
              "items": {
                "$ref": "#/components/schemas/Pet"
              }
            }
          }
        }
      },
      "default": {
        "description": "错误响应",
        "content": {
          "text/html": {
            "schema": {
              "$ref": "#/components/schemas/ErrorModel"
            }
          }
        }
      }
    }
  },
  "put": {
    "description": "更新宠物信息",
    "operationId": "updatePet",
    "requestBody": {
      "description": "更新的宠物信息",
      "required": true,
      "content": {
        "application/json": {
          "schema": {
            "$ref": "#/components/schemas/Pet"
          }
        }
      }
    },
    "responses": {
      "200": {
        "description": "宠物更新成功",
        "content": {
          "application/json": {
            "schema": {
              "$ref": "#/components/schemas/Pet"
            }
          }
        }
      }
    }
  },
  "parameters": [
    {
      "name": "id",
      "in": "path",
      "description": "宠物ID",
      "required": true,
      "schema": {
        "type": "array",
        "items": {
          "type": "string"
        }
      },
      "style": "simple"
    }
  ]
}

Operation Object

描述单个API操作的详细信息:

{
  "tags": [
    "pet"
  ],
  "summary": "使用表单数据更新宠物信息",
  "description": "此API允许使用表单数据更新现有宠物的名称和状态",
  "operationId": "updatePetWithForm",
  "parameters": [
    {
      "name": "petId",
      "in": "path",
      "description": "需要更新的宠物ID",
      "required": true,
      "schema": {
        "type": "string"
      }
    }
  ],
  "requestBody": {
    "content": {
      "application/x-www-form-urlencoded": {
        "schema": {
          "type": "object",
          "properties": {
            "name": {
              "description": "宠物的更新名称",
              "type": "string"
            },
            "status": {
              "description": "宠物的更新状态",
              "type": "string",
              "enum": ["available", "pending", "sold"]
            }
          },
          "required": ["status"]
        }
      }
    }
  },
  "responses": {
    "200": {
      "description": "宠物更新成功",
      "content": {
        "application/json": {},
        "application/xml": {}
      }
    },
    "405": {
      "description": "方法不允许",
      "content": {
        "application/json": {},
        "application/xml": {}
      }
    }
  },
  "security": [
    {
      "petstore_auth": [
        "write:pets",
        "read:pets"
      ]
    }
  ]
}

External Documentation Object

提供外部文档链接:

{
  "description": "查找更多信息",
  "url": "https://example.com/docs"
}

Parameter Object

定义API操作的参数:

{
  "name": "token",
  "in": "header",
  "description": "认证令牌",
  "required": true,
  "schema": {
    "type": "array",
    "items": {
      "type": "integer",
      "format": "int64"
    }
  },
  "style": "simple"
}

参数位置(in)可以是:

  • path:路径参数,如/users/{id}
  • query:查询参数,如/users?role=admin
  • header:HTTP头参数
  • cookie:Cookie参数

Request Body Object

定义API请求体:

{
  "description": "添加到系统的用户信息",
  "required": true,
  "content": {
    "application/json": {
      "schema": {
        "$ref": "#/components/schemas/User"
      },
      "examples": {
          "user" : {
            "summary": "用户示例",
            "externalValue": "https://foo.bar/examples/user-example.json"
          }
        }
    },
    "application/xml": {
      "schema": {
        "$ref": "#/components/schemas/User"
      },
      "examples": {
          "user" : {
            "summary": "XML格式的用户示例",
            "externalValue": "https://foo.bar/examples/user-example.xml"
          }
        }
    },
    "text/plain": {
      "examples": {
        "user" : {
            "summary": "纯文本格式的用户示例",
            "externalValue": "https://foo.bar/examples/user-example.txt"
        }
      }
    },
    "*/*": {
      "examples": {
        "user" : {
            "summary": "其他格式的用户示例",
            "externalValue": "https://foo.bar/examples/user-example.whatever"
        }
      }
    }
  }
}

Responses Object

定义API的所有可能响应:

{
  "200": {
    "description": "返回的宠物信息",
    "content": {
      "application/json": {
        "schema": {
          "$ref": "#/components/schemas/Pet"
        },
        "examples": {
          "cat": {
            "summary": "猫示例",
            "value": {
              "id": 1,
              "name": "Fluffy",
              "category": {
                "id": 1,
                "name": "Cats"
              },
              "status": "available"
            }
          }
        }
      }
    }
  },
  "404": {
    "description": "宠物未找到",
    "content": {
      "application/json": {
        "schema": {
          "$ref": "#/components/schemas/Error"
        },
        "example": {
          "code": 404,
          "message": "Pet not found"
        }
      }
    }
  },
  "default": {
    "description": "意外错误",
    "content": {
      "application/json": {
        "schema": {
          "$ref": "#/components/schemas/ErrorModel"
        }
      }
    }
  }
}

Header Object

定义API响应头:

{
  "description": "当前周期内允许的请求数",
  "schema": {
    "type": "integer"
  },
  "example": 42
}

OpenAPI安全机制

OpenAPI支持多种安全机制,包括:

API密钥认证

"securitySchemes": {
  "api_key": {
    "type": "apiKey",
    "name": "api_key",
    "in": "header"
  }
}

基本认证

"securitySchemes": {
  "basicAuth": {
    "type": "http",
    "scheme": "basic"
  }
}

Bearer令牌

"securitySchemes": {
  "bearerAuth": {
    "type": "http",
    "scheme": "bearer",
    "bearerFormat": "JWT"
  }
}

OAuth2.0

"securitySchemes": {
  "oauth2": {
    "type": "oauth2",
    "flows": {
      "authorizationCode": {
        "authorizationUrl": "https://example.com/oauth/authorize",
        "tokenUrl": "https://example.com/oauth/token",
        "scopes": {
          "read": "读取权限",
          "write": "写入权限",
          "admin": "管理员权限"
        }
      }
    }
  }
}

OpenAPI最佳实践

API设计原则

  • 使用资源导向的URL设计
  • 采用一致的命名约定
  • 使用适当的HTTP方法
  • 提供有意义的错误响应
  • 实现分页、过滤和排序

文档组织

  • 按功能模块组织API
  • 使用标签对API进行分类
  • 提供详细的描述和示例
  • 包含认证和授权信息
  • 说明API限制和速率限制

版本控制

  • 在URL中包含版本号(如/v1/users
  • 使用语义化版本控制API
  • 维护向后兼容性
  • 提供版本迁移指南

使用 Apifox 管理 OpenAPI API

Apifox 是一款集API文档、API管理、API测试于一身的多功能API工具,是管理OpenAPI项目的理想选择。

立即体验 Apifox

ApifoxApifox

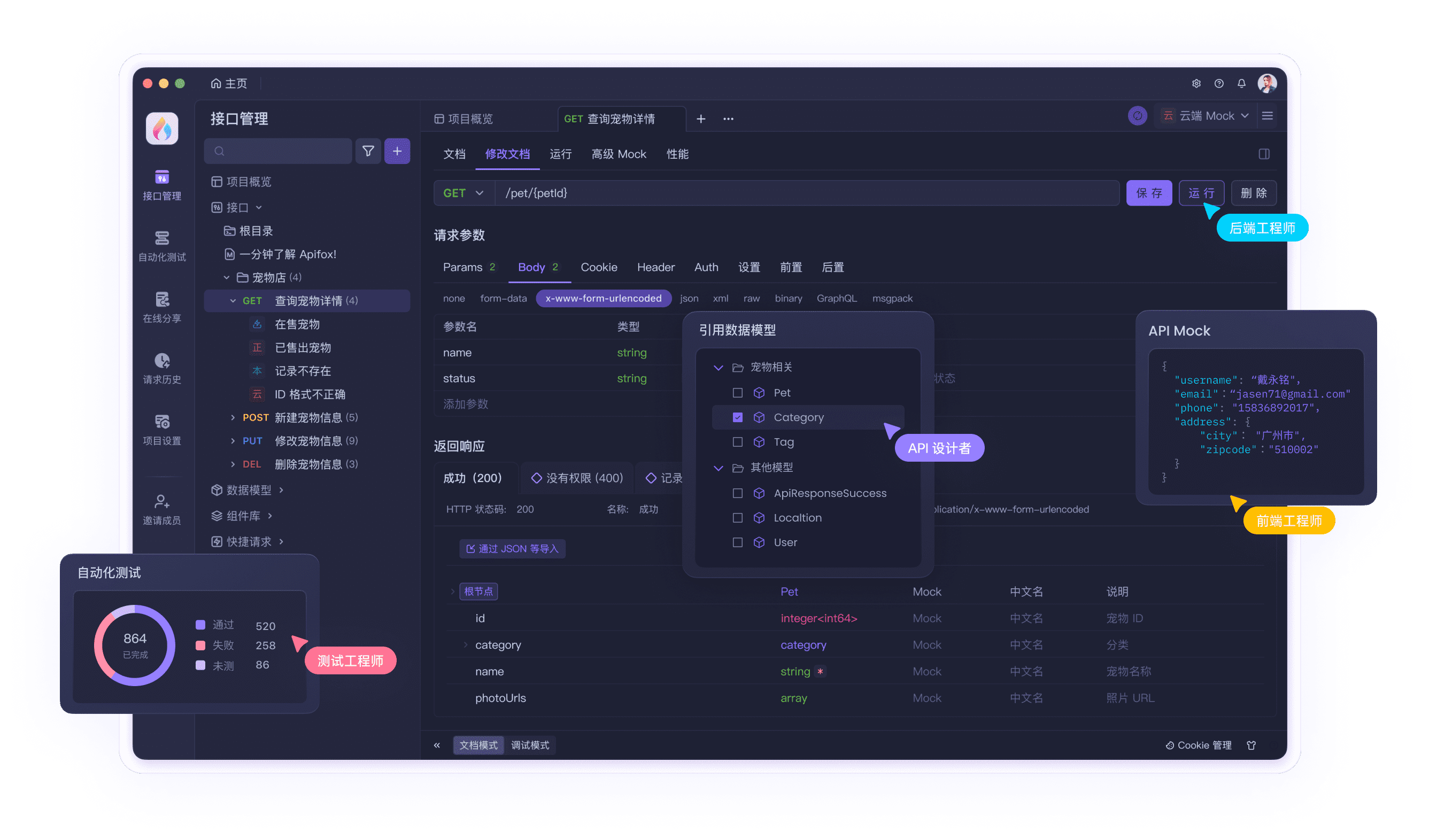

Apifox 的 API 管理

Apifox 提供全面的API管理功能:

  • 接口数管理:集中管理所有API接口
  • operationID:支持OpenAPI的operationID
  • Mock 功能:快速生成模拟数据
  • 请求定义与示例:详细定义请求参数和提供示例
  • 响应定义与示例:规范响应格式并提供示例
  • 唯一标识:确保API的唯一性和可追踪性

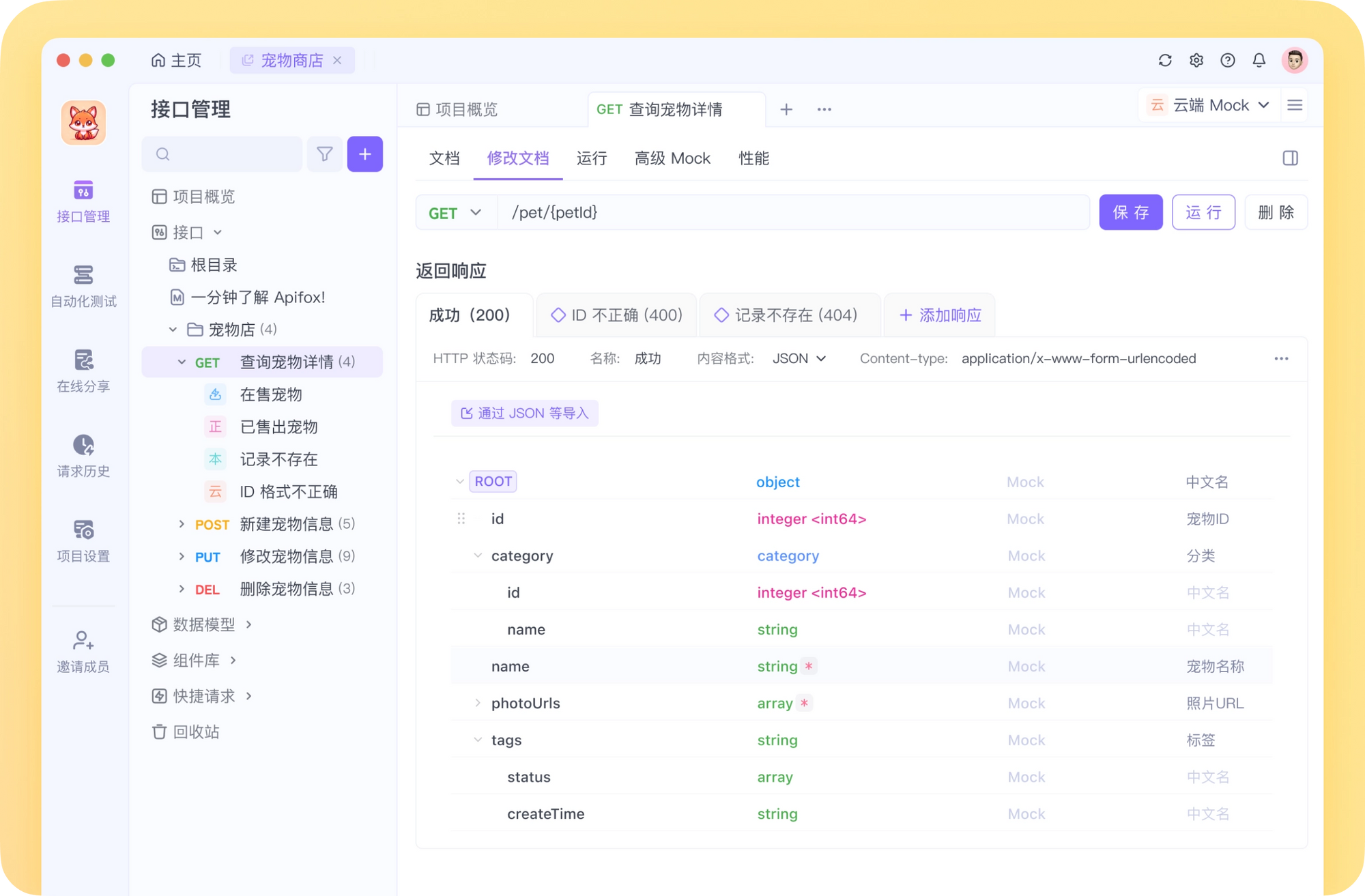

API管理

Apifox 的自动化测试

Apifox 提供强大的自动化测试功能:

  • 测试用例:支持测试多个接口或接口用例
  • 测试套件:组织和管理多个测试用例
  • 参数化测试:可设置循环次数、延迟时间、环境变量和线程数
  • 测试报告:支持导出详细的测试报告
  • 结果分析:查看单个接口的测试结果和详细参数

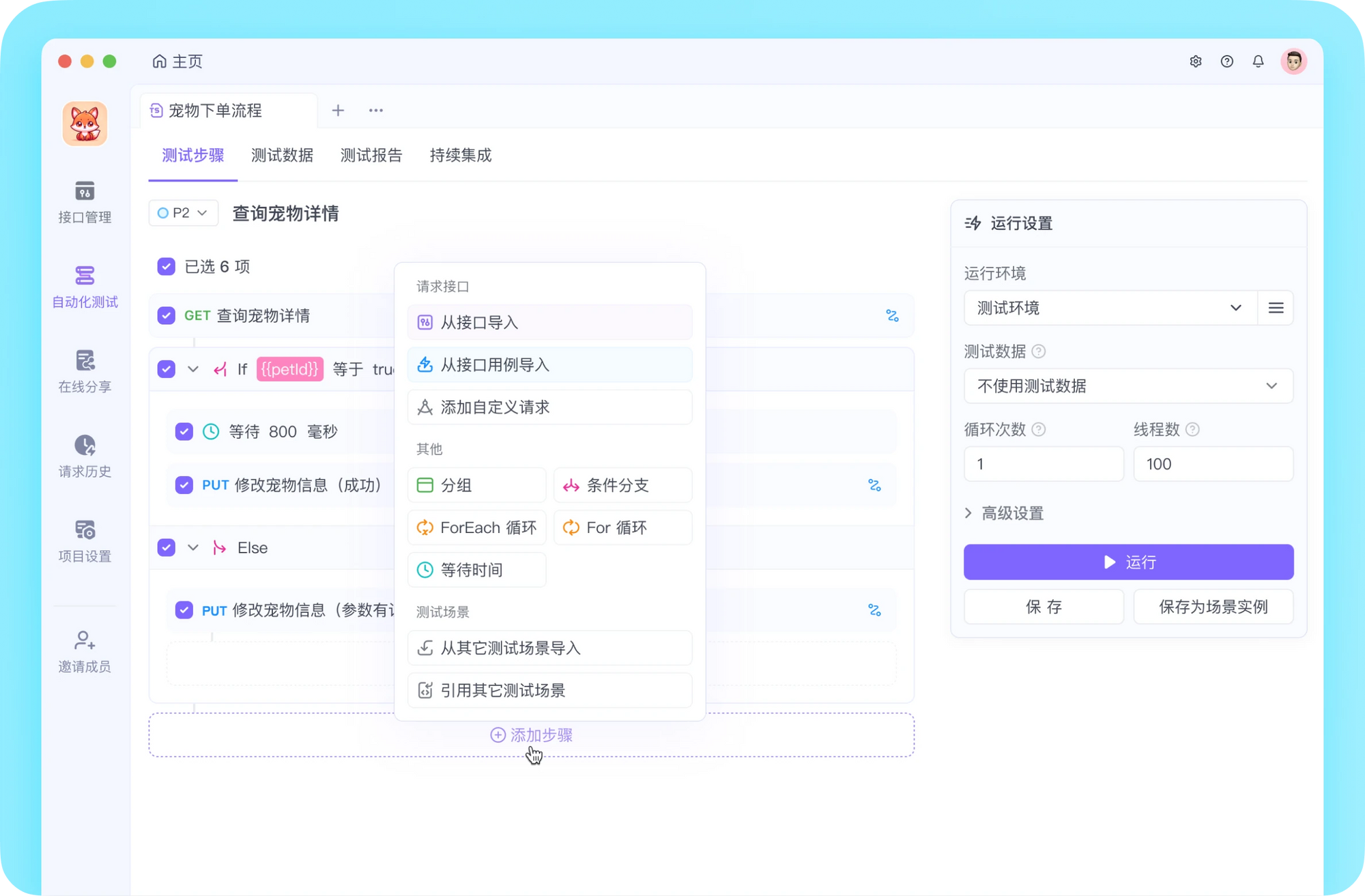

自动化测试

Mock 功能

Apifox的Mock功能让前后端开发可以并行进行:

  1. 定义接口响应结构
  2. 通过本地Mock功能生成数据
  3. 前端可立即开始开发,无需等待后端实现

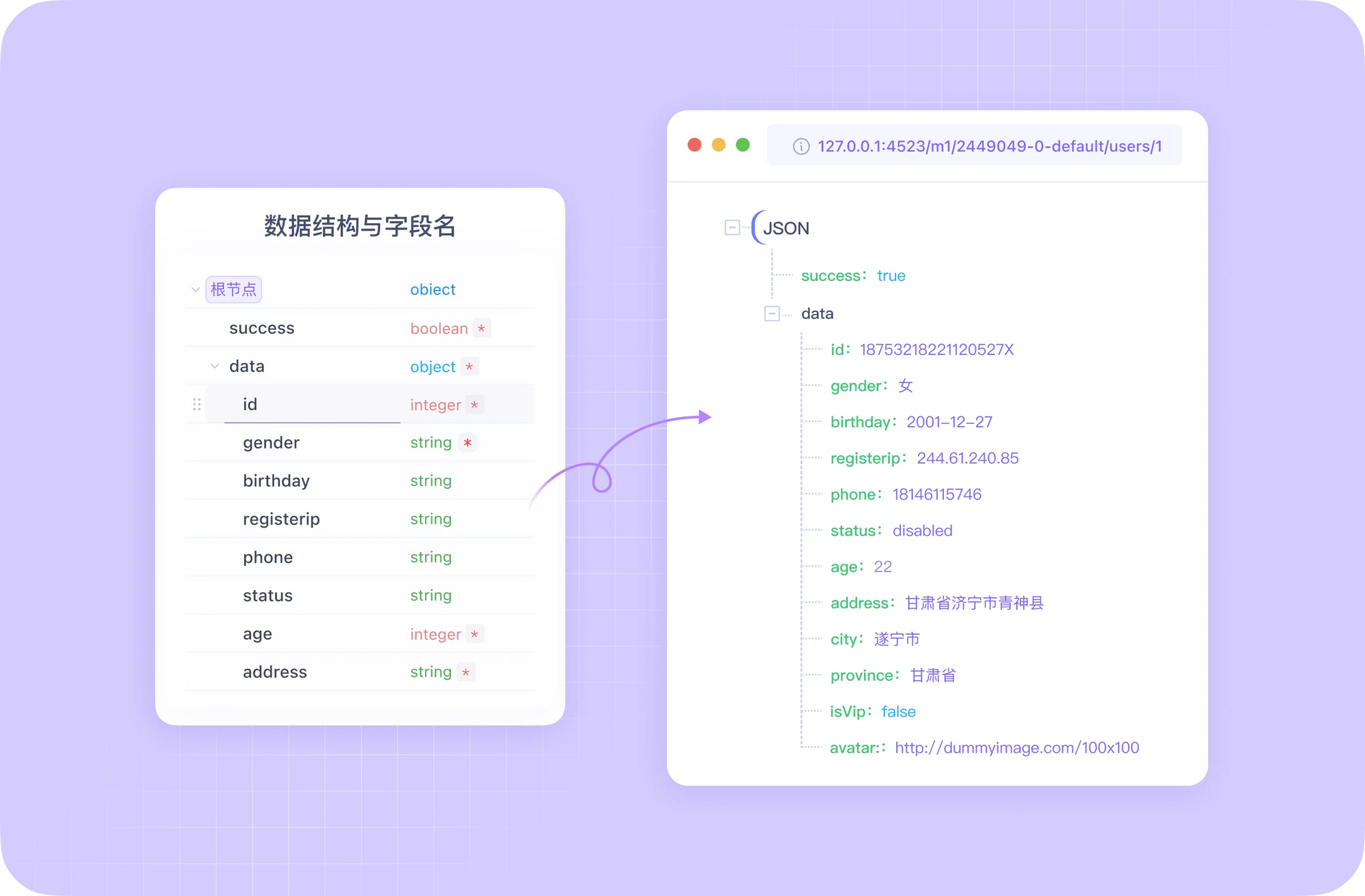

Mock功能

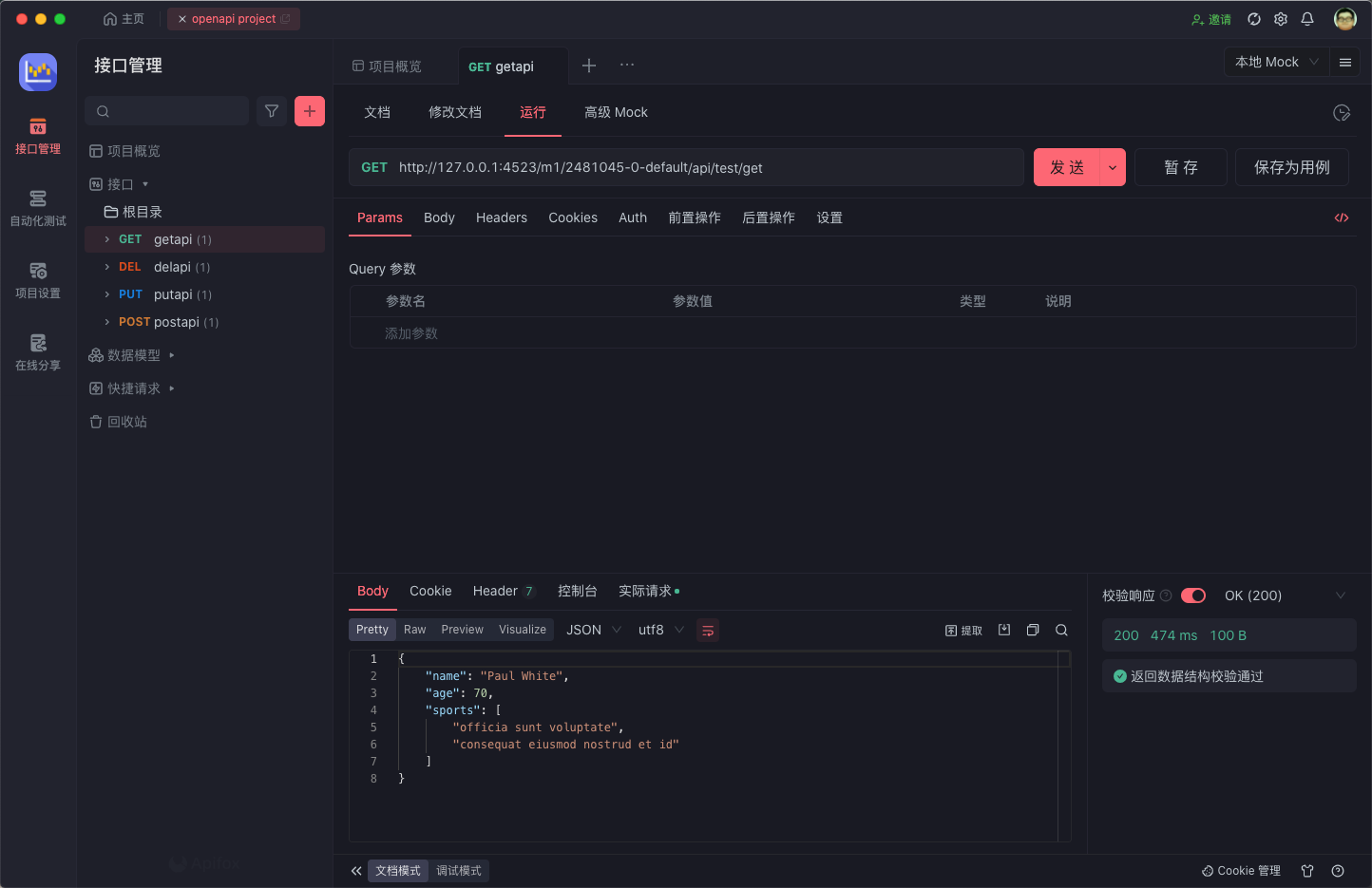

点击"发送"按钮,即可获取Mock数据:

Mock数据Mock数据

导出导入 OpenAPI

Apifox支持OpenAPI规范的导入导出,便于项目迁移和团队协作:

  • 导入功能:支持从Swagger、Postman等工具导入API定义
  • 导出功能:可导出为OpenAPI 3.0/2.0格式,便于与其他工具集成

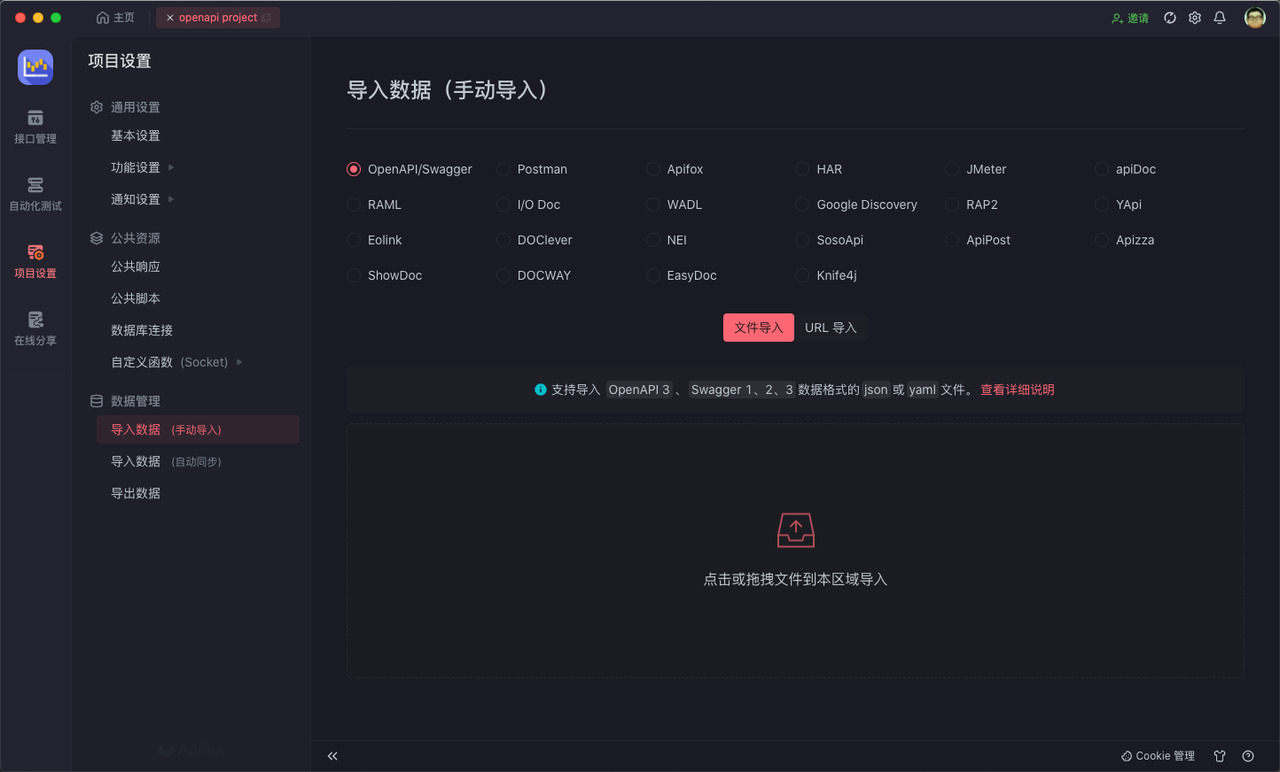

导入数据导入数据

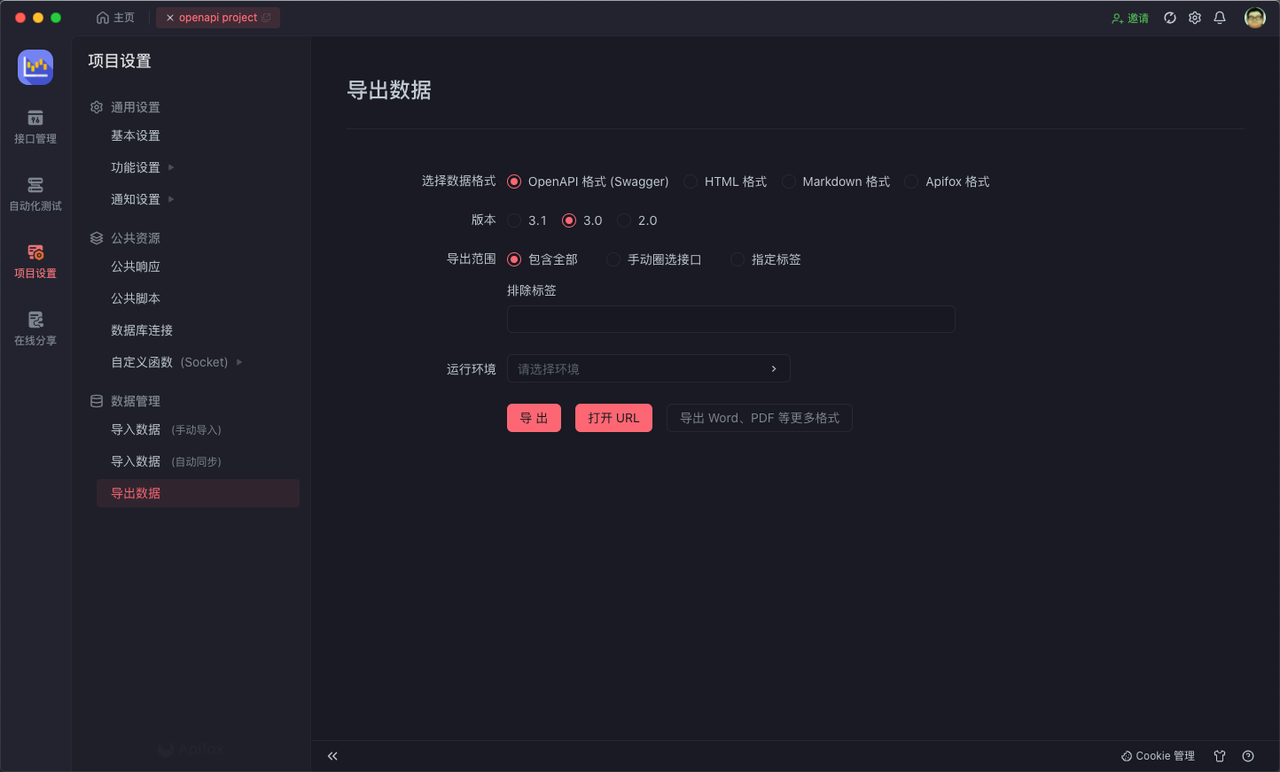

导出数据导出数据

OpenAPI的未来发展

随着API经济的蓬勃发展,OpenAPI规范也在不断演进:

  • GraphQL集成:探索与GraphQL的协同工作方式
  • 异步API:增强对WebSocket、MQTT等异步API的支持
  • 微服务架构:更好地支持微服务API治理
  • API网关集成:与主流API网关更紧密集成

关于 Apifox

Apifox是一站式API开发协作平台:

  • 集成多功能:API文档、API调试、API Mock、API自动化测试于一体
  • 先进工具:提供更高效的API设计、开发和测试工具
  • 一体化解决方案Apifox = Postman + Swagger + Mock + JMeter

欢迎免费体验:在线使用Apifox

结语

OpenAPI规范为API开发提供了统一的语言和标准,而Apifox等工具则进一步简化了API的设计、开发和测试流程。掌握OpenAPI规范,选择合适的工具,将显著提升您的API开发效率和质量。

您有什么关于OpenAPI规范或Apifox使用的问题和经验?欢迎在评论区分享交流!

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
