老版本:
filename_queue = tf.train.string_input_producer([tfrecords_filename],num_epochs=None) #读入流中
reader = tf.TFRecordReader()
_, serialized_example = reader.read(filename_queue)
features = tf.parse_single_example(serialized_example,
features={
'sample' : tf.FixedLenFeature([], tf.string),
'label': tf.FixedLenFeature([], tf.string),
})
img= tf.decode_raw(features['sample'],tf.uint8)
img= tf.reshape(img, [28,28])
label = tf.decode_raw(features['label'],tf.uint8)
label = tf.reshape(label, [10])
label = tf.cast(label, tf.float64)
init=tf.global_variables_initializer()
with tf.Session() as sess:
sess.run(init)
coord = tf.train.Coordinator()
threads = tf.train.start_queue_runners(sess=sess, coord=coord)
sample, l = sess.run([img,label]) # 每次读一条数据
print(sample, l)
#读取数据出现版本升级提示 Queue-based input pipelines have been replaced by `tf.data`. Use `tf.data.Dataset.from_tensors(tensor).repeat(num_epochs)`.
新版本:
def input_fn(filenames, batch_size=32, num_epochs=1, perform_shuffle=True):
print('Parsing', filenames)
## 一条条数据解析
def _parse_fn(record): # 解码稀疏libvm特征(onthot)
features = {
"label": tf.FixedLenFeature([], tf.float32),
"feat_ids": tf.FixedLenFeature([onehot_field_size], tf.int64), # 必须给长度,且是定长onehot的特征域长度
}
parsed = tf.parse_single_example(record, features)
label = parsed.pop('label')
return parsed, label
# Extract lines from input files using the Dataset API, can pass one filename or filename list
# multi-thread pre-process then prefetch
dataset = tf.data.TFRecordDataset(filenames).map(_parse_fn, num_parallel_calls=1).prefetch(500000)
# Randomizes input using a window of 256 elements (read into memory)
if perform_shuffle:
dataset = dataset.shuffle(buffer_size=256)
# epochs from blending together.
dataset = dataset.repeat(num_epochs)
dataset = dataset.batch(batch_size) # Batch size to use
# return dataset.make_oTrueot_iterator()
iterator = dataset.make_one_shot_iterator() # 构造数据集合迭代器
batch_features, batch_labels = iterator.get_next()
return batch_features, batch_labels
通常做法是使用Tensorflow的Dataset来读取我们的tfRecord,但是老的版本也有通过TFRecordReader进行解析,这里我们先介绍使用Dataset方式读取
- 加载TFRecord文件
- 通过parse_fn方法对每条样本机型解析
- 重复N epochs
- batch
def parse_fn(example_proto):
features = {"state": tf.FixedLenFeature((), tf.string),
"action": tf.FixedLenFeature((), tf.int64),
"reward": tf.FixedLenFeature((), tf.int64)}
parsed_features = tf.parse_single_example(example_proto, features)
return tf.decode_raw(parsed_features['state'], tf.float32), parsed_features['action'], parsed_features['reward']
with tf.Session() as sess:
dataset = tf.data.TFRecordDataset(output_file) # 加载TFRecord文件
dataset = dataset.map(parse_fn) # 解析data到Tensor
dataset = dataset.repeat(1) # 重复N epochs
dataset = dataset.batch(3) # batch size
iterator = dataset.make_one_shot_iterator()
next_data = iterator.get_next()
while True:
try:
state, action, reward = sess.run(next_data)
print(state)
print(action)
print(reward)
except tf.errors.OutOfRangeError:
break

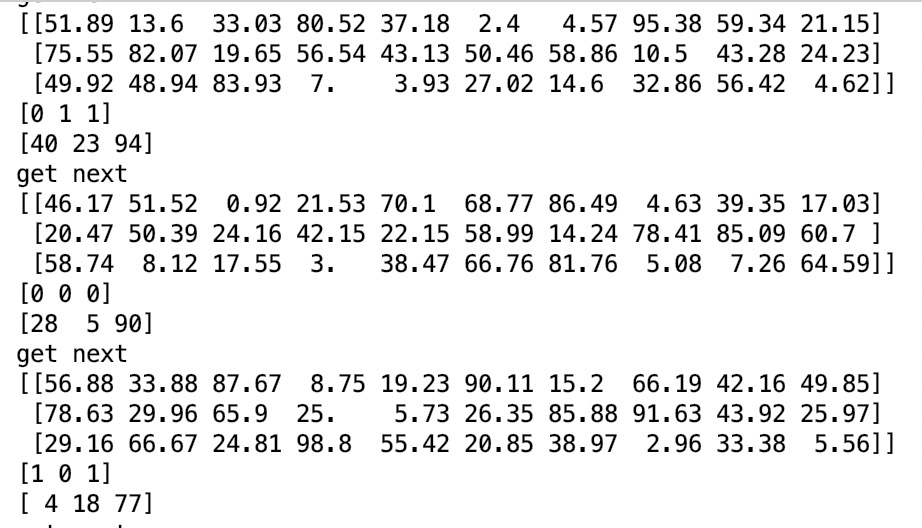

遍历结果:
解析tfrecord的2种方式
for example in tf.io.tf_record_iterator(output_file):
print("first method")
print(tf.train.Example.FromString(example))
# 或者用下面的方法
print("second method")
from google.protobuf.json_format import MessageToJson
jsonMessage = MessageToJson(tf.train.Example.FromString(example))
print(jsonMessage)
解析结果:
first method
features {
feature {
key: "action"
value {
int64_list {
value: 1
}
}
}
feature {
key: "reward"
value {
int64_list {
value: 90
}
}
}
feature {
key: "state"
value {
bytes_list {
value: "\037\205\277B\341zD@\217\302\247A\270\036\303B\205\353\237Aff\230A33\031B\315\314\300A\nW\202B\244p/B"
}
}
}
}
second method
{
"features": {
"feature": {
"action": {
"int64List": {
"value": [
"1"
]
}
},
"state": {
"bytesList": {
"value": [
"H4W/QuF6RECPwqdBuB7DQoXrn0FmZphBMzMZQs3MwEEKV4JCpHAvQg=="
]
}
},
"reward": {
"int64List": {
"value": [
"90"
]
}
}
}
}
}
完整代码:
"""
本程序演示了如何保存numpy array为TFRecords文件,并将其读取出来。
"""
import random
import numpy as np
import tensorflow.compat.v1 as tf
tf.disable_v2_behavior()
def save_tfrecords(state_data, action_data, reward_data, dest_file):
"""
保存numpy array到TFRecord文件中。
这里输入了三个不同的numpy array来做演示,它们含有不同类型的元素。
Args:
state_data: 要保存到TFRecord文件的第1个numpy array,每一个 state_data[i] 是一个 numpy.ndarray(数组里的每个元素又是一个浮点
数),因此不能用 Int64List 或 FloatList 来存储,只能用 BytesList。
action_data: 要保存到TFRecord文件的第2个numpy array,每一个 action_data[i] 是一个整数,使用 Int64List 来存储。
reward_data: 要保存到TFRecord文件的第3个numpy array,每一个 reward_data[i] 是一个整数,使用 Int64List 来存储。
dest_file: 输出文件的路径。
Returns:
不返回任何值
"""
with tf.io.TFRecordWriter(dest_file) as writer:
for i in range(len(state_data)):
features = tf.train.Features(
feature={
"state": tf.train.Feature(
bytes_list=tf.train.BytesList(value=[state_data[i].astype(np.float32).tobytes()])),
# "state": tf.train.Feature(
# float_list=tf.train.FloatList(value=state_data[i].astype(np.float))),
# "action": tf.train.Feature(
# int64_list=tf.train.Int64List(value=[action_data[i]])),
# "reward": tf.train.Feature(
# int64_list=tf.train.Int64List(value=[reward_data[i]]))
"action": tf.train.Feature(
int64_list=tf.train.Int64List(value=action_data[i].astype(np.int))),
"reward": tf.train.Feature(
int64_list=tf.train.Int64List(value=reward_data[i].astype(np.int)))
}
)
tf_example = tf.train.Example(features=features)
serialized = tf_example.SerializeToString()
writer.write(serialized)
def parse_fn(example_proto):
features = {"state": tf.FixedLenFeature((), tf.string),
"action": tf.FixedLenFeature((), tf.int64),
"reward": tf.FixedLenFeature((), tf.int64)}
parsed_features = tf.parse_single_example(example_proto, features)
return tf.decode_raw(parsed_features['state'], tf.float32), parsed_features['action'], parsed_features['reward']
if __name__ == '__main__':
buffer_s, buffer_a, buffer_r = [], [], []
# 随机生成一些数据
for i in range(30):
state = [round(random.random() * 100, 2) for _ in range(0, 10)] # 一个数组,里面有10个数,每个都是一个浮点数
action = random.randrange(0, 2) # 一个数,值为 0 或 1
reward = random.randrange(0, 100) # 一个数,值域 [0, 100)
# 把生成的数分别添加到3个list中
buffer_s.append(state)
buffer_a.append(action)
buffer_r.append(reward)
# 查看生成的数据
print(buffer_s)
print(buffer_a)
print(buffer_r)
# 在水平方向把各个list堆叠起来,堆叠的结果:得到3个矩阵
s_stacked = np.vstack(buffer_s)
a_stacked = np.vstack(buffer_a)
r_stacked = np.vstack(buffer_r)
print(s_stacked.shape) # (3, 10)
print(a_stacked.shape) # (3, 1)
print(r_stacked.shape) # (3, 1)
print(s_stacked)
print(a_stacked)
print(r_stacked)
print("data generate sucess!")
# 写入TFRecord文件
output_file = './data.tfrecord' # 输出文件的路径
save_tfrecords(s_stacked, a_stacked, r_stacked, output_file)
# 读取TFRecord文件并打印出其内容
for example in tf.io.tf_record_iterator(output_file):
print("first method")
print(tf.train.Example.FromString(example))
# 或者用下面的方法
print("second method")
from google.protobuf.json_format import MessageToJson
jsonMessage = MessageToJson(tf.train.Example.FromString(example))
print(jsonMessage)
# 读取TFRecord文件并还原成numpy array,再打印出来
with tf.Session() as sess:
dataset = tf.data.TFRecordDataset(output_file) # 加载TFRecord文件
dataset = dataset.map(parse_fn) # 解析data到Tensor
dataset = dataset.repeat(1) # 重复N epochs
dataset = dataset.batch(3) # batch size
iterator = dataset.make_one_shot_iterator()
next_data = iterator.get_next()
while True:
try:
print("get next")
state, action, reward = sess.run(next_data)
print(state)
print(action)
print(reward)
except tf.errors.OutOfRangeError:
break
TFRecordReader方式
- tf.train.string.input_producer 读取序列化后的的TFRecord记录,生成一个QueueRunner,它包含一个FIFOQueue队列
- 通过tf.TFRecordReader() 依据定义的模式,进行反序列化parse,可以附带一些转换操作
- batch,通过tf.train.shuffle_batch生成了RandomShuffleQueue
- 通过 tf.train.Coordinator() tf.train.start_queue_runners 载入数据训练
文本生成tf.dataset例子:
import numpy as np
import os
import tensorflow as tf
from tensorflow import keras
import tensorflow_datasets as tfds
# as_supervised :若为 True,则根据数据集的特性,
# 将数据集中的每行元素整理为有监督的二元组 (input, label) (即 “数据 + 标签”)形式,否则数据集中的每行元素为包含所有特征的字典。
examples, info = tfds.load('ted_hrlr_translate/pt_to_en',
data_dir='./v3_0/dataset',
with_info=True,
as_supervised=True,
download=False)
train_examples, val_examples = examples['validation'], examples['validation']
# print(info)
# for pt, en in train_examples.take(5):
# print(pt.numpy())
# print(en.numpy())
# print()
## 使用tf 原生api进行处理 提供:corpus_generator 如果是中文则需要分词处理
en_tokenizer = tfds.deprecated.text.SubwordTextEncoder.build_from_corpus(
(en.numpy() for pt, en in train_examples),
target_vocab_size=2 ** 13,
) # 标记器,是一个词典映射表
pt_tokenizer = tfds.deprecated.text.SubwordTextEncoder.build_from_corpus(
(pt.numpy() for pt, en in train_examples),
target_vocab_size=2 ** 13,
)
buffer_size = 20000
batch_size = 64
max_length = 40
## 头尾多加了个数字
def encode_to_subword(pt_sentence, en_sentence):
pt_sequence = [pt_tokenizer.vocab_size] + pt_tokenizer.encode(pt_sentence.numpy()) + [pt_tokenizer.vocab_size + 1]
en_sequence = [en_tokenizer.vocab_size] + en_tokenizer.encode(en_sentence.numpy()) + [en_tokenizer.vocab_size + 1]
return pt_sequence, en_sequence
def filter_by_max_length(pt, en):
'''过滤掉过长的句子'''
return tf.logical_and(tf.size(pt) <= max_length,
tf.size(en) <= max_length)
def tf_encode_to_subwords(pt_sentence, en_sentence):
'''对函数进行封装'''
return tf.py_function(encode_to_subword,
[pt_sentence, en_sentence],
[tf.int64, tf.int64])
## 每一个batch 的长度 输入 输出都是不固定的
train_dataset = train_examples.map(tf_encode_to_subwords)
train_dataset = train_dataset.filter(filter_by_max_length) ## 选出单词次数在 40个词的句子
for item in train_dataset.as_numpy_iterator():
print(item)
train_dataset = train_dataset.shuffle(buffer_size).padded_batch(batch_size, padded_shapes=(
[-1], [-1])) # 数据分为两个维度,每个维度都扩展到每个batch中句子最高的维度值,例如最长的句子长度作为维度
valid_dataset = val_examples.map(tf_encode_to_subwords)
valid_dataset = valid_dataset.filter(filter_by_max_length)
valid_dataset = valid_dataset.shuffle(buffer_size).padded_batch(batch_size, padded_shapes=([-1], [-1]))
for pt_batch, en_batch in valid_dataset.take(5):
print(pt_batch.shape, en_batch.shape)
