是什么
一、介绍
-
支持读取高并发的Map
-
所有操作支持高并发
-
任何操作不会锁整表,保护全表获取操作,使之能高并发
-
效果跟Hashtable一样,但不是使用synchronize
-
读操作会在修改操作后,遵循heppen-before原则,谁以先操作的动作为准
-
并发读只能影响全量操作中正在操作的节点
-
迭代器读取的是创建迭代器之前的那个状态(创建迭代器的时候,始终遍历的是创建迭代器时的hash表)
-
所以不会抛出并发修改异常(读的都是修改后的结果)
-
获取长度,是否为空,是否包含值是瞬时态,就是那一个瞬间的结果,结合volatile
-
到达负载因子.75就会扩容,为啥不能是1呢?因为存在hash冲突的情况
-
扩容过程可能会比去其他的hash表慢
-
concurrencyLevel
指定并发更新的线程数 -
这个类跟hashTable一样不支持空值,而hashMap是支持空值的,所有方法参数必须非空
-
设计目标,并发高效读,高效写
-
Node类,是key-value映射的一个实例,还有下一个节点
-
TreeNode类是Node的子类,为了实现红黑树
-
TreeBins是红黑树的根节点,也充当一个锁对象
-
ForwardingNodes是在扩容时的头节点
-
当该箱子被迁移了,会在原来的地方放置一个ForwardingNodes
-
ReservationNodes是占位符节点用于computeIfAbsent
-
TreeBins/ForwardingNode/ReservationNode三个节点不维护真正的数据
-
-
初始化的时候只有一个Node节点,当第一次插入的时候才会扩容
-
用高位标志来做hash
-
当第一个插入的时候是CAS
-
利用每个bin的第一个节点当锁,因为不想浪费空间,此时这个箱子的第一个节点可能是普通节点,如果是普通节点那么直接用synchronize锁对象,如果是TreeBin节点,那么由TreeBin节点充当显示锁,保护树的内容。
-
为啥可以锁每个箱子?在0.75的负载因子的作用下,实际上每个箱子的节点并不会很多,源码有统计数据。而且并发插入的时候实际要击中同一个箱子并不容易
-
在hash冲突的时候转为红黑树
-
当发现表格扩容的时候,将协助其扩容
-
transferIndex字段减少争用
-
sizeCtrl防止覆盖
-
默认容量是16不是8
-
树化阀值8
-
非树化阀值6
-
最小树化容量64,如果有太多链节点,会先扩容再转为树
-
Node节点跟Entry节点的不同之处是Node是Entry的一个子类,但是Node节点不能被设置值
-
sizeCtrl:表初始化和调整大小控件
- 表正在初始化或调整大小:-1表示初始化,else -(1 +活动调整大小的线程数)。
- 否则,当表为null时,保存要使用的初始表大小创建,或者默认为0。初始化后,保存下一个元素计算要调整表大小的值
-
transferIndex:The next table index (plus one) to split while resizing.
-
里面提供了视图,键,值,entrySet
二、常用属性与方法
1、获取表格中的值的,增改查
static final <K,V> Node<K,V> tabAt(Node<K,V>[] tab, int i) {
return (Node<K,V>)U.getObjectVolatile(tab, ((long)i << ASHIFT) + ABASE);
}
static final <K,V> boolean casTabAt(Node<K,V>[] tab, int i,
Node<K,V> c, Node<K,V> v) {
return U.compareAndSwapObject(tab, ((long)i << ASHIFT) + ABASE, c, v);
}
static final <K,V> void setTabAt(Node<K,V>[] tab, int i, Node<K,V> v) {
U.putObjectVolatile(tab, ((long)i << ASHIFT) + ABASE, v);
}
2、表格的样子
/**
* The array of bins. Lazily initialized upon first insertion.
* Size is always a power of two. Accessed directly by iterators.
*/
transient volatile Node<K,V>[] table;
/**
* The next table to use; non-null only while resizing.
*/
private transient volatile Node<K,V>[] nextTable;
3、总量记录在哪里?
/**
* Base counter value, used mainly when there is no contention,
* but also as a fallback during table initialization
* races. Updated via CAS.
*/
private transient volatile long baseCount;
4、sizeCtl
/**
* Table initialization and resizing control. When negative, the
* table is being initialized or resized: -1 for initialization,
* else -(1 + the number of active resizing threads). Otherwise,
* when table is null, holds the initial table size to use upon
* creation, or 0 for default. After initialization, holds the
* next element count value upon which to resize the table.
*/
private transient volatile int sizeCtl;
//1. -1代表初始化
//2. -(1+N)N代表在支持扩容的线程数
//3. 下次扩容的数量
5、transferIndex
/**
* The next table index (plus one) to split while resizing.
*/
private transient volatile int transferIndex;
//协助扩容时分配任务的分割点,由大往小减少
6、计数表格
/**
* Spinlock (locked via CAS) used when resizing and/or creating CounterCells.
*/
private transient volatile int cellsBusy;
//计数表格自旋锁
/**
* Table of counter cells. When non-null, size is a power of 2.
*/
private transient volatile CounterCell[] counterCells;
//计数表格
三、方法
1、 构造函数
1.1、如果初始化大小如果不是2的幂,那么会转换为2的幂
/**
* Creates a new, empty map with an initial table size
* accommodating the specified number of elements without the need
* to dynamically resize.
*
* @param initialCapacity The implementation performs internal
* sizing to accommodate this many elements.
* @throws IllegalArgumentException if the initial capacity of
* elements is negative
*/
public ConcurrentHashMap(int initialCapacity) {
if (initialCapacity < 0)
throw new IllegalArgumentException();
int cap = ((initialCapacity >= (MAXIMUM_CAPACITY >>> 1)) ?
MAXIMUM_CAPACITY :
tableSizeFor(initialCapacity + (initialCapacity >>> 1) + 1));
this.sizeCtl = cap;
}
//1. tableSizeFor
/**
* Creates a new, empty map with an initial table size based on
* the given number of elements ({@code initialCapacity}), table
* density ({@code loadFactor}), and number of concurrently
* updating threads ({@code concurrencyLevel}).
*
* @param initialCapacity the initial capacity. The implementation
* performs internal sizing to accommodate this many elements,
* given the specified load factor.
* @param loadFactor the load factor (table density) for
* establishing the initial table size
* @param concurrencyLevel the estimated number of concurrently
* updating threads. The implementation may use this value as
* a sizing hint.
* @throws IllegalArgumentException if the initial capacity is
* negative or the load factor or concurrencyLevel are
* nonpositive
*/
public ConcurrentHashMap(int initialCapacity,
float loadFactor, int concurrencyLevel) {
if (!(loadFactor > 0.0f) || initialCapacity < 0 || concurrencyLevel <= 0)
throw new IllegalArgumentException();
if (initialCapacity < concurrencyLevel) // Use at least as many bins
initialCapacity = concurrencyLevel; // as estimated threads
long size = (long)(1.0 + (long)initialCapacity / loadFactor);
int cap = (size >= (long)MAXIMUM_CAPACITY) ?
MAXIMUM_CAPACITY : tableSizeFor((int)size);
this.sizeCtl = cap;
}
//1. sizeCtl出现在这里
2、size
2.1、通过计数表格sum获取
/**
* {@inheritDoc}
*/
public int size() {
long n = sumCount();
return ((n < 0L) ? 0 :
(n > (long)Integer.MAX_VALUE) ? Integer.MAX_VALUE :
(int)n);
}
final long sumCount() {
CounterCell[] as = counterCells; CounterCell a;
long sum = baseCount;
if (as != null) {
for (int i = 0; i < as.length; ++i) {
if ((a = as[i]) != null)
sum += a.value;
}
}
return sum;
}
3、isEmpty
3.1、通过计数表格sum获取
/**
* {@inheritDoc}
*/
public boolean isEmpty() {
return sumCount() <= 0L; // ignore transient negative values
}
4、get
public V get(Object key) {
Node<K,V>[] tab; Node<K,V> e, p; int n, eh; K ek;
int h = spread(key.hashCode());
if ((tab = table) != null && (n = tab.length) > 0 &&
(e = tabAt(tab, (n - 1) & h)) != null) {
if ((eh = e.hash) == h) {//如果表上的节点刚好是目标,直接返回
if ((ek = e.key) == key || (ek != null && key.equals(ek)))
return e.val;
}
/**
eh为-1,下面三种状态之一,find有三种实现方式
static final int MOVED = -1; // hash for forwarding nodes
static final int TREEBIN = -2; // hash for roots of trees
static final int RESERVED = -3; // hash for transient reservations
**/
else if (eh < 0)
return (p = e.find(h, key)) != null ? p.val : null;//find 方法见下面
//代表是普通的链节点,直接就next了
while ((e = e.next) != null) {
if (e.hash == h &&
((ek = e.key) == key || (ek != null && key.equals(ek))))
return e.val;
}
}
return null;
}
//ForwardingNodes find 方法,表示改元素已经被迁移了,那么会去下一个表的统一位置查这个元素
Node<K,V> find(int h, Object k) {
// loop to avoid arbitrarily deep recursion on forwarding nodes
outer: for (Node<K,V>[] tab = nextTable;;) {
Node<K,V> e; int n;
if (k == null || tab == null || (n = tab.length) == 0 ||
(e = tabAt(tab, (n - 1) & h)) == null)
return null;
for (;;) {
int eh; K ek;
if ((eh = e.hash) == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
if (eh < 0) {
if (e instanceof ForwardingNode) {
tab = ((ForwardingNode<K,V>)e).nextTable;
continue outer;
}
else
return e.find(h, k);
}
if ((e = e.next) == null)
return null;
}
}
}
//TreeBinNodes find 方法,当拥有锁就红黑树查找,当没有锁就线性查找
/**
* Returns matching node or null if none. Tries to search
* using tree comparisons from root, but continues linear
* search when lock not available.
*/
final Node<K,V> find(int h, Object k) {
if (k != null) {
for (Node<K,V> e = first; e != null; ) {
int s; K ek;
if (((s = lockState) & (WAITER|WRITER)) != 0) {
if (e.hash == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
e = e.next;
}
else if (U.compareAndSwapInt(this, LOCKSTATE, s,
s + READER)) {
TreeNode<K,V> r, p;
try {
p = ((r = root) == null ? null :
r.findTreeNode(h, k, null));
} finally {
Thread w;
if (U.getAndAddInt(this, LOCKSTATE, -READER) ==
(READER|WAITER) && (w = waiter) != null)
LockSupport.unpark(w);
}
return p;
}
}
}
return null;
}
//ReservationNode 占位节点,直接返回为空
Node<K,V> find(int h, Object k) {
// loop to avoid arbitrarily deep recursion on forwarding nodes
outer: for (Node<K,V>[] tab = nextTable;;) {
Node<K,V> e; int n;
if (k == null || tab == null || (n = tab.length) == 0 ||
(e = tabAt(tab, (n - 1) & h)) == null)
return null;
for (;;) {
int eh; K ek;
if ((eh = e.hash) == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
if (eh < 0) {
if (e instanceof ForwardingNode) {
tab = ((ForwardingNode<K,V>)e).nextTable;
continue outer;
}
else
return e.find(h, k);
}
if ((e = e.next) == null)
return null;
}
}
}

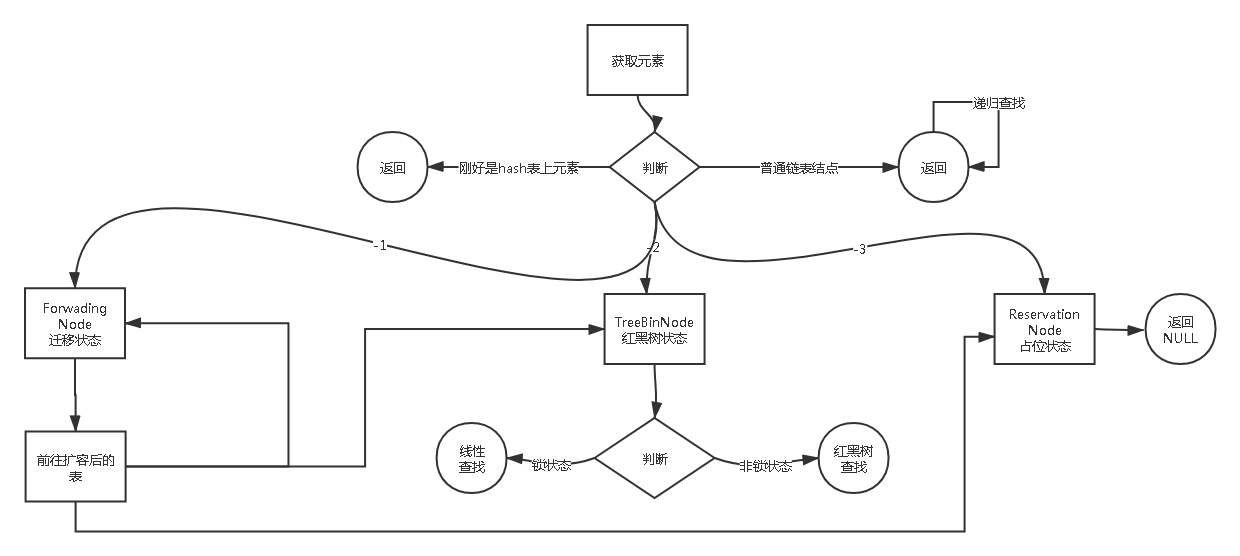

4.1、流程图
4.2、记忆方法,到hash表上,表此时可能是链表节点,可能是树节点,可能在迁移。需要根据状态判断查找方法,如果是树节点的判断是否能拿到锁,不能的话降级为线性查找,注意,这里的锁状态是通过位知识来判断的
4.3、为什么当发现是链表的时候不用加锁?为啥发现当前是锁状态的时候可以直接用next获取下一个?因为Node的next字段是volatile的,保证了它的可见性
面试网易的时候,他问过我为什么get加锁没,我回答没有,我需要告诉他为什么没有。因为get的时候
- 如果发现链表那么直接调用next字段拿到下一个内容,next字段是volatile的,保持了他的可见性。
- 如果发现是红黑树的时候,那么要判断当前的锁状态(通过TreeBin对象来判断),如果被锁了,那么退化成了方法一,如果没被锁的时候,那么就加下锁,使用红黑树的find查找
5、Traverser迭代器的实现
/**
* Advances if possible, returning next valid node, or null if none.
*/
final Node<K,V> advance() {
Node<K,V> e;
if ((e = next) != null)
e = e.next;
for (;;) {
Node<K,V>[] t; int i, n; // must use locals in checks
if (e != null)
return next = e;
if (baseIndex >= baseLimit || (t = tab) == null ||
(n = t.length) <= (i = index) || i < 0)
return next = null;
if ((e = tabAt(t, i)) != null && e.hash < 0) {
if (e instanceof ForwardingNode) {//跳到新表
tab = ((ForwardingNode<K,V>)e).nextTable;
e = null;
pushState(t, i, n);
continue;
}
else if (e instanceof TreeBin)
e = ((TreeBin<K,V>)e).first;
else
e = null;
}
if (stack != null)
recoverState(n);//从新表回来
else if ((index = i + baseSize) >= n)
index = ++baseIndex; // visit upper slots if present
}
}

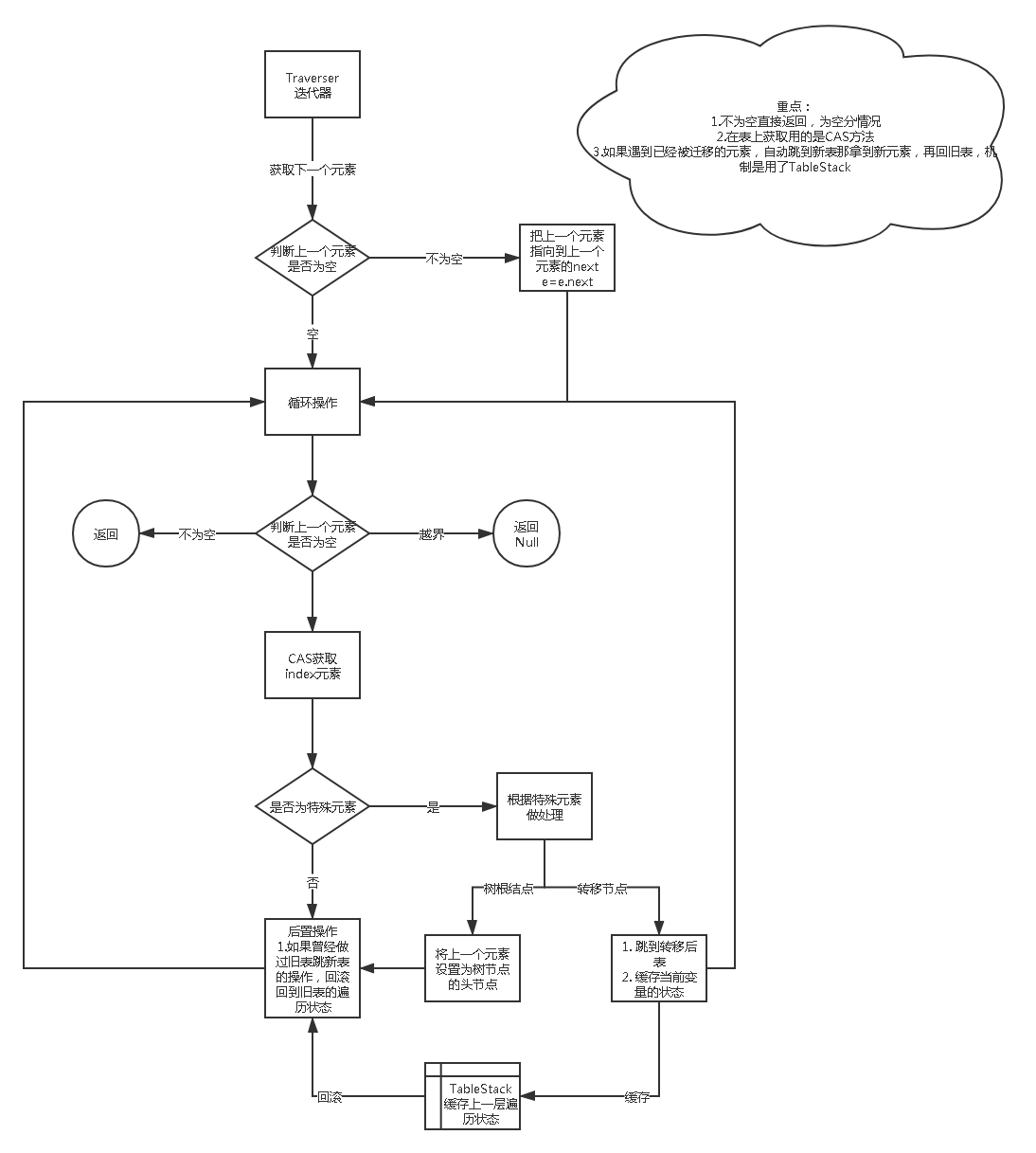

5.1、流程图
5.2、不为空直接返回,为空CAS从表上面拿下一个,如果发现元素被迁移,跳到新表拿,再回去旧表找下一个
5.3、哪些方法是基于它实现的
- containsValue

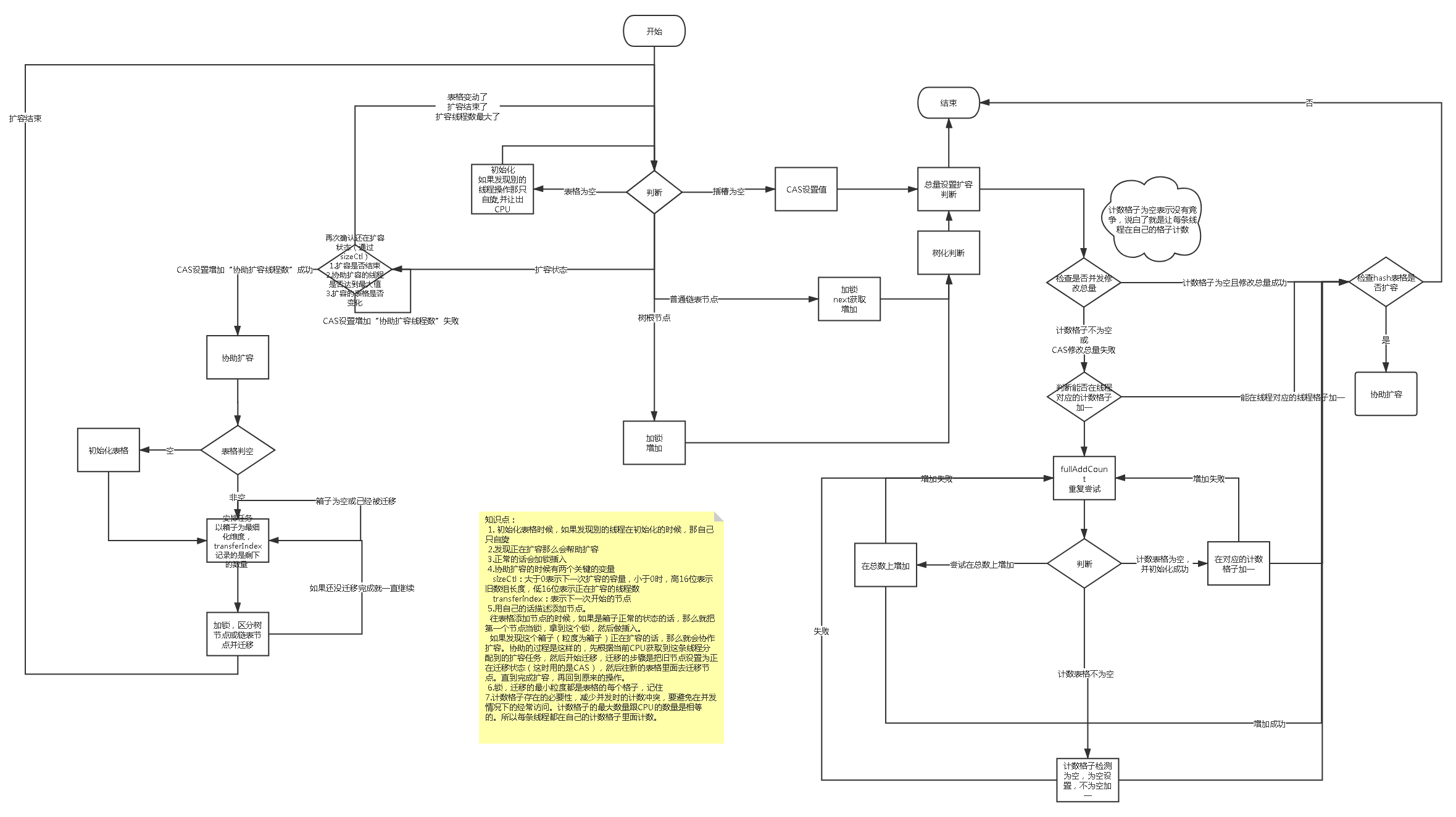

6、put
6.1、key跟value都不能为空,记忆点value不能为空
6.2、用自己的话复盘
加入的时候
- 可能哈希表还没初始化,那么就初始化
- 可能哈希格子为空,那么尝试CAS设置值
- 可能发现表格在迁移,那么协助扩容
- 检查是否能满足协作扩容的条件
- 线程数是否打满
- 表格是否扩容完毕
- 表格是否再度扩容等
- 分配任务,协助扩容
- 按总的任务数,根据线程数做规划划分
- 检查是否能满足协作扩容的条件
- 尝试拿到锁,在拿到锁就开始插插插
6.3、其他小小知识点
-
初始化表格时候,如果发现别的线程在初始化的时候,那自己只自旋
-
发现正在扩容那么会帮助扩容
-
正常的话会加锁插入
-
协助扩容的时候有两个关键的变量
- sizeCtl:大于0表示下一次扩容的容量,小于0时,高16位表示旧数组长度,低16位表示正在扩容的线程数
- transferindex:表示下一次开始的节点
-
锁,迁移的最小粒度都是表格的每个格子,记住
6.4、计数格子存在的必要性。减少并发时的计数冲突,要避免在并发情况下的经常访问。计数格子的最大数量跟CPU的数量是相等的。所以每条线程都在自己的计数格子里面计数。
7、remove
- 使用replace方法
- replace方法跟get方法相似,不累述
8、keySet&values
- 表格是否扩容完毕
- 表格是否再度扩容等
- 分配任务,协助扩容
- 按总的任务数,根据线程数做规划划分
- 尝试拿到锁,在拿到锁就开始插插插
6.3、其他小小知识点
-
初始化表格时候,如果发现别的线程在初始化的时候,那自己只自旋
-
发现正在扩容那么会帮助扩容
-
正常的话会加锁插入
-
协助扩容的时候有两个关键的变量
- sizeCtl:大于0表示下一次扩容的容量,小于0时,高16位表示旧数组长度,低16位表示正在扩容的线程数
- transferindex:表示下一次开始的节点
-
锁,迁移的最小粒度都是表格的每个格子,记住
6.4、计数格子存在的必要性。减少并发时的计数冲突,要避免在并发情况下的经常访问。计数格子的最大数量跟CPU的数量是相等的。所以每条线程都在自己的计数格子里面计数。
7、remove
- 使用replace方法
- replace方法跟get方法相似,不累述
8、keySet&values
- 返回视图
