Android6.0之前，设备上安装的软件只要在AndroidManifest.xml中声明了的权限就可以拥有那些权限(安装时权限)， 6.0以及之后增加运行时权限，不但要AndroidManifest.xml中声明，APK运行时通过弹窗提示用户是否给予授权
授权和撤销
PackageManager提供了grantRuntimePermission/revokeRuntimePermission接口用来授权和撤销授权。这些权限一般是PROTECTION_DANGEROUS类型
// PackageManager
grantRuntimePermission
revokeRuntimePermission
APK申请运行时权限
if (ActivityCompat.checkSelfPermission(this, Manifest.permission.WRITE_EXTERNAL_STORAGE) != PackageManager.PERMISSION_GRANTED) {
//没有就进行申请
ActivityCompat.requestPermissions(this, new String[]{Manifest.permission.WRITE_EXTERNAL_STORAGE}, PERMISSION_REQUEST_CODE);
}
Android权限管理的具体实现为PackageManagerService和PermissionManagerService，PackageManagerService也是Android系统的中的核心服务，主要有APK安装卸载，为APK分配userId, 权限管理，dex优化，四大组件查询等等功能

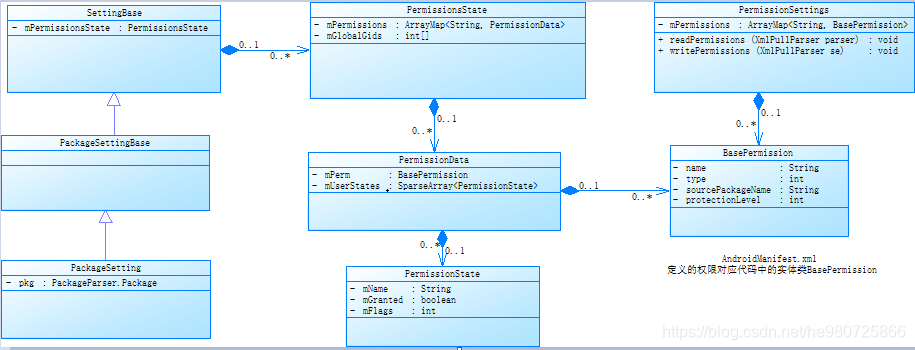

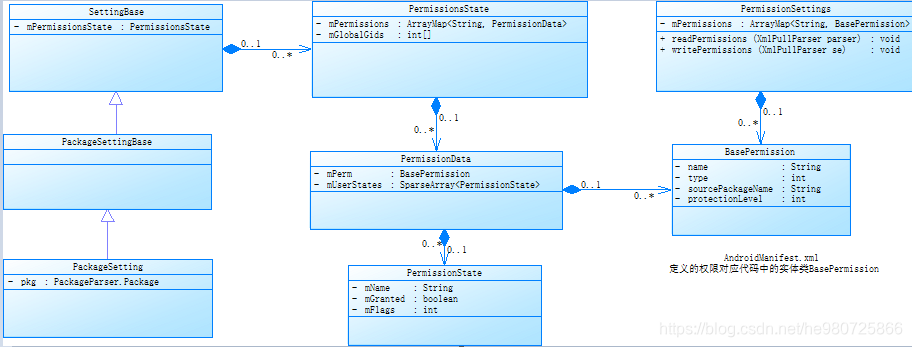

- 权限相关类图关系如下：
权限位置
- 系统权限: frameworks/base/core/res/AndroidManifest.xml
- 应用权限: 定义在应用的AndroidManifest.xml
Android系统中权限主要有以下四种：
PROTECTION_NORMAL 普通权限（网络，蓝牙使用等）
PROTECTION_DANGEROUS 危险权限（位置信息获取，联系人获取等）
PROTECTION_SIGNATURE 系统签名权限
PROTECTION_SIGNATURE_OR_SYSTEM system/priv-app下且系统签名权限
public class PermissionInfo extends PackageItemInfo implements Parcelable {
public static final int PROTECTION_NORMAL = 0;
public static final int PROTECTION_DANGEROUS = 1;
public static final int PROTECTION_SIGNATURE = 2;
public static final int PROTECTION_SIGNATURE_OR_SYSTEM = 3;
}
权限功能分析
PackageManagerService的创建过程:
- 1 首先创建了mPermissionManager对象
- 2 给mDefaultPermissionPolicy赋值，DefaultPermissionPolicy对象是在PermissionManagerService的构造函数中创建
- 3 然后创建Settings对象，Setting对象用来记录安装信息，下次开机重启恢复应用的安装信息，运行时权限授权记录的登记
- 4 通过mSettings.readLPw读取上次安装信息，授权信息
- 5 扫描APK目录， 安装APK， 会收集AndroidManifest.xml中的权限信息
- 6 通过mPermissionManager.updateAllPermissions来更新权限信息
- 7 mSettings.writeLPr()将安装信息，授权信息写到文件
public PackageManagerService(Context context, Installer installer,
boolean factoryTest, boolean onlyCore) {
synchronized (mPackages) {
// Expose private service for system components to use.
LocalServices.addService(
PackageManagerInternal.class, new PackageManagerInternalImpl());
/* 1 mPermissionManager对应的实现为PermissionManagerService的内部类PermissionManagerInternalImpl，
方便systemServer进程自己内部调用PermissionManagerService的接口
*/
mPermissionManager = PermissionManagerService.create(context,
new DefaultPermissionGrantedCallback() {
@Override
public void onDefaultRuntimePermissionsGranted(int userId) {
synchronized(mPackages) {
mSettings.onDefaultRuntimePermissionsGrantedLPr(userId);
}
}
}, mPackages /*externalLock*/);
/* 2 获取默认的权限策略，和运行时权限相关 */
mDefaultPermissionPolicy = mPermissionManager.getDefaultPermissionGrantPolicy();
/* 3 创建Settings对象，Setting对象用来记录安装信息，下次开机重启恢复应用的安装信息，授权记录的登记等 */
mSettings = new Settings(mPermissionManager.getPermissionSettings(), mPackages);
}
/* 4 读取上一次安装信息 */
mFirstBoot = !mSettings.readLPw(sUserManager.getUsers(false));
/* 5 扫描system,vendor, data目录下的apk,读取apk中的 */
scanDirTracedLI();
/* 6 更新权限，给某些apk授权 */
mPermissionManager.updateAllPermissions(
StorageManager.UUID_PRIVATE_INTERNAL, sdkUpdated, mPackages.values(),
mPermissionCallback);
/* 7 将相关权限信息写入文件 */
mSettings.writeLPr();
}
PermissionManagerService::create
create函数中，先判断是否存在PermissionManagerInternal对象，没有则创建PermissionManagerService对象，PermissionManagerInternal对象是在PermissionManagerService中添加到LocalServices中的
public static PermissionManagerInternal PermissionManagerService::create(Context context,
@Nullable DefaultPermissionGrantedCallback defaultGrantCallback,
@NonNull Object externalLock) {
final PermissionManagerInternal permMgrInt =
LocalServices.getService(PermissionManagerInternal.class);
if (permMgrInt != null) {
return permMgrInt;
}
/* 1 创建PermissionManagerService对象，PermissionManagerService对象负责主要的权限管理工作 */
new PermissionManagerService(context, defaultGrantCallback, externalLock);
return LocalServices.getService(PermissionManagerInternal.class);
}
PermissionManagerService
PermissionManagerService的创建过程:
- 1 创建PermissionSettings对象，PermissionSettings记录所有权限相关信息
- 2 创建mDefaultPermissionPolicy对象
- 3 解析system/etc/platform.xml中和权限对应的uid, 每条记录对应一个SystemConfig.PermissionEntry对象
- 4 检查权限信息是否在PermissionSettings已经存在，不存在则创建BasePermission对象，并添加到PermissionSettings的成员变量mPermissions中
- 5 创建PermissionManagerInternalImpl对象，添加到LocalServices中，PermissionManagerInternalImpl为PermissionManagerService内部类
PermissionManagerService(Context context,
@Nullable DefaultPermissionGrantedCallback defaultGrantCallback,
@NonNull Object externalLock) {
/* 1 创建PermissionSettings对象 */
mSettings = new PermissionSettings(context, mLock);
/* 2 创建DefaultPermissionGrantPolicy对象 */
mDefaultPermissionGrantPolicy = new DefaultPermissionGrantPolicy(
context, mHandlerThread.getLooper(), defaultGrantCallback, this);
/* 3 获取系统配置信息 system/etc/platform.xml等等文件中获取 */
SystemConfig systemConfig = SystemConfig.getInstance();
mSystemPermissions = systemConfig.getSystemPermissions();
mGlobalGids = systemConfig.getGlobalGids();
// propagate permission configuration
/* 4 PermissionEntry对象对应 system/etc/platform.xml的一个permission项 */
final ArrayMap<String, SystemConfig.PermissionEntry> permConfig =
SystemConfig.getInstance().getPermissions();
synchronized (mLock) {
for (int i=0; i<permConfig.size(); i++) {
final SystemConfig.PermissionEntry perm = permConfig.valueAt(i);
BasePermission bp = mSettings.getPermissionLocked(perm.name);
if (bp == null) {
// add to mSettings
bp = new BasePermission(perm.name, "android", BasePermission.TYPE_BUILTIN);
/* 将权限信息存入PermissionSettings中的mPermissions属性中*/
mSettings.putPermissionLocked(perm.name, bp);
}
if (perm.gids != null) {
bp.setGids(perm.gids, perm.perUser);
}
}
}
/* 创建PermissionManagerInternalImpl对象，并添加到LocalServices中 */
LocalServices.addService(PermissionManagerInternal.class, new PermissionManagerInternalImpl());
}
SystemConfig() {
// Read configuration from system
/* 读取配置文件，system/etc/platform.xml */
readPermissions(Environment.buildPath(
Environment.getRootDirectory(), "etc", "sysconfig"), ALLOW_ALL);
// Read configuration from the old permissions dir
readPermissions(Environment.buildPath(
Environment.getRootDirectory(), "etc", "permissions"), ALLOW_ALL);
}
system/etc/platform.xml
<?xml version="1.0" encoding="utf-8"?>
<permissions>
<permission name="android.permission.BLUETOOTH_ADMIN" >
<group gid="net_bt_admin" />
</permission>
<permission name="android.permission.BLUETOOTH" >
<group gid="net_bt" />
</permission>
<permission name="android.permission.READ_EXTERNAL_STORAGE" />
<permission name="android.permission.WRITE_EXTERNAL_STORAGE" />
<assign-permission name="android.permission.MODIFY_AUDIO_SETTINGS" uid="media" />
</permissions>
gid数字对应定义在android_filesystem_config.h
#define AID_SYSTEM 1000 /* system server */
#define AID_NET_BT_ADMIN 3001 /* bluetooth: create any socket */
#define AID_NET_BT 3002 /* bluetooth: create sco, rfcomm or l2cap sockets */
#define AID_INET 3003 /* can create AF_INET and AF_INET6 sockets */
#define AID_NET_RAW 3004 /* can create raw INET sockets */
#define AID_NET_ADMIN 3005 /* can configure interfaces and routing tables. */
#define AID_NET_BW_STATS 3006 /* read bandwidth statistics */
#define AID_NET_BW_ACCT 3007 /* change bandwidth statistics accounting */
#define AID_READPROC 3009 /* Allow /proc read access */
#define AID_WAKELOCK 3010 /* Allow system wakelock read/write access */
#define AID_UHID 3011 /* Allow read/write to /dev/uhid node */
将对应权限的gid(组ID)添加到对应的PermissionEntry对象中
void SystemConfig::readPermission(XmlPullParser parser, String name)
throws IOException, XmlPullParserException {
final boolean perUser = XmlUtils.readBooleanAttribute(parser, "perUser", false);
final PermissionEntry perm = new PermissionEntry(name, perUser);
mPermissions.put(name, perm);
int outerDepth = parser.getDepth();
int type;
while ((type=parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG
|| parser.getDepth() > outerDepth)) {
String tagName = parser.getName();
if ("group".equals(tagName)) {
String gidStr = parser.getAttributeValue(null, "gid");
if (gidStr != null) {
int gid = Process.getGidForName(gidStr);
/* 给对应的权限设置相应的gids */
perm.gids = appendInt(perm.gids, gid);
} else {
Slog.w(TAG, "<group> without gid at "
+ parser.getPositionDescription());
}
}
XmlUtils.skipCurrentTag(parser);
}
}
Settings
Settings类主要职责将安装信息保存到packages.xml和packages.list中，运行时权限保存在runtime-permissions.xml中
Settings(File dataDir, PermissionSettings permission, Object lock) {
mLock = lock;
mPermissions = permission;
/* mSettingsFilename存放apk安装信息，权限相关为主 */
mSettingsFilename = new File(mSystemDir, "packages.xml");
/* mPackageListFilename存放apk安装信息 uid,gids */
mPackageListFilename = new File(mSystemDir, "packages.list");
}
/data/system/packages.xml
<?xml version='1.0' encoding='utf-8' standalone='yes' ?>
<packages>
<!-- 保存的所有权限，以及所在的包名，系统权限包名为android -->
<permissions>
<item name="android.permission.REAL_GET_TASKS" package="android" protection="18" />
<item name="android.permission.ACCESS_CACHE_FILESYSTEM" package="android" protection="18" />
</permissions>
<!-- com.mediatek.mtklogger apk信息 -->
<package name="com.mediatek.mtklogger" codePath="/system/app/MTKLogger" nativeLibraryPath="/system/app/MTKLogger/lib" publicFlags="805879365" privateFlags="0" ft="11e8dc5d800" it="11e8dc5d800" ut="11e8dc5d800" version="40000" userId="10087" isOrphaned="true">
<sigs count="1" schemeVersion="3">
<cert index="0" />
</sigs>
<perms>
<item name="android.permission.SYSTEM_ALERT_WINDOW" granted="true" flags="0" />
<item name="android.permission.FOREGROUND_SERVICE" granted="true" flags="0" />
</perms>
<proper-signing-keyset identifier="1" />
</package>
</packages>
/data/system/packages.list
apk安装信息uid,gids
com.android.fmradio 10018 0 /data/user/0/com.android.fmradio platform:privapp:targetSdkVersion=28 3002,1013
com.mediatek.gba 1001 0 /data/user/0/com.mediatek.gba platform:privapp:targetSdkVersion=28 1065,3002,1023,3003,3001,3007,1002,3010,3011,3006
com.mediatek.ims 1001 0 /data/user/0/com.mediatek.ims platform:privapp:targetSdkVersion=28 1065,3002,1023,3003,3001,3007,1002,3010,3011,3006
readLPw
- 1 解析package.xml
- 2 解析runtime-permissions.xml
boolean Settings::readLPw(@NonNull List<UserInfo> users) {
str = new FileInputStream(mSettingsFilename);
if (tagName.equals("permissions")) {
// all mPermissions
/* 读取package.xml中的permissions tag下的所有权限信息 */
mPermissions.readPermissions(parser);
}
for (UserInfo user : users) {
/* 读取runtime-permissions.xml中的runtime-permissions tag下的所有权限信息 */
mRuntimePermissionsPersistence.readStateForUserSyncLPr(user.id);
}
}
readPermissions最终调用到BasePermission的readLPw函数，mPermissions中是否存在对应的bp对象， 不存在则创建BasePermission对象，根据dynamic字段来确认是TYPE_DYNAMIC或TYPE_NORMAL类型，将填充好数据的BasePermission对象保存到mPermissions中
public static boolean BasePermission::readLPw(@NonNull Map<String, BasePermission> out,
@NonNull XmlPullParser parser) {
final String tagName = parser.getName();
/* <item name="android.permission.READ_EXTERNAL_STORAGE" granted="true" flags="0" /> */
if (!tagName.equals(TAG_ITEM)) {
return false;
}
final String name = parser.getAttributeValue(null, ATTR_NAME);
final String sourcePackage = parser.getAttributeValue(null, ATTR_PACKAGE);
final String ptype = parser.getAttributeValue(null, "type");
if (name == null || sourcePackage == null) {
PackageManagerService.reportSettingsProblem(Log.WARN,
"Error in package manager settings: permissions has" + " no name at "
+ parser.getPositionDescription());
return false;
}
final boolean dynamic = "dynamic".equals(ptype);
/* mPermissions中是否存在对应的bp对象 */
BasePermission bp = out.get(name);
// If the permission is builtin, do not clobber it.
/* 系统中还没有这个权限，则创建一个对应的BasePermission */
if (bp == null || bp.type != TYPE_BUILTIN) {
bp = new BasePermission(name.intern(), sourcePackage,
dynamic ? TYPE_DYNAMIC : TYPE_NORMAL);
}
bp.protectionLevel = readInt(parser, null, "protection",
PermissionInfo.PROTECTION_NORMAL);
bp.protectionLevel = PermissionInfo.fixProtectionLevel(bp.protectionLevel);
if (dynamic) {
final PermissionInfo pi = new PermissionInfo();
pi.packageName = sourcePackage.intern();
pi.name = name.intern();
pi.icon = readInt(parser, null, "icon", 0);
pi.nonLocalizedLabel = parser.getAttributeValue(null, "label");
pi.protectionLevel = bp.protectionLevel;
bp.pendingPermissionInfo = pi;
}
/* 将bp对象添加到PermissionSettings的mPermissions中 */
out.put(bp.name, bp);
return true;
}
readStateForUserSyncLPr
public void RuntimePermissionPersistence::readStateForUserSyncLPr(int userId) {
/* getUserRuntimePermissionsFile 文件对应runtime-permissions.xml */
File permissionsFile = getUserRuntimePermissionsFile(userId);
if (!permissionsFile.exists()) {
return;
}
FileInputStream in;
try {
in = new AtomicFile(permissionsFile).openRead();
} catch (FileNotFoundException fnfe) {
Slog.i(PackageManagerService.TAG, "No permissions state");
return;
}
try {
XmlPullParser parser = Xml.newPullParser();
parser.setInput(in, null);
/* 解析runtime-permissions.xml */
parseRuntimePermissionsLPr(parser, userId);
} catch (XmlPullParserException | IOException e) {
throw new IllegalStateException("Failed parsing permissions file: "
+ permissionsFile , e);
} finally {
IoUtils.closeQuietly(in);
}
}
parseRuntimePermissionsLPr
private void RuntimePermissionPersistence::parseRuntimePermissionsLPr(XmlPullParser parser, int userId)
throws IOException, XmlPullParserException {
switch (parser.getName()) {
/* TAG_PACKAGE = "pkg"; */
case TAG_PACKAGE: {
String name = parser.getAttributeValue(null, ATTR_NAME);
PackageSetting ps = mPackages.get(name);
if (ps == null) {
Slog.w(PackageManagerService.TAG, "Unknown package:" + name);
XmlUtils.skipCurrentTag(parser);
continue;
}
/* 解析tag为pkg下的item */
parsePermissionsLPr(parser, ps.getPermissionsState(), userId);
} break;
}
}
parsePermissionsLPr
从runtime-permissions.xml中解析出对应的apk是否已经授权过，如果用户之前授权过，则直接授权（相当于把上次用户授权过的信息读取出来授权），并更新mUserStates相关权限信息，否则只更新mUserStates相关权限信息
private void RuntimePermissionPersistence::parsePermissionsLPr(XmlPullParser parser, PermissionsState permissionsState,
int userId) throws IOException, XmlPullParserException {
final int outerDepth = parser.getDepth();
int type;
while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG || parser.getDepth() > outerDepth)) {
if (type == XmlPullParser.END_TAG || type == XmlPullParser.TEXT) {
continue;
}
switch (parser.getName()) {
case TAG_ITEM: {
String name = parser.getAttributeValue(null, ATTR_NAME);
BasePermission bp = mPermissions.getPermission(name);
if (bp == null) {
Slog.w(PackageManagerService.TAG, "Unknown permission:" + name);
XmlUtils.skipCurrentTag(parser);
continue;
}
String grantedStr = parser.getAttributeValue(null, ATTR_GRANTED);
/* <item name="android.permission.READ_EXTERNAL_STORAGE" granted="true" flags="0" /> */
/* 读取granted的值 */
final boolean granted = grantedStr == null
|| Boolean.parseBoolean(grantedStr);
String flagsStr = parser.getAttributeValue(null, ATTR_FLAGS);
final int flags = (flagsStr != null)
? Integer.parseInt(flagsStr, 16) : 0;
if (granted) {
/* 如果之前授权过，则直接授权 */
permissionsState.grantRuntimePermission(bp, userId);
/* 更新mUserStates相关权限信息 */
permissionsState.updatePermissionFlags(bp, userId,
PackageManager.MASK_PERMISSION_FLAGS, flags);
} else {
permissionsState.updatePermissionFlags(bp, userId,
PackageManager.MASK_PERMISSION_FLAGS, flags);
}
} break;
}
}
}
parseBaseApkCommon
apk中的AndroidManifest.xml中也有权限，解析AndroidManifest.xml中的权限位置发生在扫描apk安装过程中， 然后将apk中的权限合并到mPermissions中
，我们只分析apk的扫描关键部分
1 一个apk对应一个pkg对象
2 apk中所有定义的权限会保存在permissions列表中
3 apk中用户请求的权限会保存在requestedPermissions列表中
private Package PackageParser::parseBaseApkCommon(Package pkg, Set<String> acceptedTags, Resources res,
XmlResourceParser parser, int flags, String[] outError) throws XmlPullParserException,
IOException {
/* 一个apk对应一个pkg对象 */
if (tagName.equals(TAG_PERMISSION)) {
/* 解析pkg中定义的权限 */
if (!parsePermission(pkg, res, parser, outError)) {
return null;
}
} else if (tagName.equals(TAG_PERMISSION_TREE)) {
if (!parsePermissionTree(pkg, res, parser, outError)) {
return null;
}
} else if (tagName.equals(TAG_USES_PERMISSION)) {
/* <uses-permission android:name="android.permission.INTERNET" /> */
/* 解析pkg中使用的权限 */
if (!parseUsesPermission(pkg, res, parser)) {
return null;
}
}
}
parsePermission
为对应的权限创建一个Permission对象， 并将Permission对象添加到pkg中的permissions列表中
private boolean PackageParser::parsePermission(Package owner, Resources res,
XmlResourceParser parser, String[] outError)
throws XmlPullParserException, IOException {
/* 创建Permission对象 */
Permission perm = new Permission(owner);
/* 将定义的权限添加到pkg对象中 */
owner.permissions.add(perm);
return true;
}
commitPackageSettings
apk安装信息解析完后，把pkg中的安装信息合并到PermissionSettings，apk中的permissions添加到PermissionSettings的mPermissions中
private void PackageManagerService::commitPackageSettings(PackageParser.Package pkg,
@Nullable PackageParser.Package oldPkg, PackageSetting pkgSetting, UserHandle user,
final @ScanFlags int scanFlags, boolean chatty) {
/* 把pkg，即apk中的permissions合并到PermissionSettings的mPermissions中 */
/* addAllPermissions调用的PermissionManagerService中的addAllPermissions方法 */
mPermissionManager.addAllPermissions(pkg, chatty);
}
addAllPermissions
遍历apk中的权限信息，去重后，将bp对象添加到mSettings中
private void PermissionManagerService::addAllPermissions(PackageParser.Package pkg, boolean chatty) {
final int N = pkg.permissions.size();
for (int i=0; i<N; i++) {
PackageParser.Permission p = pkg.permissions.get(i);
// Assume by default that we did not install this permission into the system.
p.info.flags &= ~PermissionInfo.FLAG_INSTALLED;
synchronized (PermissionManagerService.this.mLock) {
if (p.tree) {
final BasePermission bp = BasePermission.createOrUpdate(
mSettings.getPermissionTreeLocked(p.info.name), p, pkg,
mSettings.getAllPermissionTreesLocked(), chatty);
/* 把bp对象添加到PermissionSettings的mPermissionGroups中 */
mSettings.putPermissionTreeLocked(p.info.name, bp);
} else {
/* 去重 */
final BasePermission bp = BasePermission.createOrUpdate(
mSettings.getPermissionLocked(p.info.name),
p, pkg, mSettings.getAllPermissionTreesLocked(), chatty);
/* 把bp对象添加到PermissionSettings的mPermissions中 */
mSettings.putPermissionLocked(p.info.name, bp);
}
}
}
}
updateAllPermissions
sdk没有升级的情况下flags为UPDATE_PERMISSIONS_ALL,接下来我们分析updatePermissions函数
private void PermissionManagerService::updateAllPermissions(String volumeUuid, boolean sdkUpdated,
Collection<PackageParser.Package> allPackages, PermissionCallback callback) {
final int flags = UPDATE_PERMISSIONS_ALL |
(sdkUpdated
? UPDATE_PERMISSIONS_REPLACE_PKG | UPDATE_PERMISSIONS_REPLACE_ALL
: 0);
updatePermissions(null, null, volumeUuid, flags, allPackages, callback);
}
updatePermissions
updateAllPermissions中传入的参数可知，changingPkgName和changingPkg都为null, changingPkg为空，接下来调用grantPermissions函数给apk授权
private void PermissionManagerService::updatePermissions(String changingPkgName, PackageParser.Package changingPkg,
String replaceVolumeUuid, int flags, Collection<PackageParser.Package> allPackages,
PermissionCallback callback) {
/* changingPkgName = null, changingPkg = null, flags = UPDATE_PERMISSIONS_ALL */
flags = updatePermissionTrees(changingPkgName, changingPkg, flags);
/* 更新权限，回过头来又是调用updatePermissions的重载函数 */
flags = updatePermissions(changingPkgName, changingPkg, flags);
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "grantPermissions");
if ((flags & UPDATE_PERMISSIONS_ALL) != 0) {
for (PackageParser.Package pkg : allPackages) {
if (pkg != changingPkg) {
// Only replace for packages on requested volume
final String volumeUuid = getVolumeUuidForPackage(pkg);
final boolean replace = ((flags & UPDATE_PERMISSIONS_REPLACE_ALL) != 0)
&& Objects.equals(replaceVolumeUuid, volumeUuid);
/* 给apk授权 */
grantPermissions(pkg, replace, changingPkgName, callback);
}
}
}
if (changingPkg != null) {
// Only replace for packages on requested volume
final String volumeUuid = getVolumeUuidForPackage(changingPkg);
final boolean replace = ((flags & UPDATE_PERMISSIONS_REPLACE_PKG) != 0)
&& Objects.equals(replaceVolumeUuid, volumeUuid);
grantPermissions(changingPkg, replace, changingPkgName, callback);
}
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
grantPermissions
遍历pkg中的requestedPermissions，根据不同类型做不同的处理， 普通权限直接授予安装时权限，运行时权限则根据用户之前是否授权过（状态从runtime-permissions.xml中读取），系统权限验证签名相关信息直接给予安装时权限,通过callback最后将信息写入runtime-permissions.xml中
private void PermissionManagerService::grantPermissions(PackageParser.Package pkg, boolean replace,
String packageOfInterest, PermissionCallback callback) {
final PackageSetting ps = (PackageSetting) pkg.mExtras;
if (ps == null) {
return;
}
/* 一个pkg对应一个PermissionsState对象 */
final PermissionsState permissionsState = ps.getPermissionsState();
PermissionsState origPermissions = permissionsState;
final int[] currentUserIds = UserManagerService.getInstance().getUserIds();
boolean runtimePermissionsRevoked = false;
int[] updatedUserIds = EMPTY_INT_ARRAY;
boolean changedInstallPermission = false;
permissionsState.setGlobalGids(mGlobalGids);
synchronized (mLock) {
final int N = pkg.requestedPermissions.size();
/// M: CTA requirement - permission control
boolean pkgReviewRequired = isPackageNeedsReview(pkg, ps.getSharedUser());
for (int i = 0; i < N; i++) {
final String permName = pkg.requestedPermissions.get(i);
final BasePermission bp = mSettings.getPermissionLocked(permName);
final boolean appSupportsRuntimePermissions =
pkg.applicationInfo.targetSdkVersion >= Build.VERSION_CODES.M;
final String perm = bp.getName();
boolean allowedSig = false;
int grant = GRANT_DENIED;
if (bp.isNormal()) {
// For all apps normal permissions are install time ones.
/* 安装权限 */
grant = GRANT_INSTALL;
} else if (bp.isRuntime()) {
// If a permission review is required for legacy apps we represent
// their permissions as always granted runtime ones since we need
// to keep the review required permission flag per user while an
// install permission's state is shared across all users.
if (!appSupportsRuntimePermissions && !mSettings.mPermissionReviewRequired) {
// For legacy apps dangerous permissions are install time ones.
grant = GRANT_INSTALL;
} else if (origPermissions.hasInstallPermission(bp.getName())) {
// For legacy apps that became modern, install becomes runtime.
grant = GRANT_UPGRADE;
} else if (isLegacySystemApp) {
// For legacy system apps, install becomes runtime.
// We cannot check hasInstallPermission() for system apps since those
// permissions were granted implicitly and not persisted pre-M.
grant = GRANT_UPGRADE;
} else {
// For modern apps keep runtime permissions unchanged.
/* 运行时权限 */
grant = GRANT_RUNTIME;
}
} else if (bp.isSignature()) {
// For all apps signature permissions are install time ones.
allowedSig = grantSignaturePermission(perm, pkg, bp, origPermissions);
if (allowedSig) {
grant = GRANT_INSTALL;
}
}
switch (grant) {
case GRANT_INSTALL: {
for (int userId : UserManagerService.getInstance().getUserIds()) {
if (origPermissions.getRuntimePermissionState(
perm, userId) != null) {
// Revoke the runtime permission and clear the flags.
origPermissions.revokeRuntimePermission(bp, userId);
origPermissions.updatePermissionFlags(bp, userId,
PackageManager.MASK_PERMISSION_FLAGS, 0);
// If we revoked a permission permission, we have to write.
updatedUserIds = ArrayUtils.appendInt(
updatedUserIds, userId);
}
}
// Grant an install permission.
/* 给安装权限 */
if (permissionsState.grantInstallPermission(bp) !=
PermissionsState.PERMISSION_OPERATION_FAILURE) {
changedInstallPermission = true;
}
} break;
case GRANT_RUNTIME: {
// Grant previously granted runtime permissions.
for (int userId : UserManagerService.getInstance().getUserIds()) {
/* 使用之前授权的状态 ，状态从runtime-permissions.xml中读取 */
final PermissionState permissionState = origPermissions
.getRuntimePermissionState(perm, userId);
int flags = permissionState != null
? permissionState.getFlags() : 0;
if (origPermissions.hasRuntimePermission(perm, userId)) {
}
// Propagate the permission flags.
permissionsState.updatePermissionFlags(bp, userId, flags, flags);
}
} break;
}
}
}
if (callback != null) {
/* 回调PackageManagerService中的onPermissionUpdated函数 */
callback.onPermissionUpdated(updatedUserIds, runtimePermissionsRevoked);
}
}
public void PackageManagerService::onPermissionUpdated(int[] updatedUserIds, boolean sync) {
synchronized (mPackages) {
for (int userId : updatedUserIds) {
/* 将运行时相关信息写入runtime-permissions.xml中 */
mSettings.writeRuntimePermissionsForUserLPr(userId, sync);
}
}
}
writeLPr
将apk安装信息写入文件
void Settings::writeLPr() {
/* packages.xml */
FileOutputStream fstr = new FileOutputStream(mSettingsFilename);
BufferedOutputStream str = new BufferedOutputStream(fstr);
serializer.startTag(null, "permissions");
/* 权限信息写入 */
mPermissions.writePermissions(serializer);
serializer.endTag(null, "permissions");
for (final PackageSetting pkg : mPackages.values()) {
/* 写入pkg信息 */
writePackageLPr(serializer, pkg);
}
/* 写入运行时权限 */
writeAllRuntimePermissionsLPr();
}
systemReady
systemReady函数给某些系统apk授予运行时权限, 更新权限信息
PackageManagerService::systemReady() {
// If we upgraded grant all default permissions before kicking off.
for (int userId : grantPermissionsUserIds) {
/* 给默认系统某些apk授予特定的运行权限 */
mDefaultPermissionPolicy.grantDefaultPermissions(userId);
}
synchronized (mPackages) {
/* 再次进行对所有的apk授权更新 */
mPermissionManager.updateAllPermissions(
StorageManager.UUID_PRIVATE_INTERNAL, false, mPackages.values(),
mPermissionCallback);
}
}
DefaultPermissionGrantPolicy
DefaultPermissionGrantPolicy主要是给系统APK授予默认的运行时权限
public void DefaultPermissionGrantPolicy::grantDefaultPermissions(int userId) {
/* 给系统apk授运行时权限，以及给一些特定的apk授权 */
grantPermissionsToSysComponentsAndPrivApps(userId);
grantDefaultSystemHandlerPermissions(userId);
grantDefaultPermissionExceptions(userId);
}
private void DefaultPermissionGrantPolicy::grantPermissionsToSysComponentsAndPrivApps(int userId) {
Log.i(TAG, "Granting permissions to platform components for user " + userId);
final PackageList packageList = mServiceInternal.getPackageList();
for (String packageName : packageList.getPackageNames()) {
final PackageParser.Package pkg = mServiceInternal.getPackage(packageName);
if (pkg == null) {
continue;
}
// 不是系统apk等直接继续
if (!isSysComponentOrPersistentPlatformSignedPrivApp(pkg)
|| !doesPackageSupportRuntimePermissions(pkg)
|| pkg.requestedPermissions.isEmpty()) {
continue;
}
/* 给系统apk授运行时权限 */
grantRuntimePermissionsForPackage(userId, pkg);
}
}
private void DefaultPermissionGrantPolicy::grantRuntimePermissionsForPackage(int userId, PackageParser.Package pkg) {
Set<String> permissions = new ArraySet<>();
for (String permission : pkg.requestedPermissions) {
final BasePermission bp = mPermissionManager.getPermission(permission);
if (bp == null) {
continue;
}
if (bp.isRuntime()) {
permissions.add(permission);
}
}
if (!permissions.isEmpty()) {
/* 授权为true */
grantRuntimePermissions(pkg, permissions, true, userId);
}
}
private void grantRuntimePermissions(PackageParser.Package pkg, Set<String> permissions,
boolean systemFixed, boolean ignoreSystemPackage, int userId) {
if (pkg.requestedPermissions.isEmpty()) {
return;
}
List<String> requestedPermissions = pkg.requestedPermissions;
Set<String> grantablePermissions = null;
final int grantablePermissionCount = requestedPermissions.size();
for (int i = 0; i < grantablePermissionCount; i++) {
String permission = requestedPermissions.get(i);
/* mServiceInternal为PackageManagerInternal对象，实际调用为PackageManagerService的grantRuntimePermission函数 */
mServiceInternal.grantRuntimePermission(pkg.packageName, permission, userId, false);
int newFlags = PackageManager.FLAG_PERMISSION_GRANTED_BY_DEFAULT;
if (systemFixed) {
newFlags |= PackageManager.FLAG_PERMISSION_SYSTEM_FIXED;
}
mServiceInternal.updatePermissionFlagsTEMP(permission, pkg.packageName,
newFlags, newFlags, userId);
}
}
public void PackageManagerInternalImpl::updatePermissionFlagsTEMP(String permName, String packageName, int flagMask,
int flagValues, int userId) {
// 通知权限改变
PackageManagerService.this.updatePermissionFlags(
permName, packageName, flagMask, flagValues, userId);
}
扫一扫
526
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
