利用 sklearn 贝叶斯分类器对 IRIS 数据集分类
贝叶斯分类的基本思想一言以蔽之“将样本归为其后验概率最大的那个类”。
具体原理参考: http://www.cnblogs.com/leoo2sk/archive/2010/09/17/naive-bayesian-classifier.html
sklearn 工具包中对根据样本的分布特性对朴素贝叶斯分类器进行了实现,分为以下几个具体情况:
- 朴素贝叶斯-高斯模型
- 朴素贝叶斯-多项式模型
- 朴素贝叶斯-伯努利模型
参考官方文档:http://sklearn.lzjqsdd.com/modules/naive_bayes.html
其中,高斯模型应用最普遍,本文调用 sklearn 工具包中朴素贝叶斯-高斯模型分类器(GaussianNB)对 IRIS 进行分类。
严格来讲首先应该进行假设检验,判断样本是否符合高斯分布。在这里将这一步骤省略,以分布直方图的形式直观展现样本的分布特征。
from sklearn import datasets
from sklearn.naive_bayes import GaussianNB
import numpy as np
from matplotlib import pyplot as plt
from matplotlib.ticker import PercentFormatter
if __name__ == '__main__':
iris = datasets.load_iris()
print(type(iris), dir(iris))
x = iris.get('data')
y = iris.get('target')
# show attributes histogram
c = np.unique(y)
ind = []
ind.append(y==c[0])
ind.append(y==c[1])
ind.append(y==c[2])
bin_num = 40
fig, axes = plt.subplots(len(c),4)
for i, ax in enumerate(axes.flat):
ind_ = ind[i//4]
j = i%4
ax.hist(x[ind_,j], bins=bin_num)
axes[0,0].set_ylabel("y = 0")
axes[1,0].set_ylabel("y = 1")
axes[2,0].set_ylabel("y = 2")
axes[0,0].set_title("attribute 0")
axes[0,1].set_title("attribute 1")
axes[0,2].set_title("attribute 2")
axes[0,3].set_title("attribute 3")
plt.show()

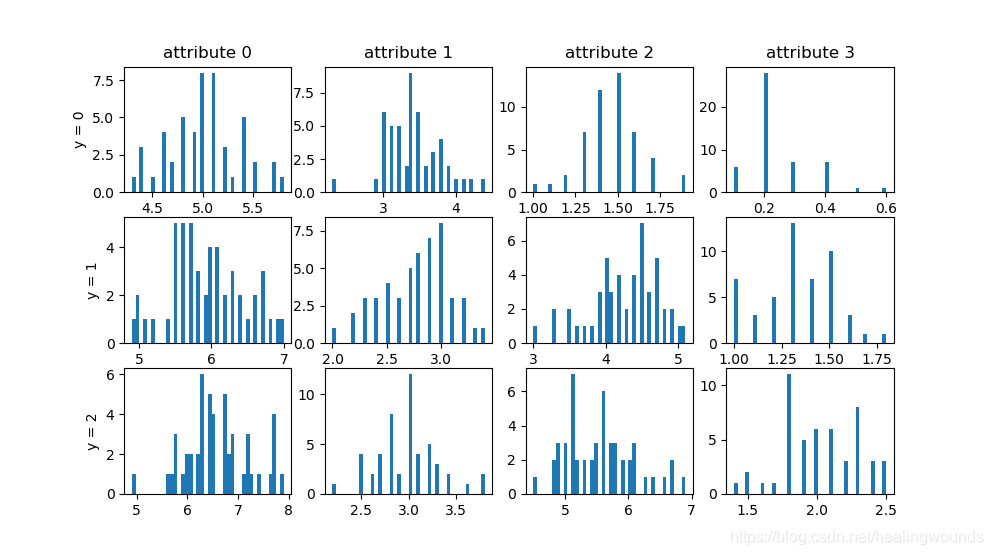

从分布直方图看出,样本数据的分布呈现单峰特性,近似服从高斯分布。
下面对数据集进行划分,分类和测试。
# 随机划分训练集和测试集
num = x.shape[0] # 样本总数
ratio = 7/3 # 划分比例,训练集数目:测试集数目
num_test = int(num/(1+ratio)) # 测试集样本数目
num_train = num - num_test # 训练集样本数目
index = np.arange(num) # 产生样本标号
np.random.shuffle(index) # 洗牌
x_test = x[index[:num_test],:] # 取出洗牌后前 num_test 作为测试集
y_test = y[index[:num_test]]
x_train = x[index[num_test:],:] # 剩余作为训练集
y_train = y[index[num_test:]]
gnb = GaussianNB()
gnb.fit(x_train, y_train)
y_test_pre = gnb.predict(x_test)
# 计算分类准确率
acc = sum(y_test_pre==y_test)/num_test
print('The accuracy is', acc) # 显示预测准确率
分类结果显示:
The accuracy is 0.9111111111111111
