【AUTOSAR】VCU开发实际项目讲解（六）----VCU严重故障执行PRA OFF

1. 1. 1. 1. 1. 严重故障执行PRA OFF

检测到以下任一故障时，执行高压下电处理：

VCM 供电电压过高

VCM供电电压过低

PT+EV-CAN Bus-OFF

B-CAN Bus-OFF

与MCU通信丢失

与MCU通信数据异常

与BMS通信丢失

与BMS通信数据异常

NVM故障（非易失性存储器EEPROM故障）

预充故障

主正闭合故障

预充继电器驱动故障

主正继电器驱动故障

主负继电器驱动故障

MCU_StatusHVDCOverVoltage

MCU_StatusHVDCUnderVoltage

MCU_StatusIGBTHighSideDesat

MCU_StatusIGBTLowSideDesat

MCU_StatusIGBTHighSideUVLO

MCU_StatusIGBTLowSideUVLO

MCU_Status4PhaseUnbalanceCurrent

MCU_StatusMotorOverTemp

MCU_StatusVbattOverVoltage

MCU_StatusVbattUnderVoltage

MCU_StatusIGNOverVoltage

MCU_StatusIGNUnderVoltage

MCU_Status3PhaseOverCurrent

MCU_StatusIGBTOverTemp

MCU_StatusMotorOverSpeed

MCU_StatusResolverDOS

MCU_StatusResolverLOT

MCU_Status5VOutOfRange

MCU_Status12VOutOfRange

MCU_StatusRAMFault

MCU_StatusROMFault

MCU_StatusCANBusOff

MCU_StatusCANBusPhycalError

MCU_StatusCANLossOfComm

MCU_StatusStartupChargingTimeOut

MCU_StatusStartupHVDCOV

MCU_StatusStartupHVDCUV

BMS_StatusCellVoltageSensorOpen

BMS_CellBalancingFET

BMS_StatusPackVolHigh

BMS_StatusPackVolLow

BMS_StatusCellVolDevHigh_Fault

BMS_StatusCAN2Fault

BMS_StatusCurrentSensorOpen

BMS_StatusTempSensorFault

BMS_StatusTempDevHigh_Fault

BMS_RelayOffReq

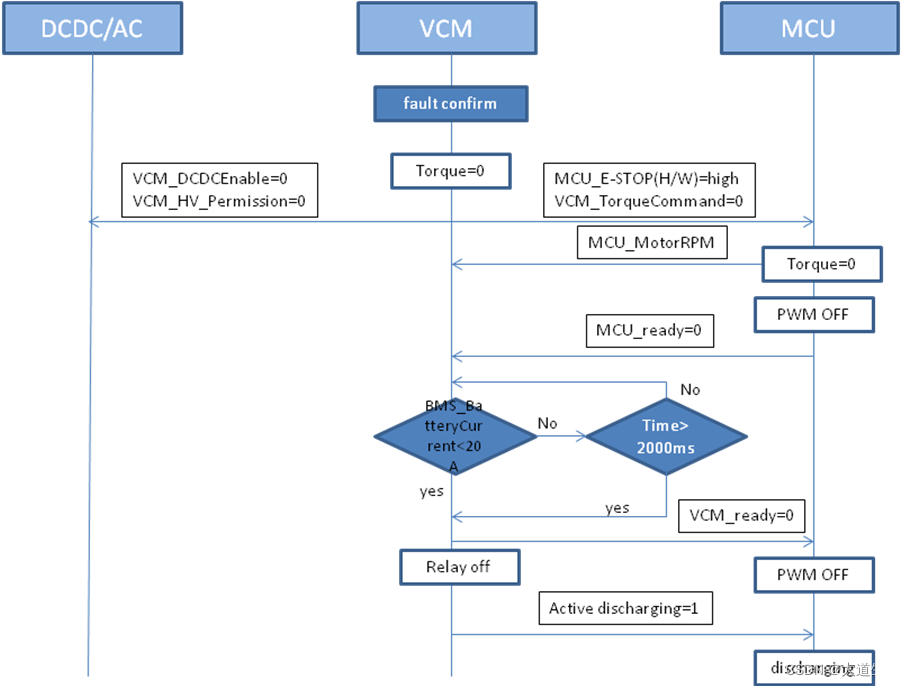

处理如下：





整车发生以下任一严重故障时，VCM采取紧急下电处理，处理流程如下：

1. 高压互锁断开（H/W）
2. 碰撞保护
3. BMS_StatusIsolationFault
4. BMS_StatusHVIL

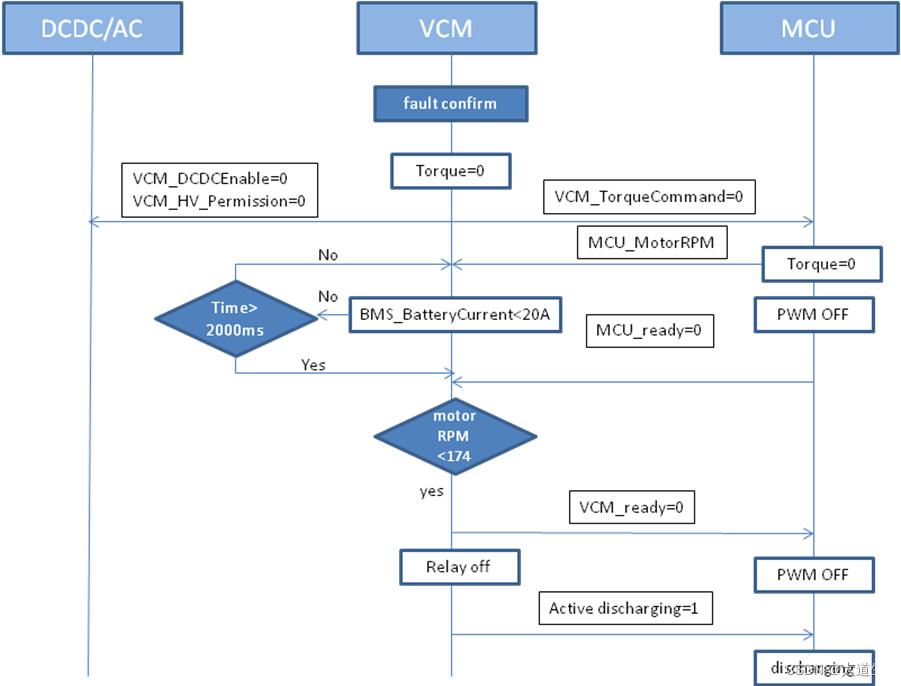

处理如下：
