WinForm——TableLayoutPanel实例

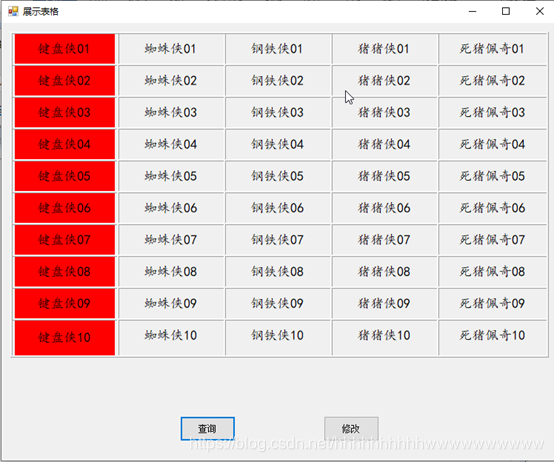

实例1、用TableLayoutPanel 制作表格



声明TableLayoutPanel对象

   /// <summary>

        /// TableLayoutPanel

        /// </summary>

TableLayoutPanel table = new TableLayoutPanel();

添加控件和事件

  private void Form2_Load(object sender, EventArgs e)

        {

            // 默认添加一行数据

            table.Dock = DockStyle.Top;     //顶部填充

            panel1.Controls.Add(table);

            table.ColumnCount = 5;          //5列

            table.Height = table.RowCount * 40; //table的整体高度，每行40



            table.ColumnStyles.Add(new System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, table.Width * 0.2f));    //利用百分比计算，0.2f表示占用本行长度的20%

            table.ColumnStyles.Add(new System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, table.Width * 0.2f));

            table.ColumnStyles.Add(new System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, table.Width * 0.2f));

            table.ColumnStyles.Add(new System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, table.Width * 0.2f));

            table.ColumnStyles.Add(new System.Windows.Forms.ColumnStyle(System.Windows.Forms.SizeType.Percent, table.Width * 0.2f));



            for (int i = 1; i <= 10; i++)

            {

                AddRow("键盘侠"+i.ToString().PadLeft(2,'0'),"蜘蛛侠" + i.ToString().PadLeft(2, '0'), "钢铁侠" + i.ToString().PadLeft(2, '0'), "猪猪侠" + i.ToString().PadLeft(2, '0'), "死猪佩奇" + i.ToString().PadLeft(2, '0'));

            }

        }



        private void AddRow(string apple, string orange, string banana, string casaba, string sugarcane)

        {

            try

            {

                // 动态添加一行

                table.RowCount++;

                //设置高度,边框线也算高度，所以将40修改大一点

                table.Height = table.RowCount * 44;

                // 行高

                table.RowStyles.Add(new System.Windows.Forms.RowStyle(System.Windows.Forms.SizeType.Absolute, 40));

                // 设置cell样式，增加线条

                table.CellBorderStyle = TableLayoutPanelCellBorderStyle.OutsetPartial;



                int i = table.RowCount - 1;



                Label label1 = new Label();

                label1.Text = apple;

                label1.Dock = DockStyle.Fill;

                label1.BackColor = Color.Red;

                label1.Click += Label1_Click;

                label1.Font = new Font("楷体", 13, FontStyle.Regular);

                label1.TextAlign = ContentAlignment.MiddleCenter;

                table.Controls.Add(label1, 0, i);



                Label label2= new Label();

                label2.Text = orange;

                label2.Width = 200;

                label2.Height = 40;

                label2.Click += Label1_Click;

                label2.Font = new Font("楷体", 13, FontStyle.Regular);

                label2.TextAlign = ContentAlignment.MiddleCenter;

                table.Controls.Add(label2, 1, i);



                Label label3 = new Label();

                label3.Text = banana;

                label3.Width = 200;

                label3.Height = 40;

                label3.Click += Label1_Click;

                label3.Font = new Font("楷体", 13, FontStyle.Regular);

                label3.TextAlign = ContentAlignment.MiddleCenter;

                table.Controls.Add(label3, 2, i);

                Label label4 = new Label();

                label4.Text = casaba;

                label4.Width = 200;

                label4.Height = 40;

                label4.Click += Label1_Click;

                label4.Font = new Font("楷体", 13, FontStyle.Regular);

                label4.TextAlign = ContentAlignment.MiddleCenter;

                table.Controls.Add(label4, 3, i);

                Label label5 = new Label();

                label5.Text = sugarcane;

                label5.Width = 200;

                label5.Height = 40;

                label5.Click += Label1_Click;

                label5.Font = new Font("楷体", 13, FontStyle.Regular);

                label5.TextAlign = ContentAlignment.MiddleCenter;

                table.Controls.Add(label5, 4, i);

            }

            catch (Exception ex)

            {

                MessageBox.Show(ex.Message.PadRight(30, ' '), "提示", MessageBoxButtons.OK, MessageBoxIcon.Error);

            }

        }

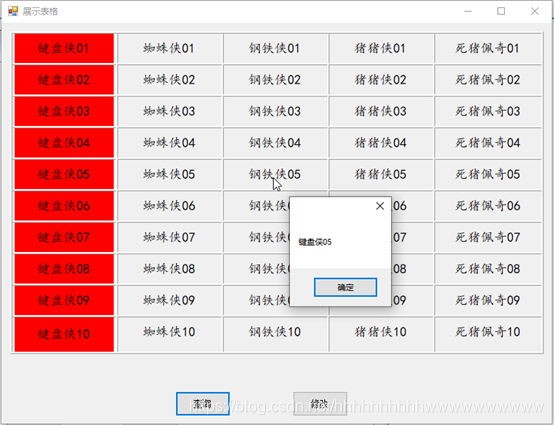

        private void Label1_Click(object sender, EventArgs e)

        {

            Label label = (Label)sender;

            MessageBox.Show(label.Text);

        }

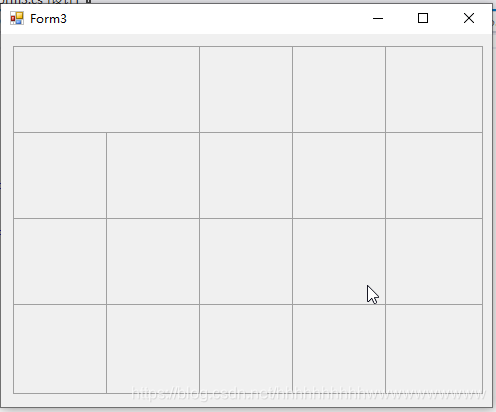

实例2、实现表格的跨列

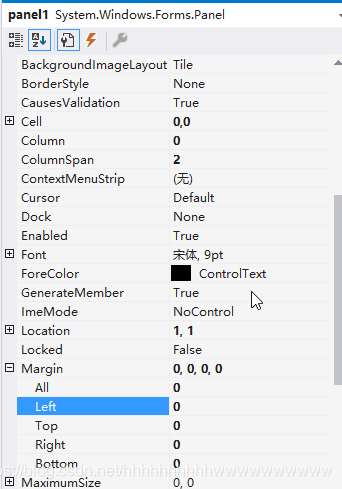

在TableLayoutPanel中加入panel对象，设置panel对象的ColumnSpan属性为2，将Marign设置为0，Dock设置为Fill。
