Code density

The Xtensa core ISA is implemented as 24-bit instructions
This instruction width pro- vides a direct 25% reduction in code size compared with 32-bit ISAs

Xtensa ISA provides a Windowed Registers Option. Xtensa windowed registers re- duce code size by:

Eliminating register saves and restores at procedure entry and exit
Reducing argument shuffling
Allowing more local variables to live permanently in registers

Pipeline

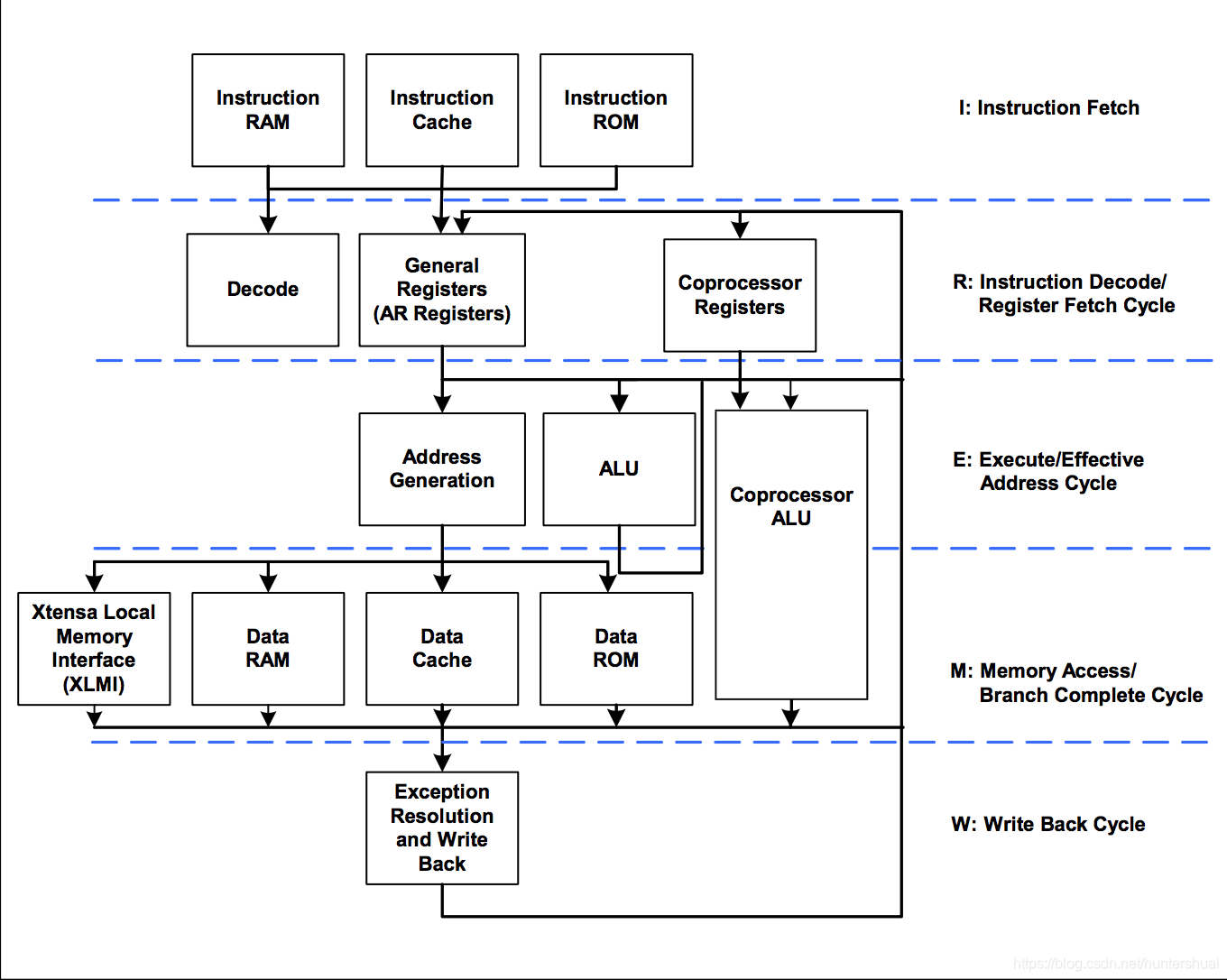

在这里插入图片描述

multi-core support

break-in/break-out

atomic operation:

L32EX, S32EX,and GETEX instructions

A load exclusive instruction loads data from a memory location.
Some computation on the loaded data is performed.
An exclusive store with the updated value is stored to the same memory location.
- The exclusive store succeeds if no other master has performed a store to that location.
- The exclusive store fails if the location was updated by another master since it was read.

An Xtensa processor can issue exclusive operations on its outbound AXI master port to perform atomic access on a remote address.

ref:

Memory Consistency and Event Ordering in Scalable Shared-Memory Multiprocessors

xtensa windowed register

The Xtensa Windowed Registers Option saves power by reducing the number of dynamic data-memory references and increasing the opportunities for variables to reside in registers, where accesses require less power than memory accesses.

The WAITI (Wait for Interrupt) instruction, which is a part of the Interrupt Option, saves power by setting the current interrupt level, powering down the processor’s logic, and waiting for an interrupt.
