文章讲述了作者在初次使用TM1650器件时遇到的I2C通信问题，通过对比时序图发现与I2C标准的差异，最终通过参考和自定义代码解决了问题，并分享给其他开发者。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

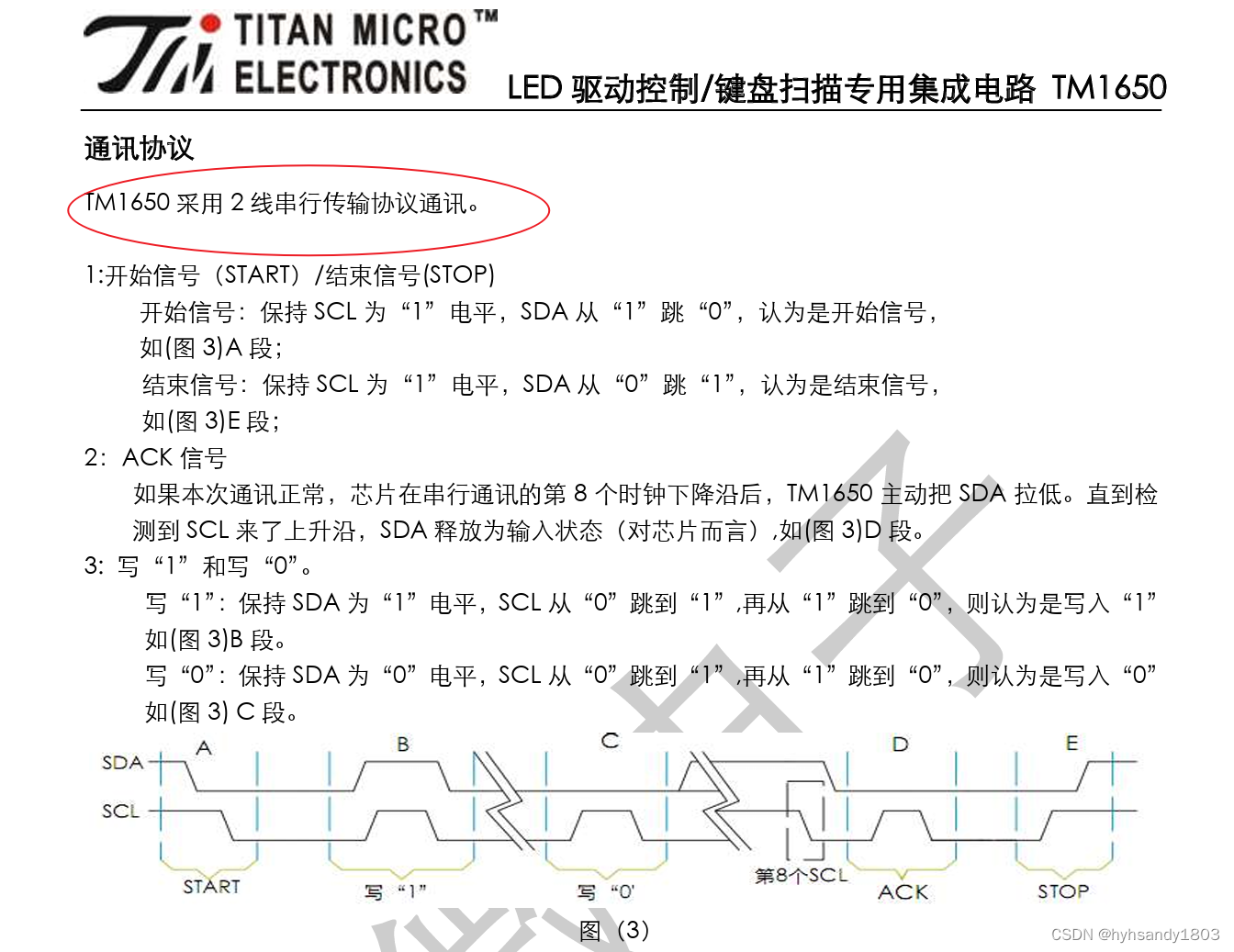

第一次使用这个器件，没详细看芯片资料，掉进了一个坑，以为是使用I2C驱动，结果使用F103的库函数去驱动，结果消息是发出去了，但是数码管没显示。还用逻辑分析仪抓了数据，发现I2C上把消息都发出去了，就是没响应。对比时序图发现和I2C的定义有区别。

类似于I2C,不等于是I2C.

网上找了个参考，自己稍微修改了下调通了，发出来共享给需要的人。参考文章如下：

https://blog.csdn.net/weixin_56102416/article/details/127965420?spm=1001.2014.3001.5502

使用起来很简单

代码很简单直接上源码

#ifndef __TM1650_H__
#define __TM1650_H__
#include "stm32f10x.h"


#define	brighting_8			0x00
#define	brighting_7			0x07
#define	brighting_6			0x06
#define	brighting_5			0x05
#define	brighting_4			0x04
#define	brighting_3			0x03
#define	brighting_2			0x02
#define	brighting_1			0x01


//uint8_t display[10]={0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x07,0x7F,0x6F}; //共阴极字段码

#define TM1650_SCL_GPIO GPIOB  //更新了GPIO管脚的宏，这样方便修改使用任意管脚
#define TM1650_SDA_GPIO GPIOA
#define TM1650_SCL_pin 	GPIO_Pin_0
#define TM1650_SDA_pin	GPIO_Pin_4

#define TM1650_SCL_H    TM1650_SCL_GPIO->BSRR=TM1650_SCL_pin
#define TM1650_SCL_L    TM1650_SCL_GPIO->BRR=TM1650_SCL_pin
#define TM1650_SDA_H    TM1650_SDA_GPIO->BSRR=TM1650_SDA_pin
#define TM1650_SDA_L    TM1650_SDA_GPIO->BRR=TM1650_SDA_pin
#define READ_SDA 		GPIO_ReadInputDataBit(TM1650_SDA_GPIO,TM1650_SDA_pin)		 //读电平



void TM1650_SendDigData(uint16_t index,uint16_t num);

void DisplayNumber_4BitDig(unsigned short num);
void TM1650_SendCommand(unsigned char add,unsigned char dat);
unsigned char TM1650_Read_KEY(void);

void TM1650_Init(void);

void DisplayNumber_HexDig(unsigned short num);
unsigned char TM1650_Read_KEY(void);
uint32_t TM1650_Gte_KEY(void);

#endif

#include "tm1650.h"


 uint8_t s_7number[16] = {0x3F,0x06,0x5B,0x4F,0x66,0x6D,0x7D,0x07,0x7F,0x6F,0x77,0x7C,0x39,0x5E,0x79,0x71};
// uint8_t s_8number[10] = {0xBF,0x86,0xDB,0xCF,0xE6,0xED,0xFD,0x87,0xFF,0xEF};
 uint32_t key_number[7][4] = {11,12,13,14,21,22,23,24,31,32,33,34,41,42,43,44,51,52,53,54,61,62,63,64,71,72,73,74};
 uint8_t key_numberH[7][4] =
									{0x44,0x45,0x46,0x47,\
									0x4C,0x4D,0x4E,0x4F,\
									0x54,0x55,0x56,0x57,\
									0x5C,0x5D,0x5E,0x5F,\
									0x64,0x65,0x66,0x67,\
									0x6C,0x6D,0x6E,0x6F,\
									0x74,0x75,0x76,0x77,};

void SDA_IN(void)
{
	GPIO_InitTypeDef   GPIO_InitStructa;
	GPIO_InitStructa.GPIO_Pin = TM1650_SDA_pin;
	GPIO_InitStructa.GPIO_Mode = GPIO_Mode_IPU;
	GPIO_Init(TM1650_SDA_GPIO,&GPIO_InitStructa);
//	GPIO_Init(GPIOM, TM1650_SDA_pin, 0, 0, 0, 1);
}
void SDA_OUT(void)
{
	GPIO_InitTypeDef   GPIO_InitStructA;
	GPIO_InitStructA.GPIO_Pin = TM1650_SDA_pin;
	GPIO_InitStructA.GPIO_Mode = GPIO_Mode_Out_PP;
	GPIO_InitStructA.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(TM1650_SDA_GPIO,&GPIO_InitStructA);
//	GPIO_Init(GPIOM, TM1650_SDA_pin, 1, 0, 0, 1);
}

void TM1650_delay_us(unsigned short i)
{
  for(;i>0;i--)
	{
		__NOP();
		__NOP();
		__NOP();
		__NOP();
		__NOP();
	}
}

void TM1650_Start(void)
{
	SDA_OUT();
	TM1650_SDA_H;
	TM1650_SCL_H;
	TM1650_delay_us(4);
 	TM1650_SDA_L;
	TM1650_delay_us(4);
	TM1650_SCL_L;
}

void TM1650_Stop(void)
{
	SDA_OUT();
	TM1650_SCL_L;
	TM1650_SDA_L;
 	TM1650_delay_us(4);
	TM1650_SCL_H;
	TM1650_delay_us(4);
	TM1650_SDA_H;
}

unsigned char  TM1650_Wait_Ack(void)
{
	unsigned char  ucErrTime=0;
	SDA_IN();
	TM1650_SDA_H;TM1650_delay_us(1);
	TM1650_SCL_H;TM1650_delay_us(1);
	while(READ_SDA)
	{
		ucErrTime++;
		if(ucErrTime>250)
		{
			TM1650_Stop();
			return 1;
		}
	}
	TM1650_SCL_L;
	return 0;
}

void TM1650_Ack(void)
{
	TM1650_SCL_L;
	SDA_OUT();
	TM1650_SDA_L;
	TM1650_delay_us(4);
	TM1650_SCL_H;
	TM1650_delay_us(4);
	TM1650_SCL_L;
}

void TM1650_NAck(void)
{
	TM1650_SCL_L;
	SDA_OUT();
	TM1650_SDA_H;
	TM1650_delay_us(4);
	TM1650_SCL_H;
	TM1650_delay_us(4);
	TM1650_SCL_L;
}

void TM1650_Send_Byte(unsigned char  oneByte)
{
    unsigned char  t;
    SDA_OUT();
    TM1650_SCL_L;
    for(t=0;t<8;t++)
    {
			if((oneByte&0x80)==0x80)   TM1650_SDA_H;
			else	                   	 TM1650_SDA_L;
					oneByte<<=1;
			TM1650_delay_us(4);
			TM1650_SCL_H;
			TM1650_delay_us(4);
			TM1650_SCL_L;
			TM1650_delay_us(4);
    }
}

unsigned char  TM1650_Read_Byte(void)
{
	unsigned char i,rekey=0;
	SDA_IN();
	for(i=0;i<8;i++ )
	{
		TM1650_SCL_L;
		TM1650_delay_us(4);
		TM1650_SCL_H;
		rekey<<=1;
		if(READ_SDA) rekey++;
		TM1650_delay_us(4);
	}
	return rekey;
}

void TM1650_SendCommand(unsigned char add,unsigned char dat)
{
	TM1650_Start();
	TM1650_Send_Byte(add);
	TM1650_Wait_Ack();
	TM1650_Send_Byte(dat);
	TM1650_Wait_Ack();
	TM1650_Stop();
}

void TM1650_SendDigData(uint16_t index,uint16_t num)
{
	uint8_t indexAddr =  0;
	uint8_t numValue  =  0;
	switch(index)
	{
		case 1:indexAddr = 0x68;break;
		case 2:indexAddr = 0x6A;break;
		case 3:indexAddr = 0x6C;break;
		case 4:indexAddr = 0x6E;break;
		default:break;
	}
	numValue = s_7number[num];
 	TM1650_Start();
	TM1650_Send_Byte(indexAddr);
	TM1650_Wait_Ack();
	TM1650_Send_Byte(numValue);
	TM1650_Wait_Ack();
	TM1650_Stop();
}

void TM1650_SetDisplay(uint8_t brightness)//
{
	TM1650_SendCommand(0x48,brightness*16 + 1*4 + 1);
}

void TM1650_Init(void)
{
//	GPIO_Init(GPIOD, TM1650_SCL_pin, 1, 0, 0, 1);
//	GPIO_Init(GPIOM, TM1650_SDA_pin, 1, 0, 0, 1);
	GPIO_InitTypeDef GPIO_InitStruct;
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB|RCC_APB2Periph_GPIOA,ENABLE);
	//RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO,ENABLE);
	GPIO_InitStruct.GPIO_Pin = TM1650_SCL_pin;
	GPIO_InitStruct.GPIO_Mode = GPIO_Mode_Out_PP;
	GPIO_InitStruct.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(TM1650_SCL_GPIO,&GPIO_InitStruct);
    GPIO_InitStruct.GPIO_Pin = TM1650_SDA_pin;
	GPIO_Init(TM1650_SDA_GPIO,&GPIO_InitStruct);
	//AFIO->MAPR|=0x02000000;//PB3,PB4???JATG?,??JATG
	TM1650_SCL_H;
	TM1650_SDA_H;
	TM1650_SetDisplay(brighting_6);
}

void DisplayNumber_4BitDig(uint16_t Num)
{	uint16_t Numb;
	Numb = Num+10000;
	TM1650_SendDigData(1,Numb/1000%10);
	TM1650_SendDigData(2,Num/100%10);
	TM1650_SendDigData(3,Num/10%10);
	TM1650_SendDigData(4,Num%10);
}

unsigned char TM1650_Read_KEY(void)
{
	unsigned char temp;
	TM1650_Start();
	TM1650_Send_Byte(0x49);
	TM1650_Wait_Ack();
	temp=TM1650_Read_Byte();
	TM1650_Wait_Ack();
	TM1650_Stop();
	return temp;
}

uint32_t TM1650_Gte_KEY(void)
{	unsigned char key;
	uint32_t key_name,i,j;
	key=TM1650_Read_KEY();
	for(i=0;i<7;i++)
		for(j=0;j<7;j++)
		{
			if(key == key_numberH[i][j])
			{
				key_name = key_number[i][j];
				return key_name;
			}
		}
	return key_name;
}
