MM32F0144霍尔驱动无刷电机实例

霍尔驱动无刷电机原理和参考网上已经有很多案例了，理工男文笔烂，这里不再重复描述了。网上也有很多源码下载，但是源码下载一堆的积分，一堆的注册，烦死。自己参考芯片厂商的案例库，简单写了个参考，留个机缘给有缘人，望道友笑纳。

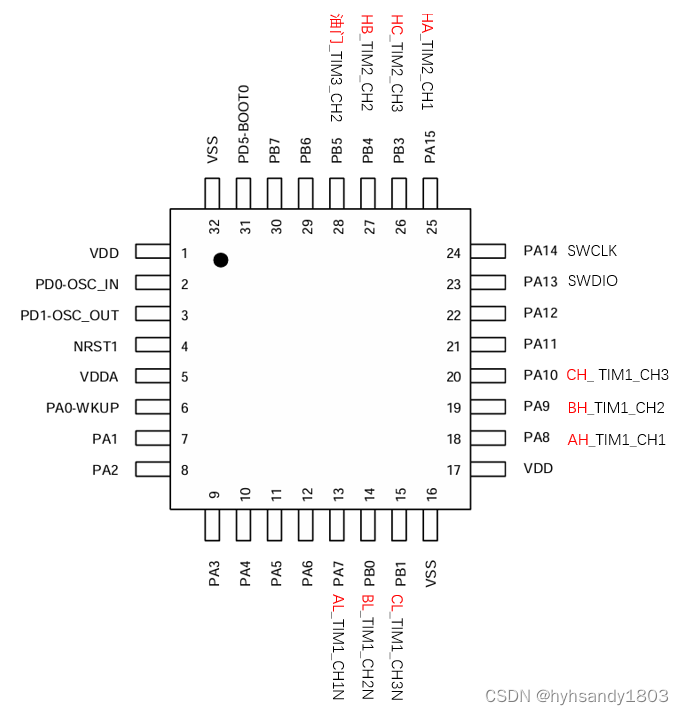

先上一张管脚图

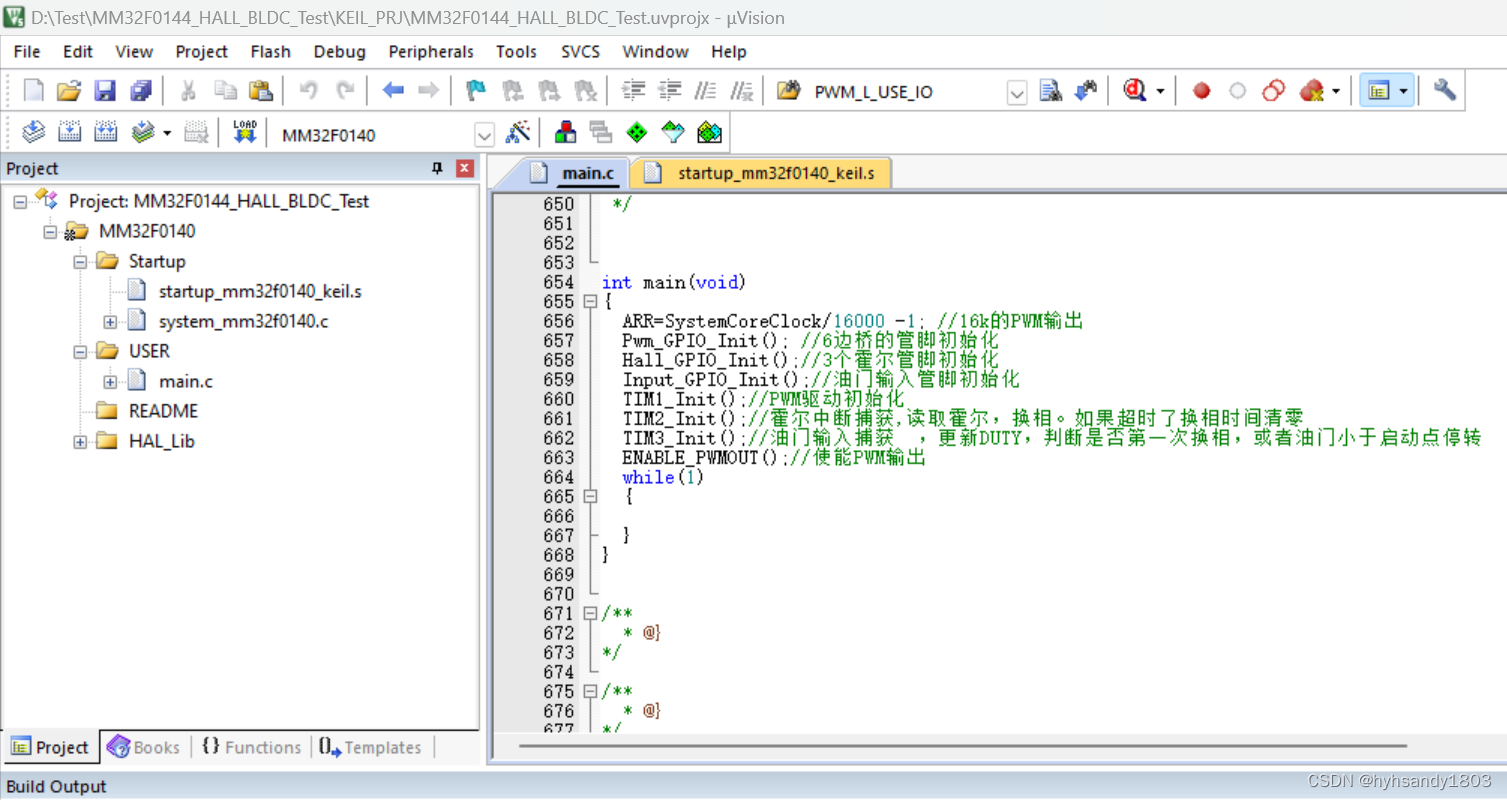

为了代码方便查看和上传，直接扔一个main文件里面了

【免费】MM32F0144HALLBLDC实例源码资源-CSDN文库

代码很简单直接上代码了

#define _MAIN_C_

/** Files includes */
#include "main.h"
#include "HAL_conf.h"
#include "HAL_device.h"


#define BLDC1_GPIO_CLK              (RCC_AHBENR_GPIOA | RCC_AHBENR_GPIOB)

#define BLDC1_UH_PORT                GPIOA
#define BLDC1_UH_PIN                 GPIO_Pin_8
#define BLDC1_VH_PORT                GPIOA
#define BLDC1_VH_PIN                 GPIO_Pin_9
#define BLDC1_WH_PORT                GPIOA
#define BLDC1_WH_PIN                 GPIO_Pin_10

#define BLDC1_UL_PORT                GPIOA
#define BLDC1_UL_PIN                 GPIO_Pin_7
#define BLDC1_VL_PORT                GPIOB
#define BLDC1_VL_PIN                 GPIO_Pin_0
#define BLDC1_WL_PORT                GPIOB
#define BLDC1_WL_PIN                 GPIO_Pin_1

#define BLDC1_UH_PIN_SRC             GPIO_PinSource8
#define BLDC1_VH_PIN_SRC             GPIO_PinSource9
#define BLDC1_WH_PIN_SRC             GPIO_PinSource10
#define BLDC1_UL_PIN_SRC             GPIO_PinSource7
#define BLDC1_VL_PIN_SRC             GPIO_PinSource0
#define BLDC1_WL_PIN_SRC             GPIO_PinSource1

#define BLDC1_UH_PIN_AF              GPIO_AF_2
#define BLDC1_VH_PIN_AF              GPIO_AF_2
#define BLDC1_WH_PIN_AF              GPIO_AF_2
#define BLDC1_UL_PIN_AF              GPIO_AF_2
#define BLDC1_VL_PIN_AF              GPIO_AF_2
#define BLDC1_WL_PIN_AF              GPIO_AF_2


/** HALL interface */
#define HALL_GPIO_CLK           	(RCC_AHBENR_GPIOB|RCC_AHBENR_GPIOA)

#define HALL_GPIO_MODE				GPIO_Mode_FLOATING

#define HALLU_PORT                  GPIOA
#define HALLV_PORT                  GPIOB
#define HALLW_PORT                  GPIOB
#define HALLU_PIN                   GPIO_Pin_15
#define HALLV_PIN                   GPIO_Pin_4
#define HALLW_PIN                   GPIO_Pin_3

#define HALLU_PIN_AF              	GPIO_AF_2
#define HALLV_PIN_AF              	GPIO_AF_7
#define HALLW_PIN_AF              	GPIO_AF_4

#define HALLU_PIN_SOURCE            GPIO_PinSource15
#define HALLV_PIN_SOURCE            GPIO_PinSource4
#define HALLW_PIN_SOURCE            GPIO_PinSource3

#define THROTTLE_INPUT_GPIO  		GPIOB
#define THROTTLE_INPUT_PIN  		GPIO_Pin_5
#define THROTTLE_INPUT_AF			GPIO_AF_1
#define THROTTLE_INPUT_PIN_SOURCE 	GPIO_PinSource5





/** Commutation macro definition */
#define BLDC_UH_ENABLE()            TIMCC1_ENABLE()
#define BLDC_UH_DISABLE()           TIMCC1_DISABLE()
#define BLDC_VH_ENABLE()            TIMCC2_ENABLE()
#define BLDC_VH_DISABLE()           TIMCC2_DISABLE()
#define BLDC_WH_ENABLE()            TIMCC3_ENABLE()
#define BLDC_WH_DISABLE()           TIMCC3_DISABLE()

#define BLDC_UL_ENABLE()            TIMCC1N_ENABLE()
#define BLDC_UL_DISABLE()           TIMCC1N_DISABLE()
#define BLDC_VL_ENABLE()            TIMCC2N_ENABLE()
#define BLDC_VL_DISABLE()           TIMCC2N_DISABLE()
#define BLDC_WL_ENABLE()            TIMCC3N_ENABLE()
#define BLDC_WL_DISABLE()           TIMCC3N_DISABLE()
/** Duty cycle control macro definition */
#define SET_VAL_U(Value)            SET_CCR1_VAL(Value)
#define SET_VAL_V(Value)            SET_CCR2_VAL(Value)
#define SET_VAL_W(Value)            SET_CCR3_VAL(Value)



#define BLDC_TIM_DEADTIME           (5)

#define TIMCC1_ENABLE()             MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_1, TIM_CCx_Enable << TIM_Channel_1)    //CC1NE=1: enable OC1 output
#define TIMCC1_DISABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_1, TIM_CCx_Disable << TIM_Channel_1)   //CC1NE=0: disable OC1 output
#define TIMCC2_ENABLE()             MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_2, TIM_CCx_Enable << TIM_Channel_2)     //CC2NE=1: enable OC2 output
#define TIMCC2_DISABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_2, TIM_CCx_Disable << TIM_Channel_2)    //CC2NE=0: disable OC2 outpu
#define TIMCC3_ENABLE()             MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_3, TIM_CCx_Enable << TIM_Channel_3)     //CC3NE=1: enable OC3 output
#define TIMCC3_DISABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC1EN << TIM_Channel_3, TIM_CCx_Disable << TIM_Channel_3)    //CC3NE=0: disable OC3 output


#define TIMCC1N_ENABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC1NP, TIM_OCNPolarity_Low)     //CCN1P=1: OC1NPolarity Low
#define TIMCC1N_DISABLE()           MODIFY_REG(TIM1->CCER, TIM_CCER_CC1NP, TIM_OCNPolarity_High)    //CCN1P=0: OC1NPolarity High
#define TIMCC2N_ENABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC2NP, TIM_OCNPolarity_Low<<4)     //CCN2P=1: OC2NPolarity Low
#define TIMCC2N_DISABLE()           MODIFY_REG(TIM1->CCER, TIM_CCER_CC2NP, TIM_OCNPolarity_High<<4)    //CCN2P=0: OC2NPolarity High
#define TIMCC3N_ENABLE()            MODIFY_REG(TIM1->CCER, TIM_CCER_CC3NP, TIM_OCNPolarity_Low<<8)     //CCN3P=1: OC3NPolarity Low
#define TIMCC3N_DISABLE()           MODIFY_REG(TIM1->CCER, TIM_CCER_CC3NP, TIM_OCNPolarity_High<<8)    //CCN3P=0: OC3NPolarity High


#define SET_CCR1_VAL(Value)         WRITE_REG(TIM1->CCR1, Value)
#define SET_CCR2_VAL(Value)         WRITE_REG(TIM1->CCR2, Value)
#define SET_CCR3_VAL(Value)         WRITE_REG(TIM1->CCR3, Value)
#define SET_CCR4_VAL(Value)         WRITE_REG(TIM1->CCR4, Value)
#define SET_CCR5_VAL(Value)         WRITE_REG(TIM1->CCR5, Value)

#define DISABLE_PWMOUT()            CLEAR_BIT(TIM1->BDTR, TIM_BDTR_MOEN)
#define ENABLE_PWMOUT()             SET_BIT(TIM1->BDTR, TIM_BDTR_MOEN)

#define READ_TIM1_UPDATE_FLAG()     READ_BIT(TIM1->SR, TIM_IT_Update)
#define CLEAN_TIM1_UPDATE_FLAG()    CLEAR_BIT(TIM1->SR, TIM_IT_Update)

#define TIM1_BREAK_ENABLE()         SET_BIT(TIM1->BDTR,TIM_BDTR_BKE)
#define TIM1_BREAK_DISABLE()        CLEAR_BIT(TIM1->BDTR,TIM_BDTR_BKE)
#define READ_TIM1_BREAK_FLAG()      READ_BIT(TIM1->SR, TIM_IT_Break)
#define CLEAN_TIM1_BREAK_FLAG()     CLEAR_BIT(TIM1->SR, TIM_IT_Break)



uint16_t RemoteInput=0;
uint16_t RemotePeriod=0;
uint8_t  RemoteState=0;
uint16_t Duty;
uint16_t ARR=0;

uint32_t u32HallTime = 0;
uint8_t ReadHallValue;
uint8_t HallA;
uint8_t HallB;
uint8_t HallC;

extern uint32_t SystemCoreClock;


void Pwm_GPIO_Init(void)
{
    GPIO_InitTypeDef GPIO_InitStructure;
    GPIO_StructInit(&GPIO_InitStructure);

    RCC_AHBPeriphClockCmd(BLDC1_GPIO_CLK, ENABLE);

    GPIO_InitStructure.GPIO_Pin     = BLDC1_UH_PIN;
    GPIO_InitStructure.GPIO_Speed   = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode    = GPIO_Mode_AF_PP;
    GPIO_Init(BLDC1_UH_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = BLDC1_VH_PIN;
    GPIO_Init(BLDC1_VH_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = BLDC1_WH_PIN;
    GPIO_Init(BLDC1_WH_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = BLDC1_UL_PIN;

    GPIO_Init(BLDC1_UL_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = BLDC1_VL_PIN;
    GPIO_Init(BLDC1_VL_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = BLDC1_WL_PIN;
    GPIO_Init(BLDC1_WL_PORT, &GPIO_InitStructure);

    GPIO_PinAFConfig(BLDC1_UH_PORT, BLDC1_UH_PIN_SRC, BLDC1_UH_PIN_AF);
    GPIO_PinAFConfig(BLDC1_VH_PORT, BLDC1_VH_PIN_SRC, BLDC1_VH_PIN_AF);
    GPIO_PinAFConfig(BLDC1_WH_PORT, BLDC1_WH_PIN_SRC, BLDC1_WH_PIN_AF);


    GPIO_PinAFConfig(BLDC1_UL_PORT, BLDC1_UL_PIN_SRC, BLDC1_UL_PIN_AF);
    GPIO_PinAFConfig(BLDC1_VL_PORT, BLDC1_VL_PIN_SRC, BLDC1_VL_PIN_AF);
    GPIO_PinAFConfig(BLDC1_WL_PORT, BLDC1_WL_PIN_SRC, BLDC1_WL_PIN_AF);

}

void Hall_GPIO_Init(void)
{
    GPIO_InitTypeDef GPIO_InitStructure;
    GPIO_StructInit(&GPIO_InitStructure);

    RCC_AHBPeriphClockCmd(HALL_GPIO_CLK, ENABLE);

    GPIO_InitStructure.GPIO_Pin = HALLU_PIN;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU;
    GPIO_Init(HALLU_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = HALLV_PIN;
    GPIO_Init(HALLV_PORT, &GPIO_InitStructure);

    GPIO_InitStructure.GPIO_Pin = HALLW_PIN;
    GPIO_Init(HALLW_PORT, &GPIO_InitStructure);

    GPIO_PinAFConfig(HALLU_PORT, HALLU_PIN_SOURCE, HALLU_PIN_AF);
    GPIO_PinAFConfig(HALLV_PORT, HALLV_PIN_SOURCE, HALLV_PIN_AF);
    GPIO_PinAFConfig(HALLW_PORT, HALLW_PIN_SOURCE, HALLW_PIN_AF);
}


void Input_GPIO_Init(void)
{

	GPIO_InitTypeDef GPIO_InitStructure;
	GPIO_StructInit(&GPIO_InitStructure);

	GPIO_InitStructure.GPIO_Pin 	= THROTTLE_INPUT_PIN;
	GPIO_InitStructure.GPIO_Speed	= GPIO_Speed_50MHz;
	GPIO_InitStructure.GPIO_Mode	= GPIO_Mode_FLOATING;
	GPIO_Init(THROTTLE_INPUT_GPIO, &GPIO_InitStructure);
	GPIO_PinAFConfig(THROTTLE_INPUT_GPIO, THROTTLE_INPUT_PIN_SOURCE, THROTTLE_INPUT_AF);

}




void TIM1_Init()  //PWM输出
{
    /** Define the struct of THE PWM configuration */
    TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;
    TIM_BDTRInitTypeDef TIM_BDTRInitStruct;
    TIM_OCInitTypeDef  TIM_OCInitStructure;

    TIM_TimeBaseStructInit(&TIM_TimeBaseStructure);
    TIM_BDTRStructInit(&TIM_BDTRInitStruct);
    TIM_OCStructInit(&TIM_OCInitStructure);

    /** Enable the TIM1 clock */
    RCC_APB2PeriphClockCmd(RCC_APB2ENR_TIM1, ENABLE);

    /**
     * Sets the value of the automatic reload register Period for the next update event load activity
     * Set the Prescaler value used as the divisor of the TIMx clock frequency
     * Set clock split :TDTS = TIM_CKD_DIV1
     * TIM center aligned mode1
     */
    TIM_TimeBaseStructure.TIM_Period        = ARR;
    TIM_TimeBaseStructure.TIM_Prescaler     = 0;
    TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1;
    TIM_TimeBaseStructure.TIM_CounterMode   = TIM_CounterMode_Up;
    TIM_TimeBaseStructure.TIM_RepetitionCounter = 0;

    TIM_TimeBaseInit(TIM1, &TIM_TimeBaseStructure);

    /**
     * Enable state selection in running mode
     * Enable state selection in idle mode
     * Software error lock configuration: lock closed without protection
     * DTG[7:0] dead zone generator configuration (dead zone time DT)
     */
    /**
    * TDTS = 125nS(8MHz)
    * DTG[7: 5] = 0xx => DT = DTG[7: 0] * Tdtg, Tdtg = TDTS;
    * DTG[7: 5] = 10x => DT =(64+DTG[5: 0]) * Tdtg, Tdtg = 2 * TDTS;
    * DTG[7: 5] = 110 => DT =(32+DTG[4: 0]) * Tdtg, Tdtg = 8 * TDTS;
    * DTG[7: 5] = 111=> DT =(32 + DTG[4: 0]) *  Tdtg, Tdtg = 16 * TDTS;
    */
    TIM_BDTRInitStruct.TIM_OSSRState    = TIM_OSSRState_Enable;
    TIM_BDTRInitStruct.TIM_OSSIState    = TIM_OSSIState_Enable;
    TIM_BDTRInitStruct.TIM_LOCKLevel    = TIM_LOCKLevel_OFF;
    TIM_BDTRInitStruct.TIM_DeadTime     = BLDC_TIM_DEADTIME;

    /**
     * Brake configuration: Disable brake
     * Brake input polarity: active in low level
     * Auto output enable configuration: Enable MOE bit hardware control
     */
    TIM_BDTRInitStruct.TIM_Break            = TIM_Break_Disable;
    TIM_BDTRInitStruct.TIM_BreakPolarity    = TIM_BreakPolarity_Low;
    TIM_BDTRInitStruct.TIM_AutomaticOutput  = TIM_AutomaticOutput_Enable;
    TIM_BDTRConfig(TIM1, &TIM_BDTRInitStruct);

    /**
     * Mode configuration: PWM mode 1
     * Output status setting: enable output
     * Complementary channel output status setting: enable output
     * Sets the pulse value to be loaded into the capture comparison register
     * Output polarity is high
     * N Output polarity is high
     */

    TIM_OCInitStructure.TIM_OCMode          = TIM_OCMode_PWM1;
    TIM_OCInitStructure.TIM_OutputState     = TIM_OutputState_Enable;

    TIM_OCInitStructure.TIM_OutputNState    = TIM_OutputNState_Enable;


    TIM_OCInitStructure.TIM_Pulse           = 0;
    TIM_OCInitStructure.TIM_OCPolarity      = TIM_OCPolarity_High;
    TIM_OCInitStructure.TIM_OCNPolarity     = TIM_OCNPolarity_High;
    TIM_OCInitStructure.TIM_OCIdleState     = TIM_OCIdleState_Set;
    TIM_OCInitStructure.TIM_OCNIdleState    = TIM_OCNIdleState_Set;

    TIM_OC1Init(TIM1, &TIM_OCInitStructure);
    TIM_OC2Init(TIM1, &TIM_OCInitStructure);
    TIM_OC3Init(TIM1, &TIM_OCInitStructure);

    /** Enable CH1, 2, and 3 to be preloaded */
    TIM_OC1PreloadConfig(TIM1, TIM_OCPreload_Enable);
    TIM_OC2PreloadConfig(TIM1, TIM_OCPreload_Enable);
    TIM_OC3PreloadConfig(TIM1, TIM_OCPreload_Enable);

    /** Enable TIMx's preloaded register on ARR */
    TIM_ARRPreloadConfig(TIM1, ENABLE);

    /** Turn off CH1, 2, and 3 channel outputs */
    TIM_CCxCmd(TIM1, TIM_Channel_1, TIM_CCx_Disable);
    TIM_CCxCmd(TIM1, TIM_Channel_2, TIM_CCx_Disable);
    TIM_CCxCmd(TIM1, TIM_Channel_3, TIM_CCx_Disable);
    TIM_CCxNCmd(TIM1, TIM_Channel_1, TIM_CCxN_Disable);
    TIM_CCxNCmd(TIM1, TIM_Channel_2, TIM_CCxN_Disable);
    TIM_CCxNCmd(TIM1, TIM_Channel_3, TIM_CCxN_Disable);


    /** Enable the TIM1 */
    TIM_Cmd(TIM1, ENABLE);
    /** Main Output Enable:Disable the MOE bit */
    TIM_CtrlPWMOutputs(TIM1, DISABLE);
}

void TIM2_Init(void)//霍尔捕捉
{
    TIM_TimeBaseInitTypeDef TIM_TimeBaseStructure;
    TIM_ICInitTypeDef   TIM_ICInitStructure;
    NVIC_InitTypeDef    NVIC_InitStructure;

    TIM_TimeBaseStructInit(&TIM_TimeBaseStructure);
    TIM_ICStructInit(&TIM_ICInitStructure);

    NVIC_InitStructure.NVIC_IRQChannel = TIM2_IRQn;
    NVIC_InitStructure.NVIC_IRQChannelPriority = 0;
    NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
    NVIC_Init(&NVIC_InitStructure);

    TIM_DeInit(TIM2);

    RCC_APB1PeriphClockCmd(RCC_APB1ENR_TIM2EN, ENABLE);
    /**
     * Sets the value of the automatic reload register Period for the next update event load activity
     * Set the Prescaler value used as the divisor of the TIMx clock frequency
     * Set clock split :TDTS = TIM_CKD_DIV1
     * Up counting mode
     */
    TIM_TimeBaseStructure.TIM_Period        = 49999;
    TIM_TimeBaseStructure.TIM_Prescaler     = 71;
    TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1;
    TIM_TimeBaseStructure.TIM_CounterMode   = TIM_CounterMode_Up;
    TIM_TimeBaseStructure.TIM_RepetitionCounter = 0;

    TIM_TimeBaseInit(TIM2, &TIM_TimeBaseStructure);

    /**
     * Initialize TIM2 input capture parameters
     * CC1S=01 selects the input terminal IC1 to be mapped to TI1
     * Set to double edge capture
     * Map to TI1
     * Configure input frequency division, no frequency division
     * Configure input filter IC1F to 8
     */
    TIM_ICInitStructure.TIM_Channel     = TIM_Channel_1;
    TIM_ICInitStructure.TIM_ICPolarity  = TIM_ICPolarity_BothEdge;
    TIM_ICInitStructure.TIM_ICSelection = TIM_ICSelection_DirectTI;
    TIM_ICInitStructure.TIM_ICPrescaler = TIM_ICPSC_DIV1;
    TIM_ICInitStructure.TIM_ICFilter    = 0x08;
    TIM_ICInit(TIM2, &TIM_ICInitStructure);
    /** Enable the Hall sensor interface of TIM2 */
    TIM_SelectHallSensor(TIM2, ENABLE);
    /** Input trigger source selection TI1 Edge Detector */
    TIM_SelectInputTrigger(TIM2, TIM_TS_TI1F_ED);
    /** Select from mode to reset mode */
    TIM_SelectSlaveMode(TIM2, TIM_SlaveMode_Reset);

	TIM_UpdateRequestConfig(TIM2,TIM_UpdateSource_Regular);

    TIM_SelectMasterSlaveMode(TIM2, TIM_MasterSlaveMode_Enable);
    /** Allow interrupts to be triggered    */
    TIM_ITConfig(TIM2, TIM_IT_Trigger, ENABLE);
    TIM_ClearITPendingBit(TIM2, TIM_IT_Trigger);

	TIM_ITConfig(TIM2, TIM_IT_Update, ENABLE);
    TIM_ClearITPendingBit(TIM2, TIM_IT_Update);

    TIM_Cmd(TIM2, ENABLE);
}

void TIM3_Init(void)//油门输入
{

	TIM_TimeBaseInitTypeDef  TIM_TimeBaseStruct;
	TIM_ICInitTypeDef  TIM3_ICInitStruct;
	NVIC_InitTypeDef  NVIC_InitStruct;

	RCC_APB1PeriphClockCmd(RCC_APB1ENR_TIM3, ENABLE);

	TIM_TimeBaseStructInit(&TIM_TimeBaseStruct);
	TIM_TimeBaseStruct.TIM_Period = 0xFFFF;
	TIM_TimeBaseStruct.TIM_Prescaler = 71;
	//Setting Clock Segmentation
	TIM_TimeBaseStruct.TIM_ClockDivision = TIM_CKD_DIV1;
	TIM_TimeBaseStruct.TIM_RepetitionCounter = 0;
	///TIM Upward Counting Mode
	TIM_TimeBaseStruct.TIM_CounterMode = TIM_CounterMode_Up;
	TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStruct);

	TIM_ICStructInit(&TIM3_ICInitStruct);
	TIM3_ICInitStruct.TIM_Channel = TIM_Channel_2;
	TIM3_ICInitStruct.TIM_ICPolarity = TIM_ICPolarity_Rising;
	TIM3_ICInitStruct.TIM_ICSelection = TIM_ICSelection_DirectTI;
	TIM3_ICInitStruct.TIM_ICPrescaler = TIM_ICPSC_DIV1;
	TIM3_ICInitStruct.TIM_ICFilter = 0x0;
	//Configure PWM
	TIM_PWMIConfig(TIM3, &TIM3_ICInitStruct);
	//Select the valid input
	TIM_SelectInputTrigger(TIM3, TIM_TS_TI2FP2);
	//Configuration in master-slave reset mode
	TIM_SelectSlaveMode(TIM3, TIM_SlaveMode_Reset);

	TIM_SelectMasterSlaveMode(TIM3, TIM_MasterSlaveMode_Enable);

	TIM_Cmd(TIM3, ENABLE);


    /** Initialization ADC interrupt */
    NVIC_InitStruct.NVIC_IRQChannel = TIM3_IRQn;
    NVIC_InitStruct.NVIC_IRQChannelPriority = 1;
    NVIC_InitStruct.NVIC_IRQChannelCmd = ENABLE;
    NVIC_Init(&NVIC_InitStruct);

	TIM_ClearITPendingBit(TIM3, TIM_IT_CC2);
    TIM_ITConfig(TIM3, TIM_IT_CC2, ENABLE);



}









void ReadHall(void)
{

		HallA=((HALLU_PORT->IDR & HALLU_PIN)) ? Bit_SET : Bit_RESET;
		HallB=((HALLV_PORT->IDR & HALLV_PIN)) ? Bit_SET : Bit_RESET;
		HallC=((HALLW_PORT->IDR & HALLW_PIN)) ? Bit_SET : Bit_RESET;
	//	TempHallValue = HallA*4 + HallC*2 + HallB*1; //0
	//	TempHallValue = HallA*4 + HallB*2 + HallC*1; //0
		ReadHallValue = HallB*4 + HallC*2 + HallA*1; //
	//	TempHallValue = HallB*4 + HallA*2 + HallC*1;
	//	TempHallValue = HallC*4 + HallA*2 + HallB*1; //0
	//	TempHallValue = HallC*4 + HallB*2 + HallA*1;

	//上面6组中选一组电流最小的才是正确的配置

}
void MotorDrive(uint8_t step)
{
    switch(step) {
        case 3: //A+ C-
            BLDC_UL_DISABLE();
            BLDC_UH_ENABLE();
            BLDC_VL_DISABLE();
            BLDC_VH_DISABLE();
            BLDC_WH_DISABLE();
            BLDC_WL_ENABLE();
            break;
        case 1: //B+ C-
            BLDC_UL_DISABLE();
            BLDC_UH_DISABLE();
            BLDC_VL_DISABLE();
            BLDC_VH_ENABLE();
            BLDC_WH_DISABLE();
            BLDC_WL_ENABLE();
            break;
        case 5: // B+ A-
            BLDC_UH_DISABLE();
            BLDC_UL_ENABLE();
            BLDC_VL_DISABLE();
            BLDC_VH_ENABLE();
            BLDC_WL_DISABLE();
            BLDC_WH_DISABLE();
            break;
        case 4: // C+ A-
            BLDC_UH_DISABLE();
            BLDC_UL_ENABLE();
            BLDC_VL_DISABLE();
            BLDC_VH_DISABLE();
            BLDC_WL_DISABLE();
            BLDC_WH_ENABLE();
            break;
        case 6: // C+ B-
            BLDC_UH_DISABLE();
            BLDC_UL_DISABLE();
            BLDC_VH_DISABLE();
            BLDC_VL_ENABLE();
            BLDC_WL_DISABLE();
            BLDC_WH_ENABLE();
            break;
        case 2: // A+ B-
            BLDC_UL_DISABLE();
            BLDC_UH_ENABLE();
            BLDC_VH_DISABLE();
            BLDC_VL_ENABLE();
            BLDC_WH_DISABLE();
            BLDC_WL_DISABLE();
            break;
        default:
            BLDC_UH_DISABLE();
            BLDC_UL_DISABLE();
            BLDC_VH_DISABLE();
            BLDC_VL_DISABLE();
            BLDC_WH_DISABLE();
            BLDC_WL_DISABLE();
            break;
    }
}

void TIM3_IRQHandler(void)
{
	if(TIM_GetFlagStatus(TIM3,TIM_FLAG_CC2)==SET)
	{
		TIM_ClearITPendingBit(TIM3, TIM_IT_CC2);

		RemoteInput=TIM_GetCapture1(TIM3);
		RemotePeriod=TIM_GetCapture2(TIM3);
	  	RemoteState=0;

		//油门信息判断
		if(RemotePeriod > 28517|| RemotePeriod < 2000||RemoteInput<800 || RemoteInput >2300||(TIM_GetFlagStatus(TIM3,TIM_FLAG_CC2OF)==SET))
		{

			WRITE_REG(TIM3->SR, ~(TIM_SR_CC2OF));
			RemoteState=1;

		}


		if(RemoteState==0)
		{
			if(RemoteInput<1050) //1050是启动点
			{
				Duty=0;
				MotorDrive(7);
			}

			else if(RemoteInput>1950) //油门最大值
			{
				Duty=ARR+1;
			}
			else
			{
				Duty=(ARR+1)*(RemoteInput-1050)/(1950-1050);
			}

			SET_VAL_U(Duty);
    		SET_VAL_V(Duty);
    		SET_VAL_W(Duty);

			if(Duty>0&& u32HallTime==0) //油门大于启动点并且此时停转
			{
				ReadHall();
				MotorDrive(ReadHallValue); //启动一次
			}

		}
	}


}




void TIM2_IRQHandler(void)
{


    if(TIM_GetITStatus(TIM2, TIM_IT_Trigger) != RESET)
    {
        /** Clear interrupt flag */
        TIM_ClearITPendingBit(TIM2, TIM_IT_Trigger);
		u32HallTime = TIM_GetCapture1(TIM2);	//换相时间
		ReadHall();
		MotorDrive(ReadHallValue);


		return;

    }
	 if(TIM_GetITStatus(TIM2, TIM_IT_Update) != RESET) //长时间未更新换相时间则认为停转了或者堵转了，换相时间清零
	 {

	 	TIM_ClearITPendingBit(TIM2, TIM_IT_Update);
		u32HallTime=0;

		return;


	 }
}





/**
 * @brief    : This function is the main entry.
 * @param    : None
 * @retval   : None
 */



int main(void)
{
	ARR=SystemCoreClock/16000 -1; //16k的PWM输出
	Pwm_GPIO_Init(); //6边桥的管脚初始化
	Hall_GPIO_Init();//3个霍尔管脚初始化
	Input_GPIO_Init();//油门输入管脚初始化
	TIM1_Init();//PWM驱动初始化
	TIM2_Init();//霍尔中断捕获,读取霍尔，换相。如果超时了换相时间清零
	TIM3_Init();//油门输入捕获	，更新DUTY，判断是否第一次换相，或者油门小于启动点停转
	ENABLE_PWMOUT();//使能PWM输出
	while(1)
	{

	}
}
