[STM32U5]【NUCLEO-U5A5ZJ-Q测评】-2-Keil开发环境搭建

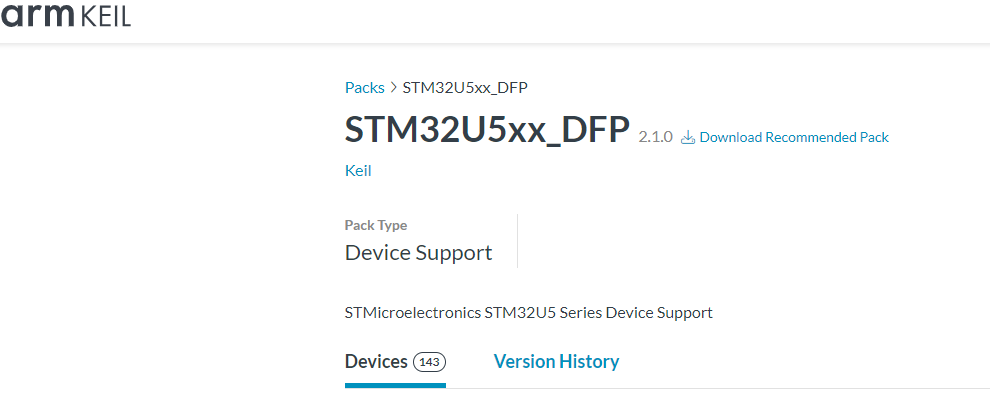

在Keil官网下载固件包：

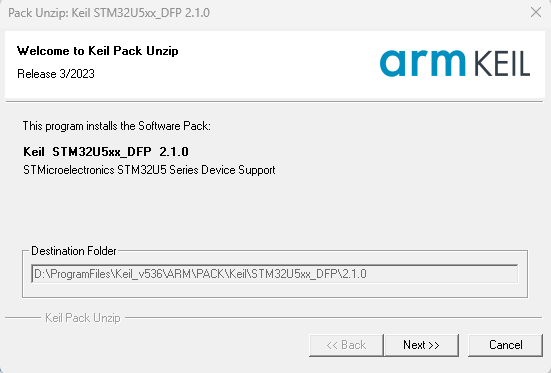

双击安装：

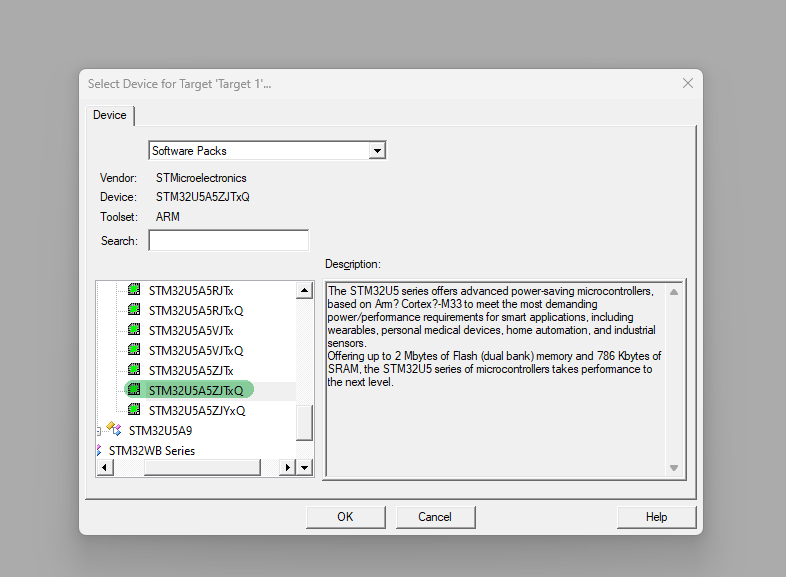

安装完成后新建工程，可以选择芯片：STM32U5A5ZJT6Q

先运行一个最简单的GPIO翻转，初始化GPIO

  GPIO_InitStruct.Mode  = GPIO_MODE_OUTPUT_PP;

  GPIO_InitStruct.Pull  = GPIO_NOPULL;

  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;



  GPIO_InitStruct.Pin = LED1_PIN;

  HAL_GPIO_Init(LED1_GPIO_PORT, &GPIO_InitStruct);

  GPIO_InitStruct.Pin = LED2_PIN;

  HAL_GPIO_Init(LED2_GPIO_PORT, &GPIO_InitStruct);

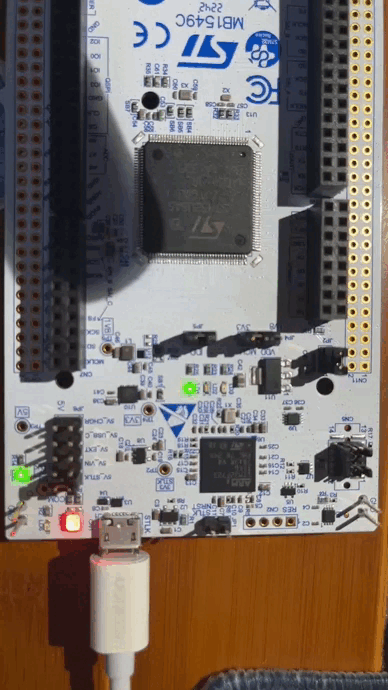

延迟一定时间后，翻转LED状态

  while (1)

  {

    /* USER CODE END WHILE */



    /* USER CODE BEGIN 3 */

    HAL_GPIO_TogglePin(LED1_GPIO_PORT, LED1_PIN);

    /* Insert delay 1000 ms */

    HAL_Delay(1000);

    HAL_GPIO_TogglePin(LED2_GPIO_PORT, LED2_PIN);

    /* Insert delay 1000 ms */

    HAL_Delay(1000);



  }

编译：

Rebuild started: Project: GPIO_IOToggle

*** Using Compiler 'V6.16', folder: 'D:\ProgramFiles\Keil_v5\ARM\ARMCLANG\Bin'

Rebuild target 'GPIO_IOToggle'

assembling startup_stm32u5a5xx.s...

compiling main.c...

compiling stm32u5xx_hal_exti.c...

compiling stm32u5xx_hal_cortex.c...

compiling stm32u5xx_hal.c...

compiling stm32u5xx_hal_msp.c...

compiling stm32u5xx_hal_dma.c...

compiling stm32u5xx_hal_gtzc.c...

compiling stm32u5xx_hal_icache.c...

compiling stm32u5xx_hal_pwr_ex.c...

compiling stm32u5xx_hal_i2c.c...

compiling stm32u5xx_hal_tim.c...

compiling stm32u5xx_it.c...

compiling stm32u5xx_hal_pwr.c...

compiling stm32u5xx_hal_i2c_ex.c...

compiling stm32u5xx_hal_flash_ex.c...

compiling stm32u5xx_nucleo.c...

compiling stm32u5xx_hal_gpio.c...

compiling stm32u5xx_hal_tim_ex.c...

compiling stm32u5xx_hal_dma_ex.c...

compiling stm32u5xx_hal_flash.c...

compiling system_stm32u5xx.c...

compiling stm32u5xx_hal_rcc.c...

compiling stm32u5xx_hal_rcc_ex.c...

linking...

Program Size: Code=6448 RO-data=832 RW-data=12 ZI-data=1660

FromELF: creating hex file...

"GPIO_IOToggle\GPIO_IOToggle.axf" - 0 Error(s), 0 Warning(s).

Build Time Elapsed:  00:00:03

Load "GPIO_IOToggle\\GPIO_IOToggle.axf"

Erase Done.

Programming Done.

Verify OK.

Flash Load finished at 13:40:15

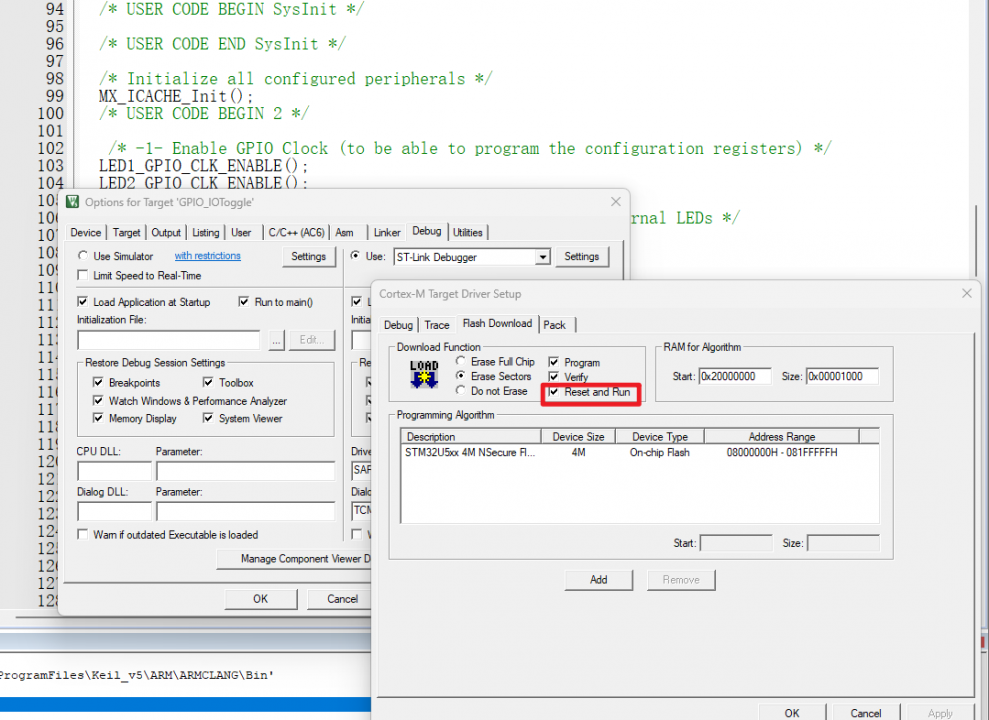

还有一个选项需要注意：“RESET AND RUN”，这样下载后程序会自动运行。
