最近项目上出现了一个“收集用户反馈”需求，大概的执行流程就是：点击按钮，弹出对话框，在对话框中收集用户评价，最后再输出。正好这个项目是用的ElementUi，所以考虑使用Notification这个组件，但是在使用过程中遇到了一系列问题，踩了不少坑，这里做一下总结分享。

1、什么是Notification组件

Notification 组件提供通知功能，Element 注册了$notify方法，接收一个options字面量参数，在最简单的情况下，你可以设置title字段和message字段，用于设置通知的标题和正文。默认情况下，经过一段时间后 Notification 组件会自动关闭，但是通过设置duration，可以控制关闭的时间间隔，特别的是，如果设置为0，则不会自动关闭。注意：duration接收一个Number，单位为毫秒，默认为4500。

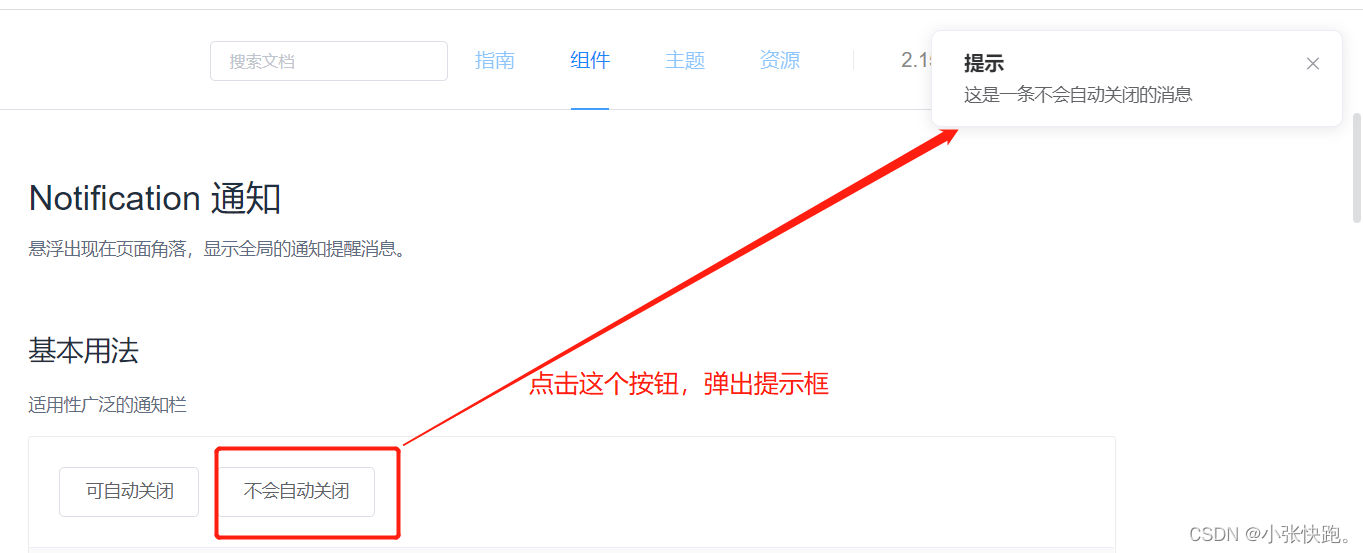

这是来自官方文档给出的解释，其具体的执行效果如下：

2、Notification组件的基本使用

html部分：

<el-button plain @click="open"> 可自动关闭 </el-button>

js部分：

open() {
  this.$notify({
    title: '提示',  //标题
    message: '这是一条不会自动关闭的消息',  //内容
    duration: 0，  //设置弹框消失事件
    position：'bottom-right',  // 设置弹框在屏幕的哪个角弹出（只能设置4个角）
    type: 'warning',  //给标题前加一个小图标
    offset: 100,  //偏移量：距离四个角的偏移程度（默认偏移了16px）
    dangerouslyUseHTMLString: true,  //是否支持弹出框内传入 HTML 片段
    message: '<strong>这是 <i>HTML</i> 片段</strong>',   //开启后，这里可以写html
    showClose: false,  //隐藏关闭按钮（右上角的x  默认为true，显示）
    close(){
      console.log('弹框被关闭了')
    }   //点击关闭按钮的回调函数
  });
}

Notification组件的执行过程

1）Notification组件是通过触发点击事件open事件发生的；

2）open这个方法执行Element上面注册的$notify的方法；

3）关于close回调函数的使用：

关闭某个弹框：this.$notify.close() //想要关闭单个弹框的话需要传入弹框的ID

关闭全部弹框：this.$notify.closeAll()

注意：如果在Notification组件中传入Html片段，message里面的html子符串其实是脱离了vue，例如不能用@click方法绑定事件，因此，应该用js的操作dom来绑定。

3、实际案例

假设我们有这样一个需求：我们需要点击一个按钮，用来收集用户反馈，我们应该如何使用Notification组件呢？

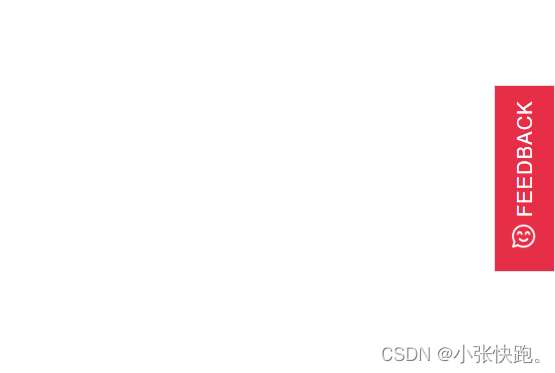

案例效果：

需求分析：

1）我们页面上需要一个可以点击的按钮，来触发这个Notification组件；

2）在Notification组件我们需要输入Html片段；

3）每一个收集到的用户意见，需要自动弹出下一个问题（这里只需要将message的内容写成变量，就不需要再次产生一个弹框了）

注意事项：

1）在第一次触发弹框后，按钮不能再次被点击而触发下一次弹框；

2）在反馈过程中，点击关闭按钮后，能够点击按钮再次弹出第一个弹框，从而再次收集用户反馈；

3）弹框最后一个是“Thank you”内容，需要自动消失。

代码实现：

html部分：

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
  <!-- import CSS -->
  <link rel="stylesheet" href="https://cdn.bootcdn.net/ajax/libs/element-ui/2.15.9/theme-chalk/index.css">
  <link rel="stylesheet" href="./index.css">
</head>
<body>
<div id="app">
    <template>
      <el-button class="feedback" plain @click="open">
        FEEDBACK
      </el-button>
    </template>
  </div>
</body>
<script src="https://cdn.staticfile.org/vue/2.2.2/vue.min.js"></script>
<script src="https://cdn.bootcdn.net/ajax/libs/element-ui/2.15.9/index.js"></script>
</html>

js部分：（使用vue2）

 data: {
    feedback: {
    expericene: '',
    information: '',
    article: '',
    useful: false,
  },
  tittle: '',
  message: '',
},
    methods: {
      open() {
        that = this
        document.querySelector('.el-button').disabled = true
        this.$notify({

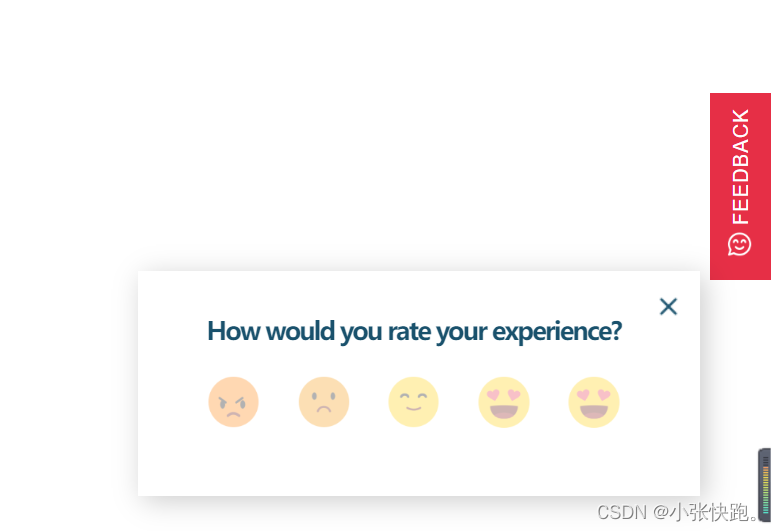

          title: 'How would you rate your experience?',
          message: '这是第一条消息',
          duration: 0,
          dangerouslyUseHTMLString: true,
          message: `<ul class="rectangle-content">
                      <li id="0" class="first"></li>
                      <li id="1" class="second"></li>
                      <li id="2" class="third"></li>
                      <li id="3" class="fourth"></li>
                      <li id="4" class="fifth"></li>
                    </ul>`,
          onClose() {
            document.querySelector('.el-button').disabled = false

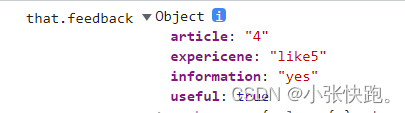

            console.log('that.feedback', that.feedback)
          }
        });
        let rectangle = document.querySelectorAll(".rectangle-content li")
        var expericene = ['like1', 'like2', 'like3', 'like4', 'like5']
        rectangle.forEach((value) => {
          var that = this
          value.onclick = function () {
            this.className = this.className + '-light'
            that.feedback.expericene = expericene[this.id]
            if (that.feedback.expericene != '') {
              that.getInformation()
            }
          }
        })
      },
      getInformation() {

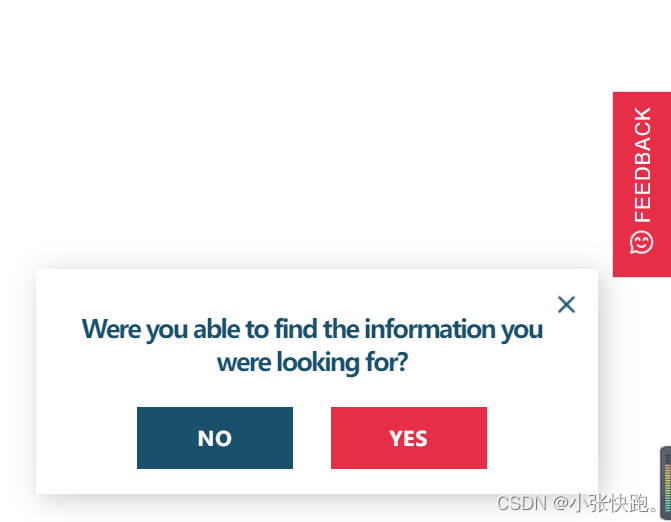

        this.title = 'Were you able to find the information you were looking for?'
        this.message = `<div class="rectangle-box">
                                <div class="box-no">NO</div>
                                <div class="box-yes">YES</div>
                              </div>`
        var notifyTitle = document.querySelector('.el-notification__title')
        var notifyBox = document.querySelector('.el-notification__content p')
        notifyTitle.innerHTML = this.title
        notifyBox.innerHTML = this.message
        let box = document.querySelectorAll(".rectangle-box div")
        let information = ''
        for (i = 0; i < box.length; i++) {
          var that = this
          box[i].onclick = function () {
            that.feedback.information = this.innerHTML.toLowerCase()
            if (that.feedback.information != '') {
              that.getArticle()
            }
          }
        }
      },
      getArticle() {
        this.title = 'How useful was this article?'
        this.message = `<ul class="artic-content"">
                      <li class="first">1</li>
                      <li class="second">2</li>
                      <li class="third">3</li>
                      <li class="fourth">4</li>
                      <li class="fifth">5</li>
                    </ul>
                    <div class="useful">
                      <span class="left">Not useful</span>
                      <span  class="right">Very useful</span>
                    </div`
        var notifyTitle = document.querySelector('.el-notification__title')
        var notifyBox = document.querySelector('.el-notification__content p')
        notifyTitle.innerHTML = this.title
        notifyBox.innerHTML = this.message
        let artic = document.querySelectorAll(".artic-content li")
        let article = ''
        for (i = 0; i < artic.length; i++) {
          var that = this
          artic[i].classList.remove('colorAdd')
          artic[i].onclick = function () {
            this.classList.add('colorAdd')
            that.feedback.article = this.innerHTML
            if (that.feedback.article != '') {
              that.getEnd()
            }
          }
        }
      },
      getEnd() {
        this.feedback.useful = true
        this.title = 'Thank you for sharing your feedback with us.'
        this.message = `<span class='rectangle_detail'>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod
        tempor.</span>`
        var notifyTitle = document.querySelector('.el-notification__title')
        var notifyBox = document.querySelector('.el-notification__content p')
        notifyTitle.innerHTML = this.title
        notifyBox.innerHTML = this.message
        console.log('first', this.feedback)
        if (this.feedback.useful) {
          this.feedback = {
            expericene: '',
            information: '',
            article: '',
            useful: false,
          }
          setTimeout(() => {
            this.$notify.closeAll()
            document.querySelector('.el-button').disabled = this.feedback.useful
          }, 1000)
        }
      },
    },

css部分：（此处涉及一些图标，可以自己找一些替换一下）

.feedback {
  position: fixed;
  right: 0;
  bottom: 29%;
  width: 49px;
  height: 150px;
  background-color: #e62f46;
  color: white;
  border-radius: 0;
}
.feedback span {
  display: inline-block;
  font-size: 16px;
  width: 62.5px;
  margin-left: -27px;
  transform: rotate(-90deg);
  letter-spacing: 0.89px;
  position: relative;
}
.feedback:hover,
.feedback:active,
.feedback:focus {
  background: #e62f46 !important;
  border-color: #e62f46 !important;
  color: white !important;
}
.feedback span::after {
  position: absolute;
  top: -3px;
  right: 68px;
  content: '';
  display: inline-block;
  width: 20px;
  height: 20px;
  background: url(./img/smail.jpg) no-repeat;
  background-size: contain;
  transform: rotate(90deg);
}
.rext {
  display: none;
}
.el-notification {
  /* display: block !important; */
  top: 70% !important;
  width: 450px;
  height: 180px;
  box-shadow: 4px 4px 22px 0 rgba(0, 0, 0, 0.2);
  background-color: var(--white);
  text-align: center;
  box-sizing: border-box;
  overflow: hidden;
  border-radius: 0;
  border: none;
  right: 60px !important;
  justify-content: center;
}
.el-notification .el-notification__title {
  /* max-width: 330px; */
  padding: 0 10px;
  font-size: 20px;
  font-weight: 550;
  margin: 20px auto 23px;
  color: #19516c;
  letter-spacing: -1.4px;
}
.el-notification .rectangle-content {
  display: flex;
  justify-content: center;
  padding: 0;
  margin: 0;
  margin-top: 23px;
}
.el-notification .el-icon-close:before {
  content: '';
  display: inline-block;
  width: 20px;
  height: 20px;
  background: url(./img/icon-close-default.png) no-repeat;
  background-size: cover;
}
.el-notification .rectangle-content li {
  width: 42px;
  height: 42px;
  list-style: none;
  margin: 0 15px;
  cursor: pointer;
  text-align: center;
}
.el-notification .rectangle-content .first {
  background: url(./img/first_dark.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .first-light {
  background: url(./img/first.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .first:hover {
  background: url(./img/first.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .first::before,
.el-notification .rectangle-content .first-light::before {
  display: none;
  content: 'Like';
  font-size: 12px;
  transform: translateY(46px);
  color: rgba(0, 0, 0, 0.2);
}
.el-notification .rectangle-content .first:hover::before,
.el-notification .rectangle-content .first-light:hover::before {
  display: block;
}
.el-notification .rectangle-content .second {
  background: url(./img/second_dark.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .second-light {
  background: url(./img/second.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .second:hover {
  background: url(./img/second.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .second::before,
.el-notification .rectangle-content .second-light::before {
  display: none;
  content: 'Like';
  font-size: 12px;
  transform: translateY(46px);
  color: rgba(0, 0, 0, 0.2);
}
.el-notification .rectangle-content .second:hover::before,
.el-notification .rectangle-content .second-light:hover:before {
  display: block;
}
.el-notification .rectangle-content .third {
  background: url(./img/third_dark.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .third-light {
  background: url(./img/third.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .third:hover {
  background: url(./img/third.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .third::before,
.el-notification .rectangle-content .third-light::before {
  display: none;
  content: 'Like';
  font-size: 12px;
  transform: translateY(46px);
  color: rgba(0, 0, 0, 0.2);
}
.el-notification .rectangle-content .third:hover::before,
.el-notification .rectangle-content .third-light:hover::before {
  display: block;
}
.el-notification .rectangle-content .fourth {
  background: url(./img/fifth_dark.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fourth-light {
  background: url(./img/fifth.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fourth:hover {
  background: url(./img/fourth.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fourth::before,
.el-notification .rectangle-content .fourth-light::before {
  display: none;
  content: 'Like';
  font-size: 12px;
  transform: translateY(46px);
  color: rgba(0, 0, 0, 0.2);
}
.el-notification .rectangle-content .fourth:hover::before,
.el-notification .rectangle-content .fourth-light:hover::before {
  display: block;
}
.el-notification .rectangle-content .fifth {
  background: url(./img/fifth_dark.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fifth-light {
  background: url(./img/fifth.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fifth:hover {
  background: url(./img/fifth.jpg) no-repeat;
  background-size: contain;
}
.el-notification .rectangle-content .fifth::before,
.el-notification .rectangle-content .fifth-light::before {
  display: none;
  content: 'Like';
  font-size: 12px;
  transform: translateY(46px);
  color: rgba(0, 0, 0, 0.2);
}
.el-notification .rectangle-content .fifth:hover::before,
.el-notification .rectangle-content .fifth-light:hover::before {
  display: block;
}
/* second */
.el-notification .rectangle-box {
  display: flex;
  justify-content: center;
  text-align: center;
}
.el-notification .rectangle-box .box-no {
  width: 125px;
  height: 50px;
  box-sizing: border-box;
  margin: 0 30px 0 0;
  background-color: #19516c;
  font-size: 16px;
  letter-spacing: 0.53px;
  font-weight: 550;
  color: white;
  line-height: 50px;
  cursor: pointer;
}
.el-notification .rectangle-box .box-yes {
  width: 125px;
  height: 50px;
  box-sizing: border-box;
  background-color: #e62f46;
  font-size: 16px;
  letter-spacing: 0.53px;
  font-weight: 550;
  color: white;
  line-height: 50px;
  cursor: pointer;
}

/* third */
.el-notification .artic-content {
  display: flex;
  justify-content: center;
  padding: 0;
  margin: 0;
  cursor: pointer;
  margin-bottom: 10px;
  text-align: center;
}
.el-notification .artic-content li {
  width: 65px;
  height: 50px;
  box-sizing: border-box;
  margin: 0 7px;
  line-height: 50px;
  background-color: #f0f0f0;
  list-style: none;
  font-size: 18px;
  font-weight: 550;
  color: #19516c;
}
.el-notification .artic-content li.colorAdd {
  background-color: #19516c;
  color: white;
}
.el-notification .artic-content li:hover {
  background-color: #19516c;
  color: white;
}
.el-notification .useful {
  display: flex;
  justify-content: center;
  text-align: center;
}
.el-notification .useful span {
  color: #777777;
  font-size: 16px;
  line-height: 22px;
  letter-spacing: 0.53px;
}
.el-notification .useful span.left {
  margin-right: 200px;
}
/* fourth */
.el-notification .rectangle_detail {
  margin-top: -10px;
  padding: 0 35px;
  display: block;
  font-size: 16px;
  color: black;
  line-height: 24px;
  text-align: center;
}

@media screen and (max-width:750px) {
  body {
    margin: 0;
  }
  .feedback {
    position: fixed;
    bottom: 40%;
  }
  .el-notification {
    display: block;
    right: 0 !important;
    top: 65% !important;
    left: 50%;
    transform: translateX(-50%);
    width: 330px;
    height: 170px;
  }
  .el-notification .rectangle-content .first::before,
  .el-notification .rectangle-content .second::before,
  .el-notification .rectangle-content .third::before,
  .el-notification .rectangle-content .fourth::before,
  .el-notification .rectangle-content .fifth::before {
    transform: translateY(24px);
  }
  .el-notification .el-notification__title {
    font-size: 16px;
  }
  .el-notification .rectangle-content li {
    width: 35px;
    height: 35px;
    margin: 0px 10px;
  }
  .el-notification .rectangle_icon {
    width: 18px;
    height: 18px;
  }
  .el-notification .rectangle_title {
    max-width: 275px;
    font-size: 16px;
  }
  .el-notification .rectangle-box .box-no,
  .el-notification .rectangle-box .box-yes {
    width: 118px;
    height: 40px;
    line-height: 40px;
    font-size: 15px;
  }
  .el-notification .artic-content {
    padding: 0 10px;
  }
  .el-notification .artic-content li {
    width: 50px;
  }
  .el-notification .useful span {
    font-size: 15px;
    display: inline-block;
    width: 85px;
  }
  .el-notification .useful span.left {
    margin-right: 66px;
  }
  .el-notification .useful span.right {
    width: 90px;
  }
  .el-notification .rectangle_detail {
    padding: 0 15px;
  }
}

如果小伙伴们在开发过程中遇到其他相关问题，欢迎评论区大家一起讨论起来！！！
