在上一篇博文中记录了第一次写的按键驱动,当时是完全参考友善之臂的设计,基本没怎么思考,也不太明白Linux下中断处理的流程,今天仔细分析了下Linux下外部中断的处理流程,所以修改了下以前的代码。
当按下中断后,发生中断,发生以下事情
1.CPU进入异常模式,并跳转到vector_irq + stubs_offset处
2.因为在用户模式发生中断,所以跳转到__irq_usr指示的地址处
3.最终跳转到函数asm_do_IRQ处
4.在asm_do_IRQ按中断号查找到对应中断的irq_desc描述符,然后进入中断处理入口handle_irq
5.接着调用generic_handle_irq_desc
6.desc->handle_irq(irq,desc),而这个是在中断架构初始化的时候设置的
7.接着使能中断,调用用户注册的中断处理例程链表
8.处理完成后,恢复现场
这次的思路和上一篇博文Linux驱动程序开发之三----按键驱动(Tiny6410)差不多,只是重新设计了数据结构buttons_irq_desc,并且增加了自动创建设备节点的功能。
struct button_irq_desc {
int irq;
int number;
char *name;
};
static struct button_irq_desc button_irqs [] = {
{IRQ_EINT( 0), 0, "KEY0"},
{IRQ_EINT( 1), 1, "KEY1"},
{IRQ_EINT( 2), 2, "KEY2"},
{IRQ_EINT( 3), 3, "KEY3"},
{IRQ_EINT( 4), 4, "KEY4"},
{IRQ_EINT( 5), 5, "KEY5"},
{IRQ_EINT(19), 6, "KEY6"},
{IRQ_EINT(20), 7, "KEY7"},
};
在里面增加了number字段值,用于指示是第几个按键被按下,上次博文中出现的不能注册K5,6,7,8的中断问题也已经解决,是内核编译的时候可能有点错误,使用make menuconfig将device driver -> char ->中有关mini6410的配置全部去掉后,再次编译OK了!所以中断处理程序中可以将其值保存到一个全局变量中,然后唤醒休眠队列上的进程,read函数中检测是否有键被按下,若没有则将进程挂起,否则将中断中保存的键号值拷贝到用户空间,在用户程序中将这个值打印出来。
源码如下:
/*
*
* buttons驱动程序TIny6410
* 使用标准字符设备驱动编写方法
* make完成后根据打印到终端的输出,创建字符设备
* 格式如下:
* mknod /dev/buttons c 主设备号 0
* 目前存在一些问题,只能驱动按键K1~K4,不能驱动K5~K7,原因是request_irq函数调用失败
* 另外,使用ctrl+c中断后再次加载驱动会失败,原因不清楚
* Author:jefby
* Email:jef199006@gmail.com
*
*/
#include <linux/module.h>//MODULE_LICENSE,MODULE_AUTHOR
#include <linux/init.h>//module_init/module_exit
#include <linux/fs.h>//file_operations
#include <asm/io.h>//ioread32,iowrite32
#include <linux/cdev.h>//cdev
#include <mach/map.h>//定义了S3C64XX_VA_GPIO
#include <mach/regs-gpio.h>//定义了gpio-bank-n中使用的S3C64XX_GPN_BASE
#include <mach/gpio-bank-n.h>//定义了GPNCON
#include <mach/gpio-bank-l.h>//定义了GPNCON
#include <linux/wait.h>//wait_event_interruptible(wait_queue_head_t q,int condition);
//wake_up_interruptible(struct wait_queue **q)
#include <linux/sched.h>//request_irq,free_irq
#include <asm/uaccess.h>//copy_to_user
#include <linux/irq.h>//IRQ_TYPE_EDGE_FALLING
#include <linux/interrupt.h>//request_irq,free_irq
#include <linux/device.h>//class device
MODULE_AUTHOR("jefby");
MODULE_LICENSE("Dual BSD/GPL");
MODULE_DESCRIPTION("Tiny 6410 buttons with interrupt");
#define GPNCON 0x7F008830
#define GPNDAT 0x7F008834
#define GPLCON0 0x7F008810
#define GPLDAT 0x7F008818
struct button_irq_desc {
int irq;
int number;
char *name;
};
static struct button_irq_desc button_irqs [] = {
{IRQ_EINT( 0), 0, "KEY0"},
{IRQ_EINT( 1), 1, "KEY1"},
{IRQ_EINT( 2), 2, "KEY2"},
{IRQ_EINT( 3), 3, "KEY3"},
{IRQ_EINT( 4), 4, "KEY4"},
{IRQ_EINT( 5), 5, "KEY5"},
{IRQ_EINT(19), 6, "KEY6"},
{IRQ_EINT(20), 7, "KEY7"},
};
//声明一个按键的等待队列
static DECLARE_WAIT_QUEUE_HEAD(buttons_waitq);
//指示是否有按键被按下,在中断处理程序中置为,read程序将其清0
static volatile int ev_press = 0;
//按键设备的主设备号
static int buttons_major = 0;
//设备号
dev_t dev;
//字符设备
struct cdev * buttons_cdev=NULL;
static volatile unsigned char key_val = 0;
static struct class * tiny6410_buttons_class = NULL;
static struct device * tiny6410_buttons_device = NULL;
//按下次数
//中断处理程序,记录按键按下的次数,并置标志位为1,唤醒等待队列上等待的进程
static irqreturn_t buttons_interrupt(int irq,void *dev_id)
{
struct button_irq_desc *temp = (struct button_irq_desc *)dev_id;
key_val = (unsigned char)(temp->number+1);
ev_press = 1;//表示中断发生了
wake_up_interruptible(&buttons_waitq);
return IRQ_RETVAL(IRQ_HANDLED);
}
//设备打开操作,主要完成BUTTONS所对应的GPIO的初始化,注册用户中断处理函数,设置触发方式为双边沿触发
int buttons_open(struct inode *inode,struct file *filp)
{
int i;
int err = 0;
//申请中断号
for (i = 0; i < sizeof(button_irqs)/sizeof(button_irqs[0]); i++) {
if (button_irqs[i].irq < 0) {
continue;
}
err = request_irq(button_irqs[i].irq, buttons_interrupt, IRQ_TYPE_EDGE_BOTH,
button_irqs[i].name, (void *)&button_irqs[i]);
if (err)
break;
}
if (err) {
printk("err=%d.\n",err);
i--;
for (; i >= 0; i--) {
if (button_irqs[i].irq < 0) {
continue;
}
disable_irq(button_irqs[i].irq);
free_irq(button_irqs[i].irq, (void *)&button_irqs[i]);
}
return -EBUSY;
}
ev_press = 0;//设置初始状态为0
return 0;
}
//按键读若没有键被按下,则使进程休眠;若有按键被按下,则拷贝数据到用户空间,然后清零
int buttons_read(struct file *filp, char __user *buf, size_t len, loff_t * pos)
{
unsigned long val = 0;
if(len != sizeof(key_val))
return -EINVAL;
wait_event_interruptible(buttons_waitq,ev_press);//ev_press==0,则休眠
ev_press = 0;//重新清0
if((val = copy_to_user(buf,(const void*)&key_val,sizeof(key_val))) != sizeof(key_val))
return -EINVAL;
return sizeof(key_val);
}
//主要是卸载用户中断处理程序
int buttons_close(struct inode *inode,struct file *filp)
{
int i=0;
printk("buttons close.\n");
for (i = 0; i < sizeof(button_irqs)/sizeof(button_irqs[0]); i++) {
disable_irq(button_irqs[i].irq);
free_irq(button_irqs[i].irq, (void *)&button_irqs[i]);
}
return 0;
}
static struct file_operations buttons_fops = {
.owner = THIS_MODULE,
.read = buttons_read,
.release = buttons_close,
.open = buttons_open,
};
/*
模块初始化:
1.申请设备号,默认使用动态分配的方法
2.申请并初始化cdev结构
3.将cdev注册到内核
*/
static int module_buttons_init(void)
{
int result;
int err=0;
printk("Tiny6410 buttons module init.\n");
if(buttons_major){
dev = MKDEV(buttons_major,0);
result = register_chrdev_region(dev,1,"buttons");
}else{
result = alloc_chrdev_region(&dev,0,1,"buttons");
buttons_major = MAJOR(dev);
}
if(result < 0){
printk(KERN_WARNING "buttons : can't get major %d\n",buttons_major);
}
printk("buttons major is %d",buttons_major);
buttons_cdev = cdev_alloc();
buttons_cdev ->ops = &buttons_fops;
cdev_init(buttons_cdev,&buttons_fops);
cdev_add(buttons_cdev,dev,1);
tiny6410_buttons_class = class_create(THIS_MODULE, "tiny6410buttons");
if (IS_ERR(tiny6410_buttons_class)) {
err = PTR_ERR(tiny6410_buttons_class);
printk("create class error.\n");
}
tiny6410_buttons_device = device_create(tiny6410_buttons_class, NULL, MKDEV(buttons_major, 0), NULL,
"buttons");
printk("buttons add ok.\n");
return 0;
}
static void module_buttons_exit(void)
{
device_destroy(tiny6410_buttons_class, MKDEV(buttons_major, 0));
class_destroy(tiny6410_buttons_class);
cdev_del(buttons_cdev);
unregister_chrdev_region(dev,1);
printk("Tiny6410 buttons module exit");
}
module_init(module_buttons_init);
module_exit(module_buttons_exit);
用户程序如下:
#include <unistd.h>
#include <sys/ioctl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <sys/select.h>
#include <sys/time.h>
#include <errno.h>
static int cnt=0;
int main(void)
{
int buttons_fd;
unsigned char buttons=0 ;
buttons_fd = open("/dev/buttons", 0);
if (buttons_fd < 0) {
perror("open device buttons");
return -1;
}
while(1){
read(buttons_fd, &buttons, sizeof (buttons));
printf("%dKEY%02x entered.\n",cnt++,buttons);
}
close(buttons_fd);
return 0;
}

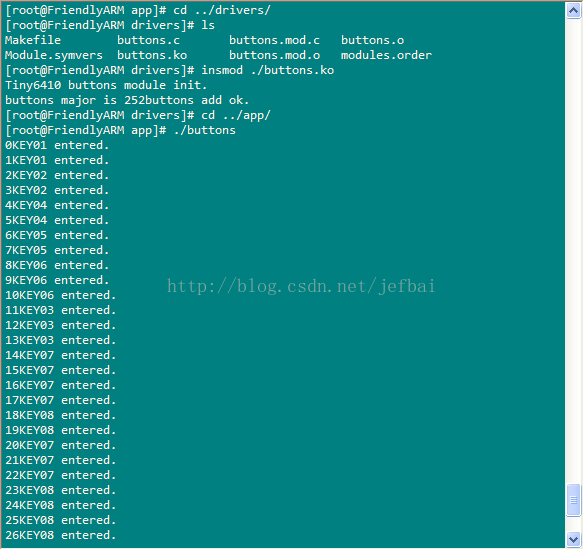

下载运行测试截图:
