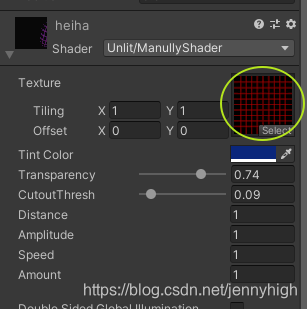

最终效果：

教程地址：https://learn.unity.com/tutorial/writing-your-first-shader-in-unity/?language=en&tab=overview#5c7f8528edbc2a002053b577

Shader源码：

Shader "Unlit/ManullyShader"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
       _TintColor("Tint Color", Color)=(1,1,1,1)
       _Transparency("Transparency",Range(0.0,1.0))=0.5
       _CutoutThresh("CutoutThresh",Range(0.0,1.0)) = 0.5
       _Distance("Distance",float)=1
       _Amplitude("Amplitude",float) = 1
       _Speed("Speed",float) = 1
       _Amount("Amount",float) = 1

//红色文字为自定义参数
}
SubShader
{
Tags { "Queue"="Transparent" "RenderType"="Transparent" } //更改Opaque为Transparent模式
LOD 100

ZWrite off
Blend SrcAlpha OneMinusSrcAlpha //此处有疑问可查Manual----https://docs.unity3d.com/Manual/SL-CullAndDepth.html

Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag

#include "UnityCG.cginc"

struct appdata
{
float4 vertex : POSITION; // X Y Z W Model local speace
float2 uv : TEXCOORD0;
};

struct v2f
{
float2 uv : TEXCOORD0;

float4 vertex : SV_POSITION; // ScreenSpace postion
};

sampler2D _MainTex;
float4 _MainTex_ST;
           float4 _TintColor;
           float _Transparency;
           float _CutoutThresh;
           float _Distance;
           float _Amplitude;
           float _Speed;
           float _Amount;

//红色文字为自定义参数

v2f vert (appdata v)
{
v2f o;
v.vertex.x += sin(_Time.y*_Speed + v.vertex.y*_Amplitude)*_Distance*_Amount; // move model vertex with these num.
o.vertex = UnityObjectToClipPos(v.vertex); // This function is mean to translate model position to scence position
o.uv = TRANSFORM_TEX(v.uv, _MainTex); // Use UV info to put texture on it

return o; // return the struct
}

fixed4 frag (v2f i) : SV_Target // SV_Target is render target
{
// sample the texture
fixed4 col = tex2D(_MainTex, i.uv)+ _TintColor; // X Y Z W or RGBA
               col.a = _Transparency;
               clip(col.r - _CutoutThresh); // keep red channel
               //if (col.r < _CutoutThresh) discard;
return col;
}
ENDCG
}
}
}
