3.IP规划

为了不断壮大集团业务经营范围，集团计划在上海成立办事处。通过调研，计

划在上海办事处设立与Internet连接的4个业务部门，每个业务部门的最大所需主

机数如下表所示，要求从10.1.10.100/19主机地址所在网络第一个网段开始进行

IP地址规划，IP地址按照下表依次往后顺延规划，网关地址取每个网段最后一个可

用地址，请完成下表IP地址规划。

营销 网络地址 10.1.10.0/25      网关地址 10.1.10.126

产品 网络地址 10.1.10.128/22  网关地址 10.1.13.254

法务 网络地址 10.1.14.0/25      网关地址 10.1.14.126

财务 网络地址  10.1.14.128/28 网关地址 10.1.14.142

二、交换配置

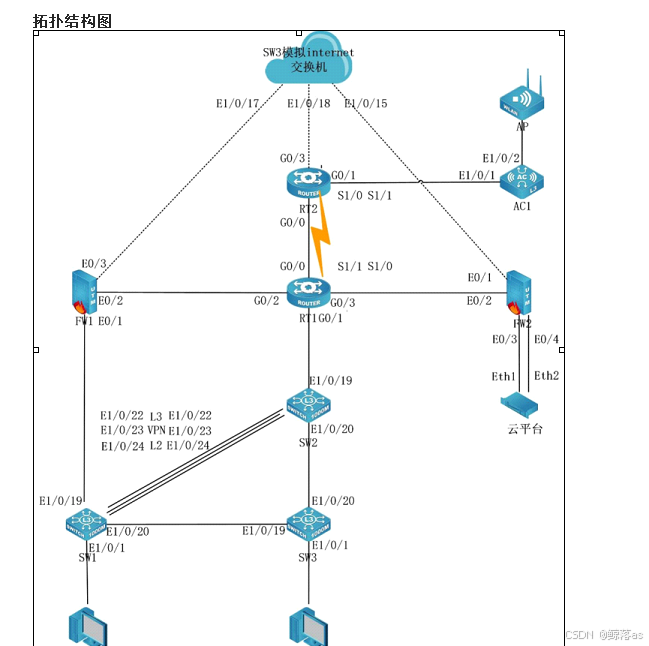

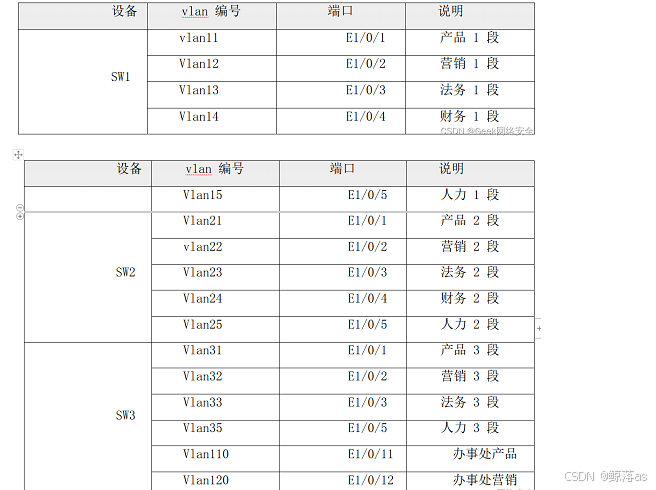

1.配置vlan，SW1、SW2、SW3、AC1的二层链路只允许相应vlan通过。

2-4.SW1和SW2之间利用三条双绞线实现互通，其中一条双绞线承载三层IP业务、一条双绞线承载VPN业务、一条双绞线承载二层业务。用相关技术分别实现财务1段、财务2段业务路由表与其它业务路由表隔离，财务业务VPN实例名称为Finance。承载二层业务的只有一条双绞线通道，配置相关技术，方便后续链路扩容与冗余备份，编号为1，用LACP协议，SW1为active，SW2为passive；采用源、目的IP进行实现流量负载分担。SW3针对每个业务VLAN的第一个接口配置Loopback命令，模拟接口UP，方便后续业务验证与测试。将SW3模拟为Internet交换机，实现与集团其它业务路由表隔离，Internet路由表VPN实例名称为Internet。将SW3模拟办事处交换机，实现与集团其它业务路由表隔离，办事处路由表VPN实例名称为Office。

SW1:
port-group 1
!
vlan 1;11-15;2019-2020;2022-2023
!
load-balance dst-src-ip
!
Interface Ethernet1/0/1
 switchport access vlan 11
!
Interface Ethernet1/0/2
 switchport access vlan 12
!
Interface Ethernet1/0/3
 switchport access vlan 13
!
Interface Ethernet1/0/4
 switchport access vlan 14
!
Interface Ethernet1/0/5
 switchport access vlan 15
!
Interface Ethernet1/0/6
!
Interface Ethernet1/0/7
!
Interface Ethernet1/0/8
!
Interface Ethernet1/0/9
!
Interface Ethernet1/0/10
!
Interface Ethernet1/0/11
!
Interface Ethernet1/0/12
!
Interface Ethernet1/0/13
!
Interface Ethernet1/0/14
!
Interface Ethernet1/0/15
!
Interface Ethernet1/0/16
!
Interface Ethernet1/0/17
!
Interface Ethernet1/0/18
!
Interface Ethernet1/0/19
 switchport access vlan 2019
!
Interface Ethernet1/0/20
 switchport access vlan 2020
!
Interface Ethernet1/0/21
!
Interface Ethernet1/0/22
 switchport access vlan 2022
!
Interface Ethernet1/0/23
 switchport access vlan 2023
!
Interface Ethernet1/0/24
 switchport mode trunk
 switchport trunk allowed vlan 11-15;3000
//这里vlan3000是因为后面端口镜像要用到
 port-group 1 mode active
!
Interface Ethernet1/0/25
!
Interface Ethernet1/0/26
!
Interface Ethernet1/0/27
!
Interface Ethernet1/0/28
!
Interface Port-Channel1
!
ip vrf Finance
!
interface Vlan11
 ipv6 address 2001:10:1:11::1/64
 ip address 10.1.11.1 255.255.255.0
!
interface Vlan12
 ipv6 address 2001:10:1:12::1/64
 ip address 10.1.12.1 255.255.255.0
!
interface Vlan13
 ipv6 address 2001:10:1:13::1/64
 ip address 10.1.13.1 255.255.255.0
!
interface Vlan14
 ip vrf forwarding Finance
 ipv6 address 2001:10:1:14::1/64
 ip address 10.1.14.1 255.255.255.0
!
interface Vlan15
 ipv6 address 2001:10:1:15::1/64
 ip address 10.1.15.1 255.255.255.0
!
interface Vlan2019
 ip address 10.1.255.14 255.255.255.252
!
interface Vlan2020
 ip address 10.1.255.5 255.255.255.252
!
interface Vlan2022
 ip address 10.1.255.1 255.255.255.252
!
interface Vlan2023
 ip vrf forwarding Finance
 ip address 10.1.255.1 255.255.255.252
!
interface Loopback1
 ipv6 address 2001:10:1:1::1/128
 ip address 10.1.1.1 255.255.255.255
!
interface Loopback2
 ipv6 address 2001:10:1:1::2/128
 ip address 10.1.1.2 255.255.255.255
!


SW2:
port-group 1
!
vlan 1;21-25;2019-2020;2022-2023
!
load-balance dst-src-ip
!
Interface Ethernet1/0/1
 switchport access vlan 21
!
Interface Ethernet1/0/2
 switchport access vlan 22
!
Interface Ethernet1/0/3
 switchport access vlan 23
!
Interface Ethernet1/0/4
 switchport access vlan 24
!
Interface Ethernet1/0/5
 switchport access vlan 25
!
Interface Ethernet1/0/6
!
Interface Ethernet1/0/7
!
Interface Ethernet1/0/8
!
Interface Ethernet1/0/9
!
Interface Ethernet1/0/10
!
Interface Ethernet1/0/11
!
Interface Ethernet1/0/12
!
Interface Ethernet1/0/13
!
Interface Ethernet1/0/14
!
Interface Ethernet1/0/15
!
Interface Ethernet1/0/16
!
Interface Ethernet1/0/17
!
Interface Ethernet1/0/18
!
Interface Ethernet1/0/19
 switchport access vlan 2019
!
Interface Ethernet1/0/20
 switchport access vlan 2020
!
Interface Ethernet1/0/21
!
Interface Ethernet1/0/22
 switchport access vlan 2022
!
Interface Ethernet1/0/23
 switchport access vlan 2023
!
Interface Ethernet1/0/24
 switchport mode trunk
 switchport trunk allowed vlan 21-25;3000
 port-group 1 mode passive
!
Interface Ethernet1/0/25
!
Interface Ethernet1/0/26
!
Interface Ethernet1/0/27
!
Interface Ethernet1/0/28
!
Interface Port-Channel1
!
ip vrf Finance
!
interface Vlan21
 ipv6 address 2001:10:1:21::1/64
 ip address 10.1.21.1 255.255.255.0
!
interface Vlan22
 ipv6 address 2001:10:1:22::1/64
 ip address 10.1.22.1 255.255.255.0
!
interface Vlan23
 ipv6 address 2001:10:1:23::1/64
 ip address 10.1.23.1 255.255.255.0
!
interface Vlan24
 ip vrf forwarding Finance
 ipv6 address 2001:10:1:24::1/64
 ip address 10.1.24.1 255.255.255.0
!
interface Vlan25
 ipv6 address 2001:10:1:25::1/64
 ip address 10.1.25.1 255.255.255.0
!
interface Vlan2019
 ip address 10.1.255.22 255.255.255.252
!
interface Vlan2020
 ip address 10.1.255.9 255.255.255.252
!
interface Vlan2022
 ip address 10.1.255.2 255.255.255.252
!
interface Vlan2023
 ip vrf forwarding Finance
 ip address 10.1.255.2 255.255.255.252
!
interface Loopback1
 ipv6 address 2001:10:1:2::1/128
 ip address 10.1.2.1 255.255.255.255
!
interface Loopback2
 ipv6 address 2001:10:1:2::2/128
 ip address 10.1.2.2 255.255.255.255
!
SW3:
vlan 1;31-33;35;110;120;1015;2017-2020
!
Interface Ethernet1/0/1
 loopback
 switchport access vlan 31
!
Interface Ethernet1/0/2
 loopback
 switchport access vlan 32
!
Interface Ethernet1/0/3
 loopback
 switchport access vlan 33
!
Interface Ethernet1/0/4
!
Interface Ethernet1/0/5
 loopback
 switchport access vlan 35
!
Interface Ethernet1/0/6
!
Interface Ethernet1/0/7
!
Interface Ethernet1/0/8
!
Interface Ethernet1/0/9
!
Interface Ethernet1/0/10
!
Interface Ethernet1/0/11
!
Interface Ethernet1/0/12
!
Interface Ethernet1/0/13
!
Interface Ethernet1/0/14
!
Interface Ethernet1/0/15
 switchport access vlan 1015
!
Interface Ethernet1/0/16
!
Interface Ethernet1/0/17
 switchport access vlan 2017
!
Interface Ethernet1/0/18
 switchport access vlan 2018
!
Interface Ethernet1/0/19
 switchport access vlan 2019
!
Interface Ethernet1/0/20
 switchport access vlan 2020
!
Interface Ethernet1/0/21
!
Interface Ethernet1/0/22
!
Interface Ethernet1/0/23
!
Interface Ethernet1/0/24
 switchport mode trunk
 switchport trunk allowed vlan 31-35;110;120
!
Interface Ethernet1/0/25
!
Interface Ethernet1/0/26
!
Interface Ethernet1/0/27
!
Interface Ethernet1/0/28
!
ip vrf Office
!
ip vrf Internet
!
interface Vlan31
 ipv6 address 2001:10:1:31::1/64
 ip address 10.1.31.1 255.255.255.0
!
interface Vlan32
 ipv6 address 2001:10:1:32::1/64
 ip address 10.1.32.1 255.255.255.0
!
interface Vlan33
 ipv6 address 2001:10:1:33::1/64
 ip address 10.1.33.1 255.255.255.0
!
interface Vlan35
 ipv6 address 2001:10:1:35::1/64
 ip address 10.1.35.1 255.255.255.0
!
interface Vlan110
 ip vrf forwarding Office
 ipv6 address 2001:10:1:110::1/64
 ip address 10.1.110.1 255.255.255.0
!
interface Vlan120
 ip vrf forwarding Office
 ipv6 address 2001:10:1:120::1/64
 ip address 10.1.120.1 255.255.255.0
!
interface Vlan1015
 ip vrf forwarding Office
 ip address 10.1.255.46 255.255.255.252
!
interface Vlan2017
 ip vrf forwarding Internet
 ip address 200.200.200.1 255.255.255.252
!
interface Vlan2018
 ip vrf forwarding Internet
 ip address 200.200.200.5 255.255.255.252
!
interface Vlan2019
 ip address 10.1.255.6 255.255.255.252
!
interface Vlan2020
 ip address 10.1.255.10 255.255.255.252
!
interface Loopback1
 ipv6 address 2001:10:1:3::1/128
 ip address 10.1.3.1 255.255.255.255
!
interface Loopback2
 ip vrf forwarding Office
 ipv6 address 2001:10:1:3::2/128
 ip address 10.1.3.2 255.255.255.255
!
interface Loopback3
 ip vrf forwarding Internet
 ipv6 address 2001:200:200:3::3/128
 ip address 200.200.3.3 255.255.255.255
!
!
no login
!
captive-portal
!
end

AC1:
vlan 1;130;140;150;2001
!
Interface Ethernet1/0/1
 switchport access vlan 2001
!
Interface Ethernet1/0/2
 switchport mode trunk
 switchport trunk allowed vlan 140;150
 switchport trunk native vlan 130
!
Interface Ethernet1/0/3
!
Interface Ethernet1/0/4
!
Interface Ethernet1/0/5
!
Interface Ethernet1/0/6
!
Interface Ethernet1/0/7
!
Interface Ethernet1/0/8
!
Interface Ethernet1/0/9
!
Interface Ethernet1/0/10
!
Interface Ethernet1/0/11
!
Interface Ethernet1/0/12
!
Interface Ethernet1/0/13
!
Interface Ethernet1/0/14
!
Interface Ethernet1/0/15
!
Interface Ethernet1/0/16
!
Interface Ethernet1/0/17
!
Interface Ethernet1/0/18
!
Interface Ethernet1/0/19
!
Interface Ethernet1/0/20
!
Interface Ethernet1/0/21
!
Interface Ethernet1/0/22
!
Interface Ethernet1/0/23
!
Interface Ethernet1/0/24
!
Interface Ethernet1/0/25
!
Interface Ethernet1/0/26
!
Interface Ethernet1/0/27
!
Interface Ethernet1/0/28
!
interface Vlan130
 ipv6 address 2001:10:1:130::1/64
 ip address 10.1.130.1 255.255.255.0
!
interface Vlan140
 ipv6 address 2001:10:1:140::1/64
 ip address 10.1.140.1 255.255.255.0
!
interface Vlan150
 ipv6 address 2001:10:1:150::1/64
 ip address 10.1.150.1 255.255.255.0
!
interface Vlan2001
 ip address 10.1.255.42 255.255.255.252
!
interface Loopback1
 ipv6 address 2001:10:1:4::1/128
 ip address 10.1.4.1 255.255.255.255
!
interface Loopback2
 ipv6 address 2001:10:1:4::2/128
 ip address 10.1.4.2 255.255.255.255
!
interface Loopback3
 ipv6 address 2001:10:1:4::3/128
 ip address 10.1.4.3 255.255.255.255
!

5.勒索蠕虫病毒席卷全球，爆发了堪称史上最大规模的网络攻击，通过对总部核心交换机SW1和SW2所有业务VLAN下配置访问控制策略实现双向安全防护。

SW1:
注：135-138；139；445等都是常用勒索病毒端口号
ip access-list extended fh
  deny tcp any-source any-destination d-port 135
  deny tcp any-source any-destination d-port 137
  deny tcp any-source any-destination d-port 138
  deny tcp any-source any-destination d-port 139
  deny tcp any-source any-destination d-port 445
  exit
!
ipv6 access-list extended fh6
  deny tcp any-source any-destination d-port 135
  deny tcp any-source any-destination d-port 137
  deny tcp any-source any-destination d-port 138
  deny tcp any-source any-destination d-port 139
  deny tcp any-source any-destination d-port 445
  exit
!
vacl ip access-group fh in vlan 11-15
vacl ip access-group fh out vlan 11-15
vacl ipv6 access-group fh6 in vlan 11-15
vacl ipv6 access-group fh6 out vlan 11-15
SW2:
ip access-list extended fh
  deny tcp any-source any-destination d-port 135
  deny tcp any-source any-destination d-port 137
  deny tcp any-source any-destination d-port 138
  deny tcp any-source any-destination d-port 139
  deny tcp any-source any-destination d-port 445
  exit
!
ipv6 access-list extended fh6
  deny tcp any-source any-destination d-port 135
  deny tcp any-source any-destination d-port 137
  deny tcp any-source any-destination d-port 138
  deny tcp any-source any-destination d-port 139
  deny tcp any-source any-destination d-port 445
  exit
!
vacl ip access-group fh in vlan 21-25
vacl ip access-group fh out vlan 21-25
vacl ipv6 access-group fh6 in vlan 21-25
vacl ipv6 access-group fh6 out vlan 21-25

6.总部预采购多个厂商网流分析平台对集团整体流量进行监控、审计，连接在
SW1的E1/0/10-E1/0/13接 口 测 试 ，VLAN3000作 为 远 程 端 口 镜 像VLAN，
Ethernet10/14作为反射端口，将核心交换机与灾备交换机、路由器互连流量提供给多个厂商网流分析平台。

SW1:

vlan 3000
 remote-span
!
Interface Ethernet1/0/10-13
 switchport access vlan 3000
!
Interface Ethernet1/0/24
 switchport mode trunk
 switchport trunk allowed vlan 11-15;3000
 port-group 1 mode active
!
monitor session 1 remote vlan 3000

Sw2:

vlan 3000
 remote-span
!
Interface Ethernet1/0/14
 switchport access vlan 3000
!
Interface Ethernet1/0/24
 switchport mode trunk
 switchport trunk allowed vlan 21-25;3000
 port-group 1 mode passive
!
monitor session 1 source interface Ethernet1/0/19-20 tx
monitor session 1 source interface Ethernet1/0/19-20 rx
monitor session 1 reflector-port interface Ethernet1/0/14
monitor session 1 remote vlan 3000
!

7.营销1段的组长因业务需求，其笔记本电脑的mac地址为01-01-01-01-01-01经常在办公室移动有线办公，为解决营销组的移动有线办公问题，现要求经过设置，当该设备接入到SW2的E1/0/17-18时，会自动收到来自营销1段的数据包。

SW2:

vlan 11
!
Interface Ethernet1/0/17
 switchport access vlan 11
!
Interface Ethernet1/0/18
 switchport access vlan 11
!
mac-address-table static-multicast address 01-01-01-01-01-01 vlan 11 interface Ethernet1/0/17

mac-address-table static-multicast address 01-01-01-01-01-01 vlan 11 interface Ethernet1/0/18

8.SW1和SW2所有端口启用链路层发现协议，更新报文发送时间间隔为20s，老化时间乘法器值为5，Trap报文发送间隔为10s，配置三条双绞线端口使能Trap功能。

SW1-SW2：
lldp enable
lldp msgTxHold 5
lldp tx-interval 20
lldp notification interval 10

Interface Ethernet1/0/1-28
lldp enable
!
Interface Ethernet1/0/22-24
lldp trap enable
!

9.对SW1上VLAN40开启以下安全机制：业务内部终端相互二层隔离，启用环路检测，环路检测的时间间隔为10s，发现环路以后关闭该端口，恢复时间为30分钟；配置防止ARP欺骗攻击。

SW1:
这里应该是vlan14,题目弄错了应该
 ip dhcp snooping enable
 ip dhcp snooping binding enable
 ip dhcp snooping binding arp

loopback-detection interval-time 10 10
!
loopback-detection control-recovery timeout 1800
!
isolate-port apply l

isolate-port  group  1 switchport  interface   ethernet 1/0/4

vlan 14
arp-guard ip 10.1.14.1
isolate-port group 1 switchport  interface   ethernet 1/0/4
！

Interface Ethernet1/0/4
 switchport access vlan 14
 loopback-detection specified-vlan 14
 arp-guard ip 10.1.14.1
!

10.集团SW1使用相关技术配置产品业务VLAN每个物理端口最多允许每秒钟通过640kbit的广播数据包；营销业务VLAN每个物理端口最多允许每秒钟通过1280kbit的单播数据包。

SW1:
Interface Ethernet1/0/1
 storm-control broadcast 640
 switchport access vlan 11
!
Interface Ethernet1/0/2
 storm-control unicast 1280
 switchport access vlan 12
!

 三、路由调试

1.在路由器R1上通过SSH服务管理设备，，仅允许账号为skills01密码为skills01；密码全部设置为明文，允许用户最多6次验证，最多同时运行2台设备登录，验证超时为120秒，RT2配置使用telnet方式登录终端界面前显示如下授权信息："WARNING!!! Authorised access only, all of your donewill be recorded! Disconnected IMMEDIATELY if you arenot an authorised user! Otherwise, we retain the rightto pursue the legal responsibility"。

SW1:
username skills01 password 0 skills
ip sshd enable
ip sshd auth-method password
ip sshd timeout 540
ip sshd max-user 2
ip sshd enable



SW2:

banner message
text WARNING!!! Authorised access only, all of your donewill be recorded! Disconnected IMMEDIATELY if you arenot an authorised user! Otherwise, we retain the rightto pursue the legal responsibility
!

2.在SW1配置法务1段报文带宽限制为10M比特/秒，突发值设为4M字节，超过带宽的该网段内的报文一律丢弃。

SW1:

ip access-list standard cl
  permit any-source
  exit
!
class-map cl
 match access-group cl
!
policy-map cl
 class cl
 policy 10000 4000 exceed-action drop
 exit
!
Interface Ethernet1/0/3
 service-policy input cl
 service-policy output cl
 switchport access vlan 13
!


3.配置接口ipv4地址和ipv6地址，互联接口ipv6地址用本地链路地址。

根据ip地址表配置，很基础这里不过多阐述了

4.SW2配置DHCPv4和DHCPv6，分别为总公司产品1段、总公司产品2段、分公
司Vlan130、分公司Vlan140和分公司Vlan150分配地址。IPv4地址池名称分别为Poolv4-Vlan11、Poolv4-Vlan21、Poolv4-Vlan130、Poolv4-Vlan140、Poolv4-Vlan150，排除网关，DNS为10.1.210.101和10.1.220.101。IPv6地址池名称分别为Poolv6-Vlan11、Poolv6-Vlan21、Poolv6-Vlan130、Poolv6-Vlan140、Poolv6-Vlan150，IPv6地址池用网络前缀表示,排除网关，DNS为2400:3200::1。PC1保 留 地 址10.1.21.9和2001:10:1:21::9，PC2保 留 地 址10.1.31.9和2001:10:1:31::9，AP1保留地址10.1.130.9和2001:10:1:130::9。开启路由公告功能，路由器公告的生存期为2小时，确保IPv6终端可以获得IPv6无状态地址;SW1、AC1中继地址为SW2Loopback1地址，SW1启用DHCPv4和DHCPv6 snooping，如果E1/0/1连接dhcpv4服务器，则关闭该端口，恢复时间为10分钟。

SW2:

service dhcp
!
ip dhcp excluded-address 10.1.11.1
ip dhcp excluded-address 10.1.21.1
ip dhcp excluded-address 10.1.130.1
ip dhcp excluded-address 10.1.140.1
ip dhcp excluded-address 10.1.150.1
!
ip dhcp pool poolv4-vlan11
 network-address 10.1.11.0 255.255.255.0
 default-router 10.1.11.1
 dns-server 10.1.210.101 10.1.220.101
!
ip dhcp pool poolv4-vlan21
 network-address 10.1.21.0 255.255.255.0
 default-router 10.1.21.1
 dns-server 10.1.210.101 10.1.220.101
!
ip dhcp pool poolv4-vlan130
 network-address 10.1.130.0 255.255.255.0
 default-router 10.1.130.1
 dns-server 10.1.210.101 10.1.220.101
!
ip dhcp pool poolv4-vlan140
 network-address 10.1.140.0 255.255.255.0
 default-router 10.1.140.1
 dns-server 10.1.210.101 10.1.220.101
!
ip dhcp pool poolv4-vlan150
 network-address 10.1.150.0 255.255.255.0
 default-router 10.1.150.1
 dns-server 10.1.210.101 10.1.220.101
!
ip dhcp pool AP1
 host 10.1.130.9 255.255.255.0
 hardware-address 00-03-0F-EA-5B-C0
!
ip dhcp pool PC1
 host 10.1.11.9 255.255.255.0
 hardware-address 64-5D-86-C6-6D-D5
!
ip dhcp pool PC2
 host 10.1.21.9 255.255.255.0
 hardware-address 8C-EC-4B-9B-16-FD
!
!
!
!
!
service dhcpv6
!
ipv6 dhcp pool poolv6-vlan150
 network-address 2001:10:1:150::1 64
 excluded-address 2001:10:1:150::1
 dns-server 2400:3200::1
!
ipv6 dhcp pool poolv6-vlan140
 network-address 2001:10:1:140::1 64
 excluded-address 2001:10:1:140::1
 dns-server 2400:3200::1
!
ipv6 dhcp pool poolv6-vlan130
 network-address 2001:10:1:130::1 64
 static-binding 2001:10:1:130::9 00-03-0f-ea-5b-c0
 excluded-address 2001:10:1:130::1
 dns-server 2400:3200::1
!
ipv6 dhcp pool poolv6-vlan21
 network-address 2001:10:1:21::1 64
 static-binding 2001:10:1:21::9 8c-ec-4b-9b-16-fd
 excluded-address 2001:10:1:21::1
 dns-server 2400:3200::1
!
ipv6 dhcp pool poolv6-vlan11
 network-address 2001:10:1:11::1 64
 static-binding 2001:10:1:11::9 64-5d-86-c6-6d-d5
 excluded-address 2001:10:1:11::1
 dns-server 2400:3200::1
!

SW1:
service dhcp
service dhcpv6
ip forward-protocol udp bootps
ip dhcp snooping enable
ip dhcp snooping binding enable
savi enable
savi ipv6 dhcp-only enable

interface Vlan11
 no ipv6 nd suppress-ra
 ipv6 nd managed-config-flag
 ipv6 nd other-config-flag
 ip helper-address 10.1.2.1
 ipv6 dhcp relay destination 2001:10:1:2::1
!

AC1:
service dhcp
service dhcpv6
ip forward-protocol  udp  bootps
interface Vlan130
 no ipv6 nd suppress-ra
 ipv6 nd managed-config-flag
 ipv6 nd other-config-flag
 ip helper-address 10.1.2.1
 ipv6 dhcp relay destination 2001:10:1:2::1
!
interface Vlan140
 no ipv6 nd suppress-ra
 ipv6 nd managed-config-flag
 ipv6 nd other-config-flag
 ip helper-address 10.1.2.1
 ipv6 dhcp relay destination 2001:10:1:2::1
!
interface Vlan150
 no ipv6 nd suppress-ra
 ipv6 nd managed-config-flag
 ipv6 nd other-config-flag
 ip helper-address 10.1.2.1
 ipv6 dhcp relay destination 2001:10:1:2::1
!

5.SW1、SW2、SW3、RT1以太链路、RT2以太链路、FW1、FW2、AC1之间运行OSPFv2和OSPFv3协议（路由模式发布网络用接口地址，BGP协议除外）。

（1）SW1、SW2、SW3、FW1之间OSPFv2进程1，区域0，RT1和RT2之间OSPFv2进程1，区域1，SW1、SW2、SW3、RT1、RT2、FW 1之间OSP Fv3协议，进程1，区域0； 分别发布loopback1地址路由和产品路由，FW1通告type1默认路由。
SW1:
router ospf 1
 ospf router-id 10.1.1.1
 network 10.1.1.1/32 area 0
 network 10.1.11.0/24 area 0
 network 10.1.255.0/30 area 0
 network 10.1.255.4/30 area 0
 network 10.1.255.12/30 area 0
!

router ipv6 ospf 1
 router-id 10.1.1.1
!

nterface Loopback1
 ipv6 router ospf area 0 tag 1
!
interface Vlan11
 ipv6 router ospf area 0 tag 1
!
interface Vlan2019
 ipv6 router ospf area 0 tag 1
 ip address 10.1.255.14 255.255.255.252
!
interface Vlan2020
 ipv6 router ospf area 0 tag 1
 ip address 10.1.255.5 255.255.255.252
!
interface Vlan2022
 ipv6 router ospf area 0 tag 1
 ip address 10.1.255.1 255.255.255.252
!
SW2:
router ospf 1
 ospf router-id 10.1.2.1
 network 10.1.2.1/32 area 0
 network 10.1.21.1/24 area 0
 network 10.1.255.22/30 area 0
 network 10.1.255.9/30 area 0
 network 10.1.255.2/30 area 0
!
router ipv6 ospf 1
 router-id 10.1.2.1
!

interface Loopback1
 ipv6 router ospf area 0 tag 1
!
interface Vlan21
 ipv6 router ospf area 0 tag 1
!
interface Vlan2019
 ipv6 router ospf area 0 tag 1
!
interface Vlan2020
 ipv6 router ospf area 0 tag 1
!
interface Vlan2022
 ipv6 router ospf area 0 tag 1
!
SW3:
router ospf 1
 ospf router-id 10.1.3.1
 network 10.1.3.1/32 area 0
 network 10.1.31.0/24 area 0
 network 10.1.255.4/30 area 0
 network 10.1.255.8/30 area 0
!
router ipv6 ospf 1
 router-id 10.1.3.1
!
interface Loopback1
 ipv6 router ospf area 0 tag 1
!
interface Vlan31
 ipv6 router ospf area 0 tag 1
!
interface Vlan2019
 ipv6 router ospf area 0 tag 1
!
interface Vlan2020
 ipv6 router ospf area 0 tag 1
!
RT1:
router ospf 1
 router-id 10.1.5.1
 network 10.1.5.1 255.255.255.255 area 1
 network 10.1.255.28 255.255.255.252 area 1
 network 10.1.255.20 255.255.255.252 area 0
 network 10.1.255.16 255.255.255.252 area 0
 area 1 virtual-link 10.1.6.1
//这里做虚链接是因为让后面ac获取到ospfv4的路由
!
router ospfv3 1
 router-id 10.1.5.1

!
interface GigaEthernet0/0
 ip address 10.1.255.29 255.255.255.252
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface GigaEthernet0/1
 ip address 10.1.255.21 255.255.255.252
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface GigaEthernet0/2
 ip address 10.1.255.18 255.255.255.252
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface Loopback1
 ip address 10.1.5.1 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:5::1/128
 ipv6 ospf 1 area 0
!
RT2:
router ospf 1
 router-id 10.1.6.1
 network 10.1.6.1 255.255.255.255 area 1
 network 10.1.255.28 255.255.255.252 area 1
 area 1 virtual-link 10.1.5.1

!
router ospfv3 1
 router-id 10.1.6.1

!
interface GigaEthernet0/0
 ip address 10.1.255.30 255.255.255.252
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface Loopback1
 ip address 10.1.6.1 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:6::1/128
 ipv6 ospf 1 area 0
!
FW1：
  router ospf 1
    router-id 10.1.7.1
    default-information originate type 1
    network 10.1.7.1/32 area 0
    network 10.1.255.12/30 area 0
    network 10.1.255.16/30 area 0
  exit
  ipv6 router ospf 1
    router-id 10.1.7.1
    default-information originate type 1
  exit
interface loopback1
  zone  "trust"
  ip address 10.1.7.1 255.255.255.255
  ipv6 enable
  ipv6 address 2001:10:1:7::1/128
  manage ping
  manage ssh
  ipv6 ospf 1 area 0
nterface ethernet0/1
  zone  "trust"
  ip address 10.1.255.13 255.255.255.252
  ipv6 enable
  manage ping
  manage ssh
  ipv6 ospf 1 area 0
exit
interface ethernet0/2
  zone  "trust"
  ip address 10.1.255.17 255.255.255.252
  ipv6 enable
  manage ping
  manage ssh
  ipv6 ospf 1 area 0
（2-3）RT2与AC1之间运行OSPFv2协议，进程1，区域2；AC1发布loopback1地址路由、产品和营销路由。RT2与AC1之间运行OSPFv3协议，进程1，stub no-summary区域1；AC1发布loopback1地址路由、产品和营销。
RT2:
router ospf 1
 router-id 10.1.6.1
 network 10.1.6.1 255.255.255.255 area 1
 network 10.1.255.28 255.255.255.252 area 1
 network 10.1.255.40 255.255.255.252 area 2
 area 1 virtual-link 10.1.5.1
 default-information originate always
//这里做默认路由是为后面ac访问外网做准备

!
router ospfv3 1
 router-id 10.1.6.1
 area 1 stub no-summary

!
interface GigaEthernet0/1
 ip address 10.1.255.41 255.255.255.252
 ipv6 enable
 ipv6 ospf 1 area 1
!

AC1：
router ospf 1
 ospf router-id 10.1.4.1
 network 10.1.4.1/32 area 2
 network 10.1.130.0/24 area 2
 network 10.1.140.0/24 area 2
 network 10.1.150.0/24 area 2
 network 10.1.255.40/30 area 2
!
router ipv6 ospf 1
 router-id 10.1.4.1
 area 1 stub no-summary
!

interface Loopback1
 ipv6 router ospf area 1 tag 1
!
interface Vlan130
 ipv6 router ospf area 1 tag 1
!
interface Vlan140
 ipv6 router ospf area 1 tag 1
!
interface Vlan150
 ipv6 router ospf area 1 tag 1
!
interface Vlan2001
 ipv6 router ospf area 1 tag 1
!

（4-5）SW3模拟办事处产品和营销接口配置为loopback，模拟接口up。SW3模拟办事处与FW2之间运行OSPFv2协议，进程2，区域2，SW3模拟办事处发布loopback2、产品和营销。SW3模拟办事处配置ipv6默认路由；FW2分别配置到SW3模拟办事处loopback2、产品和营销的ipv6明细静态路由，FW2重发布静态路由到OSPFv3协议。RT1、FW2之间OSPFv2协议，进程2，区域2；RT1发布loopback4路由，向该区域通告type1默认路由；FW2发布loopback1路由，FW2禁止学习到集团和分公司的所有路由。RT1用prefix-list匹配FW2 loopback1路由、SW3模拟办事loopback2和产品路由、RT1与FW2直连ipv4路由，将这些路由重发布到区域0。
SW3:

Interface Ethernet1/0/11
 loopback
 switchport access vlan 110
!
Interface Ethernet1/0/12
 loopback
 switchport access vlan 120
!
router ospf 2 vrf Office
 ospf router-id 10.1.3.2
 network 10.1.3.2/32 area 2
 network 10.1.110.0/24 area 2
 network 10.1.120.0/24 area 2
 network 10.1.255.44/30 area 2
!
ipv6 route vrf Office ::/0 fe80::203:fff:fe2d:6e1 Vlan1015
FW2:
access-list route   1 deny   any
  router ospf 2
    router-id 10.1.8.1
    network 10.1.8.1/32 area 2
    network 10.1.255.44/30 area 2
    network 10.1.255.24/30 area 2
    redistribute static
    distribute-list 1 in ethernet0/1
  exit
ip vrouter "trust-vr"
  ipv6 route 2001:10:1:3::2/128 "ethernet0/1" FE80::203:FFF:FE3F:C694
  ipv6 route 2001:10:1:110::/64 "ethernet0/1" FE80::203:FFF:FE3F:C694
  ipv6 route 2001:10:1:120::/64 "ethernet0/1" FE80::203:FFF:FE3F:C694

  ipv6 router ospf 2
    redistribute static
  exit


RT1:
route-map pp 10 permit
 match ip address prefix-list pp
!
route-map ppc 10 permit
 match ip address prefix-list ppc
!
ip prefix-list pp seq 5 permit 10.1.8.1/32
ip prefix-list pp seq 10 permit 10.1.3.2/32
ip prefix-list pp seq 15 permit 10.1.110.0/24
ip prefix-list pp seq 20 permit 10.1.120.0/24
ip prefix-list ppc seq 5 permit 10.1.255.24/30
!
router ospf 1
 router-id 10.1.5.1
 network 10.1.5.1 255.255.255.255 area 1
 network 10.1.255.28 255.255.255.252 area 1
 network 10.1.255.20 255.255.255.252 area 0
 network 10.1.255.16 255.255.255.252 area 0
 area 1 virtual-link 10.1.6.1
 redistribute ospf 2 route-map pp
 redistribute connect route-map ppc

router ospf 2
 router-id 10.1.5.4
 network 10.1.5.4 255.255.255.255 area 2
 network 10.1.255.24 255.255.255.252 area 2
 default-information originate always metric-type 1

!

（6）修改ospf cost为100，实现SW1分别与RT2、FW2之间ipv4互访流量优先通过SW1_SW2_RT1链路转发，SW2访问Internet ipv4流量优先通过SW2_SW1_FW1链路转发。
RT1:
interface GigaEthernet0/2
 ip address 10.1.255.18 255.255.255.252
 ipv6 enable
 ip ospf cost 100
 ipv6 ospf 1 area 0
!
FW1:
interface ethernet0/2
  zone  "trust"
  ip address 10.1.255.17 255.255.255.252
  ipv6 enable
  manage ping
  manage ssh
  ip ospf cost 100
  ipv6 ospf cost 100
  ipv6 ospf 1 area 0
exit
6.RT1串行链路、RT2串行链路、FW1、AC1之间分别运行RIP和RIPng、OSPFv2和OSPFv3协议，FW1、RT1、RT2的RIP和RIPng、OSPFv2和OSPFv3发布loopback2地址路由，保证loopback2数据优先走RIP和RIPng。RT1配置offset值为3的路由策略，实现RT1-S1/0_RT2-S1/1为主链路，RT1-S1/1_RT2-S1/0为备份链路，ipv4的ACL名称为AclRIP，ipv6的ACL名称为AclRIPng。RT1的S1/0与RT2的S1/1之间采用chap双向认证，用户名为对端设备名称，密码为skills01。
FW1:
  router rip
    network 10.1.7.2/32
    network 10.1.255.16/30
  exit
  ipv6 router ospf 1
    router-id 10.1.7.1
    default-information originate type 1
  exit
RT1:
aaa authentication ppp default local
!
username RT2 password 0 skills01
interface Serial1/0
 ip address 10.1.255.33 255.255.255.252
 encapsulation ppp
 ppp authentication chap
 ppp chap hostname RT1
 ppp chap password 0 skills01
 physical-layer speed 2048000
 ipv6 enable
 ip rip 1 enable
 ipv6 rip 1 enable
!
interface Serial1/1
 ip address 10.1.255.37 255.255.255.252
 encapsulation ppp
 physical-layer speed 2048000
 ipv6 enable
 ip rip 1 enable
 ipv6 rip 1 enable
!
ip access-list standard AclRIP
 permit any  sequence 10
!
ipv6 access-list AclRIPng
 permit ipv6 any any sequence 10
!
router ripng 1
 offset Serial1/1 in AclRIPng 3
 offset Serial1/1 out AclRIPng 3
!
router rip 1
 version 2
 offset Serial1/1 in AclRIP 3
 offset Serial1/1 out AclRIP 3

!
interface Loopback2
 ip address 10.1.5.2 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:5::2/128
 ip rip 1 enable
 ipv6 rip 1 enable
!
interface GigaEthernet0/2
 ip address 10.1.255.18 255.255.255.252
 ipv6 enable
 ip rip 1 enable
 ip ospf cost 100
 ipv6 rip 1 enable
 ipv6 ospf 1 area 0
 ipv6 ospf cost 100
!
RT2:
router rip 1
version 2
!
router ripng 1
!
aaa authentication ppp default local
!
username RT1 password 0 skills01
interface Serial1/0
 ip address 10.1.255.38 255.255.255.252
 encapsulation ppp
 physical-layer speed 2048000
 ipv6 enable
 ip rip 1 enable
 ipv6 rip 1 enable
!
interface Serial1/1
 ip address 10.1.255.34 255.255.255.252
 encapsulation ppp
 ppp authentication chap
 ppp chap hostname RT2
 ppp chap password 0 skills01
 physical-layer speed 2048000
 ipv6 enable
 ip rip 1 enable
 ipv6 rip 1 enable
!
interface Loopback2
 ip address 10.1.6.2 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:6::2/128
 ip rip 1 enable
 ipv6 rip 1 enable
!

interface GigaEthernet0/1
 ip address 10.1.255.41 255.255.255.252
 ipv6 enable
 ip rip 1 enable
 ipv6 ospf 1 area 1
 ipv6 rip 1 enable
!
AC1:
router rip
 network 10.1.4.2/32
 network 10.1.255.40/30
!
router ipv6 rip
!
interface Loopback2
 ipv6 address 2001:10:1:4::2/128
 ipv6 router rip
 ip address 10.1.4.2 255.255.255.255
!
interface Vlan2001
 ipv6 router rip
 ipv6 router ospf area 1 tag 1
 ip address 10.1.255.42 255.255.255.252
!

7.RT1以太链路、RT2以太链路之间运行ISIS协议，进程1，分别实现loopback3之间ipv4互通和ipv6互通。RT1、RT2的NET分别为10.0000.0000.0001.00、10.0000.0000.0002.00，路由器类型是Level-2，接口网络类型为点到点。配置域md5认证和接口md5认证，密码均为skills01。

RT1:
router isis 1
 is-type level-2
 authentication mode md5 level-2
 authentication key 0 skills level-2
 net 10.0000.0000.0001.00
!
interface Loopback3
 ip address 10.1.5.3 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:5::3/128
 ip router isis 1
 ipv6 router isis 1
 isis network point-to-point
 isis circuit-type level-2
 isis authentication mode md5 level-2
 isis authentication key 0 skills01
!
interface GigaEthernet0/0
 ip address 10.1.255.29 255.255.255.252
 ipv6 enable
 ip router isis 1
 ipv6 router isis 1
 isis network point-to-point
 isis circuit-type level-2
 isis authentication mode md5 level-2
 isis authentication key 0 skills01
 ipv6 ospf 1 area 0
!
RT2:
router isis 1
 is-type level-2
 authentication mode md5 level-2
 authentication key 0 skills level-2
 net 10.0000.0000.0002.00
!
interface Loopback3
 ip address 10.1.6.3 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:6::3/128
 ip router isis 1
 ipv6 router isis 1
 isis network point-to-point
 isis circuit-type level-2
 isis authentication mode md5 level-2
 isis authentication key 0 skills01
!
interface GigaEthernet0/0
 ip address 10.1.255.30 255.255.255.252
 ipv6 enable
 ip router isis 1
 ipv6 router isis 1
 isis network point-to-point
 isis circuit-type level-2
 isis authentication mode md5 level-2
 isis authentication key 0 skills01
 ipv6 ospf 1 area 0
!

8.RT2配置ipv4 nat，实现AC1 ipv4产品用RT2外网接口ipv4地址访问Internet。RT2配置nat64，实现AC1 ipv6产品用RT2外网接口ipv4地址访问Internet，ipv4地址转ipv6地址前缀为64:ff9b::/96。

RT2:
ip route default 200.200.200.5
ip access-list standard nat4
 permit 10.1.140.1 255.255.255.0 sequence 10
!
ip nat inside source list nat4 interface GigaEthernet0/3
!
ipv6 access-list nat6
 permit ipv6 2001:10:1:140::/64 64:FF9B::/96 sequence 10
!
ipv6 nat v6v4 source list nat6 interface GigaEthernet0/3
ipv6 nat prefix 64:FF9B::/96 v4-mapped nat6

interface GigaEthernet0/3
 ip address 200.200.200.6 255.255.255.252
 ipv6 enable
 ip nat outside
 ipv6 nat
!
interface GigaEthernet0/1
 ip address 10.1.255.41 255.255.255.252
 ipv6 enable
 ip rip 1 enable
 ip nat inside
 ipv6 nat
 ipv6 ospf 1 area 1
 ipv6 rip 1 enable
!

9.SW1、SW2、SW3、RT1、RT2之间运行BGP协议，SW1、SW                                    2、RT1 AS号65001、RT2 AS号65002、SW3 AS号65003。

（1-2）SW1、SW2、SW3、RT1、RT2之间通过loopback1建立ipv4和ipv6 BGP邻居。SW1和SW2之间财务通过loopback2建立ipv4 BGP邻居，SW1和SW2的loopback2互通采用静态路由。SW1、SW2、SW3、RT2分别只发布营销、法务、财务、人力等ipv4和ipv6路由；RT1发布办事处营销ipv4和ipv6路由到BGP。
SW1:
router ipv6 ospf 2 vrf Finance
 router-id 10.1.1.2
!
interface Loopback2
 ip vrf forwarding Finance
 ipv6 address 2001:10:1:1::2/128
 ipv6 router ospf area 2 tag 2
 ip address 10.1.1.2 255.255.255.255
!
interface Vlan2023
 ip vrf forwarding Finance
 ipv6 router ospf area 2 tag 2
 ip address 10.1.255.1 255.255.255.252
!
//此处做ospf路由是为了使财务ipv6路由互通
ip route vrf Finance 10.1.2.2/32 10.1.255.2
router bgp 65001
 network 10.1.12.0/24
 network 10.1.13.0/24
 network 10.1.15.0/24
 neighbor 10.1.2.1 remote-as 65001
 neighbor 10.1.2.1 update-source Loopback1
 neighbor 10.1.2.1 next-hop-self
 neighbor 10.1.3.1 remote-as 65003
 neighbor 10.1.3.1 ebgp-multihop 255
 neighbor 10.1.3.1 update-source Loopback1
 neighbor 2001:10:1:2::1 remote-as 65001
 neighbor 2001:10:1:2::1 update-source Loopback1
 no neighbor 2001:10:1:2::1 activate
 neighbor 2001:10:1:3::1 remote-as 65003
 neighbor 2001:10:1:3::1 ebgp-multihop 255
 neighbor 2001:10:1:3::1 update-source Loopback1
 no neighbor 2001:10:1:3::1 activate
 address-family ipv6 unicast
 network 2001:10:1:12::/64
 network 2001:10:1:13::/64
 network 2001:10:1:15::/64
 neighbor 2001:10:1:2::1 activate
 neighbor 2001:10:1:3::1 activate
 exit-address-family
 address-family ipv4 vrf Finance
 network 10.1.14.0/24
 neighbor 10.1.2.2 remote-as 65001
 neighbor 10.1.2.2 update-source Loopback2
 exit-address-family
 address-family ipv6 vrf Finance
 network 2001:10:1:14::/64
 neighbor 2001:10:1:2::2 remote-as 65001
 neighbor 2001:10:1:2::2 update-source Loopback2
 exit-address-family
!
SW2:

router ipv6 ospf 2 vrf Finance
 router-id 10.1.2.2
!
interface Loopback2
 ip vrf forwarding Finance
 ipv6 address 2001:10:1:2::2/128
 ipv6 router ospf area 2 tag 2
 ip address 10.1.2.2 255.255.255.255
!
interface Vlan2023
 ip vrf forwarding Finance
 ipv6 router ospf area 2 tag 2
 ip address 10.1.255.2 255.255.255.252
!
//此处做ospf路由是为了使财务ipv6路由互通
ip route vrf Finance 10.1.1.2/32 10.1.255.1
router bgp 65001
 network 10.1.22.0/24
 network 10.1.23.0/24
 network 10.1.25.0/24
 neighbor 10.1.1.1 remote-as 65001
 neighbor 10.1.1.1 update-source Loopback1
 neighbor 10.1.1.1 next-hop-self
 neighbor 10.1.3.1 remote-as 65003
 neighbor 10.1.3.1 ebgp-multihop 255
 neighbor 10.1.3.1 update-source Loopback1
 neighbor 2001:10:1:1::1 remote-as 65001
 neighbor 2001:10:1:1::1 update-source Loopback1
 no neighbor 2001:10:1:1::1 activate
 neighbor 2001:10:1:3::1 remote-as 65003
 neighbor 2001:10:1:3::1 ebgp-multihop 255
 neighbor 2001:10:1:3::1 update-source Loopback1
 no neighbor 2001:10:1:3::1 activate
 neighbor 10.1.5.1 remote-as 65001
 neighbor 10.1.5.1 update-source Loopback1
 neighbor 10.1.5.1 next-hop-self
 neighbor 2001:10:1:5::1 remote-as 65001
 neighbor 2001:10:1:5::1 update-source Loopback1
 no neighbor 2001:10:1:5::1 activate
 address-family ipv6 unicast
 network 2001:10:1:22::/64
 network 2001:10:1:23::/64
 network 2001:10:1:25::/64
 neighbor 2001:10:1:1::1 activate
 neighbor 2001:10:1:3::1 activate
 neighbor 2001:10:1:3::1 activate
 exit-address-family
 address-family ipv4 vrf Finance
 network 10.1.24.0/24
 neighbor 10.1.1.2 remote-as 65001
 neighbor 10.1.1.2 update-source Loopback2
 exit-address-family
 address-family ipv6 vrf Finance
 network 2001:10:1:24::/64
 neighbor 2001:10:1:1::2 remote-as 65001
 neighbor 2001:10:1:1::2 update-source Loopback2
 exit-address-family
!
SW3:
router bgp 65003
 network 10.1.32.0/24
 network 10.1.33.0/24
 network 10.1.35.0/24
 neighbor 10.1.1.1 remote-as 65001
 neighbor 10.1.1.1 ebgp-multihop 255
 neighbor 10.1.1.1 update-source Loopback1
 neighbor 10.1.2.1 remote-as 65001
 neighbor 10.1.2.1 ebgp-multihop 255
 neighbor 10.1.2.1 update-source Loopback1
 neighbor 2001:10:1:1::1 remote-as 65001
 neighbor 2001:10:1:1::1 ebgp-multihop 255
 neighbor 2001:10:1:1::1 update-source Loopback1
 no neighbor 2001:10:1:1::1 activate
 neighbor 2001:10:1:2::1 remote-as 65001
 neighbor 2001:10:1:2::1 ebgp-multihop 255
 neighbor 2001:10:1:2::1 update-source Loopback1
 no neighbor 2001:10:1:2::1 activate
 address-family ipv6 unicast
 network 2001:10:1:32::/64
 network 2001:10:1:33::/64
 network 2001:10:1:35::/64
 neighbor 2001:10:1:1::1 activate
 neighbor 2001:10:1:2::1 activate
 exit-address-family
!
RT1:
router bgp 65001
 no synchronization
 bgp log-neighbor-changes
 network 10.1.120.0/24
 neighbor 10.1.2.1 remote-as 65001
 neighbor 10.1.2.1 update-source Loopback1
 neighbor 10.1.2.1 next-hop-self
 neighbor 10.1.6.1 remote-as 65002
 neighbor 10.1.6.1 ebgp-multihop 255
 neighbor 10.1.6.1 update-source Loopback1
 neighbor 2001:10:1:2::1 remote-as 65001
 neighbor 2001:10:1:2::1 update-source Loopback1
 no neighbor 2001:10:1:2::1 activate
 neighbor 2001:10:1:6::1 remote-as 65002
 neighbor 2001:10:1:6::1 ebgp-multihop 255
 neighbor 2001:10:1:6::1 update-source Loopback1
 no neighbor 2001:10:1:6::1 activate

 address-family ipv6
 no synchronization
 network 2001:10:1:120::/64
 neighbor 2001:10:1:2::1 activate
 neighbor 2001:10:1:6::1 activate
 exit-address-family
!
RT2:
router bgp 65002
 no synchronization
 bgp log-neighbor-changes
 network 10.1.150.0/24
 neighbor 10.1.5.1 remote-as 65001
 neighbor 10.1.5.1 ebgp-multihop 255
 neighbor 10.1.5.1 update-source Loopback1
 neighbor 2001:10:1:5::1 remote-as 65001
 neighbor 2001:10:1:5::1 ebgp-multihop 255
 neighbor 2001:10:1:5::1 update-source Loopback1
 no neighbor 2001:10:1:5::1 activate

 address-family ipv6
 no synchronization
 network 2001:10:1:150::/64
 neighbor 2001:10:1:5::1 activate
 exit-address-family
!

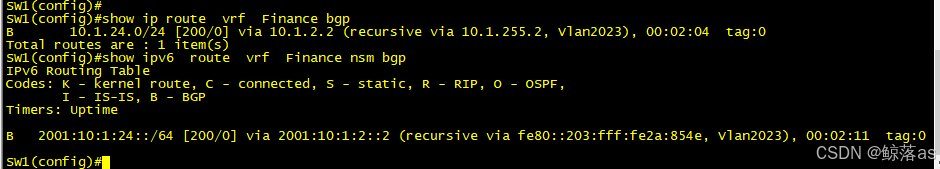

财务v4与v6互通验证：

（3）SW3营销分别与SW1和SW2营销ipv4和ipv6互访优先在SW3_SW1链路转发；SW3法务及人力分别与SW1和SW2法务及人力ipv4和ipv6互访优先在SW3_SW2链路转发，主备链路相互备份；用prefix-list、route-map和BGP路径属性进行选路，新增AS 65000。
SW3:
ip prefix-list SW1-SW2-FWRL-IPv4 seq 5 permit 10.1.13.1/24
ip prefix-list SW1-SW2-FWRL-IPv4 seq 10 permit 10.1.15.1/24
ip prefix-list SW1-SW2-FWRL-IPv4 seq 15 permit 10.1.23.1/24
ip prefix-list SW1-SW2-FWRL-IPv4 seq 20 permit 10.1.25.1/24
ip prefix-list SW1-SW2-YX-IPv4 seq 5 permit 10.1.12.1/24
ip prefix-list SW1-SW2-YX-IPv4 seq 10 permit 10.1.22.1/24
ip prefix-list SW3-FWRL-IPv4 seq 5 permit 10.1.33.1/24
ip prefix-list SW3-FWRL-IPv4 seq 10 permit 10.1.35.1/24
ip prefix-list SW3-IPv4 seq 5 permit 10.1.32.1/24
ipv6 prefix-list SW1-SW2-FWRL-IPv6 seq 5 permit 2001:10:1:13::1/64
ipv6 prefix-list SW1-SW2-FWRL-IPv6 seq 10 permit 2001:10:1:23::1/64
ipv6 prefix-list SW1-SW2-FWRL-IPv6 seq 15 permit 2001:10:1:15::1/64
ipv6 prefix-list SW1-SW2-FWRL-IPv6 seq 20 permit 2001:10:1:25::1/64
ipv6 prefix-list SW1-SW2-YX-IPv6 seq 5 permit 2001:10:1:12::1/64
ipv6 prefix-list SW1-SW2-YX-IPv6 seq 10 permit 2001:10:1:22::1/64
ipv6 prefix-list SW3-FWRL-IPv6 seq 5 permit 2001:10:1:33::1/64
ipv6 prefix-list SW3-FWRL-IPv6 seq 10 permit 2001:10:1:35::1/64
ipv6 prefix-list SW3-IPv6 seq 5 permit 2001:10:1:32::1/64
route-map SW1-SW2-YX-IPv4 permit 10
 match ip address prefix-list SW1-SW2-YX-IPv4
 set as-path prepend 65000
 set ip next-hop 10.1.1.1
!
route-map SW1-SW2-YX-IPv4 permit 20
!
route-map SW1-SW2-YX-IPv6 permit 10
 match ipv6 address prefix-list SW1-SW2-YX-IPv6
 set as-path prepend 65000
 set ipv6 next-hop 2001:10:1:1::1
!
route-map SW1-SW2-YX-IPv6 permit 20
!
route-map SW1-SW2-FWRL-IPv4 permit 10
 match ip address prefix-list SW1-SW2-FWRL-IPv4
 set as-path prepend 65000
 set ip next-hop 10.1.2.1
!
route-map SW1-SW2-FWRL-IPv4 permit 20
!
route-map SW1-SW2-FWRL-IPv6 permit 10
 match ipv6 address prefix-list SW1-SW2-FWRL-IPv6
 set as-path prepend 65000
 set ipv6 next-hop 2001:10:1:2::1
!
route-map SW1-SW2-FWRL-IPv6 permit 20
!
route-map SW3-FWRL-IPv6 permit 10
 match ipv6 address prefix-list SW3-FWRL-IPv6
 set as-path prepend 65000
 set ipv6 next-hop 2001:10:1:2::1
!
route-map SW3-FWRL-IPv6 permit 20
!
route-map SW3-YX-IPv6 permit 10
 match ipv6 address prefix-list SW3-YX-IPv6
 set as-path prepend 65000
 set ipv6 next-hop 2001:10:1:1::1
!
route-map SW3-YX-IPv6 permit 20
!
route-map SW3-FWRL-IPv4 permit 10
 match ip address prefix-list SW3-FWRL-IPv4
 set as-path prepend 65000
 set ip next-hop 10.1.2.1
!
route-map SW3-FWRL-IPv4 permit 20
!
route-map SW3-YX-IPv4 permit 10
 match ip address prefix-list SW3-YX-IPv4
 set as-path prepend 65000
 set ip next-hop 10.1.1.1
!
route-map SW3-YX-IPv4 permit 20
!

router bgp 65003
 neighbor 10.1.1.1 route-map SW1-SW2-FWRL-IPv4 in
 neighbor 10.1.1.1 route-map SW3-FWRL-IPv4 out
 neighbor 10.1.2.1 route-map SW1-SW2-YX-IPv4 in
 neighbor 10.1.2.1 route-map SW3-YX-IPv4 out
address-family ipv6 unicast
 neighbor 2001:10:1:1::1 route-map SW1-SW2-FWRL-IPv6 in
 neighbor 2001:10:1:1::1 route-map SW3-FWRL-IPV6 out
 neighbor 2001:10:1:2::1 route-map SW1-SW2-YX-IPv6 in
 neighbor 2001:10:1:2::1 route-map SW3-YX-IPv6 out
 exit-address-family
!

 比较麻烦多，看看自己做的有没有错可以验证一下：

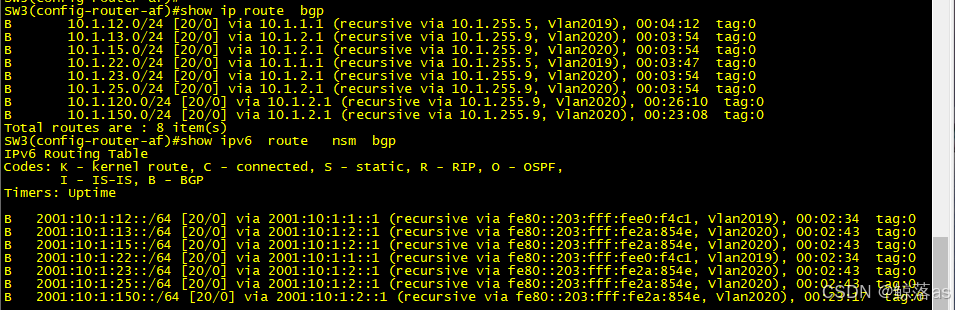

可以看到vlan2019有sw1和sw2的营销路由，走SW1-SW3，验证成功

10.利用BGP MPLS VPN技术，RT1与RT2以太链路间运行多协议标签交换、标
签分发协议。RT1与RT2间创建财务VPN实例，名称为Finance，RT1的RD值为1:1，export rt值为1:2，import rt值为2:1；RT2的RD值为2:2。通过两端loopback1建立VPN邻居，分别实现两端loopback5 ipv4互通和ipv6互通。

RT1:
ipv6 vrf Finance
 rd 1:1
 route-target import 2:1
 route-target export 1:2
!
!
!
mpls ip
mpls ldp router-id 10.1.5.1
!
!
ip vrf Finance
 rd 1:1
 route-target export 1:2
 route-target import 2:1
interface GigaEthernet0/0
 mpls ip
 mpls ip encapsulate
 mpls ldp enable
!
router bgp 65001
 address-family vpnv4
 neighbor 10.1.6.1 activate
 neighbor 10.1.6.1 send-community both
 exit-address-family
 address-family vpnv6
 neighbor 2001:10:1:6::1 activate
 neighbor 2001:10:1:6::1 send-community both
 exit-address-family

 address-family ipv4 vrf Finance
 no synchronization
 network 10.1.5.5/32
 exit-address-family

 address-family ipv6 vrf Finance
 no synchronization
 network 2001:10:1:5::5/128
 exit-address-family

interface Loopback5
 ip vrf forwarding Finance
 ip address 10.1.5.5 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:5::5/128
 ipv6 vrf forwarding Finance
 mpls ip encapsulate
interface GigaEthernet0/0
 mpls ip
 mpls ip encapsulate
 mpls ldp enable
RT2:

ipv6 vrf Finance
 rd 2:2
 route-target import 1:2
 route-target export 2:1
!
!
!
mpls ip
mpls ldp router-id 10.1.6.1
!
!
ip vrf Finance
 rd 2:2
 route-target export 2:1
 route-target import 1:2
interface GigaEthernet0/0
 mpls ip
 mpls ip encapsulate
 ipv6 ospf 1 area 0
!
router bgp 65002
address-family vpnv4
 neighbor 10.1.5.1 activate
 neighbor 10.1.5.1 send-community both
 exit-address-family
 address-family vpnv6
 neighbor 2001:10:1:5::1 activate
 neighbor 2001:10:1:5::1 send-community both
 exit-address-family
address-family ipv4 vrf Finance
 no synchronization
 network 10.1.6.5/32
 exit-address-family

 address-family ipv6 vrf Finance
 no synchronization
 network 2001:10:1:6::5/128
 exit-address-family

interface Loopback5
 ip vrf forwarding Finance
 ip address 10.1.6.5 255.255.255.255
 ipv6 enable
 ipv6 address 2001:10:1:6::5/128
 ipv6 vrf forwarding Finance
 mpls ip encapsulate



interface GigaEthernet0/0
 mpls ip
 mpls ip encapsulate
 mpls ldp enable

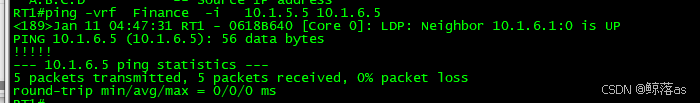

可以验证一下，注意，一定要loopback5直接ping,不要原ping
验证成功！

四、无线部署

1.AC1 loopback1 ipv4和ipv6地址分别作为AC1的ipv4和ipv6管理地址。AP二层自动注册，AP采用序列号认证。配置2个ssid，分别为skills-2.4G和skills-5G。skills-2.4G对应vlan140，用network 140和radio1（模式为n-only-g）,用户接入无线网络时需要采用基于WPA-personal加密方式，密码为skills2023。skills-5G对应vlan150，用network 150和radio2（模式为n-only-a），不需要认证，隐藏ssid，skills-5G用倒数第一个可用VAP发送5G信号。

AC1:
wireless
 ap authentication mac
 discovery vlan-list 130
 static-ip  10.1.4.1
 static-ipv6  2001:10:1:4::1
network 140
  security mode wpa-personal
  ssid skills-2.4G
  vlan 140
  wpa key encrypted 40a969b568f4229e3f9adfbb383055d332c1a42ade6bb7e6ddab6051064fbd819de3f7d325509f4244e0b6517a6b2155fca049fe5cb12b2322da0b9bee397d24
//这里密码是skills2023,被加密过
!
 network 150
  hide-ssid
  ssid skills-5G
  vlan 150
!
 ap profile 1
  channel-plan an time 05:00
  channel-plan bgn time 05:00
  air-match template 1
  radio 1
   mode n-only-g
   vap 0
    network 140
!
!
  radio 2
   mode n-only-a
   vap 0
!
   vap 15
    enable
    network 150
!
!
!
!
 ap database 00-03-0f-ea-5b-c0

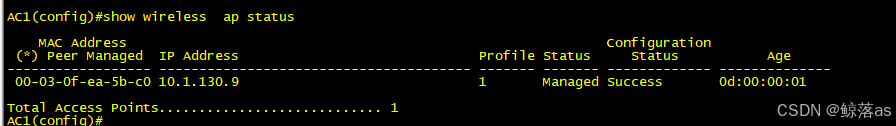

查看ap上线状态：


2.当AP上线，如果AC中储存的Image版本和AP的Image版本号不同时，会触发AP自动升级。AP失败状态超时时间及探测到的客户端状态超时时间都为2小时。

AC1：
wireless
 ap auto-upgrade
 agetime ap-failure 2
 agetime detected-clients 2
！

3.MAC认证模式为黑名单，MAC地址为80-45-DD-77-CC-48的无线终端采用全局配置MAC认证。

AC1:
wireless
known-client 80-45-dd-77-cc-48 action global-action
network 140
  mac authentication local
!
 network 150
  mac authentication local
!

4.网络管理员的专属IP地址为10.10.10.10，为了保障网络管理的安全性，若发现的设备接入无线路由器并使用SSH功能时，在不对其信号强度进行过滤的前提下，在全频道内每隔15秒进行一次定位。

AC1:
wireless
ap profile  1
device-location   fingerprint   ipv4  10.10.10.10  port   23  interval    15  rssi-filter  enable  scan-type full-channel

5.配置vlan140无线接入用户最大可连接人数为100人， 周一至周三17点至19点禁止用户连接。

AC1:
wireless
network 140
  max-clients 100
  time-limit from 17:00 to 19:00 weekday monday
  time-limit from 17:00 to 19:00 weekday tuesday
  time-limit from 17:00 to 19:00 weekday wednesday

6.开启Radio的自动信道调整，每天上午10:00触发信道调整功能。

AC1:
wireless
ap profile  1
channel-plan an time 10:00
channel-plan bgn time 10:00

7.开启AP组播广播突发限制功能；AP收到错误帧时，将不再发送ACK帧；AP发送向无线终端表明AP存在的帧时间间隔为1秒。

AC1:
wireless
ap profile  1
radio 1
 rate-limit
 beacon-interval 1000
 incorrect-frame-no-ack
radio 2
 rate-limit
 beacon-interval 1000
 incorrect-frame-no-ack

8.该公司AC1想按照法国2.4GHz频段信道标准进行设置，做一个信道测试对比，需要根据国外情况进行修正。

AC1:
wireless
country-code FR tx-power-unlimited   enable

五、安全维护


说明：ip地址按照题目给定的顺序用"ip/mask"表示，ipv4 any地址用0.0.0.0/0，ipv6 any地址用::/0，禁止用地址条目，否则按零分处理。

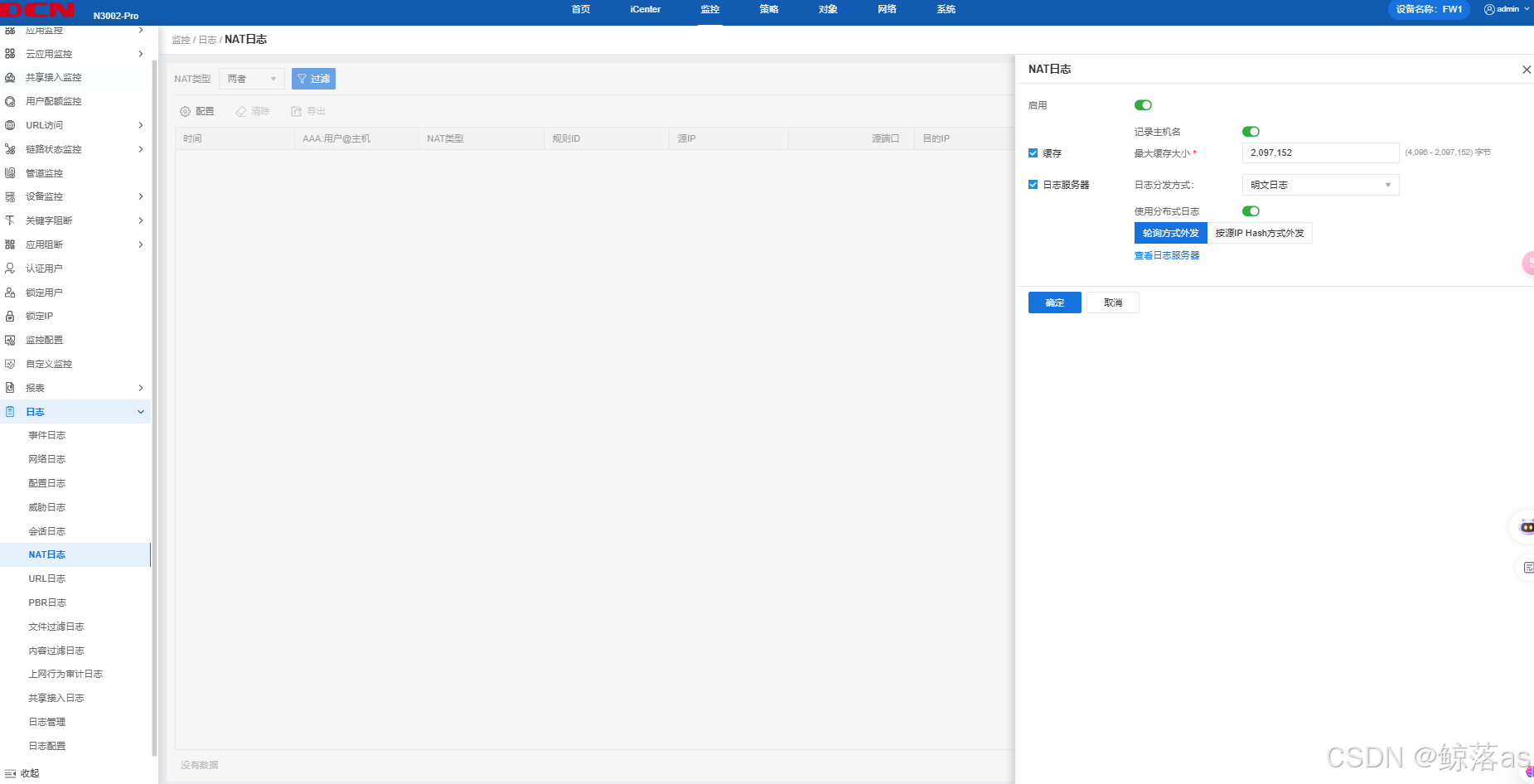

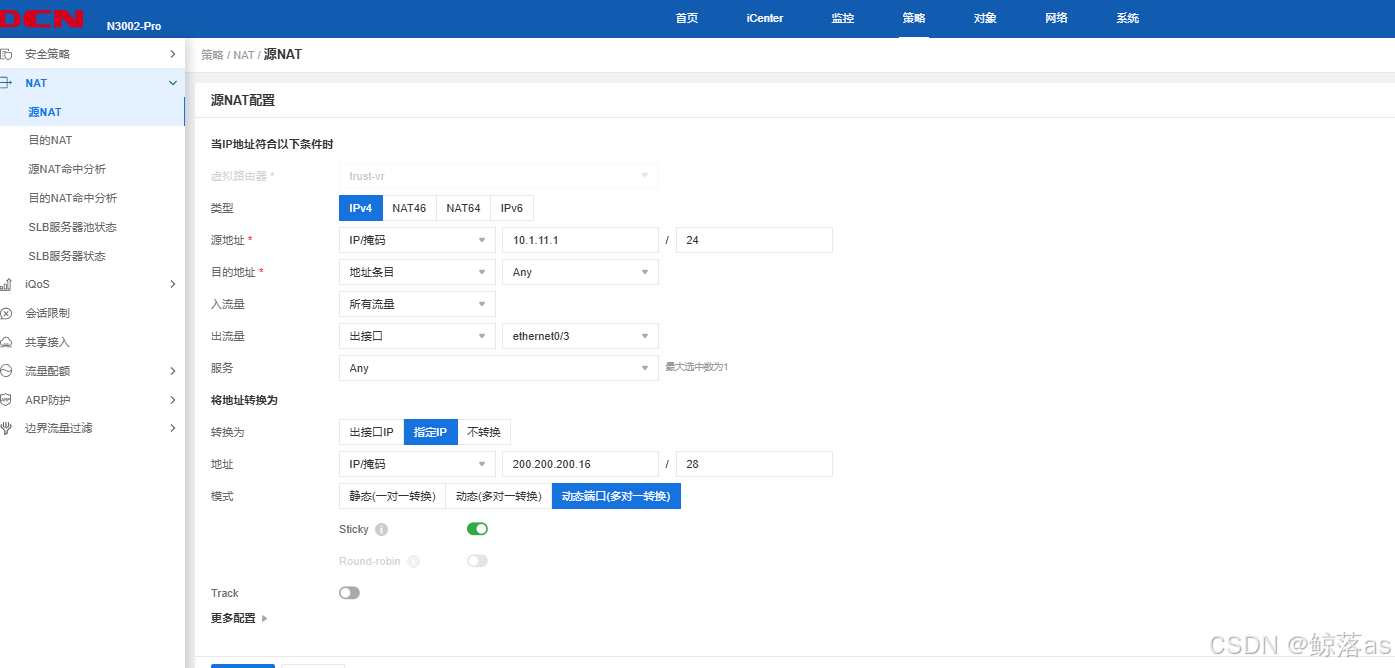

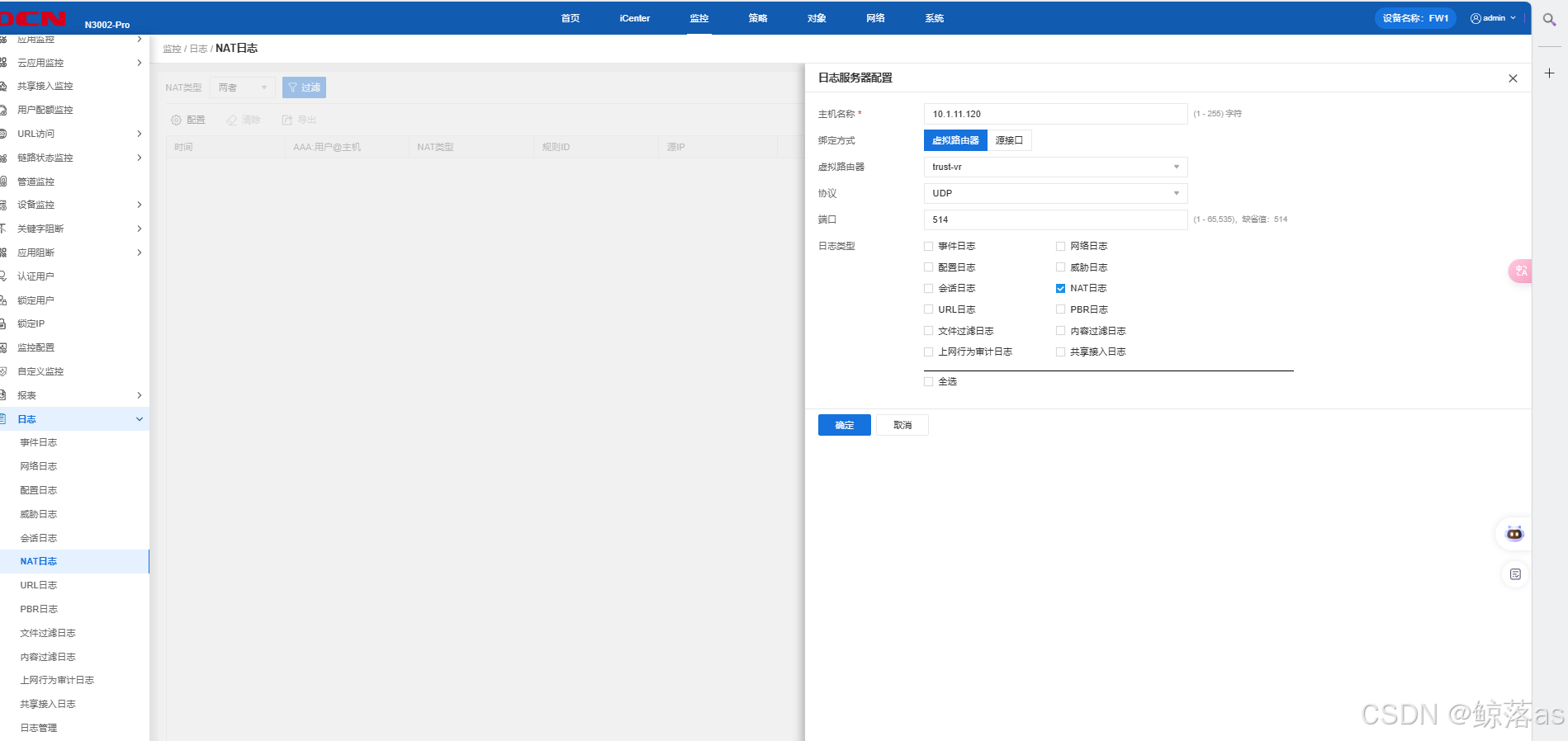

1.FW1配置ipv4 nat，实现集团产品1段ipv4访问Internet ipv4，转换ip/mask为200.200.200.16/28，保证每一个源ip产生的所有会话将被映射到同一个固定的IP地址；当有流量匹配本地址转换规则时产生日志信息，将匹配的日志发送至10.1.11.120的UDP 514端口，记录主机名，用明文轮询方式分发日志；开启相关特性，实现扩展nat转换后的网络地址端口资源。

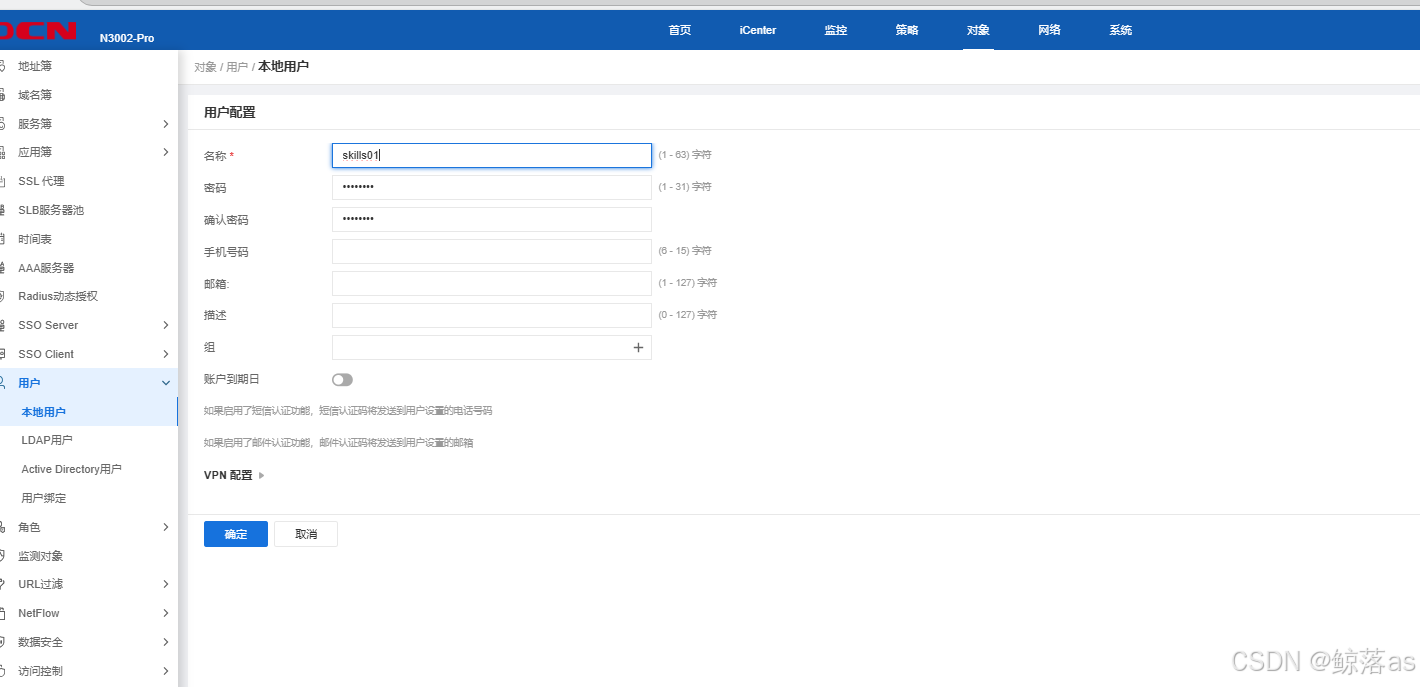

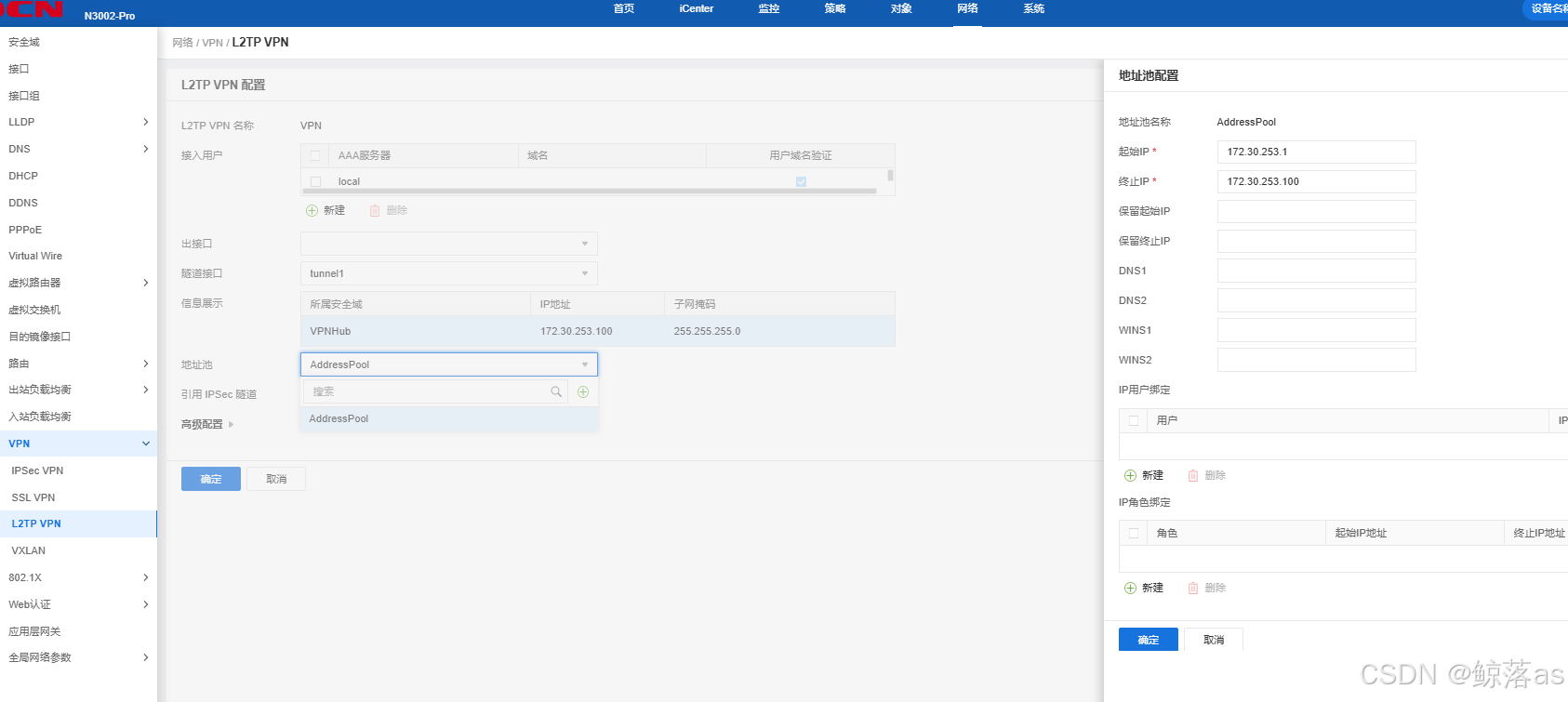

2.FW1配置L2TP VPN，名称为VPN，满足远程办公用户通过拨号登陆访问内网，创建隧道接口为tunnel 1、并加入vpnhub安全域，地址池名称为AddressPool,地址池为172.30.253.1/24-10172.30.253.100/24，网关为最大可用地址，认证账号skills01,密码skills01。

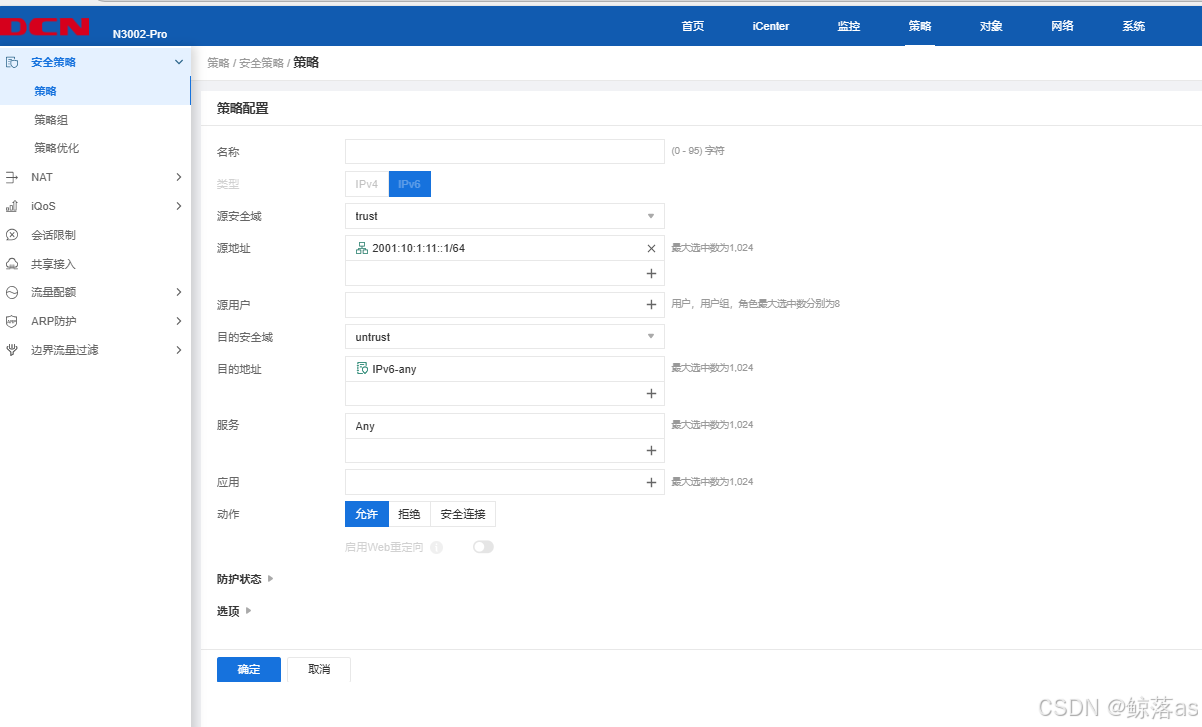

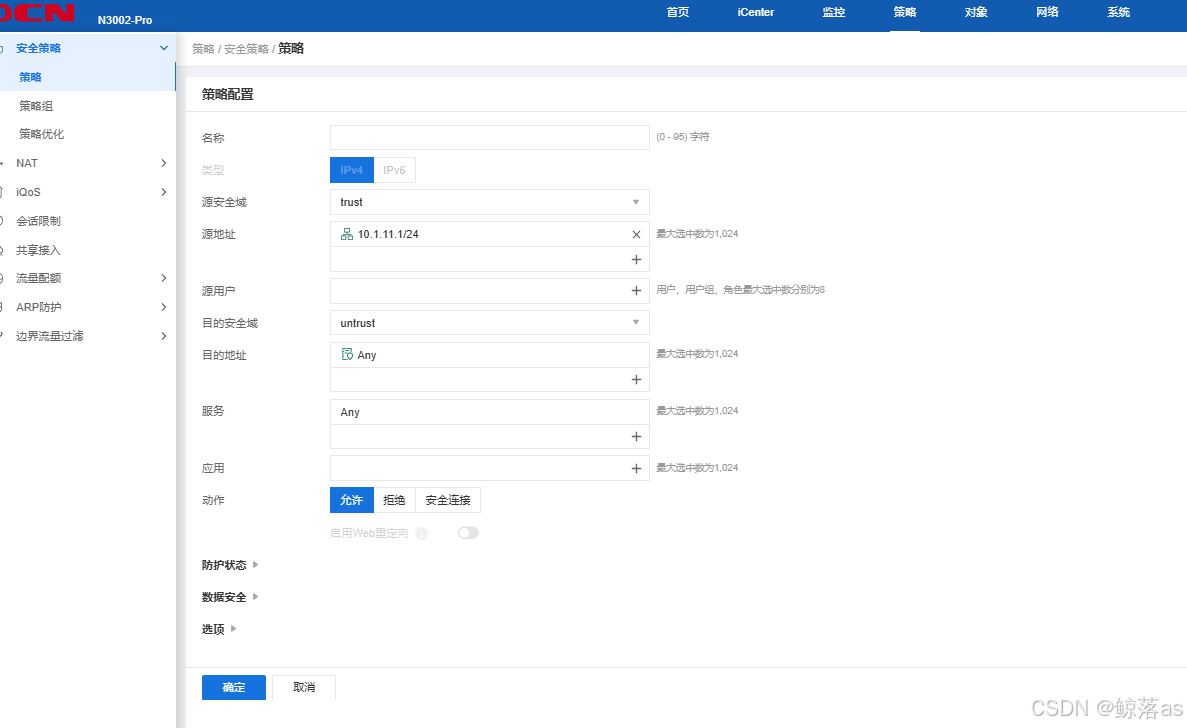

3.FW1和FW2策略默认动作为拒绝，FW1允许集团产品1段ipv4和ipv6访问Internet任意服务。

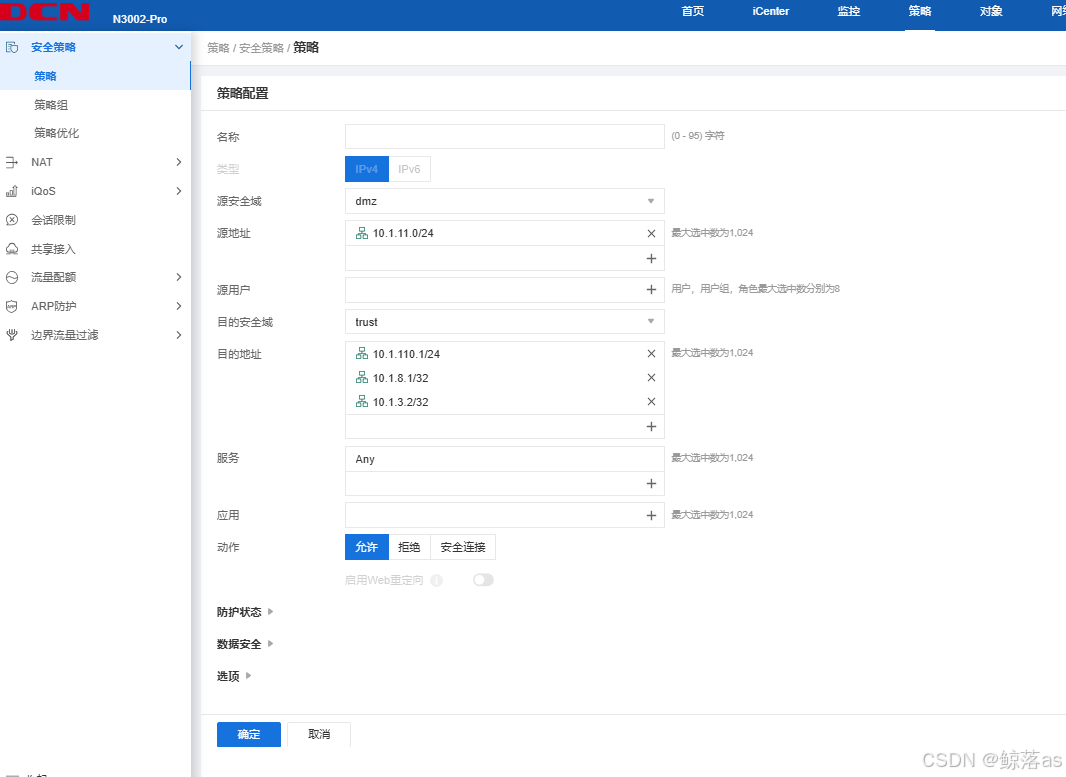

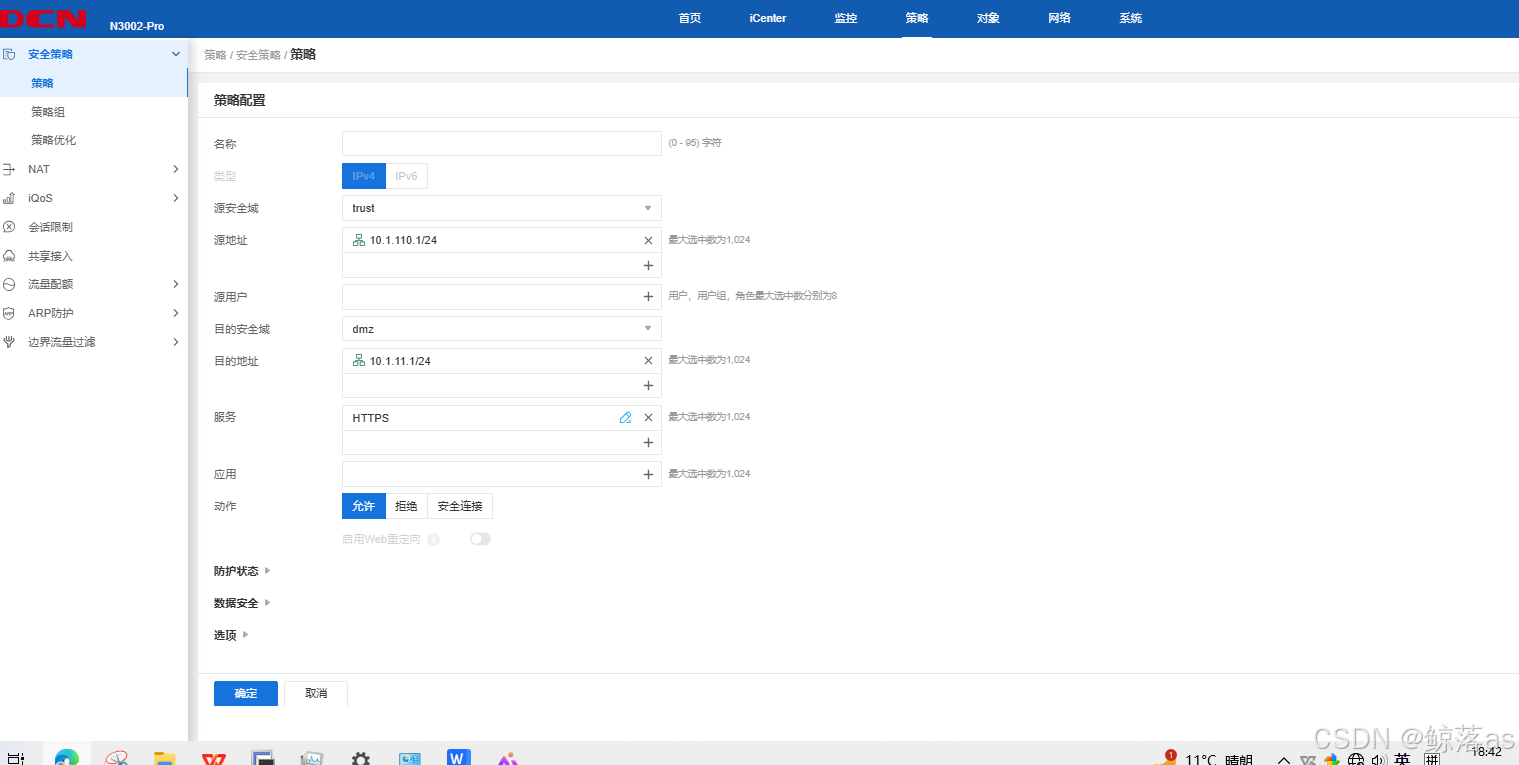

4.FW2允许办事处产品ipv4访问集团产品1段https服务，允许集团产品1段访问办事处产品ipv4、FW2 loopback1 ipv4、SW3模拟办事处loopback2 ipv4。

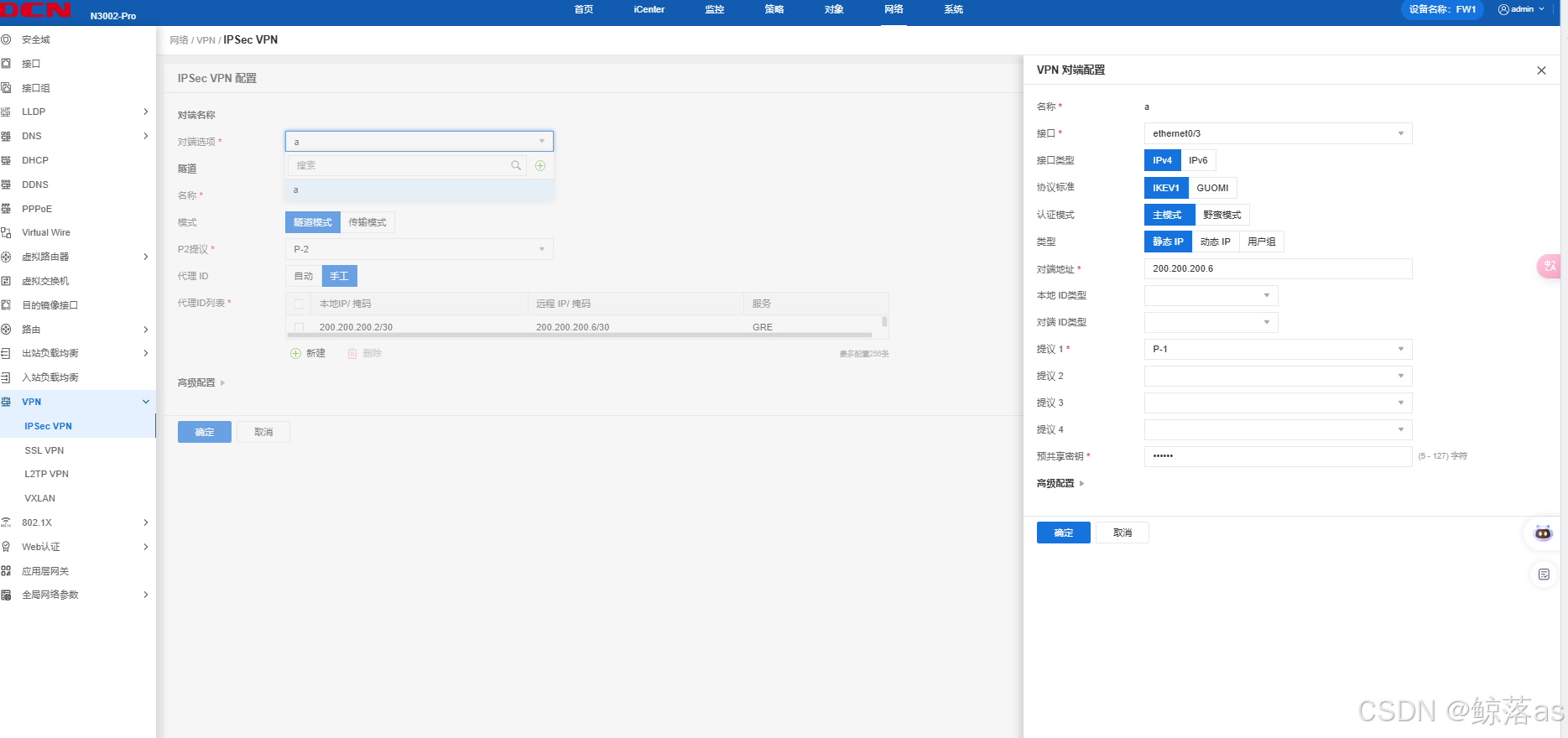

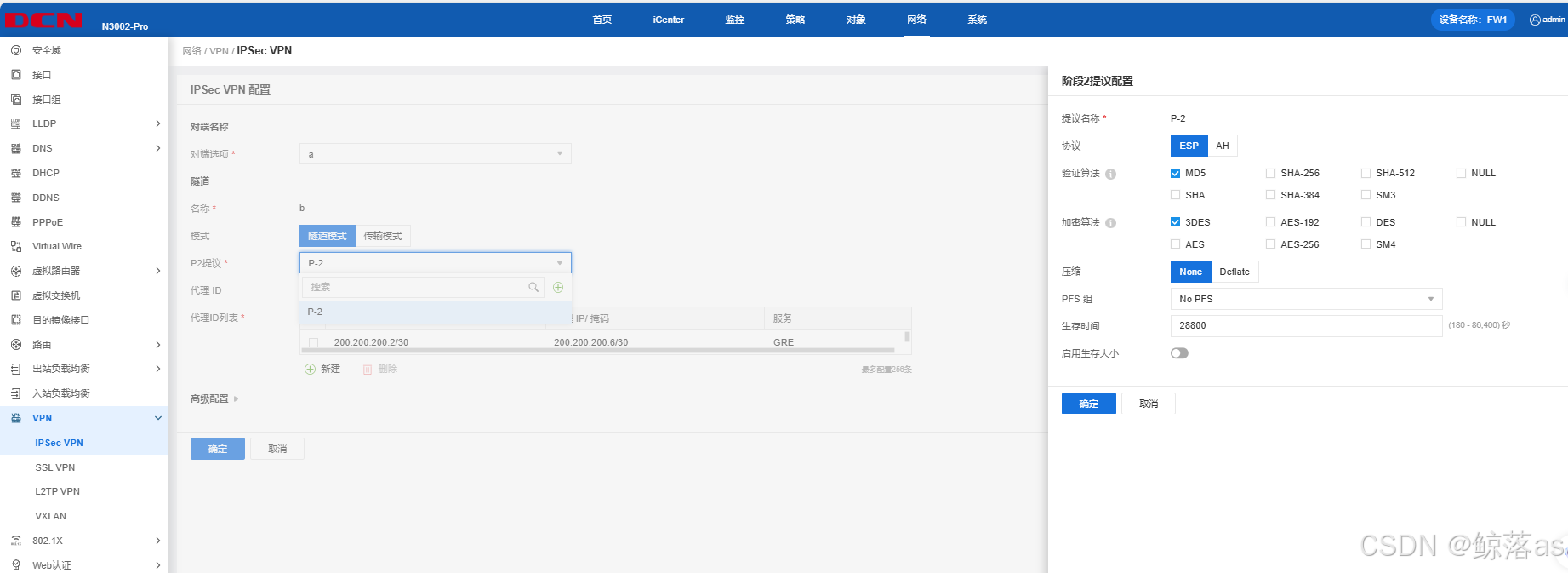

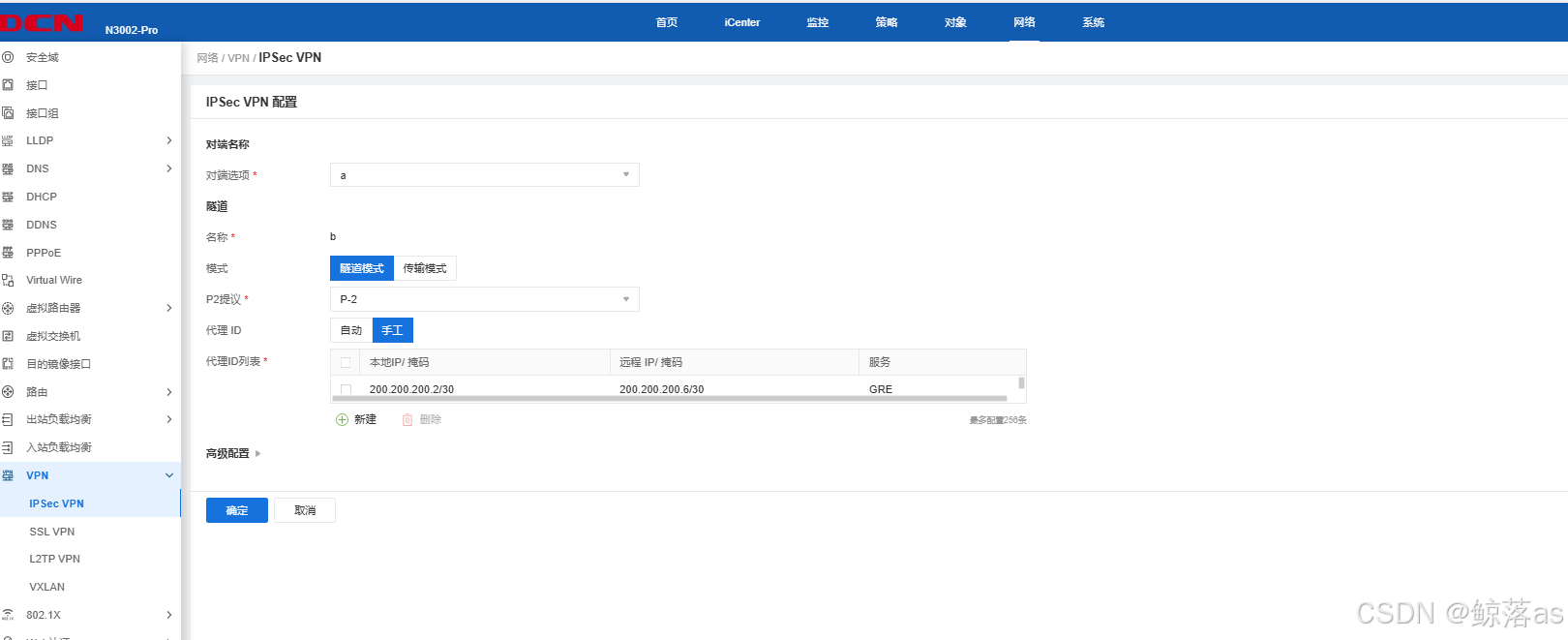

5.FW1与RT2之间用Internet互联地址建立GRE Over IPSec VPN，实现loopback4之间的加密访问。

RT2:
ip route default 200.200.200.5
ip route 10.1.7.4 255.255.255.255 Tunnel4
crypto isakmp key 0 123456 address 200.200.200.2 255.255.255.255
crypto isakmp policy 1
 authentication pre-share
 encryption 3des
 group 2
 hash md5
 lifetime 86400
!
crypto ipsec transform-set SET-1 esp-3des esp-md5-hmac
 mode transport
!
crypto map map 1 ipsec-isakmp
 match address acl
 set peer 200.200.200.2
 set transform-set SET-1
!

ip access-list extended acl
 permit gre 200.200.200.6 255.255.255.252 200.200.200.2 255.255.255.252 sequence 10
!
interface GigaEthernet0/3
 ip address 200.200.200.6 255.255.255.252
 ipv6 enable
 ip nat outside
 ipv6 nat
 crypto map map



FW1:
ip vrouter "trust-vr"
  ip route 10.1.6.4/32 "tunnel4"
  ip route 0.0.0.0/0 200.200.200.1
tunnel gre "GRE-1"
  source 200.200.200.2
  destination 200.200.200.6
  interface ethernet0/3
  next-tunnel ipsec b
interface tunnel4
  zone  "VPNHub"
  ip address 10.1.255.49 255.255.255.252
  ipv6 enable
  manage ping
  manage ssh
  tunnel gre "GRE-1" gw 10.1.255.50
exit

SW3:
ip route  vrf  Internet   0.0.0.0/0  200.200.200.2
ip route  vrf  Internet   0.0.0.0/0  200.200.200.6

//做完后记得FW1开放行策略，不然loopback4直接通不了，这里不再演示了

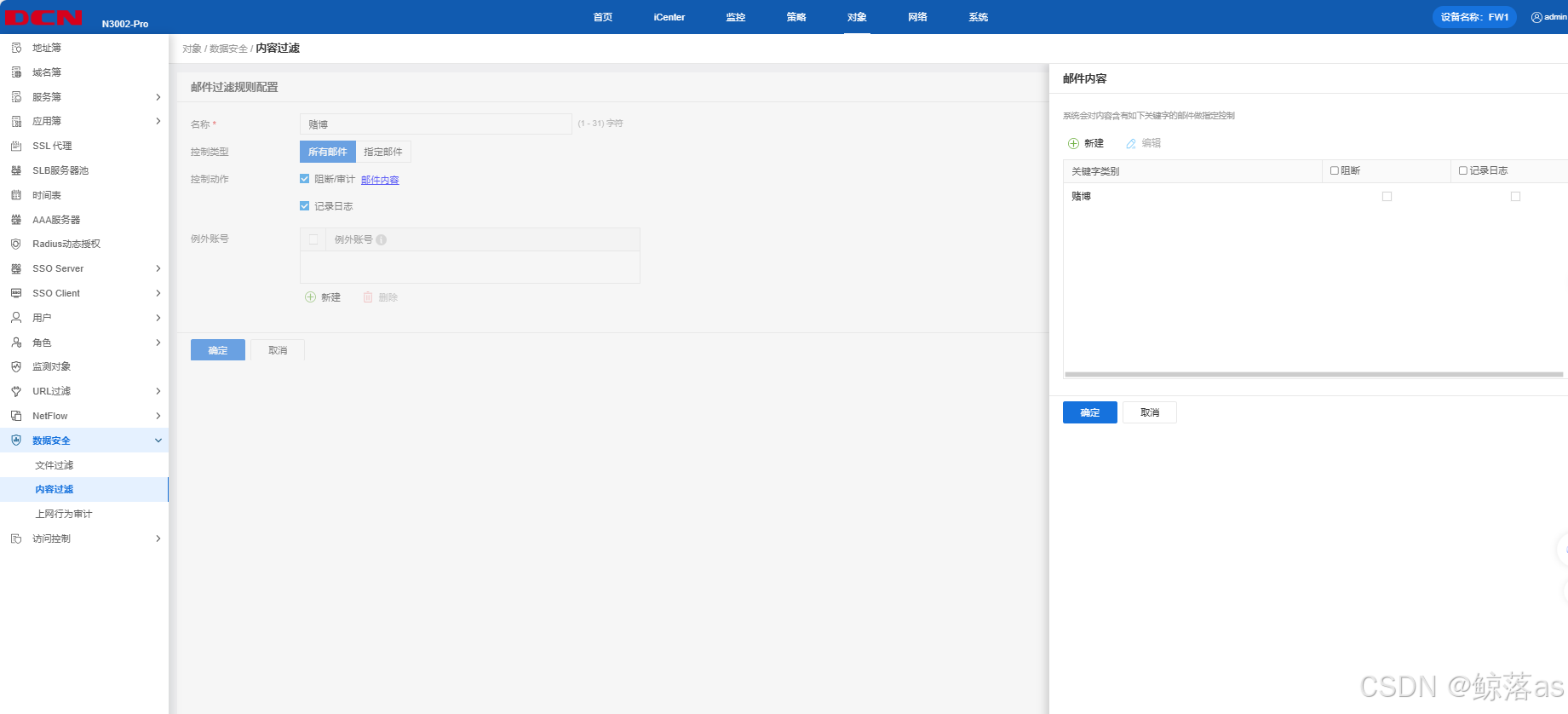

6.FW1配置邮件内容过滤，规则名称和类别名称均为"赌博"，过滤含有"游戏"字样的邮件。

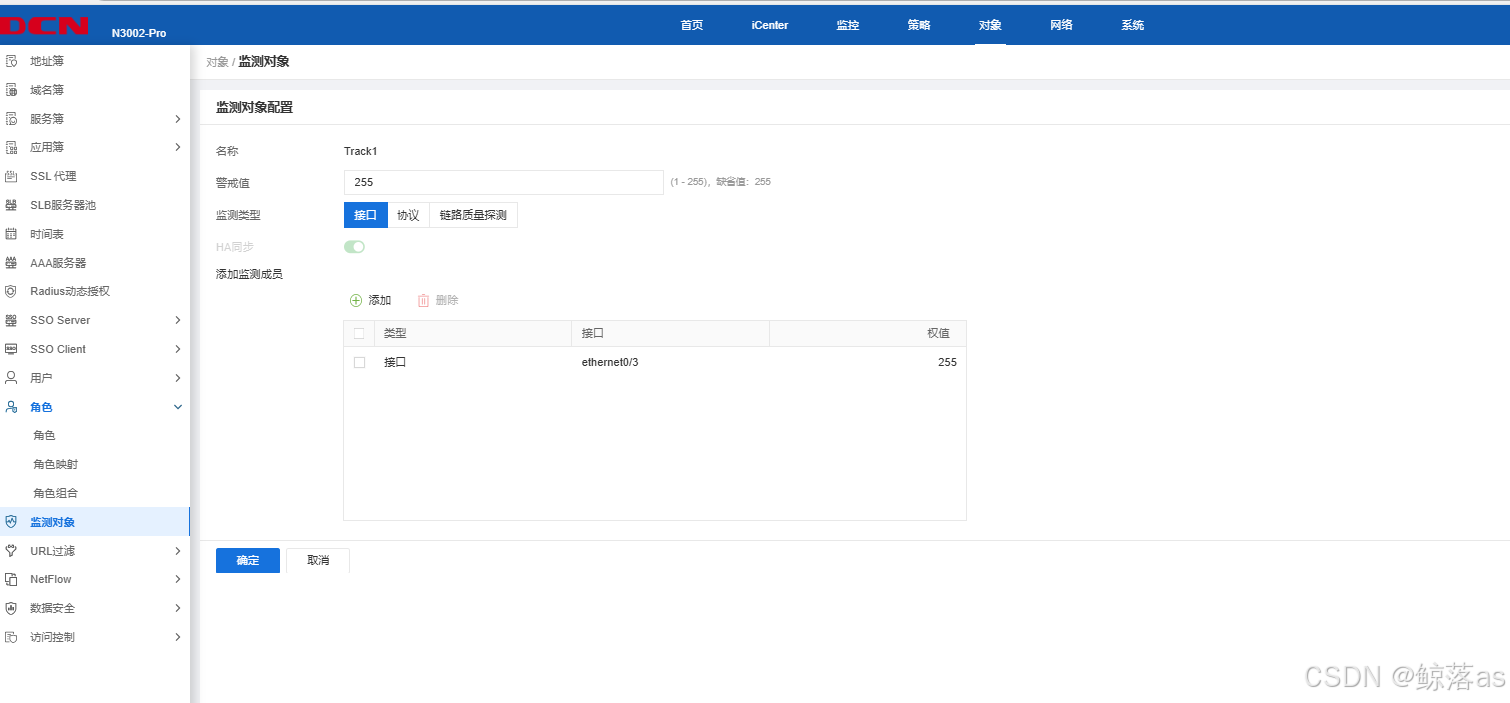

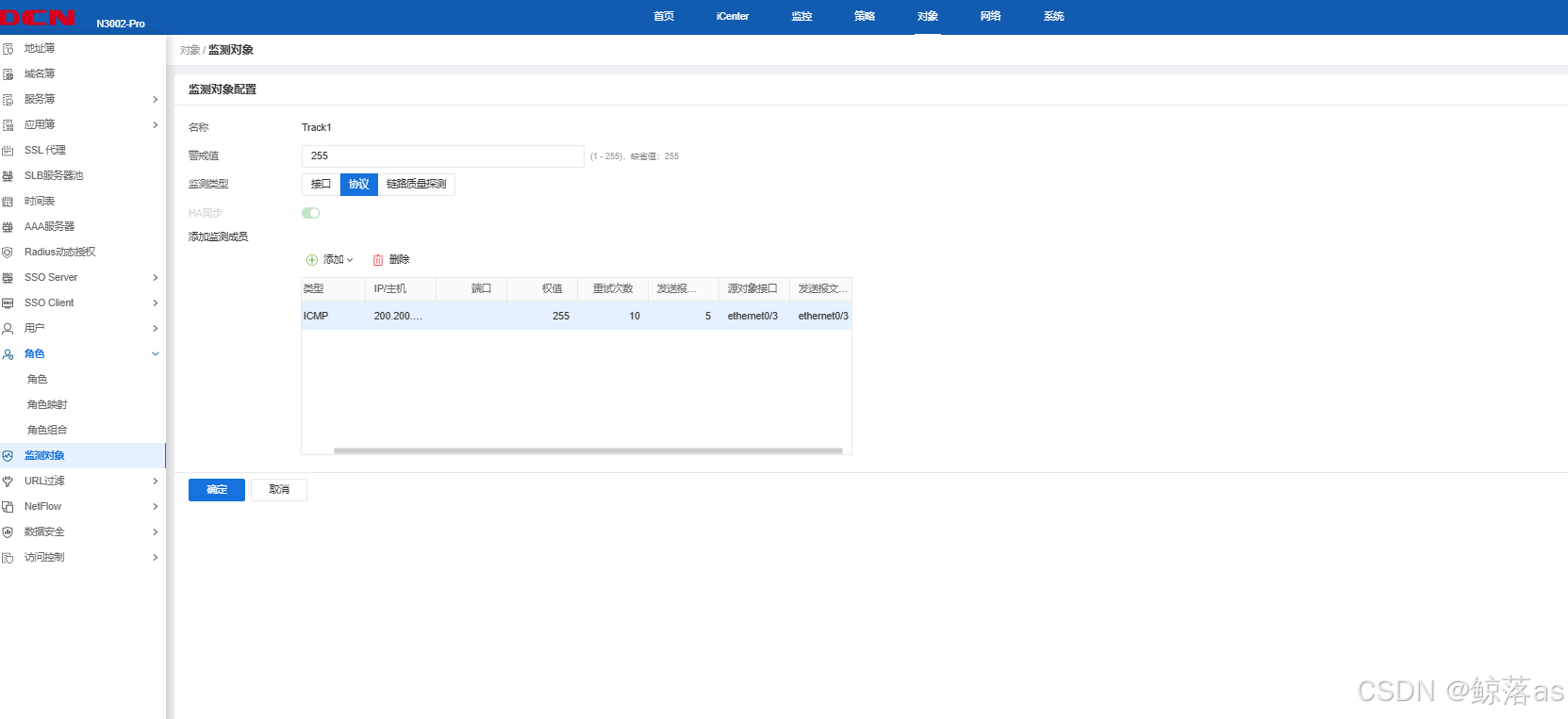

7.FW1通过ping监控外网网关地址，监控对象名称为Track1，每隔5S发送探测报文，连续10次收不到监测报文，就认为线路故障，关闭外网接口。

FW1:
//补充，代码做法
track Track1
icmp 200.200.200.1 interface ethernet0/3 interval 5 threshold 10 src-interface ethernet0/3
interface ethernet0/3
shutdown track Track1

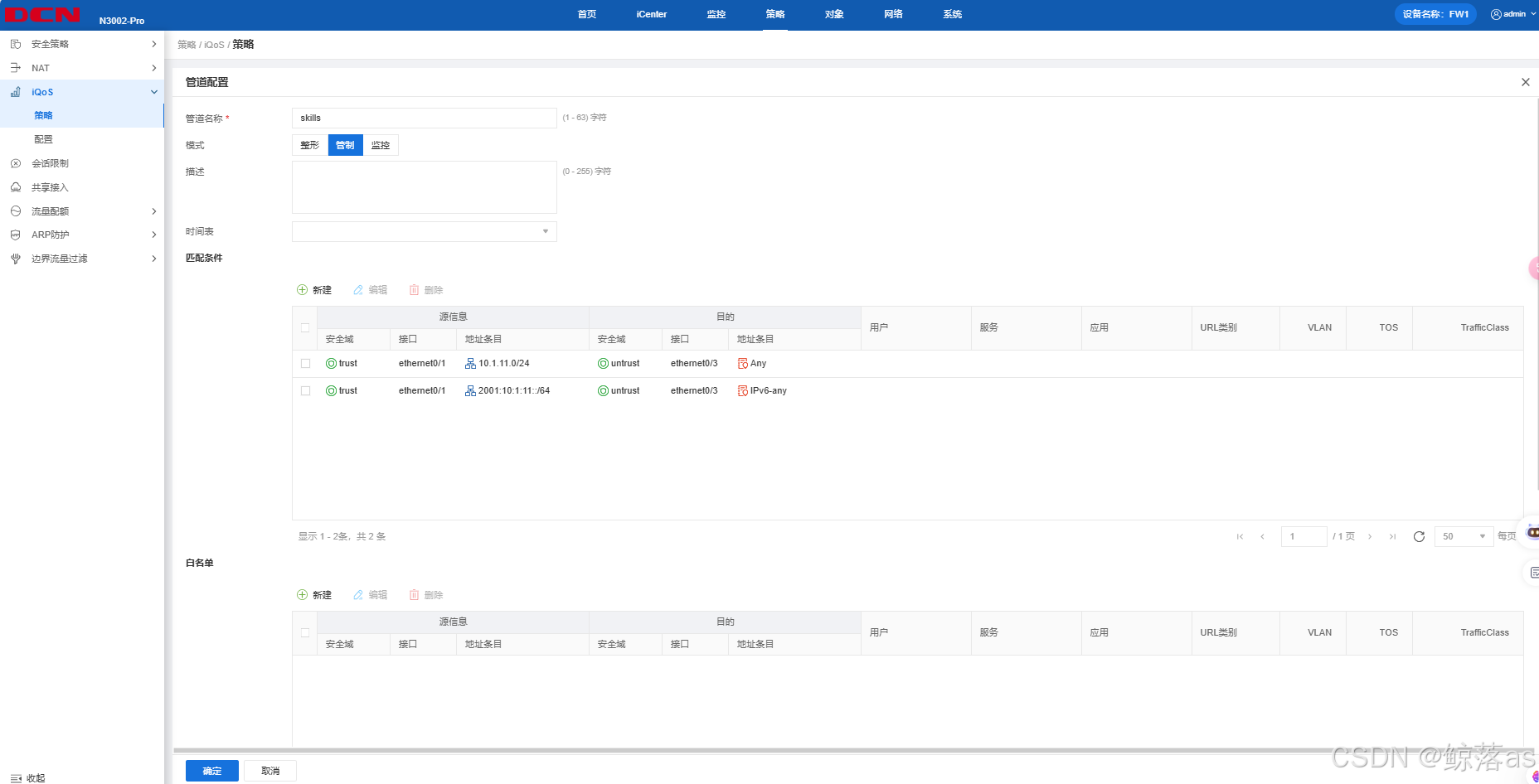

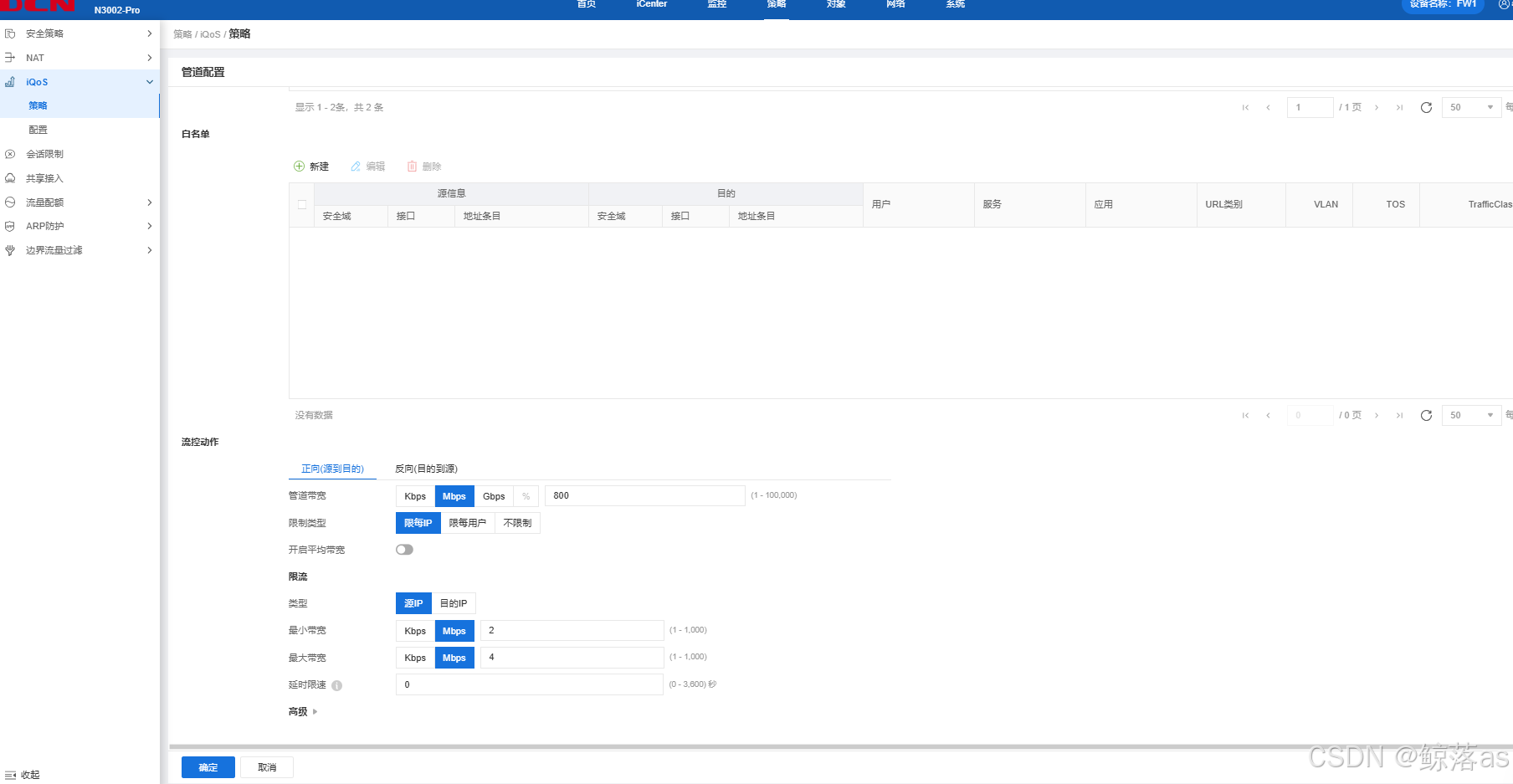

8.FW1利用iQoS，实现集团产品1段访问Internet https服务时，上下行管道带宽为800Mbps，限制每IP上下行最小带宽2Mbps、最大带宽4Mbps、优先级为3，管道名称为Skills，模式为管制。

评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
