项目效果演示
java小猪斗恶狼
背景介绍
来自大学第一次实训的项目，整理下项目思路。其中有些代码有参考价值。游戏的主要内容是要防止恶狼到达小猪的城堡。游戏的主要玩法是通过键盘的上下方向键来控制小猪的上下移动，通过按下空格进行发射子弹击落恶狼。
界面设计
介绍部分关键的界面

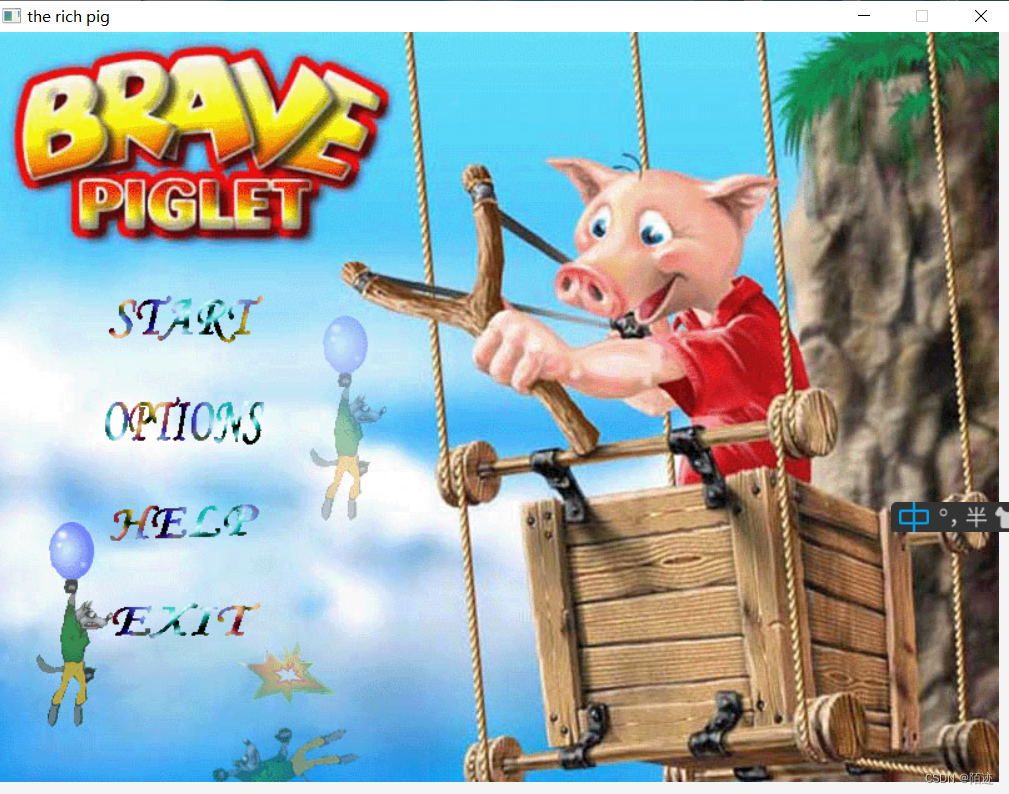

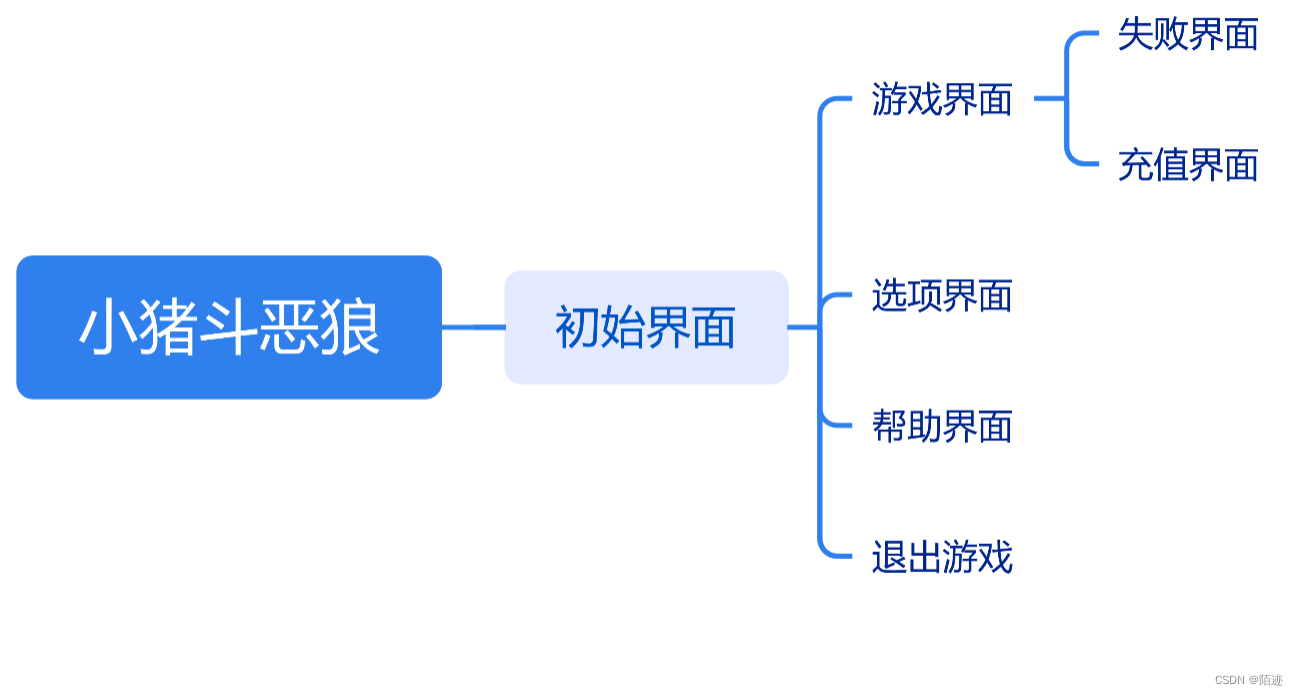

1.主界面
可以进行不同界面的选择

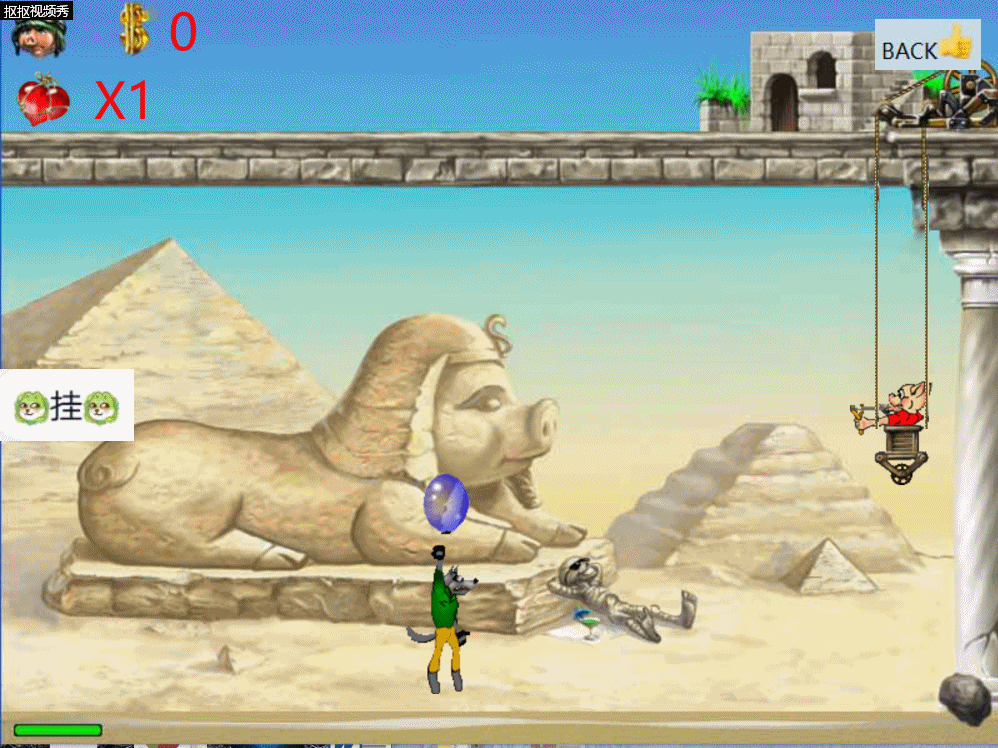

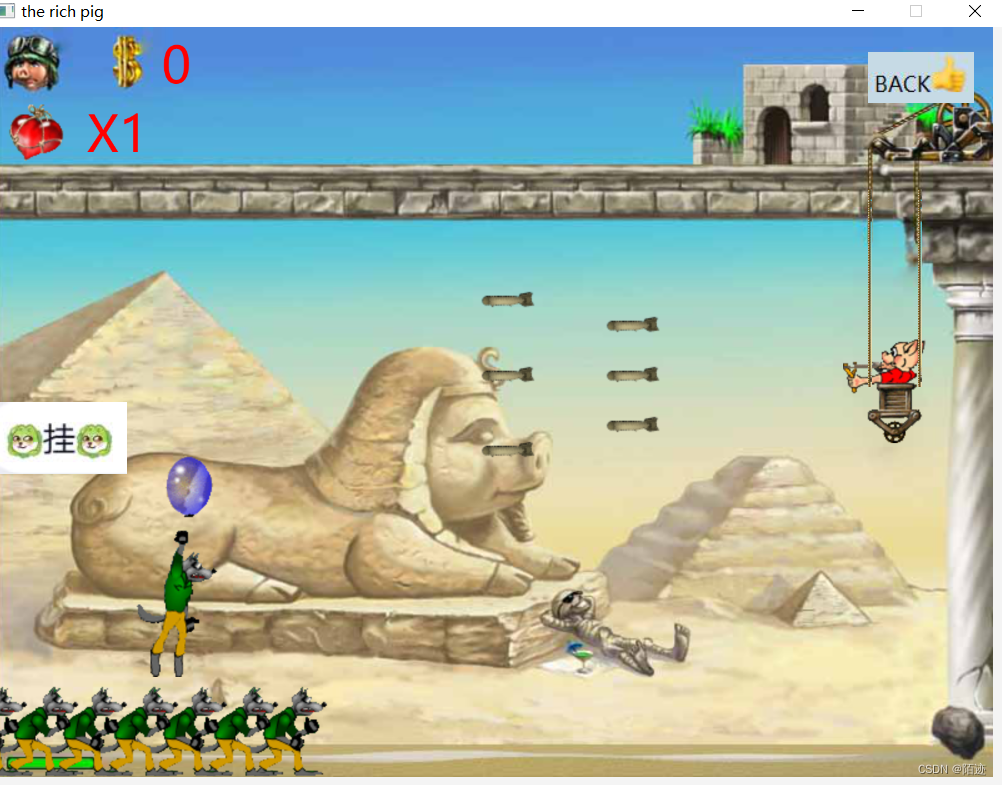

2.游戏界面

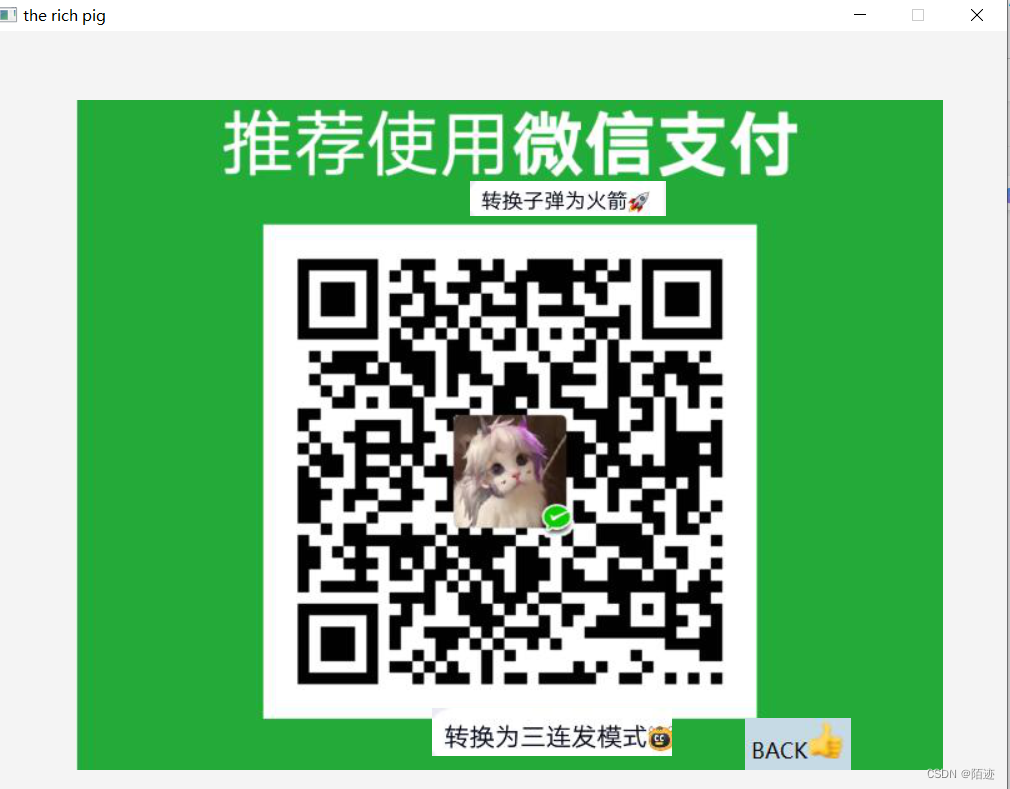

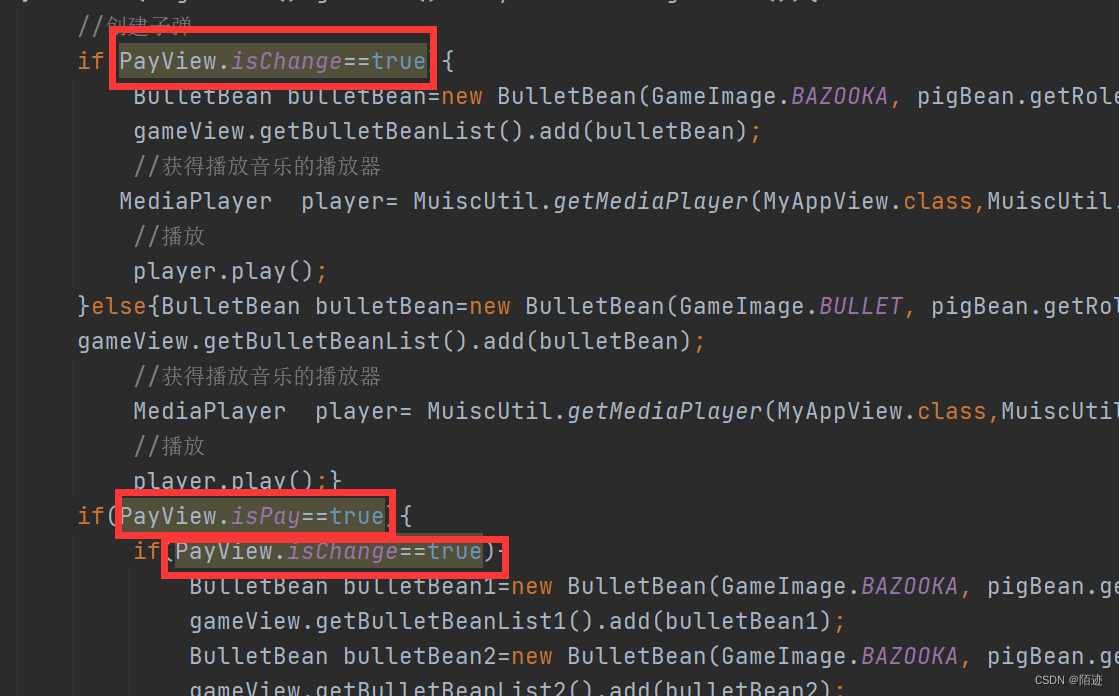

3.充值界面（充值功能没实现，可以选择转换为三连发模式、转换子弹为火箭）
选择后的效果

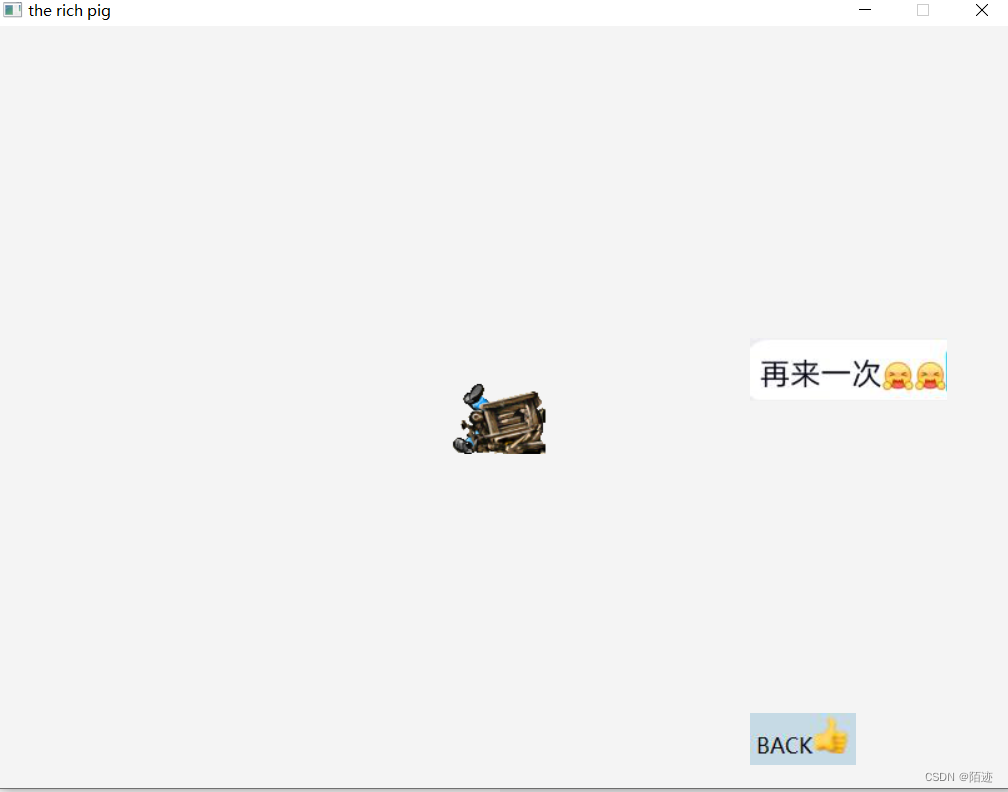

4.失败界面

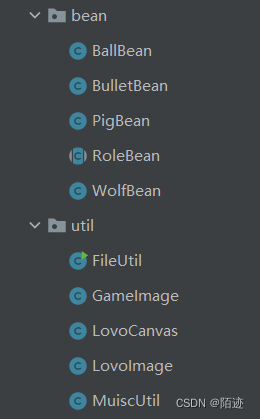

项目思路及部分代码
utill---工具类
1.GameImage--对图片进行封装
package util;
import javafx.scene.image.Image;
import javafx.scene.image.PixelReader;
import javafx.scene.image.WritableImage;
import java.net.URL;
/**
* 封装图片的加载操作
*/
public class GameImage {
public static Image BACK1;
public static Image AGAIN;
public static Image BAZOOKA;
public static Image CHANGE;
public static Image THREEBURSTS;
/** 游戏背景图片 */
public static Image BACKGROUND;
/** 微信支付图片 */
public static Image payMent;
/** 充值进入图片 */
public static Image payEnter;
/** 子弹图片 */
public static Image BULLET;
/** 绳子图片 */
public static Image CORD;
/** 小猪死亡图片 */
public static Image DEAD;
/** 水果图片 */
public static Image FRUIT;
/** 帮助界面的背景图片 */
public static Image HELP;
/** 菜单界面的背景图片 */
public static Image LOGIN;
/** 选项设置界面的背景图片 */
public static Image OPTIONS;
/** 排行榜界面的背景图片 */
public static Image PAIHANG;
/** 降落伞图片 */
public static Image UMBRELLA;
/** 勇敢的猪文字图片 */
public static Image [] PIG_TEXT;
/** 气球爆炸动画图片 */
public static Image [] BALL;
/** 轮盘动画图片 */
public static Image [] GEAR;
/** 菜单标签图片 */
public static Image [] MENU;
/** 小猪角色图片 */
public static Image [] PIG;
/** 狼角色图片 */
public static Image [][] WOLF;
public static void loadImages(){
BACKGROUND = loadImage("image/background.jpg");
BULLET = loadImage("image/bullet.gif");
CORD = loadImage("image/cord.gif");
DEAD = loadImage("image/dead.gif");
FRUIT = loadImage("image/fruit.gif");
HELP = loadImage("image/help.jpg");
LOGIN = loadImage("image/login.jpg");
OPTIONS = loadImage("image/options.jpg");
PAIHANG = loadImage("image/paihang.JPG");
UMBRELLA = loadImage("image/umbrella.gif");
payMent = loadImage("image/payMent.jpg");
payEnter = loadImage("image/payEnter.jpg");
AGAIN= loadImage("image/again.jpg");
BACK1 =loadImage("image/BACK1.jpg");
BAZOOKA=loadImage("image/bazooka.jpg");
CHANGE=loadImage("image/change.jpg");
THREEBURSTS=loadImage("image/Threebursts.jpg");
PIG_TEXT= loadImage(new String[]{"image/pig1.gif","image/pig2.gif","image/pig3.gif",
"image/pig4.gif","image/pig5.gif"});
BALL = cutImage("image/ball.gif",4,100,80,true);
GEAR = cutImage("image/gear.gif",2,103,59,true);
MENU = cutImage("image/menu.gif",8,200,100,false);
PIG = cutImage("image/pig.gif",10,100,83,true);
WOLF = cutImage("image/wolf.gif",2,7,125,125);
}
/**
* 根据路径加载对应的图片
* @param url - 图片路径
* @return 加载完成后的Image对象
*/
public static Image loadImage(String url){
if(url != null) {
try {
url = url.replace("\\","/");
String path = url;
System.out.println("path:" + path);
if (url.indexOf(":") == -1 && url.indexOf("/") != -1) {
String packageDirName = url.substring(0, url.lastIndexOf("/"));
URL pathUrl = Thread.currentThread().getContextClassLoader()
.getResources(packageDirName).nextElement();
path = pathUrl + url.substring(url.lastIndexOf("/"));
}
Image img = new Image(path);
return img;
}catch(Exception e){
e.printStackTrace();
}
}
return null;
}
/**
* 根据路径数组加载对应的图片
* @param imgPathes - 图片路径数组
* @return 加载完成后的Image对象数组
*/
public static Image [] loadImage(String [] imgPathes){
Image [] imgs = new Image[imgPathes.length];
for(int i = 0;i < imgs.length;i++){
//产生image对象并放在数组中
imgs[i] = loadImage(imgPathes[i]);
}
return imgs;
}
/**
* 加载给定路径的图片并按照指定大小裁剪成一维Image对象数组
* @param url 图片的路径
* @param length 裁剪图片数量
* @param width 每张图片的宽
* @param height 每张图片的高
* @param horizontal true表示水平裁剪，false表示垂直裁剪
* @return 裁剪完成后的一维Image对象数组
*/
public static Image [] cutImage(String url,int length,int width,int height,boolean horizontal){
Image [] imgs = new Image[length];
Image image = loadImage(url);
//获取图片资源对象
PixelReader reader = image.getPixelReader();
for(int i = 0;i < length;i++){
if(horizontal){
imgs[i] = new WritableImage(reader,i*width, 0 , width, height);
}else{
imgs[i] = new WritableImage(reader,0, i*height , width, height);
}
}
return imgs;
}
/**
* 加载给定路径的图片并按照指定大小裁剪成二维Image对象数组
* @param url 图片路径
* @param length1 行数
* @param length2 列数
* @param width 每张图片的宽
* @param height 每张图片的高
* @return 裁剪完成后的二维Image对象数组
*/
public static Image [][] cutImage(String url,int length1,int length2,int width,int height){
Image [][] imgs = new Image[length1][length2];
Image image = loadImage(url);
//获取图片资源对象
PixelReader reader = image.getPixelReader();
for(int i = 0;i < length1;i++){
for(int j = 0;j < length2;j++){
imgs[i][j] = new WritableImage(reader,j*width, i*height , width, height);
}
}
return imgs;
}
}
PixelReader和PixelWriter,是像素读取和像素入写的类。须要注意的是，我们只能从JavaFX的Image中读取像素，而像素入写，必须要对Writablelmage行进作操作。cutImage函数能实现对图片（如图所示）的分割。

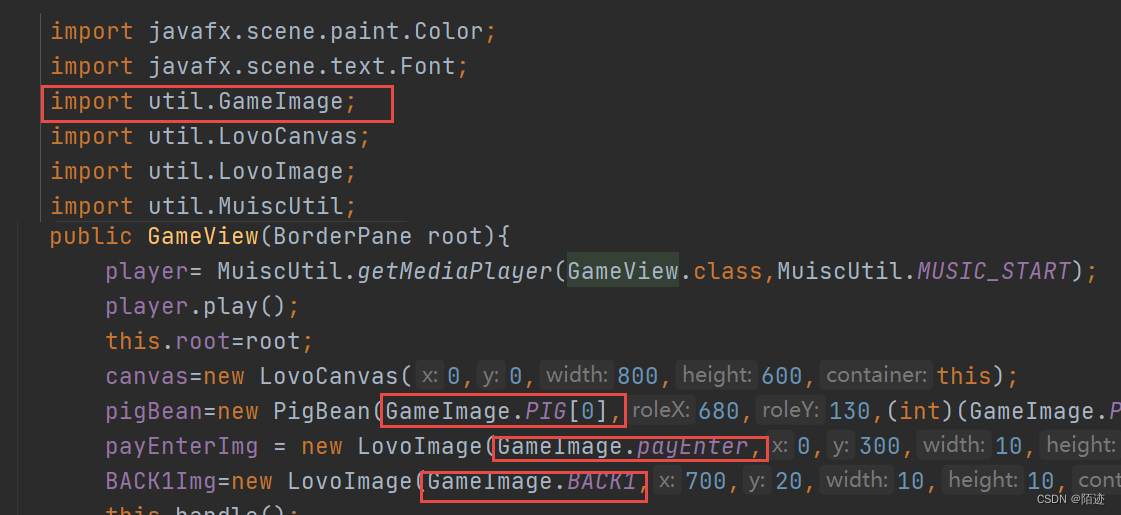

然后loadImage和cutImage函数对图片进行封装后，在其他代码中引用Gameimage就可以调用想用的图片，如下图所示
2.LovoImage---实现往画布中添加元素的效果
package util;
import javafx.event.EventHandler;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.input.MouseEvent;
import javafx.scene.layout.*;
import javafx.scene.paint.Paint;
import java.net.URL;
/**
* 图片组件
* @author lenovo
*
*/
public class LovoImage extends ImageView{
/**图片宽度*/
private int width;
/**图片高度*/
private int height;
private BorderPane p;
/**
* 构造方法
* @param url 图片URL路径
* @param x 组件X坐标
* @param y 组件Y坐标
* @param width 组件宽度
* @param height 组件高度
* @param container 加入容器
*/
public LovoImage(String url,int x,int y,int width,int height,Pane container) {
this(url,x,y,width,height,container,false);
}
public LovoImage(Image image,int x,int y,int width,int height,Pane container) {
this.setImage(image);
this.width = width;
this.height = height;
this.setLayoutX(x);
this.setLayoutY(y);
p = new BorderPane();
p.setLayoutX(x);
p.setLayoutY(y);
p.setPrefSize(width, height);
p.setCenter(this);
// Rectangle rectangle = new Rectangle(width,height, Color.RED);
// rectangle.setLayoutX(x);
// rectangle.setLayoutY(y);
// rectangle.setWidth(width);
// rectangle.setHeight(height);
// p.setCenter(rectangle);
container.getChildren().add(p);
// container.getChildren().add(rectangle);
}
/**
* 构造方法
* @param url 图片URL路径
* @param x 组件X坐标
* @param y 组件Y坐标
* @param width 组件宽度
* @param height 组件高度
* @param container 加入容器
*/
public LovoImage(String url,int x,int y,int width,int height,Pane container,boolean border) {
this.width = width;
this.height = height;
this.flushImage(url);
this.setLayoutX(x);
this.setLayoutY(y);
BorderPane p = new BorderPane();
p.setLayoutX(x);
p.setLayoutY(y);
p.setPrefSize(width, height);
p.setCenter(this);
if(border) {
p.setBorder(this.getViewBorder());
}
container.getChildren().add(p);
}
/**
* 更新图片
* @param url 图片URL
*/
public void flushImage(String url) {
if(url != null) {
try {
url = url.replace("\\","/");
String path = url;
System.out.println("path:" + path);
if (url.indexOf(":") == -1 && url.indexOf("/") != -1) {
String packageDirName = url.substring(0, url.lastIndexOf("/"));
URL pathUrl = Thread.currentThread().getContextClassLoader()
.getResources(packageDirName).nextElement();
path = pathUrl + url.substring(url.lastIndexOf("/"));
}
System.out.println("path:" + path);
Image img = new Image(path, width, height, false, false);
this.setImage(img);
}catch(Exception e){
e.printStackTrace();
}
}
}
private Border getViewBorder() {
return new Border(new BorderStroke(Paint.valueOf("#000"),
BorderStrokeStyle.SOLID, new CornerRadii(5), new BorderWidths(1)));
}
public void onMouseEntered(EventHandler<? super MouseEvent> var1) {
p.setOnMouseEntered(var1);
}
public void onMouseExited(EventHandler<? super MouseEvent> var1) {
p.setOnMouseExited(var1);
}
public void onMouseClicked(EventHandler<? super MouseEvent> var1) {
p.setOnMouseClicked(var1);
}
}

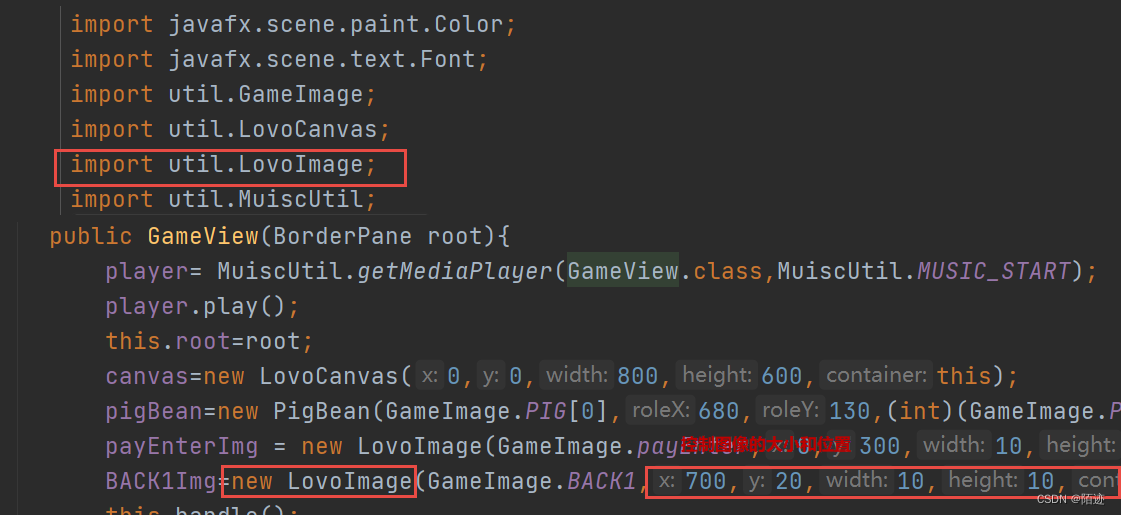

使用方法如图所示，可以控制图片的位置：
3.LovoCanvas----可以实现在画布上清除图片、文字，绘制图片、文字的效果
package util;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.image.Image;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
/**
* Canvas组件
*/
public class LovoCanvas extends Canvas {
private GraphicsContext graphics;
public LovoCanvas(double x, double y, double width, double height, Pane container){
super(width,height);
this.setLayoutX(x);
this.setLayoutX(y);
container.getChildren().add(this);
graphics = this.getGraphicsContext2D();
}
public void clearRect(double x, double y, double width, double height){
graphics.clearRect(x,y,width,height);
}
public void fillRect(double x, double y, double width, double height, Color color){
graphics.setFill(color);
graphics.fillRect(x,y,width,height);
}
public void drawImage(Image image,double x,double y){
graphics.drawImage(image, x, y);
}
public void drawImage(Image image,double x,double y,double width,double height){
graphics.drawImage(image, x, y,width,height);
}
public void drawImage(Image image,double sx, double sy, double sw,
double sh, double dx, double dy, double dw, double dh){
graphics.drawImage(image, sx, sy,sw,sh,dx,dy,dw,dh);
}
public void fillText(String text, double x,double y){
graphics.fillText(text,x,y);
};
}

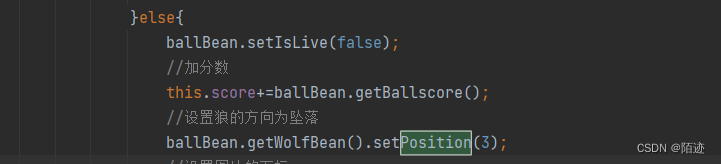

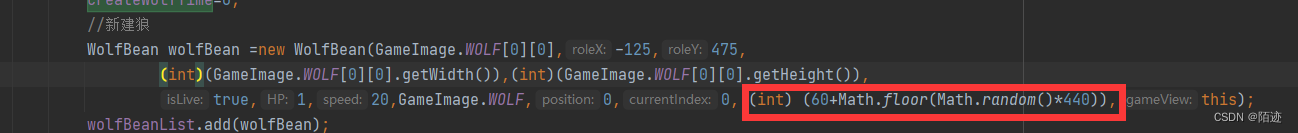

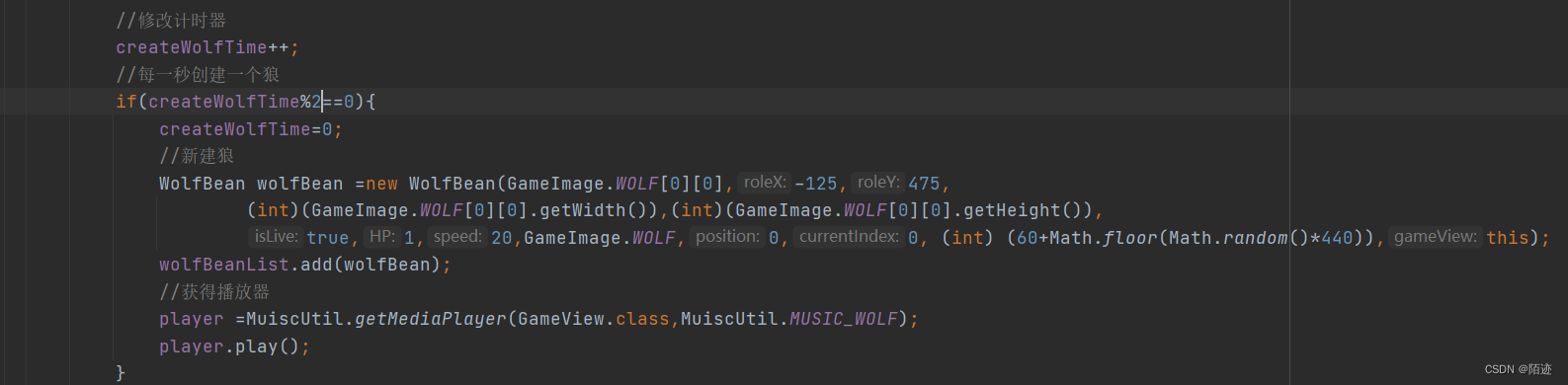

在这个项目里可以控制气球、狼、小猪在画布中移动。使用示例：

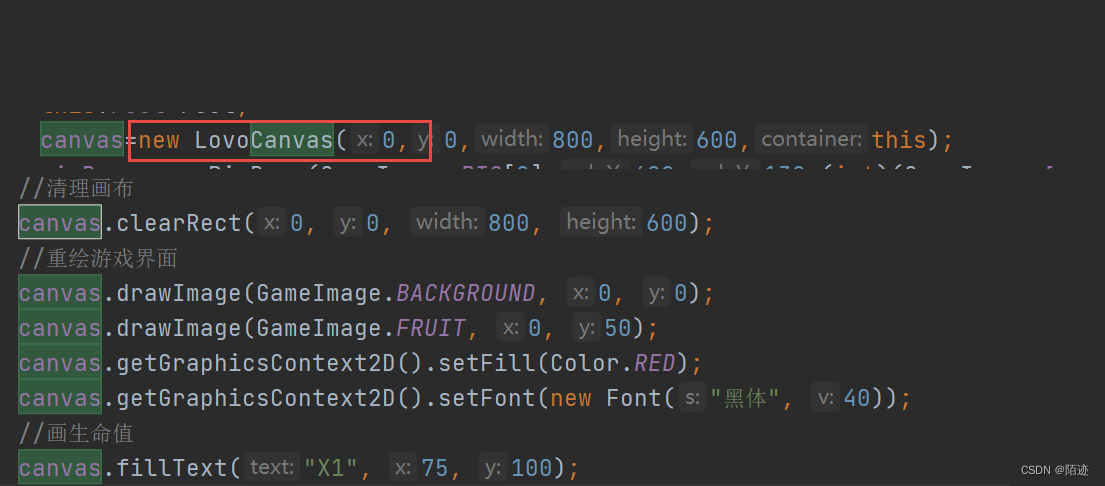

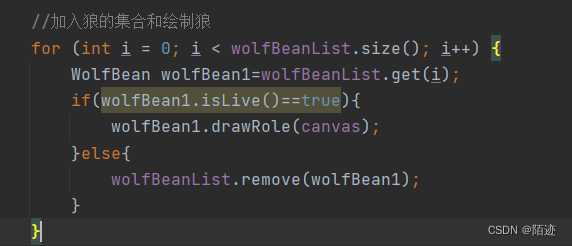

使用示例如下图所示：
4.MusicUtill--用于音乐的播放控制，跟gameImage的封装一个道理
package util;
import javafx.scene.media.Media;
import javafx.scene.media.MediaPlayer;
public class MuiscUtil {
public static String MUSIC_BK="audio/bk.wav";
public static String MUSIC_BK_LOG="audio/bkLog.wav";
public static String MUSIC_BLAST="audio/blast.wav";
public static String MUSIC_CUT="audio/cut.wav";
public static String MUSIC_ENTER="audio/enter.wav";
public static String MUSIC_HP="audio/hp.wav";
public static String MUSIC_ITEM="audio/item.wav";
public static String MUSIC_OP="audio/op.wav";
public static String MUSIC_SHOT="audio/shot.wav";
public static String MUSIC_START="audio/start.wav";
public static String MUSIC_WOLF="audio/wolf.wav";
public static String MUSIC_WOLF_DOWN="audio/wolfdown.wav";
public static MediaPlayer getMediaPlayer(Class clazz,String musicPath){
return new MediaPlayer(new Media(clazz.getClassLoader().getResource(musicPath).toString()));
}
}
bean---角色类（进行图片角色属性和事件设置）
1.RoleBean---最重要的基类
我们这个游戏会有气球、狼、猪、子弹这些角色，他们共同点在于：

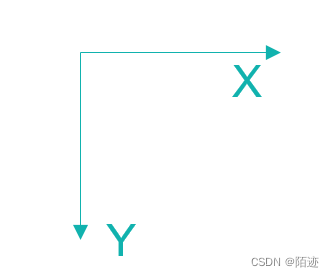

1）他们都会出现在画布中，因此都必须要有对应的在画布中的位置（设计roleX、roleY属性）。
2)他们都是图片，同时都有自己的大小。（设计imgWith、imgHeight，currentimg属性）。
3）气球有四张连续的图片，被子弹打中四次后，就会爆炸，可以理解为Hp（血量）为4。同时子弹碰到气球就会消失，可以理解为Hp为1.同时设计的是气球爆了以后狼就会坠落，可以理解为狼的HP为1，当满足气球爆了的条件后，清除为0.同时每有一只狼进入城堡中，小猪的HP就会减一。清空游戏结束（设计isLive、HP属性）
4）当时他们都会运动（设置speed属性、move函数）
所以我们建立了RoleBean的类文件，作为一个基类。
package bean;
import javafx.scene.image.Image;
import util.LovoCanvas;
public abstract class RoleBean {
protected Image currentImg;
protected double roleX;
protected double roleY;
protected int imgWidth;
protected int imgHeight;
protected boolean isLive;
protected int HP;
protected int speed;
public abstract void move();
public abstract void move1();
public abstract void move2();
public abstract void drawRole(LovoCanvas canvas);
public Image getCurrentImg() {
return currentImg;
}
public void setCurrentImg(Image currentImg) {
this.currentImg = currentImg;
}
public double getRoleX() {
return roleX;
}
public void setRoleX(double roleX) {
this.roleX = roleX;
}
public double getRoleY() {
return roleY;
}
public void setRoleY(double roleY) {
this.roleY = roleY;
}
public int getImgWidth() {
return imgWidth;
}
public void setImgWidth(int imgWidth) {
this.imgWidth = imgWidth;
}
public int getImgHeight() {
return imgHeight;
}
public void setImgHeight(int imgHeight) {
this.imgHeight = imgHeight;
}
public boolean isLive() {
return isLive;
}
public void setIsLive(boolean isLive) {
this.isLive = isLive;
}
public int getHP() {
return HP;
}
public void setHP(int HP) {
this.HP = HP;
}
public int getSpeed() {
return speed;
}
public void setSpeed(int speed) {
this.speed = speed;
}
public RoleBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, int HP, int speed) {
super();
}
@Override
public int hashCode() {
return super.hashCode();
}
@Override
public boolean equals(Object obj) {
return super.equals(obj);
}
@Override
protected Object clone() throws CloneNotSupportedException {
return super.clone();
}
@Override
public String toString() {
return super.toString();
}
@Override
protected void finalize() throws Throwable {
super.finalize();
}
public RoleBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, boolean isLive, int HP, int speed) {
this.currentImg = currentImg;
this.roleX = roleX;
this.roleY = roleY;
this.imgWidth = imgWidth;
this.imgHeight = imgHeight;
this.isLive =true;
this.HP = HP;
this.speed = speed;
}
}
2..BallBean
控制的是如图所示的气球元素，在设定中气球是要跟着恶狼一起移动的，当气球被打爆时，恶狼就会坠落。
比基类会多一个分数和图片下标，因为游戏设计的是当打中气球后就会加分。同时要通过切换图片下标来显示动画效果和气球现在的状态。同时还需要一个下标来表明是哪只狼的气球，用于控制狼死亡判断的触发事件。
package bean;
import javafx.scene.image.Image;
import util.LovoCanvas;
public class BallBean extends RoleBean{
//球的图片
private Image[] ballImg;
//当前图片的下标
private int currentIndex;
//属于该气球的狼
private WolfBean wolfBean;
//球的分数
private int Ballscore;
public BallBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, boolean isLive, int HP, int speed, Image[] ballImg, int currentIndex, WolfBean wolfBean, int ballscore) {
super(currentImg, roleX, roleY, imgWidth, imgHeight, isLive, HP, speed);
this.ballImg = ballImg;
this.currentIndex = currentIndex;
this.wolfBean = wolfBean;
Ballscore = ballscore;
}
@Override
public void move() {
if(this.isLive){
this.roleY-=this.speed;
//判断边界
if(this.roleY<=-90){
this.isLive=false;
}
}
}
@Override
public void move1() { }
@Override
public void move2() { }
@Override
public void drawRole(LovoCanvas canvas) {
if(this.isLive=true){
canvas.drawImage(this.currentImg,this.roleX,this.roleY);
}
}
public Image[] getBallImg() {
return ballImg;
}
public void setBallImg(Image[] ballImg) {
this.ballImg = ballImg;
}
public int getCurrentIndex() {
return currentIndex;
}
public void setCurrentIndex(int currentIndex) {
this.currentIndex = currentIndex;
}
public WolfBean getWolfBean() {
return wolfBean;
}
public void setWolfBean(WolfBean wolfBean) {
this.wolfBean = wolfBean;
}
public int getBallscore() {
return Ballscore;
}
public void setBallscore(int ballscore) {
Ballscore = ballscore;
}
}

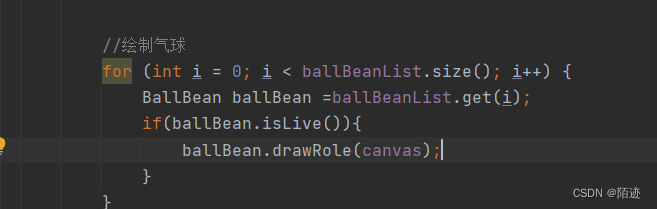

代码中的move函数用于判断气球是否到达顶点，当气球到达顶点后，狼开始走向城堡，所以isLive为false。 同时通过drawRole来控制气球的运动。
注意，画面中的坐标是这样的，如下图所示：
因此控制气球上移的代码是这样的，if(this.isLive){this.roleY-=this.speed;}。
2.WolfBean--控制狼的行为
狼的图片如下：
通过GameImage中的cutImage函数，如图：
把图片分为了【2】【7】的图片数组。其中【0】【0】到【0】【3】是狼向右走的图片，【0】【4】到【0】【6】是狼抓着气球的图片，【1】【0】到【1】【3】是狼坠毁的图片，【1】【4】到【1】【6】是狼初始化，吹气球起飞的图片，下面是完整的动画效果
（狼先吹气球向右走然后起飞，中途可能被击落，然后扔掉气球，向右走。）
代码如下：
package bean;
import javafx.scene.image.Image;
import javafx.scene.media.MediaPlayer;
import util.GameImage;
import util.LovoCanvas;
import util.MuiscUtil;
import view.GameView;
/**
*
*/
public class WolfBean extends RoleBean{
//狼的图片
private Image[][] WolfImg;
//position 0 向右走 1准备起飞（吹气球）2飞起来 3坠落
private int position;
private int currentIndex;
//选择上升的位置
private int upPosition;
//主游戏界面
private GameView gameView;
public WolfBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, boolean isLive, int HP, int speed, Image[][] wolfImg, int position, int currentIndex, int upPosition,GameView gameView) {
super(currentImg, roleX, roleY, imgWidth, imgHeight, isLive, HP, speed);
this.WolfImg = wolfImg;
this.position = position;
this.currentIndex = currentIndex;
this.upPosition = upPosition;
this.gameView=gameView;
}
@Override
public void move() {
if(isLive==true){
if(this.position==0){
this.roleX+=this.speed;
if(this.roleX<=650){
//向右走
//修改x的坐标
this.currentImg= GameImage.WOLF[0][this.currentIndex++];
//移动效果———实时切换图片
if(currentIndex==4){
currentIndex=0;
}
//准备进入下一个状态
if(this.roleX>=this.upPosition&&this.roleY>=130){
//切换方位
this.position=1;
this.currentIndex=4;
}
}else {
//获得播放器
MediaPlayer player = MuiscUtil.getMediaPlayer(WolfBean.class,MuiscUtil.MUSIC_CUT);
player.play();
//判断狼是否走到650的位置，割绳子
PigBean pigBean = gameView.getPigBean();
pigBean.setHP((pigBean.getHP()-1));
this.isLive=false;
if(pigBean.getHP()<=0){
//切换小猪的状态
pigBean.setIsLive(false);
}
}
}else if(this.position==1){
//准备起飞
this.currentImg=GameImage.WOLF[1][currentIndex++];
if(currentIndex==7){
//切换方位
position=2;
currentIndex=4;
//创建气球
BallBean ballBean=new BallBean(GameImage.BALL[0],this.roleX+10,this.roleY-50,(int)(GameImage.BALL[0].getWidth()),(int)(GameImage.BALL[0].getHeight()),
true,3,this.speed,GameImage.BALL,0,this,1);
this.gameView.getBallBeanList().add(ballBean);
}
//把气球添加到气球的集合中
} else if(this.position==2){
//起飞(修改y的坐标)
this.roleY-=this.speed;
this.currentImg= GameImage.WOLF[0][this.currentIndex++];
if(currentIndex==7){
currentIndex=4;
}
//切换方位
if(this.roleY<=5){
position=0;
this.currentIndex=0;
}
}else if(position==3){
//坠落,当气球无了
this.roleY+=this.speed;
this.currentImg=GameImage.WOLF[1][this.currentIndex++];
if(this.currentIndex==4){
this.currentIndex=3;
}
//当狼落在地上的时候狼就死亡了
if(this.roleY>=550){
this.isLive=false;
//获得播放器
MediaPlayer player =MuiscUtil.getMediaPlayer(WolfBean.class,MuiscUtil.MUSIC_WOLF_DOWN);
player.play();
}
}
}
}
@Override
public void move1() {
}
@Override
public void move2() {
}
@Override
public void drawRole(LovoCanvas canvas) {
if(this.isLive==true){
canvas.drawImage(this.currentImg,this.roleX,this.roleY);}
}
public int getPosition() {
return position;
}
public void setPosition(int position) {
this.position = position;
}
public Image[][] getWolfImg() {
return WolfImg;
}
public void setWolfImg(Image[][] wolfImg) {
WolfImg = wolfImg;
}
public int getCurrentIndex() {
return currentIndex;
}
public void setCurrentIndex(int currentIndex) {
this.currentIndex = currentIndex;
}
public int getUpPosition() {
return upPosition;
}
public void setUpPosition(int upPosition) {
this.upPosition = upPosition;
}
public GameView getGameView() {
return gameView;
}
public void setGameView(GameView gameView) {
this.gameView = gameView;
}
}
代码中用position来表示狼的状态---- 0 向右走 1准备起飞（吹气球）2飞起来 3坠落

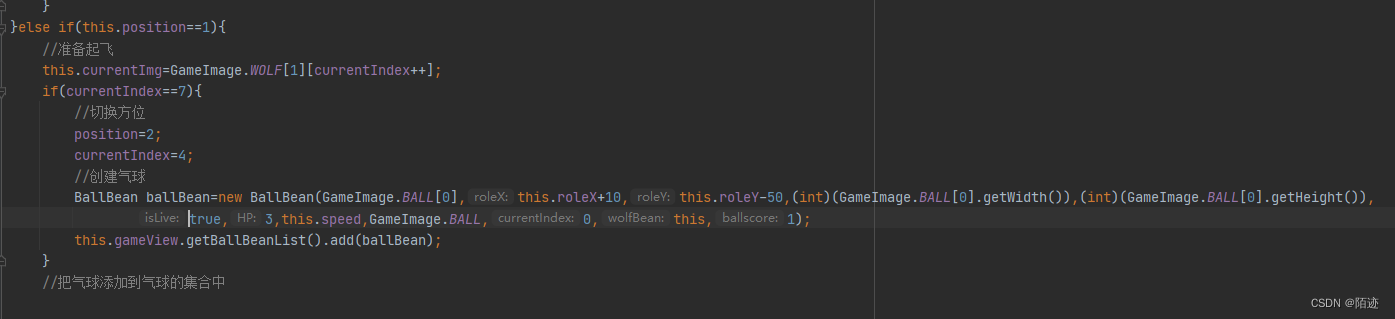

在move函数中通过判断狼坐标、气球HP等控制狼的运动。在准备起飞的时候生成气球（位置稍高于狼的坐标）

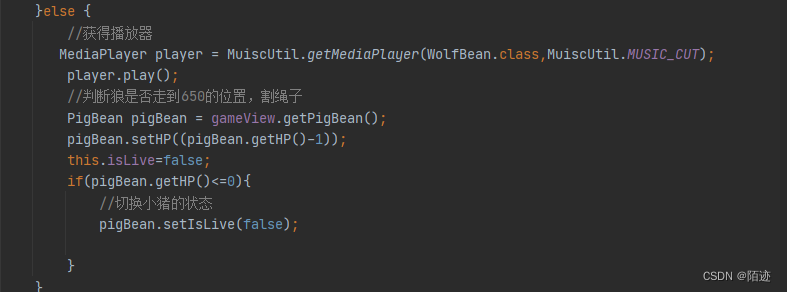

同时也有判断是否进入城堡，扣除小猪血量的检测
在界面中，是通过GameImage的cutimage函数对狼、猪、气球的图片进行分割，然后根据发生的事件通过Rolebean等角色类的处理，更换图片。
其中狼有一个UpPosition属性，这是一个狼选择上升的位置，在界面中初始化这个值为随机的数，如图所示，增加游戏趣味性。
整体逻辑：
当狼向右走（position为1）时，可以是在底部的向右走，也可以是在顶部的向右走，两者的共同点在于都需要进行图片的切换，来实现对应的动画效果，两者的区别在于坐标是否超过了upPosition，如果没超过，需要实时检测是否大于upPosition，这时候就需要切换position为1（准备吹气球起飞）。如果已经超过了，就正常走，当x坐标大于650时，就相当于进入了城堡，就需要减少小猪的hp。
当狼准备吹气球起飞时，也需要切换图片实现动画效果，与此同时，生成一个与狼相对应的气球，当图片切换到第7张时，就进入起飞状态（设置position为2）
当狼在起飞的过程中，需要实时修改狼的y坐标，当到达顶点时（检测roleY是否小于5），狼又向右走（设置position为0）。同时当气球没了，就坠落（position为3），播放坠落的动画和声音。

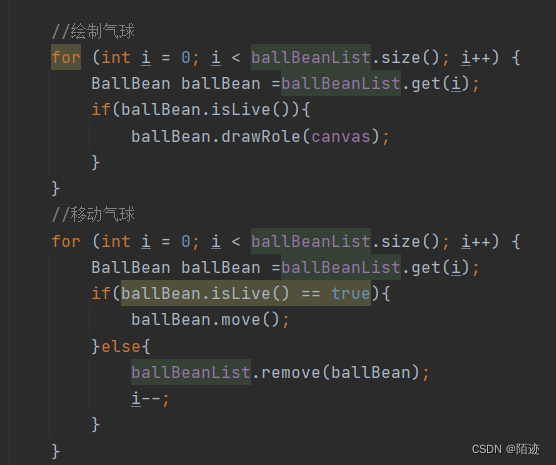

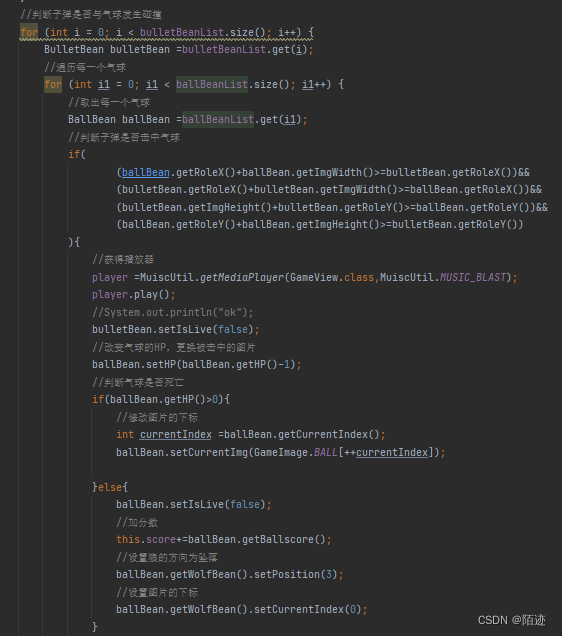

设置坠落的逻辑是在界面中实现的，如下图所示：
3.BulletBean----控制子弹运动和事件
package bean;
import javafx.scene.image.Image;
import util.LovoCanvas;
public class BulletBean extends RoleBean {
//子弹的图片
private Image bulletImg;
public BulletBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, boolean isLive, int HP, int speed, Image bulletImg) {
super(currentImg, roleX, roleY, imgWidth, imgHeight, isLive, HP, speed);
this.bulletImg = bulletImg;
}
@Override
public void move() {
if(this.isLive){
this.roleX-=this.speed;
}
if(this.roleX<=20){
this.isLive=false;
}
}
public void move1() {
if(this.isLive){
this.roleX-=this.speed;
this.roleY+=this.speed-40;
}
if(this.roleX<=20){
this.isLive=false;
}
}
public void move2() {
if(this.isLive){
this.roleX-=this.speed;
this.roleY-=this.speed-40;
}
if(this.roleX<=20){
this.isLive=false;
}
}
@Override
public void drawRole(LovoCanvas canvas) {
//绘制图片
if(this.isLive){
canvas.drawImage(bulletImg,this.roleX,this.roleY);}
}
//绘制图片
}

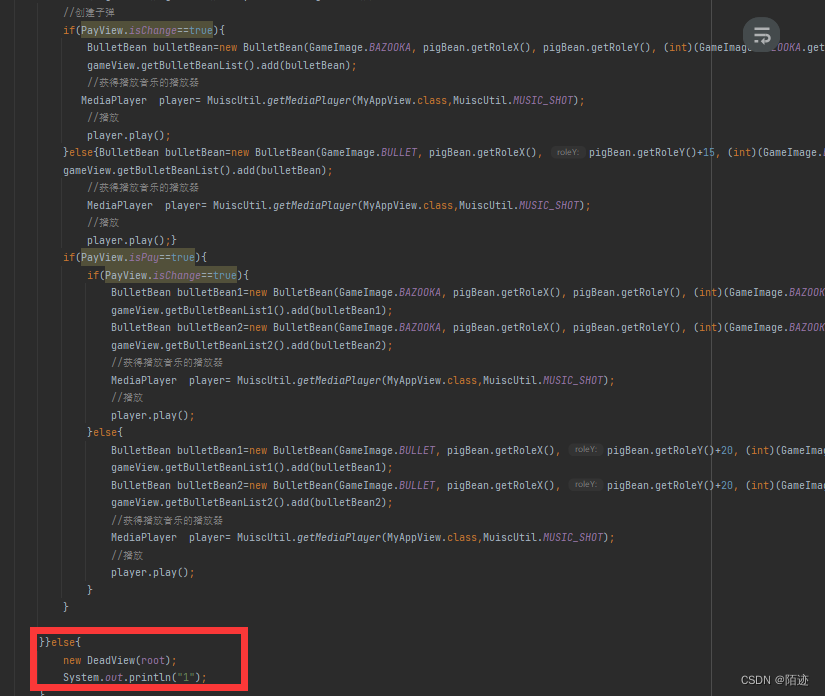

这里子弹有move、move1、move2三种运动方式，因为支付界面中有转化为三连发的操作，需要不同方向的子弹的移动。
4.PigBean----控制小猪运动和事件
package bean;
import javafx.application.Platform;
import javafx.scene.control.Alert;
import javafx.scene.image.Image;
import javafx.scene.layout.BorderPane;
import util.GameImage;
import util.LovoCanvas;
import view.DeadView;
import view.GameView;
import view.WinView;
import java.util.TimerTask;
public class PigBean extends RoleBean {
private Image[] pigImg;
private int currentImgIndex;
private Image cordImg;
private int cordLength;
private boolean ok=true;
//主游戏面板
private GameView gameView;
public PigBean(Image currentImg, double roleX, double roleY, int imgWidth, int imgHeight, boolean isLive, int HP, int speed, Image[] pigImg, int currentImgIndex, Image cordImg, int cordLength,GameView gameView) {
super(currentImg, roleX, roleY, imgWidth, imgHeight, isLive, HP, speed);
this.pigImg = pigImg;
this.currentImgIndex = currentImgIndex;
this.cordImg = cordImg;
this.cordLength = cordLength;
this.gameView=gameView;
}
@Override
public void move() {
}
@Override
public void move1() {
}
@Override
public void move2() {
}
@Override
public void drawRole(LovoCanvas canvas) {
if(this.isLive==true){
//游戏胜利
canvas.drawImage(this.currentImg,this.roleX,this.roleY);
//画左边的绳子
canvas.drawImage(cordImg,700,130,3,cordLength);
//画右边的
canvas.drawImage(cordImg,740,130,3,cordLength);
}else{
if(this.roleY<=480){
this.roleY+=this.speed;
}else{
currentImgIndex=9;
ok=false;
//小猪死亡(在狼那里写了代码)，这里是小猪死亡下坠的过程
this.gameView.setPlay(false);
Platform.runLater(()->{//游戏结束
Alert alert =new Alert(Alert.AlertType.INFORMATION);
alert.setTitle("");
alert.setContentText("your score:"+this.gameView.getScore());
alert.show();
});
}
canvas.drawImage(GameImage.PIG[currentImgIndex++],this.roleX,this.roleY);
if(currentImgIndex==9){
currentImgIndex=0;
}
}
}
public int getCurrentImgIndex() {
return currentImgIndex;
}
public void setCurrentImgIndex(int currentImgIndex) {
this.currentImgIndex = currentImgIndex;
}
public Image getCordImg() {
return cordImg;
}
public void setCordImg(Image cordImg) {
this.cordImg = cordImg;
}
public int getCordLength() {
return cordLength;
}
public void setCordLength(int cordLength) {
this.cordLength = cordLength;
}
public boolean isOk() {
return ok;
}
public void setOk(boolean ok) {
this.ok = ok;
}
}
小猪有一根绳索，在控制小猪移动的时候需要控制绳索的长度变化。同时如同一个气球对应一只狼的逻辑一样，一只小猪对应一个游戏界面GameView，因为涉及到重新开始游戏，需要重新初始化小猪。

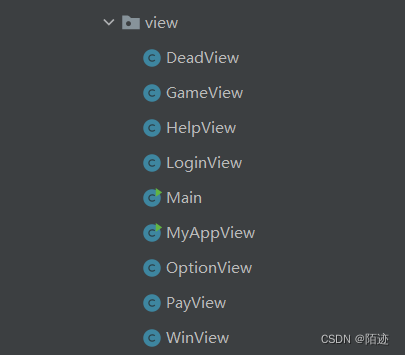

view——界面类（只介绍关键的）
每个界面中都有一个hanle函数，通过匿名内部类实现了对按钮事件的监听，来实现对应的效果。代码示例如下：
1.Main和MyAppView界面--实现舞台初始化和pig主角按键初始化
package view;
import javafx.application.Application;
public class Main {
public static void main(String[] args) {
Application.launch(MyAppView.class);
}
}
package view;
import bean.BulletBean;
import bean.PigBean;
import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.input.KeyCode;
import javafx.scene.layout.BorderPane;
import javafx.scene.media.MediaPlayer;
import javafx.stage.Stage;
import util.GameImage;
import util.MuiscUtil;
public class MyAppView extends Application {
private Scene scene;
private BorderPane root;
@Override
public void start(Stage stage ) throws Exception {
GameImage.loadImages();
root=new BorderPane();
root.setCenter(new LoginView(root));
scene=new Scene(root,800,600);
stage.setScene(scene);
stage.setResizable(false);
this.pigMove();
stage.setTitle("the rich pig");
stage.show();
}
public Scene getScene() {
return scene;
}
protected void pigMove(){
scene.setOnKeyPressed((e)->{
GameView gameView=(GameView) root.getChildren().get(0);
PigBean pigBean = gameView.getPigBean();
if(pigBean.isLive()){
if(e.getCode().getCode()== KeyCode.UP.getCode()){
if(pigBean.getRoleY()>=130){
pigBean.setRoleY(pigBean.getRoleY()-pigBean.getSpeed());
//修改绳子的长度
pigBean.setCordLength((int)(pigBean.getRoleY())-92);
}
}else if(e.getCode().getCode()==KeyCode.DOWN.getCode()){
//修改小猪y坐标
if(pigBean.getRoleY()<=500){
pigBean.setRoleY(pigBean.getRoleY()+pigBean.getSpeed());
pigBean.setCordLength((int)(pigBean.getRoleY())-92);
}
}else if(e.getCode().getCode()==KeyCode.LEFT.getCode()){
//修改小猪y坐标
if(pigBean.getRoleX()>=50){
pigBean.setRoleX(pigBean.getRoleX()-pigBean.getSpeed());}
}else if(e.getCode().getCode()==KeyCode.RIGHT.getCode()){
//修改小猪y坐标
if(pigBean.getRoleX()<=680){
pigBean.setRoleX(pigBean.getRoleX()+pigBean.getSpeed());}
}else if(e.getCode().getCode()==KeyCode.SPACE.getCode()){
//创建子弹
if(PayView.isChange==true){
BulletBean bulletBean=new BulletBean(GameImage.BAZOOKA, pigBean.getRoleX(), pigBean.getRoleY(), (int)(GameImage.BAZOOKA.getWidth()),(int)(GameImage.BAZOOKA.getHeight()),true,0,50,GameImage.BAZOOKA);
gameView.getBulletBeanList().add(bulletBean);
//获得播放音乐的播放器
MediaPlayer player= MuiscUtil.getMediaPlayer(MyAppView.class,MuiscUtil.MUSIC_SHOT);
//播放
player.play();
}else{BulletBean bulletBean=new BulletBean(GameImage.BULLET, pigBean.getRoleX(), pigBean.getRoleY()+15, (int)(GameImage.BULLET.getWidth()),(int)(GameImage.BULLET.getHeight()),true,0,50,GameImage.BULLET);
gameView.getBulletBeanList().add(bulletBean);
//获得播放音乐的播放器
MediaPlayer player= MuiscUtil.getMediaPlayer(MyAppView.class,MuiscUtil.MUSIC_SHOT);
//播放
player.play();}
if(PayView.isPay==true){
if(PayView.isChange==true){
BulletBean bulletBean1=new BulletBean(GameImage.BAZOOKA, pigBean.getRoleX(), pigBean.getRoleY(), (int)(GameImage.BAZOOKA.getWidth()),(int)(GameImage.BAZOOKA.getHeight()),true,0,50,GameImage.BAZOOKA);
gameView.getBulletBeanList1().add(bulletBean1);
BulletBean bulletBean2=new BulletBean(GameImage.BAZOOKA, pigBean.getRoleX(), pigBean.getRoleY(), (int)(GameImage.BAZOOKA.getWidth()),(int)(GameImage.BAZOOKA.getHeight()),true,0,50,GameImage.BAZOOKA);
gameView.getBulletBeanList2().add(bulletBean2);
//获得播放音乐的播放器
MediaPlayer player= MuiscUtil.getMediaPlayer(MyAppView.class,MuiscUtil.MUSIC_SHOT);
//播放
player.play();
}else{
BulletBean bulletBean1=new BulletBean(GameImage.BULLET, pigBean.getRoleX(), pigBean.getRoleY()+20, (int)(GameImage.BULLET.getWidth()),(int)(GameImage.BULLET.getHeight()),true,0,50,GameImage.BULLET);
gameView.getBulletBeanList1().add(bulletBean1);
BulletBean bulletBean2=new BulletBean(GameImage.BULLET, pigBean.getRoleX(), pigBean.getRoleY()+20, (int)(GameImage.BULLET.getWidth()),(int)(GameImage.BULLET.getHeight()),true,0,50,GameImage.BULLET);
gameView.getBulletBeanList2().add(bulletBean2);
//获得播放音乐的播放器
MediaPlayer player= MuiscUtil.getMediaPlayer(MyAppView.class,MuiscUtil.MUSIC_SHOT);
//播放
player.play();
}
}
}}else{
new DeadView(root);
System.out.println("1");
}
});
}
}
小猪的具体逻辑有：上下方向键控制上下移动，同时要跟着绘制绳索。同时要判断是否使用了“外挂”，根据isChange和isPay会控制子弹的样式和数量。
2.GameView---多线程实现游戏进程控制
package view;
import bean.BallBean;
import bean.BulletBean;
import bean.PigBean;
import bean.WolfBean;
import javafx.application.Platform;
import javafx.scene.Scene;
import javafx.scene.control.Alert;
import javafx.scene.image.Image;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.Pane;
import javafx.scene.media.MediaPlayer;
import javafx.scene.paint.Color;
import javafx.scene.text.Font;
import util.GameImage;
import util.LovoCanvas;
import util.LovoImage;
import util.MuiscUtil;
import java.util.ArrayList;
import java.util.List;
public class GameView extends Pane implements Runnable{
private BorderPane root;
private Image gameImg;
private LovoCanvas canvas;
private PigBean pigBean;
private List<BulletBean> bulletBeanList=new ArrayList<>();
//加强版子弹
private List<BulletBean> bulletBeanList1=new ArrayList<>();
private List<BulletBean> bulletBeanList2=new ArrayList<>();
//狼
private List<WolfBean> wolfBeanList=new ArrayList<>();
//产生狼的计时器
private int createWolfTime=0;
//充值进入界面
protected LovoImage payEnterImg;
LovoImage BACK1Img;
//气球的集合
private List<BallBean> ballBeanList=new ArrayList<>();
private int score;
private boolean isPlay=true;
private MediaPlayer player;
public GameView(BorderPane root){
player= MuiscUtil.getMediaPlayer(GameView.class,MuiscUtil.MUSIC_START);
player.play();
this.root=root;
canvas=new LovoCanvas(0,0,800,600,this);
pigBean=new PigBean(GameImage.PIG[0],680,130,(int)(GameImage.PIG[0].getWidth()),(int)(GameImage.PIG[0].getHeight()),true,3,30,GameImage.PIG,0,GameImage.CORD,0,this);
payEnterImg = new LovoImage(GameImage.payEnter,0,300,10,10,this);
BACK1Img=new LovoImage(GameImage.BACK1,700,20,10,10,this);
this.handle();
root.setCenter(this);
//启动线程
new Thread(this).start();
}
private void handle(){
root.setOnMouseClicked((e)->{
if(pigBean.isOk()==false){
this.setPlay(false);
new DeadView(root);
}
});
BACK1Img.setOnMouseClicked((e)->{
this.setPlay(false);
new LoginView(root);
});
payEnterImg.setOnMouseClicked((e)->{
this.setPlay(false);
new PayView(root);
});
}
@Override
//运行游戏的线程
public void run() {
while (isPlay) {
if(this.getScore()==50){
this.setPlay(false);
Platform.runLater(()->{
Alert alert =new Alert(Alert.AlertType.INFORMATION);
alert.setTitle("");
alert.setContentText("you win");
alert.show();
new WinView(root);
}
);
}

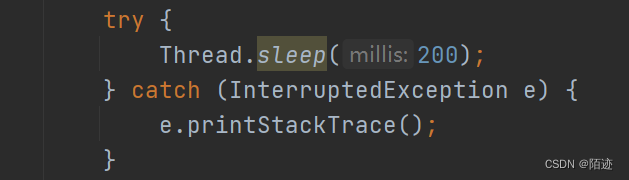

try {
Thread.sleep(200);
} catch (InterruptedException e) {
e.printStackTrace();
}
//清理画布
canvas.clearRect(0, 0, 800, 600);
//重绘游戏界面
canvas.drawImage(GameImage.BACKGROUND, 0, 0);
canvas.drawImage(GameImage.FRUIT, 0, 50);
canvas.getGraphicsContext2D().setFill(Color.RED);
canvas.getGraphicsContext2D().setFont(new Font("黑体", 40));
//画生命值
canvas.fillText("X1", 75, 100);
//重绘小猪
pigBean.drawRole(canvas);
//画分数
canvas.fillText(score+"",135,45);
//修改计时器
createWolfTime++;
//每一秒创建一个狼
if(createWolfTime%5==0){
createWolfTime=0;
//新建狼
WolfBean wolfBean =new WolfBean(GameImage.WOLF[0][0],-125,475,
(int)(GameImage.WOLF[0][0].getWidth()),(int)(GameImage.WOLF[0][0].getHeight()),
true,1,20,GameImage.WOLF,0,0, (int) (60+Math.floor(Math.random()*440)),this);
wolfBeanList.add(wolfBean);
//获得播放器
player =MuiscUtil.getMediaPlayer(GameView.class,MuiscUtil.MUSIC_WOLF);
player.play();
}
//加入狼的集合和绘制狼
for (int i = 0; i < wolfBeanList.size(); i++) {
WolfBean wolfBean1=wolfBeanList.get(i);
if(wolfBean1.isLive()==true){
wolfBean1.drawRole(canvas);
}else{
wolfBeanList.remove(wolfBean1);
}
}
//狼移动
for (int i = 0; i < wolfBeanList.size(); i++) {
WolfBean wolfBean1=wolfBeanList.get(i);
if(wolfBean1.isLive()==true){
wolfBean1.move();
}else{
wolfBeanList.remove(wolfBean1);
}
}
//绘制气球
for (int i = 0; i < ballBeanList.size(); i++) {
BallBean ballBean =ballBeanList.get(i);
if(ballBean.isLive()){
ballBean.drawRole(canvas);
}
}
//移动气球
for (int i = 0; i < ballBeanList.size(); i++) {
BallBean ballBean =ballBeanList.get(i);
if(ballBean.isLive() == true){
ballBean.move();
}else{
ballBeanList.remove(ballBean);
i--;
}
}
//判断子弹是否与气球发生碰撞
for (int i = 0; i < bulletBeanList.size(); i++) {
BulletBean bulletBean =bulletBeanList.get(i);
//遍历每一个气球
for (int i1 = 0; i1 < ballBeanList.size(); i1++) {
//取出每一个气球
BallBean ballBean =ballBeanList.get(i1);
//判断子弹是否击中气球
if(
(ballBean.getRoleX()+ballBean.getImgWidth()>=bulletBean.getRoleX())&&
(bulletBean.getRoleX()+bulletBean.getImgWidth()>=ballBean.getRoleX())&&
(bulletBean.getImgHeight()+bulletBean.getRoleY()>=ballBean.getRoleY())&&
(ballBean.getRoleY()+ballBean.getImgHeight()>=bulletBean.getRoleY())
){
//获得播放器
player =MuiscUtil.getMediaPlayer(GameView.class,MuiscUtil.MUSIC_BLAST);
player.play();
//System.out.println("ok");
bulletBean.setIsLive(false);
//改变气球的HP，更换被击中的图片
ballBean.setHP(ballBean.getHP()-1);
//判断气球是否死亡
if(ballBean.getHP()>0){
//修改图片的下标
int currentIndex =ballBean.getCurrentIndex();
ballBean.setCurrentImg(GameImage.BALL[++currentIndex]);
}else{
ballBean.setIsLive(false);
//加分数
this.score+=ballBean.getBallscore();
//设置狼的方向为坠落
ballBean.getWolfBean().setPosition(3);
//设置图片的下标
ballBean.getWolfBean().setCurrentIndex(0);
}
}
}
}
for (int i = 0; i < bulletBeanList1.size(); i++) {
BulletBean bulletBean =bulletBeanList1.get(i);
//遍历每一个气球
for (int i1 = 0; i1 < ballBeanList.size(); i1++) {
//取出每一个气球
BallBean ballBean =ballBeanList.get(i1);
//判断子弹是否击中气球
if(
(ballBean.getRoleX()+ballBean.getImgWidth()>=bulletBean.getRoleX())&&
(bulletBean.getRoleX()+bulletBean.getImgWidth()>=ballBean.getRoleX())&&
(bulletBean.getImgHeight()+bulletBean.getRoleY()>=ballBean.getRoleY())&&
(ballBean.getRoleY()+ballBean.getImgHeight()>=bulletBean.getRoleY())
){
//获得播放器
player =MuiscUtil.getMediaPlayer(GameView.class,MuiscUtil.MUSIC_BLAST);
player.play();
//System.out.println("ok");
bulletBean.setIsLive(false);
//改变气球的HP，更换被击中的图片
ballBean.setHP(ballBean.getHP()-1);
//判断气球是否死亡
if(ballBean.getHP()>0){
//修改图片的下标
int currentIndex =ballBean.getCurrentIndex();
ballBean.setCurrentImg(GameImage.BALL[++currentIndex]);
}else{
ballBean.setIsLive(false);
//加分数
this.score+=ballBean.getBallscore();
//设置狼的方向为坠落
ballBean.getWolfBean().setPosition(3);
//设置图片的下标
ballBean.getWolfBean().setCurrentIndex(0);
}
}
}
}
for (int i = 0; i < bulletBeanList2.size(); i++) {
BulletBean bulletBean =bulletBeanList2.get(i);
//遍历每一个气球
for (int i1 = 0; i1 < ballBeanList.size(); i1++) {
//取出每一个气球
BallBean ballBean =ballBeanList.get(i1);
//判断子弹是否击中气球
if(
(ballBean.getRoleX()+ballBean.getImgWidth()>=bulletBean.getRoleX())&&
(bulletBean.getRoleX()+bulletBean.getImgWidth()>=ballBean.getRoleX())&&
(bulletBean.getImgHeight()+bulletBean.getRoleY()>=ballBean.getRoleY())&&
(ballBean.getRoleY()+ballBean.getImgHeight()>=bulletBean.getRoleY())
){
//获得播放器
player =MuiscUtil.getMediaPlayer(GameView.class,MuiscUtil.MUSIC_BLAST);
player.play();
//System.out.println("ok");
bulletBean.setIsLive(false);
//改变气球的HP，更换被击中的图片
ballBean.setHP(ballBean.getHP()-1);
//判断气球是否死亡
if(ballBean.getHP()>0){
//修改图片的下标
int currentIndex =ballBean.getCurrentIndex();
ballBean.setCurrentImg(GameImage.BALL[++currentIndex]);
}else{
ballBean.setIsLive(false);
//加分数
this.score+=ballBean.getBallscore();
//设置狼的方向为坠落
ballBean.getWolfBean().setPosition(3);
//设置图片的下标
ballBean.getWolfBean().setCurrentIndex(0);
}
}
}
}
//绘制子弹
for (int i = 0; i < bulletBeanList.size(); i++) {
//取出每颗子弹
BulletBean bulletBean = bulletBeanList.get(i);
if (bulletBean.isLive() == true) {
bulletBean.drawRole(canvas);
} else {
bulletBeanList.remove(bulletBean);
i--;
}
}
for (int i = 0; i < bulletBeanList.size(); i++) {
//取出每颗子弹
BulletBean bulletBean = bulletBeanList.get(i);
if (bulletBean.isLive() == true) {
bulletBean.move();
} else {
bulletBeanList.remove(bulletBean);
i--;
}
}
for (int i = 0; i < bulletBeanList1.size(); i++) {
//取出每颗子弹
BulletBean bulletBean = bulletBeanList1.get(i);
if (bulletBean.isLive() == true) {
bulletBean.drawRole(canvas);
} else {
bulletBeanList1.remove(bulletBean);
i--;
}
}
for (int i = 0; i < bulletBeanList1.size(); i++) {
//取出每颗子弹,让他运动
BulletBean bulletBean = bulletBeanList1.get(i);
if (bulletBean.isLive() == true) {
bulletBean.move1();
} else {
bulletBeanList1.remove(bulletBean);
i--;
}
}
for (int i = 0; i < bulletBeanList2.size(); i++) {
//取出每颗子弹
BulletBean bulletBean = bulletBeanList2.get(i);
if (bulletBean.isLive() == true) {
bulletBean.drawRole(canvas);
} else {
bulletBeanList2.remove(bulletBean);
i--;
}
}
for (int i = 0; i < bulletBeanList2.size(); i++) {
//取出每颗子弹
BulletBean bulletBean = bulletBeanList2.get(i);
if (bulletBean.isLive() == true) {
bulletBean.move2();
} else {
bulletBeanList2.remove(bulletBean);
i--;
}
}
}
}
public PigBean getPigBean() {
return pigBean;
}
public LovoCanvas getCanvas() {
return canvas;
}
public List<BulletBean> getBulletBeanList() {
return bulletBeanList;
}
public BorderPane getRoot() {
return root;
}
public Image getGameImg() {
return gameImg;
}
public List<BulletBean> getBulletBeanList1() {
return bulletBeanList1;
}
public List<BulletBean> getBulletBeanList2() {
return bulletBeanList2;
}
public List<BallBean> getBallBeanList() {
return ballBeanList;
}
public int getScore() {
return score;
}
public boolean isPlay() {
return isPlay;
}
public void setPlay(boolean play) {
isPlay = play;
}
public void setScore(int score) {
this.score = score;
}
}
GameView继承Runnable 通过run函数开始游戏进程，在我的理解中，多进程，相当于增加了一个实时监听。相当于unity游戏引擎中的update函数（每一帧运行一次）。
因此，能在其中创建一个计时器，在run函数中sleep的时间是200ms,每次运行createWolfTime++;当%5=0时就新生成一只恶狼，这样就实现了每一秒生成一只恶狼，代码如下图所示：
同时建立了存储狼、气球、子弹的arraylist（可变大小数组）---bulletBeanList、wolfBeanList、ballBeanList，在线程中通过遍历数组进行类似于绘制、移动的操作，代码示例如下：
同时需要检测子弹是否撞击到了气球
java控制坐标是从左上角（0,0）开始,图片的坐标也是基于左上角进行移动，判断的逻辑如下图：
判断的代码如下图：
3.PayView---进行子弹的升级
package view;
import bean.PigBean;
import javafx.scene.image.Image;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.Pane;
import util.GameImage;
import util.LovoCanvas;
import util.LovoImage;
public class PayView extends Pane {
protected static boolean isPay;
protected static boolean isChange;
private BorderPane root;
private LovoImage payMentImg;
private LovoImage BACK1Img;
private LovoImage changeImg;
private LovoImage threeBurstsImg;
public PayView(BorderPane root) {
this.root = root;
payMentImg = new LovoImage(GameImage.payMent, 0, -100, 824, 846, this);
BACK1Img=new LovoImage(GameImage.BACK1,600,550,10,10,this);
changeImg=new LovoImage(GameImage.CHANGE,380,120,157,28,this);
threeBurstsImg=new LovoImage(GameImage.THREEBURSTS,350,450,110,222,this);
this.handle();
root.setCenter(this);
}
public void handle(){
BACK1Img.setOnMouseClicked((e)->{
new GameView(root);
});
changeImg.setOnMouseClicked((e)->{
isChange=true;
});
threeBurstsImg.setOnMouseClicked((e)->{
isPay=true;
});
}
public BorderPane getRoot() {
return root;
}
public void setRoot(BorderPane root) {
this.root = root;
}
public LovoImage getPayMentImg() {
return payMentImg;
}
public void setPayMentImg(LovoImage payMentImg) {
this.payMentImg = payMentImg;
}
public LovoImage getBACK1Img() {
return BACK1Img;
}
public void setBACK1Img(LovoImage BACK1Img) {
this.BACK1Img = BACK1Img;
}
public static boolean isIsPay() {
return isPay;
}
public static void setIsPay(boolean isPay) {
PayView.isPay = isPay;
}
public static boolean isIsChange() {
return isChange;
}
public static void setIsChange(boolean isChange) {
PayView.isChange = isChange;
}
}主要就是检测两个按钮是否按下，然后传递isPay和isChange两个全局参数，在MyAppview中的pigmove函数中判断是否更新子弹
4.DeadView--失败界面
package view;
import bean.PigBean;
import javafx.scene.Node;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.Pane;
import util.GameImage;
import util.LovoImage;
public class DeadView extends Pane {
private BorderPane root;
private LovoImage BACK1Img;
private LovoImage deadImg;
private LovoImage againImg;
public DeadView(BorderPane root){
this.root =root;
deadImg=new LovoImage(GameImage.DEAD,0,0,800,600,this);
BACK1Img=new LovoImage(GameImage.BACK1,600,550,10,10,this);
againImg=new LovoImage(GameImage.AGAIN,600,250,10,10,this);
this.handle();
root.setCenter(this);
}
public void handle(){
BACK1Img.setOnMouseClicked((e)->{
new LoginView(root);
});
againImg.setOnMouseClicked((e)->{
new GameView(root);
});
}
public DeadView() {
}
public DeadView(Node... nodes) {
super(nodes);
}
}
在MyAppView中的pigmove函数中会检测是否小猪死亡，然后会进入DeadView界面，代码如下图所示：
5.WinView --成功界面
package view;
import javafx.scene.Node;
import javafx.scene.image.Image;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.Pane;
import util.GameImage;
import util.LovoImage;
public class WinView extends Pane {
private BorderPane root;
private LovoImage winImg;
private LovoImage BACK1Img;
public WinView(BorderPane root){
this.root =root;
winImg=new LovoImage(GameImage.PAIHANG,-180,0,800,600,this);
BACK1Img=new LovoImage(GameImage.BACK1,600,550,10,10,this);
this.handle();
root.setCenter(this);
}
public void handle(){
BACK1Img.setOnMouseClicked((e)->{
new LoginView(root);
});}
public BorderPane getRoot() {
return root;
}
public void setRoot(BorderPane root) {
this.root = root;
}
public LovoImage getWinImg() {
return winImg;
}
public void setWinImg(LovoImage winImg) {
this.winImg = winImg;
}
public LovoImage getBACK1Img() {
return BACK1Img;
}
public void setBACK1Img(LovoImage BACK1Img) {
this.BACK1Img = BACK1Img;
}
public WinView(Node... nodes) {
super(nodes);
}
}
在GameView中触发这个条件的时候，就会进入WinView，如下图所示：
补： javaFX画面设置（容器大小---从大到小） 舞台->场景->面板->面板元素，代码就是根据这个控制画面元素的。
资源分享
源码和运行文件
链接：https://pan.baidu.com/s/1-RAaRcc_PYJ2jMoSzvVTew?pwd=alsw
提取码：alsw
同类型文章：
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
