Matlab绘制万有特性图

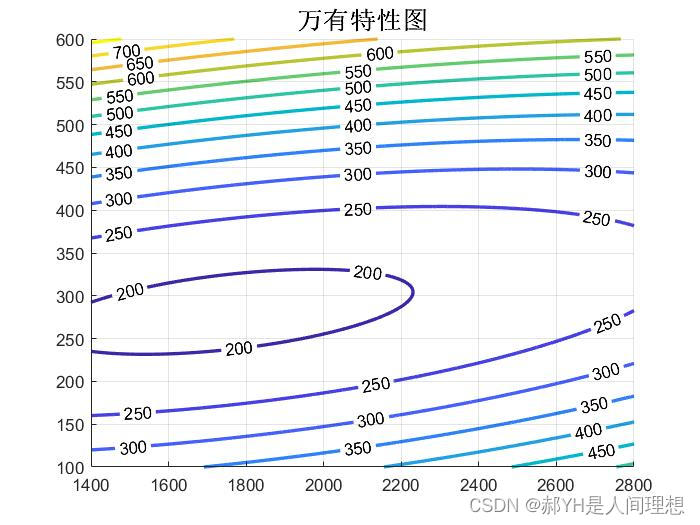

学车辆工程的朋友可能用得着，运行后即可得到文末的图片。

be1=[222.8,220.4,232.4,228.5,227.8,232.6,248.5,245.9,272.4,329.7];
Ttq1=[399.8,354.1,318.5,278.1,236.2,203.6,185.3,157.2,117.2,80.8];
T1=80:320/9:400;%转换矩阵格式
Be1=interp1(Ttq1,be1,T1,'spline');%n=1400r/min时,采用一维三次样条插值处理
be2=[222.0,221.7,235.4,226.5,230.5,236.8,249.1,276.1,407.9,487.0];
Ttq2=[409.1,365.7,328.3,284.1,243.7,203.2,164.3,123.9,83.5,39.7];
T2=39:371/9:410;
Be2=interp1(Ttq2,be2,T2,'spline');
be3=[226.0,225.3,226.4,233.9,242.1,283.3,253.9,271.4,323.5,468.6];
Ttq3=[408.3,368.3,328.3,289.0,244.4,208.8,167.7,132.1,89.5,46.1];
T3=46:363/9:409;
Be3=interp1(Ttq3,be3,T3,'spline');
be4=[206.5,231.1,231.1,233.0,242.0,244.9,265.0,299.8,398.0,596.8];
Ttq4=[425.6,380.3,332.7,290.9,244.4,205.1,160.2,114.5,68.8,30.7];
T4=30:396/9:426;
Be4=interp1(Ttq4,be4,T4,'spline');
be5=[234.7,259.8,235.5,237.6,242.8,292.3,277.9,308.7,396.2,605.9];
Ttq5=[420.7,379.6,334.6,291.6,244.4,202.8,157.5,116.0,74.1,37.8];
T5=37:384/9:421;
Be5=interp1(Ttq5,be5,T5,'spline');
be6=[174.2,242.2,252.1,287.4,253.6,263.6,290.6,316.8,378.0,518.8];
Ttq6=[404.6,360.5,322.7,283.0,243.3,205.5,162.1,124.7,86.8,52.4];
T6=52:353/9:405;
Be6=interp1(Ttq6,be6,T6,'spline');
be7=[256.9,253.7,253.5,260.0,303.8,280.7,300.6,346.6,435.6,812.9];
Ttq7=[378.0,344.7,310.3,264.3,226.1,186.8,154.2,115.3,76.3,34.1];
T7=34:344/9:378;
Be7=interp1(Ttq7,be7,T7,'spline');
be8=[257.9,295.3,282.4,288.7,301.9,329.7,357.0,475.4,580.3,1080.1];
Ttq8=[315.6,275.5,242.5,210.3,178.5,145.6,118.6,72.6,52.8,22.4];
T8=22:294/9:316;
Be8=interp1(Ttq8,be8,T8,'spline');
B=[Be1';Be2';Be3';Be4';Be5';Be6';Be7';Be8'];
N=[1400*ones(10,1);1600*ones(10,1);1800*ones(10,1);2000*ones(10,1);2200*ones(10,1);2400*ones(10,1);2600*ones(10,1);2800*ones(10,1)];
Ttqn=[T1';T2';T3';T4';T5';T6';T7';T8'];
G=[ones(80,1),N,Ttqn,N.^2,N.*Ttqn,Ttqn.^2];
A=G\B;%A为6*1矩阵

[n,Ttq]=meshgrid(1400:2800,100:600);%生成n-Ttq平面上的自变量“格点”矩阵
be=A(1)+n.*A(2)++Ttq*A(3)+n.^2*A(4)+n.*Ttq*A(5)+Ttq.^2*A(6);
Pe=Ttq.*n/9550;

figure1 = figure;
axes1 = axes('Parent',figure1);
hold(axes1,'on');

[c1,h1] = contour(n,Ttq,be,'LineWidth',2);
clabel(c1,h1);
set(gca,'Box','off');
% 创建 title
title('万有特性图','FontWeight','bold','FontSize',15);

axis(axes1,'tight');
hold(axes1,'off');
% 设置其余坐标区属性
set(axes1,'BoxStyle','full','GridAlpha',0.1,'GridColor',[0 0 0],'Layer',...
    'top','MinorGridAlpha',0.15,'XGrid','on','YGrid','on');
