【说明】
本次升级git分支为1.4
由于框架搭建在三年前，很多依赖已经比较老了，为了提高系统安全及新功能的使用，故将整体架构进行升级。
部分代码可能涉及方法过期和不可用，权衡后进行升级。
因为是最新版的依赖，依赖本身可能存在bug
【注意】
1、java版本最低17（我装的17，>17版本可以自己试试，环境变量要配好）
2、nacos可升级到最新版2.2.3
3、maven可升级3.9.3
4、升级后必须进行全面的测试
一、POM依赖升级

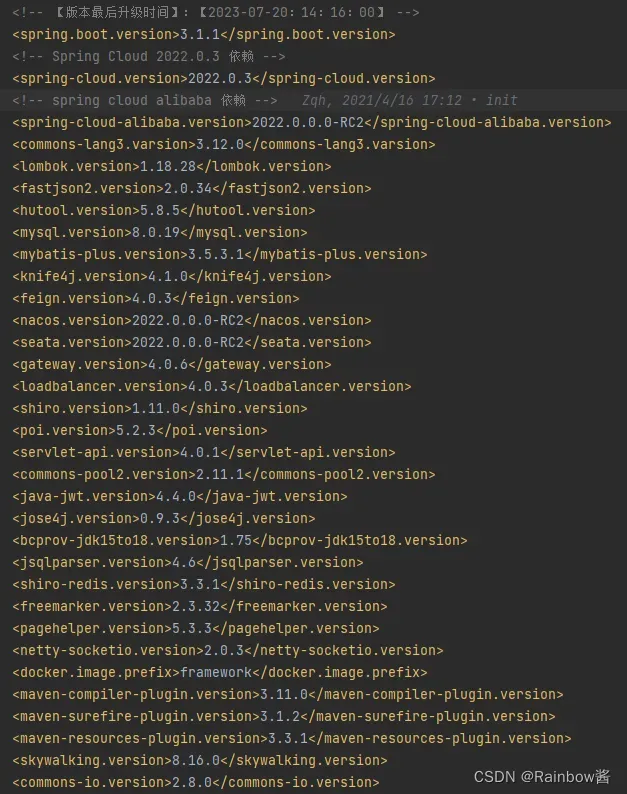

pom.xml
截至2023-07-20：14：16：00更新maven仓库最新版本如下：

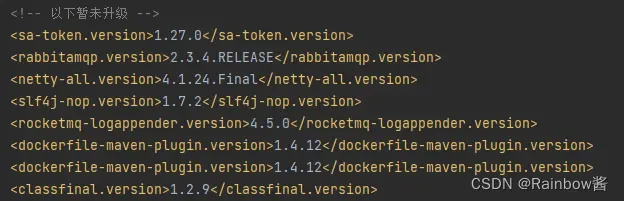

部分版本暂未升级，根据需要自行升级
版本升级冲突问题暂未解决，有空再升级
二、JAR命令切换nacos
使用jar命令运行，可根据需要替换nacos配置信息，切换服务器时不再重新打包

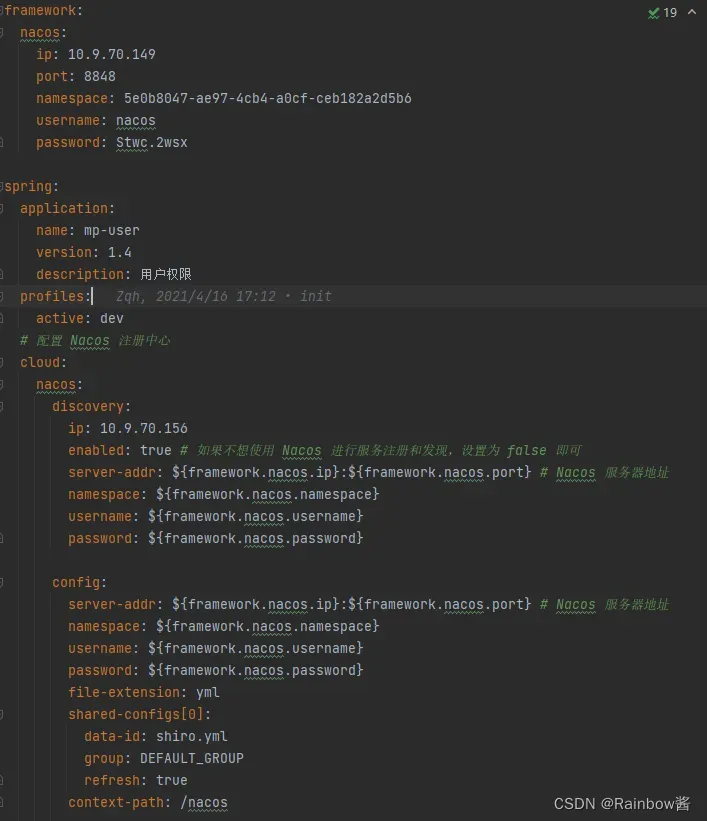

bootstrap.yml
将bootstrap.yml文件和JAR包放在同一目录下，运行下列命令，覆盖jar内的bootsrap.yml
java -Dfile.encoding=utf-8 -jar mp-user.jar --spring.config.location=bootstrap.yml

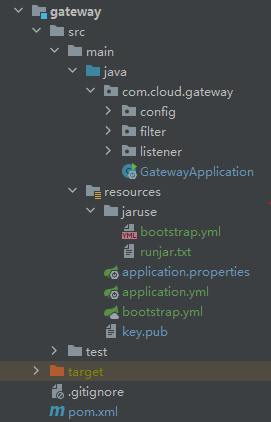

相应文件放在resourse/jaruse下
三、网关换为gateway
网关不再使用zuul模块，更改为gateway模块
配置文件更改
application-url.yml
whitelist:
urlset:
/api-docs,
/getTenantInfoVoListByPo,
/checkToken,
/getUserInfo,
/byLoginName,
/getTicket,
/checkInfo,
/checkTicket,
/login,
/doLogin,
/logout,
/error,
/unauthorized,
/getPermission,
/addWeldTestData,
/sso
fileset:
css,
js,
ico,
jpg,
png
server:
port: 8801
spring:
application:
name: gateway
cloud:
gateway:
discovery:
locator:
enabled: true # 让gateway可以发现nacos中的服务
#服务名小写
lower-case-service-id: true
# 配置跨域
globalcors:
cors-configurations:
'[/**]':
allowedOrigins: "*"
allowedMethods:
- GET
- POST
knife4j:
gateway:
enabled: true
strategy: discover
discover:
version: openapi3
enabled: true
excluded-services:
- gateway
gateway-router（未启用）
[{
"id": "auth",
"order": 0,
"predicates": [{
"args": {
"pattern": "/apiauth/**"
},
"name": "Path"
}],
"uri": "lb://auth"
},{
"id": "mp-user",
"order": 2,
"predicates": [{
"args": {
"pattern": "/mpuser/**"
},
"name": "Path"
}],
"uri": "lb://mp-user"
}]
【注意】
通过网关访问其他服务时，添加路由，名称为nacos服务名称
如：访问mp-user服务时，http://10.9.70.156:8801/mp-user/user/getUserVoPageListByDto
四、swagger2升级到knife4j-openapi3
注解进行全局替换，如下：
| swagger2 | OpenAPI | 注解位置 |
|---|---|---|
| @Api | @Tag(name = “接口类名”,description = “接口类描述”) | Controller 类上 |
| @ApiOperation | @Operation(summary =“接口方法描述”) | Controller 方法上 |
| @ApiImplicitParams | @Parameters | Controller 方法上 |
| @ApiImplicitParam | @Parameter(description=“参数描述”) | Controller 方法上 @Parameters 里 |
| @ApiParam | @Parameter(description=“参数描述”) | Controller 方法的参数上 |
| @ApiIgnore | @Parameter(hidden = true) 或 @Operation(hidden = true) 或 @Hidden | |
| @ApiModel | @Schema | DTO类上 |
| @ApiModelProperty | @Schema | DTO属性上 |

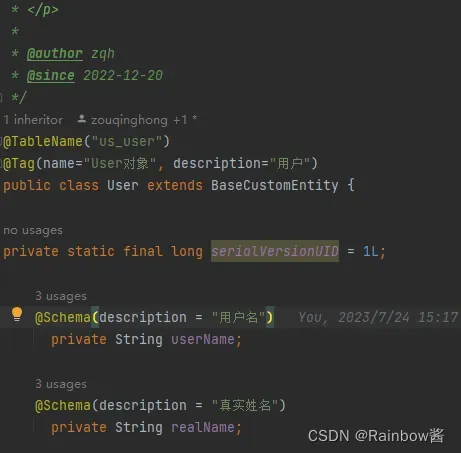

Entity类

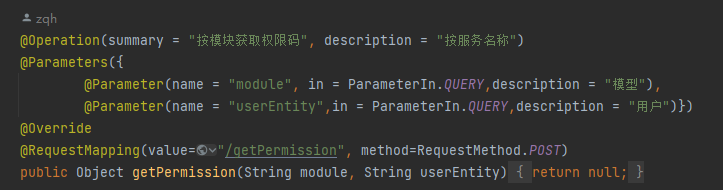

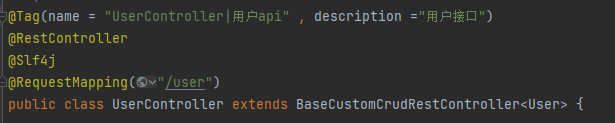

Controller类

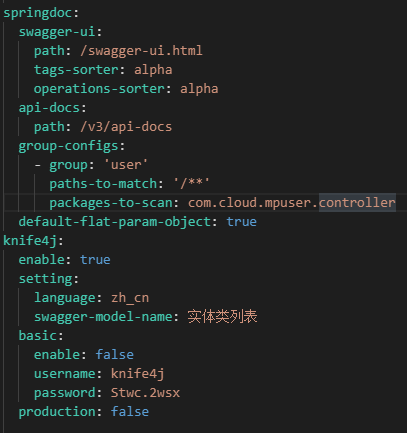

在nacos配置文件中添加配置swagger
springdoc:
swagger-ui:
path: /swagger-ui.html
tags-sorter: alpha
operations-sorter: alpha
api-docs:
path: /v3/api-docs
group-configs:
- group: 'user'
paths-to-match: '/**'
packages-to-scan: com.cloud.mpuser.controller
default-flat-param-object: true
knife4j:
enable: true
setting:
language: zh_cn
swagger-model-name: 实体类列表
basic:
enable: false
username: knife4j
password: 125487
production: false

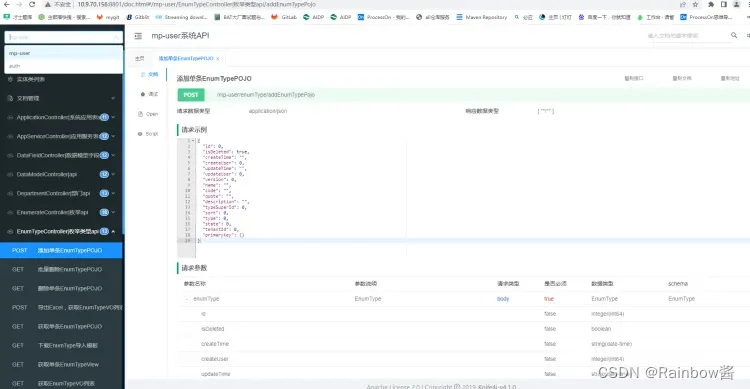

访问

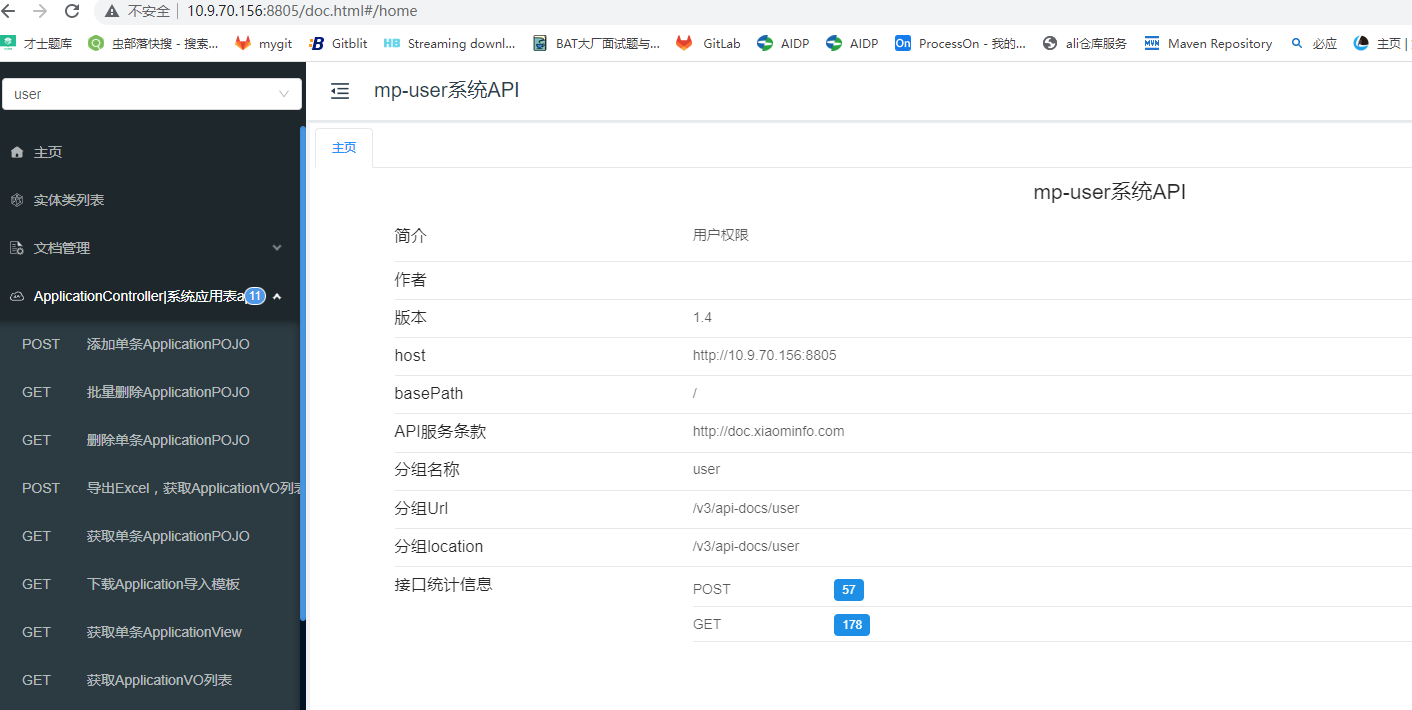

通过gateway网关访问所有服务的swagger页面
http://10.9.70.156:8801/doc.html
单独访问的两种
http://10.9.70.156:8805/doc.html

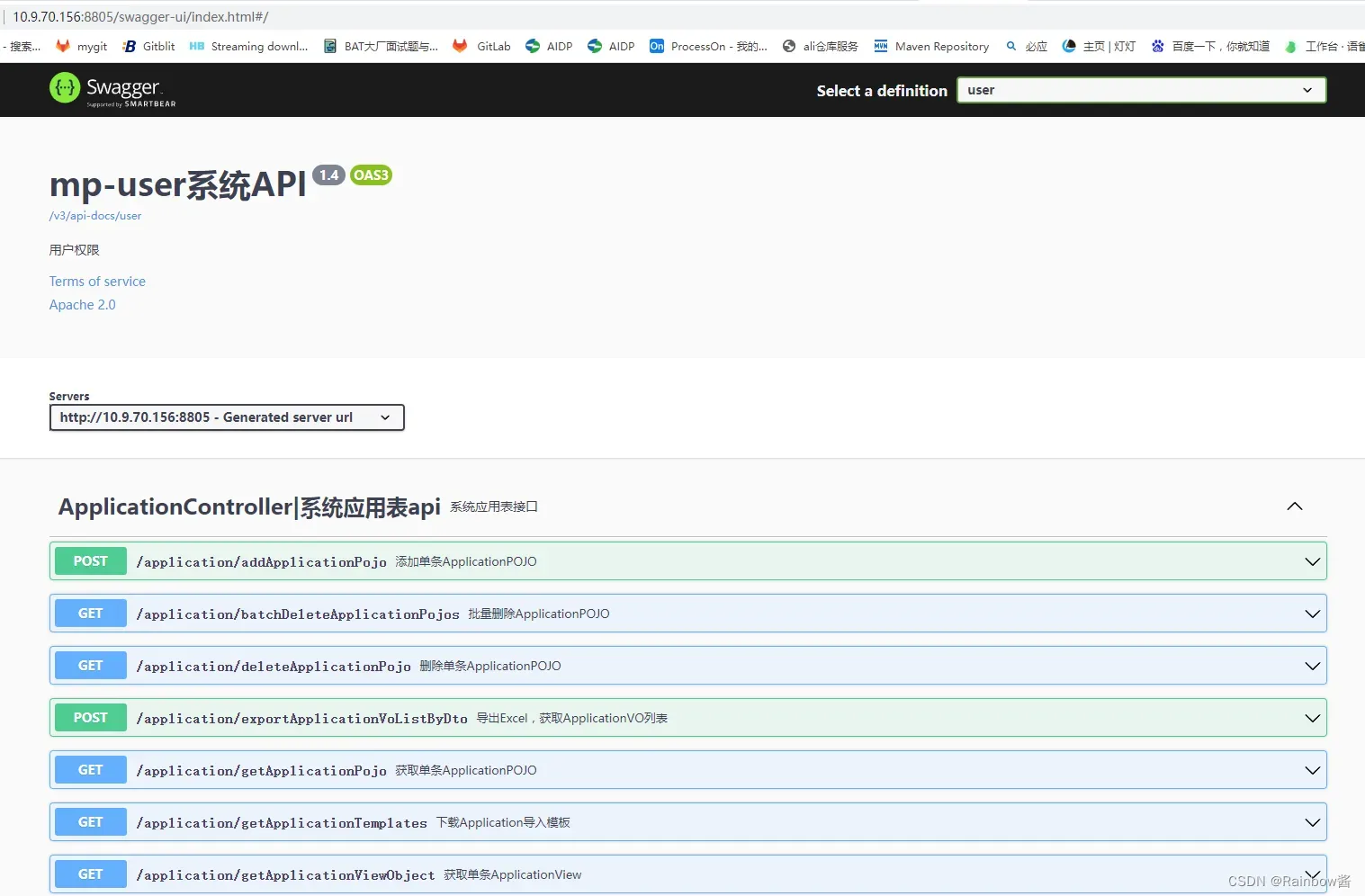

http://10.9.70.156:8805/swagger-ui/index.html#/
五、fastjson完全替换为fastjson2

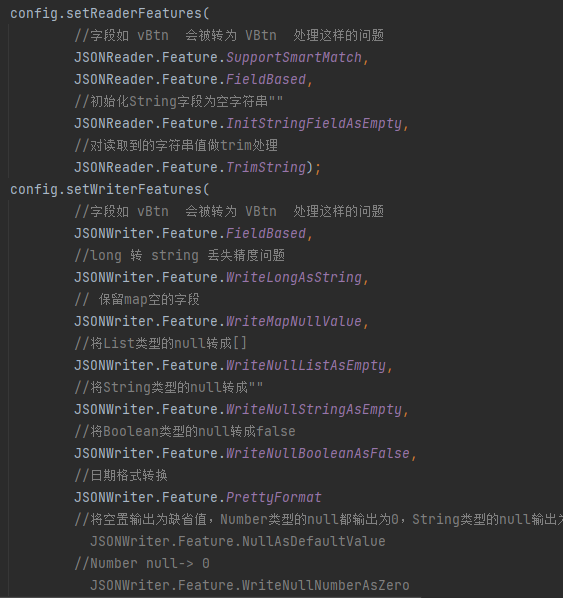

序列化统一处理
据网上资料表明，fastjson2比fastjon更安全，更高速，建议替换
jackson除部分依赖包中依赖，不再使用jackson，注意版本升级问题
六、mp核心包升级
两个版本同时存在
老版本不影响使用
新版本
- @ServerFieldBinder暂不支持，后续升级
- 部分方法有变更，选择合适的方法
- 支持mybatis plus 批量插入功能
根据最新版core包进行扩展，支持的新功能查看文档
起步简介
Mybatis plus问题
暂时解决方案：
<!-- mybatis plus -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<exclusions>
<exclusion>
<groupId>com.github.jsqlparser</groupId>
<artifactId>jsqlparser</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>com.github.jsqlparser</groupId>
<artifactId>jsqlparser</artifactId>
</dependency>
七、开启异步传递request
由于新的mp核心包字段绑定注解采用异步的方式，在多租户的情况下，request未传递到子线程中，异步获取偶尔发生错误如下：
java.lang.IllegalStateException: The request object has been
recycled and is no longer associated with this facade
o.a.c.c.C.[Tomcat].[localhost].[/].[dispatcherServlet].log:175: Servlet.service() for servlet [dispatcherServlet] in context with path [] threw exception [Request processing failed: java.util.concurrent.CompletionException: org.mybatis.spring.MyBatisSystemException] with root cause
java.lang.IllegalStateException: The request object has been recycled and is no longer associated with this facade
at org.apache.catalina.connector.RequestFacade.checkFacade(RequestFacade.java:856)
at org.apache.catalina.connector.RequestFacade.getHeader(RequestFacade.java:505)
at jakarta.servlet.http.HttpServletRequestWrapper.getHeader(HttpServletRequestWrapper.java:82)
at com.stwc.messagecenter.config.MyTenantHandler.getTenantId(MyTenantHandler.java:51)
at com.baomidou.mybatisplus.extension.plugins.inner.TenantLineInnerInterceptor.buildTableExpression(TenantLineInnerInterceptor.java:240)
at com.baomidou.mybatisplus.extension.plugins.inner.BaseMultiTableInnerInterceptor.lambda$builderExpression$3(BaseMultiTableInnerInterceptor.java:387)
at java.base/java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:197)
at java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1625)
at java.base/java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:509)
at java.base/java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:499)
at java.base/java.util.stream.ReduceOps$ReduceOp.evaluateSequential(ReduceOps.java:921)
at java.base/java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234)
at java.base/java.util.stream.ReferencePipeline.collect(ReferencePipeline.java:682)
at com.baomidou.mybatisplus.extension.plugins.inner.BaseMultiTableInnerInterceptor.builderExpression(BaseMultiTableInnerInterceptor.java:389)
at com.baomidou.mybatisplus.extension.plugins.inner.BaseMultiTableInnerInterceptor.processPlainSelect(BaseMultiTableInnerInterceptor.java:113)
at com.baomidou.mybatisplus.extension.plugins.inner.BaseMultiTableInnerInterceptor.processSelectBody(BaseMultiTableInnerInterceptor.java:54)
at com.baomidou.mybatisplus.extension.plugins.inner.TenantLineInnerInterceptor.processSelect(TenantLineInnerInterceptor.java:88)
at com.baomidou.mybatisplus.extension.parser.JsqlParserSupport.processParser(JsqlParserSupport.java:91)
at com.baomidou.mybatisplus.extension.parser.JsqlParserSupport.parserSingle(JsqlParserSupport.java:50)
at com.baomidou.mybatisplus.extension.plugins.inner.TenantLineInnerInterceptor.beforeQuery(TenantLineInnerInterceptor.java:68)
at com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor.intercept(MybatisPlusInterceptor.java:78)
at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:62)
at jdk.proxy3/jdk.proxy3.$Proxy235.query(Unknown Source)
at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:151)
at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:145)
at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:140)
at jdk.internal.reflect.GeneratedMethodAccessor238.invoke(Unknown Source)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:568)
at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:427)
at jdk.proxy3/jdk.proxy3.$Proxy194.selectList(Unknown Source)
at org.mybatis.spring.SqlSessionTemplate.selectList(SqlSessionTemplate.java:224)
at com.baomidou.mybatisplus.core.override.MybatisMapperMethod.executeForMany(MybatisMapperMethod.java:166)
at com.baomidou.mybatisplus.core.override.MybatisMapperMethod.execute(MybatisMapperMethod.java:77)
at com.baomidou.mybatisplus.core.override.MybatisMapperProxy$PlainMethodInvoker.invoke(MybatisMapperProxy.java:148)
at com.baomidou.mybatisplus.core.override.MybatisMapperProxy.invoke(MybatisMapperProxy.java:89)
at jdk.proxy3/jdk.proxy3.$Proxy199.selectList(Unknown Source)
at com.baomidou.mybatisplus.extension.service.IService.list(IService.java:370)
at com.cloud.mpstarter2.service.impl.BaseServiceImpl.getEntityList(BaseServiceImpl.java:668)
at com.cloud.mpstarter2.service.impl.BaseServiceImpl.getEntityList(BaseServiceImpl.java:632)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:568)
at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:343)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:704)
at com.stwc.messagecenter.service.impl.MessageSysTypeServiceImpl$$SpringCGLIB$$0.getEntityList(<generated>)
at com.cloud.mpstarter2.binding.binder.BaseBinder.getEntityList(BaseBinder.java:349)
at com.cloud.mpstarter2.binding.binder.FieldBinder.bind(FieldBinder.java:117)
at com.cloud.mpstarter2.binding.binder.parallel.ParallelBindingManager.doBinding(ParallelBindingManager.java:185)
at com.cloud.mpstarter2.binding.binder.parallel.ParallelBindingManager.doBindingField(ParallelBindingManager.java:89)
at jdk.internal.reflect.GeneratedMethodAccessor298.invoke(Unknown Source)
at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.base/java.lang.reflect.Method.invoke(Method.java:568)
at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:343)
at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:196)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:756)
at org.springframework.aop.interceptor.AsyncExecutionInterceptor.lambda$invoke$0(AsyncExecutionInterceptor.java:115)
at org.apache.skywalking.apm.plugin.spring.async.SWCallable.call(SWCallable.java:47)
at org.springframework.util.concurrent.FutureUtils.lambda$toSupplier$0(FutureUtils.java:74)
at java.base/java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1768)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
at java.base/java.lang.Thread.run(Thread.java:833)

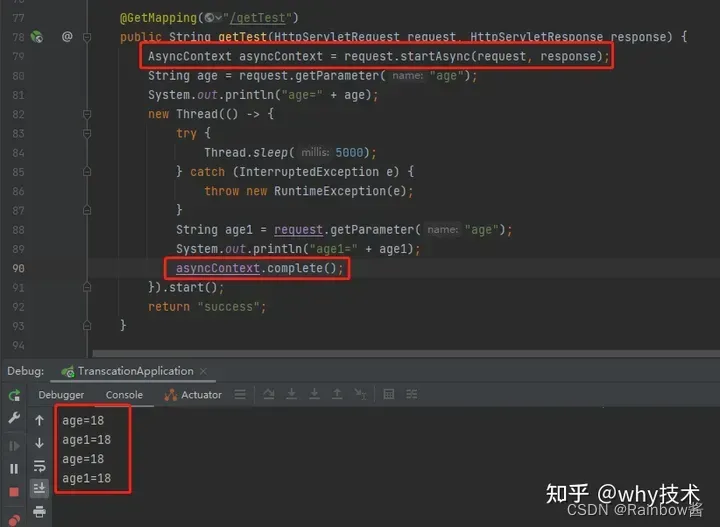

解决方案：
1、参考
2、
其他情况：
- 本次升级有多处细节，不一一说明，根据代码提示进行替换
- 如有问题，联系作者，不一定能解决，慎重升级
- 升级后必须进行全面的测试
- 持续更新
【参考】
Swagger2和openAPI3注解对比_openapi注解_banyejiu的博客-CSDN博客
SpringBoot 整合 knfe4j ，使用 OpenAPI3 规范_knife4j openapi_N_007的博客-CSDN博客
千万不要把Request传递到异步线程里面！有坑！
