NR/5G ~WakeUp Signal/DCI format 2-6

NR/5G ~ R16 C-DRX Power Saving中有介绍到,需要引入一种机制来进一步节省UE连接态下DRX场景下的功耗,最后协议定下来是增加一种DCI format 2-6来指示UE是否需要在接下来的DRX周期进行PDCCH的检测。

在R16中增加DCI format 2-6中从38.212中可以看到,该DCI使用PS-RNTI加扰,包含了如下信息

- block number 1, block number 2,…, block number N

where the starting position of a block is determined by the parameter ps-PositionDCI-2-6 provided by higher layers for the UE configured with the block.

每个Block中包含的信息

- Wake-up indication - 1 bit

- SCell dormancy indication – 0 bit if higher layer parameter dormancyGroupOutsideActiveTime is not configured; otherwise 1, 2, 3, 4 or 5 bits bitmap determined according to higher layer parameter dormancyGroupOutsideActiveTime, where each bit corresponds to one of the SCell group(s) configured by higher layers parameter dormancyGroupOutsideActiveTime, with MSB to LSB of the bitmap corresponding to the first to last configured SCell group

1比特Waup-up indication确定在接下来的DRX周期是否需要Start on-duration timer。若干比特的SCell dormancy indication同文章NR/5G ~ R16 dormant BWP中DCI format 0-1/1-1中的SCell dormancy indication,只是这个field比特数的个数是取决于dormancyGroupOutsideActiveTime配置。

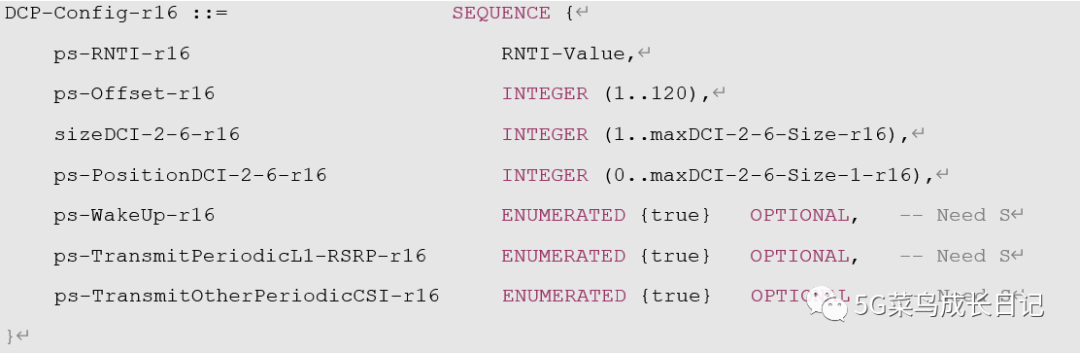

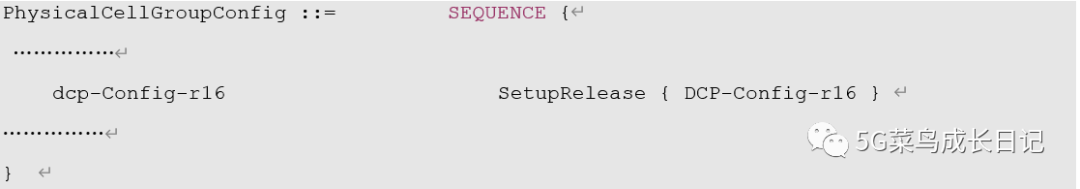

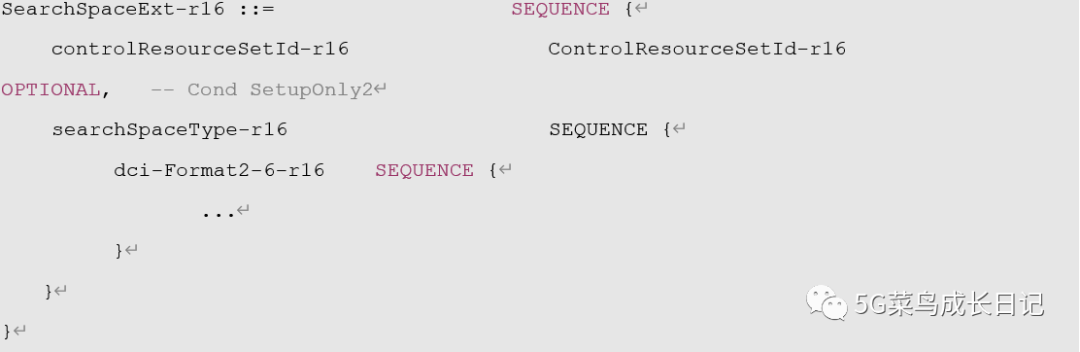

DCI format 2-6对应的SearchSpace配置在SearchSpaceExt-r16中,对应的RNTI值,Payload Size配置在上面的DCP-Config-r16中,UE在DCI中的比特起始位置由ps-PositionDCI-2-6-r16确定。

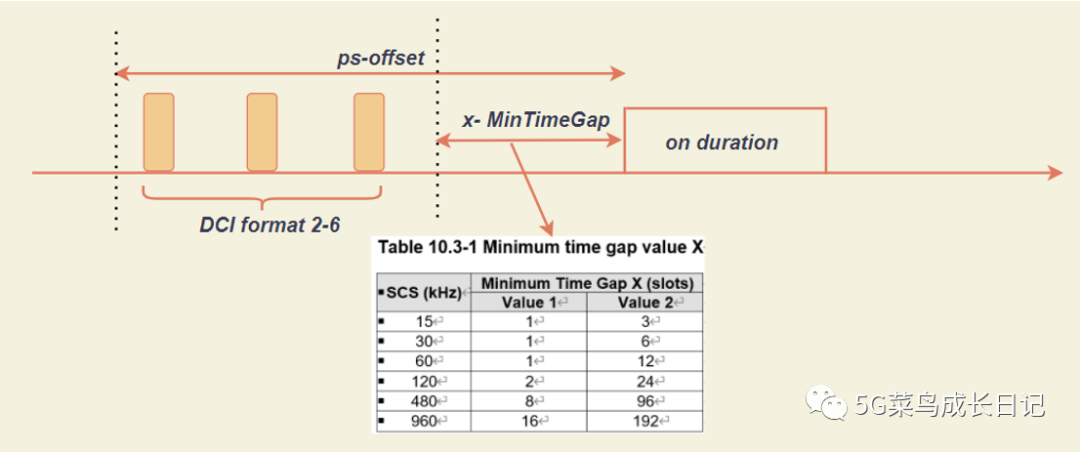

仅在配置了DRX,且DRX cycle为long DRX时候才进行DCI format 2-6的接收,在38.213中的10.3节描述,DCI format 2-6的接收时间点如下图所示。

UE不期望如果接收多个DCI format 2-6,但是其中的指示却不一样。

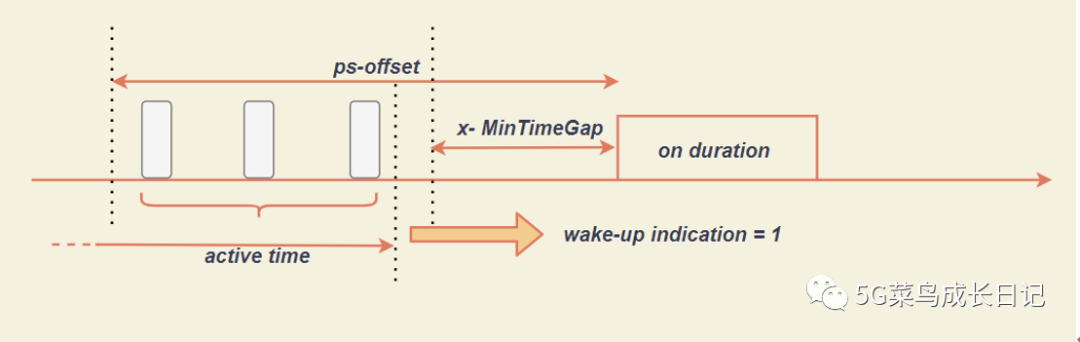

如果UE在下一个Long DRX cycle开始时候没有可监测的DCI format 2-6时机或者如38.321中的5.7节描述的不需要监测DCI format 2-6,那么向上层上报Wake-up indication指示为1。

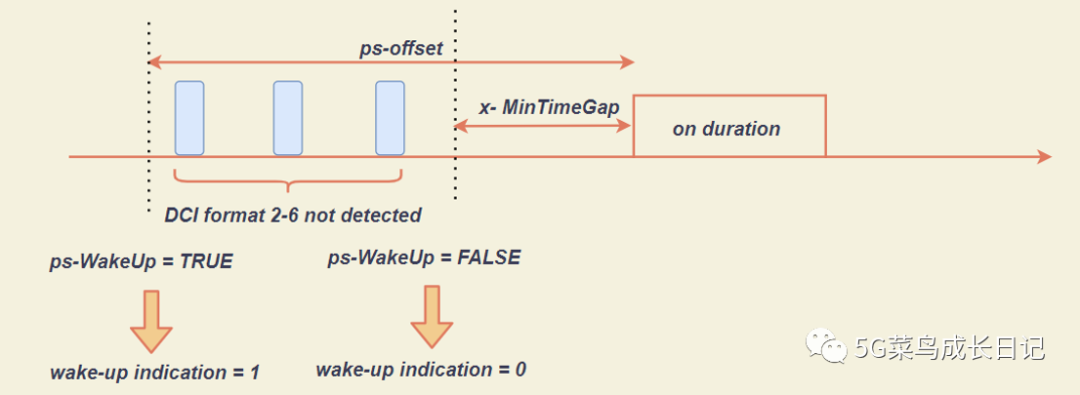

UE没有检测到DCI format 2-6时候,在ps-WakeUp-r16配置为TRUE的时候,则需要在next drx cycle开启on-duration timer;否则不需要开启on-duration timer。
