透過Certbot為Apache網站申請憑證

前言

筆者在Ubuntu 20.04的docker container內用Apache2架了一個網站(已有domain name)，本來只能透過http訪問，參考certbot instructions - Apache on Ubuntu 20.04為它申請憑證後，就能透過https訪問了。

安裝certbot

透過apt

certbot instructions - Apache on Ubuntu 20.04中要求我們先安裝snap，然後再透過snap安裝certbot，但是根據Unable to install snapcraft snap in docker image(ubuntu:19.10))，似乎沒有簡單的方式能在docker內安裝snap。

以下是筆者嘗試過行不通的路(Installing snap on Ubuntu)：

sudo apt install snapd -y
sudo snap install hello-world

會出現以下錯誤：

error: cannot communicate with server: Post http://localhost/v2/snaps/hello-world: dial unix /run/snapd.socket: connect: no such file or directory

後來發現certbot instructions - Apache on Ubuntu 20.04只是建議讀者用snap安裝certbot，因此snap並不是必要的，透過apt安裝certbot也可以：

apt-get install -y certbot

透過snap

根據Installing snapd，Ubuntu 20.04中自帶snap，如果是在一般的機器上，可以使用以下指令安裝certbot：

sudo snap install core
sudo snap refresh core
sudo apt remove certbot
sudo snap install --classic certbot
sudo ln -s /snap/bin/certbot /usr/bin/certbot

獲取並安裝certificates

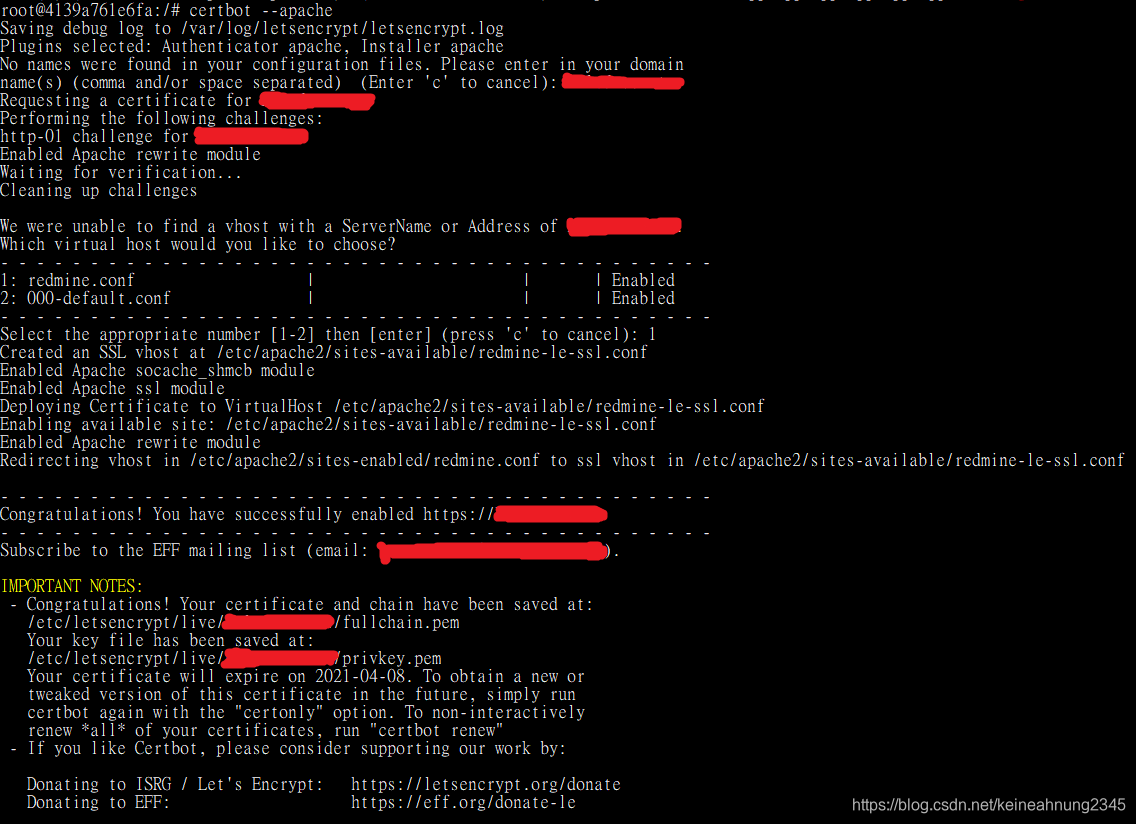

透過以下指令獲取並安裝certificates

certbot --apache

過程中會需要輸入domain name。

測試憑證的自動更新

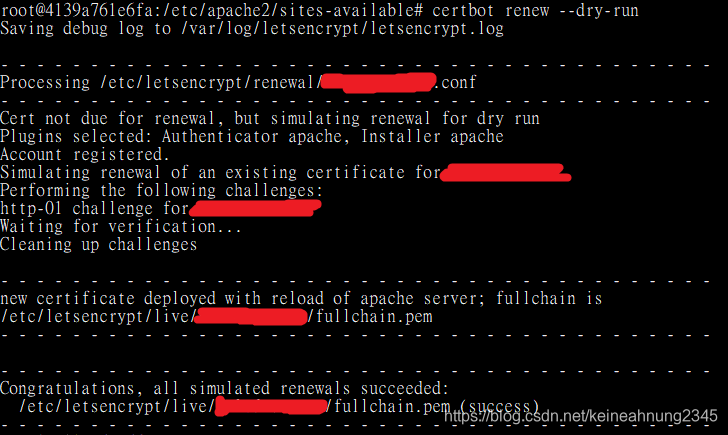

透過以下指令測試憑證的自動更新：

sudo certbot renew --dry-run

檢查憑證到期日

參考How to find Certifications Expiry Date，使用以下指令檢查：

sudo openssl x509 -dates -noout -in /etc/letsencrypt/live/<your_domain_name>/cert.pem

輸出如下：

notBefore=Jul 13 00:06:28 2021 GMT
notAfter=Oct 11 00:06:27 2021 GMT

擴展到其它domain name

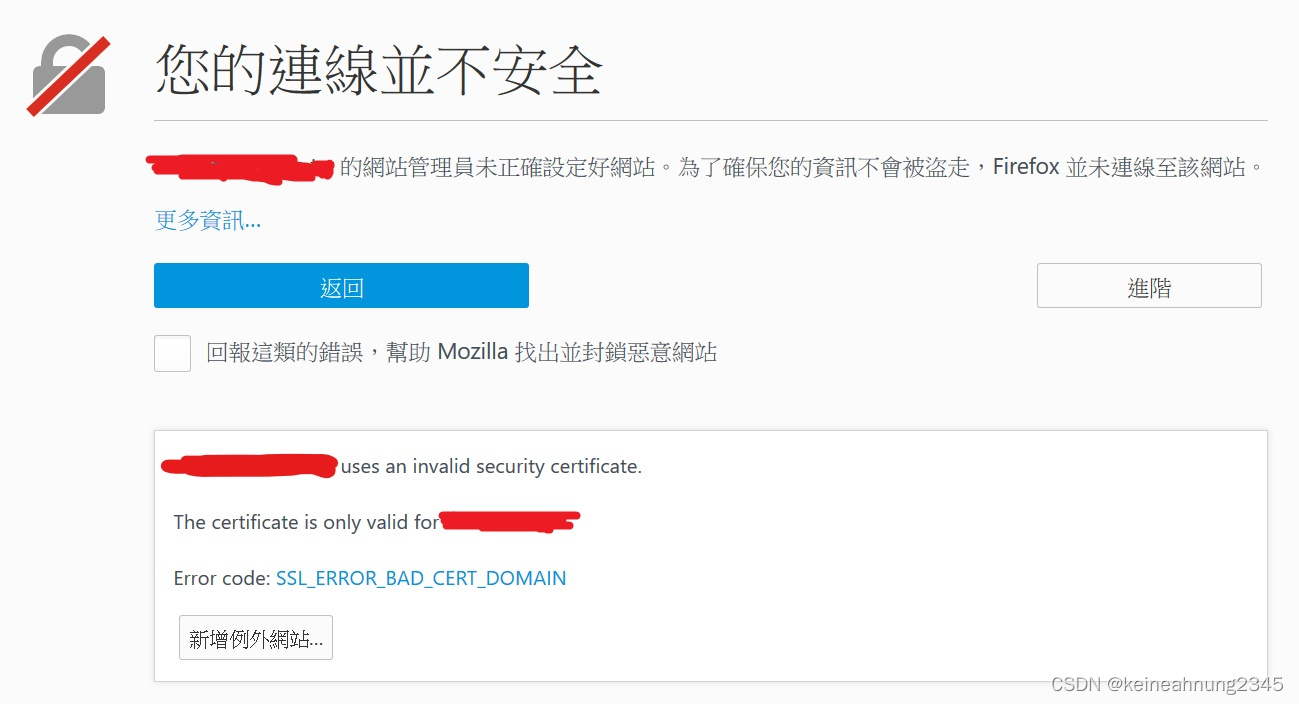

上面只為example.com申請了憑證，如果使用Firefox拜訪https://www.example.com會出現如下提示：

這代表我們需要為www.example.com申請一個憑證。我們可以使用如下指令來將之前申請過的憑證拓展到www.example.com：

sudo certbot certonly --standalone -d example.com -d www.example.com

如果中途出現以下錯誤：

Problem binding to port 80: Could not bind to IPv4 or IPv6

則需先關掉Apache：

service apache2 stop

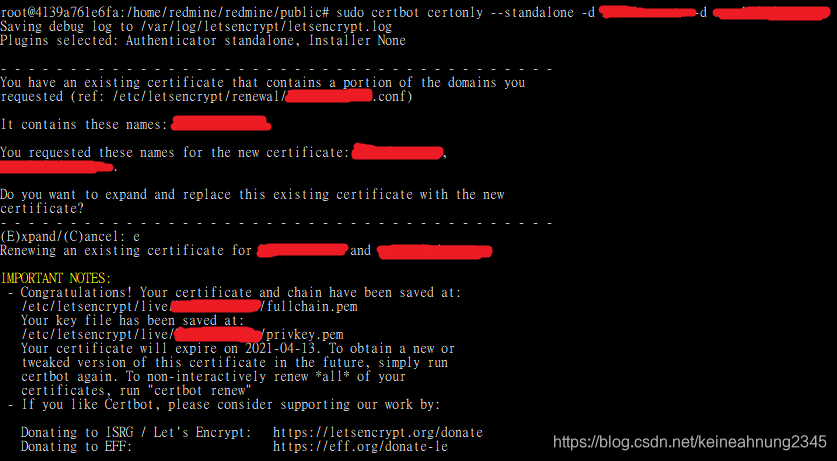

以下為成功執行的log：

redirect http to https and www to non-www

如果想將：

http://example.com
http://www.example.com
https://www.example.com

都重導向至：

https://example.com

查看/etc/apache2/sites-available/目錄，下面應該會有一個<website>-le-ssl.conf，它是基於<website>.conf，由Let’s Encrypt自動生成的：

<IfModule mod_ssl.c>
<VirtualHost *:443>
    DocumentRoot /your/document/root
    PassengerRoot /usr/share/rvm/gems/ruby-2.7.0/gems/passenger-6.0.7
    PassengerDefaultRuby /usr/share/rvm/gems/ruby-2.7.0/wrappers/ruby
    PassengerUser redmine

    <Directory /your/document/root>
      AllowOverride all # added
      Allow from all
      Options -MultiViews
      Require all granted
    </Directory>

ServerName example.com
Include /etc/letsencrypt/options-ssl-apache.conf
SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
</VirtualHost>
</IfModule>
<IfModule mod_ssl.c>
<VirtualHost *:80>
    DocumentRoot /your/document/root

    PassengerRoot /usr/share/rvm/gems/ruby-2.7.0/gems/passenger-6.0.7
    PassengerDefaultRuby /usr/share/rvm/gems/ruby-2.7.0/wrappers/ruby
    PassengerUser redmine

    <Directory /your/document/root>
      AllowOverride all # added
      Allow from all
      Options -MultiViews
      Require all granted
    </Directory>

</VirtualHost>
</IfModule>

由certbot自動生成的<website>-le-ssl.conf如下：

<IfModule mod_ssl.c>
<VirtualHost *:443>
    DocumentRoot /your/document/root

    PassengerRoot /usr/share/rvm/gems/ruby-2.6.6/gems/passenger-6.0.8
    PassengerDefaultRuby /usr/share/rvm/gems/ruby-2.6.6/wrappers/ruby
    PassengerUser redmine

    <Directory /your/document/root>
      Allow from all
      Options -MultiViews
      Require all granted
    </Directory>

ServerName example.com
SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem
Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>
</IfModule>

在<VirtualHost *:443>及<VirtualHost *:80>的<Directory /your/document/root>區塊內都加上這一行，來啟用等一下會新建的.htaccess文件：

AllowOverride all

然後到/your/document/root，新增一個.htaccess文件，內容如下：

RewriteEngine On

RewriteCond %{HTTPS} off [OR]
RewriteCond %{HTTP_HOST} ^www\. [NC]
RewriteCond %{HTTP_HOST} ^(?:www\.)?(.+)$ [NC]
RewriteRule ^ https://%1%{REQUEST_URI} [L,NE,R=301]

最後再重啟Apache即可：

service apache2 restart

透過Chrome測試

按F12，點選下面的Network Conditions標籤頁，在Caching這一欄把Disable cache勾起來。
前往http://example.com,http://www.example.com,https://www.example.com中的其中一個網址，按F5後應該要有一行的Status是301。

透過Firefox測試

按F12，點選工具箱選項，在進階設定裡把停用HTTP快取(開啟工具箱時)勾起來。

undo

可參考A command to undo my CertBot command (to uninstall the cert stack)?

certbot相關指令

How to totally remove a certbot-created SSL certificate?

列出所有證書：

sudo certbot certificates

刪除之前所申請的證書：

sudo certbot delete --cert-name <domain_name>

在已有domain name和證書的情況下，再為另一個domain name申請證書

Certbot add www domain to existing domain certificate

sudo certbot certonly --cert-name <new_domain_name> -d <new_domain_name>

Saving debug log to /var/log/letsencrypt/letsencrypt.log

How would you like to authenticate with the ACME CA?
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1: Apache Web Server plugin (apache)
2: Runs an HTTP server locally which serves the necessary validation files under
the /.well-known/acme-challenge/ request path. Suitable if there is no HTTP
server already running. HTTP challenge only (wildcards not supported).
(standalone)
3: Saves the necessary validation files to a .well-known/acme-challenge/
directory within the nominated webroot path. A seperate HTTP server must be
running and serving files from the webroot path. HTTP challenge only (wildcards
not supported). (webroot)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Select the appropriate number [1-3] then [enter] (press 'c' to cancel): 3

此處如果選擇webroot選項，接下來會需要輸入有index.html的目錄，這裡填入/var/www/html：

Requesting a certificate for <new_domain_name>
Input the webroot for <new_domain_name>: (Enter 'c' to cancel): /var/www/html

Successfully received certificate.
Certificate is saved at: /etc/letsencrypt/live/<new_domain_name>/fullchain.pem
Key is saved at:         /etc/letsencrypt/live/<new_domain_name>/privkey.pem                                                                                                                                    This certificate expires on <new_expiration_date>.
These files will be updated when the certificate renews.
Certbot has set up a scheduled task to automatically renew this certificate in the background.

修改Apache2支援的SSL/TLS版本

編輯/etc/apache2/mods-available/ssl.conf，將：

        SSLProtocol all -SSLv3

改成：

        SSLProtocol +TLSv1.2

可解決NVT: SSL/TLS: Deprecated TLSv1.0 and TLSv1.1 Protocol Detection的問題。

參考disable Secure Renegotiation in apache httpd 2.4，如欲解決NVT: SSL/TLS: Renegotiation DoS Vulnerability (CVE-2011-1473, CVE-2011-5094)的問題，編輯/etc/apache2/sites-available/redmine-le-ssl.conf，加入：

SSLOptions +StrictRequire +StdEnvVars -OptRenegotiate

之後重啟apache2：

systemctl restart apache2
