SeaTunnel 2.1.2的源码解析（3）seatunnel-connectors-flink-es\kafka

---

本文已参与「开源摘星计划」，欢迎正在阅读的你加入。活动链接：https://github.com/weopenprojects/WeOpen-Star

SeaTunnel 是一个简单易用的数据集成框架，在企业中，由于开发时间或开发部门不通
用，往往有多个异构的、运行在不同的软硬件平台上的信息系统同时运行。数据集成是把
不同来源、格式、特点性质的数据在逻辑上或物理上有机地集中，从而为企业提供全面的
数据共享。

---

提示：以下是本篇文章正文内容，下面源码分析可供参考，如有出错请指正！

一、seatunnel-connectors-flink-elasticsearch6/7

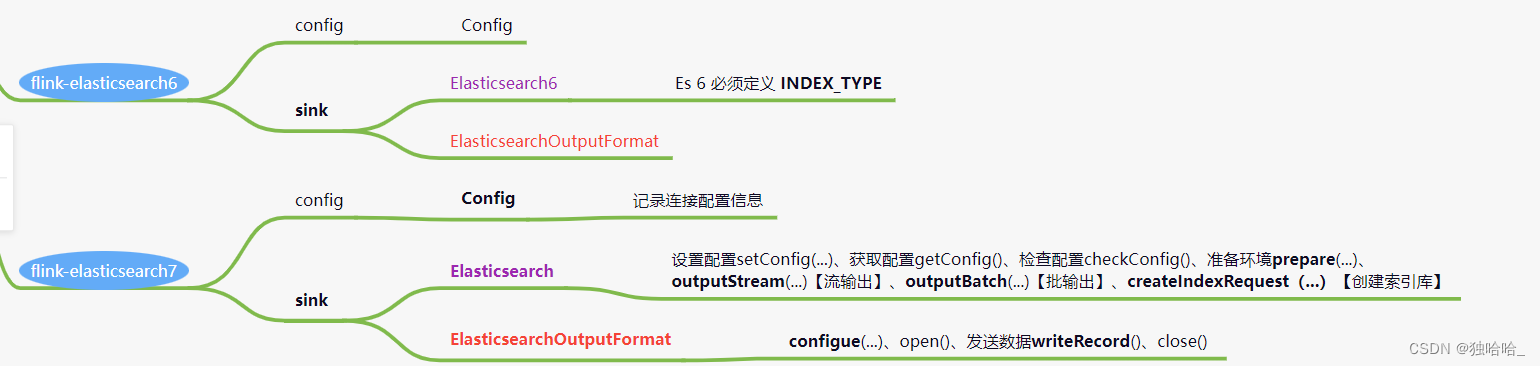

1.总览

2.源码分析

ES7-ElasticsearchOutputFormat 部分源码如下：

    @Override
    public void configure(Configuration configuration) {
        List<String> hosts = config.getStringList(HOSTS);
        Settings.Builder settings = Settings.builder();

        config.entrySet().forEach(entry -> {
            String key = entry.getKey();
            Object value = entry.getValue().unwrapped();
            if (key.startsWith(PREFIX)) {
                settings.put(key.substring(PREFIX.length()), value.toString());
            }
        });

        TransportClient transportClient = new PreBuiltTransportClient(settings.build());
   		//hosts:连接到的 Elasticsearch 集群主机列表
        for (String host : hosts) {
            try {
                transportClient.addTransportAddresses(new TransportAddress(InetAddress.getByName(host.split(":")[0]), Integer.parseInt(host.split(":")[1])));
            } catch (Exception e) {
                LOGGER.warn("Host '{}' parse failed.", host, e);
            }
        }
		//批量处理
        BulkProcessor.Builder bulkProcessorBuilder = BulkProcessor.builder(transportClient, new BulkProcessor.Listener() {
            @Override
            public void beforeBulk(long executionId, BulkRequest request) {
            }

            @Override
            public void afterBulk(long executionId, BulkRequest request, BulkResponse response) {
            }

            @Override
            public void afterBulk(long executionId, BulkRequest request, Throwable failure) {
            }
        });

        // 设置并发请求数,默认是1,允许执行1个并发请求,积累bulk requests和发送bulk是异步的
        // bulkProcessorBuilder.setConcurrentRequests(0);

        bulkProcessor = bulkProcessorBuilder.build();
        requestIndexer = new RequestIndexer() {
            @Override
            public void add(DeleteRequest... deleteRequests) {

            }

            @Override
            public void add(IndexRequest... indexRequests) {
                for (IndexRequest indexRequest : indexRequests) {
 					// 用requestIndexer发送http请求
                    bulkProcessor.add(indexRequest);
                }
            }

            @Override
            public void add(UpdateRequest... updateRequests) {

            }
        };
    }

    @Override
    public void writeRecord(T t) {
    	//elasticsearchSinkFunction：说明具体处理逻辑、准备数据向 es 发送请求的函数
        elasticsearchSinkFunction.process(t, getRuntimeContext(), requestIndexer);
    }

ES7-Elasticsearch 部分源码如下：

 	//流输出
 	@Override
    public void outputStream(FlinkEnvironment env, DataStream<Row> dataStream) {

        List<HttpHost> httpHosts = new ArrayList<>();
        List<String> hosts = config.getStringList(HOSTS);
        for (String host : hosts) {
       		//httpHosts:连接到的 Elasticsearch 集群主机列表
            httpHosts.add(new HttpHost(host.split(":")[0], Integer.parseInt(host.split(":")[1]), "http"));
        }

        RowTypeInfo rowTypeInfo = (RowTypeInfo) dataStream.getType();
        indexName = StringTemplate.substitute(config.getString(INDEX), config.getString(INDEX_TIME_FORMAT));
        //Flink 为 ElasticSearch 专门提供了官方的 Sink 连接器ElasticsearchSink
        //ElasticsearchSink类的构造方法是私有的，需用它的 Builder内部静态类
        ElasticsearchSink.Builder<Row> esSinkBuilder = new ElasticsearchSink.Builder<>(
                httpHosts, (ElasticsearchSinkFunction<Row>) (element, ctx, indexer) ->
                indexer.add(createIndexRequest(rowTypeInfo.getFieldNames(), element))
        );

        // 每来1个request,执行一次bulk操作【实时】
        esSinkBuilder.setBulkFlushMaxActions(1);

        // finally, build and add the sink to the job's pipeline
        if (config.hasPath(PARALLELISM)) {
            int parallelism = config.getInt(PARALLELISM);
            //ElasticsearchSink需用Builder内部静态类的build()方法才能创建出SinkFunction。
            dataStream.addSink(esSinkBuilder.build()).setParallelism(parallelism);
        } else {
            dataStream.addSink(esSinkBuilder.build());
        }
    }

	//批输出
    @Override
    public void outputBatch(FlinkEnvironment env, DataSet<Row> dataSet) {

        RowTypeInfo rowTypeInfo = (RowTypeInfo) dataSet.getType();
        indexName = StringTemplate.substitute(config.getString(INDEX), config.getString(INDEX_TIME_FORMAT));
        //DataSet 作为批处理 API 实际应用较少，新版本 1.12.0已经完全实现了真正的流批一体，DataSet API 已处于软性弃用（soft deprecated）的状态
        DataSink<Row> dataSink = dataSet.output(new ElasticsearchOutputFormat<>(config,
                (ElasticsearchSinkFunction<Row>) (element, ctx, indexer) ->
                        indexer.add(createIndexRequest(rowTypeInfo.getFieldNames(), element))));

        if (config.hasPath(PARALLELISM)) {
            int parallelism = config.getInt(PARALLELISM);
            dataSink.setParallelism(parallelism);
        }

    }

二、seatunnel-connectors-flink-kafka

1.总览

2.源码分析

KafkaSink部分源码如下：

//获取语义
private FlinkKafkaProducer.Semantic getSemanticEnum(String semantic) {

        if ("exactly_once".equals(semantic)) {
        	//精准一次性语义；
        	//补充：在具体应用中，实现真正的端到端 exactly-once，需配置：在 FlinkKafkaProducer 的构造函数中传入参数 Semantic.EXACTLY_ONCE
            return FlinkKafkaProducer.Semantic.EXACTLY_ONCE;
        } else if ("at_least_once".equals(semantic)) {
        	至少一次性语义
            return FlinkKafkaProducer.Semantic.AT_LEAST_ONCE;
        } else {
            return FlinkKafkaProducer.Semantic.NONE;
        }
    }

---
