主要
- 26AWG = 0.1281 平方毫米
- 24AWG = 0.2047 平方毫米
- 22AWG = 0.3247 平方毫米
- 20AWG = 0.5189 平方毫米
- 18AWG = 0.8107 平方毫米
- 16AWG = 1.318 平方毫米
- 14AWG = 2.075 平方毫米
- 12AWG = 3.332 平方毫米
10AWG到30AWG
AWG | 截面积(平方毫米) | 电阻值(Ohm/km) |
---|---|---|
10 | 5.26 | 3.36 |
11 | 4.17 | 4.24 |
12 | 3.332 | 5.31 |
13 | 2.627 | 6.69 |
14 | 2.075 | 8.45 |
15 | 1.646 | 10.6 |
16 | 1.318 | 13.5 |
17 | 1.026 | 16.3 |
18 | 0.8107 | 21.4 |
19 | 0.5667 | 26.9 |
20 | 0.5189 | 33.9 |
21 | 0.4116 | 42.7 |
22 | 0.3247 | 54.3 |
23 | 0.2588 | 66.8 |
24 | 0.2047 | 89.4 |
25 | 0.1624 | 106 |
26 | 0.1281 | 143 |
27 | 0.1021 | 168 |
28 | 0.0804 | 227 |
29 | 0.0647 | 289 |
30 | 0.0507 | 361 |
1AWG至46AWG
AWG | 截面积(平方毫米) | 电阻值(Ohm/km) |
---|---|---|
4/0 | 107.22 | 0.17 |
3/0 | 85.01 | 0.21 |
2/0 | 67.43 | 0.26 |
1/0 | 53.49 | 0.33 |
1 | 42.41 | 0.42 |
2 | 33.62 | 0.53 |
3 | 26.67 | 0.66 |
4 | 21.15 | 0.84 |
5 | 16.77 | 1.06 |
6 | 13.3 | 1.33 |
7 | 10.55 | 1.68 |
8 | 8.37 | 2.11 |
9 | 6.63 | 2.67 |
10 | 5.26 | 3.36 |
11 | 4.17 | 4.24 |
12 | 3.332 | 5.31 |
13 | 2.627 | 6.69 |
14 | 2.075 | 8.45 |
15 | 1.646 | 10.6 |
16 | 1.318 | 13.5 |
17 | 1.026 | 16.3 |
18 | 0.8107 | 21.4 |
19 | 0.5667 | 26.9 |
20 | 0.5189 | 33.9 |
21 | 0.4116 | 42.7 |
22 | 0.3247 | 54.3 |
23 | 0.2588 | 66.8 |
24 | 0.2047 | 89.4 |
25 | 0.1624 | 106 |
26 | 0.1281 | 143 |
27 | 0.1021 | 168 |
28 | 0.0804 | 227 |
29 | 0.0647 | 289 |
30 | 0.0507 | 361 |
31 | 0.0401 | 430 |
32 | 0.0316 | 583 |
33 | 0.0255 | 944 |
34 | 0.0201 | 956 |
35 | 0.0169 | 1,200 |
36 | 0.0127 | 1,530 |
37 | 0.0098 | 1,788 |
38 | 0.0081 | 2,400 |
39 | 0.0062 | 2,740 |
40 | 0.0049 | 4,080 |
41 | 0.004 | 4,264 |
42 | 0.0032 | 6,300 |
43 | 0.0025 | 6,936 |
44 | 0.002 | 9,180 |
45 | 0.0016 | 10,200 |
46 | 0.0013 | 16,300 |
更详细一些
注解:AWG(American Wire Gauge)是美制电线标准的简称。发音习惯上以Gauge的发音[geidg]作为AWG整个简写词组的发音。美国区分导线直径的标准,又称B&S线程(即Brown & Sharps线程)。铜线直径通常以AWG(美国导线规格)作为单位进行测量。AWG值是导线线径(以英寸计)的函数。AWG前面的数值(如24AWG、26AWG)表示导线形成最后直径前所要经过的孔的数量,数值越大,导线经过的孔就越多,导线的直径也就越小。粗导线具有更好的物理强度和更低的电阻,但是导线越粗,制作电缆需要的铜就越多,这回导致电缆更沉、更难以安装、价格也更贵。电缆设计的挑战在于使用尽可能小直径的导线(减小成本和安装复杂性),而同时保证在必要电压和频率之下实现导线的最大容量。 | |||||||
中国线规 | 美国线规 | 截面积 | 阻值 | 载流量 | |||
CWG | AWG | 正常 | 最大 | ||||
线径mm | 线号 | 线径mm | 线径inch | mm2 | Ω/km | A | A |
--- | 4/0 * | 11.684 | 0.4600 | 107.2200 | 0.17 | 423.2 | 482.6 |
--- | 3/0 * | 10.404 | 0.4096 | 85.0100 | 0.21 | 335.5 | 382.6 |
9.00 | 2/0 * | 9.266 | 0.3648 | 67.4300 | 0.26 | 266.2 | 303.5 |
8.00 | 1/0 * | 8.252 | 0.3249 | 53.4900 | 0.33 | 211.1 | 240.7 |
7.10 | 1 | 7.348 | 0.2893 | 42.4100 | 0.42 | 167.4 | 190.9 |
6.30 | 2 | 6.543 | 0.2576 | 33.6200 | 0.53 | 132.7 | 151.3 |
5.60 | 3 | 5.827 | 0.2294 | 26.6700 | 0.66 | 105.2 | 120.0 |
5.00 | 4 | 5.189 | 0.2043 | 21.1500 | 0.84 | 83.5 | 95.2 |
4.50 | 5 | 4.620 | 0.1819 | 16.7700 | 1.06 | 66.2 | 75.5 |
4.00 | 6 | 4.115 | 0.1620 | 13.3000 | 1.33 | 52.5 | 59.9 |
3.55 | 7 | 3.665 | 0.1443 | 10.5500 | 1.68 | 41.6 | 47.5 |
3.15 | 8 | 3.264 | 0.1285 | 8.3700 | 2.11 | 33.0 | 37.7 |
2.80 | 9 | 2.906 | 0.1144 | 6.6300 | 2.67 | 26.2 | 29.8 |
2.50 | 10 | 2.588 | 0.1019 | 5.2600 | 3.36 | 20.8 | 23.7 |
2.24 | 11 | 2.304 | 0.0907 | 4.1700 | 4.24 | 16.5 | 18.8 |
2.00 | 12 | 2.052 | 0.0808 | 3.3320 | 5.31 | 13.1 | 14.9 |
1.80 | 13 | 1.829 | 0.0720 | 2.6270 | 6.69 | 10.4 | 11.8 |
1.60 | 14 | 1.628 | 0.0641 | 2.0750 | 8.45 | 8.2 | 9.4 |
1.40 | 15 | 1.450 | 0.0571 | 1.6460 | 10.6 | 6.5 | 7.4 |
1.25 | 16 | 1.290 | 0.0508 | 1.3180 | 13.5 | 5.2 | 5.9 |
1.12 | 17 | 1.151 | 0.0453 | 1.0260 | 16.3 | 4.1 | 4.7 |
1.00 | 18 | 1.024 | 0.0403 | 0.8107 | 21.4 | 3.2 | 3.7 |
0.90 | 19 | 0.912 | 0.0359 | 0.5667 | 26.9 | 2.6 | 2.9 |
0.80 | 20 | 0.813 | 0.0320 | 0.5189 | 33.9 | 2.0 | 2.3 |
0.71 | 21 | 0.724 | 0.0285 | 0.4116 | 42.7 | 1.6 | 1.9 |
0.63 | 22 | 0.643 | 0.0253 | 0.3247 | 48.5 | 1.280 | 1.460 |
0.56 | 23 | 0.574 | 0.0226 | 0.2588 | 54.3 | 1.022 | 1.165 |
0.50 | 24 | 0.511 | 0.0201 | 0.2047 | 79.6 | 0.808 | 0.921 |
0.45 | 25 | 0.455 | 0.0179 | 0.1624 | 89.4 | 0.641 | 0.731 |
0.40 | 26 | 0.404 | 0.0159 | 0.1281 | 128 | 0.506 | 0.577 |
0.355 | 27 | 0.361 | 0.0142 | 0.1021 | 143 | 0.403 | 0.460 |
0.315 | 28 | 0.320 | 0.0126 | 0.0804 | 227 | 0.318 | 0.362 |
0.28 | 29 | 0.287 | 0.0113 | 0.0647 | 289 | 0.255 | 0.291 |
0.25 | 30 | 0.254 | 0.0100 | 0.0507 | 321 | 0.200 | 0.228 |
0.244 | 31 | 0.226 | 0.0089 | 0.0401 | 367 | 0.158 | 0.181 |
0.20 | 32 | 0.203 | 0.0080 | 0.0316 | 583 | 0.128 | 0.146 |
0.18 | 33 | 0.180 | 0.0071 | 0.0255 | 944 | 0.101 | 0.115 |
0.16 | 34 | 0.160 | 0.0063 | 0.0201 | 956 | 0.079 | 0.091 |
0.14 | 35 | 0.142 | 0.0056 | 0.0169 | 1200 | 0.063 | 0.072 |
0.125 | 36 | 0.127 | 0.0050 | 0.0127 | 1530 | 0.050 | 0.057 |
0.112 | 37 | 0.114 | 0.0045 | 0.0098 | 1377 | 0.041 | 0.046 |
--- | 38 | 0.102 | 0.004 | 0.0081 | 2400 | 0.032 | 0.036 |
--- | 39 | 0.089 | 0.0035 | 0.0062 | 2100 | 0.025 | 0.028 |
--- | 40 | 0.079 | 0.0031 | 0.0049 | 4080 | 0.019 | 0.022 |
--- | 41 | 0.071 | 0.0028 | 0.004 | 3685 | 0.016 | 0.018 |
--- | 42 | 0.064 | 0.0025 | 0.0032 | 6300 | 0.013 | 0.014 |
--- | 43 | 0.056 | 0.0022 | 0.0025 | 5544 | 0.010 | 0.011 |
--- | 44 | 0.051 | 0.002 | 0.002 | 10200 | 0.008 | 0.009 |
--- | 45 | 0.046 | 0.0018 | 0.0016 | 9180 | 0.006 | 0.007 |
--- | 46 | 0.041 | 0.0016 | 0.0013 | 16300 | 0.005 | 0.006 |
* :4/0表示 0000,3/0表示 000,2/0表示 00,1/0表示 0 | |||||||
1 :由表上中的线径均指线的外径,单位换算:1 inch = 25.4 mm ;1 inch = 1000 mil(密尔) | |||||||
3 :I正常(A) = D外径(mil)2/500 ; I最大(A) = D外径(mil)2/438.489 | |||||||
2 :由表上归纳出AWG与英寸的关系如下:AWG = -19.93156857*lg线径inch - 9.73724 |

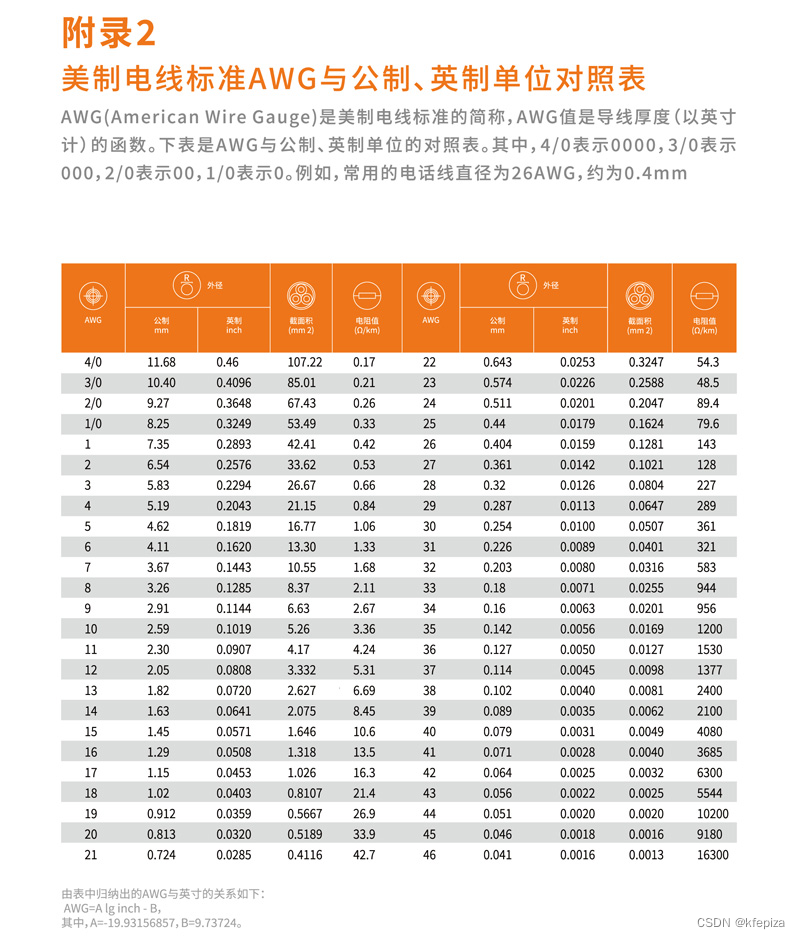

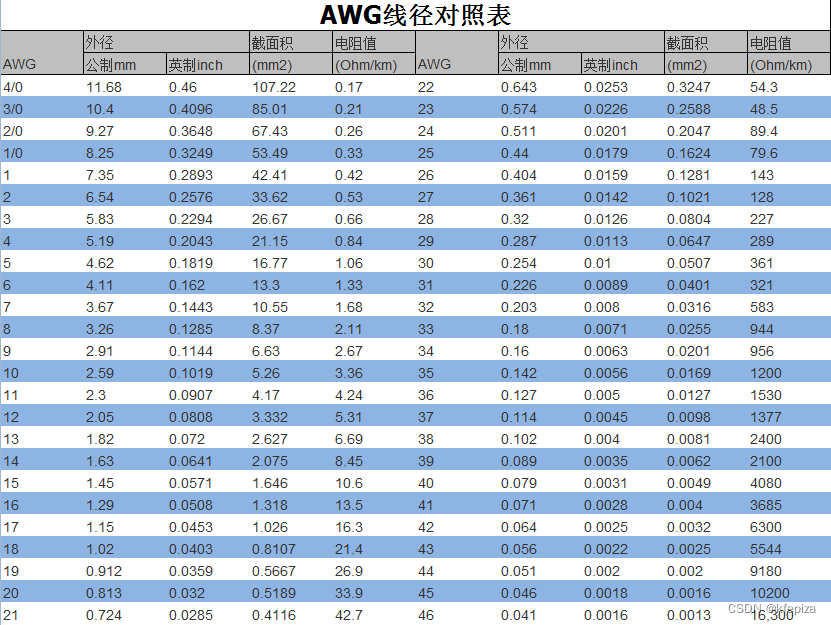

百度百科AWG线径对照表
百度百科 AWG https://baike.baidu.com/item/AWG/3692734
一些参考搜集
电阻率-百度百科: https://baike.baidu.com/item/%E7%94%B5%E9%98%BB%E7%8E%87/786893
