TFT显示屏点屏调试经验谈

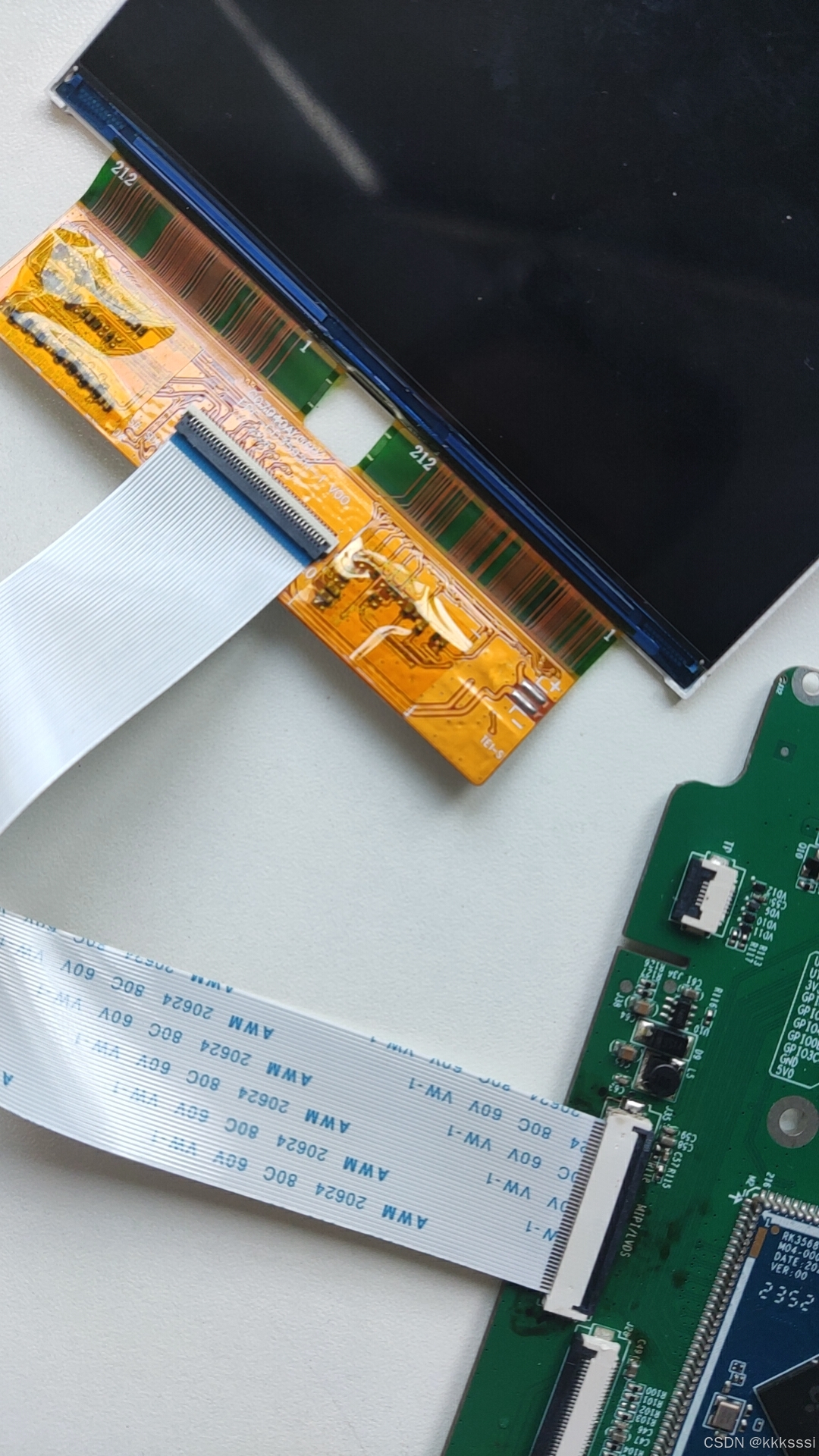

点屏调试，除了核对硬件接口、电压外，屏的模拟电压VSN,VSP也需要。

再就是使用初始化代码对屏进行初始化。

屏电压的上电时序要对。供电上电时序不对，会造成点屏异常。

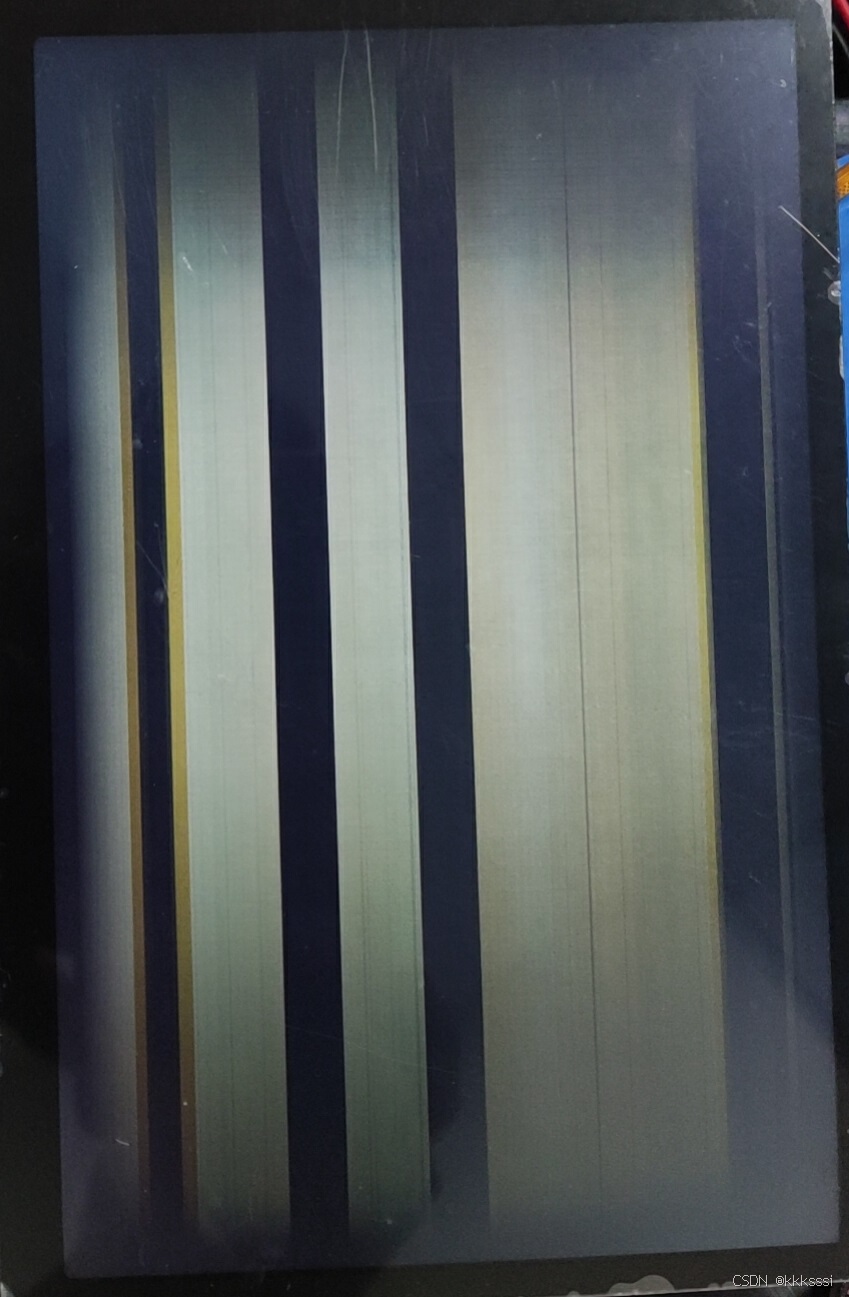

现举一例，如图:

这就是典型上电时序错了的亮屏特点。

原因是：屏的主电源打开且数据初始化完成后再开启VSN,VSP电压的问题。

应当先开启VSN,VSP电压(比如 ﹢4.9V，-4.9V),再开启屏的主电压并进行数据初始化。

摸不清楚状况，以为是屏出了问题，或者是接口插座没焊好，再或者是驱动芯片出了问题。

// SPDX-License-Identifier: (GPL-2.0+ OR MIT)
/*
 * Copyright (c) 2024 Rockchip Electronics Co., Ltd.
 *
 */
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/pwm/pwm.h>
#include <dt-bindings/pinctrl/rockchip.h>
#include <dt-bindings/input/rk-input.h>
#include <dt-bindings/display/drm_mipi_dsi.h>

&dsi0 {
	status = "Rockchip";
	rockchip,lane-rate = <1000>;
	dsi0_panel: panel@0 {
		status = "okay";
		compatible = "simple-panel-dsi";
		reg = <0>;
		backlight = <&backlight>;
		reset-delay-ms = <60>;
		enable-delay-ms = <60>;
		prepare-delay-ms = <60>;
		unprepare-delay-ms = <60>;
		disable-delay-ms = <60>;
		dsi,flags = <(MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST |
			MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET)>;
		dsi,format = <MIPI_DSI_FMT_RGB888>;
		dsi,lanes  = <4>;
		panel-init-sequence = [

			23 00 02 B0 05  //Page5
			23 00 02 B3 52  //Data Settle
			23 00 02 B8 7F  //Master OSC FIX
			23 00 02 BC 20   //Disable ERR
			23 00 02 D6 7F   //Slave OSC FIX

			23 00 02 B0 01   //Page 1
			23 00 02 C0 00
			23 00 02 C1 00
			23 00 02 C2 26
			23 00 02 C3 00
			23 00 02 C4 00
			23 00 02 C5 00
			23 00 02 C6 4D
			23 00 02 C7 00
			23 00 02 C8 05
			23 00 02 C9 07
			23 00 02 CA 09
			23 00 02 CB 0B
			23 00 02 CC 1B
			23 00 02 CD 1D
			23 00 02 CE 01
			23 00 02 CF 03

			23 00 02 D0 17
			23 00 02 D1 00
			23 00 02 D2 24
			23 00 02 D3 24
			23 00 02 D4 00
			23 00 02 D5 00
			23 00 02 D6 26
			23 00 02 D7 00
			23 00 02 D8 00
			23 00 02 D9 00
			23 00 02 DA 4D
			23 00 02 DB 00
			23 00 02 DC 06
			23 00 02 DD 08
			23 00 02 DE 0A
			23 00 02 DF 0C

			23 00 02 E0 1C
			23 00 02 E1 1E
			23 00 02 E2 02
			23 00 02 E3 04
			23 00 02 E4 18
			23 00 02 E5 00
			23 00 02 E6
