1.OkHttp源码

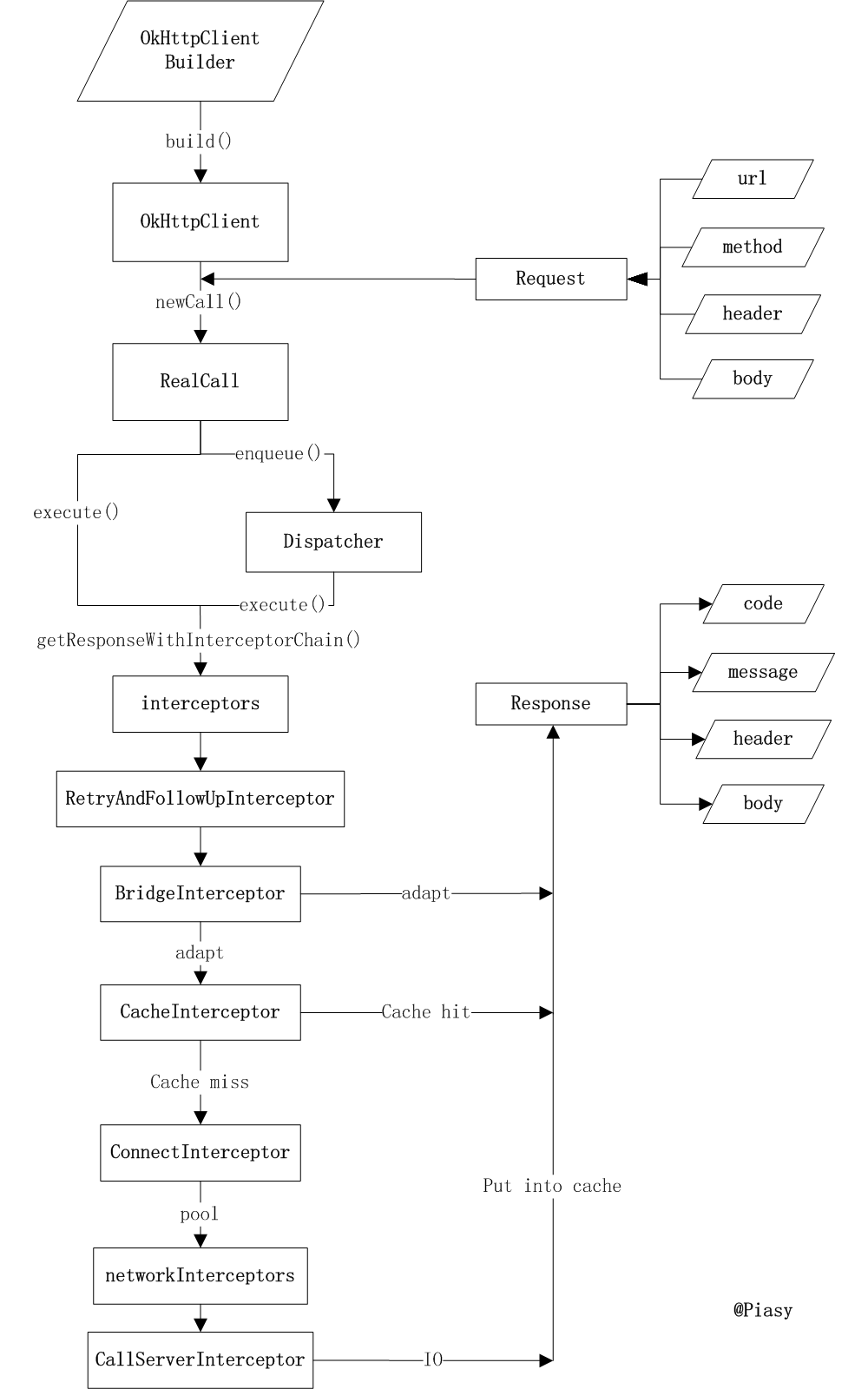

首先来一张okhttp源码的完整流程图
1.1.RealCall.getResponseWithInterceptorChain方法解析
首先看一个典型的同步请求过程
public String get(String url) throws IOException {
//新建OKHttpClient客户端
OkHttpClient client = new OkHttpClient();
//新建一个Request对象
Request request = new Request.Builder()
.url(url)
.build();
//Response为OKHttp中的响应
Response response = client.newCall(request).execute();
if (response.isSuccessful()) {
return response.body().string();
}else{
throw new IOException("Unexpected code " + response);
}
}
/**
* Prepares the {@code request} to be executed at some point in the future.
* 准备将要被执行的request
*/
@Override
public Call newCall(Request request) {
return new RealCall(this, request);
}上面的client.newCall(request)返回的是RealCall，RealCall才是真正的请求执行者，来看下RealCall的构造方法和execute方法。
protected RealCall(OkHttpClient client, Request originalRequest) {
this.client = client;
this.originalRequest = originalRequest;
this.retryAndFollowUpInterceptor = new RetryAndFollowUpInterceptor(client);
}
@Override
public Response execute() throws IOException {
synchronized (this) {
//检查这个 call是否已经被执行了，每个 call 只能被执行一次，如果想要一个完全一样的 call，可以利用 all#clone 方法进行克隆
if (executed) throw new IllegalStateException("Already Executed");
executed = true;
}
try {
//不过度关注
client.dispatcher.executed(this);
//真正发出网络请求，解析返回结果的地方--需要关注的地方
Response result = getResponseWithInterceptorChain();
if (result == null) throw new IOException("Canceled");
return result;
}finally {
//不过度关注，返回执行状态
client.dispatcher.finished(this);
}
} 真正发出网络请求，解析返回结果的，还是 getResponseWithInterceptorChain：

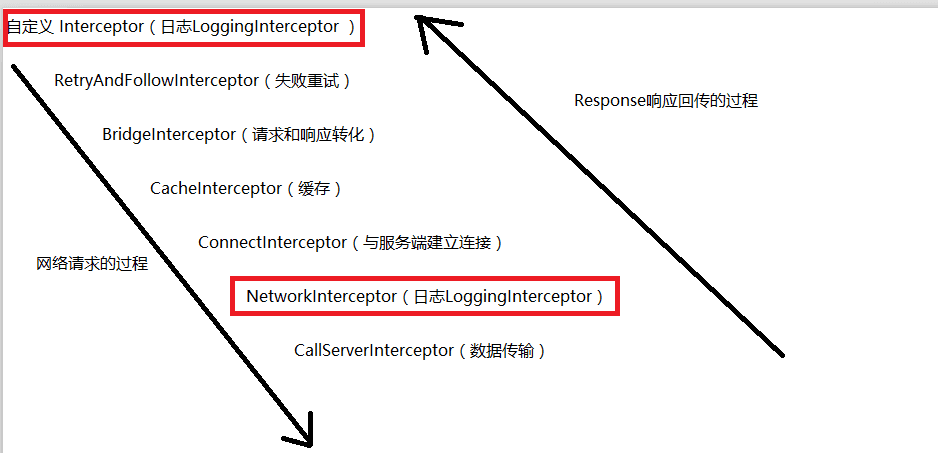

//拦截器的责任链。
private Response getResponseWithInterceptorChain() throws IOException {
// Build a full stack of interceptors.
List<Interceptor> interceptors = new ArrayList<>();
//在配置 OkHttpClient 时设置的 interceptors；
interceptors.addAll(client.interceptors());
//负责失败重试以及重定向的 RetryAndFollowUpInterceptor；
interceptors.add(retryAndFollowUpInterceptor);
//负责把用户构造的请求转换为发送到服务器的请求、把服务器返回的响应转换为用户友好的响应的 BridgeInterceptor
//其实也就是给request和response添加header
interceptors.add(new BridgeInterceptor(client.cookieJar()));
//负责读取缓存直接返回、更新或者写入缓存的 CacheInterceptor
interceptors.add(new CacheInterceptor(client.internalCache()));
//负责和服务器建立连接的 ConnectInterceptor，比较复杂
interceptors.add(new ConnectInterceptor(client));
if (!retryAndFollowUpInterceptor.isForWebSocket()) {
//配置 OkHttpClient 时设置的 networkInterceptors
interceptors.addAll(client.networkInterceptors());
}
//负责向服务器发送请求数据、从服务器读取响应数据的 CallServerInterceptor，也不深入研究和okio相关
interceptors.add(new CallServerInterceptor(
retryAndFollowUpInterceptor.isForWebSocket()));
Interceptor.Chain chain = new RealInterceptorChain(
interceptors, null, null, null, 0, originalRequest);
//开始链式调用
return chain.proceed(originalRequest);
}在chain.proceed(originalRequest);中开启链式调用
public Response proceed(Request request, StreamAllocation streamAllocation, HttpCodec httpCodec,
Connection connection) throws IOException {
if (index >= interceptors.size()) throw new AssertionError();
calls++;
//***************略***************
// Call the next interceptor in the chain.、
//这里是责任链模式调用
//实例化下一个拦截器对应的RealIterceptorChain对象
RealInterceptorChain next = new RealInterceptorChain(
interceptors, streamAllocation, httpCodec, connection, index + 1, request);
//得到当前的拦截器
Interceptor interceptor = interceptors.get(index);
//调用当前拦截器的intercept()方法，并将下一个拦截器的RealIterceptorChain对象传递下去
Response response = interceptor.intercept(next);
//***************略***************
return response;
}
看看interceptor.intercept(next)干了啥，又调用了chain.proceed地柜迭代啊
//核心代码，调用下一个拦截器
response = ((RealInterceptorChain) chain).proceed(request, streamAllocation, null, null);1.2自定义一个仿okhttp的不纯的责任链demo
上面拦截器责任链模式我们可以自己写个demo加深理解，就以我们平常的请假申请流程为例，员工提交申请（request）--主管审批--经理审批--总监审批到此流程完成给你resposne。
public interface ModelOkHttpInterceptor {
//处理实际的任务
public void intercept(Chain chain);
interface Chain {
//构建责任链
void proceed(String user);
}
}
public class RealChain implements ModelOkHttpInterceptor.Chain {
private List<ModelOkHttpInterceptor> mInterceptors;
private int mIndex;
private String mUser;
public RealChain(List<ModelOkHttpInterceptor> interceptors, int index, String user) {
mInterceptors = interceptors;
mIndex = index;
mUser = user;
}
@Override
public void proceed(String user) {
mUser = user;
if (mIndex > mInterceptors.size()) {
System.out.print("错误，没有人能够审批了");
}
RealChain chain = new RealChain(mInterceptors, mIndex + 1, mUser);
ModelOkHttpInterceptor interceptor = mInterceptors.get(mIndex);
interceptor.intercept(chain);
}
public String getUser() {
return mUser;
}
}
public class StaffInterceptor implements ModelOkHttpInterceptor {
@Override
public void intercept(Chain chain) {
String name = ((RealChain) chain).getUser();
System.out.println(name + "提交加班申请");
//员工提交申请，电子流责任链转到主管那里
chain.proceed("主管");
}
}
public class SupervisorInterceptor implements ModelOkHttpInterceptor {
@Override
public void intercept(Chain chain) {
String name = ((RealChain) chain).getUser();
System.out.println(name + "审批通过");
//主管神品通过申请，电子流责任链转到部门经理那里
chain.proceed("经理");
}
}
public class ManagerInterceptor implements ModelOkHttpInterceptor {
@Override
public void intercept(Chain chain) {
String name = ((RealChain) chain).getUser();
System.out.println(name + "审批通过");
//部门经理提交申请，电子流责任链转到总监那里
chain.proceed("总监");
}
}
public class ChiefInterceptor implements ModelOkHttpInterceptor {
@Override
public void intercept(Chain chain) {
String name = ((RealChain) chain).getUser();
//一般总监审批通过流程就结束了，这里就相当于request结束有response返回
System.out.println(name + "审批通过");
}
}
public class MainTest {
public static void main(String[] args ){
List<ModelOkHttpInterceptor> interceptorList = new ArrayList<>();
interceptorList.add(new StaffInterceptor());
interceptorList.add(new SupervisorInterceptor());
interceptorList.add(new ManagerInterceptor());
interceptorList.add(new ChiefInterceptor());
//构建加班申请责任链
ModelOkHttpInterceptor.Chain realChain = new RealChain(interceptorList, 0, "老三");
//员工开始提交申请
realChain.proceed("老三");
}
}2.几个主要的拦截器解析
2.1RetryAndFollowUpInterceptor:负责失败重试以及重定向拦截器
这个拦截器负责：当一个请求由于某种原因获取响应数据失败了，就回去尝试重连恢复，并且重新封装request（followUpRequest）最大重试次数20次。
/**
* This interceptor recovers from failures and follows redirects as necessary.
* 负责失败重试以及重定向的
* It may throw an {@link IOException} if the call was canceled.
*/
public final class RetryAndFollowUpInterceptor implements Interceptor {
/**
* How many redirects and auth challenges should we attempt? Chrome follows 21 redirects; Firefox,
* curl, and wget follow 20; Safari follows 16; and HTTP/1.0 recommends 5.
* 重试的最大尝试次数，超过将抛出异常
*/
private static final int MAX_FOLLOW_UPS = 20;
//OkHttpClient成员
private final OkHttpClient client;
//这个类暂时先放过
private StreamAllocation streamAllocation;
//这个也先放过
private boolean forWebSocket;
//请求被取消
private volatile boolean canceled;
public RetryAndFollowUpInterceptor(OkHttpClient client) {
this.client = client;
}
/**
* 同步的立即取消socket连接请求
*/
public void cancel() {
canceled = true;
StreamAllocation streamAllocation = this.streamAllocation;
if (streamAllocation != null) streamAllocation.cancel();
}
//*******************省略了一些set方法**********************
/**
* 主要爱分析这个方法
* @param chain
* @return
* @throws IOException
*/
@Override public Response intercept(Chain chain) throws IOException {
//拿到拦截链中的请求
Request request = chain.request();
//连接池，获取一个正确的连接
streamAllocation = new StreamAllocation(
client.connectionPool(), createAddress(request.url()));
//重定向次数初始化为0
int followUpCount = 0;
Response priorResponse = null;
//开始循环
while (true) {
//请求被取消直接抛异常
if (canceled) {
//连接被释放
streamAllocation.release();
throw new IOException("Canceled");
}
Response response = null;
boolean releaseConnection = true;
try {
//核心代码，调用下一个拦截器
response = ((RealInterceptorChain) chain).proceed(request, streamAllocation, null, null);
releaseConnection = false;
} catch (RouteException e) {
// The attempt to connect via a route failed. The request will not have been sent.
// 连接路由尝试失败，请求将不会被发送
if (!recover(e.getLastConnectException(), true, request)) throw e.getLastConnectException();
releaseConnection = false;
//重试啊
continue;
} catch (IOException e) {
// An attempt to communicate with a server failed. The request may have been sent.
//和服务器交互失败，请求也不会被发送
if (!recover(e, false, request)) throw e;
releaseConnection = false;
//重试啊
continue;
} finally {
// We're throwing an unchecked exception. Release any resources.
// 抛出未知异常，释放资源
if (releaseConnection) {
streamAllocation.streamFailed(null);
streamAllocation.release();
}
}
// Attach the prior response if it exists. Such responses never have a body.
//如果上一次重试获取的response存在，将其boby置为空(没看明白干嘛)
if (priorResponse != null) {
response = response.newBuilder()
.priorResponse(priorResponse.newBuilder()
.body(null)
.build())
.build();
}
//新的重试request封装：添加请求头，添加连接超时
Request followUp = followUpRequest(response);
//followUp为空(看下面followUpRequest这个方法的注释如果follow-up不必要或者不可用就返回空)
//重试流程结束，在这里跳出。
if (followUp == null) {
if (!forWebSocket) {
streamAllocation.release();
}
return response;
}
closeQuietly(response.body());
//超过最大重试次数，释放连接，抛出异常
if (++followUpCount > MAX_FOLLOW_UPS) {
streamAllocation.release();
throw new ProtocolException("Too many follow-up requests: " + followUpCount);
}
//异常处理
if (followUp.body() instanceof UnrepeatableRequestBody) {
throw new HttpRetryException("Cannot retry streamed HTTP body", response.code());
}
if (!sameConnection(response, followUp.url())) {
streamAllocation.release();
streamAllocation = new StreamAllocation(
client.connectionPool(), createAddress(followUp.url()));
} else if (streamAllocation.codec() != null) {
throw new IllegalStateException("Closing the body of " + response
+ " didn't close its backing stream. Bad interceptor?");
}
//request重新赋值
request = followUp;
priorResponse = response;
}
}
//*******************省略一些方法**********************
/**
* Figures out the HTTP request to make in response to receiving {@code userResponse}. This will
* either add authentication headers, follow redirects or handle a client request timeout. If a
* follow-up is either unnecessary or not applicable, this returns null.
* 对重试请求做了下封装：添加header，连接timeout
*/
private Request followUpRequest(Response userResponse) throws IOException {
if (userResponse == null) throw new IllegalStateException();
Connection connection = streamAllocation.connection();
Route route = connection != null
? connection.route()
: null;
int responseCode = userResponse.code();
final String method = userResponse.request().method();
switch (responseCode) {
case HTTP_PROXY_AUTH:
Proxy selectedProxy = route != null
? route.proxy()
: client.proxy();
if (selectedProxy.type() != Proxy.Type.HTTP) {
throw new ProtocolException("Received HTTP_PROXY_AUTH (407) code while not using proxy");
}
return client.proxyAuthenticator().authenticate(route, userResponse);
case HTTP_UNAUTHORIZED:
return client.authenticator().authenticate(route, userResponse);
case HTTP_PERM_REDIRECT:
case HTTP_TEMP_REDIRECT:
// "If the 307 or 308 status code is received in response to a request other than GET
// or HEAD, the user agent MUST NOT automatically redirect the request"
if (!method.equals("GET") && !method.equals("HEAD")) {
return null;
}
// fall-through
case HTTP_MULT_CHOICE:
case HTTP_MOVED_PERM:
case HTTP_MOVED_TEMP:
case HTTP_SEE_OTHER:
// Does the client allow redirects?
if (!client.followRedirects()) return null;
String location = userResponse.header("Location");
if (location == null) return null;
HttpUrl url = userResponse.request().url().resolve(location);
// Don't follow redirects to unsupported protocols.
if (url == null) return null;
// If configured, don't follow redirects between SSL and non-SSL.
boolean sameScheme = url.scheme().equals(userResponse.request().url().scheme());
if (!sameScheme && !client.followSslRedirects()) return null;
// Redirects don't include a request body.
Request.Builder requestBuilder = userResponse.request().newBuilder();
if (HttpMethod.permitsRequestBody(method)) {
if (HttpMethod.redirectsToGet(method)) {
requestBuilder.method("GET", null);
} else {
requestBuilder.method(method, null);
}
requestBuilder.removeHeader("Transfer-Encoding");
requestBuilder.removeHeader("Content-Length");
requestBuilder.removeHeader("Content-Type");
}
// When redirecting across hosts, drop all authentication headers. This
// is potentially annoying to the application layer since they have no
// way to retain them.
if (!sameConnection(userResponse, url)) {
requestBuilder.removeHeader("Authorization");
}
return requestBuilder.url(url).build();
case HTTP_CLIENT_TIMEOUT:
// 408's are rare in practice, but some servers like HAProxy use this response code. The
// spec says that we may repeat the request without modifications. Modern browsers also
// repeat the request (even non-idempotent ones.)
if (userResponse.request().body() instanceof UnrepeatableRequestBody) {
return null;
}
return userResponse.request();
default:
return null;
}
}
/**
* Returns true if an HTTP request for {@code followUp} can reuse the connection used by this
* engine.
* 判断request请求是否可以复用
*/
private boolean sameConnection(Response response, HttpUrl followUp) {
HttpUrl url = response.request().url();
return url.host().equals(followUp.host())
&& url.port() == followUp.port()
&& url.scheme().equals(followUp.scheme());
}
}2.2BridgeInterceptor:
BridgeInterceptor的注释意思是根据用户请求构建网络请求，使得它继续去访问网络，最后根据网络响应构建用户响应， 其实就是卫request添加请求头，为response添加响应头。
/**
* Bridges from application code to network code. First it builds a network request from a user
* request. Then it proceeds to call the network. Finally it builds a user response from the network
* response.
* 上面意思是根据用户请求构建网络请求，使得它继续去访问网络，最后根据网络响应构建用户响应。
* 其实就是卫request添加请求头，为response添加响应头。
*/
public final class BridgeInterceptor implements Interceptor {
private final CookieJar cookieJar;
public BridgeInterceptor(CookieJar cookieJar) {
this.cookieJar = cookieJar;
}
@Override public Response intercept(Chain chain) throws IOException {
Request userRequest = chain.request();
Request.Builder requestBuilder = userRequest.newBuilder();
RequestBody body = userRequest.body();
if (body != null) {
MediaType contentType = body.contentType();
//添加contenttype
if (contentType != null) {
requestBuilder.header("Content-Type", contentType.toString());
}
long contentLength = body.contentLength();
if (contentLength != -1) {
//如果body有值，请求头设置body的内容长度，并且移除传输编码
requestBuilder.header("Content-Length", Long.toString(contentLength));
requestBuilder.removeHeader("Transfer-Encoding");
} else {
//否则，设置传输编码（这里是分块传输编码），移除内容长度值
requestBuilder.header("Transfer-Encoding", "chunked");
requestBuilder.removeHeader("Content-Length");
}
}
//添加Host
if (userRequest.header("Host") == null) {
requestBuilder.header("Host", hostHeader(userRequest.url(), false));
}
//添加Connection
if (userRequest.header("Connection") == null) {
requestBuilder.header("Connection", "Keep-Alive");
}
// If we add an "Accept-Encoding: gzip" header field we're responsible for also decompressing
// the transfer stream.
boolean transparentGzip = false;
if (userRequest.header("Accept-Encoding") == null) {
transparentGzip = true;
requestBuilder.header("Accept-Encoding", "gzip");
}
List<Cookie> cookies = cookieJar.loadForRequest(userRequest.url());
if (!cookies.isEmpty()) {
requestBuilder.header("Cookie", cookieHeader(cookies));
}
if (userRequest.header("User-Agent") == null) {
requestBuilder.header("User-Agent", Version.userAgent());
}
//开始给resposne添加header
Response networkResponse = chain.proceed(requestBuilder.build());
HttpHeaders.receiveHeaders(cookieJar, userRequest.url(), networkResponse.headers());
Response.Builder responseBuilder = networkResponse.newBuilder()
.request(userRequest);
if (transparentGzip
&& "gzip".equalsIgnoreCase(networkResponse.header("Content-Encoding"))
&& HttpHeaders.hasBody(networkResponse)) {
GzipSource responseBody = new GzipSource(networkResponse.body().source());
Headers strippedHeaders = networkResponse.headers().newBuilder()
.removeAll("Content-Encoding")
.removeAll("Content-Length")
.build();
responseBuilder.headers(strippedHeaders);
responseBuilder.body(new RealResponseBody(strippedHeaders, Okio.buffer(responseBody)));
}
return responseBuilder.build();
}
/** Returns a 'Cookie' HTTP request header with all cookies, like {@code a=b; c=d}. */
private String cookieHeader(List<Cookie> cookies) {
StringBuilder cookieHeader = new StringBuilder();
for (int i = 0, size = cookies.size(); i < size; i++) {
if (i > 0) {
cookieHeader.append("; ");
}
Cookie cookie = cookies.get(i);
cookieHeader.append(cookie.name()).append('=').append(cookie.value());
}
return cookieHeader.toString();
}
}2.3ConnectInterceptor
ConnectInterceptor的intercept内部代码很少，关内容主要是咋在streamAllocation.newStream这里比较复杂。newStream内部findHealthyConnection是找到一个可用连接的意思重点就在这，通过找到的可用连接newCodec()返回了HttpCodec的实现类Http1Codec对象。
public final class ConnectInterceptor implements Interceptor {
public final OkHttpClient client;
public ConnectInterceptor(OkHttpClient client) {
this.client = client;
}
@Override public Response intercept(Chain chain) throws IOException {
RealInterceptorChain realChain = (RealInterceptorChain) chain;
Request request = realChain.request();
StreamAllocation streamAllocation = realChain.streamAllocation();
// We need the network to satisfy this request. Possibly for validating a conditional GET.
boolean doExtensiveHealthChecks = !request.method().equals("GET");
HttpCodec httpCodec = streamAllocation.newStream(client, doExtensiveHealthChecks);
RealConnection connection = streamAllocation.connection();
return realChain.proceed(request, streamAllocation, httpCodec, connection);
}
}主要看看findHealthyConnection()的实现
public HttpCodec newStream(OkHttpClient client, boolean doExtensiveHealthChecks) {
int connectTimeout = client.connectTimeoutMillis();
int readTimeout = client.readTimeoutMillis();
int writeTimeout = client.writeTimeoutMillis();
boolean connectionRetryEnabled = client.retryOnConnectionFailure();
try {
//findHealthyConnection这个方法是重点
RealConnection resultConnection = findHealthyConnection(connectTimeout, readTimeout,
writeTimeout, connectionRetryEnabled, doExtensiveHealthChecks);
HttpCodec resultCodec;
if (resultConnection.http2Connection != null) {
resultCodec = new Http2Codec(client, this, resultConnection.http2Connection);
} else {
resultConnection.socket().setSoTimeout(readTimeout);
resultConnection.source.timeout().timeout(readTimeout, MILLISECONDS);
resultConnection.sink.timeout().timeout(writeTimeout, MILLISECONDS);
resultCodec = new Http1Codec(
client, this, resultConnection.source, resultConnection.sink);
}
synchronized (connectionPool) {
codec = resultCodec;
return resultCodec;
}
} catch (IOException e) {
throw new RouteException(e);
}
}流程：先检测链接是否可用:
a 可用的话直接返回，结束流程。
b 不可用，先去连接池中查找：
连接池找到：结束流程。
未找到：提供address，再次去连接池中查找。如果找到了直接结束流程，如果没找到：生成一个新的连接，并且将这个新的链接加入到连接池，然后返回这个新链接。
private RealConnection findHealthyConnection(int connectTimeout, int readTimeout,
int writeTimeout, int pingIntervalMillis, boolean connectionRetryEnabled,
boolean doExtensiveHealthChecks) throws IOException {
while (true) {
RealConnection candidate = findConnection(connectTimeout, readTimeout, writeTimeout,
pingIntervalMillis, connectionRetryEnabled);
// If this is a brand new connection, we can skip the extensive health checks.
synchronized (connectionPool) {
if (candidate.successCount == 0) {
return candidate;
}
}
// Do a (potentially slow) check to confirm that the pooled connection is still good. If it
// isn't, take it out of the pool and start again.
if (!candidate.isHealthy(doExtensiveHealthChecks)) {//判断连接是否可用
noNewStreams();//连接不可用，移除
continue;//不可用，就一直持续
}
return candidate;
}
}
private RealConnection findConnection(int connectTimeout, int readTimeout, int writeTimeout,
int pingIntervalMillis, boolean connectionRetryEnabled) throws IOException {
boolean foundPooledConnection = false;
RealConnection result = null;
Route selectedRoute = null;
Connection releasedConnection;
Socket toClose;
//异常情况，直接抛出
synchronized (connectionPool) {
if (released) throw new IllegalStateException("released");
if (codec != null) throw new IllegalStateException("codec != null");
if (canceled) throw new IOException("Canceled");
// Attempt to use an already-allocated connection. We need to be careful here because our
// already-allocated connection may have been restricted from creating new streams.
releasedConnection = this.connection;
toClose = releaseIfNoNewStreams();
if (this.connection != null) { //
//经过releaseIfNoNewStreams，connection不为null，则连接是可用的
// We had an already-allocated connection and it's good.
result = this.connection;
releasedConnection = null;
}
if (!reportedAcquired) {
// If the connection was never reported acquired, don't report it as released!
releasedConnection = null;
}
//无可用连接，去连接池connectionPool中获取
if (result == null) {
// Attempt to get a connection from the pool.
Internal.instance.get(connectionPool, address, this, null);
if (connection != null) {
foundPooledConnection = true;
result = connection;
} else {
selectedRoute = route;
}
}
}
closeQuietly(toClose);
if (releasedConnection != null) {
eventListener.connectionReleased(call, releasedConnection);
}
if (foundPooledConnection) {
eventListener.connectionAcquired(call, result);
}
if (result != null) {//上面通过去连接池中找，如果result不为null，说明找到了可用连接
// If we found an already-allocated or pooled connection, we're done.
return result;
}
// If we need a route selection, make one. This is a blocking operation.
//如果在连接池中也没找到可用连接， 就需要一个路由信息，这是一个阻塞操作
boolean newRouteSelection = false;
if (selectedRoute == null && (routeSelection == null || !routeSelection.hasNext())) {
newRouteSelection = true;
routeSelection = routeSelector.next();
}
synchronized (connectionPool) {
if (canceled) throw new IOException("Canceled");
if (newRouteSelection) {
// Now that we have a set of IP addresses, make another attempt at getting a connection from
// the pool. This could match due to connection coalescing.
//提供address，再次从连接池中获取连接
List<Route> routes = routeSelection.getAll();
for (int i = 0, size = routes.size(); i < size; i++) {
Route route = routes.get(i);
Internal.instance.get(connectionPool, address, this, route);
if (connection != null) {
foundPooledConnection = true;
result = connection;
this.route = route;
break;
}
}
}
//提供路路由信息，然后进行查找可用链接，还是没有找到可用链接，就需要生成一个新的连接
if (!foundPooledConnection) {
if (selectedRoute == null) {
selectedRoute = routeSelection.next();
}
// Create a connection and assign it to this allocation immediately. This makes it possible
// for an asynchronous cancel() to interrupt the handshake we're about to do.
route = selectedRoute;
refusedStreamCount = 0;
result = new RealConnection(connectionPool, selectedRoute);
acquire(result, false);
}
}
// If we found a pooled connection on the 2nd time around, we're done.
//如果连接是从连接池中找到的，直接拿出来使用
if (foundPooledConnection) {
eventListener.connectionAcquired(call, result);
return result;
}
// Do TCP + TLS handshakes. This is a blocking operation.
result.connect(connectTimeout, readTimeout, writeTimeout, pingIntervalMillis,
connectionRetryEnabled, call, eventListener);
routeDatabase().connected(result.route());
Socket socket = null;
synchronized (connectionPool) {
reportedAcquired = true;
// Pool the connection.
//将新生成的连接放入连接池中
Internal.instance.put(connectionPool, result);
// If another multiplexed connection to the same address was created concurrently, then
// release this connection and acquire that one.
//如果是一个http2连接，http2连接应具有多路复用特性，
if (result.isMultiplexed()) {
socket = Internal.instance.deduplicate(connectionPool, address, this);
result = connection;
}
}
closeQuietly(socket);
eventListener.connectionAcquired(call, result);
return result;
}2.4CacheInterceptor
CacheInterceptor核心还是调用下一个拦截器，从网络获取响应数据，流程:
- 1.首先根据requst来判断cache中是否存在缓存，如有存在取出这个response
- 2.根据request获取缓存策略：网络，缓存，网络+缓存
- 3.一些异常情况判断：
(1)既无网络请求访问，也没有缓存，直接返回504
(2)没有网络请求访问，但是有缓存直接返回缓存
- 4.调用下一个拦截器，从网络获取响应数据
- 5.如果本地存在cacheResponse，网络response和cacheResponse作比较，判断是否更新cacheResponse
- 6.没有cacheResponse，直接写入网络response到缓存
public final class CacheInterceptor implements Interceptor {
@Override public Response intercept(Chain chain) throws IOException {
//获取到缓存----第一步
Response cacheCandidate = cache != null
? cache.get(chain.request())
: null;
long now = System.currentTimeMillis();
//CacheStrategy缓存策略类，管理request和response的缓存----第二步
CacheStrategy strategy = new CacheStrategy.Factory(now, chain.request(), cacheCandidate).get();
Request networkRequest = strategy.networkRequest;
Response cacheResponse = strategy.cacheResponse;
if (cache != null) {
cache.trackResponse(strategy);
}
//存在缓存但是不适用，关闭
if (cacheCandidate != null && cacheResponse == null) {
closeQuietly(cacheCandidate.body()); // The cache candidate wasn't applicable. Close it.
}
// If we're forbidden from using the network and the cache is insufficient, fail.
//如果禁止访问网络，并且无缓存，返回504----第三步
if (networkRequest == null && cacheResponse == null) {
return new Response.Builder()
.request(chain.request())
.protocol(Protocol.HTTP_1_1)
.code(504)
.message("Unsatisfiable Request (only-if-cached)")
.body(EMPTY_BODY)
.sentRequestAtMillis(-1L)
.receivedResponseAtMillis(System.currentTimeMillis())
.build();
}
// If we don't need the network, we're done.
//没有网络请求，直接返回缓存--还是第三步
if (networkRequest == null) {
return cacheResponse.newBuilder()
.cacheResponse(stripBody(cacheResponse))
.build();
}
Response networkResponse = null;
try {
//网络请求拦截器----第四步
networkResponse = chain.proceed(networkRequest);
} finally {
// If we're crashing on I/O or otherwise, don't leak the cache body.
//如果因为io或者其他原因崩溃，不泄露缓存并关闭
if (networkResponse == null && cacheCandidate != null) {
closeQuietly(cacheCandidate.body());
}
}
// If we have a cache response too, then we're doing a conditional get.
//如果已经存在缓存response，并且正在做条件get请求
if (cacheResponse != null) {
if (validate(cacheResponse, networkResponse)) {
Response response = cacheResponse.newBuilder()
.headers(combine(cacheResponse.headers(), networkResponse.headers()))
.cacheResponse(stripBody(cacheResponse))
.networkResponse(stripBody(networkResponse))
.build();
networkResponse.body().close();
// Update the cache after combining headers but before stripping the
// Content-Encoding header (as performed by initContentStream()).
//更新缓存----第五步
cache.trackConditionalCacheHit();
cache.update(cacheResponse, response);
return response;
} else {
closeQuietly(cacheResponse.body());
}
}
Response response = networkResponse.newBuilder()
.cacheResponse(stripBody(cacheResponse))
.networkResponse(stripBody(networkResponse))
.build();
if (HttpHeaders.hasBody(response)) {
CacheRequest cacheRequest = maybeCache(response, networkResponse.request(), cache);
//写入缓存----第六步
response = cacheWritingResponse(cacheRequest, response);
}
return response;
}
}2.5CallServerInterceptor：发送和接收数据
3.请求过程
3.1同步请求流程
1.1有提到过，不说了
3.2异步请求流程
典型流程
private final OkHttpClient client = new OkHttpClient();
public void run() throws Exception {
Request request = new Request.Builder()
.url("http://publicobject.com/helloworld.txt")
.build();
client.newCall(request).enqueue(new Callback() {
@Override
public void onFailure(Call call, IOException e) {
e.printStackTrace();
}
@Override
public void onResponse(Call call, Response response) throws IOException {
if (!response.isSuccessful()) throw new IOException("Unexpected code " + response);
Headers responseHeaders = response.headers();
for (int i = 0, size = responseHeaders.size(); i < size; i++) {
System.out.println(responseHeaders.name(i) + ": " + responseHeaders.value(i));
}
System.out.println(response.body().string());
}
});
}和同步不同的地方主要是enqueue，看这个方法：
//异步任务使用
@Override
public void enqueue(Callback responseCallback) {
synchronized (this) {
if (executed) throw new IllegalStateException("Already Executed");
executed = true;
}
//调用了上面我们没有详细说的Dispatcher类中的enqueue(Call )方法.接着继续看--分析1
client.dispatcher().enqueue(new AsyncCall(responseCallback));
}
private final Deque<AsyncCall> readyAsyncCalls = new ArrayDeque<>(); //正在准备中的异步请求队列
private final Deque<AsyncCall> runningAsyncCalls = new ArrayDeque<>(); //运行中的异步请求
private final Deque<RealCall> runningSyncCalls = new ArrayDeque<>(); //同步请求
/**
**分析1
**/
synchronized void enqueue(AsyncCall call) {
//如果中的runningAsynCalls不满，且call占用的host小于最大数量，则将call加入到runningAsyncCalls中执行，同时利用线程池//执行call；否者将call加入到readyAsyncCalls中
if (runningAsyncCalls.size() < maxRequests && runningCallsForHost(call) < maxRequestsPerHost) {
runningAsyncCalls.add(call);
//call加入到线程池中执行了。现在再看AsynCall的代码，它是RealCall中的内部类--分析2
executorService().execute(call);
} else {
readyAsyncCalls.add(call);
}
}
//异步请求
/**
**分析2
**/
final class AsyncCall extends NamedRunnable {
private final Callback responseCallback;
private AsyncCall(Callback responseCallback) {
super("OkHttp %s", redactedUrl());
this.responseCallback = responseCallback;
}
String host() {
return originalRequest.url().host();
}
Request request() {
return originalRequest;
}
RealCall get() {
return RealCall.this;
}
@Override protected void execute() {
boolean signalledCallback = false;
try {
//破案了，异步请求也是调用getResponseWithInterceptorChain处理来获得response，
//异步任务同样也是会经过一系列的拦截器
Response response = getResponseWithInterceptorChain();
if (retryAndFollowUpInterceptor.isCanceled()) {
signalledCallback = true;
responseCallback.onFailure(RealCall.this, new IOException("Canceled"));
} else {
signalledCallback = true;
responseCallback.onResponse(RealCall.this, response);
}
} catch (IOException e) {
if (signalledCallback) {
// Do not signal the callback twice!
Platform.get().log(INFO, "Callback failure for " + toLoggableString(), e);
} else {
responseCallback.onFailure(RealCall.this, e);
}
} finally {
client.dispatcher().finished(this);
}
}
}4.自定义一个拦截器(LogInterceptor)
就以最常见的LoggingInterceptor为例子
class LoggingInterceptor implements Interceptor {
@Override public Response intercept(Interceptor.Chain chain) throws IOException {
Request request = chain.request();
//1.请求前--打印请求信息
long t1 = System.nanoTime();
logger.info(String.format("Sending request %s on %s%n%s",
request.url(), chain.connection(), request.headers()));
//2.网络请求
Response response = chain.proceed(request);
//3.网络响应后--打印响应信息
long t2 = System.nanoTime();
logger.info(String.format("Received response for %s in %.1fms%n%s",
response.request().url(), (t2 - t1) / 1e6d, response.headers()));
return response;
}
}自定义拦截的添加也分两种方式Application Intercetor 和 NetworkInterceptor，他们的区别如下图：
4.1添加 Application Interceptor，request是最初的request，response 就是最终的响应，得到日志相对较少
OkHttpClient client = new OkHttpClient.Builder()
.addInterceptor(new LoggingInterceptor())
.build();
Request request = new Request.Builder()
.url("http://www.publicobject.com/helloworld.txt")
.header("User-Agent", "OkHttp Example")
.build();
Response response = client.newCall(request).execute();
response.body().close();
响应数据:
INFO: Sending request http://www.publicobject.com/helloworld.txt on null
User-Agent: OkHttp Example
INFO: Received response for https://publicobject.com/helloworld.txt in 1179.7ms
Server: nginx/1.4.6 (Ubuntu)
Content-Type: text/plain
Content-Length: 1759
Connection: keep-alive4.2添加 NetworkInterceptor，可以得到的是更多的信息，重定向的信息也会得到。
OkHttpClient client = new OkHttpClient.Builder()
.addNetworkInterceptor(new LoggingInterceptor())
.build();
Request request = new Request.Builder()
.url("http://www.publicobject.com/helloworld.txt")
.header("User-Agent", "OkHttp Example")
.build();
Response response = client.newCall(request).execute();
response.body().close();
INFO: Sending request http://www.publicobject.com/helloworld.txt on Connection{www.publicobject.com:80, proxy=DIRECT hostAddress=54.187.32.157 cipherSuite=none protocol=http/1.1}
User-Agent: OkHttp Example
Host: www.publicobject.com
Connection: Keep-Alive
Accept-Encoding: gzip
INFO: Received response for http://www.publicobject.com/helloworld.txt in 115.6ms
Server: nginx/1.4.6 (Ubuntu)
Content-Type: text/html
Content-Length: 193
Connection: keep-alive
Location: https://publicobject.com/helloworld.txt
INFO: Sending request https://publicobject.com/helloworld.txt on Connection{publicobject.com:443, proxy=DIRECT hostAddress=54.187.32.157 cipherSuite=TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA protocol=http/1.1}
User-Agent: OkHttp Example
Host: publicobject.com
Connection: Keep-Alive
Accept-Encoding: gzip
INFO: Received response for https://publicobject.com/helloworld.txt in 80.9ms
Server: nginx/1.4.6 (Ubuntu)
Content-Type: text/plain
Content-Length: 1759
Connection: keep-alive
938
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
