tools/vendor/google_prebuilts/arc/measure_fps.py

 code based on:
18 # https://chromium.googlesource.com/chromium/src/build/+/689a0a184e54c7a50a05964ae666b82e96ea549f/android/pylib/perf/surface_stats_collector.py

https://blog.csdn.net/weixin_43886680/article/details/121088311

https://blog.csdn.net/m0_37999066/article/details/129146611

关于 android 通过 python 统计 fps_python android13 游戏帧率计算公式-CSDN博客

如何使用Perfetto通过trace分析性能问题(一)——使用Timeline检测Android Jank_perfetto expected timeline actual timeline-CSDN博客

1073625857298 1073666694641 1073626659693

1073625857298

1073666694641

1073626659693

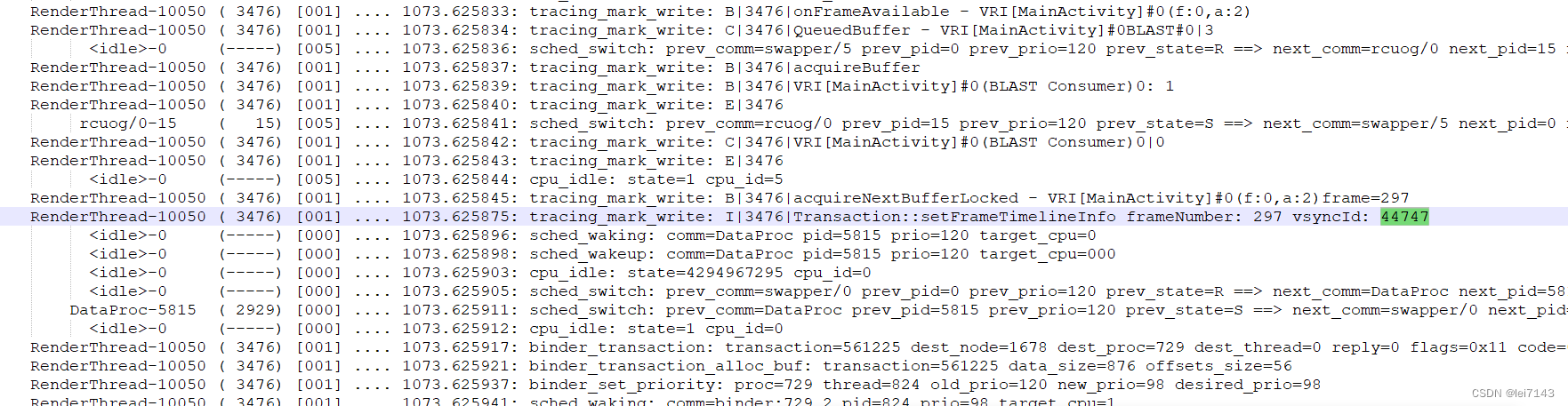

应用里面开始

RenderThread-10050 ( 3476) [001] .... 1073.625613: tracing_mark_write: B|3476|dispatchSetFrameTimelineInfo
RenderThread-10050 ( 3476) [001] .... 1073.625616: tracing_mark_write: B|3476|setFrameTimelineInfo(VRI[MainActivity]#0) frameNumber: 297 vsyncId: 44747

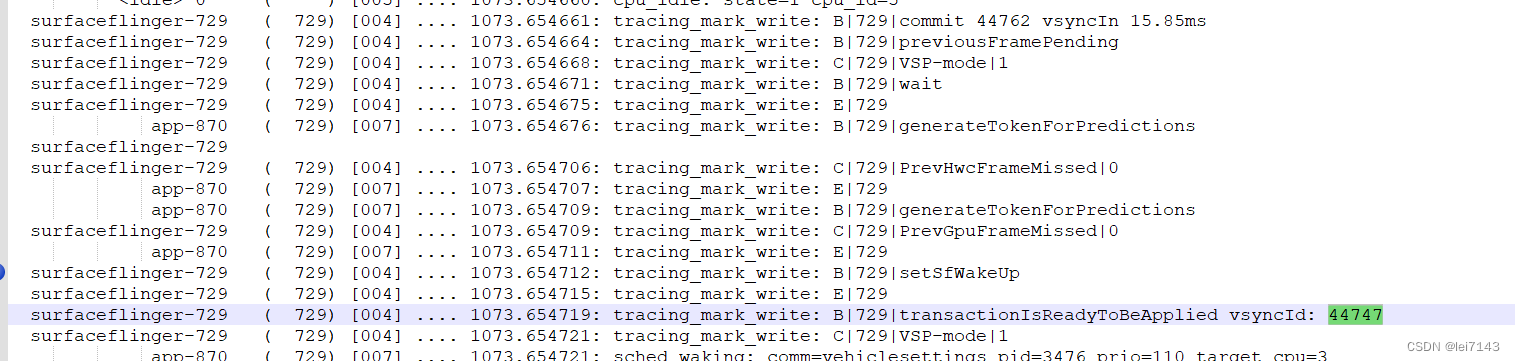

SF 开始

vehiclesettings-3476 ( 3476) [005] .... 1072.596941: tracing_mark_write: B|3476|Choreographer#doFrame 44259

> adb shell dumpsys SurfaceFlinger --latency "SurfaceView - com.tencent.tmgp.sgame/com.tencent.tmgp.sgame.SGameActivity#0"
16666666
59069638658663 59069678041684 59069654158298
59069653090955 59069695022100 59069670894236
59069671034444 59069711403455 59069687949861
59069688421840 59069728057361 59069704415121
59069705420850 59069744773350 59069720767830
59069719818975 59069761378975 59069737416007
59069736702673 59069778060955 59069754568663
59069753361528 59069794716007 59069770761632
59069768766371 59069811380486 59069787649600
......

.desiredPresentTime 下一个 HW-VSYNC 的时间戳

•actualPresentTime retire fence signal 的时间戳

•frameReadyTime acquire fence signal 的时间戳

desiredPresentTime

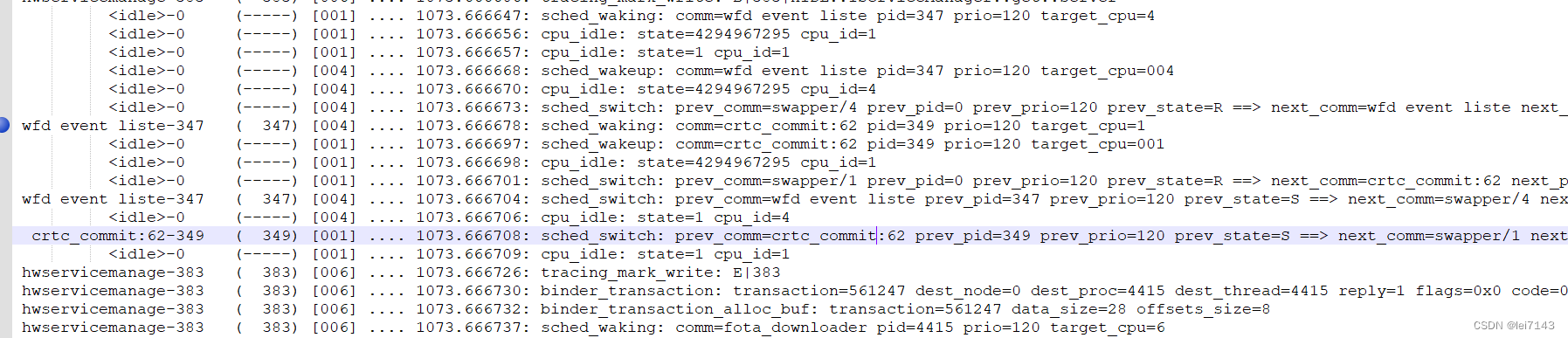

<idle>-0 (-----) [003] .... 1073.581689: cpu_idle: state=1 cpu_id=3
<idle>-0 (-----) [001] .... 1073.581833: sched_waking: comm=wfd event liste pid=347 prio=120 target_cpu=4
<idle>-0 (-----) [001] .... 1073.581843: cpu_idle: state=4294967295 cpu_id=1
<idle>-0 (-----) [001] .... 1073.581844: cpu_idle: state=1 cpu_id=1
<idle>-0 (-----) [004] .... 1073.581854: sched_wakeup: comm=wfd event liste pid=347 prio=120 target_cpu=004
<idle>-0 (-----) [004] .... 1073.581855: cpu_idle: state=4294967295 cpu_id=4
<idle>-0 (-----) [004] .... 1073.581859: sched_switch: prev_comm=swapper/4 prev_pid=0 prev_prio=120 prev_state=R ==> next_comm=wfd event liste next_pid=347 next_prio=120
wfd event liste-347 ( 347) [004] .... 1073.581864: sched_waking: comm=crtc_commit:64 pid=350 prio=120 target_cpu=7
<idle>-0 (-----) [007] .... 1073.581886: sched_wakeup: comm=crtc_commit:64 pid=350 prio=120 target_cpu=007
wfd event liste-347 ( 347) [004] .... 1073.581886: sched_switch: prev_comm=wfd event liste prev_pid=347 prev_prio=120 prev_state=S ==> next_comm=swapper/4 next_pid=0 next_prio=120
<idle>-0 (-----) [007] .... 1073.581887: cpu_idle: state=4294967295 cpu_id=7
<idle>-0 (-----) [004] .... 1073.581889: cpu_idle: state=1 cpu_id=4
<idle>-0 (-----) [007] .... 1073.581890: sched_switch: prev_comm=swapper/7 prev_pid=0 prev_prio=120 prev_state=R ==> next_comm=crtc_commit:64 next_pid=350 next_prio=120
crtc_commit:64-350 ( 350) [007] .... 1073.581899: sched_switch: prev_comm=crtc_commit:64 prev_pid=350 prev_prio=120 prev_state=S ==> next_comm=swapper/7 next_pid=0 next_prio=120
<idle>-0 (-----) [007] .... 1073.581901: cpu_idle: state=1 cpu_id=7

actualPresentTime

送显示

367: sched_switch: prev_comm=wfd event liste prev_pid=347 prev_prio=120 prev_state=S ==> next_comm=swapper/2 next_pid=0 next_prio=120
<idle>-0 (-----) [002] .... 1072.633368: cpu_idle: state=1 cpu_id=2
<idle>-0 (-----) [006] .... 1072.633369: sched_wakeup: comm=crtc_commit:62 pid=349 prio=120 target_cpu=006
<idle>-0 (-----) [006] .... 1072.633370: cpu_idle: state=4294967295 cpu_id=6
composer@2.4_se-681 ( 681) [004] .... 1072.633371: binder_transaction_received: transaction=560437
<idle>-0 (-----) [006] .... 1072.633393: sched_switch: prev_comm=swapper/6 prev_pid=0 prev_prio=120 prev_state=R ==> next_comm=crtc_commit:62 next_pid=349 next_prio=120
composer@2.4_se-681 ( 681) [004] .... 1072.633394: tracing_mark_write: B|681|HIDL::IComposerClient::executeCommands_2_2::server
crtc_commit:62-349 ( 349) [006] .... 1072.633405: sched_switch: prev_comm=crtc_commit:62 prev_pid=349 prev_prio=120 prev_state=S ==> next_comm=swapper/6 next_pid=0 next_prio=120
<idle>-0 (-----) [006] .... 1072.633407: cpu_idle: state=1 cpu_id=6
composer@2.4_se-681 ( 681) [004] .... 1072.633423: tracing_mark_write: B|681|HWCSession::PresentDisplay::
composer@2.4_se-681 ( 681) [004] .... 1072.633430: tracing_mark_write: B|681|HWCSession::PresentDisplayInternal::
composer@2.4_se-681 ( 681) [004] .... 1072.633432: tracing_mark_write: E|681
composer@2.4_se-681 ( 681) [004] .... 1072.633435: tracing_mark_write: B|681|HWCDisplay::CommitLayerStack::
composer@2.4_se-681 ( 681) [004] .... 1072.633442: tracing_mark_write: B|681|HWDeviceDRM::Commit::
composer@2.4_se-681 ( 681) [004] .... 1072.633445: tracing_mark_write: B|681|HWDeviceDRM::Register::
composer@2.4_se-681 ( 681) [004] .... 1072.633448: tracing_mark_write: E|681
composer@2.4_se-681 ( 681) [004] .... 1072.633450: tracing_mark_write: B|681|HWDeviceDRM::AtomicCommit::
composer@2.4_se-681 ( 681) [004] .... 1072.633453: tracing_mark_write: B|681|HWDeviceDRM::SetupAtomic::
<idle>-0 (-----) [003] .... 1072.633454: sched_waking: comm=kworker/3:1 pid=77 prio=120 target_cpu=3
<idle>-0 (-----) [003] .... 1072.633456: sched_wakeup: comm=kworker/3:1 pid=77 prio=120 target_cpu=003
<idle>-0 (-----) [003] .... 1072.633468: cpu_idle: state=4294967295 cpu_id=3
<idle>-0 (-----) [003] .... 1072.633470: sched_switch: prev_comm=swapper/3 prev_pid=0 prev_prio=120 prev_state=R ==> next_comm=kworker/3:1 next_pid=77 next_prio=120
composer@2.4_se-681 ( 681) [004] .... 1072.633472: tracing_mark_write: E|681
kworker/3:1-77 ( 77) [003] .... 1072.633472: sched_waking: comm=AdrenoOsLib pid=1153 prio=97 target_cpu=5
composer@2.4_se-681 ( 681) [004] .... 1072.633474: tracing_mark_write: B|681|DRMAtomicReq::Commit::

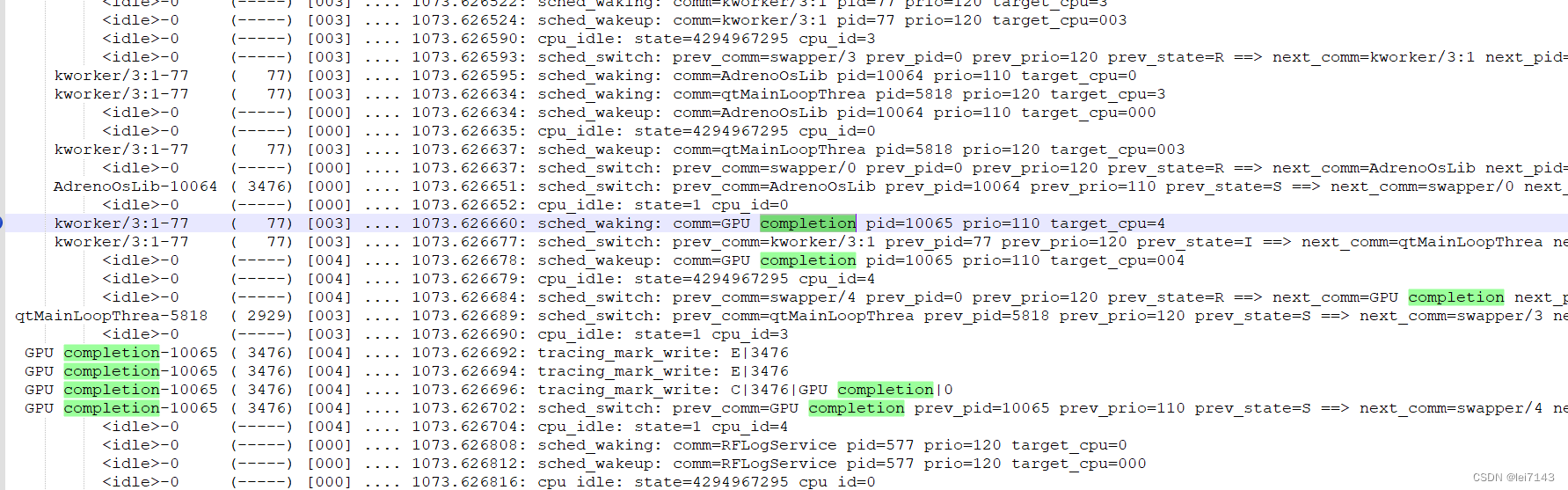

frameReadyTime

RenderThread-10050 ( 3476) [003] .... 1072.582371: sched_wakeup: comm=GPU completion pid=10065 prio=110 target_cpu=003
RenderThread-10050 ( 3476) [003] .... 1072.582372: tracing_mark_write: C|3476|GPU completion|1
RenderThread-10050 ( 3476) [003] .... 1072.582373: tracing_mark_write: E|3476
RenderThread-10050 ( 3476) [003] .... 1072.582375: tracing_mark_write: E|3476
binder:729_2-824 ( 729) [000] .... 1072.582379: sched_switch: prev_comm=binder:729_2 prev_pid=824 prev_prio=120 prev_state=S ==> next_comm=swapper/0 next_pid=0 next_prio=120
surfaceflinger-887 ( 729) [004] .... 1072.582380: sched_switch: prev_comm=surfaceflinger prev_pid=887 prev_prio=120 prev_state=S ==> next_comm=swapper/4 next_pid=0 next_prio=120
<idle>-0 (-----) [000] .... 1072.582381: cpu_idle: state=1 cpu_id=0
<idle>-0 (-----) [004] .... 1072.582383: cpu_idle: state=1 cpu_id=4
RenderThread-10050 ( 3476) [003] .... 1072.582389: tracing_mark_write: E|3476
<idle>-0 (-----) [001] .... 1072.582395: sched_waking: comm=DR_update_filte pid=5241 prio=120 target_cpu=1
RenderThread-10050 ( 3476) [003] .... 1072.582397: tracing_mark_write: B|3476|reportMetricsWithPresentTime
RenderThread-10050 ( 3476) [003] .... 1072.582400: tracing_mark_write: B|3476|getFrameTimestamps
<idle>-0 (-----) [001] .... 1072.582401: sched_wakeup: comm=DR_update_filte pid=5241 prio
