1. 逆波兰计算器的设计步骤
1) 输入一个逆波兰表达式(后缀表达式), 使用栈(Stack)计算其结果 2) 支持小括号和多位数证书, 因为主要用于数据结构演示, 复杂功能省略 3) 计算思路分析 4) 代码实现
2. 实现代码
2.1. 主方法
- 实现细节看注释即可
package com.leo9.dc08.poland_notation;
import java.util.ArrayList;
import java.util.List;
import java.util.Stack;
public class TestDemoPN {
public static void main(String[] args) {
//先定义逆波兰表达式
//表达式 `(3+4)*5-6` 对应的后缀表达式是 `3 4 + 5 * 6 -`
//为了方便, 逆波兰表达式的数字和符号用空格隔开
String suffixExpression = "3 4 + 5 * 6 -";
//思路
//1.先将逆波兰表达式放到ArrayList中
//2.将ArrayList传递给一个方法,遍历ArrayList配合栈完成计算
List<String> rpnList = getListString(suffixExpression);
int res = calculate(rpnList);

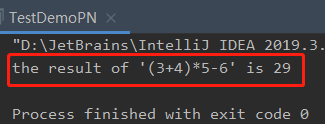

System.out.println("the result of '(3+4)*5-6' is " + res);
}
//将一个逆波兰表达式依次将数字和运算符放入到ArrayList中
public static List<String> getListString(String suffixExpression){
//将suffixExpression以空格进行分分割
String[] split = suffixExpression.split(" ");
//创建一个ArrayList
List<String> list = new ArrayList<String>();
//遍历字符串数组, 并用list接收数字和运算符
for(String ele: split){
list.add(ele);
}
return list;
}
//完成对逆波兰表达式的运算
/*
1. 从左到右扫描表达式
2. 遇到数字时, 将数字压入堆栈
3. 遇到运算符时, 弹出栈顶的两个数,用运算符对它们做计算, 并将结果入栈.
4. 重复上述过程直到表达式最右端,最后得到的运算结果就是表达式的最终结果.
*/
public static int calculate(List<String> ls){
//创建一个栈, 且只需要一个栈即可
Stack<String> stack = new Stack<String>();
//遍历ArrayList
for(String item: ls){
//使用正则表达式来取出数
if(item.matches("\\d+")){
//匹配的是多位数, 入栈
stack.push(item);
}
else{
//pop出两个数, 并运算, 再入栈
int num2 = Integer.parseInt(stack.pop());
int num1 = Integer.parseInt(stack.pop());
int res = 0;
if(item.equals("+")){
res = num1 + num2;
}
else if(item.equals("-")){
res = num1 - num2;
}
else if(item.equals("*")){
res = num1 * num2;
}
else if(item.equals("/")){
res = num1/num2;
}
else {
throw new RuntimeException("error!");
}
//把res入栈
stack.push("" + res);
}
}
//最后留在Stack中的数据是运算结果
return Integer.parseInt(stack.pop());
}
}
