如题,latex多行表格合并后如何强制换行
弄了半天才找到改正的办法,参考博客\multirow 表格文字居中(latex强制换行)
基础表格的强制换行是在 \begin{tabular}{c c c c c c c}这一块操作 将c改为 p{2cm} 再加上centering, 如:
\begin{tabular}{p{2cm}<{centering} c c c c c c}

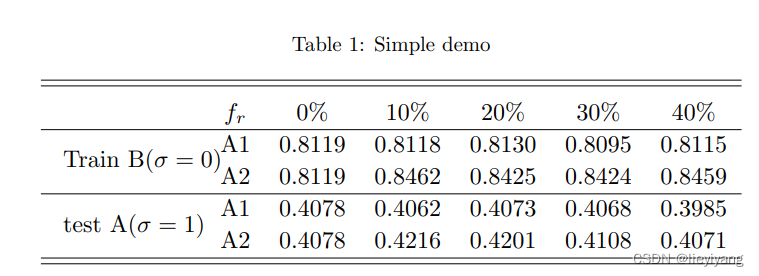

得到的结果如表1,合并后的表格并未能换行, 此时\multirow 那块的命令为:
\multirow{2}*{ Train B \\ ($sigma=0$)}
注,使用\multirow的时候记得加上头文件
\usepackage{multirow}
接下来直接在multirow那一行的代码进行更改:
\multirow{2}{2cm}{\centering Train B \\ ($sigma=0$)}
其中第一个2代表2行表格合并成一行,2cm代表该列的宽度为2cm (按需更改),\centering目的是是表格内的字居中, \ 代表换行。 同时,将\begin{tabular}那块的代码改回
\begin{tabular}{c c c c c c c}

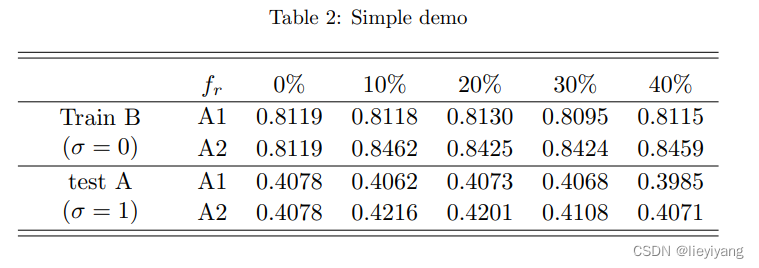

得到的结果如表二,完成更改。
表1,表2的具体代码附上,
Table 1 代码
\\begin{table}[!t]
\renewcommand{\arraystretch}{1.1}
\caption{Simple demo}
\centering
\label{table:attacks}
%\centering
\resizebox{\columnwidth}{!}{
\begin{tabular}{p{2cm}<{\centering} c c c c c c}
\hline\hline \\[-3mm]
& $f_r$ & 0\% &10\% &20\% &30\% &40\% \\
\hline
\multirow{2}*{ Train B \\ ($sigma=0$)} &
A1 & 0.8119 &0.8118 &0.8130 &0.8095 &0.8115 \\
& A2 &0.8119 &0.8462 &0.8425 &0.8424 &0.8459 \\
\hline
\multirow{2}*{ test A\\($sigma=1$)} & A1 & 0.4078 &0.4062 &0.4073 &0.4068 &0.3985\\
& A2 &0.4078 &0.4216 &0.4201 &0.4108 &0.4071\\
\hline\hline
\end{tabular}
}
\end{table}
\end{document}
table 2代码
\begin{table}[!t]
\renewcommand{\arraystretch}{1.1}
\caption{Simple demo}
\centering
\label{table:attacks}
%\centering
\resizebox{\columnwidth}{!}{
\begin{tabular}{c c c c c c c}
\hline\hline \\[-3mm]
& $f_r$ & 0\% &10\% &20\% &30\% &40\% \\
\hline
\multirow{2}{2cm}{\centering Train B \\ ($sigma=0$)} &
A1 & 0.8119 &0.8118 &0.8130 &0.8095 &0.8115 \\
& A2 &0.8119 &0.8462 &0.8425 &0.8424 &0.8459 \\
\hline
\multirow{2}{2cm}{\centering test A\\($sigma=1$)} & A1 & 0.4078 &0.4062 &0.4073 &0.4068 &0.3985\\
& A2 &0.4078 &0.4216 &0.4201 &0.4108 &0.4071\\
\hline\hline
\end{tabular}
}
\end{table}
\end{document}
