ARM:(S5PV210)Smart210
LINUX:3.9.7
参考文档（http://lwn.net/Articles/449661/）
Updated RFC for TV driver:
==============
Introduction
==============
The purpose of this RFC is to discuss the driver for a TV output interface
available in upcoming Samsung SoC. The HW is able to generate digital and
analog signals. Current version of the driver supports only digital output.
Internally the driver uses videobuf2 framework, and DMA-CONTIG memory allocator.
======================
Hardware description
======================
The SoC contains a few HW sub-blocks:
1. Video Processor (VP). It is used for processing of NV12 data. An image
stored in RAM is accessed by DMA. Pixels are cropped, scaled. Additionally,
post processing operations like brightness, sharpness and contrast adjustments
could be performed. The output in YCbCr444 format is send to Mixer.
2. Mixer (MXR). The piece of hardware responsible for mixing and blending
multiple data inputs before passing it to an output device. The MXR is capable
of handling up to three image layers. One is the output of VP. Other two are
images in RGB format (multiple variants are supported). The layers are scaled,
cropped and blended with background color. The blending factor, and layers'
priority are controlled by MXR's registers. The output is passed either to HDMI
or SDO.
3. HDMI. The piece of HW responsible for generation of HDMI packets. It takes
pixel data from mixer and transforms it into data frames. The output is send
to HDMIPHY interface.
4. HDMIPHY. Physical interface for HDMI. Its duties are sending HDMI packets to
HDMI connector. Basically, it contains a PLL that produces source clock for
Mixer, VP and HDMI during streaming.
5. SDO. Generation of TV analog signal. The alternative output for the Mixer.
It receives data and passes it to VideoDAC. The SDO is responsible for timing
generation of analog TV signal. It supports multiple standards.
6. VideoDAC. Modulator for TVOUT signal. Receives data from SDO. Converts
it to analog domain. Next, the signal is modulated to CVBS format, amplified
and sent to Composite Connector.
The diagram below depicts connection between all HW pieces.
+-----------+
NV12 data ---dma--->| Video |
| Processor |
+-----------+
|
V
+-----------+
RGB data ---dma--->| |
| Mixer |
RGB data ---dma--->| |
+-----------+
|
* dmux
/
+-----* *------+
| |
V V
+-----------+ +-----------+
| HDMI | | SDO |
+-----------+ +-----------+
| |
V V
+-----------+ +-----------+
| HDMIPHY | | VideoDAC |
+-----------+ +-----------+
| |
V V
HDMI Composite
connector connector
==================
Driver interface
==================
The posted driver implements three V4L2 nodes. Every video node implements V4L2
output buffer. One of nodes corresponds to input of Video Processor. The other
two nodes correspond to RGB inputs of Mixer. All nodes share the same output.
It is one of the Mixer's outputs: SDO or HDMI. Changing output in one layer
using S_OUTPUT would change outputs of all other video nodes. The same thing
happens if one try to reconfigure output i.e. by calling S_DV_PRESET. However
it not possible to change or reconfigure the output while streaming. To sum up,
all features in posted version of driver goes as follows:
1. QUERYCAP
2. S_FMT, G_FMT - multiplanar API, single planar modes must be emulated
a) node named video0 supports formats NV12, NV21, NV12T (tiled version of
NV12), NV12MT (multiplane version of NV12T).
b) nodes named graph0 and graph1 support formats RGB565, ARGB1555, ARGB4444,
ARGB8888.
3. Buffer with USERPTR and MMAP memory.
4. Streaming and buffer control. (STREAMON, STREAMOFF, REQBUF, QBUF, DQBUF)
5. OUTPUT configurations and enumeration using VIDIOC_{ENUM/S/G}_OUTPUT.
6. DV preset control (SET, GET, ENUM). Currently modes 480P59_94, 720P59_94,
1080P30, 1080P59_94 and 1080P60 work.
7. Analog standards using VIDIOC_{S_/G_/ENUM}STD. Modes PAL_N, PAL_Nc, PAL_M,
PAL_60, NTSC_443, PAL_BGHID, NTSC_M are supported.
8. Positioning layer's window on output display using S_CROP, G_GROP, CROPCAP.
9. Positioning and cropping data in buffer using S_CROP, G_GROP, CROPCAP with
buffer type OVERLAY *. This is temporary interface and it is going to be
substituted by SELECTION api.
10. Support for priority api: VIDIOC_{G/S}_PRIORITY
TODOs:
- add control of alpha blending / chroma keying via V4L2 controls
- add controls for luminance curve and sharpness in VP
- consider exporting all output functionalities to separate video node
- consider media controller framework
* The need of cropping in source buffers came from problem with MFC driver for
S5P. The MFC supports only width divisible by 64. If a width of a decoded movie
is not aligned do 64 then padding pixels are filled with zeros. This is an ugly
green color in YCbCr colorspace. Filling it with zeros by a CPU is a waste of
resources since an image can be cropped in VP. Is it possible to set crops for
user data for M2M devices. V4L2 lacks such functionality of non-M2M devices.
Therefore cropping in buffer V4L2_BUF_TYPE_VIDEO_OVERLAY was used as an work
around.
=====================
Device Architecture
=====================
Three drivers are added in this patch.
1. HDMIPHY. It is an I2C driver for HDMIPHY interface. It exports following
callback by V4L2 subdevice:
- s_power: currently stub
- s_stream: configures and starts/stops HDMIPHY
- s_dv_preset: used to choose proper frequency of clock for other TV devices
2. HDMI. The auxiliary driver used to control HDMI interface. It exports its
subdev in its private data for use by other drivers. The following callbacks are
implemented:
- s_power: runs HDMI hardware, regulators and clocks.
- s_stream: runs HDMIPHY and starts generation of video frames.
- enum_dv_presets
- s_dv_preset
- g_dv_preset: returns current preset used by HDMI
- g_mbus_format: returns information on data format expected by on HDMI input
The driver supports an interrupt. It is used to detect plug/unplug events in
kernel debugs. The API for detection of such an events in V4L2 API is to be
defined.
3. SDO. The auxiliary driver used to control analog TV. It also exports its
subdev for other drivers. The following callbacks are implemented.
- s_power: runs TV hardware, regulators and clocks.
- s_stream: runs TV clock and starts generation of video signal.
- s_std_output: set configuration of TV standard from one of PAL/NTSC family
- g_std_output: get current configuration of TV standard
- g_tvnorms_output: used by Mixer to obtain tv standards supported by SDO
- g_mbus_format: returns information on data format expected by on SDO input
5. Mixer & Video Processor driver. It is called 's5p-mixer' because of
historical reasons. It was decided combine VP and MXR drivers into one because
of shared interrupt and very similar interface via V4L2 nodes. The driver is a
realization of many-to-many relation between multiple input layers and multiple
outputs. All shared resources are kept in struct mxr_device. It provides
utilities for management and synchronization of access to resources and
reference counting. The outputs are obtained from HDMI/SDO private data. One
layer is a single video node. Simple inheritance is applied because there only
little difference between layer's types. Every layer type implements set of
ops. There are different ops for Mixer layers and other for VP layer.
The videobuf2 framework was used for the management of buffers and streaming.
All other V4L2 ioctls are processed in layers common interface. The DMA-COHERENT
was used as memory allocator for Mixer's buffers. It could be easily exchanged
with any other allocator integrated with videobuf2 framework.
===============
Usage summary
===============
Follow steps below to display double-buffered animation on output.
In order to use other output please use VIDIOC_S_OUTPUT.
01. Open video node named graph0.
02. S_FMT(type = OUTPUT, pixelformat = V4L2_PIX_FMT_RGB*, width, height, ...)
03. REQ_BUFS(type = OUTPUT, memory = MMAP, count = 2)
04. MMAP(type = OUTPUT, index = 0)
05. MMAP(type = OUTPUT, index = 1)
06. Fill buffer 0 with data
07. QBUF(type = OUTPUT, index = 0)
08. STREAM_ON(type = OUTPUT)
09. Fill buffer 1 with data
10. QBUF(type = OUTPUT, index = 1)
11. DQBUF(type = OUTPUT)
12. QBUF(type = OUTPUT, index = 0)
13. DQBUF(type = OUTPUT)
14. Goto 09
需要添加：
static struct i2c_board_info hdmiphy_info = {
I2C_BOARD_INFO("hdmiphy-s5pv210", (0x38)),
}; s5p_i2c_hdmiphy_set_platdata(NULL);
s5p_hdmi_set_platdata(&hdmiphy_info, NULL, 0);测试代码
#include <stdio.h>
#include <stdarg.h>
#include <string.h>
#include <errno.h>
#include <stdlib.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <time.h>
#include <sys/mman.h>
#include <assert.h>
#include <linux/videodev2.h>
#include <linux/fb.h>
#include <pthread.h>
#include <poll.h>
#include <semaphore.h>
#define TimeOut 5
#define CapNum 10
#define CapWidth 640
#define CapHeight 480
#define hdmi_width 720
#define hdmi_height 480
#define ReqButNum 3
#define IsRearCamera 0
#define FPS 10
#define PIXELFMT V4L2_PIX_FMT_YUYV
#define FIMC0CAPFMT V4L2_PIX_FMT_BGR32
#define CapDelay 100*1000
#define CLEAR(x) memset(&(x), 0, sizeof(x))
#define MIN(x,y) ((x) < (y) ? (x) : (y))
#define MAX(x,y) ((x) > (y) ? (x) : (y))
#define CLAMP(x,l,h) ((x) < (l) ? (l) : ((x) > (h) ? (h) : (x)))
#define ERRSTR strerror(errno)
#define debug
#define LOG(...) fprintf(stderr, __VA_ARGS__)
#define ERR(...) __info("Error", __FILE__, __LINE__, __VA_ARGS__)
#define ERR_ON(cond, ...) ((cond) ? ERR(__VA_ARGS__) : 0)
#define CRIT(...) \
do { \
__info("Critical", __FILE__, __LINE__, __VA_ARGS__); \
exit(EXIT_FAILURE); \
} while(0)
#define CRIT_ON(cond, ...) do { if (cond) CRIT(__VA_ARGS__); } while(0)
#define BYE_ON(cond, ...) \
do { \
if (cond) { \
int errsv = errno; \
fprintf(stderr, "ERROR(%s:%d) : ", \
__FILE__, __LINE__); \
errno = errsv; \
fprintf(stderr, __VA_ARGS__); \
abort(); \
} \
} while(0)
typedef struct
{
void *start;
int length;
int bytesused;
}BUFTYPE;
struct hdmibuffer {
int index;
void *data;
size_t size;
size_t width;
size_t height;
/* buffer state */
double t;
};
struct hdmibuffer hdmi_buffer[ReqButNum];

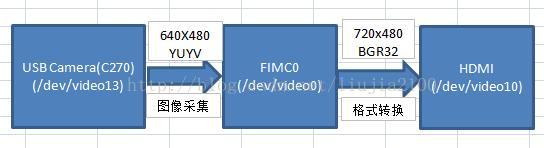

char lcd_path[] = "/dev/fb0";
char fimc0_path[] = "/dev/video0";
char cam_path[] = "/dev/video13";
char hdmi_path[] = "/dev/video10";
static sem_t lcd_sem;
static sem_t hdmi_sem;
static sem_t fimc0_sem;
BUFTYPE *fimc0_out_buf;
BUFTYPE *buffers;
static int n_buffer = 0;
void *fimc_in = NULL;
void *fimc_out = NULL;
int fimc0_out_buf_length;
int fimc0_cap_buf_length;
void *fimc0_out[16];
void *fimc0_cap[16];
static struct fb_var_screeninfo vinfo;
static struct fb_fix_screeninfo finfo;
static int lcd_buf_size;
static char *fb_buf = NULL;
static int tsp_fd;
static int fimc0_fd;
static int hdmi_fd;
static int hdmi_index = 16;
static pthread_t capture_tid;
static pthread_t display_tid;
int lcd_fd;
int cam_fd;
int display_x = 0;
int display_y = 0;
static int fimc0_cap_index = 0;
char *temp_buf=NULL;
int display_format(int pixelformat)
{
debug("{pixelformat = %c%c%c%c}\n",
pixelformat & 0xff,(pixelformat >> 8)&0xff,
(pixelformat >> 16) & 0xff,(pixelformat >> 24)&0xff
);
}
static inline int __info(const char *prefix, const char *file, int line,
const char *fmt, ...)
{
int errsv = errno;
va_list va;
va_start(va, fmt);
fprintf(stderr, "%s(%s:%d): ", prefix, file, line);
vfprintf(stderr, fmt, va);
va_end(va);
errno = errsv;
return 1;
}
struct format {
unsigned long fourcc;
unsigned long width;
unsigned long height;
};
void dump_format(char *str, struct v4l2_format *fmt)
{
if (V4L2_TYPE_IS_MULTIPLANAR(fmt->type)) {
struct v4l2_pix_format_mplane *pix = &fmt->fmt.pix_mp;
LOG("%s: width=%u height=%u format=%.4s bpl=%u\n", str,
pix->width, pix->height, (char*)&pix->pixelformat,
pix->plane_fmt[0].bytesperline);
} else {
struct v4l2_pix_format *pix = &fmt->fmt.pix;
LOG("%s: width=%u height=%u format=%.4s bpl=%u\n", str,
pix->width, pix->height, (char*)&pix->pixelformat,
pix->bytesperline);
}
}
int open_camera_device()
{
int fd;
if((fd = open(cam_path,O_RDWR | O_NONBLOCK)) < 0)
{
perror("Fail to open");
exit(EXIT_FAILURE);
}
cam_fd = fd;
if((fimc0_fd = open(fimc0_path,O_RDWR | O_NONBLOCK)) < 0)
{
perror("Fail to open");
exit(EXIT_FAILURE);
}
debug("open cam success %d\n",fd);
return fd;
}
int open_hdmi_device()
{
int fd;
if((fd = open(hdmi_path,O_RDWR)) < 0)
{
perror("Fail to open");
exit(EXIT_FAILURE);
}
hdmi_fd = fd;
debug("open hdmi success %d\n",fd);
return fd;
}
//′ò?aé???í·éè±?
int open_lcd_device()
{
int fd;
int err;
int ret;
if((fd = open(lcd_path, O_RDWR | O_NONBLOCK)) < 0)
{
perror("Fail to open");
exit(EXIT_FAILURE);
}
debug("open lcd success %d\n",fd);
if(-1 == ioctl(fd, FBIOGET_FSCREENINFO,&finfo))
{
perror("Fail to ioctl:FBIOGET_FSCREENINFO\n");
exit(EXIT_FAILURE);
}
if (-1==ioctl(fd, FBIOGET_VSCREENINFO, &vinfo))
{
perror("Fail to ioctl:FBIOGET_VSCREENINFO\n");
exit(EXIT_FAILURE);
}
lcd_buf_size = vinfo.xres * vinfo.yres * vinfo.bits_per_pixel / 8;
debug("vinfo.xres:%d, vinfo.yres:%d, vinfo.bits_per_pixel:%d, lcd_buf_size:%d, finfo.line_length:%d\n",vinfo.xres, vinfo.yres, vinfo.bits_per_pixel, lcd_buf_size, finfo.line_length);
lcd_fd = fd;
vinfo.activate = FB_ACTIVATE_FORCE;
vinfo.yres_virtual = vinfo.yres;
ret = ioctl(fd, FBIOPUT_VSCREENINFO, &vinfo );
if( ret < 0 )
{
debug( "ioctl FBIOPUT_VSCREENINFO failed\n");
return -1;
}
//mmap framebuffer
fb_buf = (char *)mmap(
NULL,
lcd_buf_size,
PROT_READ | PROT_WRITE,MAP_SHARED ,
lcd_fd,
0);
if(NULL == fb_buf)
{
perror("Fail to mmap fb_buf");
exit(EXIT_FAILURE);
}
ret = ioctl( lcd_fd, FBIOBLANK, FB_BLANK_UNBLANK );
if( ret < 0 )
{
debug( "ioctl FBIOBLANK failed\n");
return -1;
}
return fd;
}
int fb_wait_for_vsync(int lcd_fd)
{
int ret;
unsigned long temp;
ret = ioctl(lcd_fd, FBIO_WAITFORVSYNC, &temp);
if (ret < 0) {
err("Wait for vsync failed");
return -1;
}
return 0;
}
int cam_reqbufs()
{
struct v4l2_requestbuffers req;
int i;
debug("%s: +\n", __func__);
int n_buffers = 0;
CLEAR(req);
req.count = ReqButNum;
req.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
req.memory = V4L2_MEMORY_USERPTR;
if (-1 == ioctl(cam_fd, VIDIOC_REQBUFS, &req)) {
if (EINVAL == errno) {
fprintf(stderr, "%s does not support "
"user pointer i/o\n", "campture");
exit(EXIT_FAILURE);
} else {
debug("VIDIOC_REQBUFS");
exit(EXIT_FAILURE);
}
}
buffers = calloc(ReqButNum, sizeof(*buffers));
if (!buffers) {
fprintf(stderr, "Out of memory\n");
exit(EXIT_FAILURE);
}
for (n_buffers = 0; n_buffers < ReqButNum; ++n_buffers) {
buffers[n_buffers].length = fimc0_out_buf_length;
buffers[n_buffers].start = malloc(fimc0_out_buf_length);
if (!buffers[n_buffers].start) {
fprintf(stderr, "Out of memory\n");
exit(EXIT_FAILURE);
}
}
debug("%s: -\n", __func__);
}
int fimc0_reqbufs()
{
int i = 0;
int err;
int ret;
struct v4l2_control ctrl;
struct v4l2_requestbuffers reqbuf;
struct v4l2_requestbuffers rb;
CLEAR(rb);
/* enqueue the dmabuf to vivi */
struct v4l2_buffer b;
CLEAR(b);
debug("%s: +\n", __func__);
/* request buffers for FIMC0 */
rb.count = ReqButNum;
rb.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
rb.memory = V4L2_MEMORY_MMAP;
ret = ioctl(fimc0_fd, VIDIOC_REQBUFS, &rb);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_REQBUFS: %s\n", ERRSTR))
return -errno;
debug("fimc0 output_buf_num:%d\n",rb.count);
int n;
n_buffer = rb.count;
fimc0_out_buf = calloc(rb.count,sizeof(*fimc0_out_buf));
if(fimc0_out_buf == NULL){
fprintf(stderr,"Out of memory\n");
exit(EXIT_FAILURE);
}
/* mmap DMABUF */
struct v4l2_plane plane[2];
#if 1
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.index = 0;
b.m.planes = plane;
b.length = 1;
for (n = 0; n < ReqButNum; ++n) {
b.index = n;
ret = ioctl(fimc0_fd, VIDIOC_QUERYBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_REQBUFS: %s\n", ERRSTR))
exit(EXIT_FAILURE);
// debug("fimc0 querybuf:%d,%d\n", b.m.planes[0].length, b.m.planes[0].m.mem_offset);
fimc0_out_buf[n].start = mmap(NULL,
b.m.planes[0].length,
PROT_READ | PROT_WRITE,
MAP_SHARED, fimc0_fd,
b.m.planes[0].m.mem_offset);
// fimc0_out_buf[n].start = fimc0_out[n];
fimc0_out_buf[n].length = b.m.planes[0].length;
if (fimc0_out[n] == MAP_FAILED) {
debug("Failed mmap buffer %d for %d\n", n,
fimc0_fd);
return -1;
}
fimc0_out_buf_length = b.m.planes[0].length;
debug("fimc0 querybuf:0x%08lx,%d,%d\n", fimc0_out_buf[n], fimc0_out_buf_length, b.m.planes[0].m.mem_offset);
// debug("fimc0 output:plane.length:%d\n",fimc0_out_buf_length);
}
#endif
CLEAR(plane);
CLEAR(b);
rb.count = ReqButNum;
rb.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
rb.memory = V4L2_MEMORY_MMAP;
ret = ioctl(fimc0_fd, VIDIOC_REQBUFS, &rb);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_REQBUFS: %s\n", ERRSTR))
return -errno;
for (n = 0; n < ReqButNum; ++n) {
b.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.index = n;
b.m.planes = plane;
b.length = 1;
b.index = n;
ret = ioctl(fimc0_fd, VIDIOC_QUERYBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_QUERYBUF: %s\n", ERRSTR))
return -errno;
fimc0_cap[n] = mmap(NULL,
b.m.planes[0].length,
PROT_READ | PROT_WRITE,
MAP_SHARED, fimc0_fd,
b.m.planes[0].m.mem_offset);
if (fimc0_cap[n] == MAP_FAILED) {
debug("Failed mmap buffer %d for %d\n", n,
fimc0_fd);
return -1;
}
fimc0_cap_buf_length = b.m.planes[0].length;
debug("fimc0 capture:plane.length:%d\n",fimc0_cap_buf_length);
}
debug("%s -\n", __func__);
}
int hdmi_reqbufs()
{
int ret;
int i,j;
struct v4l2_requestbuffers rqbufs;
struct v4l2_plane plane;
struct v4l2_buffer buf;
struct v4l2_format fmt;
rqbufs.count = ReqButNum;
rqbufs.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
rqbufs.memory = V4L2_MEMORY_MMAP;
debug("%s +\n", __func__);
ret = ioctl(hdmi_fd, VIDIOC_REQBUFS, &rqbufs);
BYE_ON(ret < 0, "VIDIOC_REQBUFS failed: %s\n", ERRSTR);
BYE_ON(rqbufs.count < ReqButNum, "failed to get %d buffers\n", ReqButNum);
// ret = ioctl(hdmi_fd, VIDIOC_G_FMT, &fmt);
// BYE_ON(ret < 0, "VIDIOC_G_FMT failed: %s\n", ERRSTR);
/* buffers initalization */
for (i = 0; i < ReqButNum; ++i) {
buf.index = i;
buf.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
buf.memory = V4L2_MEMORY_MMAP;
buf.m.planes = &plane;
buf.length = 1;
/* get buffer properties from a driver */
ret = ioctl(hdmi_fd, VIDIOC_QUERYBUF, &buf);
BYE_ON(ret < 0, "VIDIOC_QUERYBUF for buffer %d failed: %s\n",
buf.index, ERRSTR);
hdmi_buffer[i].index = i;
/* mmap buffer to user space */
hdmi_buffer[i].data = mmap(NULL, plane.length, PROT_READ | PROT_WRITE,
MAP_SHARED, hdmi_fd, plane.m.mem_offset);
BYE_ON(hdmi_buffer[i].data == MAP_FAILED, "mmap failed: %s\n",
ERRSTR);
hdmi_buffer[i].size = plane.length;
hdmi_buffer[i].width = hdmi_width;
hdmi_buffer[i].height = hdmi_height;
/* fill buffer with black */
for (j = 0; 4 * j < hdmi_buffer[i].size; ++j)
((unsigned int *)hdmi_buffer[i].data)[j] = 0xff000000;
}
debug("%s -\n", __func__);
return 0;
}
int cam_setfmt()
{
int err;
int ret;
struct v4l2_fmtdesc fmt;
struct v4l2_capability cap;
struct v4l2_format stream_fmt;
struct v4l2_input input;
struct v4l2_control ctrl;
struct v4l2_streamparm stream;
memset(&fmt,0,sizeof(fmt));
fmt.index = 0;
fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
while((ret = ioctl(cam_fd,VIDIOC_ENUM_FMT,&fmt)) == 0)
{
fmt.index ++ ;
debug("{pixelformat = %c%c%c%c},description = '%s'\n",
fmt.pixelformat & 0xff,(fmt.pixelformat >> 8)&0xff,
(fmt.pixelformat >> 16) & 0xff,(fmt.pixelformat >> 24)&0xff,
fmt.description);
}
ret = ioctl(cam_fd,VIDIOC_QUERYCAP,&cap);
if(ret < 0){
perror("FAIL to ioctl VIDIOC_QUERYCAP");
exit(EXIT_FAILURE);
}
if(!(cap.capabilities & V4L2_CAP_VIDEO_CAPTURE))
{
debug("The Current device is not a video capture device\n");
exit(EXIT_FAILURE);
}
if(!(cap.capabilities & V4L2_CAP_STREAMING))
{
debug("The Current device does not support streaming i/o\n");
exit(EXIT_FAILURE);
}
CLEAR(stream_fmt);
stream_fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
stream_fmt.fmt.pix.width = CapWidth;
stream_fmt.fmt.pix.height = CapHeight;
stream_fmt.fmt.pix.pixelformat = PIXELFMT;
stream_fmt.fmt.pix.field = V4L2_FIELD_INTERLACED;
if(-1 == ioctl(cam_fd,VIDIOC_S_FMT,&stream_fmt))
{
debug("Can't set the fmt\n");
perror("Fail to ioctl\n");
exit(EXIT_FAILURE);
}
debug("VIDIOC_S_FMT successfully\n");
debug("%s: -\n", __func__);
return 0;
}
int hdmi_setfmt()
{
int ret;
/* configure desired image size */
struct v4l2_format fmt;
fmt.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
fmt.fmt.pix.width = hdmi_width;
fmt.fmt.pix.height = hdmi_height;
debug("%s: +\n", __func__);
/* format is hardcoded: draw procedures work only in 32-bit mode */
fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_BGR32;
ret = ioctl(hdmi_fd, VIDIOC_S_FMT, &fmt);
BYE_ON(ret < 0, "VIDIOC_S_FMT failed: %s\n", ERRSTR);
/* update format struct to values adjusted by a driver */
ret = ioctl(hdmi_fd, VIDIOC_G_FMT, &fmt);
BYE_ON(ret < 0, "VIDIOC_G_FMT failed: %s\n", ERRSTR);
/* crop output area on display */
struct v4l2_crop crop;
crop.type = V4L2_BUF_TYPE_VIDEO_OUTPUT;
crop.c.left = 0;
crop.c.top = 0;
crop.c.width = hdmi_width;
crop.c.height = hdmi_height;
ret = ioctl(hdmi_fd, VIDIOC_S_CROP, &crop);
BYE_ON(ret < 0, "VIDIOC_S_CROP failed: %s\n", ERRSTR);
debug("%s: -\n", __func__);
return 0;
}
int cam_setrate()
{
int err;
int ret;
struct v4l2_streamparm stream;
CLEAR(stream);
stream.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
stream.parm.capture.capturemode = 0;
stream.parm.capture.timeperframe.numerator = 1;
stream.parm.capture.timeperframe.denominator = FPS;
err = ioctl(cam_fd, VIDIOC_S_PARM, &stream);
if(err < 0)
debug("FimcV4l2 start: error %d, VIDIOC_S_PARM", err);
return 0;
}
int fimc0_setfmt()
{
int err;
int ret;
struct v4l2_fmtdesc fmt;
struct v4l2_capability cap;
struct v4l2_format stream_fmt;
struct v4l2_input input;
struct v4l2_control ctrl;
struct v4l2_streamparm stream;
debug("%s: +\n", __func__);
CLEAR(stream_fmt);
stream_fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
stream_fmt.fmt.pix.width = CapWidth;
stream_fmt.fmt.pix.height = CapHeight;
stream_fmt.fmt.pix.pixelformat = PIXELFMT;
stream_fmt.fmt.pix.field = V4L2_FIELD_INTERLACED;
/* get format from VIVI */
ret = ioctl(cam_fd, VIDIOC_G_FMT, &stream_fmt);
if (ERR_ON(ret < 0, "vivi: VIDIOC_G_FMT: %s\n", ERRSTR))
return -errno;
dump_format("cam_fd-capture", &stream_fmt);
/* setup format for FIMC 0 */
/* keep copy of format for to-mplane conversion */
struct v4l2_pix_format pix = stream_fmt.fmt.pix;
CLEAR(stream_fmt);
stream_fmt.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
struct v4l2_pix_format_mplane *pix_mp = &stream_fmt.fmt.pix_mp;
pix_mp->width = pix.width;
pix_mp->height = pix.height;
pix_mp->pixelformat = pix.pixelformat;
pix_mp->num_planes = 1;
pix_mp->plane_fmt[0].bytesperline = pix.bytesperline;
dump_format("fimc0-output", &stream_fmt);
ret = ioctl(fimc0_fd, VIDIOC_S_FMT, &stream_fmt);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_S_FMT: %s\n", ERRSTR))
return -errno;
dump_format("fimc0-output", &stream_fmt);
/* set format on fimc0 capture */
stream_fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
/* try cmdline format, or use fimc0-output instead */
struct v4l2_pix_format_mplane *pix_mp_f = &stream_fmt.fmt.pix_mp;
CLEAR(*pix_mp_f);
pix_mp_f->pixelformat = V4L2_PIX_FMT_RGB32;
pix_mp_f->width = hdmi_width;
pix_mp_f->height = hdmi_height;
pix_mp_f->plane_fmt[0].bytesperline = 0;
dump_format("pre-fimc0-capture", &stream_fmt);
ret = ioctl(fimc0_fd, VIDIOC_S_FMT, &stream_fmt);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_S_FMT: %s\n", ERRSTR))
return -errno;
debug("%s -\n", __func__);
}
int init_device()
{
cam_setfmt();
fimc0_setfmt();
hdmi_setfmt();
fimc0_reqbufs();
hdmi_reqbufs();
cam_reqbufs();
cam_setrate();
debug("%s -\n", __func__);
}
int hdmi_streamon()
{
enum v4l2_buf_type type;
int ret;
int i;
for(i = 0; i < ReqButNum; i++)
hdmi_qbuf(i);
type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
ret = ioctl(hdmi_fd, VIDIOC_STREAMON, &type);
BYE_ON(ret, "VIDIOC_STREAMON failed: %s\n", ERRSTR);
return 0;
}
int hdmi_streamoff()
{
enum v4l2_buf_type type;
int ret;
int i;
type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
ret = ioctl(hdmi_fd, VIDIOC_STREAMOFF, &type);
BYE_ON(ret, "VIDIOC_STREAMON failed: %s\n", ERRSTR);
return 0;
}
int start_capturing()
{
unsigned int i;
enum v4l2_buf_type type;
int ret;
struct v4l2_buffer b;
struct v4l2_plane plane;
debug("%s +\n", __func__);
for(i = 0;i < n_buffer;i ++)
{
struct v4l2_buffer buf;
CLEAR(buf);
buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
buf.memory = V4L2_MEMORY_USERPTR;
buf.index = i;
buf.m.userptr = (unsigned long)buffers[i].start;
buf.length = buffers[i].length;
debug("cam qbuf:%d,userptr:0x%08x,length:%d\n",i, buf.m.userptr, buf.length);
if(-1 == ioctl(cam_fd,VIDIOC_QBUF,&buf))
{
perror("cam Fail to ioctl 'VIDIOC_QBUF'");
exit(EXIT_FAILURE);
}
}
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.index = 0;
b.m.planes = &plane;
b.length = 1;
for(i = 0;i < n_buffer;i ++)
{
b.index = i;
ret = ioctl(fimc0_fd, VIDIOC_QBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_QBUF: %s\n", ERRSTR))
return -errno;
}
type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
if(-1 == ioctl(cam_fd,VIDIOC_STREAMON,&type))
{
debug("i = %d.\n",i);
perror("cam_fd Fail to ioctl 'VIDIOC_STREAMON'");
exit(EXIT_FAILURE);
}
/* start processing */
type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
ret = ioctl(fimc0_fd, VIDIOC_STREAMON, &type);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_STREAMON: %s\n", ERRSTR))
return -errno;
/*
type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
ret = ioctl(fimc0_fd, VIDIOC_STREAMON, &type);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_STREAMON: %s\n", ERRSTR))
return -errno;
*/
type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
ret = ioctl(fimc0_fd, VIDIOC_STREAMON, &type);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_STREAMON: %s\n", ERRSTR))
return -errno;
debug("%s -\n", __func__);
hdmi_streamon();
return 0;
}
int cam_cap_dbuf(int *index)
{
unsigned int i;
enum v4l2_buf_type type;
int ret;
struct v4l2_buffer buf;
bzero(&buf,sizeof(buf));
buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
buf.memory = V4L2_MEMORY_USERPTR;
if(-1 == ioctl(cam_fd,VIDIOC_DQBUF,&buf))
{
perror("Fail to ioctl 'VIDIOC_DQBUF'");
exit(EXIT_FAILURE);
}
buffers[buf.index].bytesused = buf.bytesused;
*index = buf.index;
// debug("%s -\n", __func__);
return 0;
}
int cam_cap_qbuf(int index)
{
struct v4l2_buffer buf;
bzero(&buf,sizeof(buf));
buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
buf.memory = V4L2_MEMORY_USERPTR;
buf.index = index;
buf.m.userptr = (unsigned long)buffers[index].start;
buf.length = buffers[index].length;
// debug("cam qbuf:%d,userptr:0x%08x,length:%d\n",i, buf.m.userptr, buf.length);
if(-1 == ioctl(cam_fd,VIDIOC_QBUF,&buf))
{
perror("cam Fail to ioctl 'VIDIOC_QBUF'");
exit(EXIT_FAILURE);
}
// debug("%s -\n", __func__);
return 0;
}
int process_image(void *addr,int length);
int fimc0_out_qbuf(int index)
{
unsigned int i;
enum v4l2_buf_type type;
int ret;
struct v4l2_buffer b, buf;
struct v4l2_plane plane[3];
/* enqueue buffer to fimc0 output */
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.index = index;
b.m.planes = plane;
b.length = 1;
if(b.memory == V4L2_MEMORY_USERPTR)
{
plane[0].m.userptr = (unsigned long)fimc0_out_buf[index].start;
plane[0].length = (unsigned long)fimc0_out_buf[index].length;
plane[0].bytesused = fimc0_out_buf[index].length;
}
else
{
memcpy(fimc0_out_buf[index].start, buffers[index].start, buffers[index].length);
}
// debug("fimc0_out_buf:0x%08lx,length:%d,byteused:%d\n",fimc0_out_buf[index].start, fimc0_out_buf[index].length, fimc0_out_buf[index].bytesused);
//process_image(fimc0_out_buf[index].start,0);
ret = ioctl(fimc0_fd, VIDIOC_QBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_QBUF: %s\n", ERRSTR))
return -errno;
// debug("%s -\n", __func__);
}
int fimc0_out_dbuf(int *index)
{
unsigned int i;
enum v4l2_buf_type type;
int ret;
struct v4l2_buffer b, buf;
struct v4l2_plane plane[3];
/* enqueue buffer to fimc0 output */
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
// b.index = index;
b.m.planes = plane;
b.length = 1;
// plane[0].m.userptr = (unsigned long)fimc0_out_buf[index].start;
// plane[0].length = (unsigned long)fimc0_out_buf[index].length;
// planes[0].bytesused = fimc0_out_buf[buf.index].length;
ret = ioctl(fimc0_fd, VIDIOC_DQBUF, &b);
*index = b.index;
if (ERR_ON(ret < 0, "fimc0: VIDIOC_DQBUF: %s\n", ERRSTR))
return -errno;
}
int fimc0_cap_dbuf(int *index)
{
unsigned int i,j;
enum v4l2_buf_type type;
int ret;
struct v4l2_buffer b, buf;
struct v4l2_plane plane[3];
static int count = 0;
/* enqueue buffer to fimc0 output */
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
// b.index = index;
b.m.planes = plane;
b.length = 1;
ret = ioctl(fimc0_fd, VIDIOC_DQBUF, &b);
*index = b.index;
if (ERR_ON(ret < 0, "fimc0: VIDIOC_DQBUF: %s\n", ERRSTR))
return -errno;
fimc0_cap_index = b.index;
count ++;
// memcpy((void *)temp_buf, (void *)fimc0_cap[b.index], 800*480*4);
if(hdmi_index != 16)
{
unsigned int tmp;
unsigned int *s;
unsigned int *d;
s = (unsigned int *)fimc0_cap[b.index];
d = (unsigned int *)hdmi_buffer[hdmi_index].data;
//memcpy((void *)hdmi_buffer[hdmi_index].data, (void *)fimc0_cap[b.index], hdmi_width*hdmi_height*4);
j = hdmi_width*hdmi_height;
while(j--)
*d++ = 0xff000000 | *s++;
sem_post(&lcd_sem);
}
// debug("%s,%d\n",__func__, count);
return 0;
}
int fimc0_cap_qbuf(int index)
{
// int *pdata = (int *)addr;
int ret;
struct v4l2_buffer b;
struct v4l2_plane plane;
static unsigned int count = 0;
//sleep(0);
// debug("%s +\n", __func__);
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.m.planes = &plane;
b.length = 1;
b.index = index;
ret = ioctl(fimc0_fd, VIDIOC_QBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_QBUF: %s\n", ERRSTR))
return -errno;
// debug("%s -\n", __func__);
}
int hdmi_qbuf(int index)
{
struct v4l2_buffer buf;
struct v4l2_plane plane;
debug("queue +\n");
memset(&buf, 0, sizeof(buf));
memset(&plane, 0, sizeof(plane));
buf.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
buf.index = index;
buf.memory = V4L2_MEMORY_MMAP;
buf.m.planes = &plane;
buf.length = 1;
int ret;
ret = ioctl(hdmi_fd, VIDIOC_QBUF, &buf);
BYE_ON(ret, "VIDIOC_QBUF(index = %d) failed: %s\n",
index, ERRSTR);
//sem_post(&lcd_sem);
return 0;
}
int hdmi_dbuf(int *index)
{
int ret;
struct v4l2_buffer buf;
struct v4l2_plane plane;
debug("dequeue +\n");
memset(&buf, 0, sizeof(buf));
buf.type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
buf.memory = V4L2_MEMORY_MMAP;
buf.m.planes = &plane;
buf.length = 1;
ret = ioctl(hdmi_fd, VIDIOC_DQBUF, &buf);
BYE_ON(ret, "VIDIOC_DQBUF failed: %s\n", ERRSTR);
*index = buf.index;
return 0;
}
void process_cam_to_fimc0()
{
int index;
// debug("%s +\n", __func__);
cam_cap_dbuf(&index);
fimc0_out_qbuf(index);
// debug("%s -,index:%d\n",__func__, index);
}
void process_fimc0_to_cam()
{
int index;
// debug("%s +\n", __func__);
fimc0_out_dbuf(&index);
cam_cap_qbuf(index);
// debug("%s -,index:%d\n",__func__, index);
}
int process_fimc0_capture()
{
// int *pdata = (int *)addr;
int ret;
struct v4l2_buffer b;
struct v4l2_plane plane;
static unsigned int count = 0;
//sleep(0);
// debug("%s +\n", __func__);
CLEAR(plane);
CLEAR(b);
b.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
b.memory = V4L2_MEMORY_MMAP;
b.m.planes = &plane;
b.length = 1;
/* grab processed buffers */
ret = ioctl(fimc0_fd, VIDIOC_DQBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_DQBUF: %s\n", ERRSTR))
return -errno;
count ++;
debug("%s,%d\n",__func__, count);
ret = ioctl(fimc0_fd, VIDIOC_QBUF, &b);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_QBUF: %s\n", ERRSTR))
return -errno;
// debug("%s -\n", __func__);
//memcpy(fb_buf, fimc_out, 640)
}
void process_fimc0_to_hdmi()
{
int index;
//static int count = 0;
debug("%s +\n", __func__);
fimc0_cap_dbuf(&index);
hdmi_qbuf(index);
//usleep(1000);
//if(count == 1)
//hdmi_streamon();
//count ++;
debug("%s -,index:%d\n",__func__, index);
}
void process_hdmi_to_fimc0()
{
int index;
debug("%s +\n", __func__);
hdmi_dbuf(&index);
fimc0_cap_qbuf(index);
debug("%s -,index:%d\n",__func__, index);
}
int mainloop(int cam_fd)
{
int count = 1;//CapNum;
clock_t startTime, finishTime;
double selectTime, frameTime;
struct pollfd fds[3];
int nfds = 0;
while(count++ > 0)
{
{
struct timeval tv;
int r;
struct timeval start;
struct timeval end;
int time_use=0;
gettimeofday(&start,NULL);
fds[0].events |= POLLIN | POLLPRI;
fds[0].fd = cam_fd;
fds[1].events |= POLLIN | POLLPRI | POLLOUT;
fds[1].fd = fimc0_fd;
//++nfds;
fds[2].events |= POLLIN | POLLPRI | POLLOUT;
fds[2].fd = hdmi_fd;
r = poll(fds, 2, -1);
if(-1 == r)
{
if(EINTR == errno)
continue;
perror("Fail to select");
exit(EXIT_FAILURE);
}
if(0 == r)
{
fprintf(stderr,"select Timeout\n");
exit(EXIT_FAILURE);
}
if (fds[0].revents & POLLIN)
{
process_cam_to_fimc0();
gettimeofday(&end,NULL);
time_use=(end.tv_sec-start.tv_sec)*1000000+(end.tv_usec-start.tv_usec);
// debug("time_use is %dms\n",time_use/1000);
}
if (fds[1].revents & POLLIN)
{
// debug("fimc0 has data to read\n");
int index;
fimc0_cap_dbuf(&index);
sem_wait(&fimc0_sem);
fimc0_cap_qbuf(index);
}
if (fds[1].revents & POLLOUT)
{
process_fimc0_to_cam();
}
if (fds[2].revents & (POLLIN | POLLPRI | POLLOUT))
{
debug("hdmi has data to read\n");
// fimc0_cap_qbuf(fimc0_cap_index);
}
if (fds[2].revents & POLLOUT)
{
//process_hdmi_to_fimc0();
debug("hdmi has data to write\n");
}
usleep(100000);
}
}
return 0;
}
void cam_streamoff()
{
enum v4l2_buf_type type;
type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
if(-1 == ioctl(cam_fd,VIDIOC_STREAMOFF,&type))
{
perror("Fail to ioctl 'VIDIOC_STREAMOFF'");
exit(EXIT_FAILURE);
}
return;
}
int fimc0_streamoff()
{
enum v4l2_buf_type type;
int ret;
/* start processing */
type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
ret = ioctl(fimc0_fd, VIDIOC_STREAMOFF, &type);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_STREAMON: %s\n", ERRSTR))
return -errno;
type = V4L2_BUF_TYPE_VIDEO_OUTPUT_MPLANE;
ret = ioctl(fimc0_fd, VIDIOC_STREAMOFF, &type);
if (ERR_ON(ret < 0, "fimc0: VIDIOC_STREAMON: %s\n", ERRSTR))
return -errno;
return;
}
void unmap_camer_device()
{
unsigned int i;
for(i = 0;i < n_buffer;i ++)
{
if(-1 == munmap(buffers[i].start, buffers[i].length))
{
exit(EXIT_FAILURE);
}
}
if (-1 == munmap(fb_buf, lcd_buf_size))
{
perror(" Error: framebuffer device munmap() failed.\n");
exit (EXIT_FAILURE) ;
}
free(buffers);
free(fb_buf);
return;
}
void unmap_fimc0_device()
{
unsigned int i;
for(i = 0;i < n_buffer;i ++)
{
if(-1 == munmap(fimc0_out_buf[i].start, fimc0_out_buf[i].length))
{
exit(EXIT_FAILURE);
}
}
free(fimc0_out_buf);
return;
}
void unmap_hdmi_device()
{
unsigned int i;
for(i = 0;i < ReqButNum;i ++)
{
if(-1 == munmap(hdmi_buffer[i].data, hdmi_buffer[i].size))
{
exit(EXIT_FAILURE);
}
}
// free(hdmi_buffer);
return;
}
void close_camer_device()
{
if(-1 == close(lcd_fd))
{
perror("Fail to close lcd_fd");
exit(EXIT_FAILURE);
}
if(-1 == close(cam_fd))
{
perror("Fail to close cam_fd");
exit(EXIT_FAILURE);
}
if(-1 == close(hdmi_fd))
{
perror("Fail to close hdmi_fd");
exit(EXIT_FAILURE);
}
return;
}
static void *cam_thread(void *pVoid)
{
mainloop(cam_fd);
}
static void *display_thread(void *pVoid)
{
static unsigned int count = 0;
debug("display_thread start\n");
int num = 800*480*4;
while(1)
{
hdmi_dbuf(&hdmi_index);
// debug("display_thread:%d\n", hdmi_index);
sem_wait(&lcd_sem);
hdmi_qbuf(hdmi_index);
hdmi_index = 16;
sem_post(&fimc0_sem);
count ++;
}
}
int main()
{
sem_init(&lcd_sem, 0, 0);
sem_init(&hdmi_sem, 0, 0);
sem_init(&fimc0_sem, 0, 0);
temp_buf =(char *)malloc(800*480*4);
open_lcd_device();
open_camera_device();
open_hdmi_device();
init_device();
start_capturing();
pthread_create(&capture_tid,NULL,cam_thread,(void *)NULL);
pthread_create(&display_tid,NULL,display_thread,(void *)NULL);
while('q' != getchar())
// while(1)
{
sleep(1);
}
pthread_cancel(display_tid);
pthread_cancel(capture_tid);
sleep(1);
hdmi_streamoff();
fimc0_streamoff();
cam_streamoff();
unmap_camer_device();
unmap_fimc0_device();
unmap_hdmi_device();
close_camer_device();
return 0;
}
1、hdmi 重启，死机，每次系统开机，只能启动一次
2、copy太频繁，虽然是硬件处理，但是cpu占用率仍然太高
3、usb有时候会重置，导致usb camera 重置，程序退出
解决方案：
1、HDMI时钟问题，关闭后，重新打开会导致系统时钟出问题，解决方法是，退出hdmi时，不关闭hdmi的时钟，下次能够正常使用；
2、避免使用用户空间分配的不连续物理内存，尽量使用CMA；
3、配置LCD的gpio，如果不配置会导致usb不稳定，用替换法，驱动一个一个排除证明的，不知其原因。
4777
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
