题目:
Design and implement a data structure for Least Frequently Used (LFU) cache. It should support the following operations: get
and put
.
get(key)
- Get the value (will always be positive) of the key if the key exists in the cache, otherwise return -1.put(key, value)
- Set or insert the value if the key is not already present. When the cache reaches its capacity, it should invalidate the least frequently used item before inserting a new item. For the purpose of this problem, when there is a tie (i.e., two or more keys that have the same frequency), the least recently used key would be evicted.
Note that the number of times an item is used is the number of calls to the get
and put
functions for that item since it was inserted. This number is set to zero when the item is removed.
思路:
LFU (Least Frequently Used) 基于访问频率的缓存策略
按每个缓存块的被访问频率将缓存中的各块排序,当缓存空间已满时,替换掉缓存队列中访问频率最低的一项。
1)队列中的数据被访问时,引用计数增加,队列重新排序;
2)插入数据时,如果数据在队列中已经存在,更新数据的值,引用计数增加;如果是新数据,当队列容量不满时,直接插入,引用计数为0,队列容量满时,需要淘汰一个数据,将已经排序的列表最后的数据块(引用计数最小的)删除。

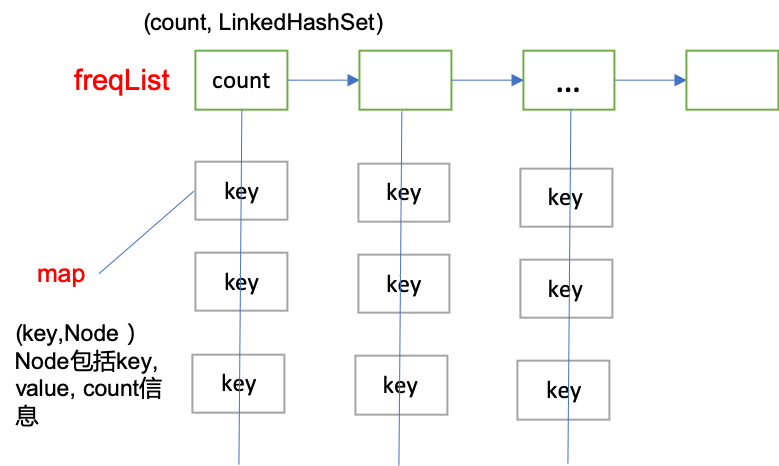

数据结构设计:
两个HashMap: freqList和map,
freqList用来存储每个引用计数count和key集合的映射,map用来存储每个key与value/count的映射
源码:
import java.util.HashMap;
import java.util.LinkedHashSet;
public class LFUCache {
private class Node{
public int key;
public int value;
public int count;
public Node(int key, int value, int count){
this.key = key;
this.value = value;
this.count = count;
}
}
private int capacity;
//k: key, v: Node
private HashMap<Integer, Node> cache;
//k: count frequency, v: key of Node
private HashMap<Integer, LinkedHashSet<Integer>> freqList;
//min: flag to record the least frequency
private int min = -1;
public LFUCache(int capacity) {
this.capacity = capacity;
this.cache = new HashMap();
this.freqList = new HashMap();
this.freqList.put(0, new LinkedHashSet<>());
this.min = -1;
}
public int get(int key) {
if(this.cache.containsKey(key)){
System.out.println("has key:" + key);
Node node = this.cache.get(key);
node.count++;
this.cache.put(key, node);
//update the node in freq list
this.freqList.get(node.count-1).remove(key);
if(!this.freqList.containsKey(node.count)){
LinkedHashSet set = new LinkedHashSet();
set.add(key);
this.freqList.put(node.count,set);
}else{
this.freqList.get(node.count).add(key);
}
//update min
if(min == node.count-1 && freqList.get(min).isEmpty()){
min = node.count;
}
return node.value;
}
return -1;
}
public void put(int key, int value) {
if(this.capacity == 0)
return;
//existing key
if(this.cache.containsKey(key)){
Node node = this.cache.get(key);
node.value = value;
this.cache.put(key, node);
get(key);
return;
}
//cache is full, remove one
if(this.cache.size() == this.capacity){
//remove the least frequently
//least recently used key when more than one
int evict = this.freqList.get(min).iterator().next();
System.out.println("evict" + evict);
System.out.println("min" + min);
cache.remove(evict);
this.freqList.get(min).remove(evict);
}
//add new key
Node node = new Node(key, value, 0);
this.cache.put(key, node);
//update the node in freq list
this.freqList.get(0).add(key);
min = 0;
}
}
