webviz

webviz安装,docker安装可正常使用

换源加速

更换npm源为淘宝的源

npm config set registry https://registry.npm.taobao.org

在 ~/.bashrc 中添加下列语句

export NVM_NODEJS_ORG_MIRROR=https://npm.taobao.org/mirrors/node

Webviz项目暂时仅支持 node10 和 node11,高版本的 node 会出现编译错误。

查看可安装的node版本

nvm ls-remote

安装指定版本的node

nvm install 10.19.0

查看当前的node版本

nvm current

查看已安装的node版本

nvm list

选择需要的node版本

nvm use 10.19.0

检查是否配置成功

npm config get registry

克隆代码

git clone https://github.com/cruise-automation/webviz.git
cd webviz/

手动安装node-sass

npm config set sass_binary_site https://npm.taobao.org/mirrors/node-sass/
npm install node-sass
npm run bootstrap

执行脚本安装项目依赖

npm run bootstrap

编译项目

npm run build

使用Webviz

运行rosbridge_websocket

roslaunch rosbridge_server rosbridge_websocket.launch

在webviz根目录执行启动

npm run docs

npm install node-sass 报错:

TypeError: Object.fromEntries is not a function
​
at Object.<anonymous> (/home/sukai/workspace/workspace_ros_car_noetic/webviz/node_modules/@npmcli/fs/lib/fs.js:6:23)
​
at Module._compile (internal/modules/cjs/loader.js:778:30)
​
at Object.Module._extensions..js (internal/modules/cjs/loader.js:789:10)
​
at Module.load (internal/modules/cjs/loader.js:653:32)
​
at tryModuleLoad (internal/modules/cjs/loader.js:593:12)
​
at Function.Module._load (internal/modules/cjs/loader.js:585:3)
​
at Module.require (internal/modules/cjs/loader.js:692:17)
​
at require (internal/modules/cjs/helpers.js:25:18)
​
at Object.<anonymous> (/home/sukai/workspace/workspace_ros_car_noetic/webviz/node_modules/@npmcli/fs/lib/index.js:2:6)
​
at Module._compile (internal/modules/cjs/loader.js:778:30)

解决办法:

先清依赖残留,否则安装不上

npm rebuild node-sass
​
npm uninstall node-sass

安装 4.14的

npm install node-sass@4.14

npm run bootstrap 报错:

lerna ERR! npm install --global-style --legacy-peer-deps exited 1 in 'webviz-core'
​
lerna ERR! npm install --global-style --legacy-peer-deps stderr:
​
npm WARN read-shrinkwrap This version of npm is compatible with lockfileVersion@1, but package-lock.json was generated for lockfileVersion@2. I'll try to do my best with it!
​
npm WARN tar ENOENT: no such file or directory, open '/home/sukai/workspace/workspace_ros_car_noetic/webviz/packages/webviz-core/node_modules/.staging/prettier-e8261b17/parser-angular.js'
​
npm WARN @cruise-automation/button@0.0.7 requires a peer of react@16.x but none is installed. You must install peer dependencies yourself.
​
【***】 npm WARN styled-components@3.4.10 requires a peer of react@>= 0.14.0 < 17.0.0-0 but none is installed. You must install peer dependencies yourself.
​
npm WARN webviz-core@0.0.1 No repository field.
​
npm ERR! Error while executing:
​
npm ERR! /usr/bin/git ls-remote -h -t ssh://git@github.com/davidswinegar/react-document-events.git
​
npm ERR!
​
npm ERR! git@github.com: Permission denied (publickey).

解决:

  npm install react@16.10.2 --save

npm run bootstrap 其它各种依赖报错:

例子:

npm ERR! /usr/bin/git ls-remote -h -t ssh://git@github.com/davidswinegar/Chart.js.git
​
npm ERR!
​
npm ERR! git@github.com: Permission denied (publickey).
​
npm ERR! fatal: 无法读取远程仓库。
​
npm ERR!
​
npm ERR! 请确认您有正确的访问权限并且仓库存在。
​
npm ERR!
​
npm ERR! exited with error code: 128
​
npm ERR! A complete log of this run can be found in:
​
npm ERR! /home/sukai/.npm/_logs/2023-01-11T02_25_33_601Z-debug.log

解决:

暂时没法解决!

尝试:

webviz/packages/webviz-core

gedit package-lock.json 把

搜索 git+ssh://git@github.com 替换:GitHub: Let’s build from here · GitHub但是还是没能解决问题

docer安装Webviz

后来我用了docer成功使用:

一.准备Webviz的镜像

docker pull cruise/webviz

运行拉下的容器 8080端口太常用了容易冲突我们用7070映射8080

docker run -p 7070:8080 cruise/webviz
​
http://127.0.0.1:7070/

本机的 ip地址:192.168.8.35



浏览器: http://192.168.8.35:7070

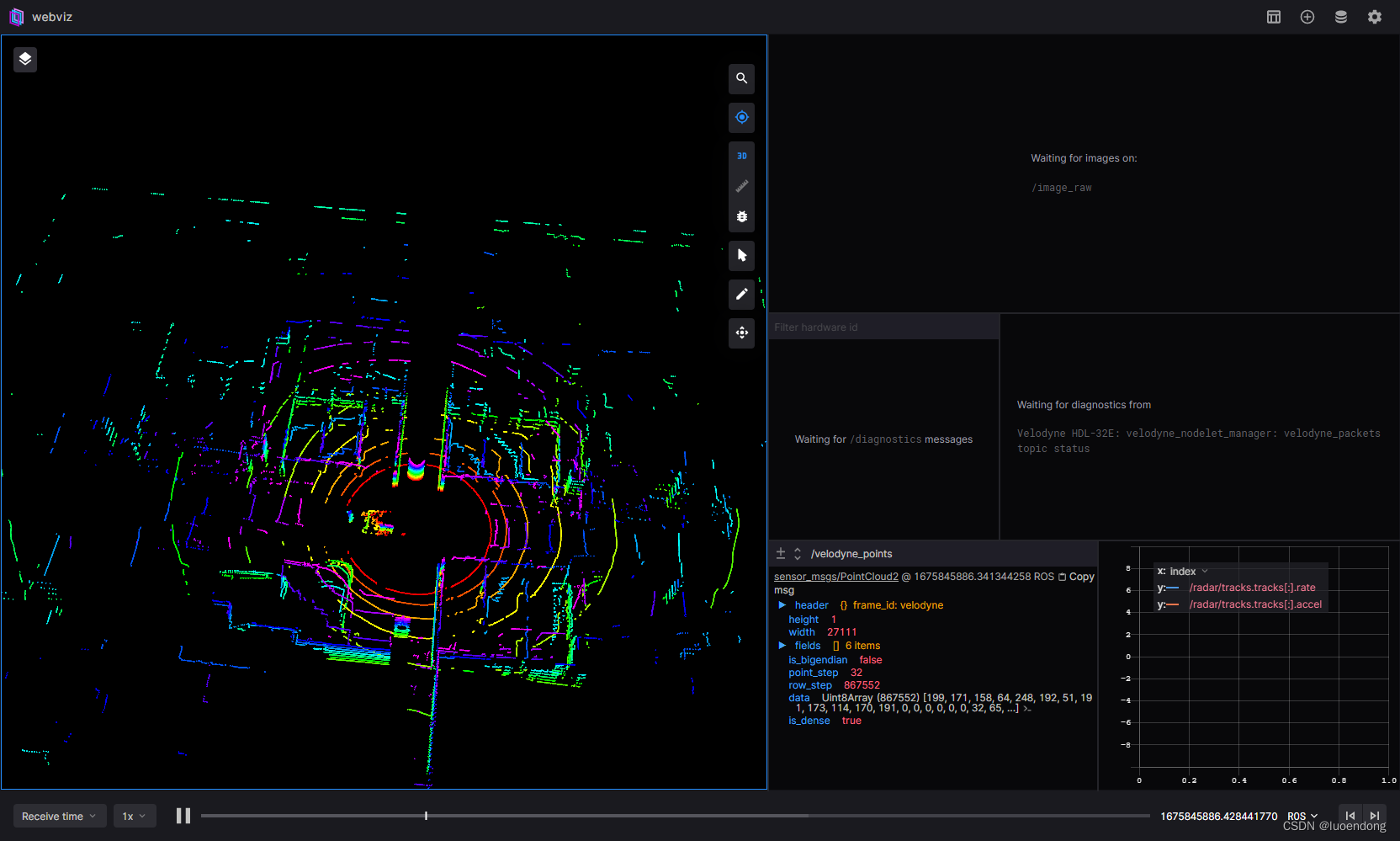

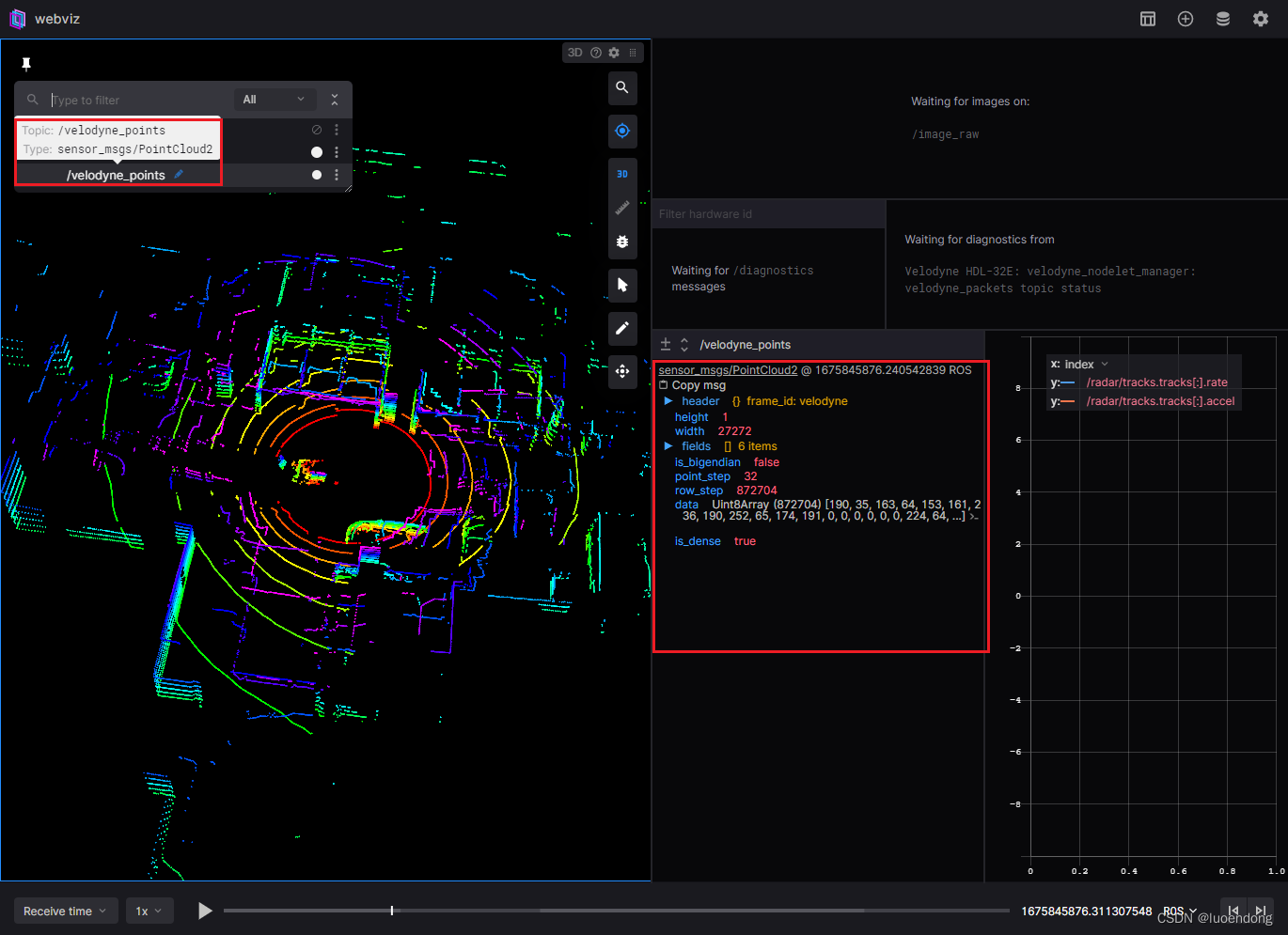

启动 本机 192.168.8.35 仿真环境:

安装 Rosbridge

Rosbridge 依赖于 ROS 的基本安装。查看ROS 安装指南以在您的机器上安装 ROS。

安装 ROS 后,您可以从 .deb 包安装 Rosbridge:

sudo apt-get install ros-<rosdistro>-rosbridge-suite

这将安装开始所需的 rosbridge 软件包套件。

运行 Rosbridge

安装 ROS 和 rosbridge 后,您需要确保您的系统能够识别这些包。为 ROS 和 rosbridge 设置环境:

source /opt/ros/<rosdistro>/setup.bash

剩下的就是运行 rosbridge。要启动 rosbridge 及其软件包,如 rosbridge_server 和 rosapi,安装中包含一个启动文件。要启动该文件,请运行:

roslaunch rosbridge_server rosbridge_websocket.launch

默认情况下,这将运行 rosbridge 并在端口 9090 上创建一个WebSocket 。

您可以通过在 ROS 中设置~/port参数来配置端口。将在端口 8080 上运行 rosbridge 的示例启动文件如下所示:

<launch>
  <include file="$(find rosbridge_server)/launch/rosbridge_websocket.launch" >
     <arg name="port" value="8080"/>
  </include>
</launch>
Talking to Rosbridge

现在 rosbridge 已经启动并且WebSocket连接可用,我们可以创建一个基本的 HTML 网页来发送和接收对 rosbridge 的调用。Roslibjs是一个为您处理通信的JavaScript库。查看roslibjs 入门教程以使用 roslibjs 和 rosbridge 创建网页。

但是雷达点显示不出来报错:

/scan missing transforms to root frame map from frames

要改源码就不能用docker ,现在docker进不了终端;

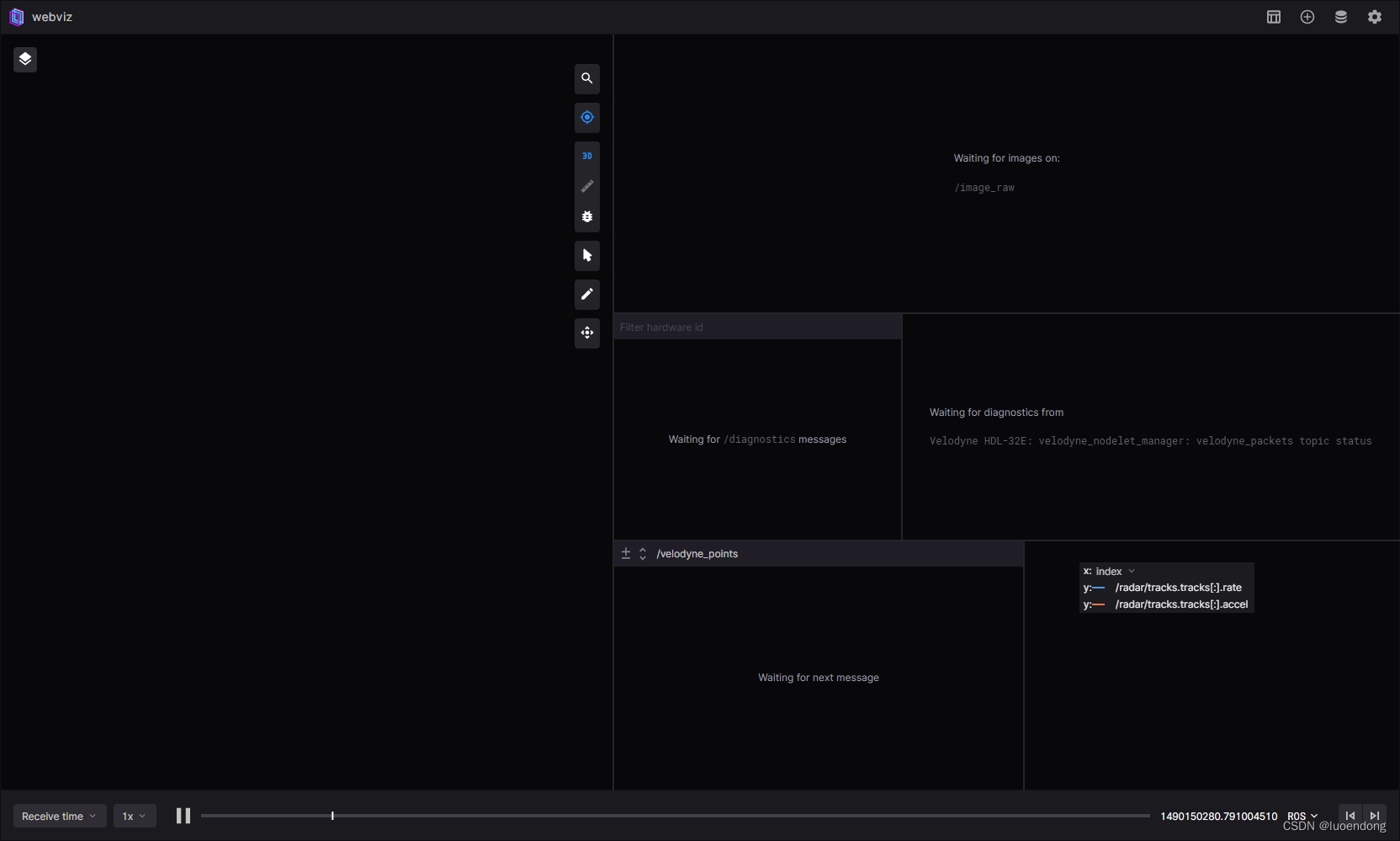

加载速度缓慢

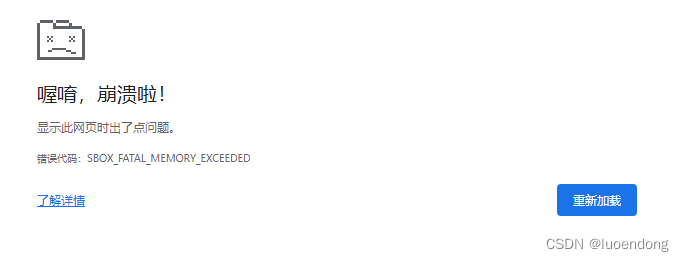

运行时间过长,会导致网页崩溃



地下室建图(bag包)不是实时的





foxglove

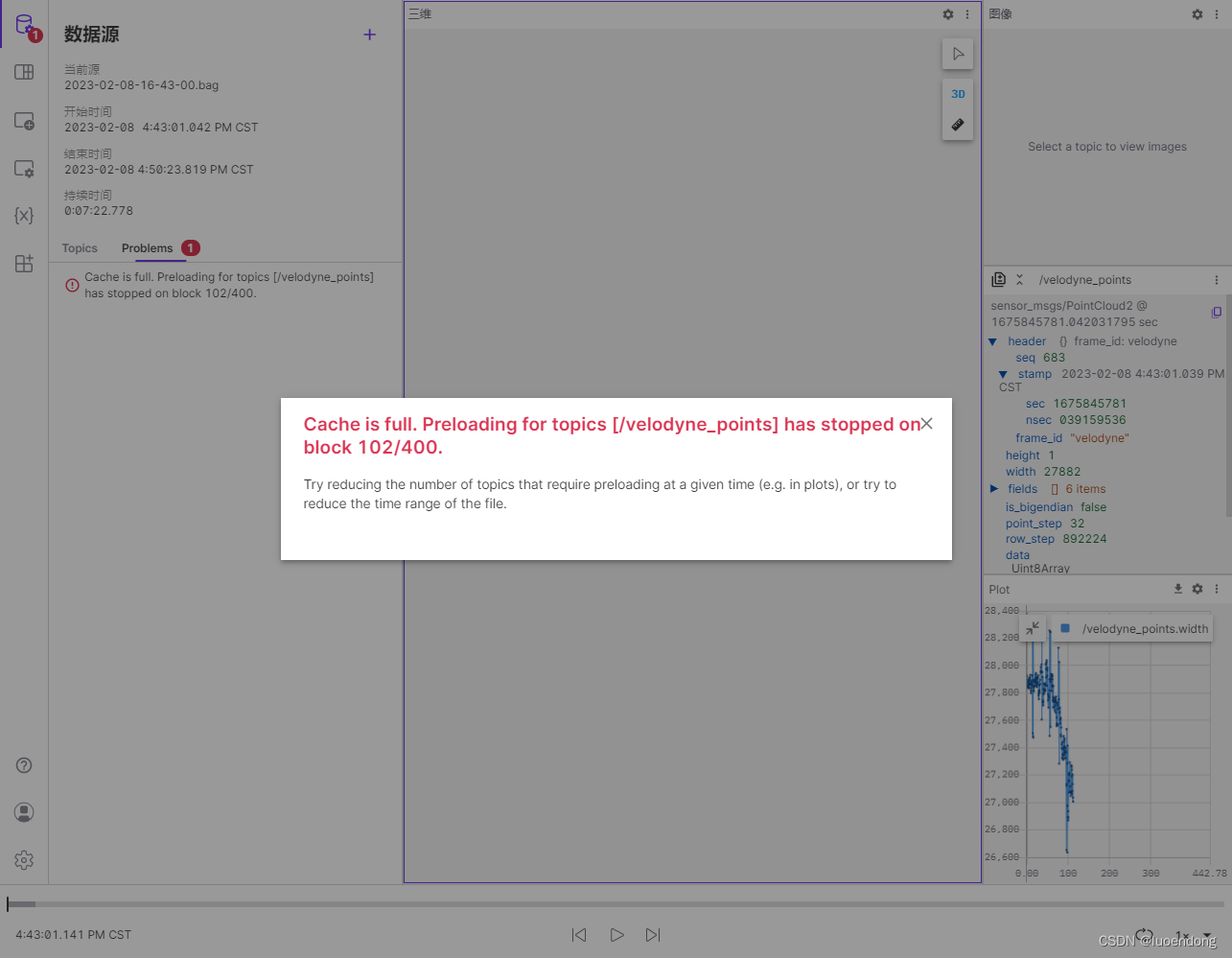

缓存已满。topic的预加载已在块上停止
